Kraus KCV-120 User manual

www.kraususa.com I Toll Free: 1.800.775.0703 I © 2018 Kraus USA Inc. I REV. January 8, 2021
Ceramic Bathroom Vessel Sinks
KCV-120 / KCV-121 / KCV-122 / KCV-125 /
KCV-126 / KCV-127 KCV-135 / KCV-140 /
KCV-141 / KCV-142 / KCV-150 / KCV-341
R
INSTALLATION MANUAL

2
Congratulations on the purchase of your new
Kraus plumbing fixture!
Please keep the box and packaging materials until your product is
completely installed. If you have any questions, require technical
assistance or have any problems with your product:
Please contact our Customer Service Team
1-800-775-0703 / [email protected]
Have the model number available and retain a copy of your
receipt with purchase date for reference.
If for any reason this product does not meet your expectations,
please be sure to repack this product in the original box and
packaging material to avoid damage during transit.
DO NOT RETURN TO STORE
STOP

Prior to Installation:
·Make sure that you have all necessary parts by checking the parts list. If any part is
missing or damaged, please contact Kraus Customer Service at 800-775-0703 for a
replacement.
·Inspect the sink prior to installation to make sure that it has not been cracked or
chipped during shipping.
·Observe all plumbing and building codes according to your state requirements
·Additional floor and wall preparation may be required to avoid damaging the sink
WARNING: This product is fragile and can break, chip or cause injury if handled
recklessly. Please consult with a professional when installing.
3
For technical assistance or replacement parts, please contact Kraus
Customer Service and one of our representatives will be happy to help:
Toll-Free: 800-775-0703 or [email protected]
The step-by-step guidelines in the installation instructions are a general reference for
installing a Kraus Sink. Should there be any discrepancies, Kraus cannot be held liable. It
is recommended to install all Kraus products by hiring a licensed professional.

Tools you will need
4
KCV-120
15 1/4 " x 15 1/4 " x 5 1/2"
Safety Goggles Drill Silicone Adhesive
4" Hole Saw
Pencil Tape Measure

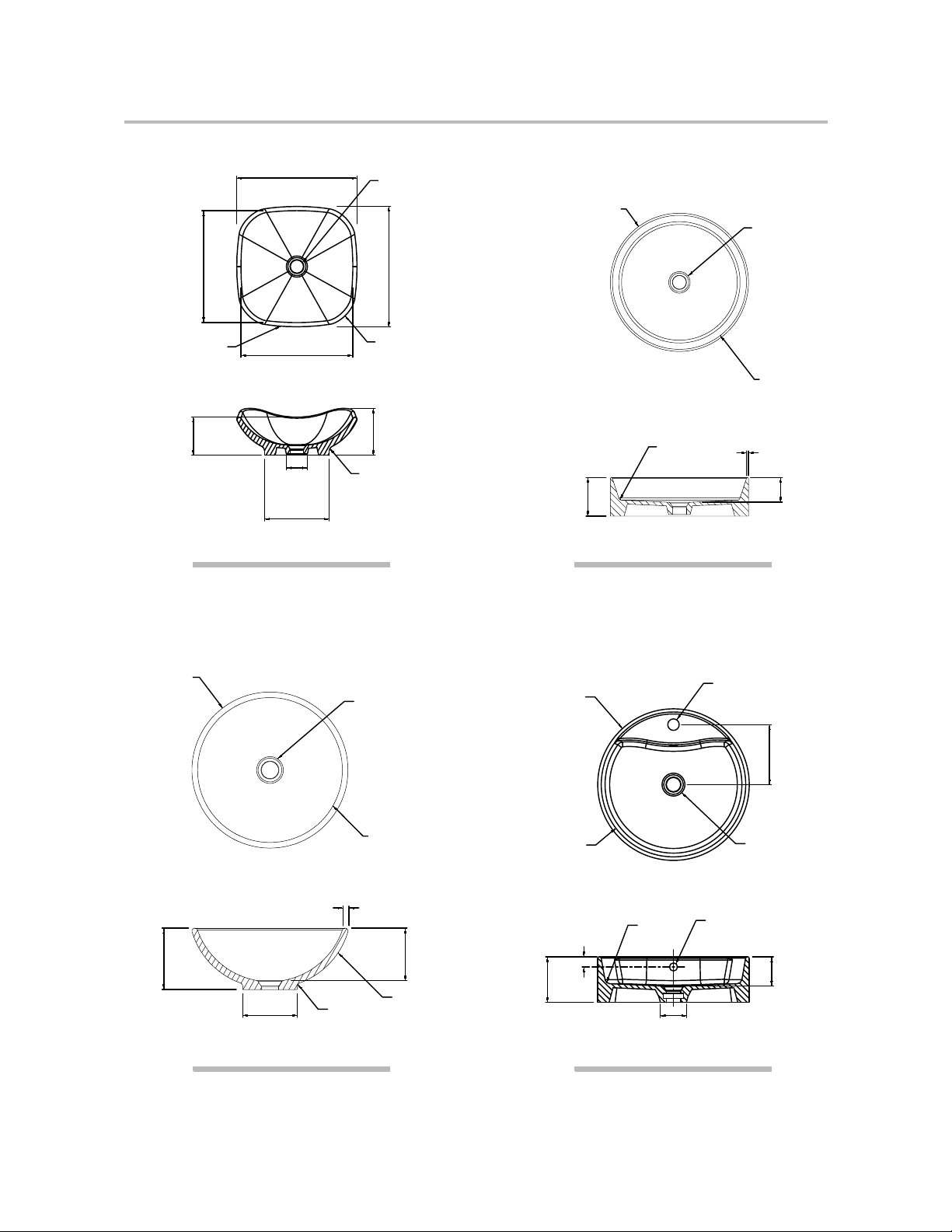

Dimensions
KCV-121
19 1/4" x 15 1/4" x 5 3/8"
5 1/2"
(140mm)
15 1/4" (386mm)
4 3/8"
(110mm)
1 5/8"
(40mm) Ø2 3/4"
(70mm)
15 1/4" (386mm)
R 3/4"
(20mm)
14" (356mm)
14" (356mm)
R 5/8"
(15mm)
Ø1 3/4"
(45mm)
5 3/8"
(135mm)
19 1/4" (488mm)
1 3/4"
(45mm)
15 1/4" (386mm)
Ø2 3/4"
(70mm)
4 3/8"
(110mm)
R 1 5/8"
(40mm)
14" (356mm)
18" (458mm)
Ø1 3/4"
(45mm)
R 5/8"
(15mm)

5
Dimensions
KCV-122
19 3/8" x 11 3/4" x 5 1/8"
KCV-125
16 3/4" x 16 3/4" x 4 1/2"
5 1/8"
(130mm)
19 3/8" (493mm)
11 3/4" (300mm)
3/8"
(10mm)
Ø2 3/4"
(70mm)
18 5/8" (473mm)
11" (280mm)
3 3/4"
(95mm)
R2 3/8"
(60mm)
16 3/4" (427mm)
16 3/4" (427mm)
4 1/2"
(114mm)
11 3/8"
(290mm)
R 5/8"
(15mm)
3/4"
(20mm)
3 1/2"
(90mm)
10"
(255mm)
15 1/4" (387mm)
15 1/4" (387mm)
Ø1 3/4"
(45mm)
Ø1 3/4"
(45mm)
Ø1 3/4"
(45mm)
16 1/2" (420mm)
16 1/2" (420mm)
5 1/2"
(140mm)
4 1/4"
(109mm)
15 1/4" (388mm)
15 1/4" (388mm)
12" (388mm)
KCV-126
16 1/2" x 16 1/2" x 5 1/2"
16 1/2" (420mm)
18 1/8" (460mm)
5 1/2"
(140mm)
R 3 1/4"
(83.6mm)
typ.
4" (101mm)
Ø1 3/4"
(45mm)
16 7/8" (430mm)
15 3/8" (390mm)
KCV-127
18 1/8" x 16 1/2" x 5 1/2"

6
KCV-135
15 3/4 " x 15 3/4 " x 6 1/8"
KCV-140
Ø17 3/4" x 5"
Dimensions
KCV-141
Ø16" x 6 1/4"
15 3/4" (400mm)
5"
(127mm)
Ø2 3/4"
(70mm)
6 1/8"
(156.2mm) 15 3/4" (400mm)
14 5/8" (372mm)
14 5/8" (372mm)
Ø8 1/2" (215mm)
R3 7/8"
(100mm)
R 30"
(762mm)
Ø17 3/4"
(450mm)
R 3/8"
(10mm)
1/4"
(6mm)
3 1/8"
(80mm)
5" (125mm)
Ø17 1/4"
(438mm)
Ø1 3/4"
(45mm)
Ø1 3/4"
(45mm)
R 5/8"
(15mm)
KCV-142
Ø18 1/4" x 5 1/2"
Ø16"
(406mm)
5/8"
(15mm)
5 3/8"
(135mm)
Ø5 1/2"
(140mm)
R 3/8"
(10mm)
6 1/4"
(158mm)
R 7 7/8"
(200mm)
Ø14 3/4"
(375mm)
5 1/2"
(140mm)
Ø1 3/8"
(35mm)
Ø18 1/4"
(463mm)
7 1/4"
(184mm)
1 1/4"
(32mm)
3 1/2"
(90mm)
Ø3 1/8"
(80mm)
R 5/8"
(15mm)
Ø1"
(25mm)
Ø17 3/8"
(442mm)
Ø1 3/4"
(45mm)
Ø1 3/4"
(45mm)

7
Dimensions
KCV-150
18 5/8" x 18 5/8" x 5 3/4"
5 3/4"
(147mm)
Ø2 3/4" (70mm)
1 1/4"
(32mm)
3 3/4"
(96.5mm)
18 5/8" (472mm)
17 3/8" (442mm)
2 1/2"
(65mm)
5 3/8"
(135mm)
6 3/4"
(171mm)
18 5/8" (472mm) Ø1 3/8"
(35mm)
R 5/8"
(15mm)
Ø1"
(25mm)
Ø1 3/4"
(45mm)
12 5/8"
(320mm)
Ø1 3/4"
(45mm)
4 1/8"
(105mm)
Ø13 3/4"
(350mm)
5 3/8"
(135mm)
Ø5 1/2"
(140mm)
Ø13"
(330mm)
KCV-341
Ø13 3/4" x 5 3/8"

8

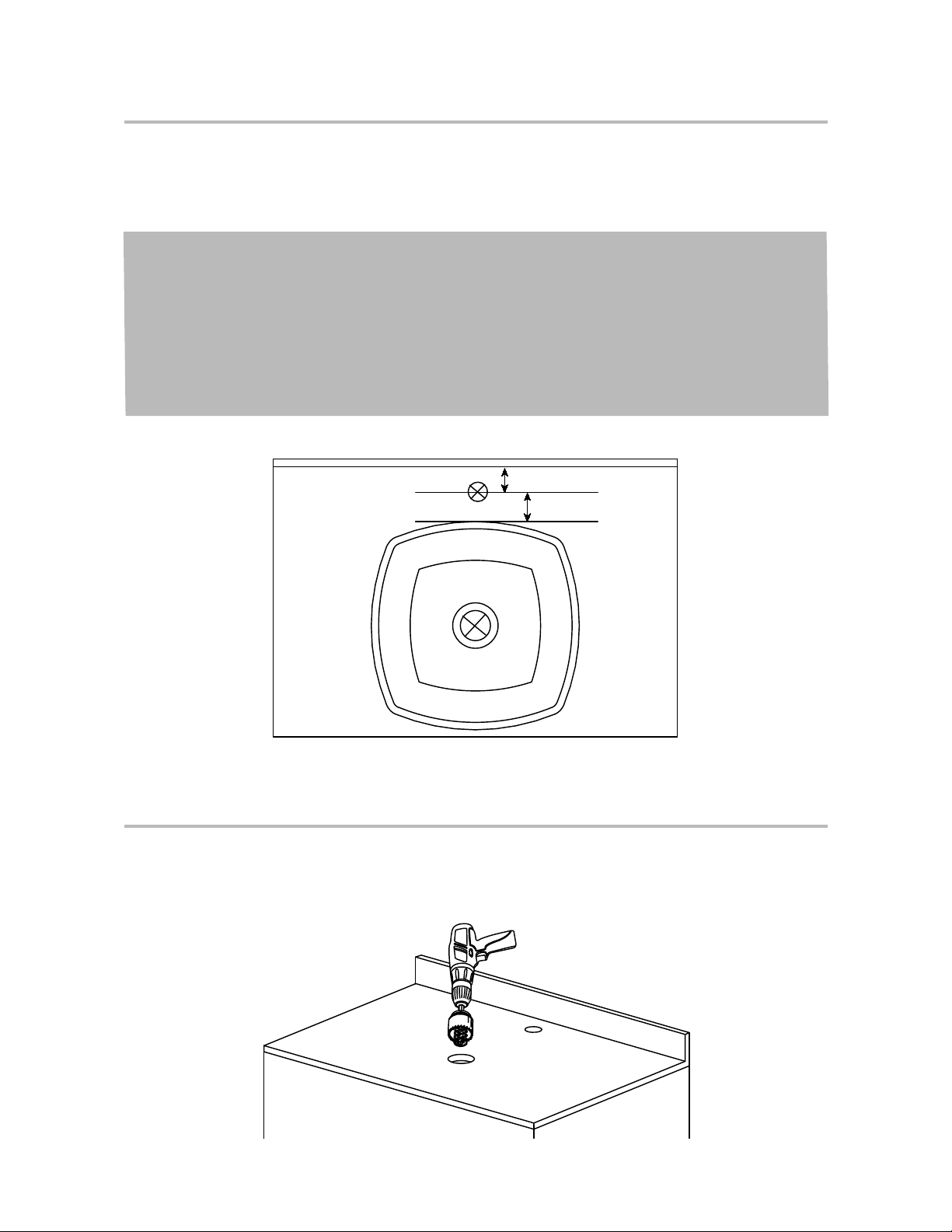

1. Mark Faucet and Drain Hole Location
·Place sink in desired location on countertop and mark drain hole and faucet
hole centerline with a pencil.
NOTE: Make sure clearance is suitable for backsplash, faucet, and sink plumbing.
NOTE: Please allow a minimum of 4.5” from wall to edge of sink for faucet placement
clearance.
NOTE: For model numbers KCV-142 and KCV-150, faucet hole location should be
measured from center of drain hole to center of faucet hole on sink.
2”
2 1/2”
2. Drill Countertop
·Cut the drain opening in the countertop by carefully placing the 4" hole saw on
the area marked by pencil.

9

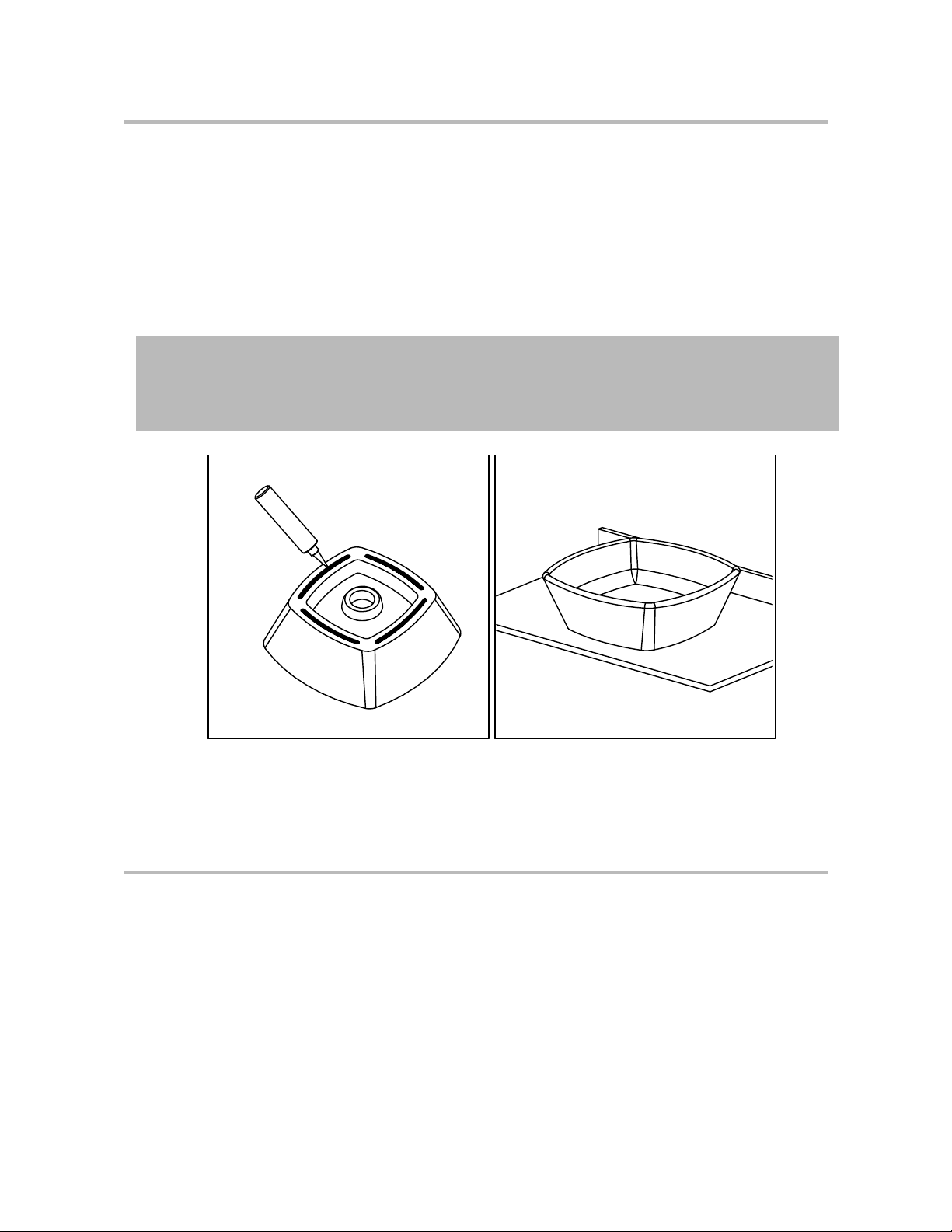

3. Install Sink
·Check the alignment of the sink to the opening in the countertop. Use a bead of
clear silicone (or preferred adhesive) around the underside of the sink.
·Carefully place the sink on the countertop, align, and press firmly
·Allow sealant to set for 30 – 60 minutes
NOTE: Please make sure Kraus logo is facing you when mounting sink
NOTE: Use acetone or rubbing alcohol to remove any excess sealant
immediately after application
4. Install Plumbing Fixtures
·Connect drain to sink. Connect trap to drain. Connect water supply
connections to faucet according to manufacturer’s instructions.
·Run water into sink and check for leaks.

10
Codes/Standards Applicable:
Ceramic Bathroom Sink Warranty
Kraus products are manufactured and tested to the highest quality standards by Kraus USA Inc. (“Kraus”).
Kraus extends this warranty to the original purchaser for personal household use of the “Ceramic Sink” in its
original location. The warranty is non-transferable.
Kraus warrants the structure and finish of the product (Ceramic Sink) to be free from defects in material and
workmanship under normal usage for the lifetime of the product. The warranty commences from the initial date
of purchase by the owner or trade professional, from an authorized Kraus dealer, through the lifetime of the
original owner or end-user.
Any product reported to the authorized dealer or to Kraus as being defective within the warranty period will be
repaired or replaced with a product of equal value at the option of Kraus. This warranty extends to the original
owner or end-user, and is not transferable to a subsequent owner.
Restrictions
This warranty does not cover antediluvian, discontinued, or display products, whether such items are
purchased at discount outlets, unauthorized dealers, and/or sold on clearance.
This warranty does not cover instances of negligence, misuse, abuse, improper installation,
carelessness, accident, hard water or mineral deposits, exposure to corrosive materials, misapplication,
damages caused by improper maintenance, alteration of the product, or failure to follow care or
installation instructions enclosed with your product. Avoid using abrasive cleaners such as powders,
bleach, ammonia, alcohol, or chlorine. Avoid using abrasive pads, steel wool, or wire brushes, as these
will damage and wear down the finish.
This warranty does not apply to Products that have not been installed or operated in accordance with
instructions supplied by Kraus and all applicable rules, regulations, and legislation pertaining to such
installations.
Kraus USA recommends that all Kraus products are installed by fully licensed and insured trade
professionals with experience in the installation of bathroom and/or kitchen manufactured goods.
This warranty does not cover labor charges or costs of removal and reinstallation of said product. This
warranty does not allow recovery of incidental or consequential damages, such as loss of use, delay,
property damage, or other consequential damages, and Kraus accepts no liability for such damages.
(Due to the nature of drain usage, there is no finish warranty on any drain product/including
pop-up drains, lavatory drains and kitchen drains)
This warranty does not cover Marine or Outdoor Installation.
Except as otherwise provided above, Kraus makes no warranties, expressed or implied, including
warranties of merchantability and fitness for a particular purpose, or compliance with any code.
Shipping charges will be covered for the first (1) year of the warranted replacement part or product
(HI, AK, and Puerto Rico shipping charges may apply). International shipping fees are not included.
UPC
CR

11
Commercial Warranty
Kraus extends the above warranty for a period of one (1) year to purchasers of products for industrial,
commercial, and business use.
All incidental or consequential damages are specifically excluded. No additional warranties, express or implied
are given, including but not limited to, any implied warranty of merchantability or fitness for a particular purpose.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on
how long an implied warranty lasts, so the above limitations or exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
If you are a homeowner, please contact a Kraus Customer Service Representative at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050
Toll-Free : 800-775-0703
[email protected]
If you are a plumbing contractor or trade professional, please contact a Kraus Pro
Representative at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050
516-801-8955
[email protected]
If you are an authorized partner, please contact a Partner Support Representative
at:
Kraus USA, Inc.
12 Harbor Park Drive
Port Washington, NY 11050
516-801-8954
[email protected]
In requesting warranty service, please be ready to provide:
1. Proof of purchase.
2. A description of the problem.
Download the Kraus Care & Maintenance Guide at:
http://www.kraususa.com/maintenance

Register Your Kraus Product
Activate Your Warranty
Access Premium Customer Support
Get Product Information
REGISTER TODAY
http://www.kraususa.com/registration
R
www.kraususa.com
IMPORTANT

www.kraususa.com I Toll Free: 1.800.775.0703 I © 2018 Kraus USA Inc. I REV. September 17, 2020
RamusTM Single Lever
Vessel Faucet
FVS-1007
R
INSTALLATION MANUAL

2
Congratulations on the purchase of your new
Kraus plumbing fixture!
Please keep the box and packaging materials until your product is
completely installed. If you have any questions, require technical
assistance or have any problems with your product:
Please contact our Customer Service Team
1-800-775-0703 / [email protected]
Have the model number available and retain a copy of your
receipt with purchase date for reference.
If for any reason this product does not meet your expectations,
please be sure to repack this product in the original box and
packaging material to avoid damage during transit.
DO NOT RETURN TO STORE
STOP

Prior to Installation:

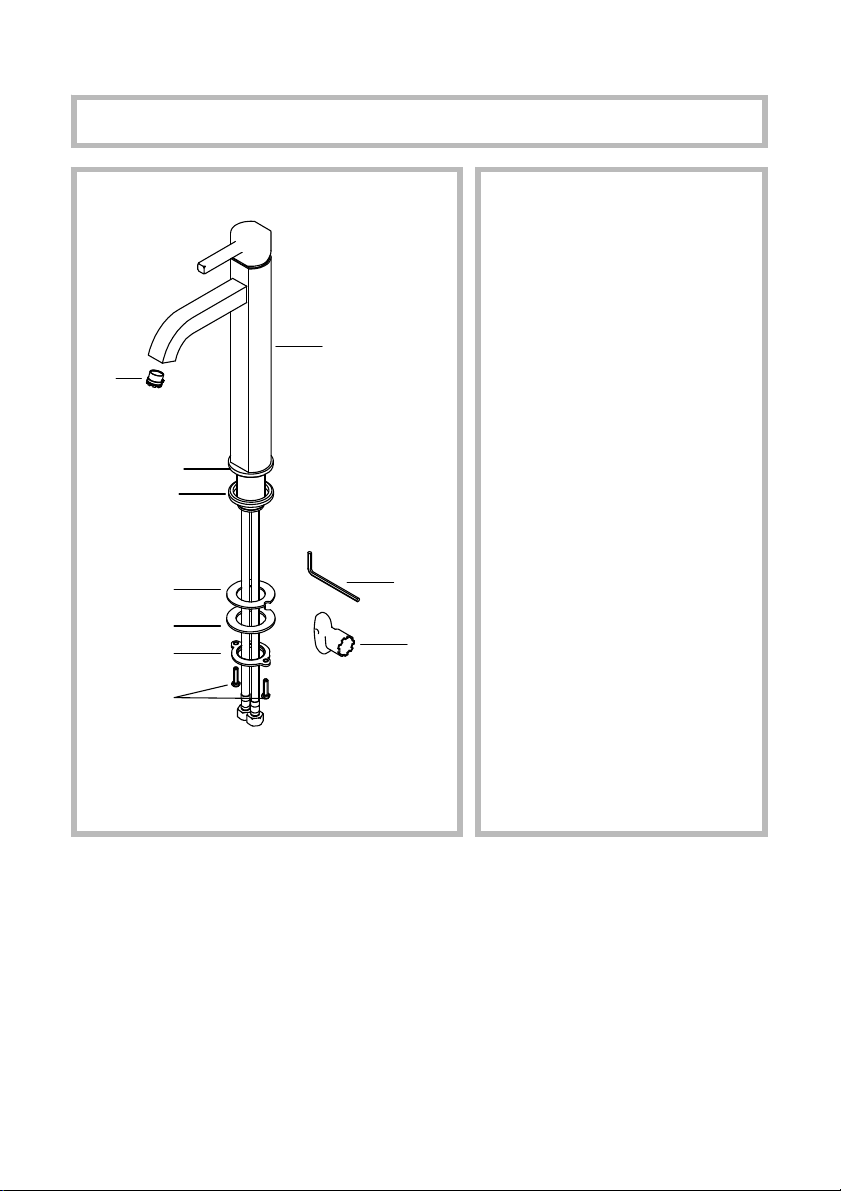

·Make sure you have all necessary parts by checking the diagram and
parts list. If any part is missing or damaged, please contact Kraus
Customer Service at 800-775-0703 for a replacement.
·Turn off the hot and cold water supply at the angle stops and turn on
the old faucet to release any built up pressure. Remove existing faucet.
Clean sink or countertop to remove any debris, plumber’s putty, or
silicone.
·Flush angle stops to release any debris prior to installation.
·Pre-drilled hole size requirement: 1 3/8" (min)
·Max countertop thickness: 1 3/8”
3
Tools Required
Adjustable Wrench Phillips Screwdriver Silicone Sealant
For technical assistance or replacement parts, please contact Kraus
Customer Service and one of our representatives will be happy to help:
Toll-Free: 800-775-0703 or [email protected]
Pipe Tape Hex Wrench

44
Diagram and Parts List
1. Faucet Body
2. Aerator
3. Faucet Base
A. Base Trim Ring
B. Rubber Washer
4. Mounting Hardware
A. Rubber Washer
B. Metal Washer
C. Mounting Nuts
D. Mounting Screws
5. Hex Wrench
6. Aerator Key
3A
4A
4B
4C
4D
2
6
5
3B
1

55
Installer Tip:
Shut off main water supply before installing new faucet.

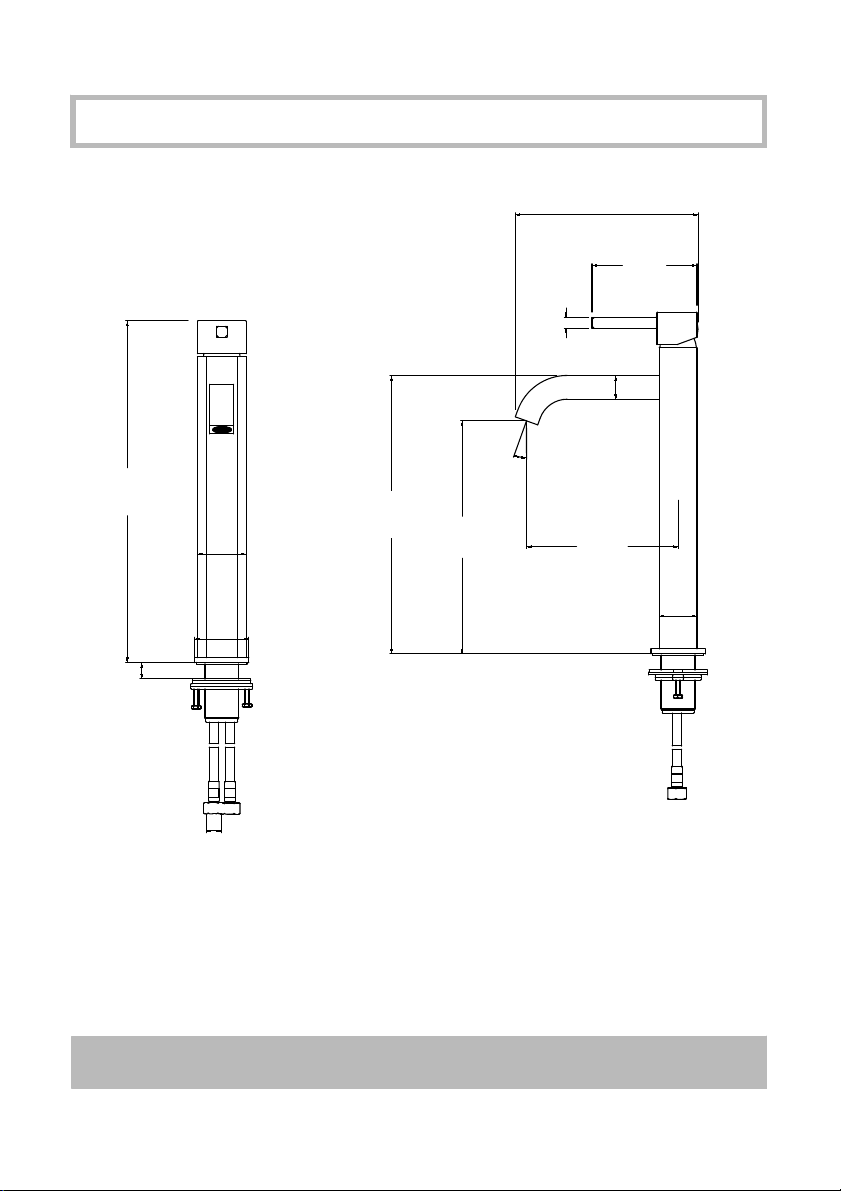

Faucet Dimensions
12 1/2"
(316mm)
Ø1 3/4"
(45mm)
Ø2"
(50mm)
1 5/8"
(42.5mm Max)
3/8" Compression
3 3/4"
(96mm)
Ø3/8"
(10mm)
1 3/8"
(35mm)
10 1/8"
(257mm)
Ø7/8"
(22mm)
8 1/4"
(211mm)
6 5/8" (168mm)
20°
5 3/4"
(146mm)

66
Faucet Installation Procedure
Step 2.
Install the faucet through the
1-3/8" predrilled hole in the
countertop. Attach rubber washer
(4A), metal washer (4B), mounting
nut (4C), and mounting screws
(4D) on the threaded mounting
pipe. Tighten the mounting nut
(4C) until snug. Tighten screws
(4D) on the mounting nut (4C)
with a Phillips head screwdriver
until snug.
Step 1.
Remove rubber washer (4A), metal
washer (4B), mounting nut (4C),
and mounting screws (4D). Keep
the base trim ring (3A) and rubber
washer (3B) on the base of the
faucet.
3A
4A
4B
4C
4D
27mm ~ 41.3mm
1 1/16” ~ 1 5/8”

7
Step 3.
Install flex water supply lines on
the angle stops and tighten with
an adjustable wrench. Turn on
both the cold and hot main valves
Apply pipe tape (optional).
Step 4.
After installing the faucet, remove
the aerator (2) with the included
aerator key (6). Turn on the water
to remove any leftover debris,
then reassemble the aerator (2).

8
Replacement Parts
1. Metal Handle
2. Cartridge Cover
3. Locking Nut
4. Cartridge
6. Base Trim Ring
7. Mounting Hardware
8. Hex Wrench 2.5mm
9. Aerator Key
Replacement Parts List Finish/Color Part #
KP44069
KP44070
KP44071
KP44072
KP44073
KP44074
KP44075
KP44076
KP44077
KP44022
CH, SN, ORB, MB, SFS*
5. Aerator
*Denotes faucet component color options:
CH - Chrome
SN - Satin Nickel
ORB - Oil Rubbed Bronze
MB - Matte Black
SFS - Spot Free Stainless Steel
1
2
3
4
5
6
7
8
9
CH, SN, ORB, MB, SFS*
CH, SN, ORB, MB, SFS*
10
10. Filter Washers
