OWNERS MANUAL
MODEL #5200-3E
KRENDL MACHINE COMPANY • 1201 SPENCERVILLE RD
DELPHOS, OHIO 45833 • TELEPHONE [phone] • FAX [phone]
E - MAIL: [e-mail] • WEB SITE: www.krendlmachine.com
65 YEARS OF AMERICAN INGENUITY

CONGRATULATIONS ON YOUR PURCHASE OF KRENDL EQUIPMENT
MODEL #5200-3E
OWNER'S MANUAL
FOR ASSURED SAFETY AND CONFIDENCE, PLEASE READ THIS
MANUAL CAREFULLY BEFORE INSTALLING AND OPERATING
YOUR MACHINE.
E-MAIL ADDRESS IS: [email protected]
WEB SITE IS: www.krendlmachine.com

INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
UNPACKING & INSPECTING EQUIPMENT . . . . . . . . . . . . 2
GENERAL SAFETY INFORMATION . . . . . . . . . . . . . . . . . 2-5
DECALS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
RETURNED GOODS PROCEDURE . . . . . . . . . . . . . . . . . . 9
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
BASIC COMPONENTS . . . . . . . . . . . . . . . . . . . . . . . . . . .
. 10
OPERATING INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . 11-14
GENERAL MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . 15-18
ELECTRICAL SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . 20-21
SPARE PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22-27
GLOSSARY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
SERVICE RECORD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Table of Contents
MODEL #5200-3E

Rev. Date: 5/11/23 Page 1
MODEL #5200-3E
INTRODUCTION
Thank you for purchasing a KRENDL INSULATION MOVING MACHINE. With over sixty five
years experience in manufacturing insulation moving equipment, we have designed and built your
machine with the highest quality parts and workmanship to provide years of reliable service.
This manual has been prepared to help you obtain the maximum efficiency and service from your
Krendl equipment. The machine is designed to condition and apply insulation with the utmost in
dependable performance. Our primary objective is to build equipment which will provide complete
satisfaction so that you may confidently recommend Krendl to others.
We do not manufacture or sell insulation. Our interest lies only in the proper performance of the
equipment we manufacture. The insulation material manufacturer’s instructions prevail when it
comes to applying their product, since they guarantee the final results.
This manual contains important information regarding the safe assembly and operation of your
machine. We urge you to read it carefully and THOROUGHLY before putting your machine to work. If
your questions are not answered in this manual, please contact us. We want you to be able to operate
this equipment safely and confidently.
Upon receipt of this machine, check it carefully for any shipping damage. If there is damage or if
any of the parts are missing, notify the delivery trucking company immediately and file a claim for
damages, saving all packaging materials for inspection. Our warranty covers manufacturer’s defects
only. If Krendl Machine Company delivered or set up your machine and any parts are missing or
damaged, notify the authorized representative before they leave.
Krendl Machine Company Telephone: [phone]
1201 Spencerville Rd Fax: [phone]
Delphos, Ohio 45833 U.S.A. E-Mail: [email protected]
Web Site: www.krendlmachine.com
For your protection in the event of theft or loss, please fill in the information requested for your own
records. This information will be needed for in-warranty repairs. You may also want to attach a copy of
your invoice.
Machine Model No. __________________________________________________________________
Machine Serial No. __________________________________________________________________
Blower Manufacturer ________________________________________________________________
Blower Model No., Serial No. __________________________________________________________

Rev. Date: 5/11/23 Page 2
MODEL #5200-3E
RECEIVING YOUR MODEL #5200-3E KRENDL MACHINE:
Immediately check the condition of your Model #5200-3E machine when it is received. It
should be received in the same condition that it was shipped to you. If there are any visible prob-
lems with your machine or any other items in the shipment, it is imperative that you place any
claim with the delivery carrier. Please save all packaging materials for inspection. The delivery
carrier should also contact our office before leaving the premises to notify us of a claim. The ownership
to your machine and all other items in the shipment were transferred to your name as soon as the
shipment left our premises, thus it is your responsibility to contact us with any claims. Contact the
truck line to arrange for an independent inspector to come out to inspect the damage and to prepare
the inspection report. It is imperative that this inspection is done prior to unpacking or using any of the
equipment. Please contact us for assistance in parts or with any questions you may have regarding
the claim process.
UNPACKING:
Handle all cartons with care to avoid damage from dropping or bumping. Completely remove
machine from the packaging and from any shipping pallet or skid to which it might be attached. In
addition, completely remove all shipping materials from inside the machine. Check that all parts are
included as stated on the packaging list.
ACCESSORIES INCLUDED:
• 150’ REMOTE CONTROL CORD
• MULTI METER
• #60 CHAIN MASTER LINK
• SECTION OF CHAIN FOR CHANGING SHREDDER DIRECTION
• 5/16 ALLEN WRENCH FOR ADJUSTMENT OF CHAIN IDLERS
• OWNERS MANUAL
UNPACKING AND INSPECTING EQUIPMENT
GENERAL SAFETY INFORMATION
Important: Read all instructions before operating this unit. This equipment can be potentially
dangerous and must be used in strict accordance with instructions.
Disclaimer Notice: The manufacturer will not be legally responsible for any injury or damage
resulting from the improper use of this equipment or the failure to follow instructions.
Unpacking
Handle cartons with care to avoid damage from dropping or bumping. Completely remove the
machine from the packaging and from any shipping pallet or skid to which it may be attached. In
addition, completely remove all shipping materials from the inside of the machine.

Rev. Date: 5/11/23 Page 3
MODEL #5200-3E
Important: Please recheck inside the hopper for any loose items or damaged equipment. Injury
may occur when equipment is started with foreign material in the hopper.
General Safety
1. Read this manual carefully and become familiar with your machine. It is important to know it’s
applications, limitations, and any hazards involved prior to operating the machine.
2. This machine was designed and manufactured for blowing cellulose and fiberglass. Do not
attempt to modify the unit or use it for any application it was not designed for. If you have any
questions about your intended use or the machine’s suitability, ask your dealer/distributor or
consult the factory. The manufacturers could not possibly anticipate every circumstance that
might involve a hazard. For that reason, warnings in the manual and warning tags or decals
affixed to the unit, are not all-inclusive. If you intend to handle, operate, or service the unit by a
procedure or a method not specifically recommended by the manufacturer, first make sure that
such a procedure or method will not render this equipment unsafe or pose a threat to you and
others.
3. Do not disable any of the safety features on our machinery. These features are for your
protection and safety.
4. Read and obey all safety and operating instructions in the manual and on the machine.
5. Equipment is to be operated and/or maintenanced by TRAINED & QUALIFIED personnel ONLY!!
6. Do not operate the machine without all guards and safety equipment installed in the proper
location and in working order. Always follow the proper shut down procedures when guards are
removed from the machine.
7. If a malfunction occurs while running the machine, turn it off immediately and correct the prob-
lem prior to restarting the machine.
8. Keep body and all clothing away from rotating equipment. Rotating shafts can be dangerous.
9. Always wear proper safety equipment when operating the machine. This includes steel toed
shoes, safety glasses and a respirator.
10. Under no circumstances should your hand, a stick or a broom be used to force material down
into the hopper. The machine is a self feeding design and requires no outside assistance.
11. Stand on the floor, not a platform while operating the machine. The operator may lose balance
and fall while loading bags of material.
All Model #5200 Machines are factory equipped with side, front, and main drive belt guards. The top
of the machine is not guarded since it poses no safety threat for normal insulation blowing operations.
Always turn the main power switch (located on the electrical box) to off and unplug the remote cord
from the receptacle for any type of machine maintenance or adjustments. An additional safety feature
is the ability to adjust the material slide gate from the outside of the machine. Rotate the adjustment
handle clockwise to open the slide to the desired setting, no entrance into the machine is required.
All safety features are incorporated into the machine to protect everyone from serious
injury. Operate your machine according to the outlined instructions in the manual with all
guards in place and securely latched. Operation with any guards removed or open can result
in injury to or loss of fingers, hands, arms, toes, feet, legs, hair, and even your eyes.

Rev. Date: 5/11/23 Page 4
MODEL #5200-3E
Electrical Safety
• The National Electric Code (NEC) in the United States and many international electrical
codes require frame and external electrically conductive parts of this machine to be properly
connected to an approved earth ground. Local electrical codes may also require proper
grounding of machine. Consult with local electricians for grounding requirements in your area.
• Never handle any kind of electrical cord or device while standing in water, while barefoot or while
hands or feet are wet. Dangerous electrical shock will result.
• Use a ground fault circuit interrupter (GFCI) in any damp or highly conductive area. (metal decking
or steel work)
• Reference NFPA 79, 70E, or OSHA safe work practices when performing energized work procedures.
Safety/Caution
• Be Safe - Keep away from moving parts.
• Be Safe - Make sure all guards and hopper extensions are in proper place before operating machine.
Guards and safety devices/switches should not be removed, modified or by-passed.
Hands should never pass between rotating parts.
• Be Safe - Make sure remote control hand pendant switch is in off position before connecting the
power supply to the machine.
• Be Safe - Make sure machine is properly grounded. Protect all electrical supply cords from sharp
objects, moisture, and other potentially hazardous materials. Keep power cords in good
repair. Electrical service must be performed by a qualified electrician.
• Be Safe - Disconnect power supply before inspecting or adjusting unit.
• Be Safe - Consult a qualified technician to answer questions before attempting to operate, or injury
may result.
• Be Safe -Emergency Kill Switch - In case of emergencies, always use red stop button located on
the front of Main Control Panel and on the side of the hopper. It will stop all feeding and
agitation.
• Be Safe - Do not remove motors or lift hopper when unit is connected to power supply.
• Be Safe - Do not operate machine alone.
• Be Safe - Do not leave machine unattended and energized.
• Be Safe - Turn machine off and disconnect electricity before clearing and feeding jam or attempting
to remove any object dropped in the hopper.
• Be Safe - Keep hands, loose clothing, jewelry and hair away from agitators, gears, chains and other
moving parts.
• Be Safe - Use proper lifting when moving insulation and loading machine.
• Be Safe - Keep work area clear of debris.
• Be Safe - Wear proper safety equipment, including protective gear, such as respirators, eye and ear
protection.
• Be Safe - Violation of the Owner's Manual or safety precautions may void warranty.

Rev. Date: 5/11/23 Page 5
MODEL #5200-3E
Make Sure!
•Hopper is empty of foreign objects before starting.
• Adequate electrical power is supplied or damage to unit will result.
• Machine must be on before adding insulation.
• Blower filter is kept clean and in place when blower is on.
• Machine is turned off immediately if hose is plugged, or blower will overheat.
• Blower must be on, when agitators are running, or machine will bind.
• Agitator motor is not run with hopper empty for more than a few minutes, or damage to seals will result.
• Sprockets, chains, belts and pulleys are correctly aligned and tensioned.
• Pieces of bag are not left in the machine as this can bind and stall your machine.
• This machine should only be used with good quality insulation that is dry, undamaged and that meets
a certain industry specification or quality standards.
IF THERE ARE ANY QUESTIONS WITH YOUR KRENDL MACHINE, DO NOT HESITATE TO
CONTACT US AT: 1-800-459-2069

Rev. Date: 5/11/23 Page 6
MODEL #5200-3E
Made in the U.S.A.
Emergency stop button for machine.
Becareful around electrical
components! This can cause
serious injury or death.

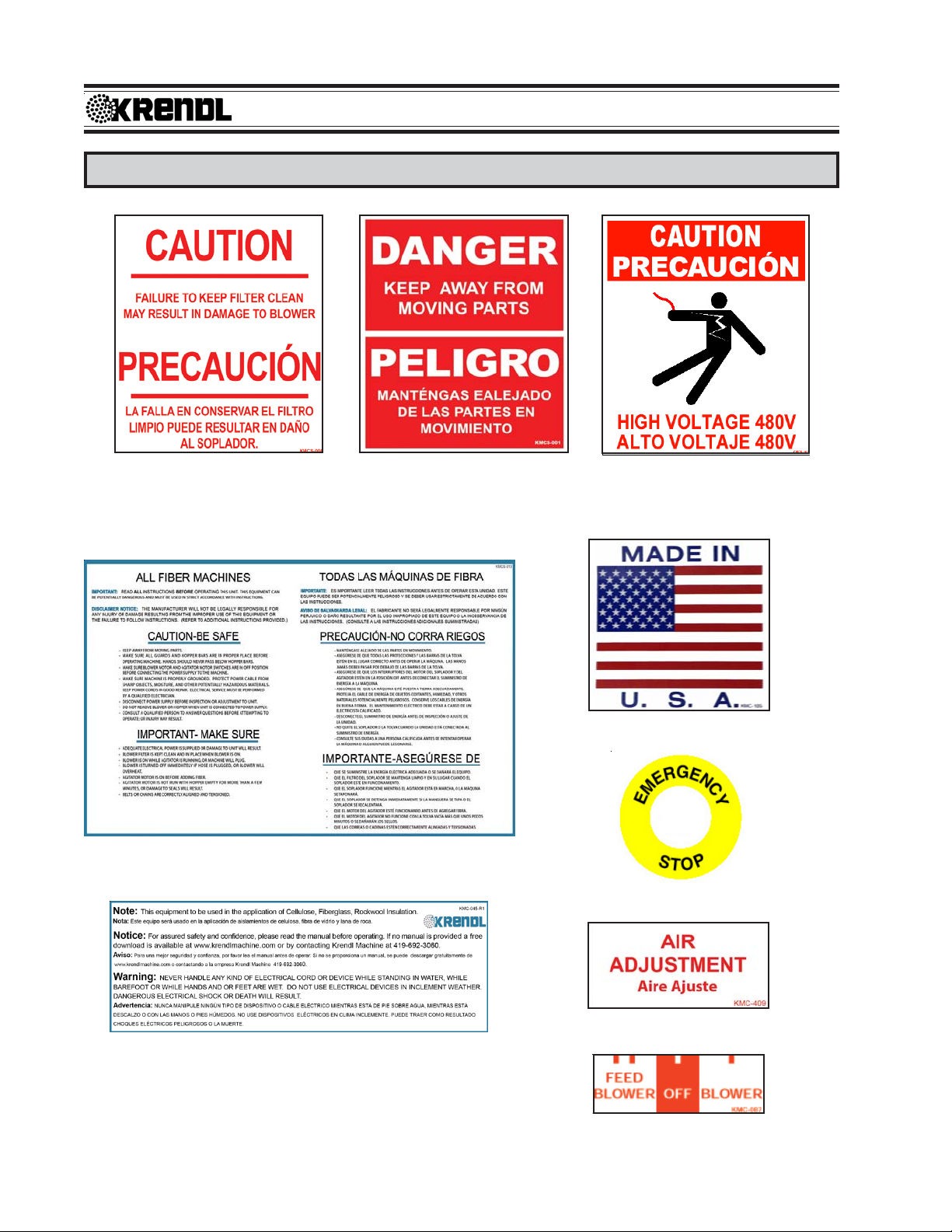

DECALS
Identifies what type of insulation should be used with this
machine and that the manual should be read before operat-
ing. Warns to be careful around electrical components!
This can cause serious injury or death.
Identifies air adjustment control.
General safety information intended to reduce the risk
of serious injury or death
Rotating parts can be dangerous!
You can snag clothes, hair,
hands, etc. This can cause seri-
ous injury or death.
Keeping the filter clean will
result in longer blower life and
better performances.
Indicates if blower is off, on, or on with agitator.

Rev. Date: 5/11/23 Page 7
MODEL #5200-3E
Opens and closes the material
feed gate which in turn controls
the production.
Identifies position of material feed gate.
Rotating parts will be moving in this direction.
KMC-01234
Part number for identification and tracking.
Identifies if machine is in remote mode, manual
mode, or off position. In manual mode this switch
operates machine. In remote mode the hand
pendant operates machine. Each time machine
cycle starts, an audible alarm warns the opera-
tor that the machine is about to come on.
Indicates that this outlet is intended for only the
remote control outlet. Each time machine cycle
starts, an audible alarm warns the operator that
the machine is about to come on.
Indicates that the electrical box
on the machine is in compliance
with UL codes.
Specifies the voltage this outlet is rated for.
Monthly maintenance schedule for the greasing of
bearings on the agitators, shredders and airlock.
Manufacturer information is provided here
along with machine model, and serial number.
Indicates which employee
inspected equipment and
on what date.
Power light indicates machine is ready to run.
Overload OK light indicates overloads are not tripped.

Rev. Date: 5/11/23 Page 8
MODEL #5200-3E
WARRANTY:
Krendl Machine Company (Company) warrants to each original purchaser (Buyer) of its
machines that such products will be free of manufacturing defects for a period of 2 years from
the date of shipment to the Buyer. (This does not include accessories, pumps, blowers, wall
scrubbers, etc.)
No warranty is made with respect to:
1. Components or accessories manufactured and warranted by others. Warranties for
purchased component parts as supplied from vendor such as engine, electric motor,
blower, gearbox, transmission, etc., if furnished by the manufacturer of the component,
are on file at the Company’s main office and copies will be furnished at request of Buyer.
Component(s), shipping costs prepaid, shall be sent to Company who in turn shall forward
to vendor for evaluation and warranty determination.
2. Any defect caused by repair, alteration and/or adjustment performed by Buyer or
customer/vendor of Buyer without the express written authorization of the Company.
3. The labor costs of replacing parts by parties other than the Company.
4. Any machine that has not been operated and/or maintained in accordance with normal
industry practice and the written recommendations of the Company. (e.g. machine oper-
ated with an improperly sized, worn or damaged hose, improper or inattention to preven-
tative maintenance, etc.)
5. The product has been subjected to misuse, negligence or accident or results of any
application or use of the blowing equipment not in accordance with the Company recom-
mendations.
This limited warranty does not cover the free replacement of component parts that become
inoperative due to wear and usage and need to be replaced on a regular basis, including but
not limited to: airlock seal(s), agitator(s), shredder(s), auger(s), fuse(s), switch(es), clutch(es),
hose(s), shaft seal(s), chain(s), belt(s), sprocket(s), pulley(s), bearing(s), cable(s), battery(ies),
filter(s), fan(s), etc.
The Company’s obligation under this warranty is limited to repairing or replacing (at Company
option) any part that is determined by the Company to be suffering from a manufacturing defect.
The Company (at Company option) will provide any required parts and labor to the Buyer. If the
equipment or parts must be returned to the Company for repair, all transportation costs shall
be the Buyer’s responsibility.
THIS LIMITED WARRANTY IS EXPRESSLY IN LIEU OF ANY OTHER GUARANTEES AND / OR
WARRANTIES, ORAL OR WRITTEN, EXPRESSED OR IMPLIED, INCLUDING WITHOUT LIMITA-
TION, THE IMPLIED WARRANTY OF MERCHANTABILITY. NO WARRANTY, EXPRESS OR
IMPLIED, OTHER THAN THE AFORESAID WARRANTY IS MADE OR AUTHORIZED BY COM-
PANY. COMPANY SHALL NOT BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL OR
CONSEQUENTIAL DAMAGES TO PROPERTY OR INJURY TO ANY PERSON OR COSTS
ASSOCIATED WITH LOSS OF PRODUCTION RESULTING IN LOSS OF REVENUE, PROFITS
OR LOSS OF EQUIPMENT THROUGH THE USE OF THIS EQUIPMENT.
Note: Special job circumstances incurring costs for specialized repair and next day delivery
of parts will not be reimbursed by the manufacturer unless authorized by factory.

Rev. Date: 5/11/23 Page 9
MODEL #5200-3E
SPECIFICATIONS
RETURNED GOODS PROCEDURE
IF MACHINE WAS NOT PURCHASED DIRECTLY FROM KRENDL MACHINE COMPANY, CON-
TACT YOUR SUPPLIER / DISTRIBUTOR.
When returning products to Krendl for repair, first obtain a return goods authorization (RGA), at
which time you will be given shipping instructions. The product must be shipped PREPAID:
Krendl Machine Company Telephone: [phone]
1201 Spencerville Rd Fax: [phone]
Delphos, Ohio 45833 U.S.A. E-mail:[email protected]
Web Site: www.krendlmachine.com
Once the unit is received, it will be inspected. In-warranty units will be repaired and returned
immediately. An estimate of repair charges will be provided for out-of-warranty units.
MODELS: #5200-3E
MACHINE: 14” Diameter x 18” Length airlock feeder
air volume control system
HEIGHT: 83.00 inches
LOAD HEIGHT: 63.50 inches
WIDTH (DEPTH): 53.00 inches
LENGTH: 79.00 inches
WEIGHT: 1930 pounds
ELECTRICAL: Primary - 480 volt 3-phase
BLOWER VOLUME: 270 CFM
BLOWER PRESSURE: 5.0 PSI maximum
HOSE OUTPUT: 4” diameter
MAXIMUM FEED RATES: (Product rates vary depending upon product density)
CELLULOSE: 5200 lbs./hr. FIBERGLASS: 2300 lbs./hr.
WARNING: Recommended hose size, type and length must be used to achieve maximum
results. Krendl cannot guarantee performance of the #5200-E machine if hoses are
undersized, worn, damaged, or hoses other than those we recommend are used.
BEFORE YOU RUN THIS MACHINE...PLEASE READ THE REST OF THIS MANUAL!!

Rev. Date: 5/11/23 Page 10
MODEL #5200-3E

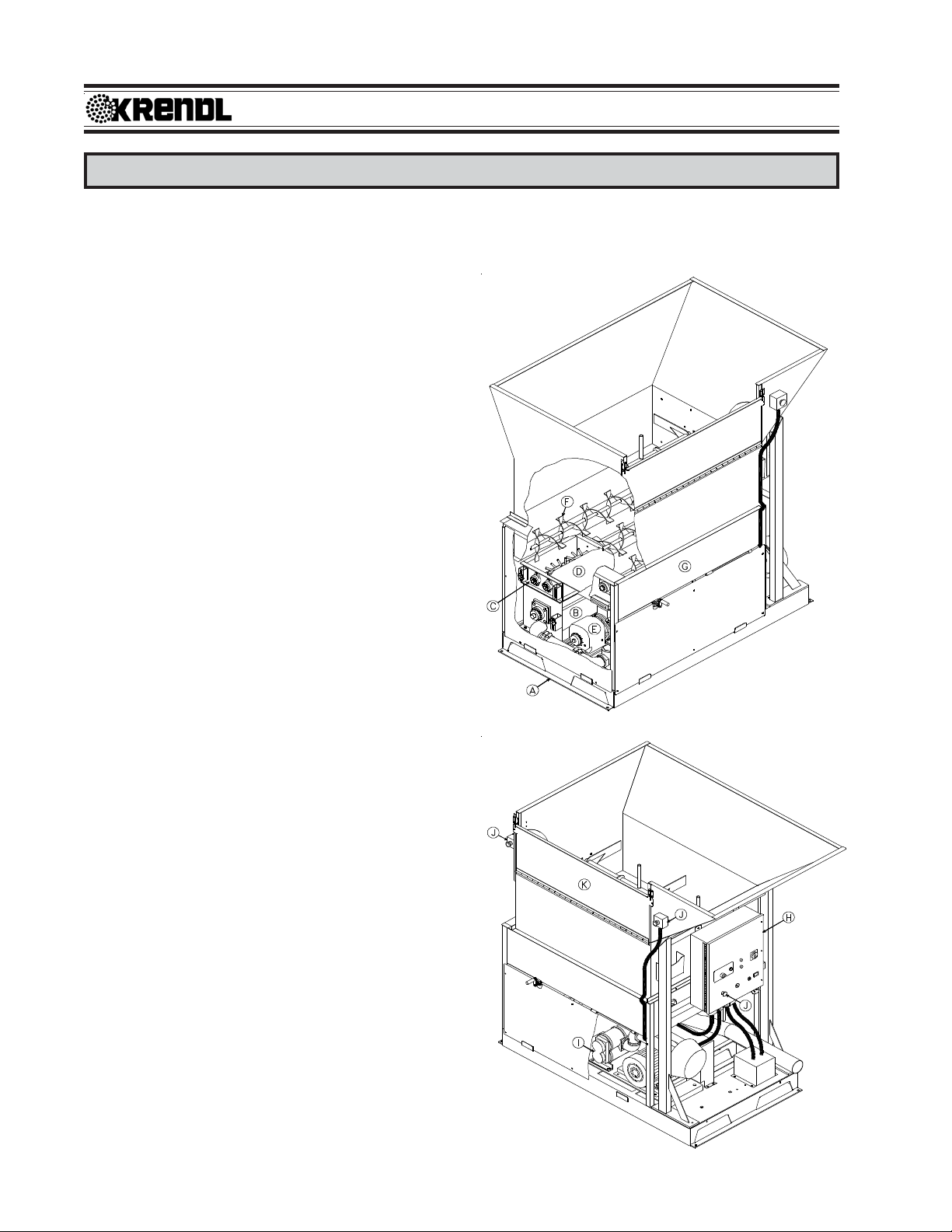

BASIC COMPONENTS
Illustration 1
Illustration 2
This is a view of the basic components of your Model #5200-3E machine. It shows the location of
each item and gives the function of each. Use this as a guide throughout the manual.
(Illustration 1)
A) Base Unit - Lower frame unit supporting blower
box, speed reducer, motor, airlock and hopper.
B) Airlock - Traps air and insulation while providing
a metered flow.
C) Shredder System - Increases production and
coverage on all insulation products while reduc-
ing clumps that may exist in various insulations.
D) Slidegate - Meters the amount of insulation
dropping into the airlock by controlling size of
airlock opening.
E) Speed Reducer - Increases output power while
decreasing speed of agitator/airlock drive motor.
F) Agitator - Conditions insulation in the hopper.
G) Hopper - Upper unit of machine holding insulation.
(Illustration 2)
H) Main Control Panel - Connects with main
power, allowing operation of unit at machine or
Remote Cord.
I) Blower - Provides the air necessary to move
insulation from the airlock.
J) Kill Switch - Safety device for immediate stop-
ping of machine.
K) Hopper Extension - Increases overall hopper
capacity.

Rev. Date: 5/11/23 Page 11
MODEL #5200-3E
OPERATING INSTRUCTIONS
Starting Your Krendl Model 5200-3E Machine:
1) After installing your Model #5200-3E according to the installation instructions, it is now time to start
your machine. Again, check that all guards are installed properly.
2) Attach the blowing hose to the machine and run the hose to end location where material blowing will
occur.
3) Run the remote control cord and locate where the operator will be situated.
4) Make sure the control switch on the remote control cord is in the “off” position. Now, you may plug
in the remote control cord.
5) Your machine is now ready for operation.
Note: Agitator motor and blower should only be operated with steady or constant flow of electricity
between 110-120 volts.

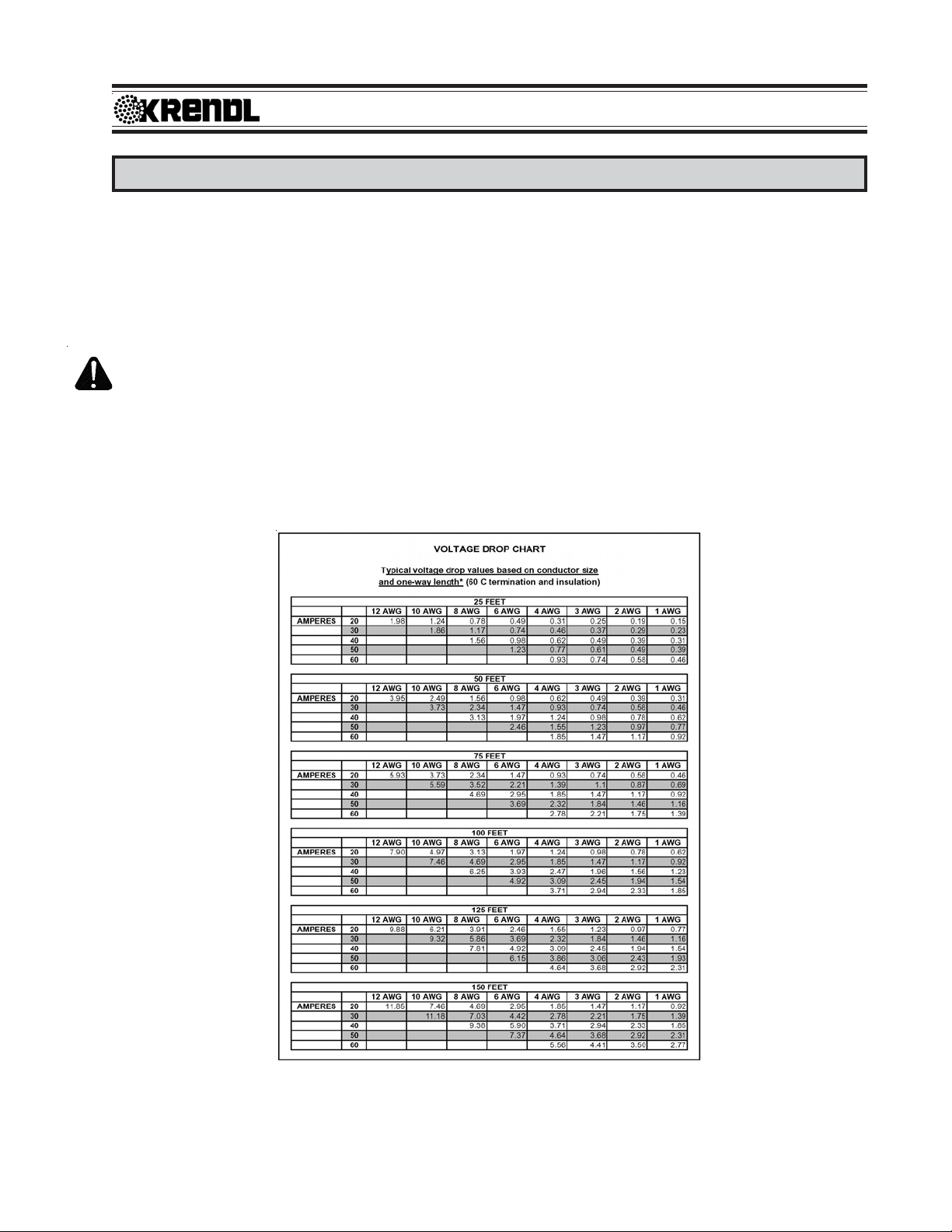

Note: When using extension cords, wire gauge size should not be less than input cord on unit and
not exceed 50' in length. (See Voltage Drop Chart Below.)
Ex: A two-wire 20-ampere circuit using 12 AWG with a one-way distance of 25 feet will drop 1.98 volts;
120 volts - 1.98 volts = 118.02 volts as the load voltage.
480 volts - 1.98 volts = 478.02 volts as the load voltage

Rev. Date: 5/11/23 Page 12
MODEL #5200-3E

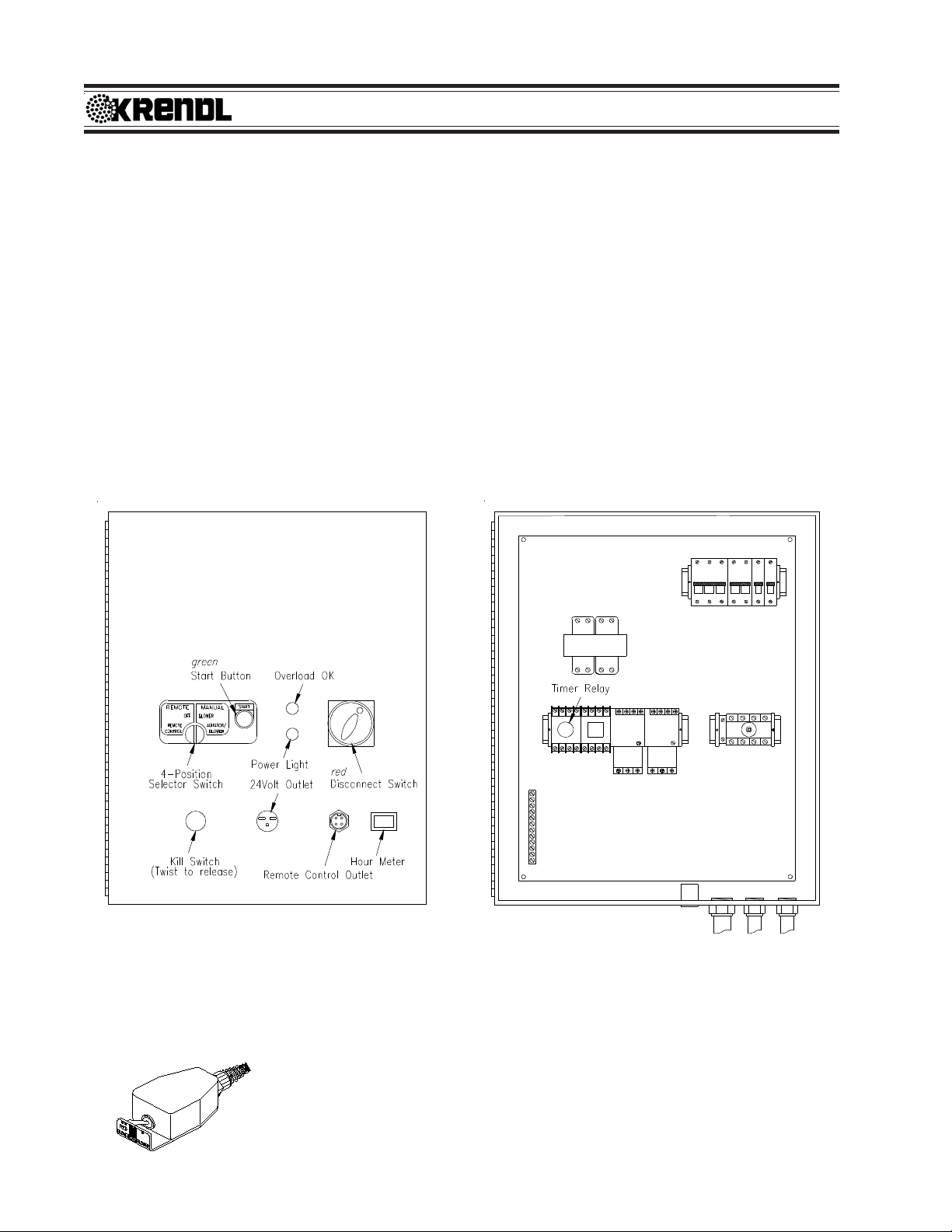

Illustration 3
Main Control Panel (lid closed) Main Control Panel (lid opened)
Electrical Operation:
NOTE: PRESS KILL SWITCH TO IMMEDIATELY STOP MACHINE AT ANY TIME!
1. Make sure Kill Switch is out by pulling. (See illustration 3)
2. Turn red Main Disconnect Switch to ON position. (See illustration 3)
3. Set 4-Position Selector Switch to OFF. (See illustration 3)
4. Press green start Button. Machine will not run unless start button is pressed after Kill Switch
is out and red Main Disconnect Switch is on. (See illustration 3)
5. Select operating mode on 4-Position Selector Switch from one of the following options:
Remote: Remote control hand pendant will control machine.
Off: Machine will not run. (overrides remote hand pendant)
Blower: Only the blower will run continuously. (manual control at machine)
Agitator-Feed/Blower: Both the blower and the agitator-feed will run continuously. (manual
control at machine)
6. When operating in Remote mode, the 4-Position Selector Switch must be set to Remote
position. (See illustration 3 on page 12.)
7. Remote control hand pendant positions will be selected from the following:
BLOWER-FEED - operates both blower and agitator-feed simultaneously
OFF - (middle position) all functions stop
BLOWER - operates the blower only

Rev. Date: 5/11/23 Page 13
MODEL #5200-3E
8. Use the Auxiliary Outlet on the Main Control Panel for supplying continuous power (while red Main
Disconnect Switch is ON) to accessories.
9. To adjust alarm time, for agitators and blowers follow the procedure below: (See Illustration 3)
a) Shut off machine.
b) Turn off red Main Disconnect Switch, loosen two screws on door, and open Main Control
Panel lid.
c) Turn Timer Relay knob to desired setting. (clockwise to increase warning time)
d) Close lid, tighten two screws on door, turn machine on, turn on red Main Disconnect Switch
and press green Start Button.
e) Retest machine
Stopping Your Machine:
1) Switch the remote switch to “AIR ONLY” and wait until the hose is clear of all material.
2) Turn the control switch on the remote control cord to the “off” position and unplug the remote control
cord from the panel.
3) Turn the disconnect to the “off” position.
SAFETY NOTE:
DO NOT FILL THE HOPPER TO CAPACITY AT THE END OF THE DAY. THE MATERIAL
WILL COMPRESS AND CAN CAUSE MACHINE LOCKUP DURING THE FOLLOWING MORNING
START-UP.
Mechanical Settings:
The controls of your machine contain the blower and slidegate controls to adjust your machine for
each application and type of insulation. (See illustration 4 on page 14.) Blower control (air) and
slidegate (material feed) are adjusted according to:
TYPE OF MATERIAL: Cellulose and fiberglass have different textures and densities that
respond to machine settings.
HOSE: Corrugations or roughness of interior surface, diameter, length and
elevation of hose will also require varying adjustments.
WEATHER CONDITIONS: Temperature and humidity may require day to day adjustment of
machine settings.
Blower Control and Slidegate General Settings:
Blower control can increase or decrease the amount of air in the system, affecting the velocity
(speed) and spread rate (coverage) of insulation. (See illustration 4 on page 14.) The blower control
valve is used for controlling air pressure and amount of air flow.
Opening or closing slidegate (material feed) controls the amount of insulation dropping into the
airlock which changes the production rate (lbs. per hour). (See illustration 4 on page 14.) For calibration
purposes the scale located on the machine indicates how many inches the airlock slidegate is opened.

Rev. Date: 5/11/23 Page 14
MODEL #5200-3E
The blower and slidegate controls working together
affect the distance insulation can be blown through a hose
without plugging. These controls also affect the accurate
blowing of insulation for spraying applications.
These settings control the following:
•Density of insulation blown in application.
•Velocity of material impact when spraying.
•Dust on open blow.
• Material spread rate or coverage.
•Production rate (lbs. per hour blown).
General Blower Control and Slidegate Settings for Open Blow:
With the slidegate closed and blower control valve on low (valve open), turn agitator-feed and
blower on. Fill hopper with insulation and adjust blower valve and slidegate. Move controls
proportional to each other. (i.e. If blower valve is half open, slidegate should be half open.) As hose
length is increased, air pressure/volume is increased by closing off the blower valve while closing the
slidegate proportionally. This will increase the distance insulation can be blown through the hose,
while decreasing the blowing production rate (lbs. per hour blown). (See illustration 4)
Shredder Assembly:
This unit is supplied with a shredder assembly; airlock/agitator speeds are preset at the factory. No
further sprocket setting speeds are needed, as this system will accommodate most insulations and
applications. However, the shredder and agitator direction can be adjusted as described below.
Shredder & Agitator Adjustment:
Unidirectional Rotation (See illustration 5) is preferred as an all-around setting for a combination of
materials and applications. This setting provides the greatest coverage and best control for internal
wetting (stabilized) and open blow applications.
Center-Down Rotation (See illustration 6) force feeds the insulation into the airlock at a faster rate.
This direction provides the greatest production for cellulose insulation in an open attic blow applica-
tion although coverage may decrease.
Illustration 4
Illustration 5 Illustration 6

Rev. Date: 5/11/23 Page 15
MODEL #5200-3E
CHECK GUARDS X
CHECK DRIVE ALIGNMENT & TENSION X
CLEAN BLOWER AIR FILTER X
CHECK BLOWER OIL LEVEL X
GREASE BLOWER BEARINGS X
LUBRICATE DRIVE CHAINS WITH A DRY
LUBRICANT X
GREASE SHREDDER, AIRLOCK,
& AGITATOR BEARINGS X
CHANGE BLOWER OIL X
(needs to be changed after first 100 hours of operation and thereafter every 1000 hours)
GENERAL MAINTENANCE
Your Krendl Model #5200-3E Machine is designed to be used with minimal maintenance for all its
components. The following is only a guide; experience is the best guide for the right maintenance
schedule for you.
SAFETY NOTE
WHEN MAINTENANCE IS TO BE PERFORMED ON THE MACHINE ALWAYS:
1) TURN THE MAIN DISCONNECT SWITCH TO THE OFF POSITION .
2) UNPLUG THE REMOTE CORD FROM THE RECEPTACLE.
NOTE: When further maintenance is needed, please refer back to other manufacturer’s
manuals for additional assistance!
DESCRIPTION EACH SHIFT 40 200 1000
HOURS HOURS
HOURS

Rev. Date: 5/11/23 Page 16
MODEL #5200-3E

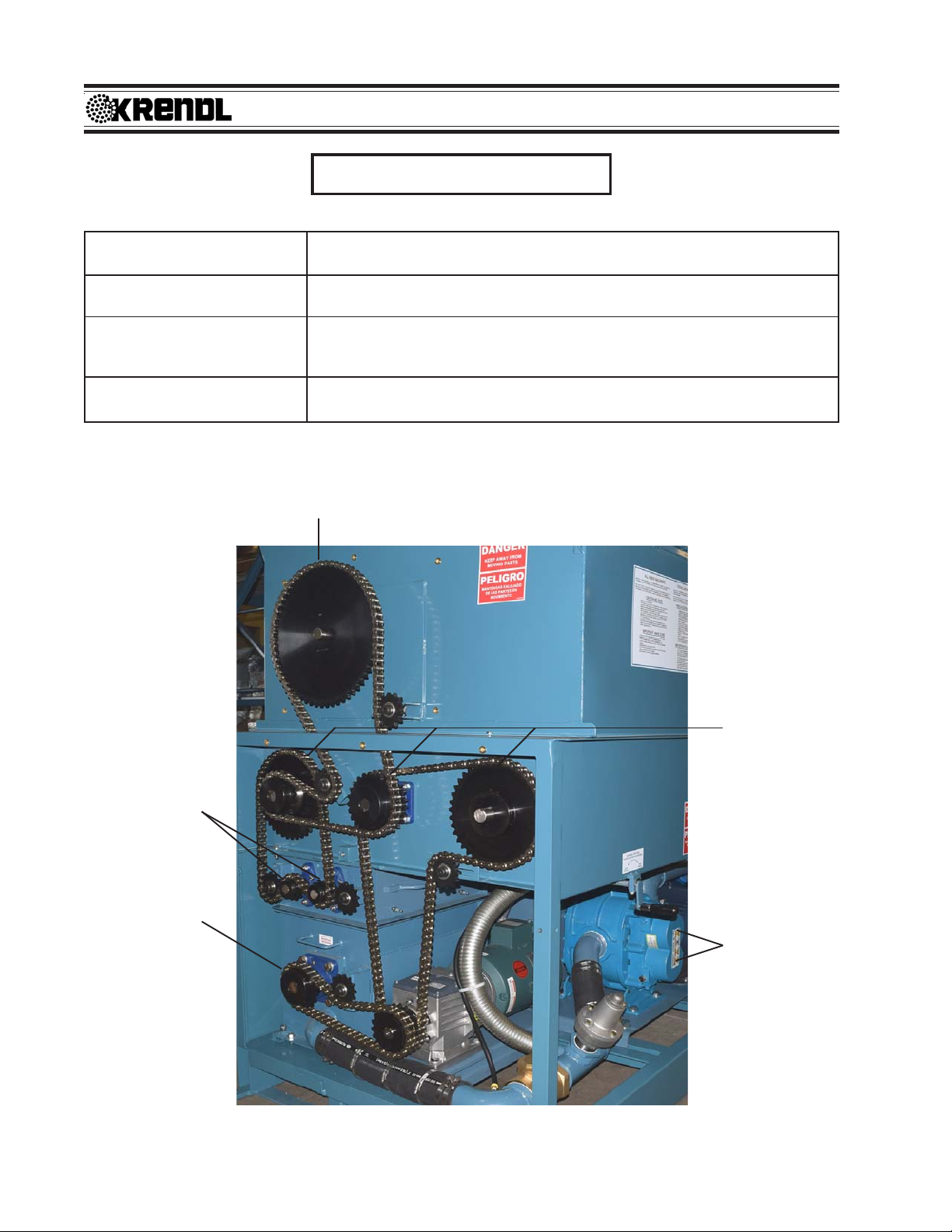

RECOMMENDED LUBRICATION
Hopper Fittings
(1 per side)
Shredder
(2 per side)
Airlock
(1 per side)
Blower 2
Bearing Grease Zerks
Agitator
Fittings
(3 per side)
ALL BEARINGS: GREASE: TRITON 460 or MOBILITH SHC 460 (NLGI grade #1.5)
DRIVE CHAIN: DRY LUBRICANT (EG: DRY GRAPHITE)
BLOWER: OIL: MD ONE (Refer to blower manual)
GREASE: TRITON 460 or MOBILITH SHC 460 (NLGI grade #1.5)
AIRLOCK REDUCER: OIL: KLUBERSYNTH UH1 6-460

Rev. Date: 5/11/23 Page 17
MODEL #5200-3E

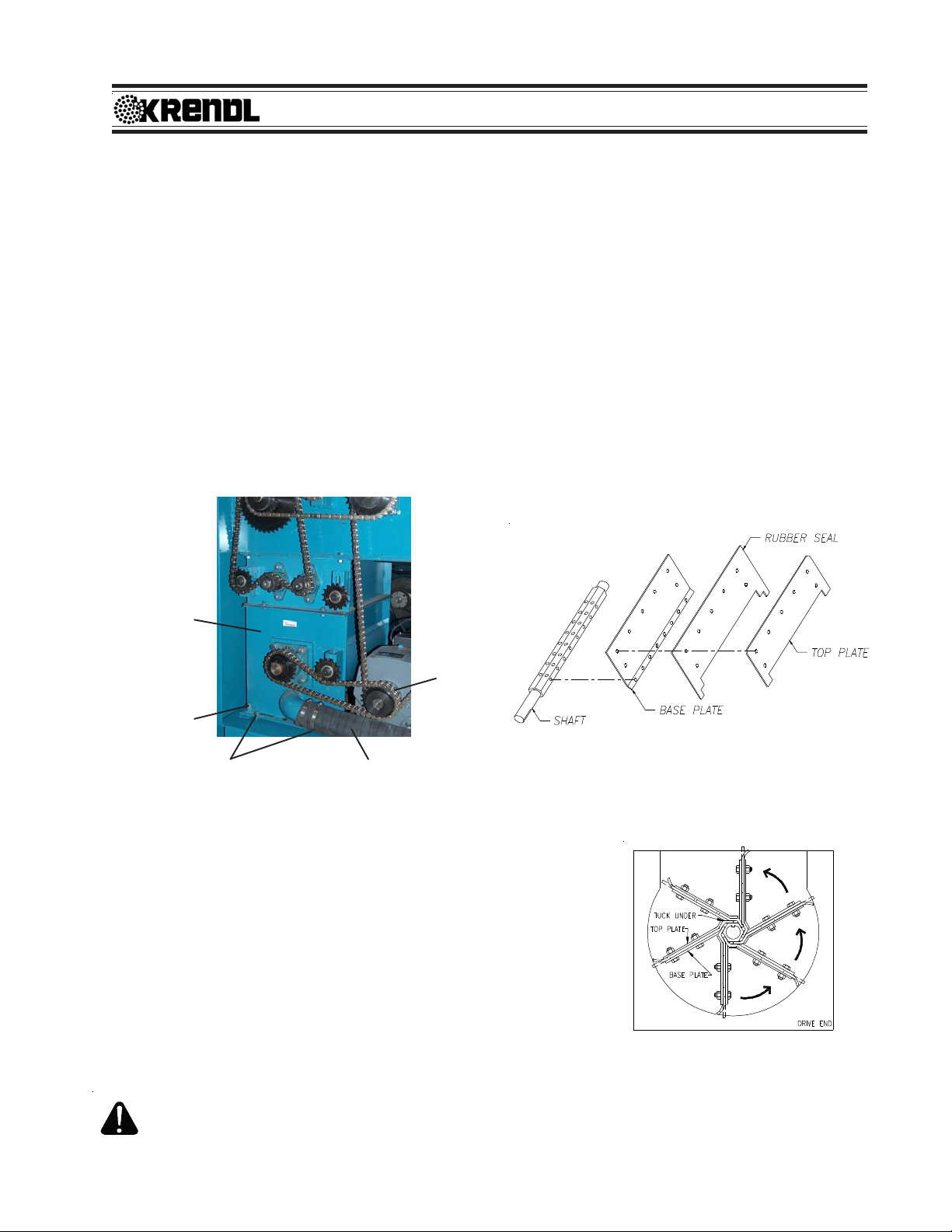

Airlock: (Seal Replacement)
The purpose of the airlock seal is to trap air and insulation until it rotates 180O to the 6:00 o'clock
position. At this point, insulation is pushed by air from the blower, out of the chamber. Worn or
damaged seals allow air and insulation to escape back into hopper, thus reducing production and
coverage. When it is necessary to replace seals, follow these directions:
Remove chain and air hoses from both input and output of airlock. Using a 5/8” socket, remove hold
down bolts from airlock. Lower the front of the airlock down by loosening the jamb nuts and turning the
lift bolts counter clockwise. Slide the airlock out of the machine. (See illustration 7) Airlock rotor plates
that are damaged (bent) will need replaced. (Refer to Rotor Plate Replacement below.) Take out
rubber seal by removing seven plate fastening bolts and nuts and top plate. The base plate will remain
attached to airlock shaft. To install a new seal, reverse procedure. Seal should be inserted tight against
the back base plate, pressing the lower tabs of the seal down under the adjacent seal with a flat blade
screwdriver. Make sure all bolt holes are aligned while each side of seal is equally pressed against the
end plates, before tightening bolts. Seal should be bent forwards for counter clockwise rotation.
(See illustration 9)
Illustration 7 Illustration 8
Base Plate Replacement:
1. Remove damaged baseplate assembly from shaft using
ratchet drive wrench with extension and 9/16" socket.
2. Check seal for wear and damage. (Installing seal and top
plate on the bench is quick and easy). Remove bolts
from plate assembly and replace with new seal. Make
sure seal and top plate are assembled on correct side of
base plate before assembling in airlock. Seal should
press backward towards top plate when
installed cor-
rectly into airlock chamber. (Illustration 9)
3. Install the rotor plate assembly into the airlock. The
airlock runs counter clockwise viewing it from the
sprocket drive shaft. (Illustration 9) Align the base plate
with holes on airlock shaft using a tapered punch. Cau-
tion: Do not mount rotor plate backwards. If installed
Illustration 9
(Note: Entire rotor plate assembly
may be removed and replaced. This
procedure maybe easier than
replacing just the seals.)
Chain
Lift Bolt &
Jamb Nut
Air Hose & clamps
Airlock
Hold Down Bolts
