Krendl 4000-G-A User manual
CONGRATULATIONS ON YOUR PURCHASE OF KRENDL EQUIPMENT
MODEL #4000-G-A
OWNER'S MANUAL
FOR ASSURED SAFETYANDCONFIDENCE,PLEASEREADTHIS
MANUAL CAREFULLY BEFORE INSTALLING AND OPERATING
YOUR MACHINE.
WARNING: FORANY GAS OR DIESELEQUIPMENTTHAT IS NOTINSTALLED
IN A TRUCK OR TRAILER BY KRENDL MACHINE, WARRANTY WILL BE
VOIDED IF NOT INSTALLED TO THE EXACT INSTRUCTIONS OF THIS
MANUAL. (SEE INSTALLATION SECTION)
WEBSITEIS:www.krendlmachine.com
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
UNPACKING & INSPECTING EQUIPMENT . . . . . . . . . . . . 2
GENERAL SAFETY INFORMATION . . . . . . . . . . . . . . . . . 2-5
DECALS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
RETURNED GOODS PROCEDURE . . . . . . . . . . . . . . . . . . 9
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
BASIC COMPONENTS . . . . . . . . . . . . . . . . . . . . . . . . . . .
. 10
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-12
OPERATING INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . 13-16
GENERAL MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . 17-20
ELECTRICAL SYSTEM . . . . . . . . . . . . . . . . . . . . . . . . . 21-23
LADDER DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . 25-26
SPARE PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27-34
GLOSSARY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
SERVICE RECORD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Table of Contents
Rev. Date: 3/8/17 Page1
MODEL #4000-G-A
INTRODUCTION
Thank you for purchasing a KRENDL INSULATION MOVING MACHINE. With over fifty-five
years experience in manufacturing insulation moving equipment, we have designed and built your
machine with the highest quality parts and workmanship to provide years of reliable service.
This manual has been prepared to help you obtain the maximum efficiency and service from your
Krendl equipment. This machine is designed to blow cellulose, fiberglass and mineral fiber into attics.
Our primary objective is to build equipment which will provide complete satisfaction so that you may
confidently recommend Krendl to others.
We do not manufacture or sell insulation. Our interest lies only in the proper performance of the
equipment we manufacture. The insulation material manufacturer’s instructions prevail when it
comes to applying their product, since they guarantee the final results.
This manual contains important information regarding the safe assembly and operation of your
machine. We urge you to read it carefully and THOROUGHLY before putting your machine to work. If
your questions are not answered in this manual, please contact us. We want you to be able to operate
this equipment safely and confidently.
Upon receipt of this machine, check it carefully for any shipping damage. If there is damage or if
any of the parts are missing, notify the delivery trucking company immediately and file a claim for
damages, saving all packaging materials for inspection. Our warranty covers manufacturer’s defects
only. If Krendl Machine Company delivered or set up your machine and any parts are missing or
damaged, notify the authorized representative before they leave.
Krendl Machine Company Telephone: 419-692-3060
1201 Spencerville Avenue Fax: 419-695-9301
Web Site: www.krendlmachine.com
For your protection in the event of theft or loss, please fill in the information requested for your own
records. This information will be needed for in-warranty repairs. You may also want to attach a copy of
yourinvoice.
MachineModelNo.__________________________________________________________________
MachineSerial No.__________________________________________________________________
EngineManufacturer ________________________________________________________________
EngineModel No. , Serial No. _________________________________________________________
BlowerManufacturer ________________________________________________________________
BlowerModel No., Serial No.__________________________________________________________
BlowerClutchManufacturer__________________________________________________________
BlowerClutchModel No., Serial No. ____________________________________________________
AirlockClutchManufacturer___________________________________________________________
AirlockClutch ModelNo.,SerialNo._____________________________________________________
Rev. Date: 3/8/17 Page2
MODEL #4000-G-A
RECEIVING YOUR MODEL #4000-G-A KRENDL MACHINE:
Immediately check the condition of your Model #4000-G-A machine when it is received. It
should be received in the same condition that it was shipped to you. If there are any visible prob-
lems with your machine or any other items in the shipment, it is imperative that you place any
claim with the delivery carrier. Please save all packaging materials for inspection. The delivery
carriershould also contactouroffice before leavingthe premises to notifyus of a claim.The ownership
to your machine and all other items in the shipment were transferred to your name as soon as the
shipment left our premises, thus it is your responsibility to contact us with any claims. Contact the
truck line to arrange for an independent inspector to come out to inspect the damage and to prepare
the inspection report. It is imperative that this inspection is done prior to unpacking or using any of the
equipment. Please contact us for assistance or with any questions you may have regarding the claim
process.
UNPACKING:
Handle all cartons with care to avoid damage from dropping or bumping. Completely remove
machine from the packaging and from any shipping pallet or skid to which it might be attached. In
addition, completely remove all shipping materials from inside the machine. Check that all parts are
included as stated on the below.
ACCESSORIES INCLUDED:
• 150’ REMOTE CONTROL CORD • MULTIMETER
• SPANNER WRENCH FOR BELT TENSIONERS • #60CHAIN MASTER LINK
• SECTION OF CHAIN FOR CHANGING SHREDDER DIRECTION • EXHAUSTSYSTEM
• 5/16ALLEN WRENCH FORADJUSTMENT OF CHAIN IDLERS • OWNERSMANUAL
• ENGINECOOLINGAIR INTAKEHOSEANDCLAMPS • FUELTANK WITHLINES
• 1/2” BOLTS, WASHERS, LOCKNUTS FOR FASTENING MACHINE
UNPACKING AND INSPECTING EQUIPMENT
GENERAL SAFETY INFORMATION
Important: Read all instructions before operating this equipment. This equipment can be poten-
tially dangerous and must be used in strict accordance with instructions.
Disclaimer Notice: The manufacturer will not be legally responsible for any injury or damage
resulting from the improper use of this equipment or the failure to follow instructions.
Unpacking
Handle cartons with care to avoid damage from dropping or bumping. Completely remove the
machine from the packaging and from any shipping pallet or skid to which it may be attached. In
addition, completely remove all shipping materials from the inside of the machine.
Important: Please recheck inside the hopper for any loose items or damaged equipment.
Injury may occur when equipment is started with foreign material in the hopper.
Rev. Date: 3/8/17 Page3
MODEL #4000-G-A
General Safety
1. Read this manual carefully and become familiar with your machine. It is important to know it’s
applications, limitations, and any hazards involved prior to operating the machine.
2. This machine was designed and manufactured for blowing cellulose and fiberglass. Do not
attempt to modify the unit or use it for any application it was not designed for. If you have any
questions about your intended use or the machine’s suitability, ask your dealer/distributor or
consult the factory. The manufacturers could not possibly anticipate every circumstance that
might involve a hazard. For that reason, warnings in the manual and warning tags or decals
affixed to the unit, are not all-inclusive. If you intend to handle, operate, or service the unit by a
procedure or a method not specifically recommended by the manufacturer, first make sure that
such a procedure or method will not render this equipment unsafe or pose a threat to you and
others.
3. Do not disable any of the safety features on the equipment. These features are for your
protection and safety.
4. Read and obey all safety and operating instructions in the manual and on the machine.
5. Equipmentistobeoperatedand/or maintenanced byTRAINED&QUALIFIED personnel ONLY!!
6. BEFORE PERFORMING ANY MAINTENANCE ON THE MACHINE, YOU MUST FIRST:
#1 TURN MAIN SWITCH LOCATED ON MACHINETOTHE “OFF” POSITION
#2 TURN THE ENGINES IGNITION TOTHE “OFF” POSITIONAND REMOVE KEY
#3 DISCONNECT THE BATTERY CABLE
7. Do not operate the machine without all guards and safety equipment installed in the proper
location and in working order.Always follow the proper shut down procedures outlined in Item 6
when guards are removed from the machine or when compartment or electrical control doors
need to be opened.
8. If a malfunction occurs while running the machine, turn it off immediately, follow the directions
under item 6 and correct the problem prior to restarting the machine.
9. Keep body and all clothing away from rotating equipment. Rotating shafts can be dangerous.
10. Always wear proper safety equipment when operating the machine. This includes steel toed
shoes, safety glasses and a respirator.
11. Under no circumstances should your hand, a stick or a broom be used to force material down
into the hopper. The machine is a self feeding design and requires no outside assistance.
12. Stand on the floor, not a platform while operating the machine. The operator may lose balance
and fall while loading bags of material.

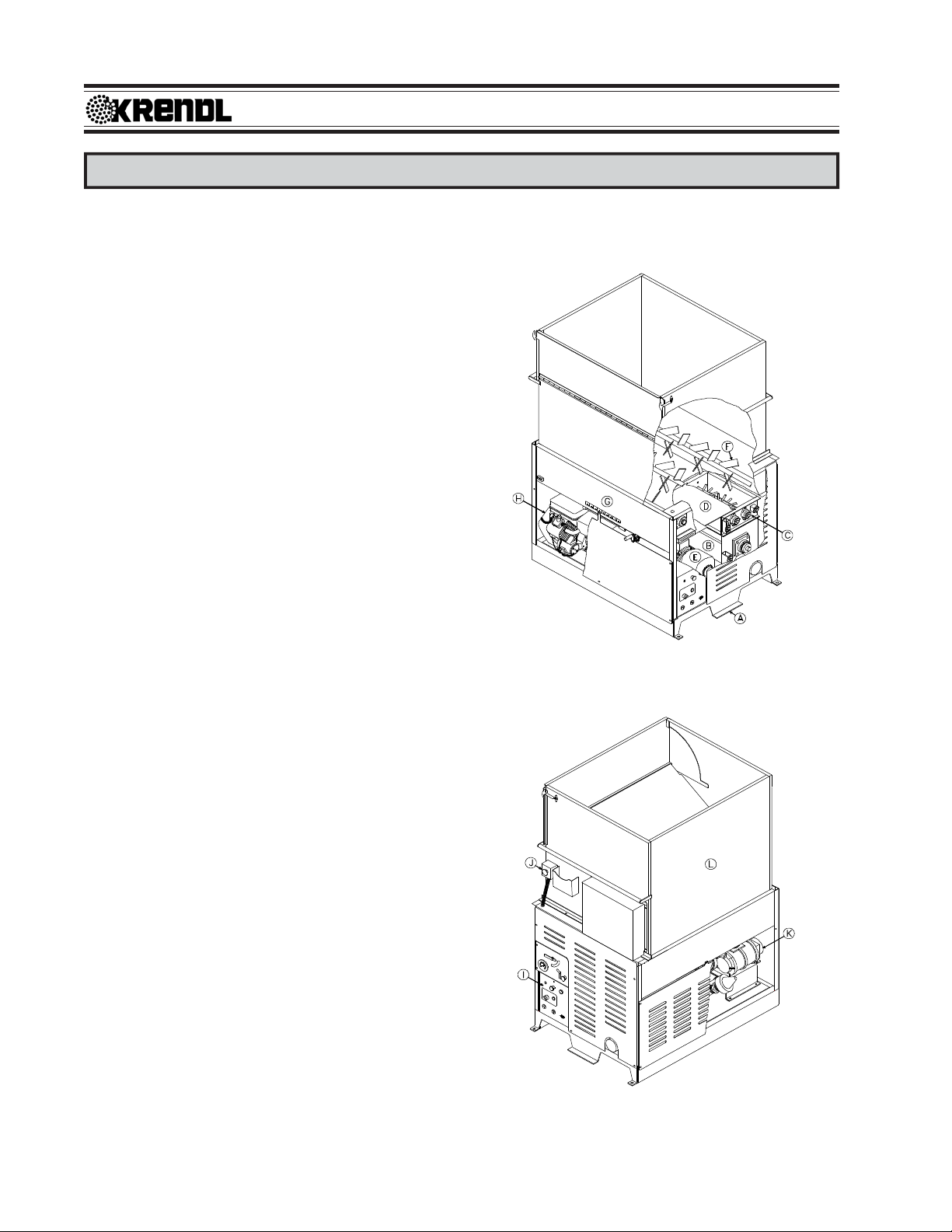

All Model #4000-G-A Machines are factory equipped with side, front, and main drive belt guards.
The top of the machine is not guarded since it poses no safety threat for normal insulation blowing
operations when mounted as shown in the installation guide. The machine is designed to be mounted
in the van body of the contractor’s truck and the rear of the machine against the wall of the van body.
Always turn the main power switch (located on the electrical box) to off and unplug the remote cord
from the receptacle for any type of machine maintenance or adjustments.An additional safety feature
is the ability to adjust the material slide gate from the outside of the machine. Rotate the adjustment
handle clockwise to open the slide to the desired setting, no entrance into the machine is required.
All safety features are incorporated into the machine to protect everyone from serious
injury. Operate your machine according to the outlined instructions in the manual with all
guards in place and securely latched. Operation with any guards removed can result in injury
to or loss of fingers, hands, arms, toes, feet, legs, hair, and even your eyes.
Rev. Date: 3/8/17 Page4
MODEL #4000-G-A
Electrical Safety
• The National Electric Code (NEC) in the United States and many international electrical
codes require frame and external electrically conductive parts of this machine to be properly
connected to an approved earth ground. Local electrical codes may also require proper
grounding of machine. Consult with local electricians for grounding requirements in your area.
• Never handle any kind of electrical cord or device while standing in water, while barefoot or while
hands or feet are wet. Dangerous electrical shock will result.
• Useagroundfaultcircuitinterrupter(GFCI)inanydamporhighlyconductivearea. (metaldecking
or steel work)
• ReferenceNFPA79,70E,orOSHAsafeworkpracticeswhenperformingenergizedworkprocedures.
Safety/Caution
•Be Safe - Keep away from moving parts.
•Be Safe - Makesureallguardsandhopperextensionsareinproperplacebeforeoperatingmachine.
Guards and safety devices/switches should not be removed, modified or by-passed.
Hands should never pass between rotating parts.

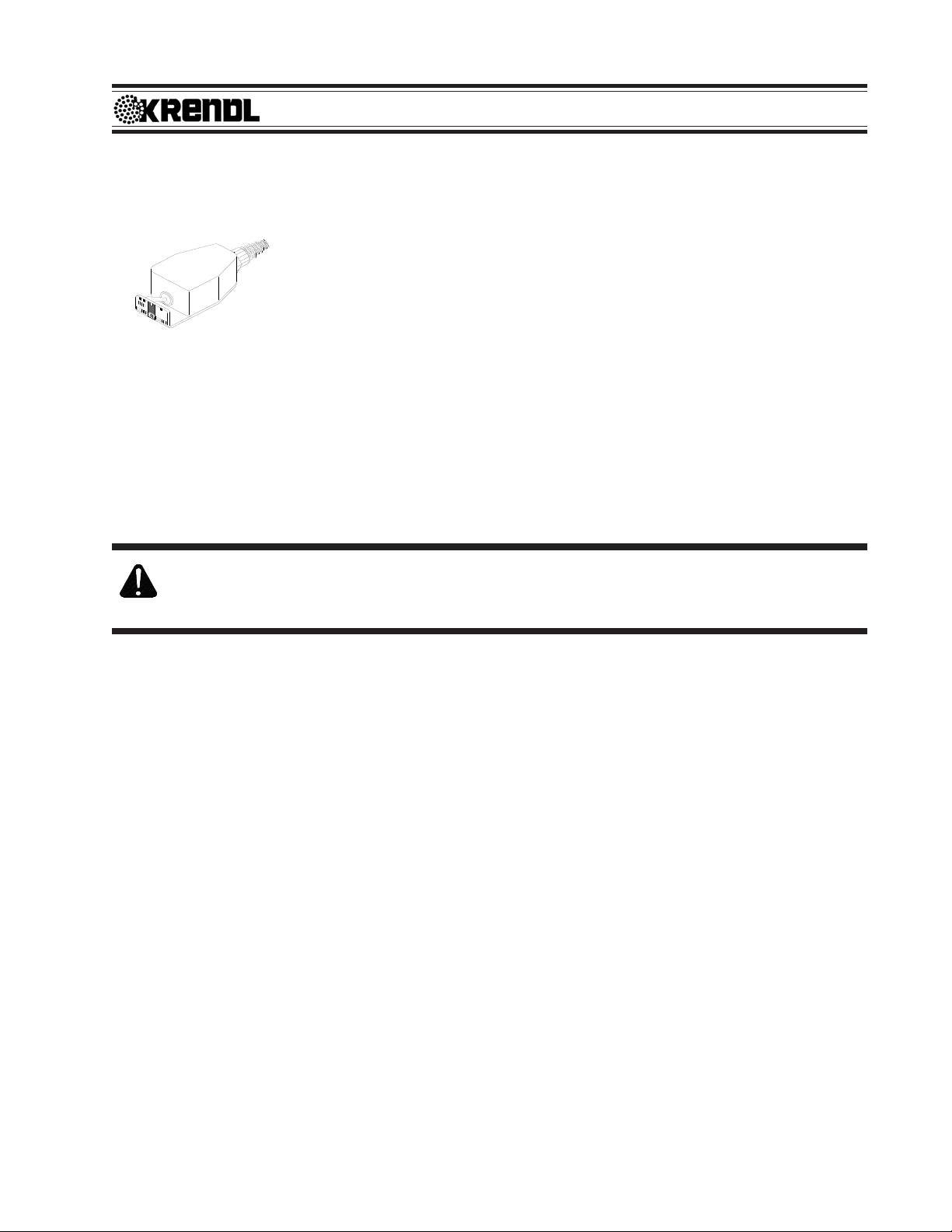

•Be Safe - Make sure remote control hand pendant switch is in off position before connecting the
power supply to the machine.
•Be Safe - Make sure machine is properly grounded. Protect all electrical supply cords from sharp
objects, moisture, and other potentially hazardous materials. Keep power cords in good
repair. Electrical service must be performed by a qualified electrician.
•Be Safe - Disconnect power supply before inspecting or adjusting unit.
•Be Safe - Consulta qualified technician toanswer questions before attempting tooperate, or injury
may result.

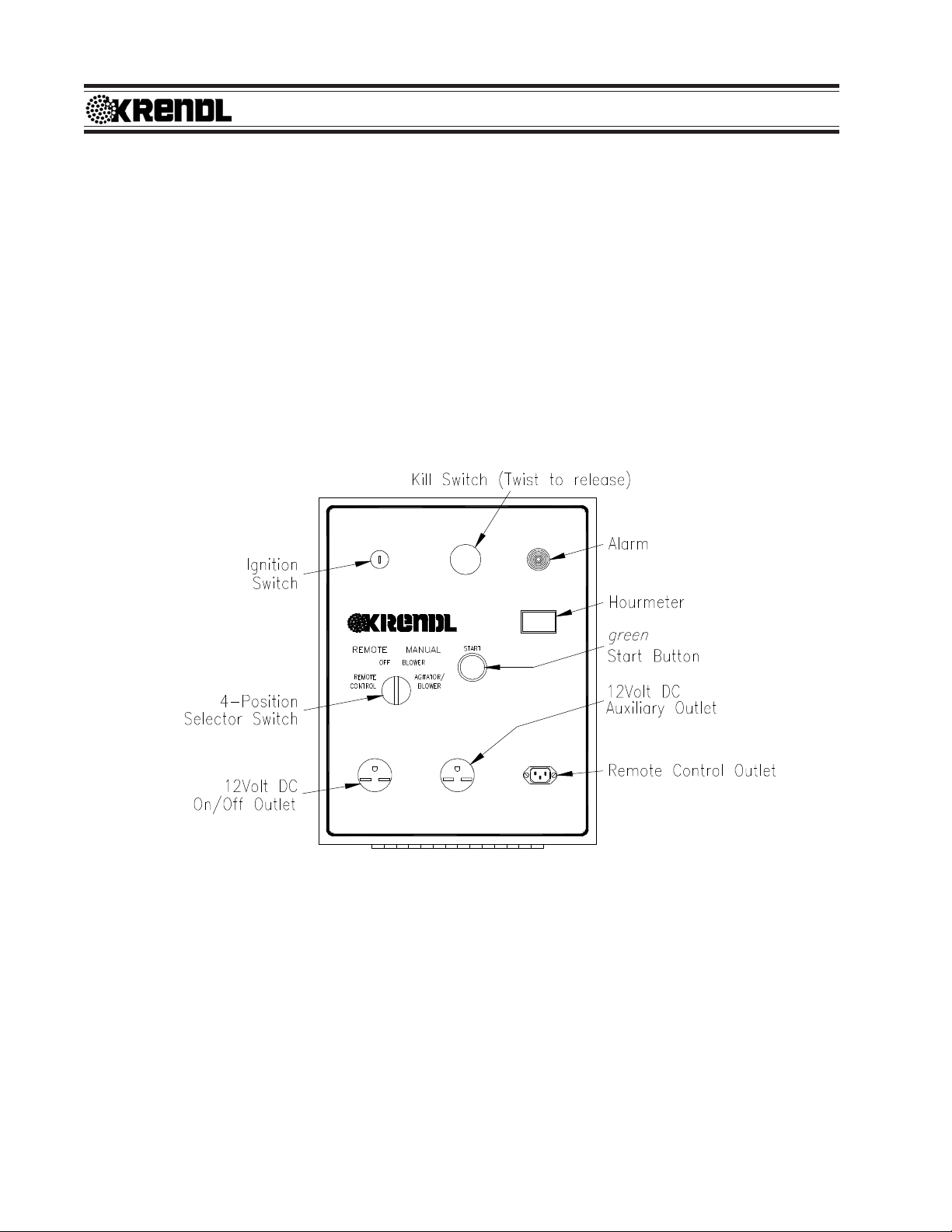

•Be Safe -Emergency Kill Switch - Incaseofemergencies, always use red stopbuttonlocatedon
the front of Main Control Panel and on the side of the hopper. It will stop all feeding and
agitation.
•Be Safe - Do not remove motors or lift hopper when unit is connected to power supply.
•Be Safe - Do not operate machine alone.
•Be Safe - Do not leave machine unattended and energized.
•Be Safe - Turn machine off and disconnect electricity before clearing jam or attempting to remove
any object dropped in the hopper.
•Be Safe - Keephands, looseclothing,jewelryandhair awayfromagitators,gears, chains andother
moving parts.
•Be Safe - Use proper lifting when moving insulation and loading machine.
•Be Safe - Keep work area clear of debris.
•Be Safe - Wearpropersafetyequipment,includingprotectivegear,suchasrespirators,eyeandear
protection.
•Be Safe - Violation of the Owner's Manual or safety precautions may void warranty.
Rev. Date: 3/8/17 Page5
MODEL #4000-G-A
DECALS
Make Sure!
•Hopper is empty of foreign objects before starting.
• Adequate electrical power is supplied or damage to unit will result.
• Machine must be on before adding insulation.
• Blower filter is kept clean and in place when blower is on.
• Machine is turned off immediately if hose is plugged, or blower will overheat.
• Blower must be on, when agitators are running, or machine will bind.
• Agitatormotorisnotrunwithhopperemptyformorethanafewminutes,ordamagetosealswillresult.
• Sprockets, chains, belts and pulleys are correctly aligned and tensioned.
• Pieces of bag are not left in the machine as this can bind and stall your machine.
• Thismachineshouldonlybeusedwithgoodqualityinsulationsthataredry,undamagedandthatmeet
a certain industry specification or quality standards.
IF THERE ARE ANY QUESTIONS WITH YOUR KRENDL MACHINE, DO NOT HESITATE TO
CONTACT US AT: 1-800-459-2069
Indicates which employee inspected equip-
ment and on what date.
Indicates that the electrical box on the ma-
chine is in compliance with UL codes.
Donot smoke around machine. Machine con-
tains a flammable liquid. Failure to do this
could cause serious injury or death.
Do not touch this area on the machine, it may
be hot. Failure to do this could cause serious
injury.
Rev. Date: 3/8/17 Page6
MODEL #4000-G-A
Rotating parts can be dangerous!
You can snag clothes, skin, hair,
hands, etc. This can cause seri-
ous injury or death.
Manufacturer information is provided here
alongwithmachinemodel,andserialnumber.
Keeping the filter clean will result
in longer blower life and better
performances.
Opens and closes the material feed gate
which in turn controls the production.
Identifies position of material feed gate.
Made in the U.S.A.
KMC-01234
Partnumber for identification and tracking.
Indicateslocation ofthefuel
shut-off valve.
Indicates that the Air Inlet must have unrestricted
air flow at all times to prevent over heating of engine
compartment.
Indicates the controls that start, stop, and run
the machine.
Rev. Date: 3/8/17 Page7
MODEL #4000-G-A
Rotatingparts willbemovinginthis direction.
Indicates if blower is off, on, or on with agitator. Indicates if the engine is going fast or slow.
Identifies what type of insulation should be used with this
machineandthat the manual should be read before operat-
ing. Warns to be careful around electrical components!
This can cause serious injury or death.
Indicates that the engine requires fresh air.
Supplyingthe engine with fresh air will result
in better performance and longer life.
During operation, this machine is loud. Wear hearing
protection. Failure to do this could result in hearing loss. Identifies position of blower control.
Emergency stop button for machine. Indicates that Krendl Machine Company is in
compliance with EPA codes.
Identifies air adjustment control.
Rev. Date: 3/8/17 Page8
MODEL #4000-G-A
WARRANTY:
Krendl Machine Company (Company) warrants to each original purchaser (Buyer) of its
machines that such products will be free of manufacturing defects for a period of 2 years from
the date of shipment to the Buyer. (This does not include accessories, pumps, blowers, wall
scrubbers, etc.)
Warning: For any gas or diesel equipment that is not installed in a truck or trailer by Krendl
Machine, warranty will be voided if not installed to the exact instructions of this manual. (See
installation section).
No warranty is made with respect to:
1. Components or accessories manufactured and warranted by others. Warranties for
purchased component parts as supplied from vendor such as engine, electric motor,
blower, gearbox, transmission, etc., if furnished by the manufacturer of the component,
are on file at the Company’s main office and copies will be furnished at request of Buyer.
Component(s),shippingcostsprepaid,shallbesenttoCompanywhointurnshallforward
to vendor for evaluation and warranty determination.
2. Any defect caused by repair, alteration and/or adjustment performed by Buyer or
customer/vendor of Buyer without the express written authorization of the Company.
3. The labor costs of replacing parts by parties other than the Company.
4. Any machine that has not been operated and/or maintained in accordance with normal
industry practice and the written recommendations of the Company. (e.g. machine oper-
ated with an improperly sized, worn or damaged hose, improper or inattention to preven-
tative maintenance, etc.)
5. The product has been subjected to misuse, negligence or accident or results of any
application or use of the blowing equipment not in accordance with the Company recom-
mendations.
This limited warranty does not cover the free replacement of component parts that become
inoperative due to wear and usage and need to be replaced on a regular basis, including but
not limited to: airlock seal(s), agitator(s), shredder(s), auger(s), fuse(s), switch(es), clutch(es),
hose(s), shaft seal(s), chain(s), belt(s), sprocket(s), pulley(s), bearing(s), cable(s), battery(ies),
filter(s), fan(s), etc.
TheCompany’sobligationunderthiswarrantyislimitedtorepairingorreplacing(atCompany
option)anypartthatisdeterminedbytheCompanytobesufferingfromamanufacturingdefect.
The Company (at Company option) will provide any required parts and labor to the Buyer. If the
equipment or parts must be returned to the Company for repair, all transportation costs shall
be the Buyer’s responsibility.
THIS LIMITED WARRANTY IS EXPRESSLY IN LIEU OF ANY OTHER GUARANTEES AND / OR
WARRANTIES, ORAL OR WRITTEN, EXPRESSED OR IMPLIED, INCLUDING WITHOUT LIMITA-
TION, THE IMPLIED WARRANTY OF MERCHANTABILITY. NO WARRANTY, EXPRESS OR
IMPLIED, OTHER THAN THE AFORESAID WARRANTY IS MADE OR AUTHORIZED BY COM-
PANY. COMPANY SHALL NOT BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL OR
CONSEQUENTIAL DAMAGES TO PROPERTY OR INJURY TO ANY PERSON OR COSTS
ASSOCIATED WITH LOSS OF PRODUCTION RESULTING IN LOSS OF REVENUE, PROFITS
OR LOSS OF EQUIPMENT THROUGH THE USE OF THIS EQUIPMENT.
Note: Special job circumstances incurring costs for specialized repair and next day delivery
of parts will not be reimbursed by the manufacturer unless authorized by factory.
Rev. Date: 3/8/17 Page9
MODEL #4000-G-A
SPECIFICATIONS
MODEL: #4000-G-A
MACHINE: 14” Diameter x 14” Length airlock feeder
air volume control system
electromagnetic clutches on agitator and blower
in line helical gearbox (driving the machine)
HEIGHT: 83” ( 211 cm)
LOAD HEIGHT: 55.25” ( 140 cm)
WIDTH (DEPTH): 43” (109 cm)
LENGTH: 69” ( 175 cm)
WEIGHT: 1684 pounds (764 kg)
ELECTRICAL: 12VDC remote control system
BLOWER VOLUME: 150CFM
BLOWER PRESSURE: 5.0 PSI maximum
HOSE OUTPUT: 4” diameter
MAXIMUM FEED RATES:
CELLULOSE: 4800 lbs./hr. (2177 kg/hr) 160 bags per hour
FIBERGLASS: 2200 lbs./hr. (998 kg/hr) 73 bags per hour
WARNING:Recommended hose size, type and length must be used to achieve maximum
results. Krendl cannot guarantee performance of the #4000-G-A machine if hoses
are undersized, worn, damaged, or hoses other than those we recommend are used.
BEFORE YOU RUN THIS MACHINE...PLEASE READ THE REST OF THIS MANUAL!!
RETURNED GOODS PROCEDURE
IF MACHINE WAS NOT PURCHASED DIRECTLY FROM KRENDL MACHINE COMPANY, CON-
TACT YOUR SUPPLIER / DISTRIBUTOR.
When returning products to Krendl for repair, first obtain a return goods authorization (RGA), at
which time you will be given shipping instructions. The product must be shipped PREPAID:
Krendl Machine Company Telephone: 419-692-3060
1201SpencervilleAve. Fax: 419-695-9301
Web Site: www.krendlmachine.com
Once the unit is received, it will be inspected. In-warranty units will be repaired and returned
immediately. An estimate of repair charges will be provided for out-of-warranty units.
Rev. Date: 3/8/17 Page10
MODEL #4000-G-A
This is a view of the basic components of your Model #4000-G-A machine. It shows the location of
each item and gives the function of each. Use this as a guide throughout the manual.
(Illustration 1)
A) BaseUnit-Lowerframeunitsupportingblower
box, speed reducer, motor, airlock and hopper.
B) Airlock-Trapsairandinsulationwhileproviding
a metered flow.
C) Shredder System - Increases production and
coverageonallinsulationproductswhilereduc-
ingclumps thatmayexist invariousinsulations.
D) Slidegate - Meters the amount of insulation
dropping into the airlock by controlling size of
airlockopening.
E) Speed Reducer -Increasesoutputpowerwhile
decreasingspeedofagitator/airlockdrivemotor.
F) Agitator - Conditions insulation in the hopper.
G) Hopper-Upperunitofmachineholdinginsulation.
H) Motor - Provides driving power for speed re-
ducer, blower, and agitator/airlock system.
(Illustration 2)
I) Main Control Panel - Connects with main
power, allowing operation of unit at machine or
Remote Cord.
J) Kill Switch - Safety device for immediate stop-
ping of machine.
K) Blower - Provides the air necessary to move
insulation from the airlock.
L) Hopper Extension -Increases overall hopper
capacity.
BASIC COMPONENTS
Illustration 1
Illustration 2
Rev. Date: 3/8/17 Page11
MODEL #4000-G-A
Ø8.000
C
10.250
Ø4.000
4.000
LOCATED
BEHIND MACHINE
Cooling Fan Intake B
Ø8.000
26.500
8.625
Ø2.000
A
Engine Intake B
MACHINE DRIVE AND TRUCK SPECIFICATIONS:
YourModel#4000-G-AKrendlMachine can be mounted in anytruckandchassis configuration. We
recommend a minimum chassis rating of 26,000 GVWR. We also recommend a minimum 22 feet van
body. The body should have a full width rear door. The Krendl Model #4000-G-A Machine can be
mounted anywhere in the truck body, as long as the engine and blower can receive fresh air.
***INSTALLATION NOTE: It is very important that all of the truck body doors be open to pro-
vide proper ventilation to the engine. If the unit cannot receive clean cool air, engine cooling
problems may occur. This will void the warranty on the machine and the engine!
TOOLS NEEDED:
Heavy Duty Drill
Drill Bits: 5/8” for bolts
Fork Lift (means to lift the machine)
Pry Bars
Basic Wrenches
2” & 4” hole saw
Sawzall
INSTALLATION INSTRUCTIONS:
1) Position the machine in the truck or trailer so that the engine, blower and cooling fan can get
fresh air.
2) Check under the truck or trailer body that the engine exhaust, fresh air flanges, blower air inlet
and machine mounting holes will not interfere with any components underneath. If there is an
interferencewithanyofthecomponents, thenyouwillneed to adjust the position ofthemachineto
clear the obstruction. Note: It is the manufacturers recommendation that the blower filter
be mounted under the truck.
3) Mark location of machine and remove so holes can be located and cutout.

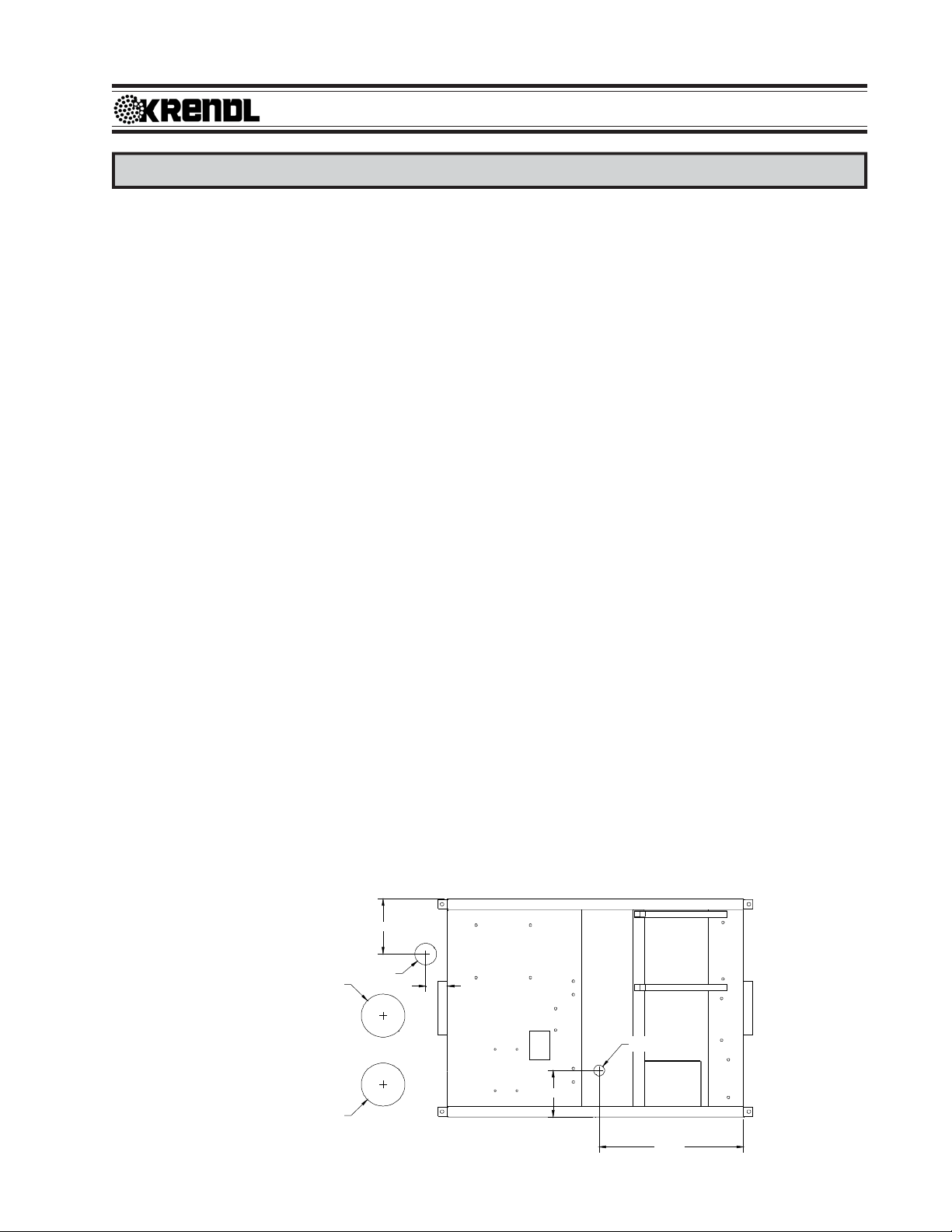

4) Cut the following holes: (Use illustration 3 as a reference ONLY)
a. Engine Exhaust
b. Fresh Air Flanges
c. BlowerAir Inlet
Illustration 3
INSTALLATION
Rev. Date: 3/8/17 Page12
MODEL #4000-G-A
5) Place the machine in the truck or trailer and line it up with the holes.
6) Drill 5/8" holes on all four corners of the base using the machine hold downs as guides.
7) Fasten machine down on all four corners using 1/2” bolts, washers, lock washers and nuts.

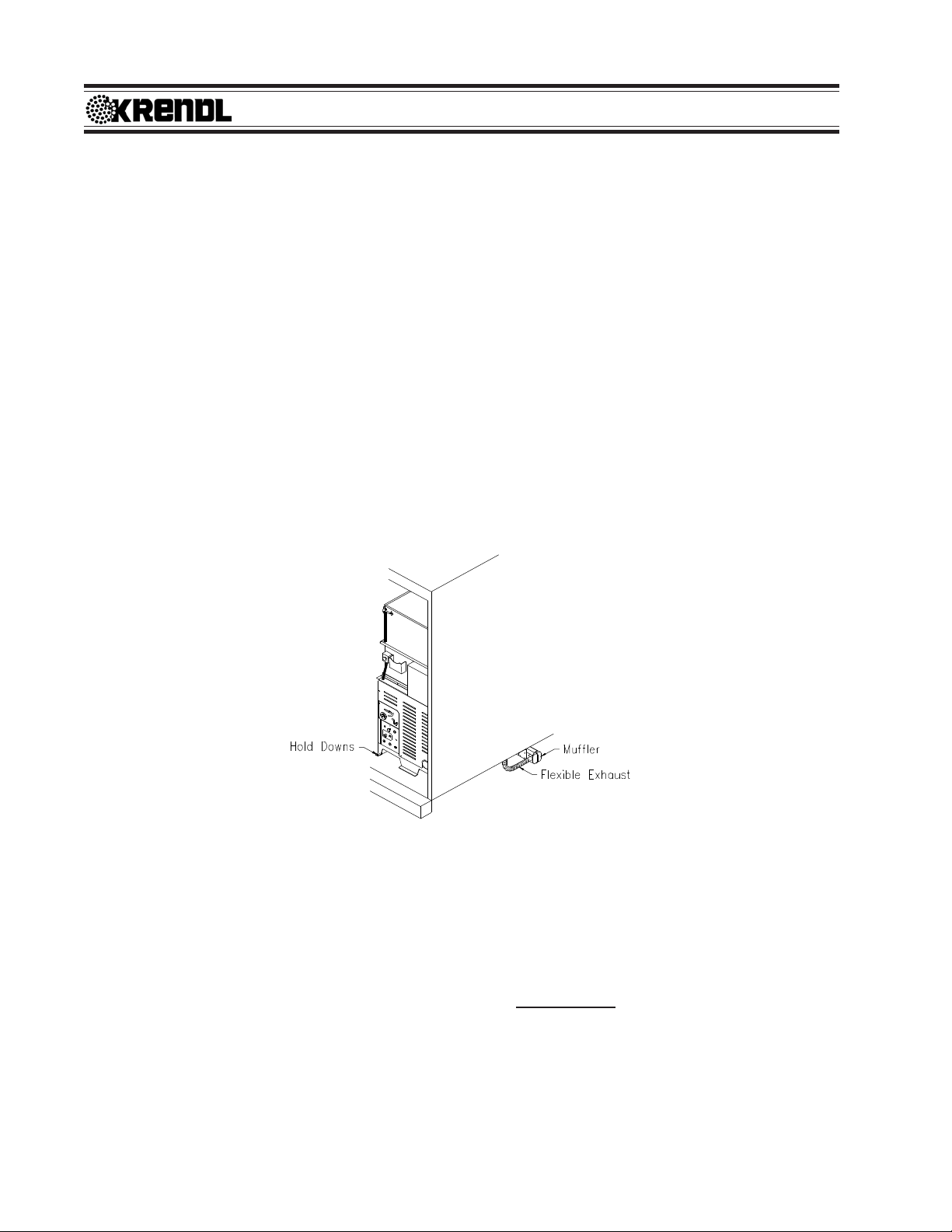

(See illustration 4) Note: Hardware is not included and length of bolts may vary due to
thickness of floor.
8) Run exhaust out of the truck or trailer using the supplied flexible exhaust (See illustration 4)
Note: Make sure the exhaust is routed away from the blower, engine air intake and cool-
ing fan intake.
9) Attach muffler to flexible exhaust and mount underneath truck or trailer using supplied mounting
bracket. (See Illustration 4) Note: Secure mounting bracket with two 5/16" lag bolts.
10) Attach the supplied 8” hose to the back guard and fresh air flanges. Secure with hose clamps.
Donotcovertheairinletwithanytypeofpanelthatmayrestrictairflow (louvered panel. expanded
metal, mesh screen, filter, ect). It is imperative that the cooling fan has the necessary volume of
air to keep the engine and other components from overheating.
WARNING: Engines give off carbon monoxide, an odorless, colorless, poison gas. Breath-
ing carbon monoxide can cause nausea, fainting or death. Do not start or run engine
when exhaust is not properly ran outside.
11) Mount fuel tank in a convenient ventilated location and run fuel lines from gas tank to engine fuel
filter. (See illustration 5)
WARNING: For any gas or diesel equipment that is not installed in a truck or trailer by
Krendl Machine, warranty will be voided if not installed to the exact instructions of this
manual. (See installation section).
FuelFilter
Illustration 4
Illustration 5
Rev. Date: 3/8/17 Page13
MODEL #4000-G-A
OPERATING INSTRUCTIONS
StartingYour Krendl Model#4000-G-AMachine:
1) After installing your Model #4000-G-A accordingtotheinstallationinstructions, it is now time to start
your machine. Again, check all engine fluid levels, belt tension, and that all guards are installed
properly.
2) Attach the blowing hose to the machine and run the hose into the building.
3) Run the remote control cord into the building.
4) Make sure the control switch on the remote control cord is in the “off” position. Now, you may plug
in the remote control cord.
5) Start up engine and throttle up to 3200 RPM.
6) Your machine is now ready for operation.
Note: Agitator motor and blower should only be operated with steady or constant flow of electricity
between 110-120 volts.
Note: When using extension cords, wire gauge size should not be less than input cord on unit and
not exceed 50' in length. (See Voltage Drop Chart Below.)
Ex: A two-wire 20-ampere circuit using 12 AWG with a one-way distance of 25 feet will drop 1.98 volts;
120 volts - 1.98 volts = 118.02 volts as the load voltage.
Rev. Date: 3/8/17 Page14
MODEL #4000-G-A
ElectricalOperation:
NOTE: PRESS KILL SWITCH TO IMMEDIATELY STOP MACHINE AT ANY TIME!
1. Make sure Kill Switch is out by twisting clockwise/right. (See illustration 6)
2. Set 4-Position Selector Switch to OFF. (See illustration 6)
3. Press green start Button. Machine will not run unless start button is pressed after Kill Switch
is out. (See illustration 6)
4. Select operating mode on 4-Position Selector Switch from one of the following options:
Remote: Remote control hand pendant will control machine.
Off: Machine will not run. (overrides remote hand pendant)
Blower: Only the blower will run continuously. (manual control at machine)
Agitator-Feed/Blower: Both the blower and the agitator-feed will run continuously. (manual
control at machine)
Illustration6
Main Control Panel (lid closed)
Rev. Date: 3/8/17 Page15
MODEL #4000-G-A
6. When operating in Remote mode, the 4-Position Selector Switch must be set to Remote
position. (See illustration 6 on page 14.)
7. Remote control hand pendant positions will be selected from the following:
BLOWER-FEED -operatesbothblower andagitator-feed simultaneously
OFF - (middle position) all functions stop
BLOWER - operates the blower only
8. Use the 12 Volt DCAuxiliary Outlet on the Main Control Panel for supplying continuous power to
accessories.
StoppingYour Machine:
1) Switch the remote switch to “AIR ONLY” and wait until the hose is clear of all material.
2) Let the engine run for a couple of minutes to cool down.
3) Turnthecontrol switch on theremotecontrolcord to the “off”position and unplug the remotecontrol
cord from the panel.
4) Turn the key switch to the “off” position.
MACHINE DAMAGE NOTE:
DO NOT FILL THE HOPPER TO CAPACITY AT THE END OF THE DAY. THE MATERIAL
WILL COMPRESSAND CAN CAUSE MACHINE LOCKUP DURING THE NEXT START-UP.
MechanicalSettings:
The controls of your machine contain the blower and slidegate controls to adjust your machine for
each application and type of fiber. (See illustration 7 on page 16.) Blower control (air) and slidegate
(material feed) are adjusted according to:
TYPEOFMATERIAL: Cellulose and fiberglass have different textures and densities that
respond to machine settings.
HOSE: Corrugations or roughness of interior surface, diameter, length and
elevation of hose will also require varying adjustments.
WEATHER CONDITIONS: Temperature and humidity may require day to day adjustment of
machine settings.
Blower Control and Slidegate General Settings:
Blower control can increase or decrease the amount of air in the system, affecting the velocity
(speed) and spread rate (coverage) of insulation. (See illustration 7 on page 16.) The blower control
valve is used for controlling air pressure and amount of air flow.
Opening or closing slidegate (material feed) controls the amount of insulation dropping into the
airlockwhichchangestheproductionrate(lbs.perhour). (Seeillustration7onpage16.) Forcalibration
purposes the scale located on the machine indicates how many inches the airlock slidegate is opened.
Rev. Date: 3/8/17 Page16
MODEL #4000-G-A
The blower and slidegate controls working together
affect the distance insulation can be blown through a hose
without plugging. These controls also affect the accurate
blowing of insulation for spraying applications.
These settings control the following:
•Density of insulation blown in application.
•Velocity of material impact when spraying.
•Dust on open blow.
• Material spread rate or coverage.
•Production rate (lbs. per hour blown).
General Blower Control and Slidegate Settings for Open Blow:
With the slidegate closed and blower control valve on low (valve open), turn agitator-feed and
blower on. Fill hopper with insulation and adjust blower valve and slidegate. Move controls
proportional to each other. (i.e. If blower valve is half open, slidegate should be half open.) As hose
length is increased, air pressure/volume is increased by closing off the blower valve while closing the
slidegate proportionally. This will increase the distance insulation can be blown through the hose,
while decreasing the blowing production rate (lbs. per hour blown). (See illustration 7)
Shredder Assembly:
This unit is supplied with a shredder assembly; airlock/agitator speeds are preset at the factory. No
further sprocket setting speeds are needed, as this system will accommodate most insulations and
applications. However, the shredder direction can be adjusted as described below.
Shredder Chain Adjustment:
Unidirectional Rotation (See illustration 8) is preferred as an all-around setting for a combination of
materials and applications. This setting provides the greatest coverage and best control for internal
wetting (stabilized) and open blow applications.
Center-Down Rotation (See illustration 9) force feeds the insulation into the airlock at a faster rate.
This direction provides the greatest production for cellulose insulation in an open attic blow applica-
tion although coverage may decrease.
Illustration 7
Illustration 8 Illustration 9
Rev. Date: 3/8/17 Page17
MODEL #4000-G-A
CHECKGUARDS X
CHECKENGINEFLUIDLEVELS X
CHECKDRIVEALIGNMENT&TENSION X
CHECKENGINEEXHAUSTHOSE X
SERVICEENGINEAIRCLEANER
CARTRIDGE&CLEANENGINE X
COOLINGSYSTEM
VISUALLYINSPECTCOUPLING
ELEMENTSFOR FATIGUE CRACKS X
(OVER 1/2”)
CLEANBLOWERAIRFILTER X
CHECKBLOWER OIL LEVEL X
CHANGEENGINE OIL ANDFILTER
(See engine manufacturer’s manual for recommended maintenance schedule of when oil and filter
shoud be changed)
GREASEBLOWERBEARINGS X
LUBRICATE DRIVECHAINS WITHADRY
LUBRICANT X
GREASESHREDDER,AIRLOCK,
AGITATOR,& JACK SHAFTBEARINGS X
CHANGEBLOWER OIL X
(needs to be changed after first 100 hours of operation and thereafter every 1000 hours)
GENERAL MAINTENANCE
Your Krendl Model #4000-G-AMachine is designed to be used with minimal maintenance for all its
components. The following is only a guide; experience is the best guide for the right maintenance
schedule for you.
SAFETYNOTE
WHEN MAINTENANCE IS TO BE PERFORMED ON THE MACHINE ALWAYS:
1) STOPTHE ENGINECOMPLETELY.
2) TURNTHEIGNITIONTOTHE“OFF”POSITIONANDREMOVETHEKEY.
3) DISCONNECTBATTERYCABLE.
NOTE: When further maintenance is needed, please refer back to other manufacturer’s
manualsfor additional assistance!
DESCRIPTION EACH
SHIFT 40 200 1000
HOURS HOURS
HOURS HOURS
80
Hour / Tachometer Reset Instructions:
1) Toggle totheappropriateFlashAlert menu tobecleared.
2) Pressand hold buttonuntil"00000" appears. (approx. 3sec)
Note: Hour glass will flash repeatedly while holding button down during service reset.
