OWNERS MANUAL
MODEL #1300/2300
KRENDL MACHINE COMPANY • 1201 SPENCERVILLE RD
DELPHOS, OHIO 45833 • TELEPHONE [phone] • FAX [phone]
E - MAIL: [e-mail] • WEB SITE: www.krendlmachine.com
60YEARS OFAMERICAN INGENUITY

CONGRATULATIONS ON YOUR PURCHASE OF KRENDL EQUIPMENT
MODEL #1300/2300
OWNER'S MANUAL
FOR ASSURED SAFETYANDCONFIDENCE,PLEASEREADTHIS
MANUALCAREFULLYBEFOREINSTALLINGANDOPERATINGYOUR
MACHINE.
E-MAILADDRESSIS: [email protected]
WEBSITEIS:www.krendlmachine.com

INTRODUCTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GENERAL SAFETY INFORMATION. . . . . . . . . . . . . . . . . .
DECALS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RETURNED GOODS PROCEDURE . . . . . . . . . . . . . . . . .
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ASSEMBLY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BASIC COMPONENTS. . . . . . . . . . . . . . . . . . . . . . . . . . . .
OPERATINGINSTRUCTIONS
Machine Hook-up. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Electrical Operation. . . . . . . . . . . . . . . . . . . . . . . . . . .
Mechanical Settings. . . . . . . . . . . . . . . . . . . . . . . . . . .
GENERAL MAINTENANCE. . . . . . . . . . . . . . . . . . . . . . . . .
ELECTRICAL SYSTEM. . . . . . . . . . . . . . . . . . . . . . . . . . . .
LADDER DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TROUBLESHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SPARE PARTS LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PARTS LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GLOSSARY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SERVICE RECORD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PAGE
1
2-3
4-5
6
7
7
8
9
10-12
13
14-15
16-20
21-27
28-32
33-35
36
36-47
48
49
Table of Contents

Rev. Date: 12/27/17 Page1
MODEL #1300/2300
INTRODUCTION
ThankyouforpurchasingaKRENDLINSULATIONMOVINGMACHINE. Withoversixtyyears experience
inmanufacturing insulationmovingequipment,wehavedesignedandbuilt yourmachinewith thehighest
qualitytoprovideyearsofreliableservice.
Thismanualhas been preparedtohelpyou obtain themaximumefficiencyand service fromyourKrendl
equipment. The machine is designed to condition and apply insulation with the utmost in dependable
performance. Our primary objective is to build equipment which will provide complete satisfaction so
that you may confidently recommend Krendl to others.
Wedonotmanufactureorsellinsulation. Ourinterestliesonlyintheproperperformanceoftheequipmentwe
manufacture. Wemakenorecommendationsorguaranteesconcerningvariousinsulations.
CAUTION:
This manual contains important information regarding the safe assembly and operation of your
machine. Weurgeyoutoreaditcarefullyandfollowtheinstructionsprovided. Ifyourquestionsarenot
answeredinthismanual,maywehearfromyou? We want you to be able to operate this unit safely
andconfidently.
UNPACKING: Storeandunpackcartonwith correctsideup. Unpack yourmachineIMMEDIATELY and
check for damage in shipping. Place any damage claim with delivering carrier, saving all packing
materials for inspection. Ourwarrantycoversmanufacturer'sdefects only. DONOTreturnto shipper.
FILL IN AND RETAIN:
KrendlMachineCompany Telephone: [phone]
1201SpencervilleRd Fax: [phone]
Delphos,Ohio45833U.S.A. E-mail: [email protected]
Web Site: www.krendlmachine.com
For your protection in the event of theft or loss, please fill in the information requested for your own
records. This information will be needed for in-warranty repairs. You may also want to attach a copy of
yourinvoice.
Machine model number _ Blowermotormanufacturer _
Serial number _ Agitatormotormanufacturer _
Blower(s) serial number(s) _ Speed reducer manufacturer _
Date of purchase _ Supplier _
The model and machine serial numbers are located on the hopper of the machine unit. The blower(s)
serial number(s) is located on the motor housing of the blower(s). The motor(s) serial number(s) is
locatedonthemotor(s)housing and the reducer serial numberislocatedontopofthe reducer.

Rev. Date: 12/27/17 Page2
MODEL #1300/2300
GENERAL SAFETY INFORMATION
Important: Read all instructions before operating this unit. This equipment can be potentially
dangerousandmustbeusedinstrictaccordancewithinstructions.
DisclaimerNotice: Themanufacturerwillnotbelegallyresponsibleforanyinjuryordamageresulting
fromtheimproperuseofthisequipmentorthefailuretofollowinstructions.
Unpacking
Handlecartonswithcaretoavoiddamagefromdroppingorbumping. Storeand unpackcartonswiththe
correctsideup. Completelyremovemachinefromthepackagingandfromanyshippingpalletorskidto
whichitmightbeattached. Inaddition,completelyremoveallshippingmaterialsfrominsidethemachine.
General Safety
1. Readthismanualcarefullyandbecomefamiliarwithyourmachineunit. Knowitsapplications,
limitations,andanyhazardsinvolved.
2. This machine was designed and manufactured for specific applications. Do not attempt to
modifytheunitoruseitforany applicationitwas notdesignedfor. If youhaveany questions
aboutyourintendeduseorthemachinessuitability,askyourdealer/distributororconsultthe
factory. Themanufacturers'couldnotpossiblyanticipateeverycircumstancethatmightinvolve
ahazard. Forthatreason,warningsinthemanualandwarningtagsordecalsaffixedtotheunit,
arenotall-inclusive. Ifyouintendtohandle,operate,orservicetheunitbyaprocedureormethod
notspecificallyrecommendedbythemanufacturer,firstmakesurethatsuchaprocedureor
methodwillnotrenderthisequipmentunsafeorposeathreattoyouandothers.
Electrical Safety
•TheNationalElectricCode(NEC)intheUnitedStatesandmanyinternationalelectricalcodesrequire
frameandexternalelectricallyconductivepartsofthismachinetobeproperlyconnectedtoanapproved
earthground. Localelectricalcodesmayalsorequirepropergroundingofmachine. Consultwithlocal
electriciansforgroundingrequirementsinyourarea.
• Neverhandleanykindofelectricalcordordevicewhilestandinginwater,whilebarefootorwhilehands
orfeetarewet. Dangerouselectricalshockwillresult.
• Useagroundfaultcircuitinterrupter(GFCI)inanydamporhighlyconductivearea.(metaldeckingorsteelwork)
• ReferenceNFPA79,70E,orOSHAsafeworkpracticeswhenperformingenergizedworkprocedures.

Rev. Date: 12/27/17 Page3
MODEL #1300/2300
Safety/Caution
• Be Safe - Keep away from moving parts.
• Be Safe - Makesureallguardsandhopperbarareinproperplacebeforeoperatingmachine. Guards
andsafetydevices/switchesshouldnotberemoved,modifiedorby-passed. Handsshould
never pass below hopper bar.
•Be Safe - Donotremovemotorsorlifthopperwhenunitisconnectedtopowersupply.
• Be Safe - Make sure machine is properly grounded. Protect all electrical supply cords from sharp
objects, moisture, and other potentially hazardous materials. Keep power cords in good
repair. Electricalservicemustbe performed by a qualified electrician.
• Be Safe - Disconnectpowersupplybeforeinspectingoradjustingunit.
• Be Safe - Consultaqualifiedtechniciantoanswerquestionsbeforeattemptingtooperate,orinjurymay
result.
• Be Safe - Donotoperatemachinealone.
• Be Safe - Donotleavemachineunattendedandenergized.
• Be Safe - Turnmachineoffanddisconnectelectricitybeforeclearingandfeedingjamorattemptingto
removeanyobjectdroppedinthehopper.
• Be Safe - Keep hands, loose clothing, jewelry and hair away from agitators, gears, chains and other
movingparts.
• Be Safe - Useproperliftingwhenmovinginsulationandloadingmachine.
• Be Safe - Keep work area clear of debris.
• Be Safe - Wear proper safety equipment, including protective gear, such as respirators, eye and ear
protection.
• Be Safe - ViolationoftheOwner'sManualorsafetyprecautionsmayvoidwarranty.
Make Sure!
• Hopperisemptyofforeignobjectsbefore starting.
• Adequateelectricalpoweris supplied ordamagetounitwill result.
• Blowerfilteriskept clean and in placewhenblowerison.
• Machineisturnedoffimmediatelyifhoseisplugged,orblowerwilloverheat.
• Machinemustbeon before adding insulation.
• Blower(s) must be on, when agitators are running, or machine will bind.
• Agitatormotorisnotrunwithhopperemptyformorethanafewminutes,ordamagetosealswillresult.
• Sprockets, chains, belts and pulleys are correctly aligned and tensioned.
• Pieces of bag are not left in the machine as this can bind and stall your machine.
• Thismachineshouldonlybeusedwithgoodqualityinsulationsthataredry,undamagedandthatmeet
a certain industry specification or quality standards.

Rev. Date: 12/27/17 Page4
MODEL #1300/2300
Manufacturer information is provided here
alongwithmachinemodel,andserialnumber.
Identifies position of material feed gate.

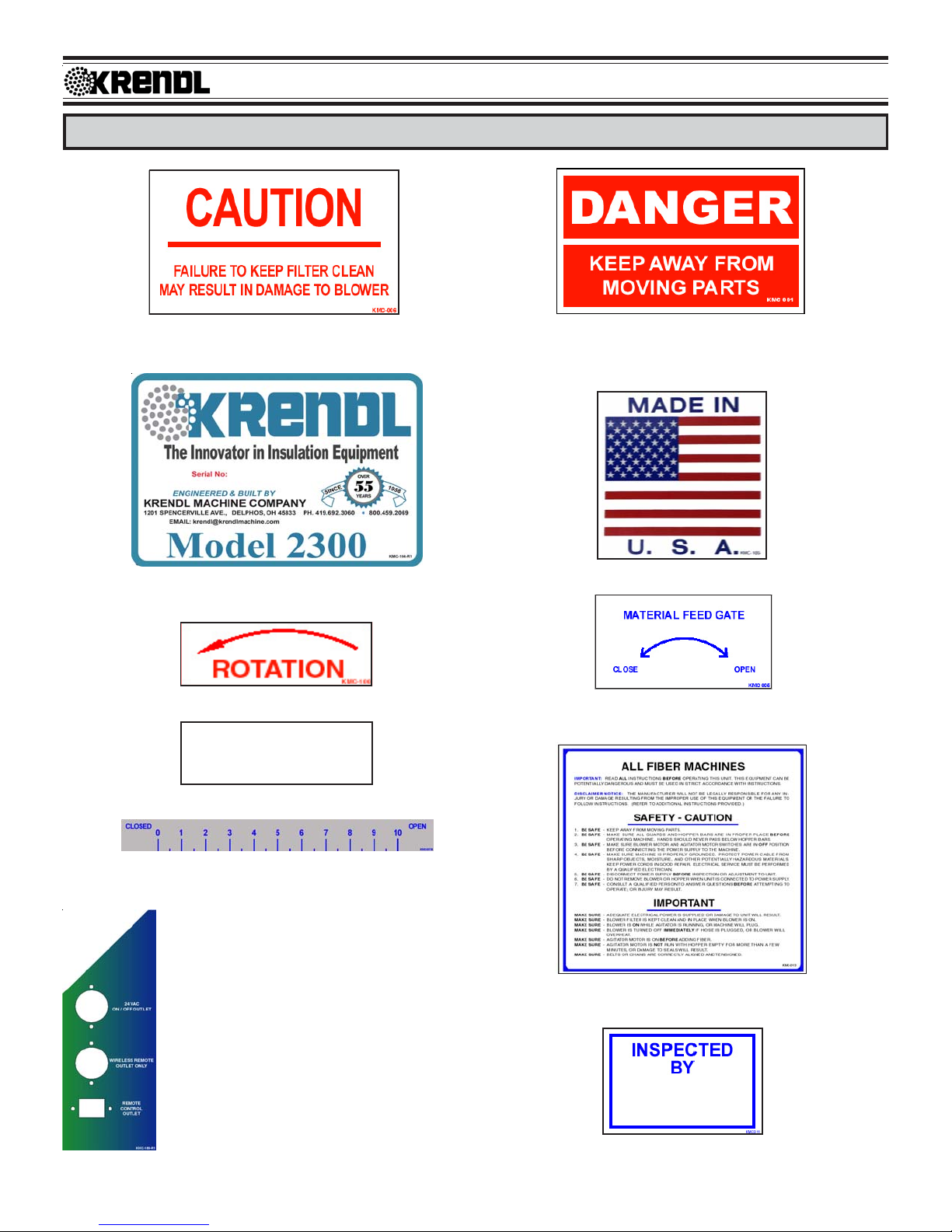

DECALS
Keeping the filter clean will result in longer
blower life and better performances. Rotating parts can be dangerous! You can
snag clothes, hair, hands, etc. This can
cause serious injury or death.
Generalsafetyinformationintendedtoreduce
the risk of serious injury or death
Opens and closes the material feed gate
which in turn controls the production.
Made in the U.S.A.
Rotatingpartswillbemovinginthisdirection.
Indicates which employee date equipment
was inspected.
KMC-01234
Part number for identication and tracking.
Identifies the three outlets on this side of machine.
24VAC On/Off Outlet - Specifies the voltage this
outlet is rated for. Power turns on and off with
agitator.
Wireless Remote Outlet - Indicates that this outlet
is intended for only the wireless remote. Each
time machine cycle starts, an audible alarm warns
the operator that the machine is about to come on.
Remote Control Outlet - Indicates that this outlet
isintendedfor onlytheremote controloutlet. Each
time machine cycle starts, an audible alarm warns
the operator that the machine is about to come on.

Rev. Date: 12/27/17 Page5
MODEL #1300/2300
Indicates if blower is off, on,
or on with agitator.
Indicates that the electrical box on the machine
is in compliance with UL codes.
Reset button for motor.
Identifies what type of insulation should be used with this
machineandthat themanualshould be readbefore operat-
ing. Warns to be careful around electrical components!
This can cause serious injury or death.
Indicates the controls that start, stop, and run the machine.
Provides the necessary instructions to properly operate and troubleshoot the machine.
Failure to follow these instructions could result in damage to the machine.
Indicates this unit has two power sources that
should be disconnected before servicing to re-
duce the risk of serious injury or death.

Rev. Date: 12/27/17 Page6
MODEL #1300/2300
WARRANTY:
Krendl Machine Company (Company) warrants to each original purchaser (Buyer) of its
machines that such products will be free of manufacturing defects for a period of 2 years from
the date of shipment to the Buyer. (This does not include accessories, pumps, blowers, wall
scrubbers, etc.)
No warranty is made with respect to:
1. Components or accessories manufactured and warranted by others. Warranties for
purchased component parts as supplied from vendor such as engine, electric motor,
blower,gearbox,transmission,etc.,iffurnishedbythemanufacturerofthecomponent,are
on file at the Company’s main office and copies will be furnished at request of Buyer.
Component(s),shippingcostsprepaid,shallbesenttoCompanywhointurnshallforward
to vendor for evaluation and warranty determination.
2. Anydefectcausedbyrepair,alterationand/oradjustmentperformedbyBuyerorcustomer/
vendor of Buyer without the express written authorization of the Company.
3. The labor costs of replacing parts by parties other than the Company.
4. Any machine that has not been operated and/or maintained in accordance with normal
industry practice and the written recommendations of the Company. (e.g. machine oper-
ated with an improperly sized, worn or damaged hose, improper or inattention to preven-
tativemaintenance, etc.)
5. The product has been subjected to misuse, negligence or accident or results of any
application or use of the blowing equipment not in accordance with the Company recom-
mendations.
This limited warranty does not cover the free replacement of component parts that become
inoperativedue to wearand usage andneed to bereplaced onaregular basis,including but not
limitedto:airlockseal(s),agitator(s),shredder(s),auger(s),fuse(s),switch(es),clutch(es),hose(s),
shaft seal(s), chain(s), belt(s), sprocket(s), pulley(s), bearing(s), cable(s), battery(ies), filter(s),
fan(s),etc.
TheCompany’sobligationunderthiswarrantyislimitedtorepairingorreplacing(atCompany
option)anypartthatisdeterminedbytheCompanytobesufferingfromamanufacturingdefect.
The Company (at Company option) will provide any required parts and labor to the Buyer. If the
equipmentorpartsmustbe returnedtothe Companyforrepair, alltransportationcosts shallbe
the Buyer’s responsibility.
THIS LIMITED WARRANTY IS EXPRESSLY IN LIEU OF ANY OTHER GUARANTEES AND / OR
WARRANTIES, ORAL OR WRITTEN, EXPRESSED OR IMPLIED, INCLUDING WITHOUT LIMITA-
TION, THE IMPLIED WARRANTY OF MERCHANTABILITY. NO WARRANTY, EXPRESS OR
IMPLIED, OTHER THAN THE AFORESAID WARRANTY IS MADE OR AUTHORIZED BY COM-
PANY. COMPANY SHALL NOT BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL OR
CONSEQUENTIAL DAMAGES TO PROPERTY OR INJURY TO ANY PERSON OR COSTS ASSO-
CIATED WITH LOSS OF PRODUCTION RESULTING IN LOSS OF REVENUE, PROFITS OR LOSS
OF EQUIPMENT THROUGH THE USE OF THIS EQUIPMENT.
Note: Special job circumstances incurring costs for specialized repair and next day delivery
of parts will not be reimbursed by the manufacturer unless authorized by factory.

Rev. Date: 12/27/17 Page7
MODEL #1300/2300
RETURNED GOODS PROCEDURE:
IFMACHINEWAS NOTPURCHASEDDIRECTLY FROMKRENDLMACHINECOMPANY, CONTACT
YOURSUPPLIER/DISTRIBUTOR.
Whenreturning productstoKrendlforrepair, firstobtainareturngoods authorization,atwhichtimeyou
will be given shippinginstructions. The product mustbe shipped PREPAID:
Krendl Machine Company Telephone: [phone]
1201SpencervilleRd Fax: [phone]
Delphos,Ohio45833U.S.A. E-mail: [email protected]
Web Site: www.krendlmachine.com
Once the unit is received, it will be inspected. In-warranty units will be repaired and returned
immediately. Anestimateofrepaircharges will be provided forout-of-warrantyunits.
SPECIFICATIONS
MODEL #: 1300 2300
AIRLOCK DIAMETER: 12” ( 31 cm) 12" (31 cm)
AIRLOCK LENGTH: 12” (31 cm) 16" (41 cm)
OVERALL HEIGHT: 71" (180 cm) 71" (180 cm)
LOAD HEIGHT: 51" (130 cm) 51" (130 cm)
WIDTH (Depth): 32.5" (83 cm) 32.5" (83 cm)
LENGTH: 62" (158 cm) 68" (173 cm)
WEIGHT (Pounds): 757 (343 kg) 800 (363 kg)
ELECTRICAL: 120 or 240VAC 120 or 240VAC
BLOWER VOLUME (cfm): 188 188
BLOWER PRESSURE (psi): 4.5 4.5
AIRLOCK OUTPUT (Diameter): 3” 3"
MAXIMUM FEED RATES:
Celluloselbs./hr. 2400 (1089 kg/hr) 3000 (1360 kg/hr) 100 bags per hour
Fiberglasslbs./hr. 800 (363 kg/hr) 1000 (454 kg) 33 bags per hour
WARNING: Recommended hose size, type and length must be used to achieve maximum re-
sults. Krendl cannot guarantee performance of the machine if hoses are under-
sized, worn, damaged, or hoses other than those we recommend are used.
BEFORE YOU RUN THIS MACHINE...PLEASE READ THE REST OF THIS MANUAL!!

Rev. Date: 12/27/17 Page8
MODEL #1300/2300
ASSEMBLY
Prior to packing, your machine has been assembled and tested to assure quality performance. However, to
safeguard against damage in shipping, certain items are packaged separately within your carton and will need
assembly. Removeextradrivechainwhichmaybeusedlatertochangeshredderdirectionforotherapplications.
BLOWER DOOR: (See Illustration A)
(BlowerFiltermustremaininBlowerDoor.) Anappropriatesizehose(NOTSUPPLIED)isattachedtotheBlower
Door input tube and the other end is located elsewhere to provide clean air to blowers. A fine screen (NOT
SUPPLIED), acting as a filter, over end of hose eliminates accumulation of unwanted debris. This will eliminate
frequent cleaning of the Blower Filter. (Frequent inspection of input hose is recommended.)
POWER CORDS: (20-30 amp twist lock inputs only)
Femalereceptacle(s)need tobewiredproperly tomainpowercord(s). (For 240volt60 hz. seeillustrationE and
consult electrician for assistance.) Units shipped to European countries will have standard (2) two prong 230V
16ampplugssupplied. UnitsshippedoverseastootherthanEuropedonothaveplugs and receptaclesoninput
cords due to the varying electrical plug configurations in different countries, unless provided by Krendl agents or
suppliers.
SLIDEGATE HANDLE:
Prior to packing, the slidegate handle was assembled backwards to safeguard against damage in shipping.
Remove handle and reinstall, so handle sticks out back of machine. Do not over tighten nut, so handle is free
to spin.
ASSEMBLY OF OPTIONS: (See illustration A)
5" Wheel Package: (standard or heavy duty)
Attachtwoswivelcastersonairlockendofmachineforincreasedmobility. Mountrigidcastersonblowerend
with the hex bolts provided.
Bushing Reducer: (3" output)
Bushingreducerinsertsintooutputtubeofairlock. Pressreducerfirmlyagainstshoulderandtightentwohold-
down bolts to secure unit in place. The bushing reduces the size of opening at the airlock to match the hose,
providingamoreconsistentfeedwhilepreventingpluggedhoses. (Standardoutputtubeonmodel#1300and
#2300 is 3".)
(IllustrationA)

Rev. Date: 12/27/17 Page9
MODEL #1300/2300
BASIC COMPONENTS

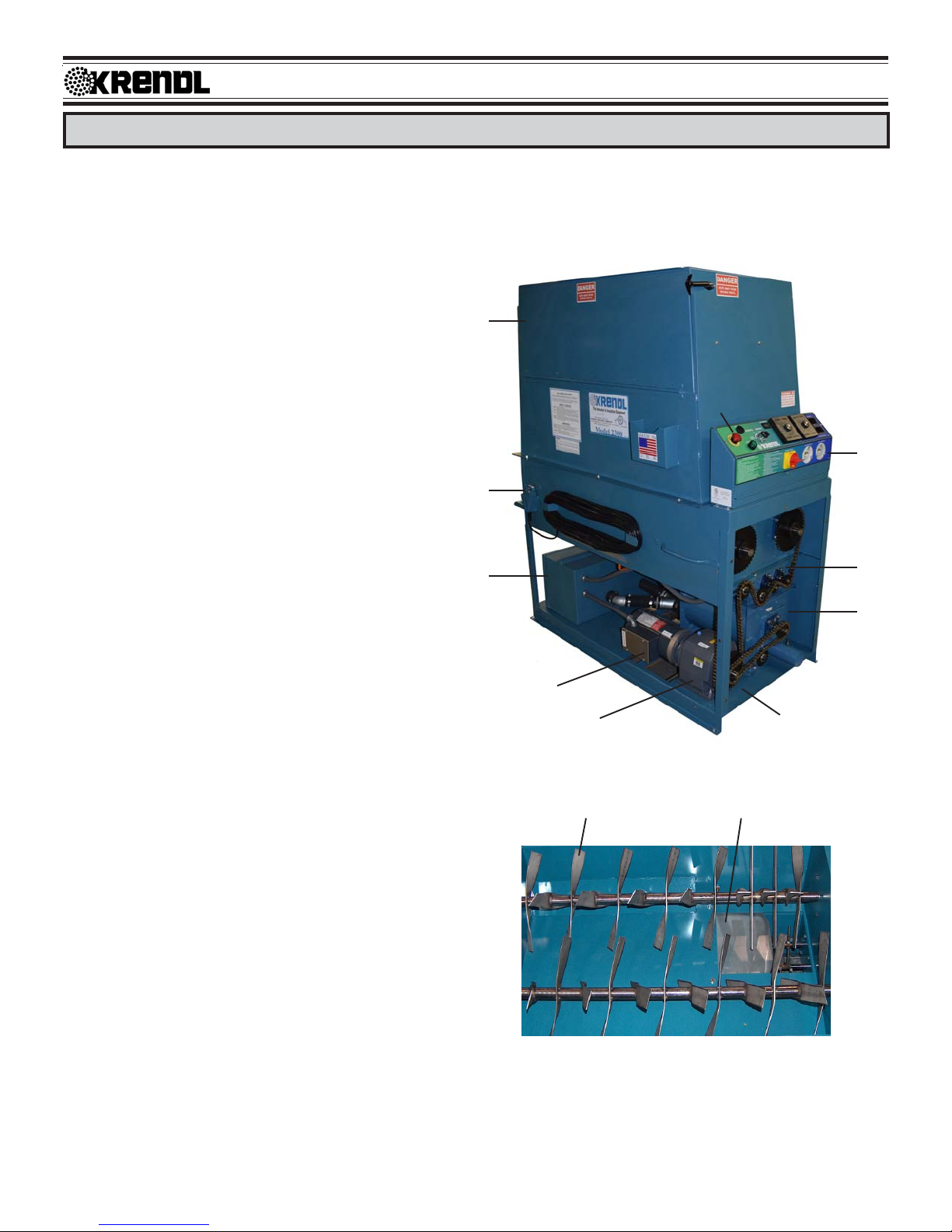

Thisisaviewofthebasiccomponentsofyourmachine. Itshowsthelocationofeachitemandgivesthe
functionofeach. Usethisasaguidethroughoutthemanual.
A) BASE UNIT — Lower frame unit supporting
blowersystem,speedreducer,motor,airlock
andhopper.
B) AIRLOCK — Traps air and insulation while
providing a metered flow.
C) SLIDEGATE—Meterstheamountofinsula-
tion dropping into the airlock by controlling
size of airlock opening.
D) SPEED REDUCER — Reduces speed of
agitators/airlock drive motor while output
powerremainsconstant.
E) BLOWER SYSTEM — Unit includes blow-
ers,check valve protection, filter and blower
control.
F) MOTOR—Providesdrivingpowerforspeed
reducerandagitator/airlocksystem.
G) AGITATOR—Conditionsandaugersinsula-
tion in the hopper.
H) HOPPER — Upper unit of machine holding
insulationwhichincludeshingedaccessdoor.
I) REMOTE CORD HANGER — Storage for
remotecontrolcord.
J) KILL SWITCH — Safety device for immedi-
atestoppingofmachine.(Locatedonelectri-
calbox)
K) SHREDDER SYSTEM — Increases
production and coverage on all insulation
products while reducing clumps that may
existinvariousinsulations.
(L) MAIN CONTROL PANEL — Connects with
mainpower,allowingoperationofunitatma-
chineorRemote Cord. (IllustrationB)
GC
B
K
L
J
H
I
E
A
F
D

Rev. Date: 12/27/17 Page10
MODEL #1300/2300
OPERATING INSTRUCTIONS
Machine Hook-up
Thisunitcomesreadyfor connection to insulation hose, powercords,andaccessories.
The #1300 and #2300 provide a direct connection to 3" insulation hose. Slide hose on to outlet and
secure with a hose clamp. All hose connections must have hose clamps to prevent air leakage from
blowertonozzle. This helpstopreventhose plugging.
Removeremotecontrolcord,packet,accessories,ect.fromhopperandplugremotecontrolcordintoMain
ControlPanel Boxlocated onhopper.(SeeIllustrationC)
Thefirstbag ofinsulationintohopper shouldbewellbroken by handtoassistagitator action. Caution:
Neverputhandsinhopper whenmachineisrunningorforcefeedmaterialbypushingdownoninsulation.
Whenassemblingunit,makesureremotecontrolhandpendantswitchisintheoff(middle)positionand
closeslidegate.

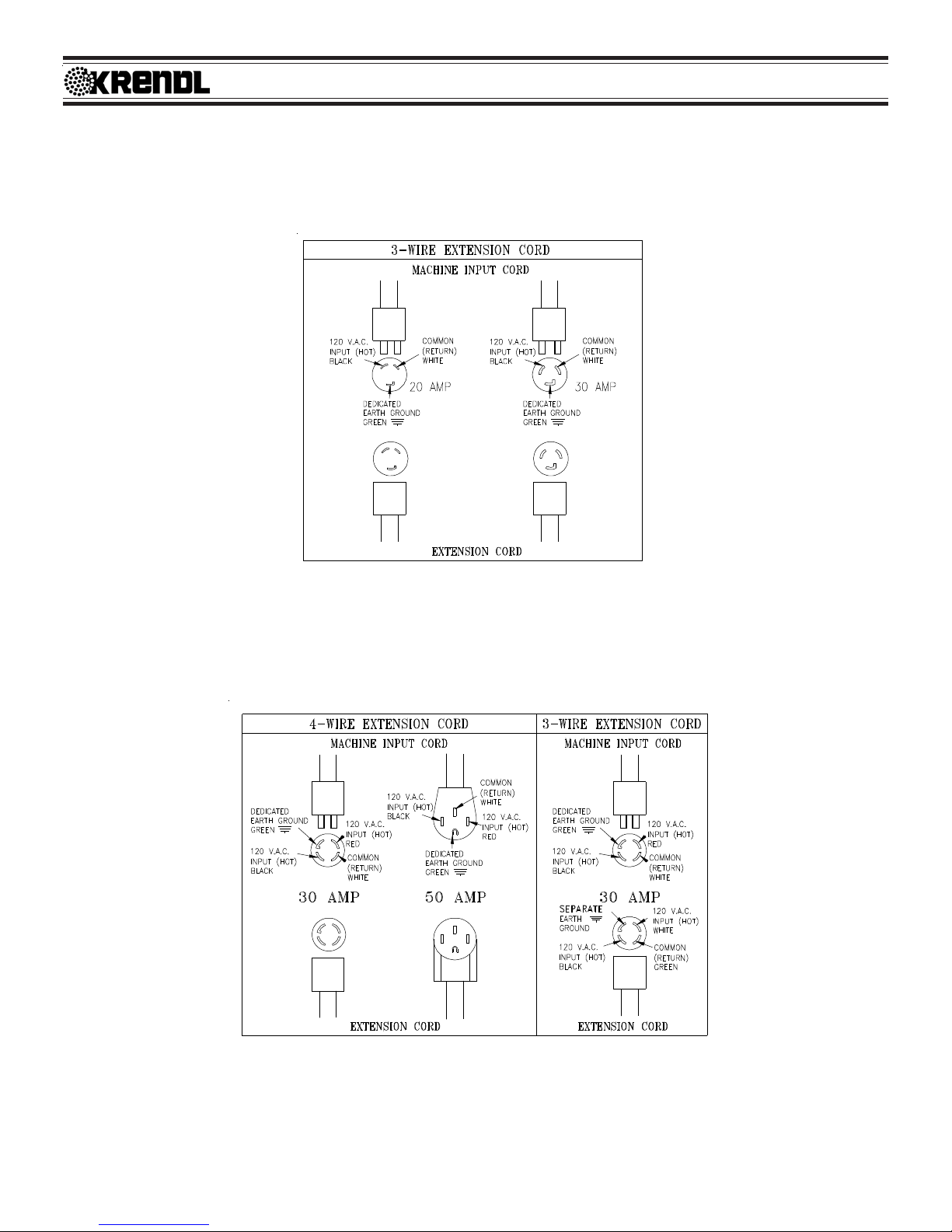

1. Connectpower to Input Cord(s)locatedbelowMainControl Panel.(SeeIllustrationC)
Ondoubleinputunits,both input cords mustbesuppliedwithpowerfromtwoseparatesourcesfor
unittoworkproperly.One 20ampplug mustbeplugged intoonecircuit andthe30 ampplugplugged
intoaseperatecircuitfrom the 20 amp.Whenusingextensionpowercords,wire gauge size should
not be less than input cord on unit and not to exceed 50' in length. (See Voltage Drop Chart On
Next Page.)
(IllustrationC)
24VDC
ON/OFFOutlet
Alarm
RemoteControlOutlet
MainControlPanel
Wireless
RemoteOutlet
SlidegateControl
(Locatedonback
ofmachine)

Rev. Date: 12/27/17 Page11
MODEL #1300/2300
Ex: A two-wire 20-ampere circuit using 12 AWG with a one-way distance of 25 feet will drop 1.98 volts;
120 volts - 1.98 volts = 118.02 volts as the load voltage.
230 volts - 1.98 volts = 228.02 volts as the load voltage.
240 volts - 1.98 volts = 238.02 volts as the load voltage.
Caution: Operatingunitwithless than required voltage,morethanrequiredvoltage,or inadequate
generatorsizewill resultindamage toelectricalcomponents. Thismachine ismarkedon thefrontof
the Main Control Panel with the correct input voltage required. Note: Agitator motor and blower(s)
should only be operated with steady or constant flow of electricity. Do not operate machine with less
thanormorethanrequiredvoltage. Damagetomotorsand other electrical parts will result, voiding
warranty. Checkvoltmeter(s)on MainControlPanel whenmachineisrunning. Note: Theplugsthat
weresuppliedwiththemachinewillneedreplacedwhenusingportablepower. Seeinstructionsbelow.
a. For 120volt, 60hz. models only, replacethe 30 amp plug that wassuppliedonthemachine
withthe50ampplug that was included as anoption. Thentakethe30ampplug that was just
removedandchangeitoutwiththe 20 amp plug, thus indicating using2seperatecircuits.
b. For 240volt, 60hz. models only, replacethe30ampplugthatwassuppliedonthe machine
withthe50ampplugthatis provided, thus indicating using 1 single circuit.

Rev. Date: 12/27/17 Page12
MODEL #1300/2300
(IllustrationD-1)
Electrical Hook-up for 240volt, 60hz.
IMPORTANT NOTE FOR 3-WIRE CORD:
A separate isolated ground is required that connects the frame of the machine to an earth ground source.
Seriousinjuryordeathmayresultifmachineisnotproperlygrounded. Ifyouhaveanyfurtherquestions,consult
aqualifiedelectrician.
Machine Hook-up (cont.)
3. For 240volt, 60hz. models only, properly connectfemale receptacletoextensioncord. See Illustration
D -1and consult electricianfor assistance.
2. For120volt, 60hz. modelsonly, properlyconnectfemalereceptacletoextensioncord. SeeIllustrationD
andconsult electricianfor assistance.
(IllustrationD)
Electrical Hook-up for 120volt, 60hz.

Rev. Date: 12/27/17 Page13
MODEL #1300/2300
4-Position
SelectorSwitch
Electrical Operation
PRESS KILL SWITCH TO IMMEDIATELY STOP MACHINE ATANY TIME!
1. Make sure Kill Switch is out by pulling. (See Illustration E)
2. Turn red Main Disconnect Switch to ON position. (See Illustration E)
3. Set 4-Position Selector Switch to OFF. (See Illustration E)
4. Pressgreen start Button. Machine will not run unless start button is pressed after Kill Switch is out and redMain
Disconnect Switch is on. (SeeIllustrationE)
5. Selectoperating mode on 4-Position Selector Switch from oneofthefollowingoptions:
Remote: Remotecontrolhandpendantwill control machine.
Off: Machinewillnot run. (overridesremotehandpendant)
Blower: Onlytheblowerwillruncontinuously.(manualcontrolatmachine)
Agitator-Feed/Blower: Boththeblowerandtheagitator-feedwillruncontinuously.(manualcontrol at machine)
Main Control Panel (lid closed)
(Illustration E)
6. When operating in Remote mode, the 4-Position Selector Switch must be set to Remote position. (See Illustration E)
7. Remotecontrol hand pendant positions will beselectedfromthefollowing:
BLOWER-FEED - operates both blower motor and agitator-feed motor simultaneously
OFF - (middle position) all functions stop
BLOWER - operates the blower motor only
Main Control Panel (lid open)
(IllustrationG)
8. If using optional Internal Wetting System (IWS), connect IWS cord to
24 VAC Outlet on Main Control Panel.
9. Adjustblower(s)andslidegateto desiredsettings.(Seepage14 and15)
10. To adjust alarm time, follow theprocedurebelow:(SeeIllustrationG)
a) Unplugmachinefrom power source.
b) Turnoff redMainDisconnectSwitch, loosen two screwsindoor,
andopenMainControlPanel lid.
c) TurnTimer Relayknobtodesired setting.(clockwisetoincrease
warningtime)
d) Closelid,tightentwo screwsindoor, pluginmachine,turn onred
Main Disconnect Switch and press green Start Button.
e) Retestmachine.
(Illustration F)
KillSwitch
(Pulltorelease)
Start Button
(Green)
Alarm Hourmeter BlowerControls
Main Disconnect Switch (Red)
Voltmeters
AgitatorAlarmTimerRelay(left)
BlowerAlarmTimerRelay(right)

Rev. Date: 12/27/17 Page14
MODEL #1300/2300
Mechanical Settings
Yourmachinecontains blowerandslidegatecontrolsusedtoadjustyourmachineforeachapplicationandtype
of insulation. (See Illustration H for machine model and location of controls) Blower control (air) and
slidegate (material feed) are adjusted according to:
Application: Openblow,retro-sidewallandspray-onapplicationsrequirevaryingamountsofcontrol.
TypeofMaterial: Cellulose, fiberglass, and mineral fiber have different textures and densities that
respondtomachinesettings.
Hose: Corrugationsorroughnessofinteriorsurface,diameter,lengthandelevationofhose
willalsorequirevaryingadjustments.
WeatherConditions: Temperatureandhumiditymayrequiredaytodayadjustmentofmachinesettings.
BLOWERCONTROLANDSLIDEGATEGENERALSETTINGS:
Blowercontrolcanincreaseordecreasetheamountofairinthesystem,affectingthevelocity(speed)andspread
rate(coverage)of insulation. (See Illustration H) Theblowercontroldial operates clockwise, fromHIGHto
LOW, controlling air pressure and amount of air.
Openingorclosingslidegate(materialfeed)controlstheamountofinsulationdroppingintotheairlockwhich
changes the production rate (lbs. per hour). (See Illustration H) For calibration purposes the scale located
on right side of machine indicates how many inches the airlock slidegate is opened.
The blower and slidegate controls working together affect the distance insulation can be blown through a
hosewithoutplugging. Thesecontrolsalsoaffecttheaccurateblowingofinsulationforsprayingapplications.
Thesesettingscontrolthefollowing:
•Density ofinsulation blownin retro-sidewallapplication.
•Velocityofmaterialimpactwhenspraying.
•Dustonopenblow.
• Materialspreadrateorcoverage.
•Productionrate(lbs.perhourblown).
SlidegateControl
(Locatedonback
ofmachine)
Blower Controls
SlidegateSetting

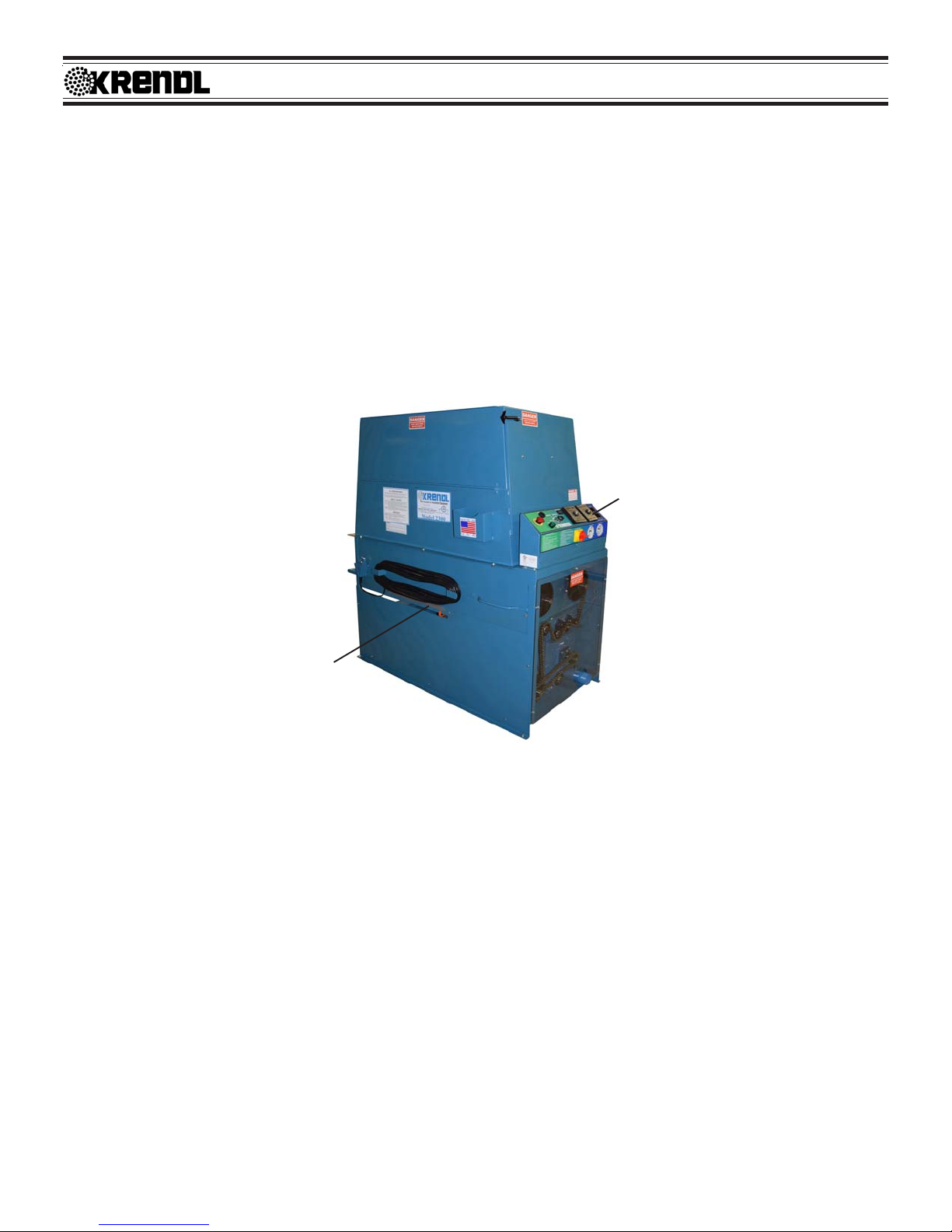

(IllustrationH)

Rev. Date: 12/27/17 Page15
MODEL #1300/2300
SHREDDER ASSEMBLY:
This unit is supplied with a shredder assembly; airlock/agitator speeds are preset at the factory. No further
sprocket setting speeds are needed, as this system will accommodate most fibers and applications. However,
the shredder direction can be adjusted as described below.

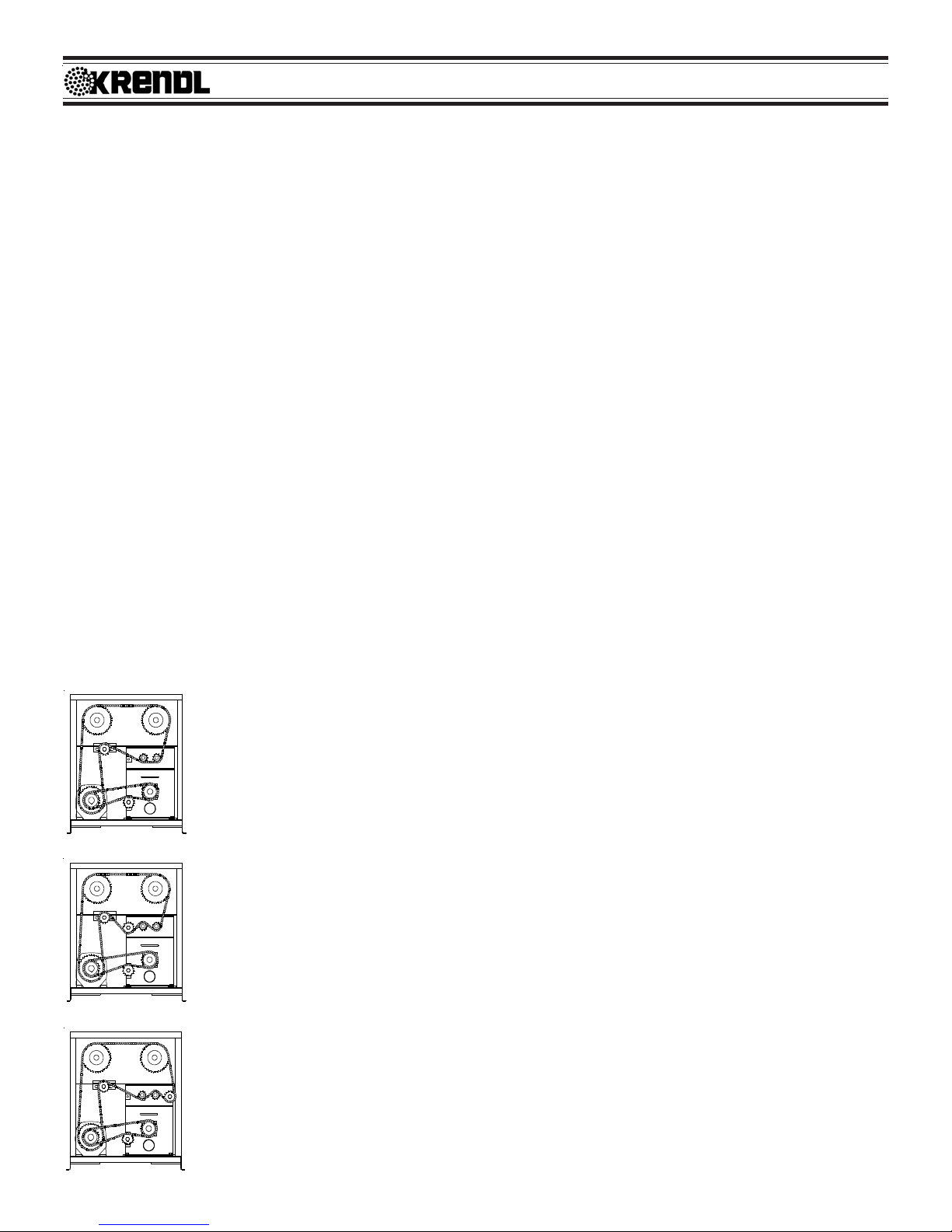

Unidirectional Rotation (See illustration I) is preferred as an all-
around setting for a combination of materials and applications. This
setting provides for the greatest coverage and best control of the
fibers in wall cavity spray, commercial spray, internal wetting (stabi-
lized) and open blow applications.
Center-Down Rotation (See illustration J) force feeds the insulation
into the airlock at a faster rate. This direction is preferred for the
greatest productionof various insulation in an open attic blow applica-
tion although coverage may decrease. This setting will provide ample
coverage and good control of the insulation in wall cavity spray, com-
mercialspray, internalwetting (stabilized)and openblowapplications.
Mechanical Settings (cont.)
GENERAL BLOWER CONTROL AND SLIDEGATE SETTINGS FOR OPEN BLOW: (See Illustration H)
With the slidegate closed, turn agitator-feed motor on and variable speed blower control(s) on low. Fill
hopper with insulation and adjust blower control and slidegate. In making adjustments, move controls
proportional to each other. (i.e. If variable speed blower control is half speed, slidegate should be half open.)
Open slidegate to allow insulation to drop into the airlock providing good production, but not beyond point where
hose plugs. As hose length is increased, the blower control speed is increased while closing the slidegate
proportionally. This will increase the distance insulation can be blown through the hose and improve material
coverage rate, while decreasing the blowing production rate (lbs. per hour blown). These adjustments are for
openblow. If specialtyapplicationor retro sidewallwork is done,refer to GeneralBlower/Slidegate Settings chart
(belowleft) orinsulation manufacturer.
GENERAL BLOWER/SLIDEGATE SETTINGS:
Since specific settings need to be determined by each operator, the following are only suggested guidelines.
Consulttheinsulationmanufacturer foradditionalrecommendationsspecifictotheir product.
APPLICATION BLOWER CONTROL SLIDEGATE
Open Blow High Full Open
Sidewall-Retrofit Low-Med 1/3 Open -Half Open
Wall Cavity Spray Medium Half Open
Commercial Spray (Adhesive) High One-third Open
(Illustration J)
(Illustration I)
(Illustration K) Center-Up Rotation (See illustration K) is preferred for extended
coverage on mineral fiber. Note: For this application an upgrade
kit will be needed.
SHREDDER ADJUSTMENT:

Rev. Date: 12/27/17 Page16
MODEL #1300/2300
(Illustration L)
GENERAL MAINTENANCE
Periodic preventive maintenance will add years of life to your equipment. Reviewing the information in this
manual will go a long way in reducing downtime and lost income.
KEEP CLEAN: During operation, keep material from accumulating on Blower Filter. Always keep Filter in
place while operating machine. After each use, remove fiber from hopper and blow out hose. (Use
BLOWER mode at Main Control Panel or Hand Pendant.) Clean air from insulation hose can then be used
to blow insulation from agitator motor and Blower Filter area. The Blower Door attached to this unit reduces
filtermaintenance. (See Illustration Aon page8)
Airlock: (SealReplacement)
The purpose of the airlock seal is to trap air and insulation until it rotates 180Oto the 6:00 o'clock position. At
this point, insulation is pushed by air from the blower, out of the chamber. Worn or damaged seals allow air and
insulation to escape back into hopper, thus reducing production and coverage. When it is necessary to replace
seals,follow thesedirections:
Disconnect power from unit!! Remove hose from input of airlock, remove chain on output. Using a 5/8”
socket,remove hold downbolts fromairlock. Lower thefront of theairlock downby looseningthe jamb nutsand
turning the liftbolts counterclockwise. Slide the airlock out of the machine. (See illustration L) Airlock rotor
plates that are damaged (bent) will need replaced. (Refer to Rotor Plate Replacement on next page.) Take out
rubber seal by removing fastening bolts, nuts and top plate. The base plate will remain attached to airlock shaft.
To install a new seal, reverse procedure. Seal should be inserted tight against the back base plate, pressing the
lower tabs of the seal down under the adjacent seal with a flat blade screwdriver. Make sure all bolt holes are
alignedwhile eachside ofseal isequally pressed againstthe endplates, beforetightening bolts. Sealshould be
bent forwards for counterclockwise rotation. (See Illustration N on page 17)
Chain
Lift Bolt &
Jamb Nut
Airlock
Hold Down Bolts

Rev. Date: 12/27/17 Page17
MODEL #1300/2300
BASE PLATE REPLACEMENT:
1. Remove damagedbaseplate assembly fromshaft usingratchet
drive wrench with extension and 1/2" socket.
2. Check seal for wear and damage. (Installing seal and top plate
on the bench is quick and easy). Remove bolts from plate
assembly and replace with new seal. Make sure seal and top
plate are assembled on correct side of base plate before
assembling in airlock. Seal should press backward towards
top plate when installed correctly into airlock chamber. (Illustra-
tion N)
3. Install therotor plateassembly intothe airlock. The airlockruns
counterclockwise viewing it from the sprocket drive shaft.
(Illustration N) Align the base plate with holes on airlock shaft
using a tapered punch. Caution: Do not mount rotor plate
backwards. If installed improperly, damage to seals will result
and put undue stress on agitator motor. This causes overheat-
ing and poor production. Seal should be bent forwards to allow
for a counterclockwise rotation of rotor.
4. As rotor plate is installed, press bottom tab of seal under
adjacent seal with flat blade screwdriver. (See Illustration N)
Note: Entire rotor plate assembly may be removed and
replaced. This procedure maybe easier than replacing
just the seals.
General Maintenance (cont.)
(Illustration N)
CHAIN: (#50Nickel Plated)
ADJUSTMENT: A smooth operating chain drive should have a slight sag on the idler side of the chain. New
chains should be installed under slight tension as they will elongate a small amount due to seating of pins and
bushingsduring thefirst fewdays of operation. Chainshould bekept ingood conditionby proper lubrication(dry
film lubricant Dow 321) and occasional cleaning. Soaking chain in container of 10 weight oil will provide for
internal lubrication of pins and bushings. However, excess oil must be drained and wiped away as excessive
lubrication will cause insulation accumulation on chain. Worn out chain should be replaced. When chain is
replaced, worn sprockets should also be replaced, preventing further damage to new chain.
SPROCKETS:
CHECK SPROCKETS FOR WEAR. Misalignment and/or loose sprockets and improper chain tension causes
thepremature wearof chainand sprockets. Allsprockets, except speed reducer and idler sprockets, have been
secured with a medium grade Loctite (general purpose thread locker), to prevent gradual movement. The set
screwsand keyare alsoinserted witha mediumgrade Loctite. Ifsprocketis difficultto remove,it maybe heated
with a propane torch to loosen.
Caution: Donot overheatsprocket ordamage tobearing willresult. A pulley orbearing pullercan thenbe
used to remove the sprocket and key. Replace new sprocket on shaft with key and medium grade Loctite
applied to shaft. Align sprocket with corresponding sprocket, using a straightedge placed along face of
teeth and tighten set screw. Speed reducer sprocket does not require Loctite.
(Illustration M)
