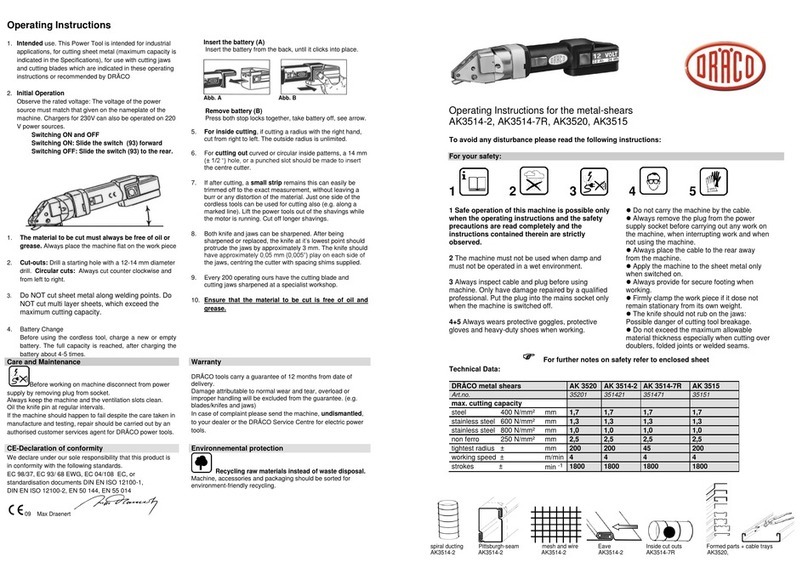

Draco AK3514-2 User manual

Operating Instructions
1. Intended use. This Power Tool is intended for industrial
applications, for cutting sheet metal (maximum capacity is
indicated in the Specifications), for use with cutting jaws
and cutting blades which are indicated in these operating
instructions or recommended by DRÄCO
2. Initial Operation
Observe the rated voltage: The voltage of the power
source must match that given on the nameplate of the
machine. Chrgers for 230V can also be operated on 220
V power sources.
Switching ON and OFF
Switching ON: Slide the switch (93) forward
Switching OFF: Slide the switch (93) to the rear.
1. The material to be cut must always be free of oil or
grease. Always place the machine flat on the work piece
2. Cut-outs: Drill a starting hole with a 12-14 mm diameter
drill. Circular cuts: Always cut counter clockwise and
from left to right.
3. Do NOT cut sheet metal along welding points. Do
NOT cut multi layer sheets, which exceed the
maximum cutting capacity.
4. Battery Change
Before using the cordless tool, charge a new or empty
battery. The full capacity is reached, after charging the
battery about 4-5 times.
Insert the battery (A)
Insert the battery from the back, until it clicks into place.
Abb. A Abb. B
Remove battery (B)
Press both stop locks together, take battery off, see arrow.
5. For inside cutting, the shortest curve possible has a
radius of 200 mm (±8”). If cutting a radius with the right
hand, cut from right to left. The outside radius is unlimited.
6. For cutting out curved or circular inside patterns, a 14 mm
(± 1/2 “) hole, or a punched slot should be made to insert
the centre cutter.
7. If after cutting, a small strip remains this can easily be
trimmed off to the exact measurement, without leaving a
burr or any distortion of the material. Just one side of the
cordless tools can be used for cutting also (e.g. along a
marked line). Lift the power tools out of the shavings while
the motor is running. Cut off longer shavings.
8. Both knife and jaws can be sharpened. After being
sharpened or replaced, the knife at it’s lowest point should
protrude the jaws by approximately 3 mm. The knife should
have approximately 0,05 mm (0,005”) play on each side of
the jaws, centring the cutter with spacing shims supplied.
9. Every 200 operating ours have the cutting blade and
cutting jaws sharpened at a specialist workshop.
10. Ensure that the material to be cut is free of oil and
grease.
Care and Maintenance
Warranty
Before working on machine disconnect from power
supply by removing plug from socket.
Always keep the machine and the ventilation slots clean.
Oil the knife pin at regular intervals.
If the machine should happen to fail despite the care taken in
manufacture and testing, repair should be carried out by an
authorised customer services agent for DRÄCO power tools.
DRÄCO tools carry a guarantee of 12 months from date of
delivery.
Damage attributable to normal wear and tear, overload or
improper handling will be excluded from the guarantee. (e.g.
blades/knifes and jaws)
In case of complaint please send the machine, undismantled,
to your dealer or the DRÄCO Service Centre for electric power
tools.
CE-Declaration of conformity
Environnemental protection
We declare under our sole responsibility that this product is
in conformity with the following standards.
EC 98/37, EC 93/ 68 EWG, EC 04/108 EC, or
standardisation documents DIN EN ISO 12100-1,
DIN EN ISO 12100-2, EN 50 144, EN 55 014
09 Max Draenert
Recycling raw materials instead of waste disposal.
Machine, accessories and packaging should be sorted for
environment-friendly recycling.
Operating Instructions for the metal-shears
AK3514-2, AK3514-7R, AK3520, AK3515
To avoid any disturbance please read the following instructions:
For your safety:
1 2 3 4 5
1 Safe operation of this machine is possible only
when the operating instructions and the safety
precautions are read completely and the
instructions contained therein are strictly
observed.
2The machine must not be used when damp and
must not be operated in a wet environment.
3Always inspect cable and plug before using
machine. Only have damage repaired by a qualified
professional. Put the plug into the mains socket only
when the machine is switched off.
4+5 Always wears protective goggles, protective
gloves and heavy-duty shoes when working.
lDo not carry the machine by the cable.
lAlways remove the plug from the power
supply socket before carrying out any work on
the machine, when interrupting work and when
not using the machine.
lAlways place the cable to the rear away
from the machine.
lApply the machine to the sheet metal only
when switched on.
lAlways provide for secure footing when
working.
lFirmly clamp the work piece if it dose not
remain stationary from its own weight.
lThe knife should not rub on the jaws:
Possible danger of cutting tool breakage.
lDo not exceed the maximum allowable
material thickness especially when cutting over
doublers, folded joints or welded seams.
FFor further notes on safety refer to enclosed sheet
Technical Data:
DRÄCO metal shears
AK 3520
AK 3514-2
AK 3514-7R
AK 3515
Art.no.
35201
351421
351471
35151
max. cutting capacity
steel
400 N/mm²
mm
1,7
1,7
1,7
1,7
stainless steel
600 N/mm²
mm
1,3
1,3
1,3
1,3
stainless steel
800 N/mm²
mm
1,0
1,0
1,0
1,0
non ferro
250 N/mm²
mm
2,5
2,5
2,5
2,5
tightest radius ±
mm
200
200
45
200
working speed ±
m/min
4
4
4
4
strokes ±
min -1
1800
1800
1800
1800
spiral ducting Pittsburgh-seam mesh and wire Eave Inside cut outs Formed parts + cable trays
AK3514-2 AK3514-2 AK3514-2 AK3514-2 AK3514-7R AK3520,
