Service Handbook
Universal 3-Beam
ultrasonic flowmeter
UFM 3030 K/…EEx compact ultrasonic flowmeter
UFC 030 F/…EEx ultrasonic flow converter
UFS 3000 F/…EEx ultrasonic flow sensor
Subject to change without notice.

2 UFM 3030
General advice on safety
•Do not install, operate or maintain this flow meter without reading, understanding and following
the factory-supplied instructions, otherwise injury or damage may result.
•Read these instructions carefully before starting installation and save them for future reference.
•Observe all warnings and instructions marked on the product.
•Use only mains supply with protective earthing connected.
•Do not use the product with removed covers under wet conditions.
•Consider handling and lifting instructions to avoid damage.
•Install the product securely and stable.
•Install and connect cabling proper to exclude damage or harmful situations.
•If the product does not operate normally, refer to the service instructions or refer to qualified
KROHNE service engineers.
•There are no operator-serviceable parts inside the product.

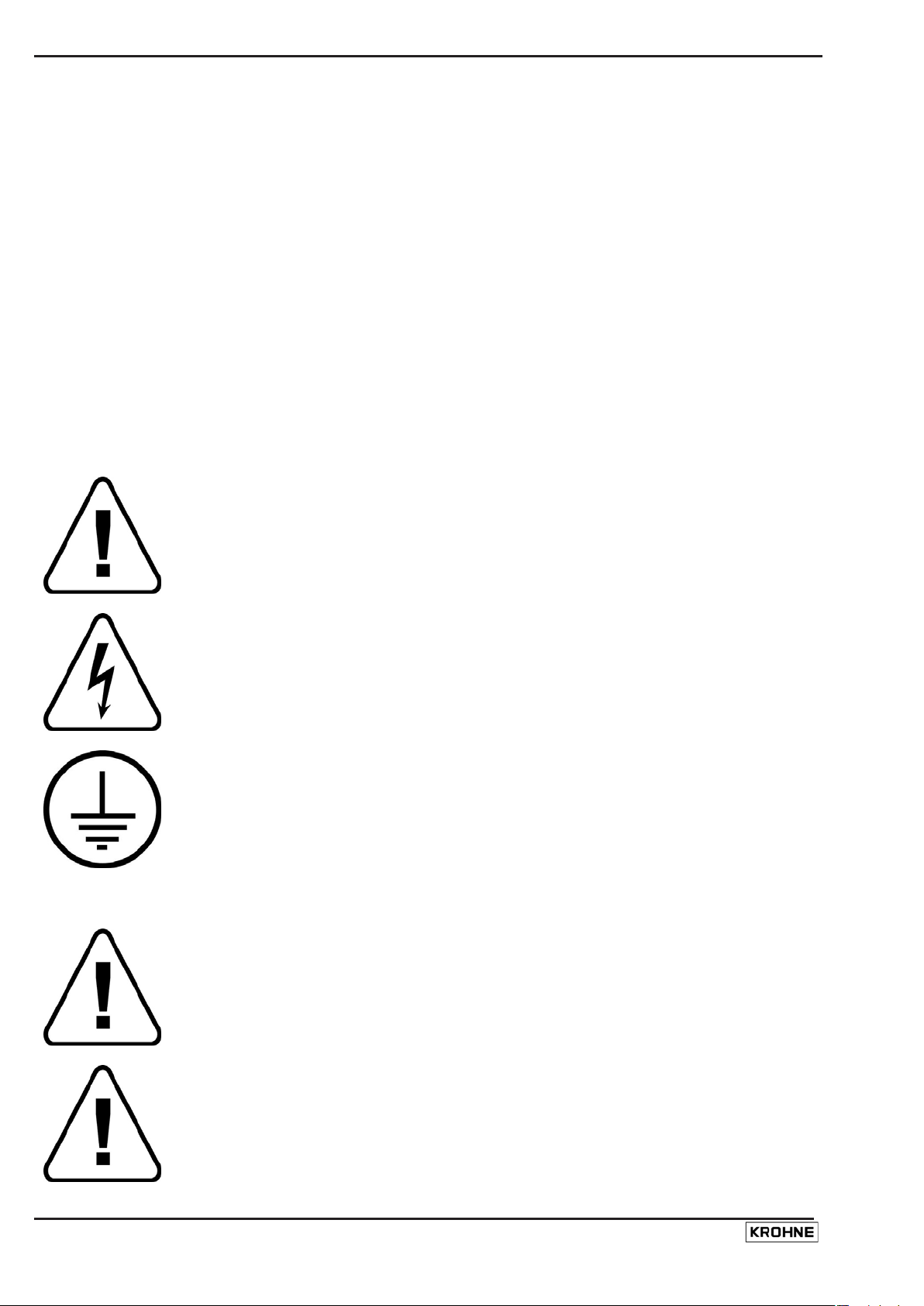

The following symbolsmay appear in this manual or on the product
ATTENTION: refer to operating and installation instructions!
DANGER: risk of electric shock!
PROTECTIVE conductor terminal!
These terms may appear in this manual or on the product:
WARNING statement: identify conditions or practice that could result in injury or
loss of life.
CAUTION statement: identify conditions or practice that could result in damage to
the product or other property.

UFM 3030 3
Disclaimer
•This document contains important information on the product. KROHNE attempts to be as
accurate and up-to-date as possible but assumes no responsibility for errors or omissions. Nor
does KROHNE make any commitment to update the information contained herein. This manual
and all other documents are subject to change without prior notice.
•KROHNE will not be liable for any damage of any kind by using its product, including, but not
limited to direct, indirect, incidental, punitive and consequential damages.
•This disclaimer does not apply in case KROHNE has acted on purpose or with gross negligence.
In the event any applicable law does not allow such limitations on implied warranties or the
exclusion of limitation of certain damages, you may, if such law applies to you, not be subject to
some or all of the above disclaimer, exclusions or limitations.
•Any product purchased from KROHNE is warranted in accordance with the relevant product
documentation and our Terms and Conditions of Sale.
•KROHNE reserves the right to alter the content of its documents, including this disclaimer in any
way, at any time, for any reason, without prior notification, and will not be liable in any way for
possible consequences of such changes.
Product liability and warranty
•Responsibility for suitability and intended use of this ultrasonic flow meter rests solely with the
user. Improper installation and operation of the flow meter (system) may lead to loss of warranty.
•In addition, the Terms and Conditions of Sale are applicable and are the basis for the purchase
contract.
•If flow meters need to be returned to KROHNE, please note the information given on the last
pages of the installation and operating instructions. KROHNE regrets that they cannot repair or
check flow meter(s) unless accompanied by the completed form (see last pages of the
installation and operating instructions).
Items included with order
•UFM 3030 ultrasonic flow meter, comprising of a flow sensor, UFS 3000 and a signal converter,
UFC 030 either built together as a compact system or supplied as two separate pieces, in the
size as indicated on the packaging box
•Signal cable (only in case of a separate system)
•Special tool for opening the converter housing
Documentation supplied
•Condensed installation and operating manual
•For Ex-units: installation and operating instructions for use in hazardous areas
•Instruction card: overview of the configuration menu and display markers
•Product information CD
•Approval documents, unless reproduced in the installation and operating instructions
•Certificate of system calibration data

4 UFM 3030
This instrument is developed and manufactured by:
KROHNE Altometer
Kerkeplaat 12
3313 LC Dordrecht
The Netherlands
For information, maintenance or service please contact your nearest local KROHNE representative.
Notes on the service handbook
This service handbook is divided into four parts for easy use. All ultrasonic flowmeters are factory-
set to your order specifications. Therefore, no further adjustments are necessary prior to initial start-
up. Condensed installation and operating instructions are available for installation and initial start-up.
Part A Chapters 1, 2 and 3; System installation and start-up. Installation, connecting and
powering the flow meter.
Part B Chapters 4 and 5; The signal converter. Operator control and functioning of the
signal converter.
Part C Chapters 6 and 7; Functional checks and service. Servicing the flow meter.
Part D Chapters 8, 9 and 10; Technical data. dimensions, block diagram and ultrasonic
measuring principle.

UFM 3030 5
Table of contents
1Introduction 6
1.1 Cautions 6
1.2 Unpacking and inspection 6
1.3 System description 6
1.4 Available versions 7
1.5 CE Approvals 7
2Mechanical installation 8
2.1 Handling the flowmeter 8
2.2 Installation location and position 8
2.3 Special installation requirements 9
2.4 Pipe flanges 10
2.5 Pipes with cathodic protection 11
3Connecting the signal converter 12
3.1 Safety instructions 12
3.2 Converter terminal box 12
3.3 Power supply connection 12
3.4 Connection of sensor cables (UFM 3030 F only) 13
3.5 Electrical connection of the signal inputs and outputs 14
3.6 Connection diagram examples 16
4Start-up 17
5Operating the signal converter 18
5.1 Front panel and operating keys 18
5.2 Menu structure and function of operating keys 19
6Description of functions 28
6.1 Menu structure 28
7Functional checks 40
7.1 Test functions of the signal converter Function 2.1 to 2.5 40
7.2 Measuring zero flow value 41
8Service and Repair 42
8.1 Replacement of electronic unit of signal converter 42
8.2 Replacement of ultrasonic flow sensor in separate systems 42
8.3 Change of power supply fuse 43
8.4 Cleaning 44
8.5 Turning the display circuit board 44
8.6 Turning the signal converter housing 44
9Returning the flow meter for service or repair 45
10 Dimensions 46
11 Block diagram 46
12 Ultrasonic measurement principle 47
12.1 Transit time differential method 47
12.2 Three beam ultrasonic measurement 47

6 UFM 3030
Part A System Installation and Start-up
1 Introduction
1.1 Cautions
Only for flow meters supplied with a voltage over 50 VAC.
Refer all maintenance or service to trained KROHNE service engineers.
Mains power shall be disconnected from the product before performing any
maintenance.
This product is prepared for and can only function with the rated AC mains voltage
as indicated on the nameplate.
This product is a Class 1 device (earthed) and requires a correct connection to
protective earth. The protective earth conductor of the main power shall be properly
connected to themarked protective earthterminal to ensure safety from electric
shock for the operator and its environment. For detail refer to this service handbook.
1.2 Unpacking and inspection
•This product has been thoroughly inspected and tested before shipment and is ready for
operation.
•After carefully unpacking, inspect for shipping damage before attempting to operate. If any
indication of mechanical damage is found contact immediately the responsible transport service
and your local KROHNE representative.
•A simple operating check of the electronics after unpacking and before permanent installation is
advisable to ascertain whether it has suffered damage duringshipment. Confirm for the correct
mains voltage printed on the nameplate. If it differs from the ordered product please contact your
local KROHNE representative.
•After connecting to the mains, check if there is any indication on the display and if the backlight
of the display is lighted. If not, contact yourlocal KROHNE representative for advice.
1.3 System description
The UFM 3030 ultrasonic flow meter is a precision instrument designed for linear, bi/directional flow
measurement of liquids. Flow measurement values can be output via the standard analog and-or
pulse/frequency outputs. Via a user friendly operator interface (HMI) the unit can be set up for a
wide range of applications. Next to actual volumetric flowmeasurement the unit can be configured
to perform flow totalization (plus, minus and sum). Also measurement and output of the liquid sonic
velocity can be configured. Optionally the unit can be set to perform one of the following additional
functions:
•Calculate and output corrected standard volumetric or mass flow using the external pressure
and temperature inputs
•Batch function
•Heat function, combining T1, T2 and volume

UFM 3030 7
1.4 Available versions
The UFM 3030 consists of a flow sensor (UFS 3000) and a signal converter (UFC 030), which can
be built into a compact flow meter, UFM 3030 K or a separate flow meter, UFM 3030 F.
Both flow sensor and signal converter are available with an approval for use in hazardous areas.
Special codes and regulations apply in these areas and are referred to in the instructions for
hazardous area versions, supplied as a separate manual.

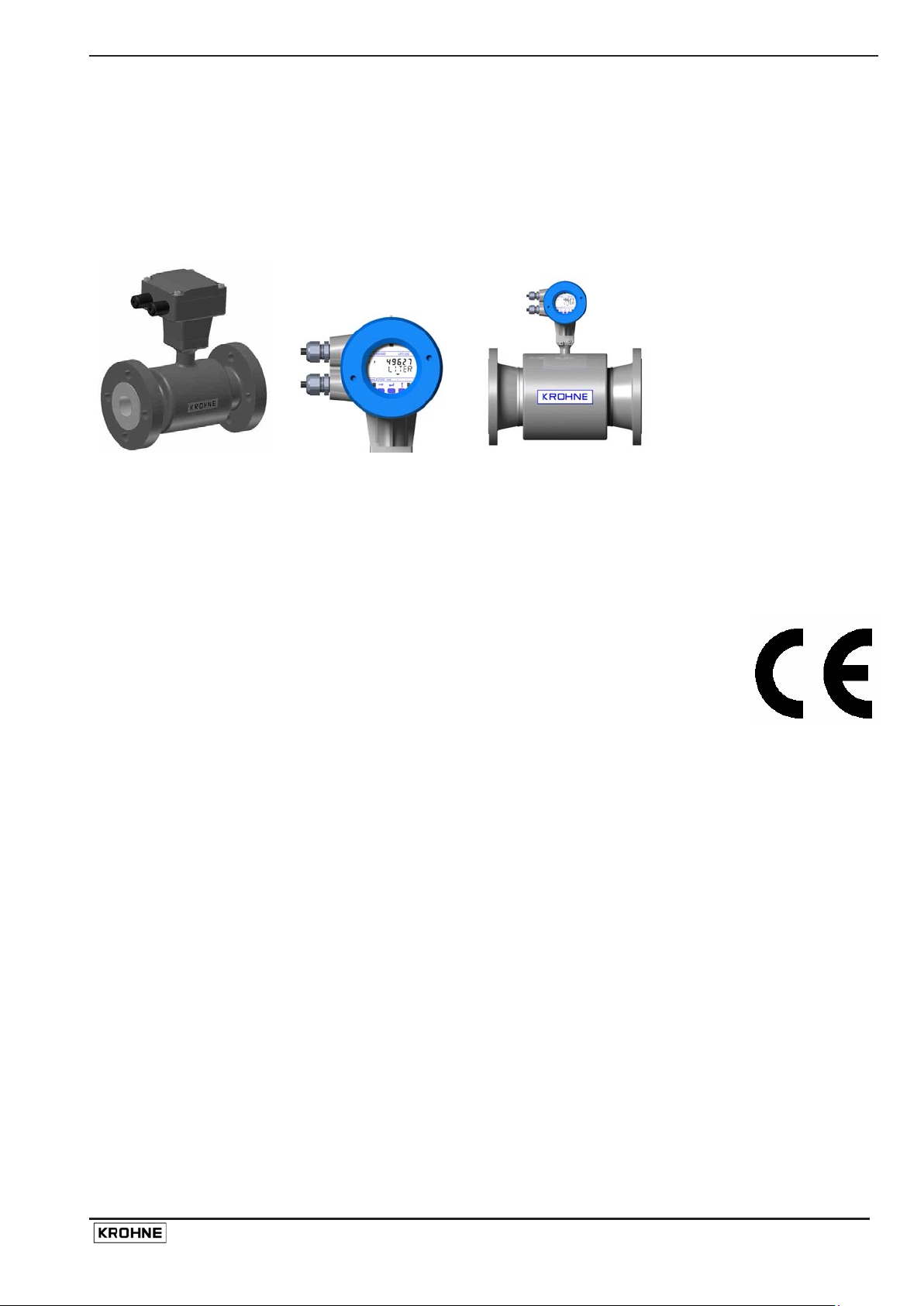

UFS 3000 UFC 030 UFM 3030 K
1.5 CE Approvals
EMC, Electromagnetic Compatibility Directive
The product complies with the requirements of the harmonised standards under
the EMC directive 89/336/EEC.
Low Voltage Directive
The product complies with the requirements of the Low Voltage Directive
73/23/EEC and is designed in accordance with EN IEC 61010-1 first and second
edition. (safety requirements for electrical equipment for measurement, control
and laboratory use part 1)
Local safety regulations shall be observed in combination with the measures
special to this product to avoid dangerous situations.
Pressure Equipment Directive
The KROHNE organisation complies with the requirements of Module H of the
Pressure Equipment Directive 97/23/EC (full quality assurance).
Please refer to the CE declaration for more detailed information.

8 UFM 3030
2 Mechanical installation
2.1 Handling the flowmeter

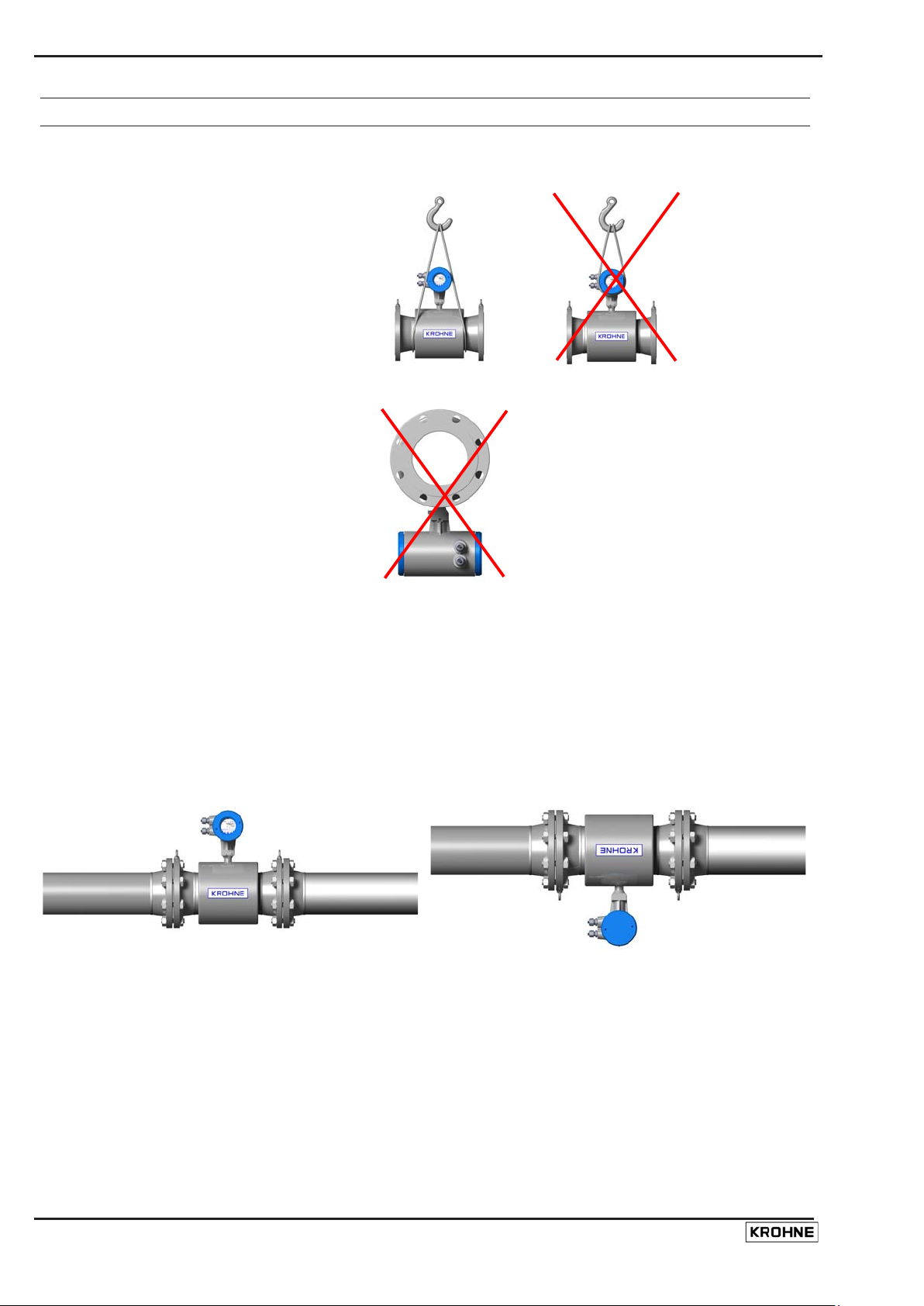

Important: Do not lift the compact
flowmeter by the signal converter
housing or the terminal box. Check the
weight of the flowmeter as indicated on
the type plate before handling the unit.
When handling the flowmeter avoid hard
blows, jolts or impacts.
Do not place the flowmeter on the signal
converter housing.
2.2 Installation location and position
The UFM 3030 flow meter can be installed in horizontal, slightly ascending or vertical pipelines.
If installed in a horizontal or slightly ascending pipeline, always install the converter or terminal
box in vertical position opposite the flow sensor either with the converter up or down, but never in
horizontal position.

UFM 3030 9
If required the position of the signal converter can be modified by turning the display circuit board
through 90° or 180° to achieve a horizontal position of the display. In addition the signal converter
housing may be turned through 90° opposite the flow sensor.
For an exact description of this procedure, refer to chapter 8.6.
The measuring tube must be completely filled at all times for proper flow measurement, as the
sensors become non-wetted, a loss of signal message will be displayed. There is no damage
when this occurs.
Flow direction. The UFM 3030 is a bi-directional flow meter. Note the indicating arrow for the
positive direction on the flow meter.
It is recommended to protect the signal converter from direct sunlight to prolong the life. Although
no direct damage will occur, installation of a sunshield is advised.
Do not expose the signal converter to excessive vibration. To protect the flowmeter from
excessive vibration support the pipeline on either side of the flow meter.
Make sure there is sufficient room next to the pipe flanges to fit the bolts and nuts.
To achieve the specified accuracy of the flow meter, a straight inlet section of 10 × DN (DN =
meter size) and an outlet section of 5 × DN should be applied.
Normally zero setting is not necessary, but if required the zero point can be checked and the
meter can be re-zeroed under stationary flow conditions (see Function 1.01.03 of the converter
menu). To force zero flow, a shut-off valve should be provided upstream and/or downstream of
the flow sensor.
Mixing different fluid products. Install the flow meter upstream of mixing point or at minimum
distance of 30× DN (DN = meter size) downstream of the mixing point, otherwise the flow
measurement may be unstable.
Ambient temperature all flow meters: -40 to +65°C/ -40 to +149°F
Product temperature compact flowmeter: -25 to +140°C/ -13 F to +284°F
Product temperature separate flowmeter: -25 to +180°C/ -13 to +356°F
Special versions are available for higher process temperatures.
In case of a pipeline running along a wall: please observe a minimum distance between pipe
centreline and the wall of at least 0.5 m (1.6 ft).
2.3 Special installation requirements
To avoid measuring errors and malfunctioning of the flow meter due to gas or air inclusions or an
empty pipe, please observe the following precautions:

10 UFM 3030
Since gas will collect at the highest point of a pipe, installation of the flow meter at that location
should be avoided at all times. Also installation in a down going pipe should be avoided since a
completely filled pipe may not be guaranteed due to cascading affects. Additionally flow profile
distortion is possible.
Long horizontal pipes: install in slightly ascending
pipe section. If not possible, ensure adequate
velocity to prevent air, gas or vapour from
collecting in upper part of flow tube As a partially
filled meter will report higher than actual flow
rates, or not measure (as transducer pairs become
non-wetted).
Open feed or discharge: Install meter in a lowered
section of the pipe to ensure a full pipe condition
through the meter.
Down going pipeline over 5 m (16 ft) length: install
air vent downstream of the flow meter. To prevent
vacuum. While this will not harm the meter, it may
cause gases to come out of solution (cavitate) and
interfere with proper measurements.
Always install control valves downstream of flow
meter in order to avoid cavitation or distortion of
flow profile.
Never install flow meter on a pump suction side in
order to avoid cavitation or flashing in the flow
meter.
2.4 Pipe flanges
Refer to dimensional drawings for flange spacing
and in addition allow for thickness of gaskets.
Install flow meter in line with pipe axis. Pipe flange
faces must be parallel to each other, max.
Permissible deviation: Lmax - Lmin ≤0.5 mm
(0.02").

UFM 3030 11
2.5 Pipes with cathodic protection
Pipes with electric corrosion protection are generally insulated inside and outside so that the fluid
has no conductive connection to ground. The flow meter must be insulated from the pipe. Note
the following when installing the flow meter:
The pipe flanges must be connected to each other using a copper cable (L), but must not be
connected to the flow meter.
The bolts for the flange connections and the gaskets must be insulated. Use sleeves and washers
that are made of insulating material (these must be provided by customer).

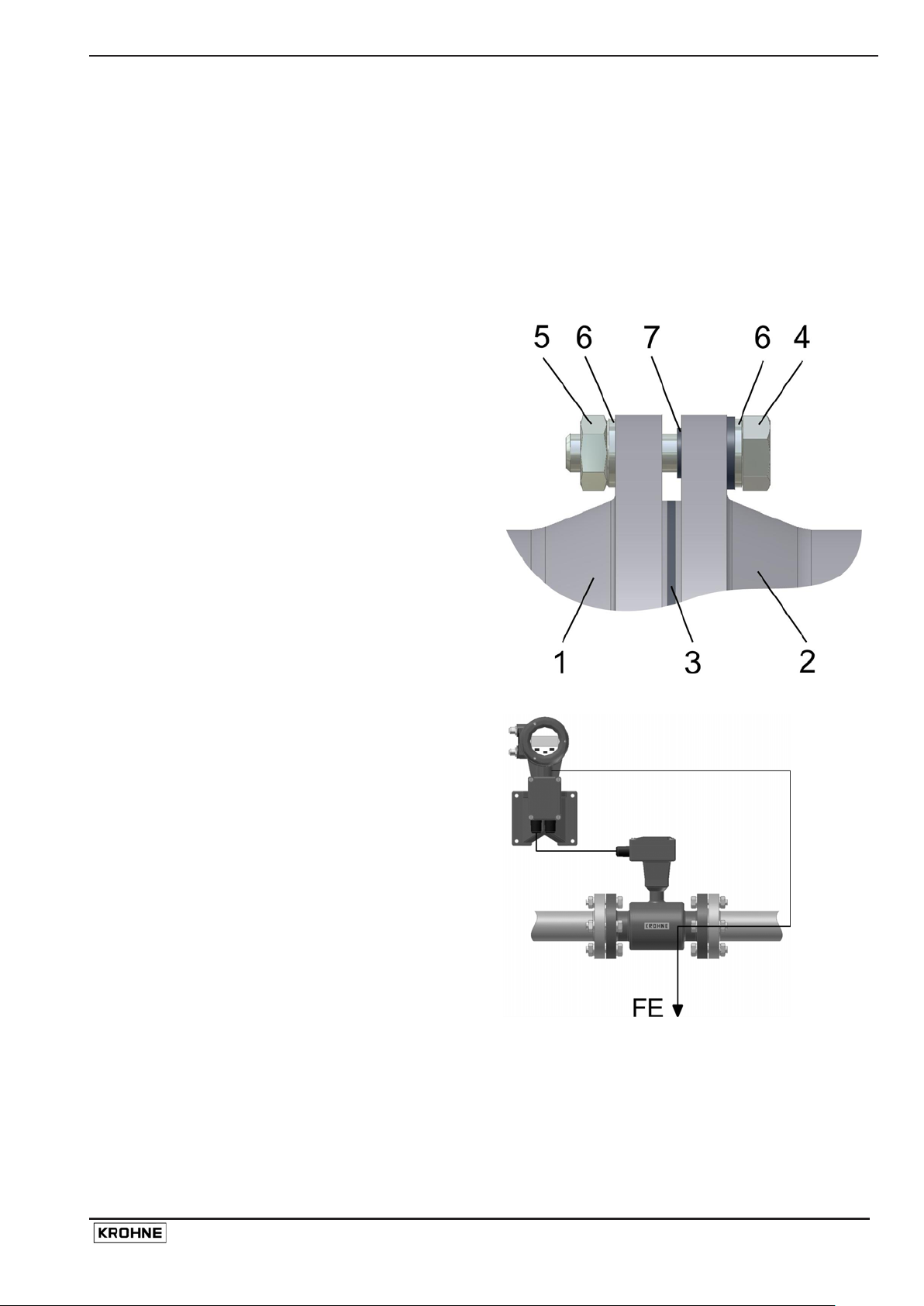

1. Flange of flow sensor
2. Gasket
3. Pipe flange
4. Bolt
5. Nut
6. Washer
7. Insulating sleeve
Follow grounding instructions.
Use ≥4 mm2 (≥AWG 10 cable).
Note: No earthing cables are supplied by
KROHNE.

12 UFM 3030
3 Connecting the signal converter
3.1 Safety instructions
This product is designed for use in accordance with EN IEC 61010-1 for Installation Category 2
and Pollution Degree 2. Hazardous voltages are present within this product during normal
operation. The product is designed for Protection Class I and should never be operated without
protective earthing. The product shall also never be operated with covers removed unless
equivalent protection of the operator and its environment from accidental contact with hazardous
internal voltages is provided. Always follow basic and local safety precautions when using this
product to reduce risk of injury from electrical shock, spread of fire or other dangerous situations.
3.2 Converter terminal box
•The converter terminal box is accessible after removing the rear (blind) cover of the
electronics section using the special wrench supplied with the flow meter.
•Do not damagethe screw thread and the gasket, never allowdirt to accumulate, and make
sure that the screw thread is well greased, using Teflon grease at all times. A damaged
gasket must be replaced immediately!
•Do not cross or loop the cables in the terminal box of the signal converter. Use separate cable
entries for power supply and signal cables.
•Special regulations apply to installation in hazardous areas (see installation instructions for
hazardous areas).
3.3 Power supply connection
In case of connection to the mains supply voltage:
Environmental conditions
•The UFM3030 is designed to operate safe under the following conditions:
•Suitable for indoor and outdoor use, the instrument is usable up to protection category IP67
(IEC 60529)
•Use up to an altitude of 2000 m above see level
•Suitable for an operation ambient temperature range -40°C to +65°C
•Suitable for an storage temperature range -40°C to + 80°C
•Suitable for usein atmospheres with a relative humidity up to 80%
•Over voltages up to category II on the main supply voltage ( IEC 60364-4-443)
•Connected to protective earth conductor ( Protection Class I)
•Rated pollution degree 2
•This instrument is intended for permanent connection to the mains. It is required
(for example for service) to mount an external switch or circuit breaker near the
product for disconnection from the mains. It must be easily reachable by the
operator and marked as the disconnecting device for this product.
The switch or circuit breaker has to be suitable for the application and shall also
be in accordance with to local (safety) requirements and of the building
installation. (IEC 60947-1/-3).
•The protective conductor clamp terminal size M5, press-fitted in the terminal
compartment (near the main connection terminals), shall always to be connected
to the protective earth conductor of the mains supply. Conductors up to 4 mm²
(11 AWG) be connected to this terminal. The diameter of the conductors of the
mains supply, including the protective earth conductor shall be in accordance
with the general and local requirements.

UFM 3030 13
•It is not allowed to use the protective conductor terminal for any other connection
than the protective earth conductor.
•IP 67 is only warranted when using suitable cabling with the cable glands and
covers mounted as specified.
The power supply terminals
has three connections
:
There is a separate earthing
that must be connected:
Terminal Function Specification
10 Reserved Ground connection Not for protective earthing
L / L1 Live power supply Mains voltage AC supply:
100 V AC < U < 240 V AC: -15%, +10%
SELV AC/DC supply:
DC: 18-32 V dc
AC: 24 V AC: -10% +15%
N / N1
Neutral power supply
PE: Protective ground connection
FE: Functional ground connection Protective conductor clamp terminal. Conductors up to 4 mm² (11 AWG) need
to be connected to this terminal.
3.4 Connection of sensor cables (UFM 3030 F only)
For the UFM 3030 F the sensors must be connected using the factory supplied MR06 cable
between the flow sensor terminal box and the converter housing terminal box. For the UFM
3030C this is connected at the factory.
Both the flow sensor terminals and the converter sensor terminals should be connected using the
appropriate numbers indicated on the sensor cable.)
Cable diameter: 11 mm (0,433 inch), minimum bending radius: 8 x cable diameter.

14 UFM 3030
3.5 Electrical connection of the signal inputs and outputs
The terminal to connect the electrical signal inputs and outputs consist of 6 connections.
For standard instruments
For instruments with a communication module
For wiring of the signal inputs and outputs it is advised to use unshielded twisted pairs.

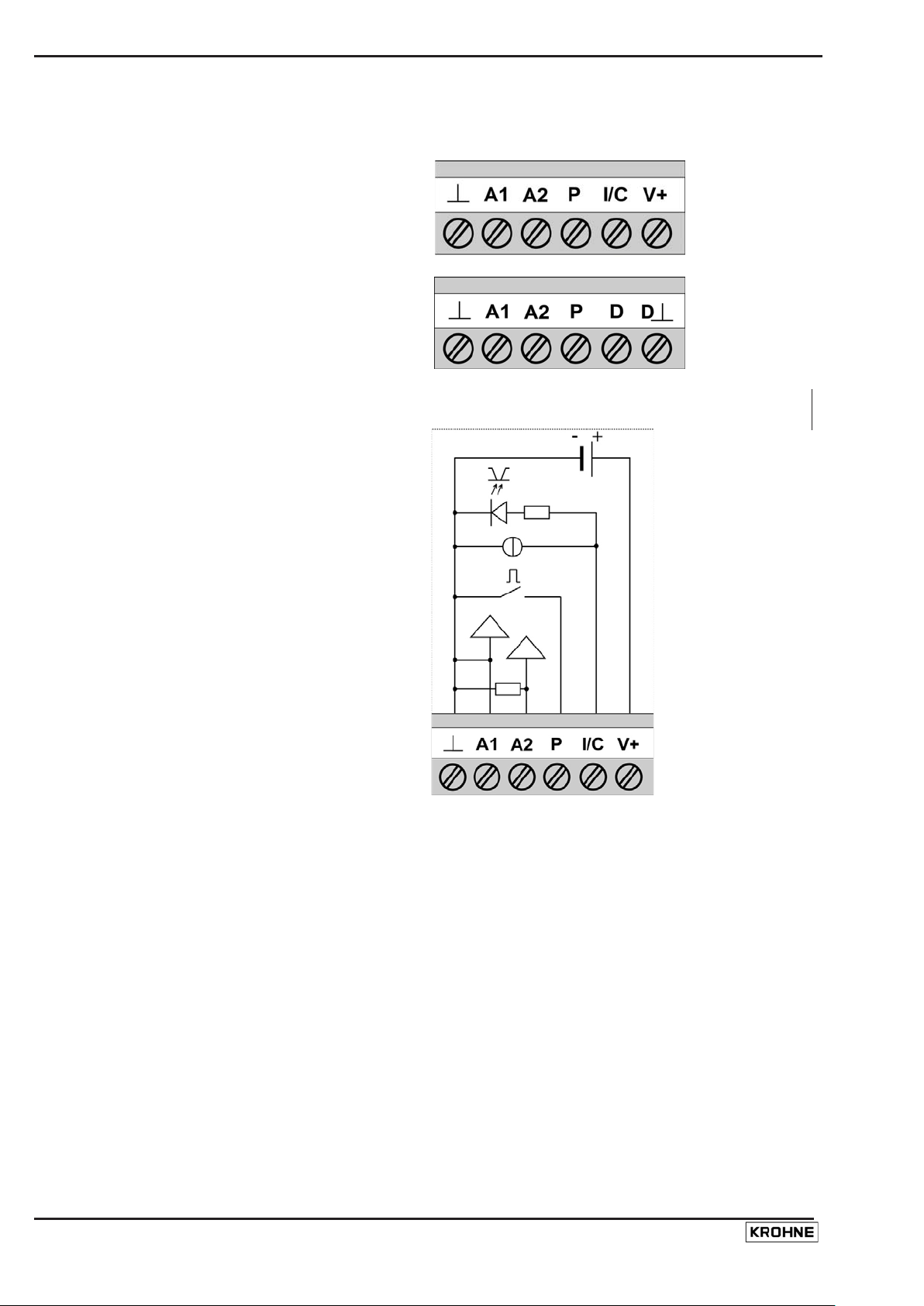

Internal circuit of the signal inputs and outputs
of the converter
Terminal
Function Specification
⊥Common ground -
A1 Analog input 1, for temperature
measurement. Configuration via menu
option 3.2.2. and 3.2.3.
0(4) to 20 mA
Ri = 58,2 Ω,
fuse: 50 mA
A2 Analog input 2, for temperature or
pressure measurement. Configuration
via menu option 3.2.4. and 3.2.5.
0(4) to 20 mA
Ri = 58,2 Ω,
fuse: 50 mA
I/C Combined Current output (I) and
Digital input (C).
Current output (I) Incl. Hart
communication
Function can be set via menu option
3.4.0. and 3.6.0.
Current output (I): I ≤22 mA, Rload ≤680
Ω. Umax = 15Vdc.
Digital input (C): low = 0-5 VDC, high = 15-
32 VDC. Will be switched off when current
output activated.
P Pulse/frequency output. Function can
be set via menu option 3.5.0. I max: 150 mA Umax: 32Vdc, 24Vac
Max frequency: 2 kHz
V+ DC power supply from converter for
active wiring of inputs and outputs 22 VDC at full load, 24 VDC maximum. I ≤ 100 mA.

UFM 3030 15
D+ Communication connection+ For fieldbus communication
D- Communication connection - For fieldbus communication
P/I/C Combined current output (I) digital
output (C) and pulse output (P). See
individual I/C terminal and P terminal
functions
See individual I/C terminal and P terminal
specifications.
The electrical input and output signals can be connected either in active or in passive mode. In
active mode DC supply voltage is provided from the V+ terminal. In passive mode supply voltage
is provided from an external source. Please observe instrument polarity: current (I) is always
flowing towards I, C, P, A1, A2 terminals (current sink).
Note! Never use the active and passive mode at the same terminal simultaneously.
If HART communication is used, do not connect the pulse/frequency output P in active mode.

16 UFM 3030
3.6 Connection diagram examples

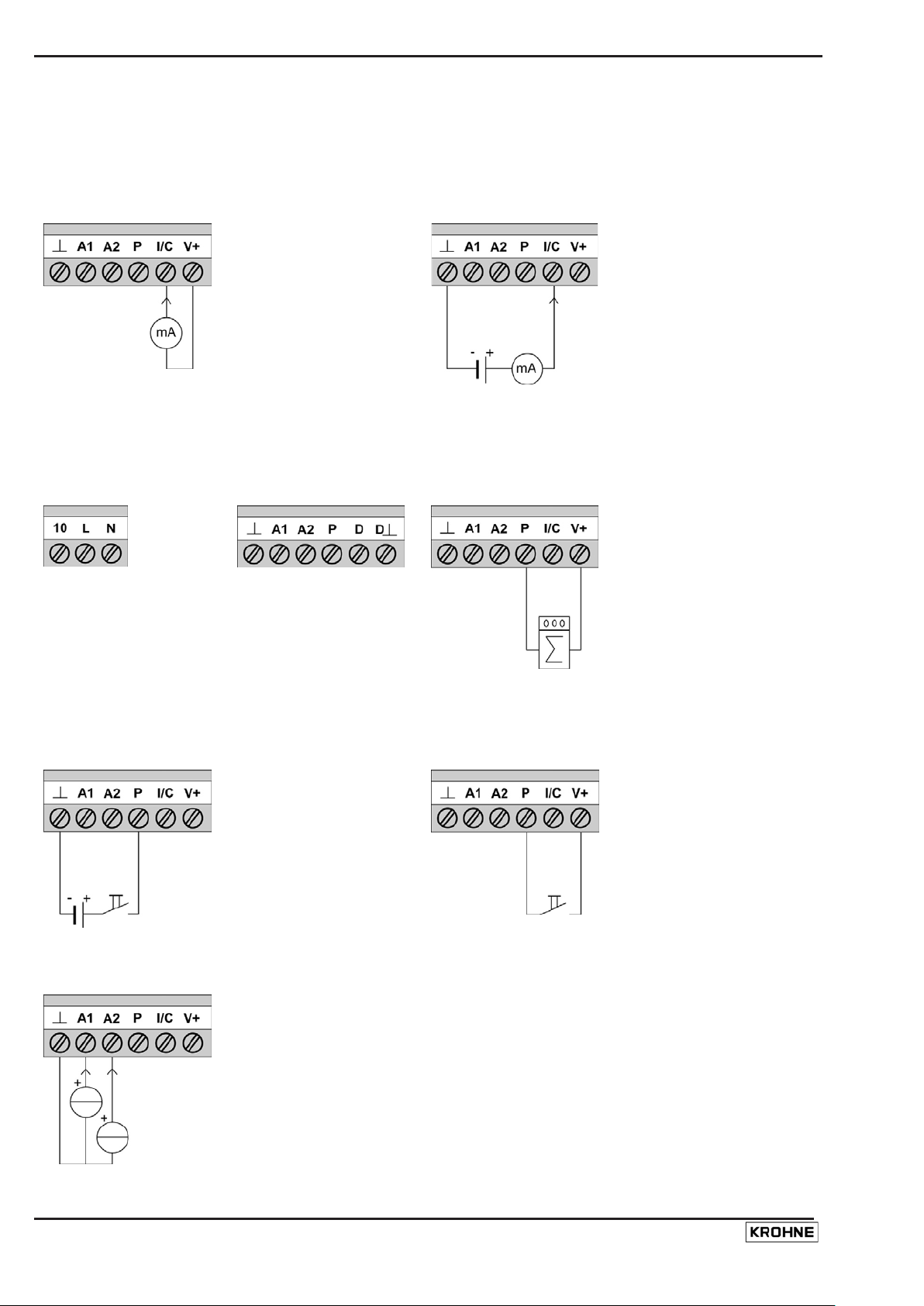

In the following, some examples of how to connect the electrical input and output signals.
Current output
Active
Ri <= 680 Ω
Passive
For supply: U = 15 – 24Vdc, I >= 22mA
Pulse output
Active Passive
R1>= 470 Ω, R2 =
U*R1/(V+ - U)
For supply: U<= 32Vdc, <= 24Vac
Digital input
Active
Passive
For supply: U = 15 – 30Vdc, I >= 1,5 mA
Analog input

UFM 3030 17
4 Start-up
•Check that the flow meter has been correctly installed.
•With separate systems, check before initial start-up that the correct converter (UFC 030 F) is
used with the correct flow sensor (UFS 3000).
•Order No., see instrument nameplates
•Meter size (DN), Function 3.1.5
•Primary constant GK, Function 3.1.6
•Flow direction, Function 3.1.7
•When powered, the signal converter operates in themeasuring mode. TEST, NO ERROR and
IDENT NO. _ _ _ _ _ _ _ of the signal converter appear in succession on the display. This is
followed by display of the actual flow rate and/or the internal count on a continuous or
alternating basis (depending on setting, see Function 3.03 Display or Function 1.02 Display).
•

18 UFM 3030
Part B The signal converter
5 Operating the signal converter
5.1 Front panel and operating keys
The front panel and its operating keys are accessible after removing the front (glass) cover of the
electronics section using the special wrench supplied with the flowmeter.
When removing the cover, do not damage the screw thread and the gasket, never
allow dirt to accumulate, and make sure that they are well greased using Teflon
grease at all times. A damaged gasket must be replaced immediately!
1. Display 1st (top) line, measured value
2. Display 2nd (middle) line, units of measured value
3. Display 3rd (bottom) line with markers ▼to identify
actual displayed value, from left to right:
Flow rate
Velocity Of Sound VOS
Total + Totalizer (forward flow)
Total - Totalizer (reverse flow)
Total ΣTotalizer sum (+ and -)
4. Compass field for error indication
5. Operating keys for programming the signal converter
6. Magnetic sensors to program the signal converter by
means of a hand-held bar magnet (optional) without
having to open the housing.
The function of the sensors is as follows: the left most
sensor is equivalent to left key, the right most, the right
key, and the top, the center key.
The converter is capable of displaying several types of measured values (depending on the
programming under Submenu 1.02 or 3.03.00 DISPLAY), indicated by the markers at the display
bottom line. Depending on the programming of Function 3.03.07 CYCL DISP, they can be
selected manually at any time by pressing the ↑key or they are automatically cycled at 5 second
intervals.
Depending on the programming of Function 3.03.08 ERROR MSG, errors are indicated by
flashing display lines and/or by the compass field. For a description of the errors and what to do,
see main menu Error/Totalizer.

UFM 3030 19
5.2 Menu structure and function of operating keys
The menu structure consists of 5 user accessible blocks.
•Function block 0 Error/Totalizer reset can be accessed from the measuring mode and
provides detailed information on errors occurred during operation. It allows for fast and easy
resetting of the errors and Totalizers.
•Function block 1 Operation contains a subset of options from function block 3, Installation.
The options in function block 1 are selected so that the most commonly used functions can be
selected quickly from this menu. In most cases only function block 1 needs to be accessed in
order to perform the required setting or programming task.
•Function block 2 Test contains all available test functions. This block can be accessed to
check proper functioning off all converter hard- and software.
•Function block 3 Installation contains all other set-up parameters for the converter. In general
the converter is factory-preset. Experienced users can make modifications here.
•Function block 4 Parameter Error becomes active automatically when non-plausible values
have been programmed, e.g. a too high a flow rate in too small a diameter. If this is the case
menu 4 will indicate that either FULL SCALE or METER SIZE needs to be changed.

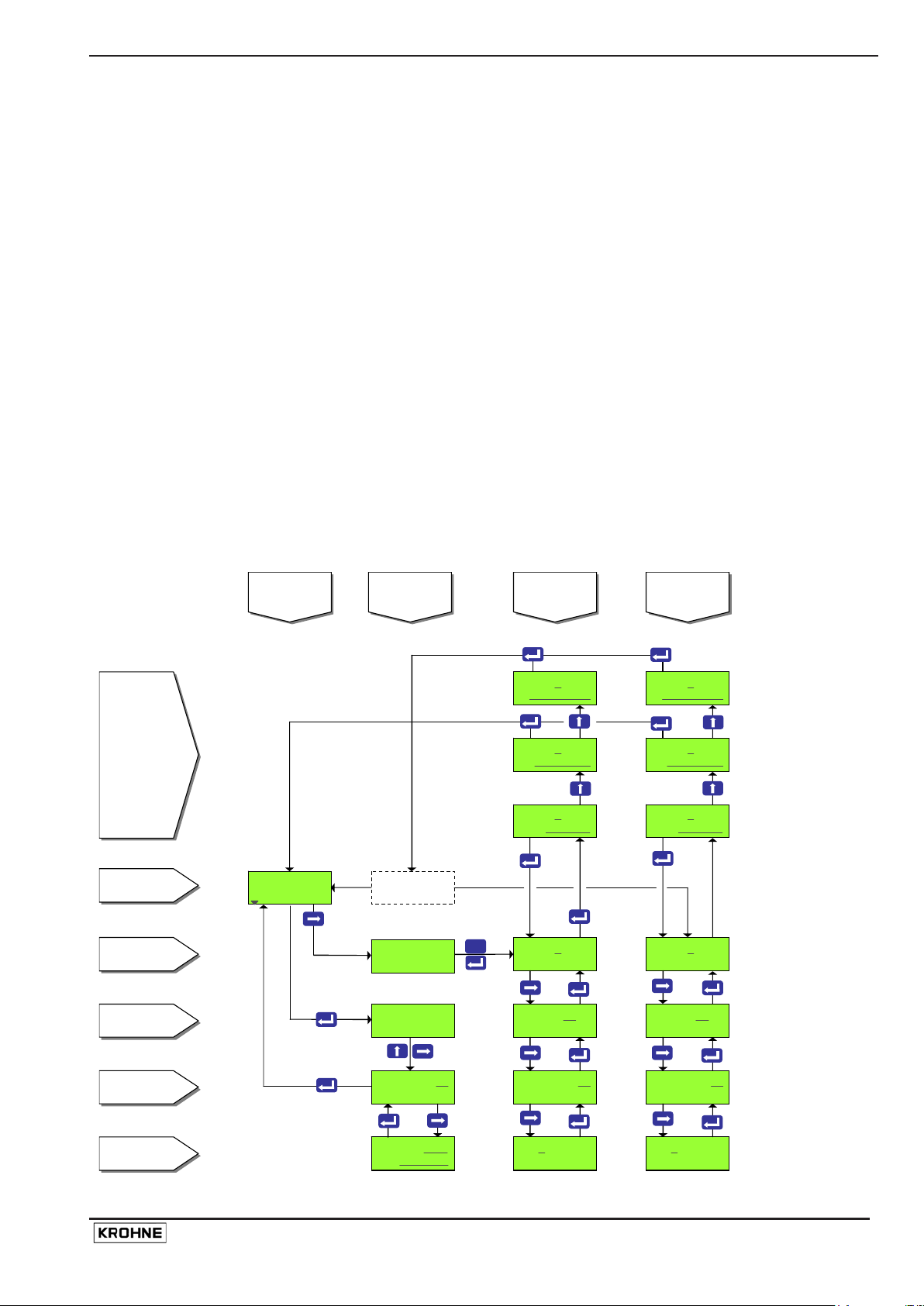

The figure below shows the main operation structure of the converter. The cursor or flashing part
of the display is shown as underlined text. For a complete overview of the menu and detailed
description of all functions see paragraph 4.2 and chapter 5 of this handbook.
Main menu level
Main menu level
Submenu level
Submenu level
Function level
Function level
Data level
Data level
Fct. 4.00.00
PARAMERR
Fct. 4.01.00
FLOW VELOC
Fct. 4.01.01
FULL SCALE
1.0000E+2
m3/hr
Fct. 1.00.00
OPERATION
Fct. 1.01.00
FLOW
Fct. 1.01.01
FULL SCALE
1.0000E+2
m3/hr
Fct. 1.00.00
STORE YES
Fct. 1.00.00
STORE NO
Fct. 1.00.00
RETURN
Fct. 4.00.00
STORE YES
Fct. 4.00.00
STORE NO
Fct. 4.00.00
RETURN
CODE 2
--
100.0
m3/hr
Fct. 0.00.01
VIEW ERR
Error
messages
Data acceptance
level
(only appears
after change
of data)
Data acceptance
level
(only appears
after change
of data)
Measuring
mode
Measuring
mode
Error/
Totalizer reset
mode
Error/
Totalizer reset
mode
Parameter
setting
mode
Parameter
setting
mode
Parameter
error
mode
Parameter
error
mode
CODE 1
---------
Parameter
check
9 x
START
START

20 UFM 3030
Key Measuring mode Menu mode Data level
→Go to the parameter setting mode,
function 1.00.00 OPERATION. If access
CODE 1 is activated, CODE 1 must be
entered first. Using function 3.07.02
access CODE 1 can be activated or
deactivated.
Go to the next, lower
menu level. Go to the next character or change
line (only when 2 lines
are displayed)
↵Go to the error/Totalizer reset mode (via
"CODE 2") Return to the previous (higher) menu level or
leave the menu mode.
Accept entered value
↑Cycle through measured values, see
Function 3.03.07 CYCL DISP Cycle through menu options within actual
menu level.
Cycle active digit up to
new values
Function Text Description and settings
0.00.00 ERROR/TOT Main menu 0.00.00 Error/Totalizer
0.00.01 VIEW ERR View error messages list
0.00.02 RST ERR Reset error messages
NO RESET (keep error messages list)
RESET (reset error messages list)
0.00.03 RST TOTAL Reset Totalizer (option available depending on setting in
3.7.8) RESET ALL (reset all Totalizer values)
NO RESET (keep Totalizer values)
1.00.00 OPERATION Main menu 1.00.00 Operation
1.01.00 FLOW Submenu 1.01.00 Flow
1.01.01 FULL SCALE Full-scale value for 100% volume flow rate, see Function
3.01.01
1.01.02 ZERO VALUE Zero value, see Function 3.01.02
1.01.03 ZERO CAL Zero calibration, see Function 3.01.03
1.01.04 MASTER TC Master time constant, see Function 3.01.04
1.01.05 LF CUTOFF Low-flow cut-off, see Function 3.01.05
1.01.06 CUTOFF ON Cut-off active, see Function 3.01.06
1.01.07 CUTOFF OFF Cut-off de-active, see Function 3.01.07
1.02.00 DISPLAY Submenu 1.02.00 Display
1.02.01 DISP FLOW Display of flow, see Function 3.03.01
1.02.02 DISP TOTAL Function of Totalizer, see Function 3.03.02
1.02.03 TOTAL VOL Display of Totalizer, see Function 3.03.04
1.03.00 PULSE OUTP Submenu 1.03.00 Pulse output
1.03.01 PULSE RATE Pulse frequency value for 100 % scale, See Function 3.05.08
1.03.02 PULSE/UNIT Pulse value per volume flow unit, see Function 3.05.09
1.03.03 PULSE/UNIT Pulse value per energy unit, see function 3.05.10
2.00.00 TEST Main menu 2.00.00 Test functions
2.01.00 DISPLAY Submenu 2.01.00 Display
2.01.01 DISPLAY Test display, lights all pixels. End with ↵key
2.02.00 OUTPUTS Submenu 2.02.00 Outputs
2.02.01 CURRENT Test current output
0 mA 4 mA
12 mA 20 mA
22 mA
Use up arrow to advance. Displayed value direct
ly present at
current output. Actual value present at output after pressing ↵
