Solenoid valve for gas
VG0/5–VG65
Solenoid valve for gas VG0/5–VG65 ....
Contents ..............................
Safety.................................
Checking the usage .....................
Intended use ...........................2
Type code .............................2
Part designations ........................2
Type label..............................2
Installation ............................
Wiring ................................
Tightness test ..........................4
Commissioning.........................4
Setting the flow rate ......................4
Setting the start gas rate ..................4
Replacing the solenoid actuator ..........5
Replacing a defective damping unit........5
Maintenance ...........................6
Assistance in the event of malfunction .....6
Technical data .........................7
Designed lifetime ........................ 7
Logistics ..............................8
Certification ...........................8
Declaration of conformity ..................8
Approval for Australia .....................8
Eurasian Customs Union ..................8
Contact ...............................8
Safety
Contents

GB-2
D
GB
F
NL
I
E

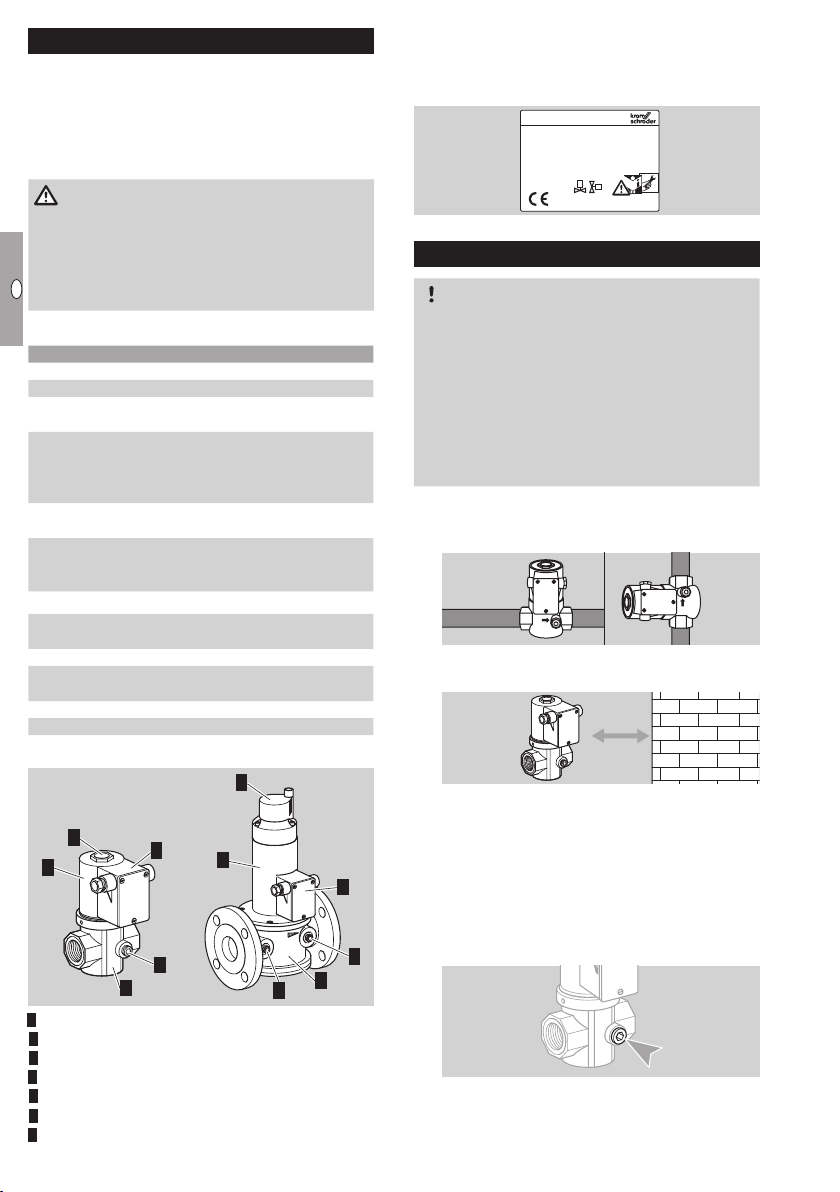

Checking the usage
Intended use
Gas solenoid valve for safeguarding gas or air on
various appliances.
This function is only guaranteed when used within the
specified limits– see page7 (Technical data). Any
other use is considered as non-compliant.
WARNING
Cleaning work on the solenoid actuator may not
be performed using high pressure and/or chemi-
cal cleaning agents. This can cause moisture to
get into the solenoid actuator and may lead to a
dangerous failure.
Type code
Code Description
VG Gas solenoid valve
0/5–65 Nominal size
R
F
Rp internal thread
Flange to ISO 7005
0
0
0
8
pu max. 200 mbar
pu max. 360 mbar
pu max. 1 bar
pu max. 1.8 bar
L
N
Slow opening, quick closing
Quick opening, quick closing
T
Q
K
Mains voltage: 220/240VAC, 50/60 Hz
Mains voltage: 120VAC, 50/60 Hz
Mains voltage: 24VDC
Terminal connection box, IP 54


Screw plug at the inlet
Screw plug at the inlet and outlet
DWith flow adjustment
M Suitable for biologically produced
methane
VViton valve disc seal
ZWith rolling diaphragm
Part designations
6
5
1
3
4
2
1
3
2
5
7
Housing
Solenoid actuator
Connection box
4Damping unit
5Screw plug for inlet pressure pu
6Screw plug for outlet pressure pd
7VG 10/15 –40/32: hexagonal nut (actuator)
VG 40 – 65: cap
Type label
Rated voltage, electrical power consumption, instal-
lation position, max. inlet pressure pumax., ambient
temperature, enclosure and medium: see type label.
www.kromschroeder.com
Osnabrück, Germany
VG
CE - 0063CM1188
Installation
CAUTION
Please observe the following to ensure that the VG
is not damaged during installation and operation:
– Do not clamp the unit in a vice. Only secure the
flange by holding the octagon with a suitable
spanner. Risk of external leakage.
– Do not install or store the unit in the open air.
– Check max. ambient temperature– see type
label.
– Check max. inlet pressure– see type label.
▷
Installation position: black solenoid actuator in
the vertical upright position or tilted up to the
horizontal, not upside down.
> 20 mm
▷ The housing must not be in contact with masonry.
Minimum clearance 20mm (0.79").
> 20 mm
▷ Sealing material and dirt, e.g. thread cuttings,
must not be allowed to get into the valve housing.
▷Install a filter upstream of every system.
▷Use approved sealing material only.
▷Use a suitable spanner.
▷Ensure that there is sufficient space for installa-
tion and adjustment.
▷On VG 10/15 –40/32, the inlet pressure pucan
be measured at the pressure test point
pu

GB-3
D
GB
F
NL
I
E
▷ On VG 40 – 65, the inlet pressure p
u
and the
outlet pressure pdcan be measured at the re-
spective pressure test point.
pd
pu
VG..R
2 31
4
Gas compression fittings
▷ The seals in some gas compression fittings
are approved for temperatures of up to 70°C
(158°F). This temperature limit will not be ex-
ceeded if the flow through the pipe is at least
1m3/h (35.31SCFH) of gas and the maximum
ambient temperature is 50°C (122°F).
VG..F
2 31
4
Wiring
WARNING
Attention! Please observe the following to ensure
that no damage occurs:
– Electric shocks can be fatal! Before working
on possible live components, ensure the unit
is disconnected from the power supply.
– The solenoid actuator heats up during opera-
tion. Surface temperature approx. 85°C (approx.
185°F) pursuant to EN 60730-1.
▷ Use temperature-resistant cable (>80°C/176°F).
▷Wiring to EN 60204-1.
 Disconnect the system from the electrical power
supply.
 Shut off the gas supply.
▷ The solenoid actuator can be rotated to allow
it to be repositioned for electrical connection.
On VG..N, the hexagonal nut/cap on the solenoid
actuator must be loosened for this.
1 = N (–) blue, 2 = LV1 (+) black
4 53
7
6
-
NLV1
+
▷ Set the solenoid actuator to the correct position
again and screw the hexagonal nut/cap tight if
applicable.

GB-4
D
GB
F
NL
I
E
VG with socket
1 = N (–), 2 = LV1V1 (+)
21
3 4 5
7
6
8 Follow the reverse procedure when reassembling.
Tightness test
CAUTION
Please observe the following to ensure that the VG
is not damaged during the tightness test:
–Check max. inlet pressure– see type label.
–Test pressure ≤1.5x max. inlet pressure.
▷The tightness test procedure on VG is function-
ally the same for all nominal sizes. The following
figures apply to all VG variants by way of example.
 Close the solenoid valve.
 Shut off the gas supply.
 To be able to check the tightness, shut off the
downstream pipeline as close as possible to the
valve.
Checking for external tightness
0
N2
≤ 1,5 x pu max.
0
0
N2≤ 1,5 x pu max.
4
6
5 Open the solenoid valve.
0
N2
≤ 1,5 x pu max.
0
0
N2≤ 1,5 x pu max.
4
6
▷Pipeline leaking: check the seal.
Checking for internal tightness
7 Close the solenoid valve.
N2
ca. 6 mbar 0
0
N2
≤ 1,5 x pu max
0
0
8
10
9 After 60 seconds, increase the text pressure to
≤1.5xpumax..
N2
ca. 6 mbar 0
0
N2
≤ 1,5 x pu max
0
0
8
10
▷Tightness OK: open the pipeline.
▷Unit leaking: remove the VG and return it to the
manufacturer.
Commissioning
Setting the flow rate
▷ At the factory, the gas solenoid valve is adjusted
for maximum flow rate.
VG 0/5 – 40/
▷The minimum and maximum flow rates can be
set within half a turn.
VG 40 – 65
▷The minimum and maximum flow rates can be
set within 20turns.
+ -
VV
pu
Setting the start gas rate
▷The start gas rate can be set with a maximum
of 3turns.
VG..L
Start
~1 mm
V
+
+
V
+
V
1 2
3

GB-5
D
GB
F
NL
I
E
Replacing the solenoid actuator
▷ We recommend replacing the entire actuator set
when replacing the solenoid actuator.
▷ The actuator set is available separately as a
spare part.
 Disconnect the system from the electrical power
supply.
 Shut off the gas supply.
VG..N
 To be able to remove the solenoid actuator,
loosen the hexagonal nut/cap on the solenoid
actuator.
-
NLV1
+
4
10
5
9
687
Slide the
O-ring
approx.
10mm up.
= N (-) bue
= LV1 (+)
black
 Screw the solenoid actuator into place.
 Release the gas supply.
VG..L
-
NLV1
+
+
V
+
N2≤ 1,5 x pu max
15
17
4
3
6
5
14
1918
20
16
7
8910
11 12
13
Slide the
O-ring
approx.
10mm up.
= N (-) blue
= LV1 (+)
black
-
NLV1
+
+
V
+
N2≤ 1,5 x pu max
15
17
4
3
6
5
14
1918
20
16
7
8910
11 12
13
Can be
rotated max.
3x360°. Ad-
just the start
gas rate.
 Tightness OK: release the gas supply.
Replacing a defective damping unit
 Disconnect the system from the electrical power
supply.
 Shut off the gas supply.
+
V
+
N2≤ 1,5 x pu max
78
4
3
65
9
▷ We recommend replacing all parts from the spare
parts kit.
+
V
+
N2≤ 1,5 x pu max
78
4
3
65
9
Can be
rotated max.
3x360°. Ad-
just the start
gas rate.

GB-6
D
GB
F
NL
I
E
Maintenance
CAUTION
In order to ensure smooth operation: check the
tightness and function of the VG every year, or every
six months if operated with biologically produced
methane.
 Disconnect the system from the electrical power
supply.
 Shut off the gas supply.
▷ If the flow rate is correct, see page4 (Tight-
ness test).
▷If the flow rate has dropped, clean the strainer.
VG 0/5 – 40/
6
312
4
3
6
5
11 54
1211 98
1211 1211
7
10
~5 m
m
VG 40 – 65
6
312
4
3
6
5
11 54
1211 98
1211 1211
7
10
~5 m
m
VG 0/5 – 65
6
312
4
3
6
5
11 54
1211 98
1211 1211
7
10
~5 m
m
 Follow the reverse procedure when reassembling.
Checking tightness and function
▷
When the solenoid actuator is removed, the
gas-filled space in the VG is opened. Therefore,
check for tightness once the actuator has been
reinstalled.
N2
≤ 1,5 x pu max.
14
▷ In order to determine whether the VG is tight and
closes securely, check the internal and external
tightness, see page4 (Tightness test).
▷
Check electrical installations in line with local reg-
ulations; pay particular attention to the PE wire.
Assistance in the event of
malfunction
WARNING
Electric shocks can be fatal! Before working on
possible live components, ensure the unit is dis-
connected from the power supply. Fault-clearance
must only be undertaken by authorized trained
personnel. Unauthorized repairs or incorrect elec-
trical connections can cause the solenoid valve to
become defective. In this case, our warranty will
be rendered void.
? Fault
! Cause
•Remedy
? The solenoid valve does not open, there is
no flow downstream of the solenoid valve.
! There is no power supply.
• Have wiring checked by authorized trained per-
sonnel.
! Guiding elements bent. Incorrect handling when
installing the unit.
1
2
• Remove the unit and return it to the manufacturer.

GB-7
D
GB
F
NL
I
E
? The solenoid valve does not close securely,
the flow downstream of the solenoid valve
does not stop.
! Valve seat is dirty.
• Clean the valve seat, see page 6 (Mainte-
nance).
• Install a filter upstream of the solenoid valve.
! Valve seat is damaged.
• Remove the unit and return it to the manufacturer.
! Valve seal is damaged or hardened.
• Remove the unit and return it to the manufacturer.
! Guiding elements bent. Incorrect handling when
installing the unit.
1
2
• Remove the unit and return it to the manufacturer.
Technical data
Gas types: natural gas, town gas, LPG (gaseous),
biologically produced methane (max.0.1%-by-
vol. H2S, VG..M only) or clean air; other gases on
request. The gas must be dry in all temperature
conditions and must not contain condensate.
Max. inlet pressure pu: see type label.
Opening time:
VG..N: quick opening, ≤1s.
VG..L: slow opening, 10s.
Closing time:
VG..N, VG..L: ≤1s.
Ambient temperature: -20 to +60°C (5 to 140°F).
No condensation permitted.
Long-term use in the upper ambient temperature
range accelerates the ageing of the elastomer ma-
terials and reduces the service life (please contact
manufacturer).
Storage temperature: -20 to +40°C (68 to 104°F).
Safety valve:
Class A, Group 2 pursuant to EN161.
Mains voltage:
220/240 V AC, +10/-15%, 50/60 Hz,
120 V AC, +10/-15%, 50/60 Hz,
24 V DC, +10/-15%.
Electrical connection of VG10/15 –40/32:
plug with socket to EN175301-803,
cable gland: PG 11,
connection terminal: 2.5mm2.
Electrical connection of VG40 –65:
plug with socket to EN175301-803,
cable gland: PG 13.5,
connection terminal: 2.5mm2.
Enclosure: IP54.
Duty cycle: 100%.
Power factor of the solenoid coil: cos φ = 1.
Power consumption:
Voltage
Type
24 V DC
120 V AC
220 V AC
240 V AC
VG 15 32 VA / W 38 VA / W
VG 15/12R18 31 VA / W 37 VA / W
VG 20, VG 25, VG 40/32 36 VA / W 42 VA / W
VG 40 73 VA / W 86 VA / W
VG 50, VG 65 85 VA / W 99 VA / W
Switching frequency: max. 30/min.
Valve housing: aluminium.
Valve disc: NBR.
Internal thread: Rp to ISO7-1.
Flange: ISO 7005 (DN 65 to DIN2501), PN16.
Air flow rate V
.
(Q) for pressure loss Δp= 1mbar.
VG 40 24.0
VG 40/33 13.5
VG 50 37.0
VG 50/39 23.0
VG 50/65 48.0
VG 65 57.0
VG 65/49 35.0
VG 80 85.0
VG 100 130.0
VG 10/15 3.0
VG 15 3.8
VG 15/12 2.3
VG 20 8.0
VG 25 10.0
VG 25/15 3.8
VG 40/32 18.0
V
. (Q) [m3/h]
V
. (Q) [m3/h]
∆p = 1 mbar
Designed lifetime
This information on the designed lifetime is based on
using the product in accordance with these operating
instructions. Once the designed lifetime has been
reached, safety-relevant products must be replaced.
Designed lifetime (based on date of manufacture) in
accordance with EN 13611, EN 161 for VG:
Type
Designed lifetime
Switching
cycles
Time
[years]
VG 10/15 – 25 200,000 10
VG 40/32 100,000 10
VG 40 – 80 100,000 10
VG 100 50,000 10

Elster GmbH
Postfach 28 09, D-49018 Osnabrück
Strotheweg 1, D-49504 Lotte (Büren)
T [phone]
F [phone]
GB-8
D
GB
F
NL
I
E
Contact
If you have any technical questions, please contact
your local branch office/agent. The addresses are
available on the Internet or from ElsterGmbH.
We reserve the right to make technical modifications
in the interests of progress. [e-mail], www.kromschroeder.com
You can find further explanations in the applicable
rules and regulations and on the afecor website
(www.afecor.org).
This procedure applies to heating systems. For
thermoprocessing equipment, observe local regu-
lations.
Logistics
Transport
Protect the unit from external forces (blows, shocks,
vibration). On receipt of the product, check that the
delivery is complete, see page2 (Part designa-
tions). Report any transport damage immediately.
Storage
Store the product in a dry and clean place.
Storage temperature: see page7 (Technical data).
Storage time: 6months in the original packaging
before using for the first time. If stored for longer than
this, the overall service life will be reduced by the
corresponding amount of extra storage time.
Packaging
The packaging material is to be disposed of in ac-
cordance with local regulations.
Disposal
Components are to be disposed
Certification
Declaration of conformity
We, the manufacturer, hereby declare that the prod-
uct VG, marked with product ID No. CE-0063BL1553,
and valves VG for high pressures (1 – 1.8bar), marked
with product ID No. CE-0063CM1188, comply
with the requirements of the listed Directives and
Standards.
Directives:
– 2009/142/EC
– 2004/108/EC
– 2006/95/EC
Standards:
– EN 13611
– EN 161
The relevant product corresponds to the type tested
by the notified body 0063.
The production is subject to the surveillance proce-
dure pursuant to Directive 2009/142/EC according
to annexII, paragraph3.
Elster GmbH
Scan of the Declaration of conformity (D, GB) – see
www.docuthek.com
Approval for Australia
AGA
Australian Gas Association, Approval No.:3968
www.aga.asn.au/product_directory
Eurasian Customs Union
The product VG meets the technical specifications of
the Eurasian Customs Union (the Russian Federation,
Belarus, Kazakhstan).
Contact
