KSB Omega Installation instructions

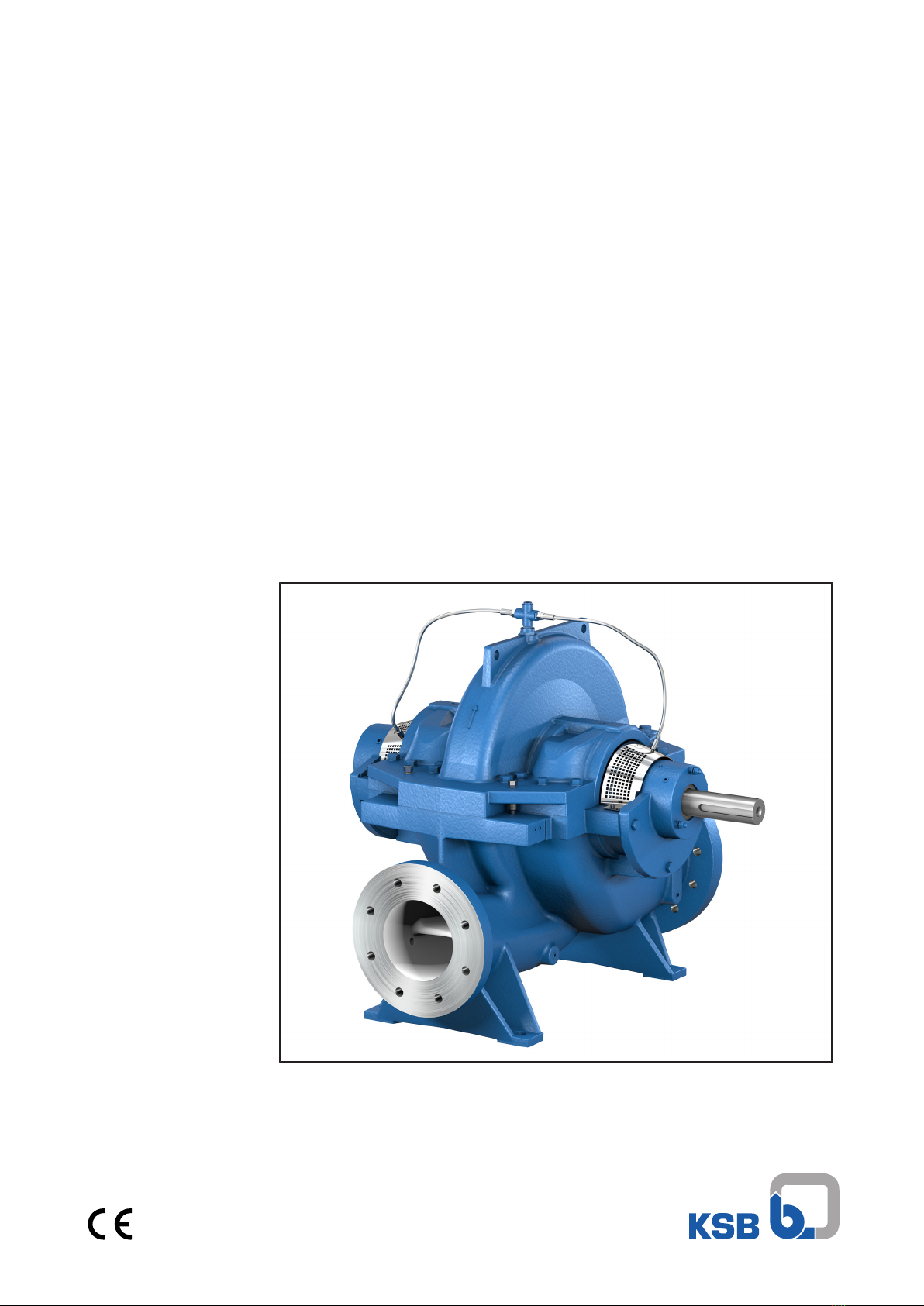

Axially Split Volute Casing Pump
Omega / Omega V
Horizontal Installation Type 3E
Vertical Installation Types DB, DK, DP, DJ
Installation/Operating Manual
Mat. No.: 01059616

Legal information/Copyright
Installation/Operating Manual Omega / Omega V
Original operating manual
All rights reserved. The contents provided herein must neither be distributed, copied, reproduced,
edited or processed for any other purpose, nor otherwise transmitted, published or made available to a
third party without the manufacturer's express written consent.
Subject to technical modification without prior notice.
© KSB SE & Co. KGaA, Frankenthal 2023-04-25

Contents
3 of 106
Omega / Omega V
Contents
Glossary .................................................................................................................................................. 5
1 General.................................................................................................................................................... 6
1.1 Principles ...........................................................................................................................................................6
1.2 Installation of partly completed machinery....................................................................................................6
1.3 Target group.....................................................................................................................................................6
1.4 Other applicable documents............................................................................................................................6
1.5 Symbols .............................................................................................................................................................7
1.6 Key to safety symbols/markings.......................................................................................................................7
2 Safety...................................................................................................................................................... 8
2.1 General..............................................................................................................................................................8
2.2 Intended use .....................................................................................................................................................8
2.3 Personnel qualification and training...............................................................................................................8
2.4 Consequences and risks caused by non-compliance with this manual .........................................................9
2.5 Safety awareness ..............................................................................................................................................9
2.6 Safety information for the operator/user.......................................................................................................9
2.7 Safety information for maintenance, inspection and installation ................................................................9
2.8 Unauthorised modes of operation................................................................................................................10
2.9 Explosion protection ......................................................................................................................................10
2.9.1 Marking ............................................................................................................................................. 10
2.9.2 Temperature limits............................................................................................................................ 11
2.9.3 Repair................................................................................................................................................. 11
3 Transport/Storage/Disposal ................................................................................................................ 12
3.1 Checking the condition upon delivery..........................................................................................................12
3.2 Transport.........................................................................................................................................................12
3.3 Storage/preservation......................................................................................................................................14
3.4 Return to supplier...........................................................................................................................................15
3.5 Disposal ...........................................................................................................................................................16
4 Description of the Pump (Set)............................................................................................................. 17
4.1 General description ........................................................................................................................................17
4.2 Product information as per Regulation No. 1907/2006(REACH).................................................................17
4.3 Designation.....................................................................................................................................................17
4.4 Name plate......................................................................................................................................................18
4.5 Design details..................................................................................................................................................18
4.6 Configuration and function...........................................................................................................................19
4.7 Noise characteristics .......................................................................................................................................19
4.8 Scope of supply...............................................................................................................................................21
4.9 Dimensions and weights ................................................................................................................................21
5 Installation at Site................................................................................................................................ 22
5.1 Safety regulations...........................................................................................................................................22
5.2 Checks to be carried out prior to installation...............................................................................................22
5.3 Installing the pump set ..................................................................................................................................23
5.3.1 3E installation.................................................................................................................................... 23
5.3.2 DJ installation.................................................................................................................................... 27
5.3.3 DJ installation with universal-joint shaft......................................................................................... 29
5.3.4 DB installation and DK installation.................................................................................................. 29
5.3.5 DP installation ................................................................................................................................... 31
5.4 Connecting the piping ...................................................................................................................................36
5.5 Enclosure/insulation .......................................................................................................................................37
5.6 Aligning the pump and motor ......................................................................................................................38
5.6.1 Aligning the motor with adjusting screws ...................................................................................... 38
5.6.2 Aligning the motor without adjusting screws ................................................................................ 40
5.7 Permissible forces and moments at the pump nozzles ................................................................................41

Contents
4 of 106 Omega / Omega V
5.8 Auxiliary connections .....................................................................................................................................42
5.9 Connection to power supply..........................................................................................................................44
5.9.1 Earthing ............................................................................................................................................. 44
5.10 Checking the direction of rotation................................................................................................................45
5.11 Removing the transport lock .........................................................................................................................45
6 Commissioning/Start-up/Shutdown................................................................................................... 47
6.1 Commissioning/Start-up.................................................................................................................................47
6.1.1 Prerequisites for commissioning/start-up ........................................................................................ 47
6.1.2 Priming and venting the pump........................................................................................................ 47
6.1.3 Start-up.............................................................................................................................................. 48
6.1.4 Checking the shaft seal..................................................................................................................... 49
6.1.5 Shutdown .......................................................................................................................................... 50
6.2 Operating limits..............................................................................................................................................51
6.2.1 Maximum operating pressure .......................................................................................................... 51
6.2.2 Hydraulic operating range ............................................................................................................... 52
6.2.3 Frequency of starts............................................................................................................................ 53
6.2.4 Fluid handled .................................................................................................................................... 53
6.3 Shutdown/storage/preservation ....................................................................................................................54
6.4 Returning to service .......................................................................................................................................54
7 Servicing/Maintenance........................................................................................................................ 55
7.1 Safety regulations...........................................................................................................................................55
7.2 Servicing/inspection........................................................................................................................................56
7.2.1 Supervision of operation .................................................................................................................. 56
7.2.2 Inspection work................................................................................................................................. 58
7.3 Drainage/cleaning ..........................................................................................................................................62
7.4 Dismantling the pump set..............................................................................................................................62
7.4.1 General information/Safety regulations.......................................................................................... 62
7.4.2 Preparing the pump set.................................................................................................................... 63
7.4.3 Opening the volute casing ............................................................................................................... 68
7.4.4 Removing the rotor .......................................................................................................................... 68
7.4.5 Dismantling the rotor ....................................................................................................................... 69
7.5 Reassembling the pump set...........................................................................................................................70
7.5.1 General information/Safety regulations.......................................................................................... 70
7.5.2 Installing the rotor ........................................................................................................................... 71
7.5.3 Mounting the pump set on the baseplate ...................................................................................... 76
7.6 Tightening torques.........................................................................................................................................76
7.7 Spare parts stock.............................................................................................................................................77
7.7.1 Ordering spare parts......................................................................................................................... 77
7.7.2 Recommended spare parts stock for 2 years' operation to DIN24296.......................................... 78
8 Trouble-shooting.................................................................................................................................. 80
8.1 Explanation of faults......................................................................................................................................84
9 Related Documents.............................................................................................................................. 85
9.1 Weights of individual components ...............................................................................................................85
9.2 General assembly drawing with list of components ....................................................................................86
9.2.1 Horizontally installed pump............................................................................................................. 86
9.2.2 Vertically installed pump, installation type DJ................................................................................ 89
9.2.3 Vertically installed pump, installation type DB............................................................................... 92
9.2.4 Vertically installed pump, installation type DK............................................................................... 95
9.2.5 Vertically installed pump, installation type DP ............................................................................... 98
10 EU Declaration of conformity............................................................................................................ 101
11 Certificate of Decontamination......................................................................................................... 102
Index ................................................................................................................................................... 103

Glossary
5 of 106
Omega / Omega V
1384.8/17-EN
Glossary
Certificate of decontamination
A certificate of decontamination is enclosed by the
customer when returning the product to the
manufacturer to certify that the product has been
properly drained to eliminate any environmental
and health hazards arising from components in
contact with the fluid handled.
Discharge line
The pipeline which is connected to the discharge
nozzle
Drive end
The side of the pump which faces the motor
Hydraulic system
The part of the pump in which the kinetic energy
is converted into pressure energy
Non-drive end
The side of the pump which faces away from the
motor
Pool of pumps
Customers/operators’ pumps which are purchased
and stored regardless of their later use.
Pump
Machine without drive, additional components or
accessories
Pump set
Complete pump set consisting of pump, drive,
additional components and accessories
Suction lift line/suction head line
The pipeline which is connected to the suction
nozzle

1 General
6 of 106 Omega / Omega V
1384.8/17-EN
1 General
1.1 Principles
This operating manual is valid for the type series and variants indicated on the front
cover.
The operating manual describes the proper and safe use of this equipment in all
phases of operation.
The name plate indicates the type series and size, the main operating data, the order
number and the order item number. The order number and order item number
clearly identify the pump set and serve as identification for all further business
processes.
In the event of damage, immediately contact your nearest KSB service facility to
maintain the right to claim under warranty.
1.2 Installation of partly completed machinery
To install partly completed machinery supplied by KSB refer to the sub-sections under
Servicing/Maintenance.
1.3 Target group
This operating manual is aimed at the target group of trained and qualified specialist
technical personnel. (ðSection2.3,Page8)
1.4 Other applicable documents
Table1: Overview of other applicable documents
Document Contents
Data sheet Description of the technical data of the pump (set)
General arrangement drawing/
outline drawing
Description of mating dimensions and installation
dimensions for the pump (set), weights
Drawing of auxiliary connections Description of auxiliary connections
Hydraulic characteristic curve Characteristic curves showing head,
NPSHrequired, efficiency and power input
General assembly drawing1) Sectional drawing of the pump
Sub-supplier product literature1) Operating manuals and other product literature
describing accessories and integrated machinery
components
Spare parts lists1) Description of spare parts
Piping layout1) Description of auxiliary piping
List of components1) Description of all pump components
Assembly drawing1) Sectional drawing of the installed shaft seal
For accessories and/or integrated machinery components, observe the relevant
manufacturer's product literature.
1If included in agreed scope of supply

1 General
7 of 106
Omega / Omega V
1384.8/17-EN
1.5 Symbols
Table2: Symbols used in this manual
Symbol Description
✓Conditions which need to be fulfilled before proceeding with the
step-by-step instructions
⊳Safety instructions
⇨Result of an action
⇨Cross-references
1.
2.
Step-by-step instructions
Note
Recommendations and important information on how to handle
the product
1.6 Key to safety symbols/markings
Table3: Definition of safety symbols/markings
Symbol Description
!DANGER
DANGER
This signal word indicates a high-risk hazard which, if not avoided,
will result in death or serious injury.
WARNING
!
WARNING
This signal word indicates a medium-risk hazard which, if not
avoided, could result in death or serious injury.
CAUTION
CAUTION
This signal word indicates a hazard which, if not avoided, could
result in damage to the machine and its functions.
Explosion protection
This symbol identifies information about avoiding explosions in
potentially explosive atmospheres in accordance with EU Directive
2014/34/EU (ATEX).
General hazard
In conjunction with one of the signal words this symbol indicates a
hazard which will or could result in death or serious injury.
Electrical hazard
In conjunction with one of the signal words this symbol indicates a
hazard involving electrical voltage and identifies information about
protection against electrical voltage.
Machine damage
In conjunction with the signal word CAUTION this symbol indicates
a hazard for the machine and its functions.

2 Safety
8 of 106 Omega / Omega V
1384.8/17-EN
2 Safety
!DANGER
All the information contained in this section refers to hazardous situations.
In addition to the present general safety information the action-related safety
information given in the other sections must be observed.
2.1 General
▪This operating manual contains general installation, operating and maintenance
instructions that must be observed to ensure safe operation of the system and
prevent personal injury and damage to property.
▪Comply with all the safety instructions given in the individual sections of this
operating manual.
▪The operating manual must be read and understood by the responsible specialist
personnel/operators prior to installation and commissioning.
▪The contents of this operating manual must be available to the specialist
personnel at the site at all times.
▪Information and markings attached directly to the product must always be
complied with and kept in a perfectly legible condition at all times. This applies
to, for example:
– Arrow indicating the direction of rotation
– Markings for connections
– Name plate
▪The operator is responsible for ensuring compliance with all local regulations not
taken into account.
2.2 Intended use
▪The pump (set) must only be operated in the fields of application and within the
use limits specified in the other applicable documents. (ðSection1.4,Page6)
▪Only operate pumps/pump sets which are in perfect technical condition.
▪Do not operate the pump (set) in partially assembled condition.
▪Only use the pump (set) to handle the fluids described in the data sheet or
product literature of the pump variant.
▪Never operate the pump (set) without the fluid to be handled.
▪Observe the minimum flow rate and maximum flow rate indicated in the data
sheet or product literature (to prevent overheating, mechanical seal damage,
cavitation damage, bearing damage, etc).
▪Always operate the pump (set) in the direction of rotation it is intended for.
▪Do not throttle the flow rate on the suction side of the pump (to prevent
cavitation damage).
▪Consult the manufacturer about any use or mode of operation not described in
the data sheet or product literature.
2.3 Personnel qualification and training
All personnel involved must be fully qualified to transport, install, operate, maintain
and inspect the machinery this manual refers to.
The responsibilities, competence and supervision of all personnel involved in
transport, installation, operation, maintenance and inspection must be clearly
defined by the operator.
Deficits in knowledge must be rectified by means of training and instruction
provided by sufficiently trained specialist personnel. If required, the operator can
commission the manufacturer/supplier to train the personnel.
Training on the pump (set) must always be supervised by technical specialist
personnel.

2 Safety
9 of 106
Omega / Omega V
1384.8/17-EN
2.4 Consequences and risks caused by non-compliance with this manual
▪Non-compliance with these operating instructions will lead to forfeiture of
warranty cover and of any and all rights to claims for damages.
▪Non-compliance can, for example, have the following consequences:
– Hazards to persons due to electrical, thermal, mechanical and chemical
effects and explosions
– Failure of important product functions
– Failure of prescribed maintenance and servicing practices
– Hazard to the environment due to leakage of hazardous substances
2.5 Safety awareness
In addition to the safety information contained in this operating manual and the
intended use, the following safety regulations shall be complied with:
▪Accident prevention, health regulations and safety regulations
▪Explosion protection regulations
▪Safety regulations for handling hazardous substances
▪Applicable standards, directives and laws
2.6 Safety information for the operator/user
▪Fit protective equipment (e.g. contact guards) supplied by the operator for hot,
cold or moving parts, and check that the equipment functions properly.
▪Do not remove any protective equipment (e.g. contact guards) during operation.
▪Provide the personnel with protective equipment and make sure it is used.
▪Contain leakages (e.g. at the shaft seal) of hazardous fluids handled (e.g.
explosive, toxic, hot) so as to avoid any danger to persons and the environment.
Adhere to all relevant laws.
▪Eliminate all electrical hazards. (In this respect refer to the applicable national
safety regulations and/or regulations issued by the local energy supply
companies.)
▪If stopping the pump does not increase potential risk, fit an emergency-stop
control device in the immediate vicinity of the pump (set) during pump set
installation.
2.7 Safety information for maintenance, inspection and installation
▪Modifications or alterations of the pump (set) are only permitted with the
manufacturer's prior consent.
▪Use only original spare parts or parts/components authorised by the
manufacturer. The use of other parts/components can invalidate any liability of
the manufacturer for resulting damage.
▪The operator ensures that maintenance, inspection and installation are
performed by authorised, qualified specialist personnel who are thoroughly
familiar with the manual.
▪Only carry out work on the pump (set) during standstill of the pump.
▪Only perform work on the pump set when it has been disconnected from the
power supply (de-energised).
▪The pump (set) must have cooled down to ambient temperature.
▪Pump pressure must have been released and the pump must have been drained.

2 Safety
10 of 106 Omega / Omega V
1384.8/17-EN
▪When taking the pump set out of service always adhere to the procedure
described in the manual. (ðSection6.3,Page54)
▪Decontaminate pumps which handle fluids posing a health hazard.
(ðSection7.3,Page62)
▪As soon as the work has been completed, re-install and re-activate any safety-
relevant devices and protective devices. Before returning the product to service,
observe all instructions on commissioning. (ðSection6.1,Page47)
2.8 Unauthorised modes of operation
Never operate the pump (set) outside the limits stated in the data sheet and in this
operating manual.
The warranty relating to the operating reliability and safety of the pump (set)
supplied is only valid if the equipment is used in accordance with its intended use.
(ðSection2.2,Page8)
2.9 Explosion protection
!DANGER
Always observe the information on explosion protection given in this section when
operating the product in potentially explosive atmospheres.
Pumps/Pump sets must not be used in potentially explosive atmospheres unless
marked as explosion-proof and identified as such in the data sheet.
Special conditions apply to the operation of explosion-proof pump sets in accordance
with EU Directive 2014/34/EU (ATEX).
Especially adhere to the sections in this manual marked with the symbol opposite and
the following sections, (ðSection1.6,Page7) to (ðSection2.9.3,Page11)
The explosion-proof status is only assured if the product is used in accordance with its
intended use.
Never operate the product outside the limits stated in the data sheet and on the
name plate.
Prevent impermissible modes of operation at all times.
For information on application options of individual components (if any) in
potentially explosive atmospheres, refer to the manufacturer's product literature.
2.9.1 Marking
Pump The marking on the pump refers to the pump part only.
Example of such marking:
II 2G Ex h IIC T5-T1 Gb
Refer to the Temperature limits table for the maximum temperatures permitted for
the individual pump variants. (ðSection2.9.2,Page11)
The pump complies with the requirements of type of protection constructional safety
"c" to ISO80079-37.
Shaft coupling An EC manufacturer's declaration is required for the shaft coupling; the shaft
coupling must be marked accordingly.
Motor The motor must be considered separately.

2 Safety
11 of 106
Omega / Omega V
1384.8/17-EN
2.9.2 Temperature limits
In normal pump operation, the highest temperatures are to be expected at the
surface of the pump casing, at the shaft seal and in the bearing areas.
The surface temperature at the pump casing corresponds to the temperature of the
fluid handled. If the pump is heated in addition, the operator of the system is
responsible for observing the specified temperature class and fluid temperature
(operating temperature).
The table lists the temperature classes and the resulting maximum permissible
temperature limits of the fluid handled. The values shown correspond to the
theoretical limits. They include only a general safety margin for the mechanical seal.
For single mechanical seals, the safety margin required for specific operating
conditions and mechanical seal designs may be substantially higher. If operating
conditions differ from those stated on the data sheet, or if different mechanical seals
are used, the actual safety margin required needs to be determined individually. If in
doubt please contact the manufacturer.
The temperature class specifies the maximum permissible temperature at the surface
of the pump set during operation.
For the permissible operating temperature of the pump in question refer to the data
sheet.
Table4: Temperature limits
Temperature class to EN13463-1 or
ISO80079-36
Maximum permissible fluid temperature
T1 Maximum 140°C2)
T2 Maximum 140°C
T3 Maximum 140°C
T4 80°C
T5 45°C
T6 Not permitted
Temperature class T5 Based on an ambient temperature of 40°C and proper maintenance and operation,
compliance with temperature class T5 is warranted in the area of the rolling element
bearings. If the ambient temperature exceeds 40°C, contact the manufacturer.
Temperature class T6 A special design is required to comply with the requirements of temperature class T6
in the bearing area.
Misuse, malfunctions or non-compliance with the instructions may result in
substantially higher temperatures.
If the pump is to be operated at a higher temperature, the data sheet is missing or if
the pump is part of a pool of pumps, contact KSB for the maximum permissible
operating temperature.
2.9.3 Repair
Special regulations apply to repair work on explosion-proof pumps. Modifications or
alterations of the pump set can affect explosion protection and are only permitted
after consultation with the manufacturer.
Repair work at the flameproof joints must only be performed in accordance with the
manufacturer's instructions. Repair to the values in Table 2 of EN60079-1 is not
permitted.
2Depending on the material variant

3 Transport/Storage/Disposal
12 of 106 Omega / Omega V
1384.8/17-EN
3 Transport/Storage/Disposal
3.1 Checking the condition upon delivery
1. On transfer of goods, check each packaging unit for damage.
2. In the event of in-transit damage, assess the exact damage, document it and
notify KSB or the supplying dealer and the insurer about the damage in writing
immediately.
3.2 Transport
DANGER
Lifting lugs of pump/motor/baseplate overloaded
Danger to life from falling parts!
▷Never transport the pump set components (pump/motor/baseplate) in any way
other than as described in the Transport section.
▷Refer to the weights of the individual components stated in the manufacturer's
product literature.
DANGER
The pump (set) could slip out of the suspension arrangement
Danger to life from falling parts!
▷Always transport the pump (set) in the specified position.
▷Never attach the suspension arrangement to the free shaft end or the motor
eyebolt.
▷Observe the information about weights, centre of gravity and fastening points.
▷Observe the applicable local accident prevention regulations.
▷Use suitable, permitted lifting accessories, e.g. self-tightening lifting tongs.
For transporting the motor, observe the motor supplier's product literature!
To transport the pump/pump set suspend it from the lifting tackle as shown.
Fig.1: The angle of pull must not be greater than 90°!

3 Transport/Storage/Disposal
13 of 106
Omega / Omega V
1384.8/17-EN

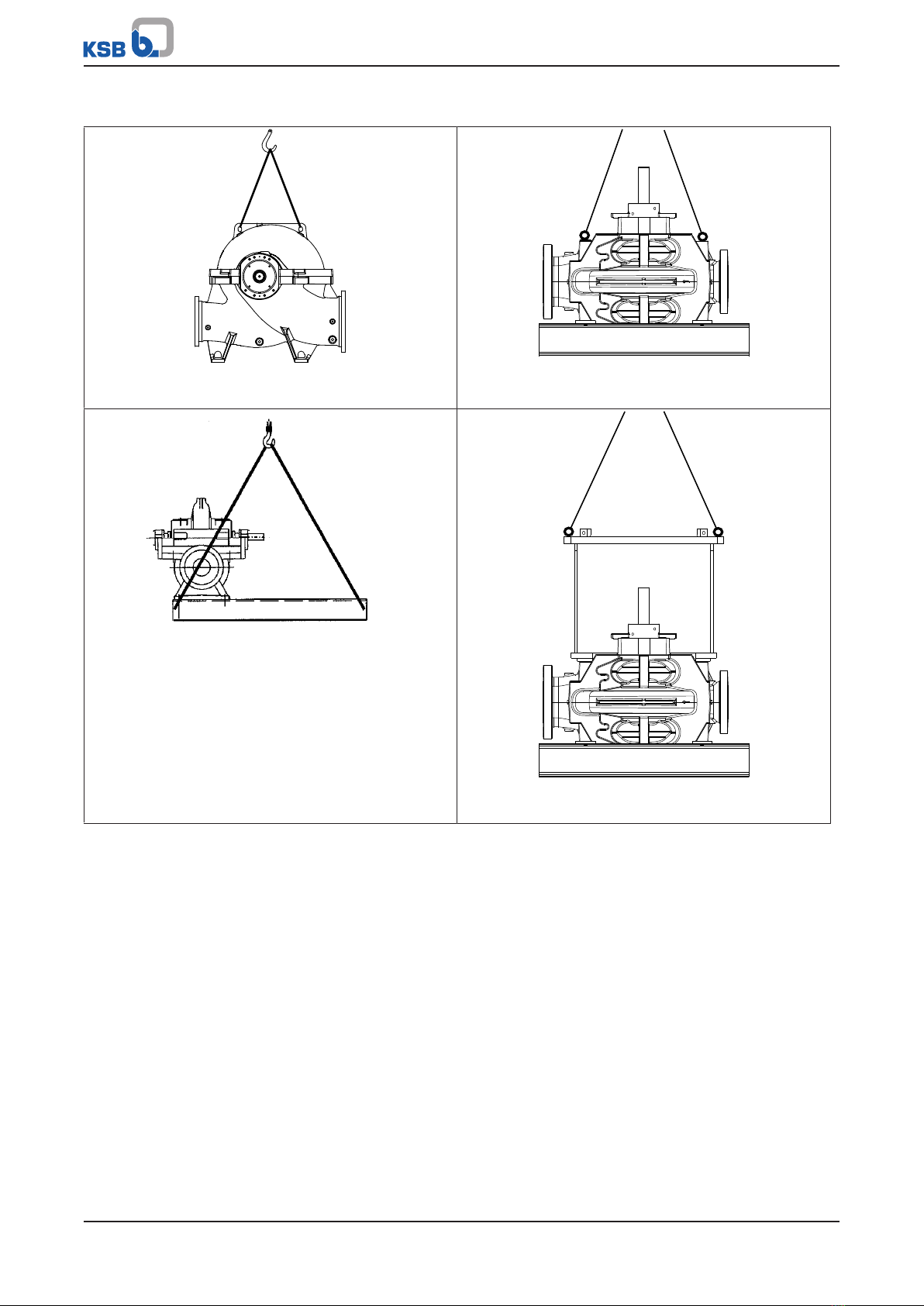

Table5: Transport options
Transporting the pump horizontally
(figure 0 bare-shaft pump)
Transporting the pump vertically
(figure 0 bare-shaft pump or installation type DJ)
Transporting the pump with base frame
(figure 0 bare-shaft pump)
▪Motor size 315 and larger
▪Total weight (of the pump set) more than 1500kg
Transporting the pump vertically
(installation types DB and DK)

3 Transport/Storage/Disposal
14 of 106 Omega / Omega V
1384.8/17-EN
Transporting the pump set on the base frame
(installation type 3E)
▪Up to motor size 280 (IEC standard)
▪Up to a total weight (of the pump set) of 1500kg
Transporting the pump set on the base frame
(installation type 3E)
Use the hooks welded to the baseplate!
▪Up to motor size 280 (IEC standard)
▪Up to a total weight (of the pump set) of 1500kg
Transporting the base frame (installation type DP)
3.3 Storage/preservation
WARNING
Installation on mounting surfaces which are unsecured and cannot support the
load
Personal injury and damage to property!
▷Use a concrete of compressive strength class C25/30 which meets the
requirements of exposure class XS1 to EN 206 .
▷The mounting surface must be set, even, and level.
▷Observe the weights indicated.
CAUTION
Damage during storage due to humidity, dirt or vermin
Corrosion/contamination of pump (set)!
▷For outdoor storage cover the pump (set) and accessories with waterproof
material and protect against condensation.

3 Transport/Storage/Disposal
15 of 106
Omega / Omega V
1384.8/17-EN
CAUTION
Wet, contaminated or damaged openings and connections
Leakage or damage to the pump!
▷Clean and cover pump openings and connections as required prior to putting
the pump into storage.
CAUTION
Bearings in the same position for a prolonged period of time
Damage to the bearings!
▷Manually rotate the shaft once a month with suitable tools.
▷Store the pump in a room isolated from vibrations.
CAUTION
Pump stored too long or incorrectly
Damage to the pump!
▷Check especially the rolling element bearings and the lubricant. If any damage
is suspected, replace the rolling element bearings.
NOTE
Observe the manufacturer's instructions for application/removal of the preservative.
If commissioning is to take place some time after delivery, we recommend that the
following measures be taken:
▪Store the pump and supplied components under dry, vibration-free conditions,
and, if possible, in their original packaging.
▪The ambient temperatures for transport and storage must not be below -20°C or
above 60°C.
1. Manually rotate the pump shaft once a month with a suitable tool.
2. Spray preservative through the suction nozzle and discharge nozzle. It is
advisable to then close the pump nozzles (e.g. with plastic caps or similar).
3.4 Return to supplier
1. Drain the pump as per operating instructions. (ðSection7.3,Page62)
2. Flush and clean the pump, particularly if it has been used for handling noxious,
explosive, hot or other hazardous fluids.
3. If the pump has handled fluids whose residues could lead to corrosion damage
in the presence of atmospheric humidity or could ignite upon contact with
oxygen, the pump must also be neutralised, and anhydrous inert gas must be
blown through the pump to ensure drying.
4. Always complete and enclose a certificate of decontamination when returning
the pump.
Indicate any safety measures and decontamination measures taken.
(ðSection11,Page102)
NOTE
If required, a blank certificate of decontamination can be downloaded from the
following web site: www.ksb.com/certificate_of_decontamination

3 Transport/Storage/Disposal
16 of 106 Omega / Omega V
1384.8/17-EN
3.5 Disposal
WARNING
Fluids handled, consumables and supplies which are hot and/or pose a health
hazard
Hazard to persons and the environment!
▷Collect and properly dispose of flushing fluid and any fluid residues.
▷Wear safety clothing and a protective mask if required.
▷Observe all legal regulations on the disposal of fluids posing a health hazard.
1. Dismantle the pump (set).
Collect greases and other lubricants during dismantling.
2. Separate and sort the pump materials, e.g. by:
- Metals
- Plastics
- Electronic waste
- Greases and other lubricants
3. Dispose of materials in accordance with local regulations or in another
controlled manner.

4 Description of the Pump (Set)
17 of 106
Omega / Omega V
1384.8/17-EN
4 Description of the Pump (Set)
4.1 General description
▪Volute casing pump installed in a horizontal or vertical position
▪Volute casing pump with double-entry radial impeller
▪Pump for handling fluids in water works, irrigation pumping systems and
drainage pumping systems, power stations and industrial water supply
4.2 Product information as per Regulation No. 1907/2006(REACH)
For information as per European chemicals regulation (EC) No. 1907/2006 (REACH)
see https://www.ksb.com/en-global/company/corporate-responsibility/reach.
4.3 Designation
Example: Omega V 150 - 460 A GB P M
Table6: Designation key
Code Description
Omega Type series
V Design
3) Horizontal installation
V Vertical installation
150 Nominal discharge nozzle diameter [mm]
460 Nominal impeller diameter [mm]
A Impeller type
GB Material variant
GB Grey cast iron / bronze
GC Grey cast iron / chrome steel
SB Nodular cast iron / bronze
SC Nodular cast iron / chrome steel
DD35 Duplex stainless steel / duplex stainless steel
P Shaft seal
P Gland packing
G Mechanical seal
M Bearing lubrication
F Grease
M Fluid handled
3Blank

4 Description of the Pump (Set)
18 of 106 Omega / Omega V
1384.8/17-EN
4.4 Name plate
Omega 250 - 600 A
P-No. 9974xxxx78 / 000100
Q 1050 m3/h
n 1475 1/min
Mat.-No. 01 220 221 ZN 3804 - E 37 x 52
2022
Gew. 1090 kg
H 120 m
SNr. 24 15 26
KSB SE & Co. KGaA
Johann-Klein-Straße 9
67227 Frankenthal
Deutschland
Omega 250 - 600 A
P-No. 9971XXXX78 / 000100
Q 1050 m3/h H 120 m
n 1475 1/min SNr. 24 15 26
Mat.-No. 01 111 383 ZN 3804 - D 74 x 105
2016
Gew. 1090 kg
Johann-Klein-Straße 9
Deutschland
67227 Frankenthal
KSB SE & Co. KGaA
1
2
5
4
3
9
8
7
6
1
2
5
4
3
9
8
7
6
Fig.2: Name plate (example)
1 Designation of the pump set 6 Year of production
2 Order number 7 Order item number
3 Flow rate 8 Head
4 Speed 9 Serial number
5 Weight of bare-shaft pump
4.5 Design details
Design
▪Volute casing pump
▪Horizontal installation/ vertical installation
▪Single-stage
▪Nominal discharge nozzle diameter: 80mm- 400mm
Pump casing
▪Axially split volute casing
▪Volute casing with integrally cast pump feet
▪Replaceable casing wear rings
▪Mating dimensions to EN or ASME
Impeller type
▪Double-entry radial impeller4)
Pump shaft
▪Completely dry shaft
▪Shaft protecting sleeves in the seal area
Shaft seal
▪Gland packing
▪Mechanical seal
Bearings
For horizontal installation:
▪Grease-packed rolling element bearings sealed for life
For vertical installation:
▪Product-lubricated plain bearing at the bottom/ rolling element bearings,
greased for life, on top
4Optionally with impeller wear rings

4 Description of the Pump (Set)
19 of 106
Omega / Omega V
1384.8/17-EN
4.6 Configuration and function
6
7
2
3
4
8
9
10
5
1
Fig.3: Sectional drawing
1 Suction nozzle 6 Clearance gap
2 Bearing housing 7 Shaft
3 Rolling element bearing 8 Rolling element bearing
4 Volute casing 9 Shaft seal
5 Impeller 10 Discharge nozzle
Design The pump is designed with a tangential fluid inlet and a tangential fluid outlet. The
hydraulic system runs in its own bearings and is connected to the motor by a shaft
coupling.
Function The fluid enters the pump tangentially via the suction nozzle (1) and is accelerated
outward by the rotating impeller (5). In the flow passage of the pump casing the
kinetic energy of the fluid is converted into pressure energy. The fluid is pumped to
the discharge nozzle (10), where it leaves the pump. The clearance gap (6) prevents
any fluid from flowing back from the casing to the suction nozzle. The shaft (7)
enters the hydraulic system through the volute casing (4). The shaft passage through
the sealing housing is sealed to atmosphere with a shaft seal (9). The shaft runs in
rolling element bearings (3 and 8) located in a bearing housing (2) which is
connected to the volute casing (4).
Sealing The pump is sealed by a shaft seal (standardised mechanical seal or gland packing).
4.7 Noise characteristics
Pump Table7: Surface sound pressure level LpA
5)
Rated
power
PN
Surface sound pressure level LpA
Pump
3500 rpm-1 2900 rpm-1 1750 rpm-1 1450 rpm-1 1160 / 870
rpm-1
960 / 750
rpm-1
[kW] [dB (A)] [dB (A)] [dB (A)] [dB (A)] [dB (A)] [dB (A)]
10 69,5 69,0 67,4 67,0 65,6 64,6
15 70,8 70,3 68,7 68,3 66,9 65,9
20 71,8 71,3 69,7 69,3 67,8 66,8
5Surface sound pressure level as per ISO 3744 and DIN EN ISO 20361 . valid for a pump operating range of Q/
QBEP=0.8-1.1 and non-cavitating operation. If noise levels are to be guaranteed: Add +3dB for measuring
and constructional tolerance. The values indicated do not apply to operation on a frequency inverter.

4 Description of the Pump (Set)
20 of 106 Omega / Omega V
1384.8/17-EN
Rated
power
PN
Surface sound pressure level LpA
Pump
3500 rpm-1 2900 rpm-1 1750 rpm-1 1450 rpm-1 1160 / 870
rpm-1
960 / 750
rpm-1
[kW] [dB (A)] [dB (A)] [dB (A)] [dB (A)] [dB (A)] [dB (A)]
30 73,1 72,7 71,0 70,6 69,1 68,2
40 74,1 73,6 71,9 71,5 70,1 69,1
50 74,8 74,3 72,7 72,2 70,8 69,8
60 75,4 75,0 73,3 72,8 71,4 70,4
70 75,9 75,5 73,8 73,3 71,9 70,9
80 76,4 75,9 74,2 73,8 72,3 71,3
90 76,8 76,3 74,6 74,2 72,7 71,7
100 77,1 76,7 74,9 74,5 73,1 72,1
150 78,5 78,0 76,3 75,8 74,4 73,4
200 79,4 79,0 77,2 76,8 75,3 74,3
250 80,2 79,7 77,9 77,5 76,0 75,0
300 80,8 80,3 78,5 78,1 76,6 75,6
350 81,3 80,8 79,0 78,6 77,1 76,1
400 82,0 81,5 79,8 79,3 77,8 76,8
450 82,1 81,6 79,9 79,4 77,9 76,9
500 82,5 82,0 80,2 79,7 78,3 77,3
600 83,1 82,6 80,8 80,3 78,9 77,8
700 83,6 83,1 81,3 80,8 79,4 78,3
800 84,0 83,6 81,7 81,3 79,8 78,8
900 84,4 84,0 82,1 81,7 80,2 79,2
1000 84,8 84,3 82,5 82,0 80,5 79,5
Pump set Table8: Surface sound pressure level as per ISO3744 and DINENISO20361;6)
Rated
power
PN
Surface sound pressure level as per ISO3744 and DINENISO20361;6)
Pump set
3500 rpm-1 2900 rpm-1 1750 rpm-1 1450 rpm-1 1160 / 870
rpm-1
960 / 750
rpm-1
[kW] [dB (A)] [dB (A)] [dB (A)] [dB (A)] [dB (A)] [dB (A)]
10 74,5 74,0 70,0 69,0 66,4 64,6
15 75,7 75,2 71,4 70,5 67,9 66,2
20 76,6 76,1 72,4 71,5 69,0 67,4
30 77,8 77,3 73,8 72,9 70,6 69,0
40 78,7 78,2 74,8 74,0 71,7 70,1
50 79,4 78,9 75,6 74,8 72,6 71,0
60 79,9 79,4 76,3 75,4 73,3 71,8
70 80,4 79,9 76,8 76,0 73,8 72,4
80 80,8 80,3 77,3 76,5 74,4 72,9
90 81,2 80,7 77,7 76,9 74,8 73,4
100 81,5 81,0 78,0 77,2 75,2 73,8
150 82,7 82,2 79,4 78,7 76,8 75,4
200 83,6 83,1 80,4 79,7 77,9 76,6
250 84,3 83,8 81,2 80,5 78,7 77,5
300 84,8 84,3 81,8 81,2 79,4 78,2
6Spatial average; as per ISO3744 and DINENISO20361; valid for pump operation in the Q/QBEP=0.8-1.1
range and for non-cavitating operation. If noise levels are to be guaranteed: Add +3dB for measuring and
constructional tolerance. The values indicated do not apply to operation on a frequency inverter.
