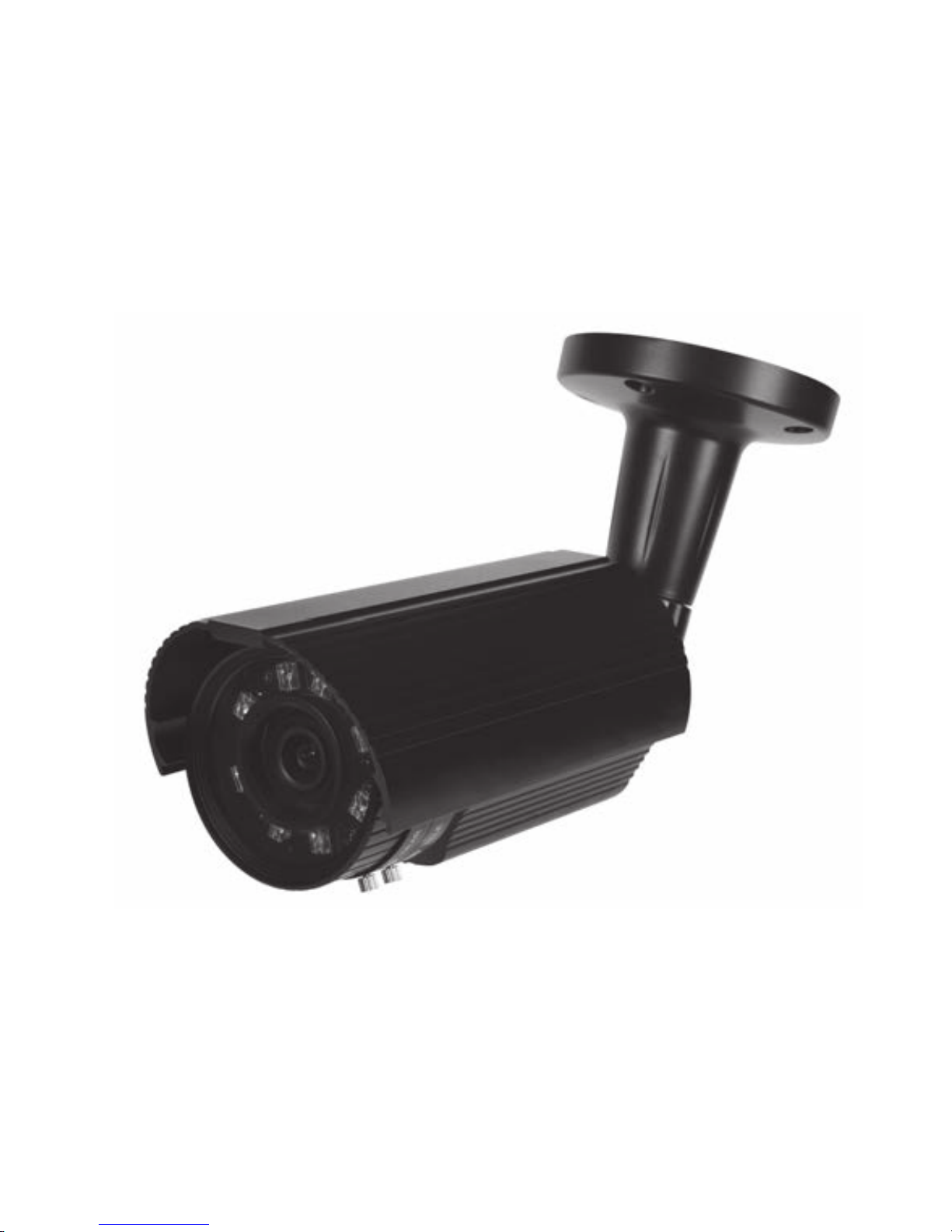

KT&C KPC-HDN722M User manual

HD CCTV
Digital Video Camera
OPERATION MANUAL
Thank you for choosing our high quality camera.
Before attempting to connect operate this unit, please read and follow these instructions.
M161-HDN722-001

These servicing instructions are for use by qualied service personnel only.
To reduce the risk of electric shock do not perform any servicing other than that
contained in the operating instructions unless you are qualied to do so.
Use Class 2 Power Supply Only
CAUTION
2

CONTENTS
1. CAUTIONS
2. IMPORTANT SAFETY INSTRUCTION
3. FEATURES
4. EQUIPMENT AND ACCESSORIES
5. INSTALLATION
6. DIMENSIONS
7. SPECIFICATION
8. OSD MANUAL
3

1. CAUTIONS
4
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions;
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference
that may cause undesired operation.
Note
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated
in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.”
WARNING
This is a class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
Caution
Any changes or modications in construction of this devices which are not expressly
approved by the party responsible for compliance could void the user’s authority to
operate the equipment.
1. A regulated DC12V 1A power supply is recommended for use with this camera
for the best picture and the most stable operation.
An unregulated power supply can cause damage to the camera.
When unregulated power supply is applied, product warranty will be out of subject.
2. It is recommended that the camera is used with a monitor that has a CCTV
quality 75Ω video impedance level.
If yur monitor is switched to high impedance then please adjust accordingly.
3. Do not attempt to disassemble the camera to gain access to the internal components.
Refer servicing to your dealer.
4. Never face the camera towards the sun or any bright or reective light,
which may cause smear on the picture and possible damage to the Image Sensor.
5. Do not remove the serial sticker for the warranty service.
6. Do not expose the camera to rain or other types of liquid.
7. The apparatus must be connected to a mains socket-outlet with a protective earthing
connection.

1. CAUTIONS
5
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with
separate collection systems)
This marking shown on the product or its literature, indicate that it should not
be disposed with other household wastes at the end of its working life. To
prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate this from other types of wastes and recycle it
responsibly to promote the sustainable reuse of material resources.
This product should not be mixed with other commercial wastes purchased this
product, or their local government ofce, for details of where and how they can
take item for environmentally safe recycling.
Business users should contact their supplier and check the terms and
conditions of the purchase contract.
Household users should contact either the retailer where they for disposal.

2. IMPORTANT SAFETY INSTRUCTION
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including ampliers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug does not t into your
outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specied by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specied by
the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to
avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long
periods of time.
14) Refer all servicing to qualied service personnel. Servicing is required when
the apparatus has been damaged in any way, such as power-supply cord
or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
6

3. FEATURES
• High Resolution
SONY 1 / 3” 2.1M Progressive Color CMOS Image Sensor,
1080p(1920x1080)@30fps (Standard)
• Support various digital video output
1080p@30fps, 1080p@25fps, 720p@60fps, 720p@50fps
• Video Outputs
Primary HD-SDI (BNC)
Test/Setup TV Out (Test Point-adapter to BNC included) NTSC/PAL selectable
• OSD menu for setup and configuration
• Support RS485 Communucation Protocol for
Camera Configuration Remote Control
• Lens Control
DC Iris
• 8 Hyper LED and range to 40m ( 131 Feet )
• Provides True Day/Night Capability with Motorized IR Cut Filter
• Power Source
DC12V, DUAL(DC 12V / AC 24V)
• IP67 Weather Resistant
7

4. EQUIPMENT AND ACCESSORIES
HD CCTV
Digital Video Camera
SERVICE VIDEO OUTPUT
TEST CABLE
L WRENCH
OPERATION MANUAL
SCREW - 4ea
8

5. INSTALLATION
• CAMERA MOUNTING POSITION
9
360˚ PAN
90˚ TLIT
<Cable Concealed Thru Bracket>
90˚ TLIT
360˚ PAN

5. INSTALLATION

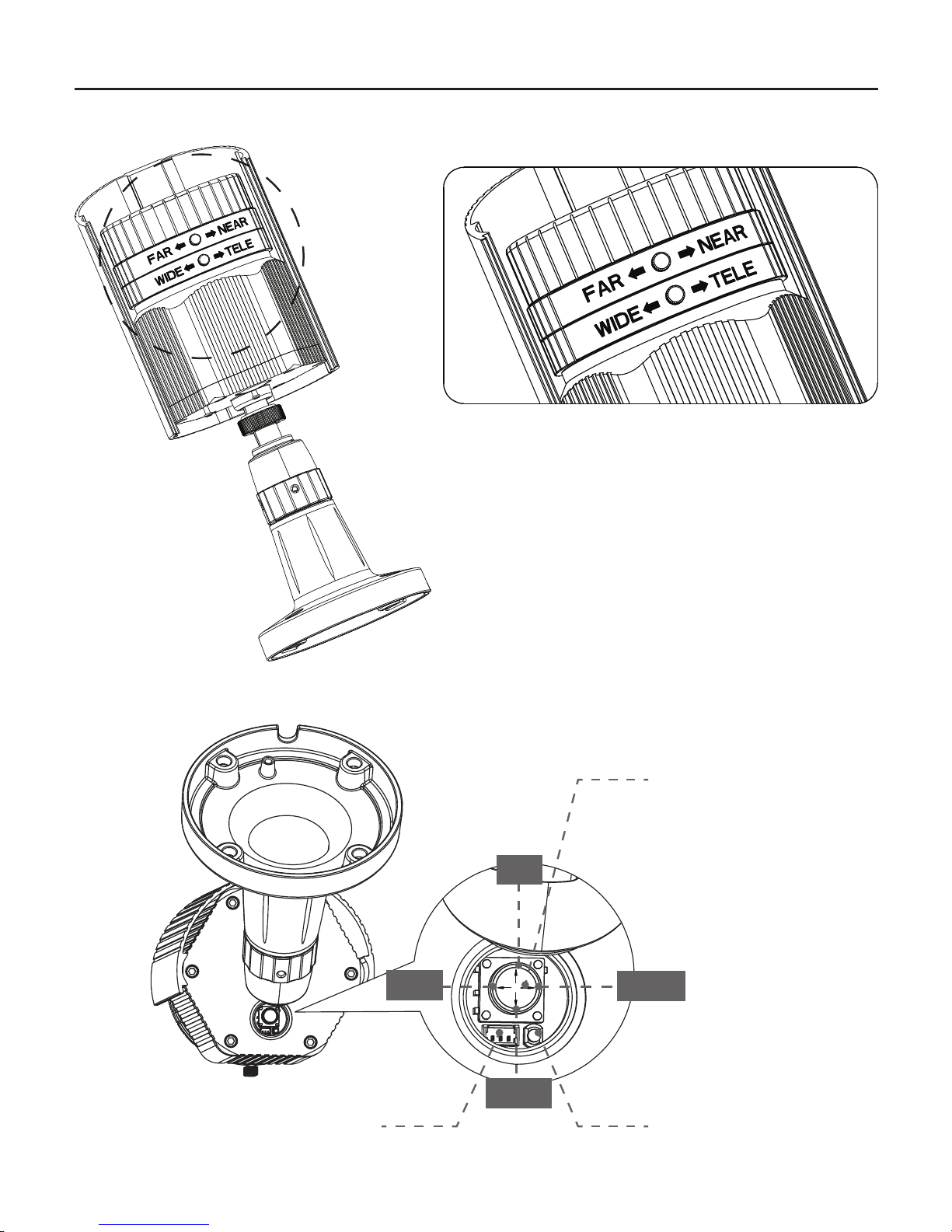

• External Zoom & Focus Adjustable
• Service Video Out & OSD Control
10
The workmanship to adjust zoom and focus,
opening the window cap might cause the
humidity problems to the camera. The External
Zoom and Focus system with out state-of-the-
art technology provides easy camera installation
without opening the window cap to adjust zoom
and focus the lens.
Left
Up
Right
Down
• Service video connector • Power LED
• OSD Control Joystick

5. INSTALLATION
• MONITOR CONNECTION
DC12V / AC24V
DC12V
11
HD SDI IN
HD SDI IN
SDI
RECEIVER
DISPLAY
DEVICE
SDI
RECEIVER
DISPLAY
DEVICE
RS485(+)
RS485(-)
RS485(+)
RS485(-)
DC12V / AC24V REGULATED
POWER SUPPLY
DC12V REGULATED
POWER SUPPLY
TEST CABLE
When you install the camera, please seal the ends of cables to protect
the camera connections from humidity problems.
HANDHELD
MONITOR
VIDEO IN
TEST CABLE HANDHELD
MONITOR
VIDEO IN

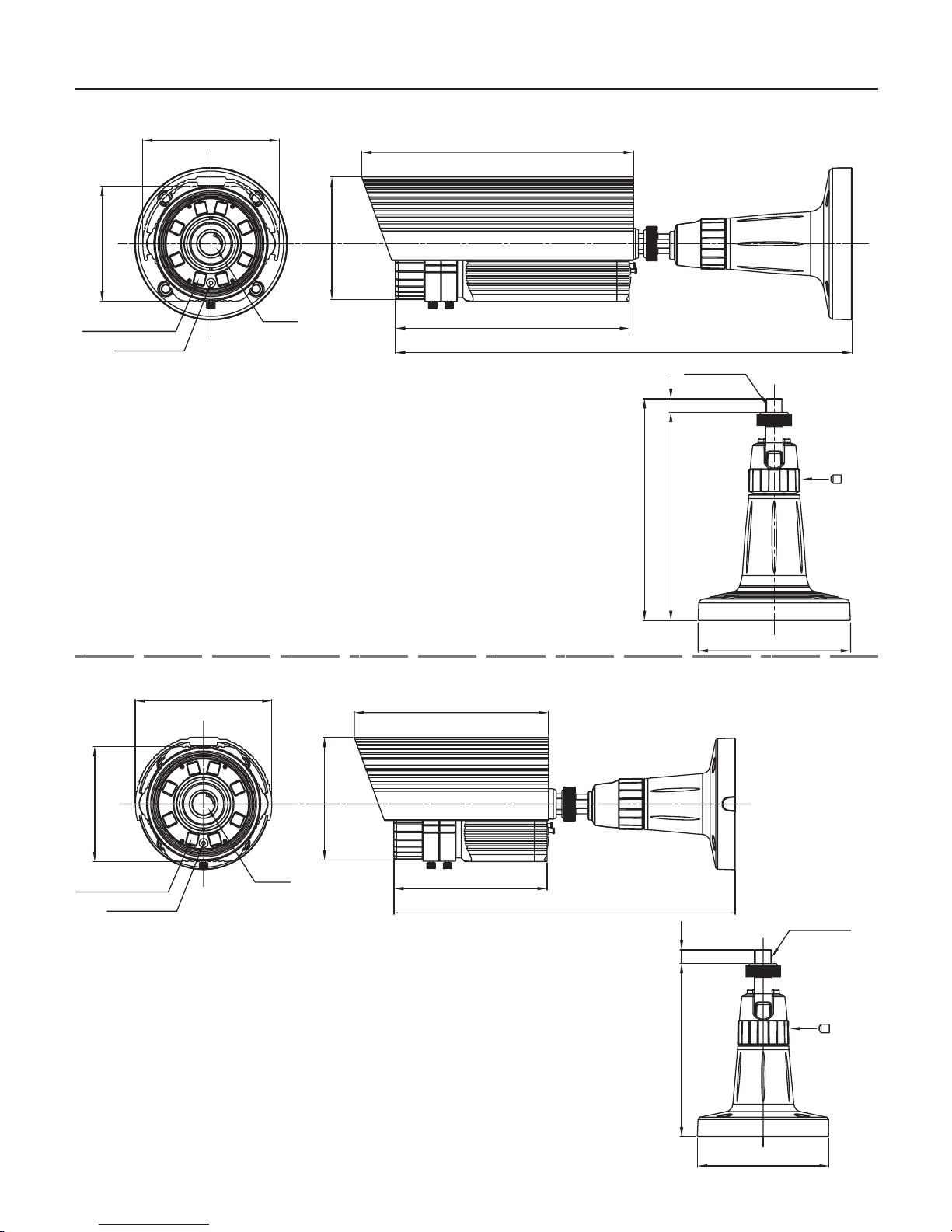

6. DIMENSIONS
DC12V / AC24V
DC12V
Unit(mm) 12
98.6
98.6
196
140
250
110.5
168.6 329
High power LED
High power LED
Photo cell
Photo cell
Lens
Lens
M15xP1.25
Ø110
Ø95
M15xP1.25
2ea
2ea
83
83
88.3
88.3
150
125 10
10
160

7. SPECIFICATION
Image Device 2.1 Mega Pixel, 1/3” Exmor CMOS
Effective Pixels 1984 (H) x 1105 (V)
Unit cell size 2.8um (H) x 2.8um (V)
Video output mode HD-SDI: 1080p@30fps, 1080p@25fps, 720p@60fps, 720p@50fps
TV Out: NTSC / PAL selectable
Minimum illumination 0 Lux ( IR LED ON )
Video output HD-SDI / 1.0 Vp-p Composite (75Ω)
IR LED 850 nm, Hyper LED (8 ea)
IR Beam Range Up to 40 m (131 feet)
S/N Ratio More than 50dB
Shutter speed Auto / Manual selectable
Manual Shutter
speed 1/30(25), 1/60(50), 1/120(100), 1/240, 1/500,
1/1K, 1/2K, 1/4K, 1/8K, 1/16K, 1/30K, 1/60K
WDR / BLC OFF / WDR / BLC / D-WDR
AGC Max. 29 dB
3DNR OFF / LOW / MIDDLE / HIGH
Day & Night True Day & Night with ICR Mechanism
White Balance AUTO / AUTOext / PUSH / MANUAL
Digital Zoom Ratio 1x ~ 20x
Digital Slow Shutter Off, x2 ~ x8
Privacy Masking Zone 24 ea, On / Off
Lens Control DC Iris Varifocal Lens ( ICR )
Angle View Wide: 92.9°(H) x 67.9°(V) / Tele: 31.7°(H) x 23.7°(V)
OSD Built-in
Power
Consumption
DC12V DC12V (±10%), Max. 700 mA
Dual DC12V (±10%), Max. 700 mA /
AC24V (±10%), Max. 8.5 W
Dimension
(mm) DC12V 99(W) x 83(H) x 111(D)
Dual 99(W) x 83(H) x 169(D)
IP Rating IP67 (Water Proof)
Weight Approx. 1.37 kg (DC12V) / Approx. 1.9 kg (Dual)
Conformity CE, FCC, KC
Operating Temperature 14°F~112°F (-10°C ~ 50°C)
Storage Temperature -4˚F~140˚F (-20˚C ~ 60°C)
Humidity Operating: Less than 80% / Storage: Less than 95%
Specications and designs are subject to change for improving
the functionality of this product without notice.
13

8. OSD MANUAL
• Menu structure
SETUP
EXPOSURE
WHITE BALANCE
WDR / BLC
DNR
SPECIAL
SYSTEN
RESET DATA ALL
EXIT
Main Sub Menu Sub Menu
EXPOSURE
BRIGHTNESS 0 ~ 20
AE MODE NORMAL AE / INDOOR
LENS(IRIS) MANUAL / AUTO
SHUTTER MANUAL /
AUTO LEVEL 1/30(25), 1/60(50), 1/120(100), 1/240, 1/500,
1/1K, 1/2K, 1/4K, 1/8K, 1/16K, 1/30K, 1/60K.
RETURN BACK / EXIT
DSS Off / X2 / X3 / X4 / X5 / X6 / X7 / X8
AGC 0 ~ 10
NIGHT
ANTI-SAT 0 ~ 20
BASE FREQ 60Hz / 50Hz
RESET DATA BACK / DEF.
RETURN BACK / EXIT.
WHITE
BALANCE
WB MODE AUTO
/AUTOext
/PUSH
/MANUAL
COLORTEMP. LOW / MIDDLE / HIGH
R-GAIN 0 ~ 20
B-GAIN 0 ~ 20
RETURN BACK / EXIT
SATURATION 0 ~ 20
RESET DATA BACK / DEF.
RETURN BACK / EXIT.
WDR / BLC
MODE OFF / WDR / BLC / D-WDR
WDR WGT 0 ~ 4
BLC OSD OFF ~ ON
BLC POS-X 0 ~ 20
BLC POS-Y 0 ~ 20
BLC SIZE-X 0 ~ 20
BLC SIZE-Y 0 ~ 20
RESET DATA BACK / DEF.
RETURN BACK / EXIT.
DNR OFF, LOW, MIDDLE, HIGH
14

8. OSD MANUAL
Main Sub Menu Sub Menu
SHARPNESS 0 ~ 20
GAMMA 0 ~ 4
FLIP OFF, H FLIP, V FLIP, HV FLIP
LENS SHADING OFF, ON
DZOOM 1x, 2x, 4x, 6x, 8x, 10x, 12x, 14x, 16x, 18x, 20x
RESET DATA BACK / DEF.
RETURN BACK / EXIT.
SPECIAL
PRIVACY OFF/ ON
ZONE NO. 0 ~ 23
ZONE OP. OFF/ ON
X-POS 0 ~ 60
Y-POS 0 ~ 40
X-SIZ 0 ~ 40
Y-SIZ 0 ~ 40
COLOR BLK, WHI, YEL, CYN, GRN,
MAG, RED, BLU
TRANS. 0 ~ 4
RESET DATA BACK / DEF.
RETURN BACK / EXIT.
HLMASK OFF/ ON
LEVEL 0 ~ 20
COLOR BLK, WHI, YEL, CYN, GRN,
MAG, RED, BLU
RESET DATA BACK / DEF.
RETURN BACK / EXIT.
PATTERN OFF / 0 / 1
DISPLAY INFO. CAMERA ID. OFF/ ON
RETURN BACK / EXIT.
RESET DATA BACK / DEF.
RETURN BACK / EXIT.
SYSTEM
COMM. ADJUST
CAMERA ID. 1 ~ 254
BAUDRATE 2400, 4800, 9600, 19200,
38400, 57600, 115200
APPLY & EXIT OK / ON
RETURN BACK / EXIT.
SDI FORMAT 1080P / 720P
SDI FPS 30(60) / 25(50)
CVBS FORMAT NTSC /
PAL
CVBS OUT AUTO / OFF / ON(WDR OFF)
CVBS VIEW CROP / FULL
RETURN BACK / EXIT.
APPLY OK / ON
SYSTEM INFO. S/W VERSION
SET VERSION
RETURN BACK / EXIT.
REBOOT
RETURN BACK / EXIT.
15

8. OSD MANUAL
• Function Description
0. SETUP
- EXPOSURE : Go sub menu for camera exposure control.
- WHITE ALANCE : Go sub menu for camera white balance control.
- WDR / BLC : Go sub menu for camera WDR or BLC action.
- DNR : Control noise reduction setting.
- IMAGE : Go sub menu for adjust image functions.
- SPECIAL : Go sub menu for special feature control.
- SYSTEM : Go sub menu for system control & information.
- Reset Data All : Reset camera’s all feature data to default value.
1. EXPOSURE
- BRIGHTNESS : Adjust image brightness value.
- AE MODE : Adjust AE control mode.
- LENS(IRIS) : Select lens iris control type.
- SHUTTER : Select shutter speed control type.
• LEVEL : Adjust shutter speed at manual shutter mode.
- DSS : Adjust digital slow shutter control level.
- AGC : Adjust max gain level for brightness control.
- NIGHT ANTI-SAT : Adjust Night Anti-Sat level for Saturation Level.
- BASE FREQ : Select basic control frequency for control camera feature.
2. WHITE BALANCE
- WB MODE : Select white balance control mode.
• AUTO : Full auto control mode in color temperature rage 2300K~10000K.
• AUTOext : Extended auto mode for special illumination.
• PUSH : Enable fix the control setting for specific environment.
Push & release, for fix WB control setting.
• MANUAL : Enable WB control setting by user’s intention.
◦COLOR TEMP. : Select color temperature range for WB control at manual mode.
◦ R-GAIN : Adjust red color gain for WB control at maual mode.
◦ B-GAIN : Adjust blue color gain for WB control at manual mode.
- SATURATION : Adjust color saturation level.
3. WDR/BLC
- MODE : Select WDR for BLC mode.
• WDR : Act in wdie dynamic rage mode. Controled video frame rate in 1/2.
This mode can be accessed when CVBS out setting, is "set to OFF" or
"set to AUTO(When is not connected the video cable)"
• BLC : Act in Backlight compensation mode.
• D-WDR : Digital wide dynamic range control.
16

17
8. OSD MANUAL
- WDR WGT : WDR weight control level settig at WDR mode.
- BLC OSD : Display BLC control zone in screen.
- BLC POS-X : Select BLC control zone vertical position.
- BLC POS-Y : Select BLC control zone horizontal position.
- BLC SIZ-X : Select BLC control zone vertical size.
- BLC SIZ-Y : Select BLC control zone horizontal size.
4. DNR: Reduce image’s noise
5. IMAGE
- SHARPNESS : Adjust image sharpness level.
- GAMMA : Gamma Curve Select.
- FLIP : Vertical & Horizontal flip setting.
- LENS SHADING : Enable lens shading compensation.
- DZOOM : Select digital zoom magnification.
6. SPECIAL
- PRIVACY : Setting for protect private area in image using mask setting.
• ZONE NO. : Select private mask zone number.
• ZONE OP. : Select zone mask display on/off.
• X-POS : Select zone horizontal position.
• Y-POS : Select zone vertical position.
• X-SIZ : Select zone horizontal size.
• Y-SIZ : Select zone vertical size.
• COLOR : Select mask color
• TRANS. : Select mask transparency level.
- HLMASK : Mask image high light area.
• LEVEL : Select high light level.
• COLOR : Select mask color.
- PATTERN : Color bar display Select.
- DISPLAY INFO. : Camera information OSD on/off.
• CAMERA ID. NUM.

18
8. OSD MANUAL
7. SYSTEM
- COMM. ADJUST : RS-485 Communication Setting mode.
• CAMERA ID. : RS-485 CAM ID Select.
• BAUDRATE : RS-485 Communication Speed Select.
• Apply & Exit : Apply all RS-485 Setting changed at once.
Use the Set button to apply.
- SDI FORMAT : 1080P / 720P
- SDI FPS : 30 or 25 fps in 1080p mode.
60 or 50 fps in 720p mode.
- CVBS FORMAT : NTSC / PAL
• CVBS OUT : Select mode for CVBS out action.
◦ON, OFF : Enable or Disable CVBS out data.
◦AUTO : Check automatically CVBS video cable connection.
If connected, CVBS out data is enable and WDR mode is
setted off automatically.
• CVBS VIEW : CVBS out video angle setting.
◦CROP : Cut the scene outside area for keep image aspect ratio.
◦FULL : Fill the full angle scene into image with H-V size & ratio
change.
- APPLY : Apply all video setting changed at once.
Use the Set button to apply.
- SYSTEM INFO.
• S/W VERSION : Camera’s basic software version.
• SET VERSION : Camera’s feature control setting version.
Table of contents
Other KT&C Security Camera manuals

KT&C
KT&C KNC-Xi130HD User manual

KT&C
KT&C KPC-D80 User manual

KT&C
KT&C Omni-ip User guide

KT&C
KT&C KPC-N700 User manual

KT&C
KT&C KPC-HDN300 User manual

KT&C
KT&C KPC-HDX222M User manual

KT&C
KT&C KPC-VNQ100 User manual

KT&C
KT&C KPC-VNW101NHV15 User manual

KT&C
KT&C HDX131M User manual

KT&C
KT&C KNC-SPDNi300 User manual

KT&C
KT&C KPC-N551NU10 User manual

KT&C
KT&C M141-HDX222-001 User manual

KT&C
KT&C 120-E230-001 User manual

KT&C
KT&C KPC-N751NUB User manual

KT&C
KT&C KNC-p3DR3IR User guide

KT&C
KT&C KPC-N571U User manual

KT&C
KT&C DR28V12IR User manual

KT&C
KT&C KPC-VNQ100 Installation manual

KT&C
KT&C AVN82V User manual

KT&C
KT&C KPC-HZA302M User manual
