KT&C KPC-HDN300 User manual

HD CCTV
Digital Video Camera
OPERATION MANUAL
Thank you for choosing our high quality camera.
Before attempting to connect operate this unit, please read and follow these
instructions.
M162-HDN300-001

These servicing instructions are for use by qualied service personnel only.
To reduce the risk of electric shock do not perform any servicing other than that
contained in the operating instructions unless you are qualied to do so.
Use Class 2 Power Supply Only
CAUTION
2
CONTENTS
1. CAUTIONS
2. IMPORTANT SAFETY INSTRUCTION
3. EQUIPMENT AND ACCESSORIES
4. INSTALLATION
5. DIMENSIONS
6. SPECIFICATION
7. OSD MANUAL

1. CAUTIONS
3
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions;
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference
that may cause undesired operation.
Note
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated
in a commercial environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.”
WARNING
This is a class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
Caution
Any changes or modications in construction of this devices which are not expressly
approved by the party responsible for compliance could void the user’s authority to
operate the equipment.
1. A regulated DC12V 1A power supply is recommended for use with this camera
for the best picture and the most stable operation.
An unregulated power supply can cause damage to the camera.
When unregulated power supply is applied, product warranty will be out of subject.
2. It is recommended that the camera is used with a monitor that has a CCTV
quality 75Ω video impedance level.
If yur monitor is switched to high impedance then please adjust accordingly.
3. Do not attempt to disassemble the camera to gain access to the internal components.
Refer servicing to your dealer.
4. Never face the camera towards the sun or any bright or reective light,
which may cause smear on the picture and possible damage to the Image Sensor.
5. Do not remove the serial sticker for the warranty service.
6. Do not expose the camera to rain or other types of liquid.
7. The apparatus must be connected to a mains socket-outlet with a protective earthing
connection.

1. CAUTIONS
4
Correct Disposal of This Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with
separate collection systems)
This marking shown on the product or its literature, indicate that it should not
be disposed with other household wastes at the end of its working life. To
prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate this from other types of wastes and recycle it
responsibly to promote the sustainable reuse of material resources.
This product should not be mixed with other commercial wastes purchased this
product, or their local government ofce, for details of where and how they can
take item for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions
of the purchase contract.
Household users should contact either the retailer where they for disposal.
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER(OR BACK).
NO USER. SERVICING TO QUALIFED SERVICE
PERSONNEL.
This symbol is intended to alert the user to the presence of uninsulated
"dangerous voltage" within the product's enclosure that may be of sufcient
mangnitude to constitute a risk of electric shock to persons.
This symbol is intended to alert the user to the presence of important operating
and maintenance(servicing) instruction in the literature accompanying the
appliance.

2. IMPORTANT SAFETY INSTRUCTION
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance
with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including ampliers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug does not t into your
outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments/accessories specied by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specied by
the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to
avoid injury from tip-over.
13) Unplug this apparatus during lightning storms or when unused for long
periods of time.
14) Refer all servicing to qualied service personnel. Servicing is required when
the apparatus has been damaged in any way, such as power-supply cord
or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not
operate normally, or has been dropped.
5

3. EQUIPMENT AND ACCESSORIES
Standard Type Cable Concealed Type
Camera
Sun shield
Screw /
L-Wrench /
Washer /
Coin Hole
Bolt
Tapping Screw
Ø4x16 (3ea)
Coin Hole Bolt
Washer
Tapping Screw
Ø4x20 (3ea)
L-Wrench
Coin Hole Bolt
Washer
Manual
CAUTION
• Service Video Output looks the angle of view narrower than HD-SDI Output.
6

4. INSTALLATION
• CAMERA MOUNTING POSITION
7
Cable Concealed
Thru Bracket(Option)
When using the cable concealed bracket, it is not
able to install on the ceiling.
Please assemble a coin
hole bolt as shown above.

4. INSTALLATION
• MONITOR CONNECTION
8
* Remote Control - Circuit Diagram (Option)
Function
SW1: Menu OSD Menu on / off, Selection.
SW2: Up OSD Menu up.
SW3: Down OSD Menu Down.
SW4: Left OSD Menu Left.
SW5: Right OSD Menu Right.
When you install the camera, please glue up the end of cable to
keep it stable in order to protect the camera from the humidity problems.
RCA Jack
(OSD Key Jack / White)
DC12V IN (Black)
BNC Female
(HD-SDI Jack) HD-SDI IN
Monitor
* Option: Remote Control
(OSD Key)
DC12V
Adapter
BNC Female
(2'nd Video / Yellow)
Max. 35M
RightLeftDownUpMenu
SW5SW4SW3SW2SW1

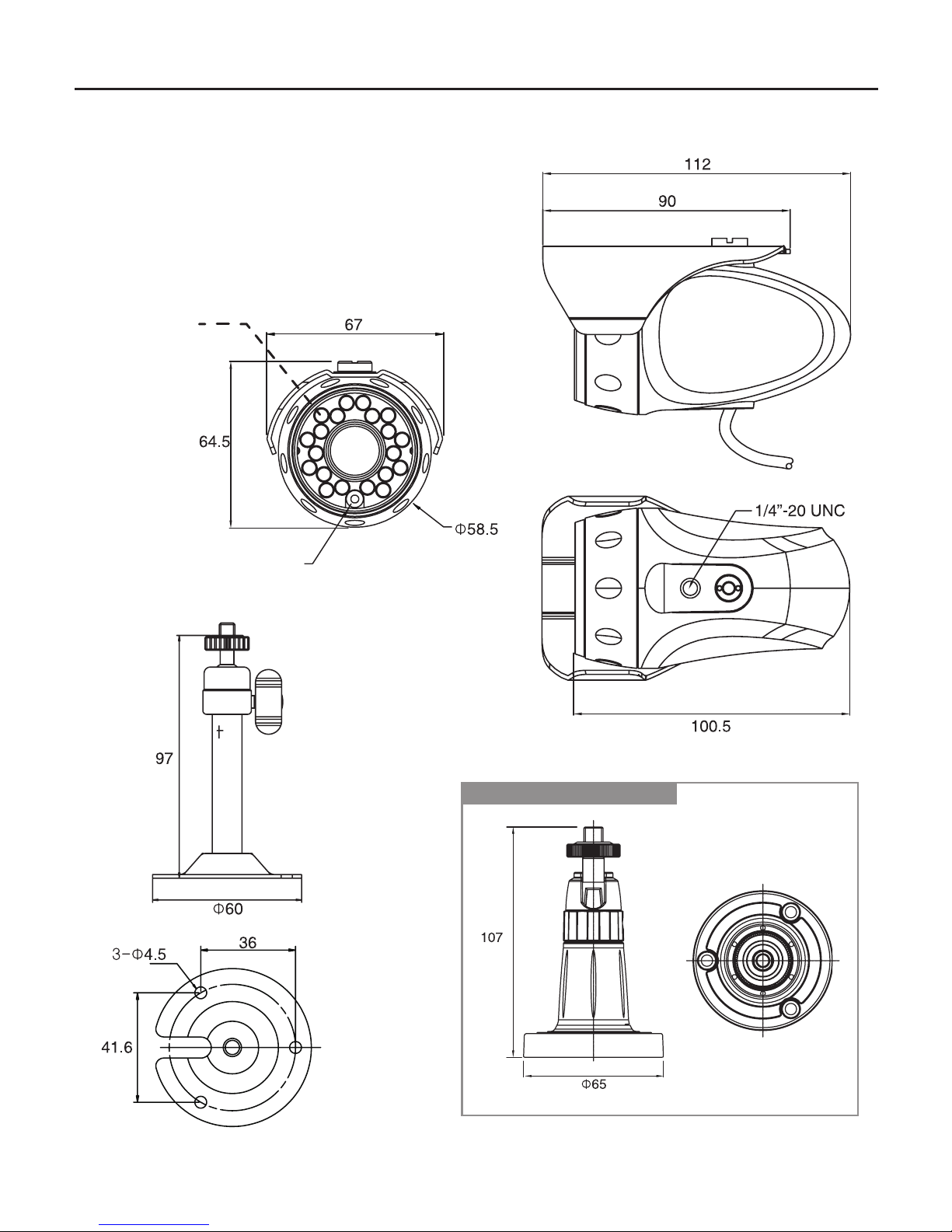

5. DIMENSIONS
Unit(mm)
9
Concealed Bracket
Option
Photocell
20LED

6. SPECIFICATION
Image Device 1/3” 2.1 Mega Pixel SONY CMOS
Effective Pixels 1984(H) x 1105(V)
Unit cell size 2.8um (H) x 2.8um (V)
Video output mode SDI: 1080P 30fps(25fps) / 720P 60fps(50fps)
TV Out: CVBS NTSC/PAL
Minimum
Illumination 0 Lux (IR-LED ON)
Shutter speed
Auto / Manual selectable
1/30(25),1/60(50),1/120(100),1/250,1/ 700,
1/1K,1/1.6K,1/2.5K,1/5K,1/7K,1/10K,1/30K
Day/Night True Day&Night with ICR Mechanism
(AUTO/Color/BW)
White Balance AUTO / PUSH LOCK / Manual / AUTO EXT
AGC 0 ~ 23dB
Lens Board Lens
OSD Built-in (AD-Key Remote Controller)
IR-LED 850nm, 20ea, 10m
IP Rating IP 67 (Water Proof)
Power
Consumption DC 12V(±10%), Less than 380mA (IR-LED on)
ETC Motion Detection, 3DNR, Mirror(H/V/HV)
DSS, BLC, Digital Zoom
Dimension 112mm(Ø) x 67mm (with sunshield)
Weight Approx. 360g
Temperature/
Humidity
Operation : -10~50 / 20~80%
Storage : -20~60 / 20~95%
Option Remote Controller (KA-05D)
Concealed Bracket
* Specifications and designs are subject to change for
improving the functio
10

7. OSD MANUAL
1. EXPOSURE
- BRIGHTNESS:
Enable user to control the image brightness
(1~20steps).
- SHUTTER MODE:
Enable user to set up the
Shutter Mode. -> AUTO, MANUAL
- SHUTTER SPEED:
Enable user to set up the Shutter Speed.
-> 1/30(25), 1/60(50), 1/120(100), 1/250, 1/700, 1/1K,
1/1.6K, 1/2.5K, 1/5K, 1/7K, 1/10K, 1/30K.
*() is for power-frequency 50Hz.
- DSS(Digital Slow Shutter): Enable user to set up the DSS Level. -> OFF, X2, X3, X4.
- AGC MAX: Enable user to make imager bright to amplify the Gain (0~23dB).
- INITIAL: Enable user to initialize the Exposure menu set up.
2. WHITE BALANCE
Enable user to represent the accurate white color by
controlling the R,G,B level.
- WB MODE
1. AUTO: Enable user to trace the White Balance
automatically in the range of 2,300K~10,000K.
2. PUSH LOCK: Enable user to fix the White
Balance according to the color temperature in
the certain environment.
3. MANUAL: Enable user to sets the White Balance
according to the circumstance.
4. AUTO EXT: Extended auto mode for special illumination.
- CHROMA: Enable user to set the Color Gain(0~20steps).
- KELVIN: In the MANUAL setting of WB MODE, enable user to set the color temperature range.
- RED GAIN: In the MANUAL setting of WB MODE, enable user to set the RED GAIN.
- BLUE GAIN: In the MANUAL setting of WB MODE, enable user to set the BLUE GAIN.
- PUSH AUTO: In the PUSH LOCK setting of WB MODE,
enable user to fix the White Balance in camera setting.
- INITIAL: Enable user to reset the WHITE BALANCE menu setting.
11
EXPOSURE
> BRIGHRNESS
SHUTTER MODE
SHUTTER SPEED
DSS
AGC MAX
INITIAL
RETURN
|
||||||
|
|||
|
10
AUTO
– – –
X2
18dB
WHITE BALANCE
> WB MODE
CHROMA
KELVIN
RED GAIN
BLUE GAIN
PUSH AUTO
INITIAL
RETURN
AUTO
|
||
|
|||||||
|
7
– – –
– – –
– – –
– – –

7. OSD MANUAL
3. BLC
- MODE:
Enable user to set BLC mode.
-> OFF, BLC
- BLC(Backlight compensation mode):
This function works for subjects in the
kind of backlight conditions.
- BLC ZONE:
Enable user to set up screen output of
chosen BLC zone.
- BLC X-POSITION:
Enable user to set up screen output of chosen BLC zone.
- BLC Y-POSITION: Enable user to set up Horizontal start position (0~20steps).
- BLC X-SIZE: Enable user to set up Vertical size (0~20steps).
- BLC Y-SIZE: Enable user to set up Horizontal size (0~20steps).
- INITIAL: Enable user to initialize the BLC setting.
4. DAY&NIGHT
Conversion of output image COLOR / BW
depending on exterior environment.
- D&N MODE
1. COLOR: Enable user to fit the output image in color.
2. B/W: Enable user to fit the output image in B/W.
3 AUTO: Enable user to convert
to COLOR/BW automatically by photocell
- DWELL TIME: In D&N MODE AUTO,
enable user to set to delay time for
changing COLOR/BW(0~10sec).
- DAY->NIGHT: Threshold of switching from Day to Night.
- NIGHT->DAY: Threshold of switching from Night to Day.
- IR OPTIMIZER: By the IR LED light, the screen is saturated, and
automatically adjust the brightness, so you can see the screen.
- IR OPT. LEVEL: Enable user to set up IR OPTIMIZER level (0~15 level)
- INITIAL: Enable user to initialize the setting in DAY&NIGHT menu.
12
BLC
> MODE
BLC ZONE
BLC X - POSITION
BLC Y - POSITION
BLC X - SIZE
BLC Y - SIZE
INITIAL
RETURN
BLC
OFF
|
||
|
|||||||
| 6
|
|
|
||||||||
| 4
|
|||||
|
||||
| 7
|
|||||||
|
||
| 10
DAY&NIGHT
> MODE
DWELL TIME
DAY -> NIGHT
NIGHT -> DAY
IR OPTIMIZER
IR OPT. LEVEL
INITIAL
RETURN
AUTO
3s
|
|||||
|
||||
|
1
|
|||||
|
||||
|
2
ON
|
|||||
|
||||
|
7

7. OSD MANUAL
5. IMAGE
- SHARPNESS: Enable user to control the image sharpness(0~10steps).
- FLIP: Sets the Vertical flip for the display output.
- DZOOM(Digital Zoom): Max. 20x Digital Zoom.
- HLMASK: This function that improves the visual recognition of license
plates and other such objects by suppressing or masking strong light sources.
1. HLMASK LEVEL: Enable user to set HLMASK Level(0~20steps).
2. HLMASK COLOR: Set the HLMASK color
(Black, White, Yellow, Cyan, Green, Magenta, Red, Blue).
- D-WDR: In this mode, the brightness of a single image is
compensated using the gamma curve.
- DNR: This function reduces noise.
- INITIAL: Enable user to initialize the setting on IMAGE menu.
13
(OFF) (H-FLIP)
> SHARPNESS
FLIP
DZOOM
HLMASK
D-WDR
DNR
INITIAL
RETURN
|
|||||
|
||||
|
8
OFF
1.0X
OFF
OFF
MIDDLE
(V-FLIP) (HV-FLIP)
(Outline of DNR function)

14
7. OSD MANUAL
6. SPECIAL
: Setting up the CAM TITLE, LANGUAGE,
PRIVACY, DISPLAY, SYSTEM.
- CAM TITLE : Enable user to choose any
word in screen. (Maximum 10 letter is available)
1. A letter Choice from the screen using Menu key.
2. Enable user to move to next menu using
LEFT, RIGHT KEY in LOCATION.
3. By using UP, DOWN, LEFT, RIGHT KEY,
enable user to choose any letters in LOCATION
and then get back to previous step.
4. Enable user to finish words choice and position
by using LEFT, RIGHT KEY in RETURN.
- LANGUAGE: Enable user to set up an OSD language.
-> ENGLISH, RUSSIAN, SPANISH, GERMAN, FRENCH, PORTUGUESE.
- PRIVACY: Privacy is the function that covers the some part on screen to
prevent private life. (Maximum 30 point covered)
1. ZONE NO: Enable user to set up a position
from 0 to 29 area.
2. MASK MODE: Enable user to set up screen
output of chosen position.
3. X-POSITION: Mask Horizontal start position.
4. Y-POSITION: Mask Vertical start position.
5. X-SIZE: Mask Horizontal width.
6. Y-SIZE: Mask Vertical height.
7. COLOR: Set the mask color.
8. TRANSPARENCY: Set the transparency of the mask.
9. INITIAL: Enable user to initialize setting of PRIVACY MENU.
CAM TITLE
0123456789ABCDEFGHIJKLMN
OPQRSTUVWXYZ!?*#$%()<>{}
SPACE>> <<BACK
TITLE SET
LOCATION [ ]
RETURN
SPECIAL
> CAM TITLE
LANGUAGE
PRIVACY
MOTION
DISPLAY
SYSTEM
INITIAL
RETURN
[ ]
ENGLISH
OFF
OFF
[ ]
[ ]
PRIVACY
> ZONE NO
MASK MODE
X-POSITION
Y-POSITION
X-SIZE
Y-SIZE
COLOR
TRANSPARENCY
INITIAL
RETURN
0
ON
12
2
3
3
CYN
0%
[ TITLE LOCATION]
TITLE SET
[U][D][L][R][M] +

15
7. OSD MANUAL
- MOTION: Motion detection function.
1. RESOLUTION: Enable user to set up resolution
2. SENSITIVITY: Enable user to set up sensitivity.
3. WINDOW USE: Enable user to select to motion area.
4. WINDOW TONE: Enable user to area window tone.
5. X-POSITION : Window Horizontal start position.
6. Y-POSITION : Window Vertical start position.
7. X-SIZE : Window Horizontal width.
8. Y-SIZE : Window Vertical height.
9. INITIAL : Enable user to initialize setting of
MOTION DETECT.
- DISPLAY : Enable user to set up a screen marking
CAM TITLE, MOTION, DZOOM.
1. CAM TITLE: Enable user to set up output in
fixed CAM TITLE.
2. MOTION: Enable user to set up out put of
MOTION on the screen as MOTION ON setting.
3. DZOOM: Enable user to set up output DZOOM ratio.
4. INITIAL: Enable user to initialize of DISPLAY menu.
- SYSTEM
1. DEFECT DET: White pixel detection and
compensation function.
2. DOUT FORMAT: Enable user to set up
digital output format (720p, 1080p).
3. DOUT FPS: Enable user to set up
digital output frame rate.
4.FREQ: Enable user to set up
power-frequency(50Hz, 60Hz).
5. CVBS: Enable user to set up CVBS type NTSC or PAL.
6. APPLY: Enable user to setting of SYSTEM.
7. FACTORY DEFAULT
: Enable user to reset all of the status as the factory default.
8. EXIT
: After saving the current settings in the OSD menu and exit.
HOT KEY
To quickly switch CVBS type(NTSC or PAL), Push LEFT KEY or RIGHT KEY more than
2secends and push SET KEY.
MOTION
> RESOLUTION
SENSITIVITY
WINDOW USE
WINDOW TONE
X-POSITION
Y-POSITION
X-SIZE
Y-SIZE
INITIAL
|
|
|
||||||||
| 1
|
|||||
|
||||
| 10
ON
1
11
3
39
28
SYSTEM
> DEFECT DET
DOUT FORMAT
DOUT FPS
FREQ
CVBS
APPLY
RETURN
[ 」]
1080P
30
60HZ
NTSC
[ ]
DISPLAY
> CAM TITLE
MOTION
DZOOM
INITIAL
RETURN
OFF
OFF
OFF
When setting of FREQ and DOUT FPS are incorrect, icker or unnatural images will be caused.
The System menu is not initialized even if factory default was operated.
