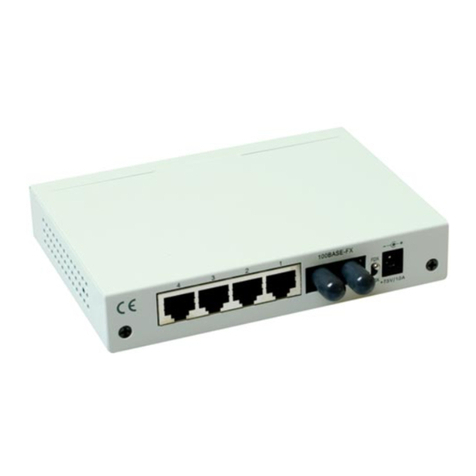

5/8-Port Fast Ethernet Switches
with 1 Fiber Connection
KS-105F, KS-108F
Specifications :
Key Features :
 Provide 4/7 10/100Mbps Fast Ethernet Switch ports and 1 100Base-FX port
 Each TP port supports auto-negotiation and auto-MDI/MDI-X detection
 For the 100Base-FX fiber port, the switch series supports variety of fiber connectors for different
application needs. The fiber connectors include ST, SC, MT-RJ, LC and VF-45 types for
multimode and single mode fiber cables
 Support duplex mode selector for the 100BASE-FX fiber port
 Self learning for active MAC addresses and address aging
 Store-and-forward switching to ensure only good packets are forwarded
 Forwarding and filtering at full wire speed
 Support IEEE 802.3x flow control for full-duplex mode and backpressure flow control for half-
duplex mode
 Comprehensive LED indicators provide quick, easy to read port and switch information
10/100 Ports IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX std.
Shielded RJ-45 jacks with Auto MDI-X detection
Auto-negotiation capable
Speed for 10Mbps or 100Mbps
Full-duplex or half-duplex mode support
100FX Port IEEE 802.3u 100BASE-FX compliant
Fixed 100Mbps operation
Duplex mode selector - full-duplex or half-duplex
Flow control IEEE 802.3x pause packet for full-duplex operation
Back-pressure for half-duplex operation
Cables 10Base-T : Cat. 3, 4, 5 or higher (100 meters max.)
100Base-TX : Cat. 5, 5e or higher (100 meters max.)
100Base-FX : multimode or single mode fiber cable
LEDs Power status
Per port : Speed, Link, Activity, Duplex, Collision status
Forwarding rate 14,880 pps for Ethernet (10M)
148,800 pps for Fast Ethernet (100M)
Filtering address Multicast/Broadcast/Unicast address
MAC Address Table 1K entries
Aging time KS-105F : 300 seconds
KS-108F : 240 seconds
080110

FCC Part 15'Class A
CISPR 22 Class A
Katron Technologies Inc.
15F-7, No. 79, Sec. 1, Hsin Tai Wu Rd.,
Hsi-chih, Taipei Hsien, Taiwan.
Te l : 886-2-2698-3878
Fax : [phone]
E-mail : [email protected]
URL : http : //www.ktinet.com.tw
KTI Networks Inc.
7400 Harwin Dr., Suite 120 Houston,
Texas 77036 U.S.A.
Te l : 713-266-3891
Fax : [phone]
E-mail : [email protected]
URL : http : //www.ktinet.com
Trademarks : All brand names are trademarks or registered
trademarks of their respective holders.
This information is subject to change without prior notice.
Environment Operating Temperature : 0
O
C ~ 40
O
C
Relative Humidity : 10% ~ 90% non-condensing
Dimensions KS-105F : 144 x 104.5 x 26 mm (WxDxH)
KS-108F : 180 x 114.5 x 26 mm (WxDxH)
DC IN Jack Rating +7.5V/1A, D6.3mm D2.0mm
DC IN voltage Operating +6.0V ~ +12.6VDC (Device DC Input)
Power Consumption KS-105F : 3.9 watts. (max.)
KS-108F : 6.3 watts. (max.)
Fiber Optical Specification :
Model Connector FiberCable Wavelength Tx Power Sensitivity Rx Max.
-T ST Duplex MMF 1310nm -19~ -14dBm -31dBm -14dBm
-C SC Duplex MMF 1310nm -19~ -14dBm -31dBm -14dBm
-JM MT-RJ MMF 1310nm -19~ -14dBm -31dBm -14dBm
-VM VF-45 MMF 1310nm -20~ -14dBm -31dBm -14dBm
-SA2 SC Duplex SMF 1310nm -15~ -8dBm -31dBm -7dBm
-SL2 SC Duplex SMF 1310nm -15~ -7dBm -32dBm -3dBm
-SL3 SC Duplex SMF 1310nm -15~ -8dBm -34dBm 0dBm
-SL4 SC Duplex SMF 1310nm -5~ 0dBm -34dBm -3dBm
-W3515 Bi-Di SC SMF TX 1310nm -14~ -8dBm -31dBm 0dBm
RX 1550nm
-W5315 Bi-Di SC SMF TX 1550nm -14~ -8dBm -31dBm 0dBm
RX 1310nm
MMF : Multimode fiber -62.5/125 µm, 50/125 µm
SMF : Single Mode fiber - 9 /125 µm
Ordering Information :
MM : Multimode Fiber
SM : Single Mode Fiber
Ref. Distance: Reference connection distance
MM
MM
Mode
Fiber Distance Ref.
2km
2km
KS-105F
KS-108F
-T
-C
Dual ST
Dual SC
Connector
MM
MM
SM
SM
SM
SM
2km
2km
20km
40km
20km
30km
-JM
-VM
-SL4
-SA2
-SL2
-SL3
MT-RJ
VF-45
Dual SC
Dual SC
Dual SC
Dual SC
SM
SM
15~20km
15~20km
-W3515
-W5315
Bi-Di SC
Bi-Di SC
