KUHN T10 User manual

AC0001GB C
Complementary instructions
Simple weighing system T10
Bedding and feeding
AC0001GB C - English - 04-2010

Dear Owner
Simple weighing system T10
Bedding and feeding
1
$Dear Owner
In buying a Kuhn machine you have chosen wisely. Into it have gone years of thought, research and
improvement. You will find, as have thousands of owners all over the world, that you have the best that
engineering skill and actual field testing can produce. You have purchased a dependable machine, but only
through proper care and operation can you expect to receive the performance and long service built into it.
This manual contains all the necessary information for you to receive full efficiency from your machine. The
performance you get from this machine is largely dependent on how well you read and understand this manual
and apply this knowledge. Please DO NOT ASSUME YOU KNOW HOW TO OPERATE AND MAINTAIN YOUR
MACHINE before reading this manual carefully. KEEP THIS MANUAL AVAILABLE FOR REFERENCE. Pass
it on to the next owner if you re-sell the machine.
Your KUHN dealer can offer a complete line of genuine KUHN service parts. These parts are manufactured and
carefully inspected in the same factory that builds the machine to assure high quality and accurate fitting of any
necessary replacements.
About improvements
We are continually striving to improve our products. It therefore reserves the right to make improvements or
changes when it becomes practical to do so, without incurring any obligations to make changes or additions to
the equipment sold previously.

Simple weighing system T10
2
Bedding and feeding
Contents
$Contents
Dear Owner.....................................................................................................................1
Contents..........................................................................................................................2
Identification of the machine.........................................................................................4
View of the terminal T10 ..................................................................................................................4
View of the module M10...................................................................................................................4
Manufacturers' marking...................................................................................................................5
Optional equipment..........................................................................................................................5
Safety...............................................................................................................................6
Description of symbols used in this document.............................................................................6
Safety instructions...........................................................................................................................7
Weighing system characteristics ...............................................................................10
Description and glossary...............................................................................................................10
Technical specifications................................................................................................................11
Description of the controls............................................................................................................12
Electrical connection .....................................................................................................................13
Operating conditions...................................................................................................16
All machines ...................................................................................................................................16
Machine with chassis.....................................................................................................................16
Machines without chassis.............................................................................................................17

Contents
Simple weighing system T10
Bedding and feeding
3
Functioning .................................................................................................................. 18
Power on.........................................................................................................................................18
Resetting to zero............................................................................................................................19
Net/Gross weighing mode.............................................................................................................19
Setting the weighing unit display speed......................................................................................20
Resolution.......................................................................................................................................21
Error messages..............................................................................................................................21
Optional equipment.....................................................................................................22
Remote display...............................................................................................................................22
Battery.............................................................................................................................................22
Maintenance and storage............................................................................................ 23
Limited warranty.......................................................................................................... 24

Simple weighing system T10
4
Bedding and feeding
Weighing system identification
$Weighing system identification
1. View of the terminal T10
2. View of the module M10

Weighing system identification
Simple weighing system T10
Bedding and feeding
5

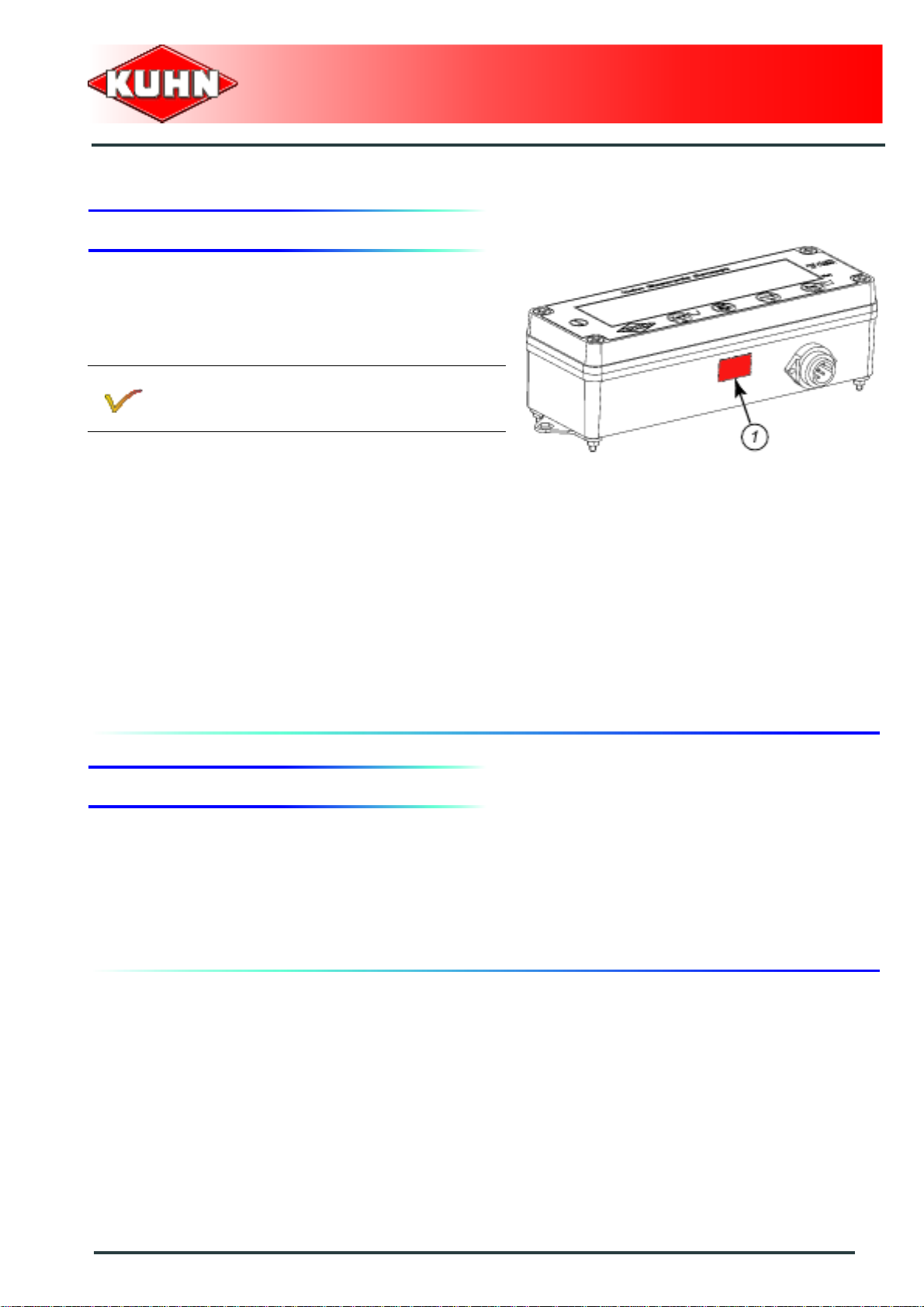

3. Manufacturers' marking
Please write below the type and serial number of the
machine. This information is to be indicated to the dealer
for all spare parts orders.
Type:
Serial no.:
KUHN reference:
4. Optional equipment
Tick box corresponding to the equipment fitted on your
machine:
The marking is on the card under the KUHN logo
(1) visible from the outside.
Remote display
Battery

Simple weighing system T10
6
Bedding and feeding
Safety
$Safety
1. Description of symbols used in this
document
This symbol indicates a potentially hazardous situation
that if not avoided, could result in serious bodily injury.
This symbol is used to identify special instructions or
procedures which, if not followed strictly, could result in
machinery damage.
This symbol is used to communicate technical
information of particular interest.

Safety
Simple weighing system T10
Bedding and feeding
7
2. Safety instructions
Read and follow the safety instructions
Before using the machine, carefully read all the safety
instructions in this manual and the warnings placed on
the machine.
Before starting work, the operator must be familiar with
all machine controls, handling devices and their
functions. It is too late to learn once work has been
started!
Never let anyone operate the machine who is not trained
to do so.
Should you have any difficulties in understanding certain
parts in this manual, please contact your KUHN dealer.
Precautions to be taken before carrying out
any operations on the machine
Before leaving the tractor or before adjusting,
maintaining or repairing the machine, disengage the
PTO drive, turn off the engine, remove ignition key and
wait until all moving parts have come to a complete stop
and apply park brake.
Introduction
The machine must only be operated, maintained and repaired by competent persons who are familiar with
machines' specifications and operation and aware of safety regulations for preventing accidents.
The operator must imperatively respect safety instructions in this manual and in the warnings posted on the
machine. The operatoris also obliged to respect current legislation concerning accident prevention, work safety
and public traffic circulation.
Designated use of the machine also means following operation, maintenance and repair recommendations
given by the manufacturer, and using only genuine spare parts, equipment and accessories, as recommended
by the manufacturer.
The manufacturer is not held liable for any damage resulting from machine applications other than those
specified by the manufacturer. Any use other than the designated operation is at the risk and responsibility of
the operator.
The manufacturer is not held liable for any damage or accident resulting from machine modifications carried out
by the operator himself or by a third party without previous written agreement from the manufacturer.

Simple weighing system T10
8
Bedding and feeding
Safety
Waste disposal
Respect the environment! Never spill pollutants (oil,
grease, filters, etc.) on the ground, never pour them
down the drain and never discard them in any other
place where they could pollute the environment. Never
throw away or burn a tyre. Always take waste to
specialized recycling or waste disposal centers.
Precautions for maintenance and repair
work
Before leaving the tractor or before adjusting,
maintaining or repairing the machine, disengage the
PTO drive, turn off the engine, remove ignition key and
wait until all moving parts have come to a complete stop
and apply park brake.
Rest the machine on the ground, release the pressure
from the hydraulic circuit and leave the machine to cool
down.
Make sure that the parts of the machine that need to be
lifted for maintenance or repair work are firmly propped
up.
Before any work is done on the electric circuit or before
any electric welding is carried out on the attached
machine, disconnect the machine from the tractor
electrical circuit. Also disconnect alternator and battery
terminals.
Repairs on elements under pressure or tension (springs,
pressure accumulators, etc.) must only be carried out by
competent persons with regulation equipment.
Wear the appropriate protective clothing for the work in
hand (gloves, shoes, goggles, helmet, ear defenders,
etc.).
Do not solder, weld or use a blow torch near fluids under
pressure or inflammable products.
For your own safety and for correct machine operation,
only use original manufacturer parts.

Safety
Simple weighing system T10
Bedding and feeding
9

Simple weighing system T10
10
Bedding and feeding
Weighing system characteristics
$Weighing system characteristics

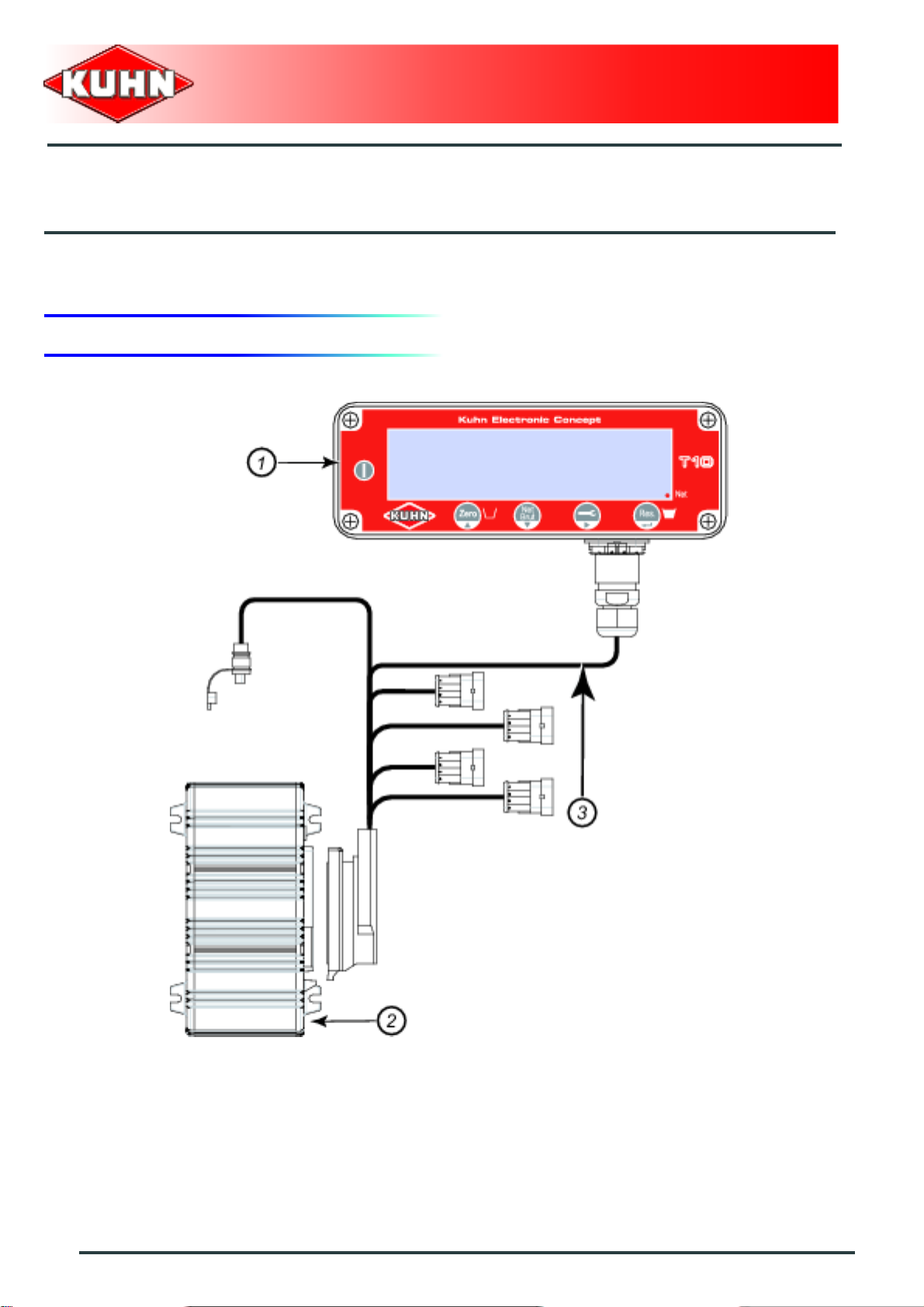

1. Description and glossary
0
1 : Terminal T10 2 : Module M10 / M11
3 : CAN wiring harness

Weighing system characteristics
Simple weighing system T10
Bedding and feeding
11
2. Technical specifications
Terminal T10
- Weight display
- Weighing system controls
• 5 displays, 7 multiplexed segments and decimal
point
• Voltage input: 12 V (10 V to 16 V)
• Operating temperature: - 20°C to + 60°C
• Sealed shockproof plastic box IP65 with transparent
cover
• Keyboard with 4 function buttons and 1 On/Off
button
Module M10 / M11
- Signal processing
- Recording information
• Voltage input: 12 V (10 V to 16 V)
• Sealed aluminium box IP 64
• 35-pin connector
CAN wiring harness
- Allows the connection between the modules T10 and
M10 / M11
• Connection to the battery
• Connection to 3, 4 or 6 sensors
• Connection to terminal T10
• Connection to module M10 / M11

Simple weighing system T10
12
Bedding and feeding
Weighing system characteristics
3. Description of the controls
1 key:
• On / Off
2 key:
• Setting to zero of the tare at the start (machine
empty)
• Incrementation of the figures
3 key:
• Net/Gross
• Decrementation of the figures
4 key:
• Access to the maintenance menu
• Scrolling of the cursor
• Setting the weighing unit display speed
5 key:
• Display of the weighing value at the start (machine
full)
• Display resolution
• Validation button
Indicator 6:
• NET weighing mode activated

Weighing system characteristics
Simple weighing system T10
Bedding and feeding
13
4. Electrical connection
- The weighing system is delivered with a full supply
wiring harness:

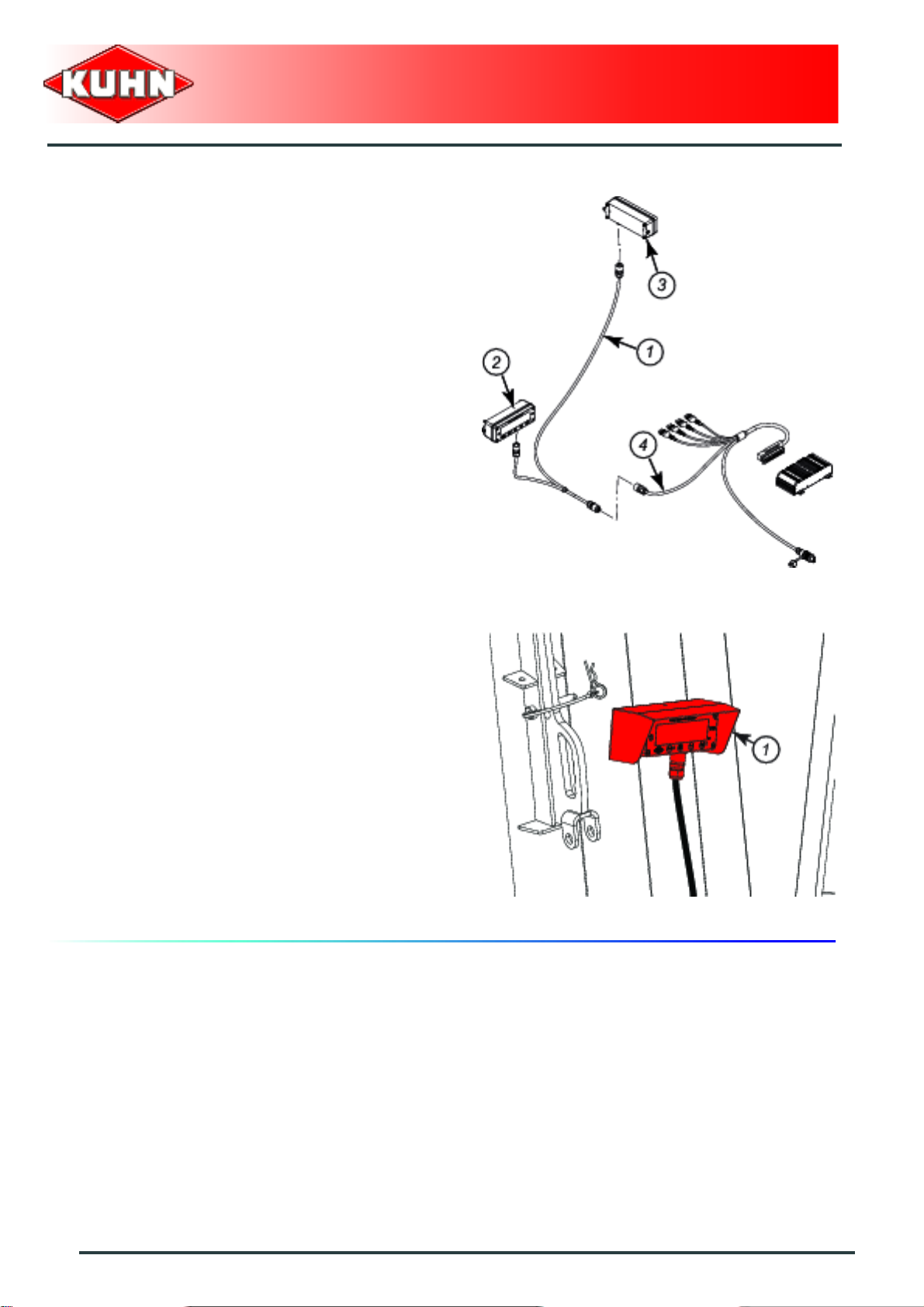

• A wiring harness (1) pre-assembled on the box with
a male connector.
• A wiring harness (5) tractor side with a fuse and
female connector.
- Have your Kuhn dealer connect the wiring harness
tractor side to the tractor battery terminals + (brown)
and - (blue).
- It is possible to have a second supply cable for
another tractor under the reference A7040064.
- For a regular and constant electricity supply for the
machines' controls, connect the electricity power
cable directly to the battery.
- During the assembly of the electricity supply cable,
avoid the riskof cutting or burns with the exhaust pipe.
- Connect the male plug (2) to the female socket (3) to
supply the control and weighing boxes.
- The wiring harness tractor side is equipped with a fuse
(6) of 15 A (ref. A7040915).
- The weighing box is now supplied.
- You can disconnect the supply to the box at any time,
without having to disassemble all the cable (5) which
stays permanently on the tractor.
Some tractors are factory equipped with a 3-
pin socket, to prevent any malfunction, check
the polarity of this socket before connecting
the control box.

Simple weighing system T10
14
Bedding and feeding
Weighing system characteristics
Connection diagram with display reminder
(Optional equipment)
- Connect cable Y (1) to terminals (2) and (3) and to the
harness (4).
- Place the display reminder (1) where you want it on
the machine.

Weighing system characteristics
Simple weighing system T10
Bedding and feeding
15
Wiring diagram with battery

Simple weighing system T10
16
Bedding and feeding
Operating conditions
$Operating conditions
1. All machines
When you start, before pressing zero, make sure that:
• The machine is in the horizontal position
• The machine is not exposed to violent winds
• The transmission slides effortlessly
• All the components of the machine (arm, hook,
board etc.) are in the rest position.
2. Machine with chassis
- Type of machines concerned:
• EUROMIX I, II and III
- To put the machine horizontal:
• Adjust the drawbar (See the instructions for the
machine)
• Make sure that the chassis is completely apart from
the body (product or foreign bodies).

Operating conditions
Simple weighing system T10
Bedding and feeding
17
3. Machines without chassis
- Type of machines concerned:
• ALTOR 4560, 6070, 7560
• ATHENOR 6070,7560
• PRIMOR 5570
•PROFILE
To put the machine horizontal:
- On the PRIMOR 5570 and PROFILE:
• Adjust the drawbar (See the instructions for the
machine)
- On the ALTOR 4560. 6070. 7560 and
ATHENOR 6070. 7560:
• A green indicator, situated next to the T10 indicator,
lights up when the axle is correctly positioned for
weighing.
In all cases: do not activate the brakes of the
machine.
Any static rubbing can distort the weighing.

Simple weighing system T10
18
Bedding and feeding
Functioning
$Functioning
1. Power on
- Start up the module T10 by pressing on the button (1).
• The message 'START' is displayed (Checking of the
communication M10/M11/T10).
• The message 'TEST' flashes (Sensor testing).
• The message '--0--' flashes.
First case: The machine is empty
- Press on the button (2).
- If there is more than 100 kg of product left in the
machine, the message 'SURE' is displayed.
- Press again on the button (2) to confirm.
Second case: The machine is already loaded
- Press on the button (5).
If you have confirmed by pressing on the
button (2) by mistake, the weighing system
indicates '0'. To find the contents of the
machine, carry out a resetting to zero (see the
following paragraph).
