KUHN Omnis Series User manual

GN007AGB C
OPERATOR'S MANUAL
Mounted field sprayers
OMNIS
GN007AGB C
- English - 06-2010

Dear Owner
Mounted field sprayers
OMNIS
1
$Dear Owner
In buying a Kuhn machine you have chosen wisely. Into it have gone years of thought, research and
improvement. You will find, as have thousands of owners all over the world, that you have the best that
engineering skill and actual field testing can produce. You have purchased a dependable machine, but only
through proper care and operation can you expect to receive the performance and long service built into it.
This manual contains all the necessary information for you to receive full efficiency from your machine. The
performance you get from this machine is largely dependent on how well you read and understand this manual
and apply this knowledge. Please DO NOT ASSUME YOU KNOW HOW TO OPERATE AND MAINTAIN YOUR
MACHINE before reading this manual carefully. KEEP THIS MANUAL AVAILABLE FOR REFERENCE. Pass
it on to the next owner if you re-sell the machine.
Your KUHN dealer can offer a complete line of genuine KUHN service parts. These parts are manufactured and
carefully inspected in the same factory that builds the machine to assure high quality and accurate fitting of any
necessary replacements.
About improvements
We are continually striving to improve our products. It therefore reserves the right to make improvements or
changes when it becomes practical to do so, without incurring any obligations to make changes or additions to
the equipment sold previously.
Designated use of the machine
The OMNIS sprayer must only be used for the work for which it has been designed:
- The spraying of liquid products used in the agricultural field on low cultivations.
Document illustrations
The illustrations in this manual are based on one machine model and in a given configuration.

Mounted field sprayers
2
OMNIS
Contents
$Contents
Dear Owner.....................................................................................................................1
Contents..........................................................................................................................2
Identification of the machine.........................................................................................5
Front view..........................................................................................................................................5
Rear view...........................................................................................................................................6
Model identification plate ................................................................................................................7
Optional equipment..........................................................................................................................8
Safety.............................................................................................................................10
Description of symbols used in this document...........................................................................10
Safety instructions.........................................................................................................................11
Location and description of safety decals on the machine .......................................................25
Road safety equipment and recommendations...........................................................................29
Machine specifications................................................................................................30
Description and glossary...............................................................................................................30
Technical specifications................................................................................................................33
Technical specifications per model..............................................................................................35
Water circuit....................................................................................................................................36
Booms .............................................................................................................................................38
Circulation.......................................................................................................................................39
Required equipment.......................................................................................................................43
Sound levels ...................................................................................................................................56

Contents
Mounted field sprayers
OMNIS
3
Putting into service .....................................................................................................57
Description of control elements ...................................................................................................57
Description of the section valves.................................................................................................60
Description of the box AE .............................................................................................................62
Description of the box DPS...........................................................................................................64
Description of the box RPB...........................................................................................................66
Description of the box RSB3/REB3..............................................................................................68
Description of the box CH10.........................................................................................................70
Description of the valves...............................................................................................................72
Coupling and uncoupling..............................................................................................................74
Instructions for transport............................................................................................ 91
Putting the machine into transport position................................................................................91
Conformity with the road regulations ..........................................................................................97
Instructions for work................................................................................................... 98
Putting the machine into work position.......................................................................................98
Adjustments in working position................................................................................................103
Groundspeed................................................................................................................................106
Machine use ............................................................................................................... 107
Steps (optional) ............................................................................................................................107
The tanks.......................................................................................................................................108
Incorporator (optional).................................................................................................................114
Spraying........................................................................................................................................119
Rinsing (optional).........................................................................................................................120
Outer discharge............................................................................................................................124
Emptying the tank........................................................................................................................125

Mounted field sprayers
4
OMNIS
Contents
Optional equipment....................................................................................................126
Spray offset on boom end...........................................................................................................126
Cleaning the machine on the outside.........................................................................................128
Second tractor equipment...........................................................................................................129
Pipe pressure gauge....................................................................................................................130
Filling hose....................................................................................................................................130
GPS speed sensor........................................................................................................................130
Tank gyrocleaner..........................................................................................................................131
Foam marker.................................................................................................................................137
Flashing light................................................................................................................................137
Control box DPI ............................................................................................................................138
Emptying valve on section end...................................................................................................139
Storage compartment ..................................................................................................................141
Quick coupler................................................................................................................................141
Automatic hitch (EASY HITCH)...................................................................................................142
Maintenance and storage..........................................................................................152
Frequency chart............................................................................................................................152
Lubrication....................................................................................................................................154
Maintenance..................................................................................................................................157
Storage..........................................................................................................................................165
Machine recycling ........................................................................................................................166
Trouble shooting guide..............................................................................................167
Description of fuses.....................................................................................................................171
Appendix.....................................................................................................................176

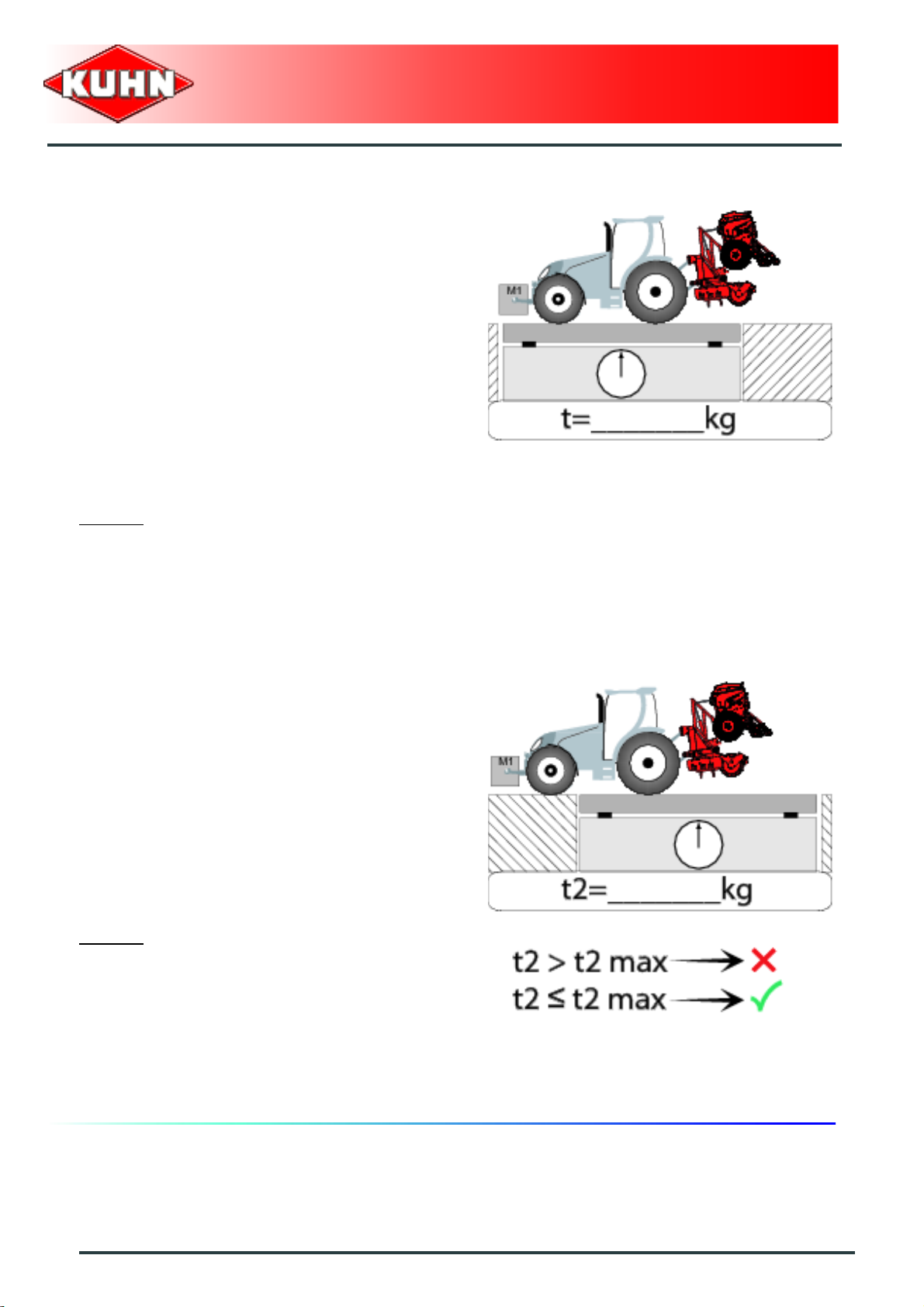

Calculating the load on an axle...................................................................................................176
Limited warranty.........................................................................................................181

Identification of the machine
Mounted field sprayers
OMNIS
5
$Identification of the machine
1. Front view

Mounted field sprayers
6
OMNIS
Identification of the machine
2. Rear view

Identification of the machine
Mounted field sprayers
OMNIS
7
3. Model identification plate
Please write below the type and serial number of the
machine. This information is to be indicated to the dealer
for all spare parts orders.
Type:
Serial no.:

Mounted field sprayers
8
OMNIS
Identification of the machine
4. Optional equipment
Tick box corresponding to the equipment fitted on your
machine:
All equipments listed below are not always
compatible between each other or with your
machine.
See machine corresponding to a specific
configuration.
Check with your authorized KUHN dealer the
equipment compatibility with your machine.
Spray offset on boom end
Kit no. 1356177: Manually controlled jet offset on boom end to the left
Kit no. 1356178: Manually controlled jet offset on boom end to the right
Kit no. 1356179: Manually controlled jet offset on double boom end
Kit no. 1356180: Electrically controlled jet offset on boom end to the left
Kit no. 1356181: Electrically controlled jet offset on boom end to the right
Kit no. 1356182: Electrically controlled jet offset on double boom end
Cleaning the machine on the outside
Kit no. 1356199: 15 m (49’2’’) Automatic reel and spray gun
Kit no. 1346319: 15 m (49’2’’) automatic reel and spot spray gun
Second tractor equipment
Kit no. 1346085: Control box attachment bracket
Kit no. 1346086: Speed sensor
Pipe pressure gauge
For models equipped with boom RHX:
Kit no. 1346293: Pipe pressure gauge
For models equipped with boom RVA:
Kit no. 1346294: Pipe pressure gauge
For models equipped with boom RPL / RJP2:
Kit no. 1346315: Pipe pressure gauge

Identification of the machine
Mounted field sprayers
OMNIS
9
Sundry
Kit no. 1346027: Filling hose
Kit no. 1346186: GPS speed sensor
Kit no. 1346089: Tank gyrocleaner
Kit no. 1346314: Foam marker
Kit no. 1346013: Flashing light
Kit no. 1346007: Control box DPI
Kit no. 1346244: Emptying valve on section end
Kit no. 1346318: Storage compartment
Kit no. 1346269: Quick coupler.
Kit no. 1346317: Automatic hitch (EASY HITCH)

Mounted field sprayers
10
OMNIS
Safety
$Safety

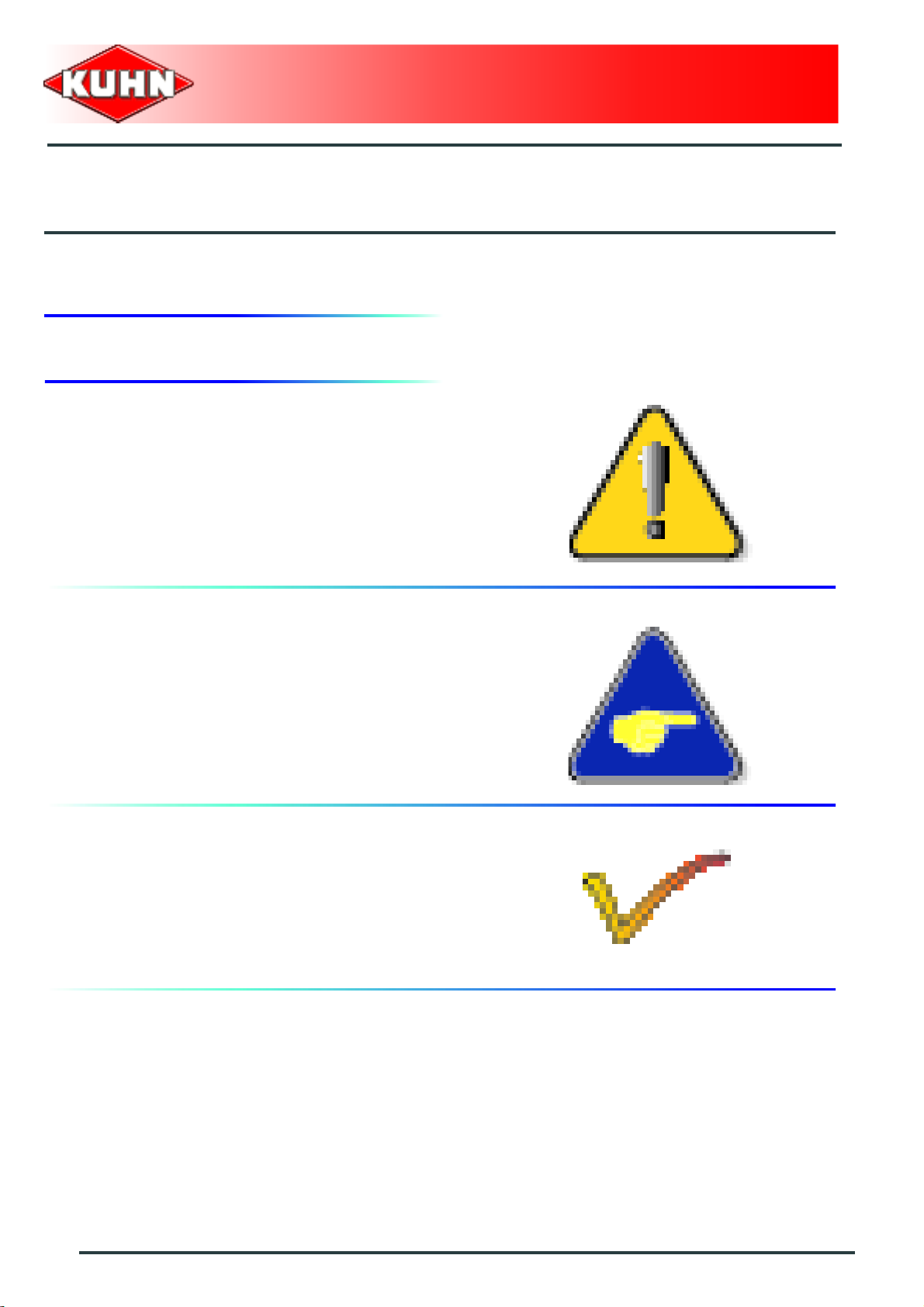

1. Description of symbols used in this
document
This symbol indicates a potentially hazardous situation
that if not avoided, could result in serious bodily injury.
This symbol is used to identify special instructions or
procedures which, if not followed strictly, could result in
machinery damage.
This symbol is used to communicate technical
information of particular interest.

Safety
Mounted field sprayers
OMNIS
11
2. Safety instructions
-

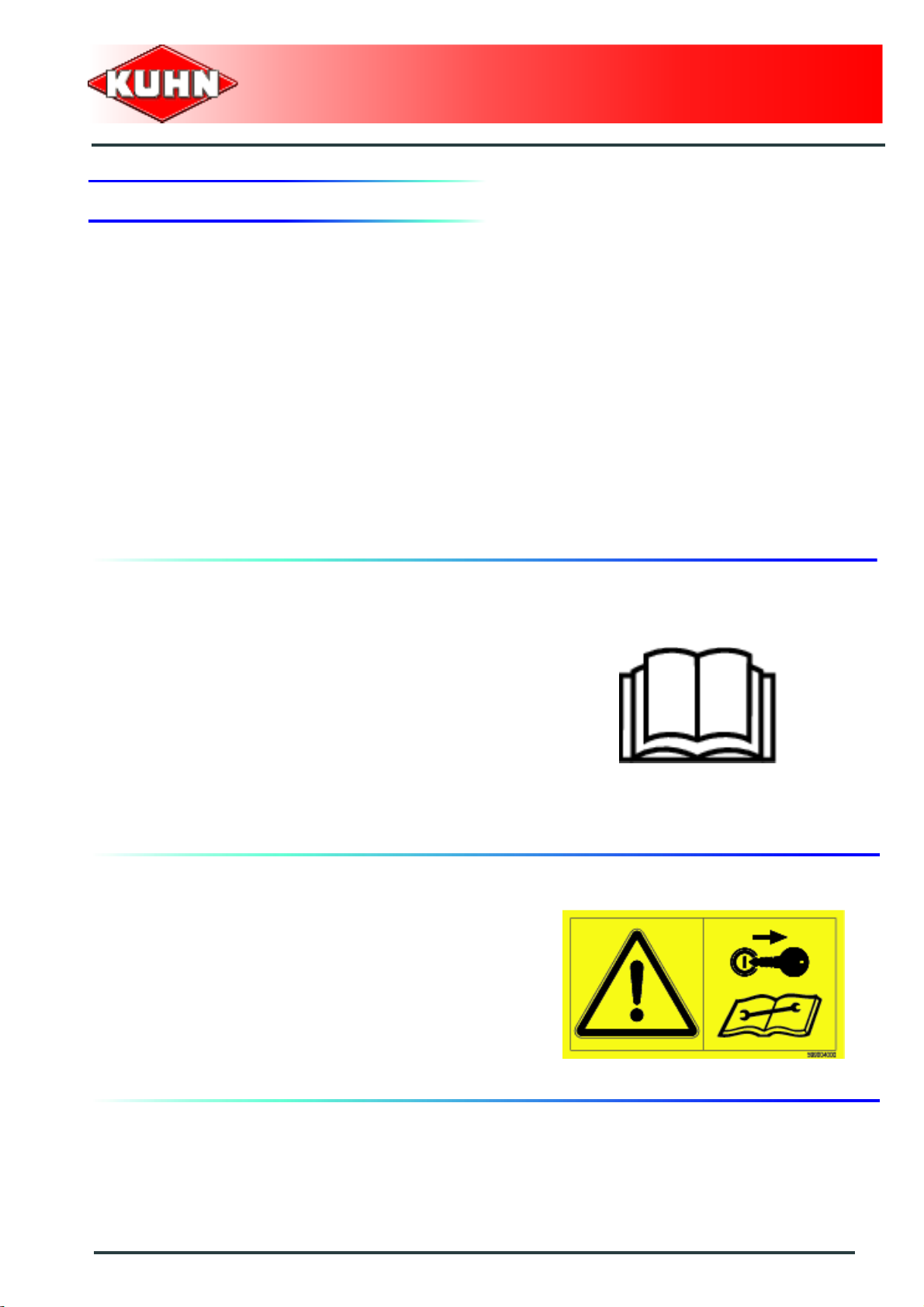

Read and follow the safety instructions
Before using the machine, carefully read all the safety
instructions in this manual and the warnings placed on
the machine.
Before starting work, the operator must be familiar with
all machine controls, handling devices and their
functions. It is too late to learn once work has been
started!
Never let anyone operate the machine who is not trained
to do so.
Should you have any difficulties in understanding certain
parts in this manual, please contact your KUHN dealer.
Precautions to be taken before carrying out
any operations on the machine
Before leaving the tractor or before adjusting,
maintaining or repairing the machine, disengage the
PTO drive, turn off the engine, remove ignition key and
wait until all moving parts have come to a complete stop
and apply park brake.
Introduction
The machine must only be operated, maintained and repaired by competent persons who are familiar with
machines' specifications and operation and aware of safety regulations for preventing accidents.
The operator must imperatively respect safety instructions in this manual and in the warnings posted on the
machine. The operatoris also obliged to respect current legislation concerning accident prevention, work safety
and public traffic circulation.
Designated use of the machine also means following operation, maintenance and repair recommendations
given by the manufacturer, and using only genuine spare parts, equipment and accessories, as recommended
by the manufacturer.
The manufacturer is not held liable for any damage resulting from machine applications other than those
specified by the manufacturer. Any use other than the designated operation is at the risk and responsibility of
the operator.
The manufacturer is not held liable for any damage or accident resulting from machine modifications carried out
by the operator himself or by a third party without previous written agreement from the manufacturer.

Mounted field sprayers
12
OMNIS
Safety
Precautions to take before using the
machine
Ensure that all operating controls (ropes, cables, rods,
etc) are placed so as they cannot be operated
unintentionally and cause damage or injury.
Prior to each machine use, check tightness of bolts and
nuts, in particular those securing the tools (booms,
wheels...). Retighten if necessary.
Before operating the machine, ensure that all the safety
guards are firmly in place and in good condition.
Immediately replace any worn or damaged guard.
Precautions when driving
Tractor handling, stability, performance and braking
efficiency are all affected by weight distribution, trailedor
mounted implements, additional ballast and driving
conditions. It is therefore of great importance that the
operator exercises caution in every given situation.
Groundspeed must be adapted to ground conditions as
well as to roads and paths. Always avoid abrupt changes
of direction.
Be particularly cautious when turning corners, paying
attention to machine overhang, length, height and
weight.
When the main tank is full, reduce travel speed to limit
rolling movement in the tank.

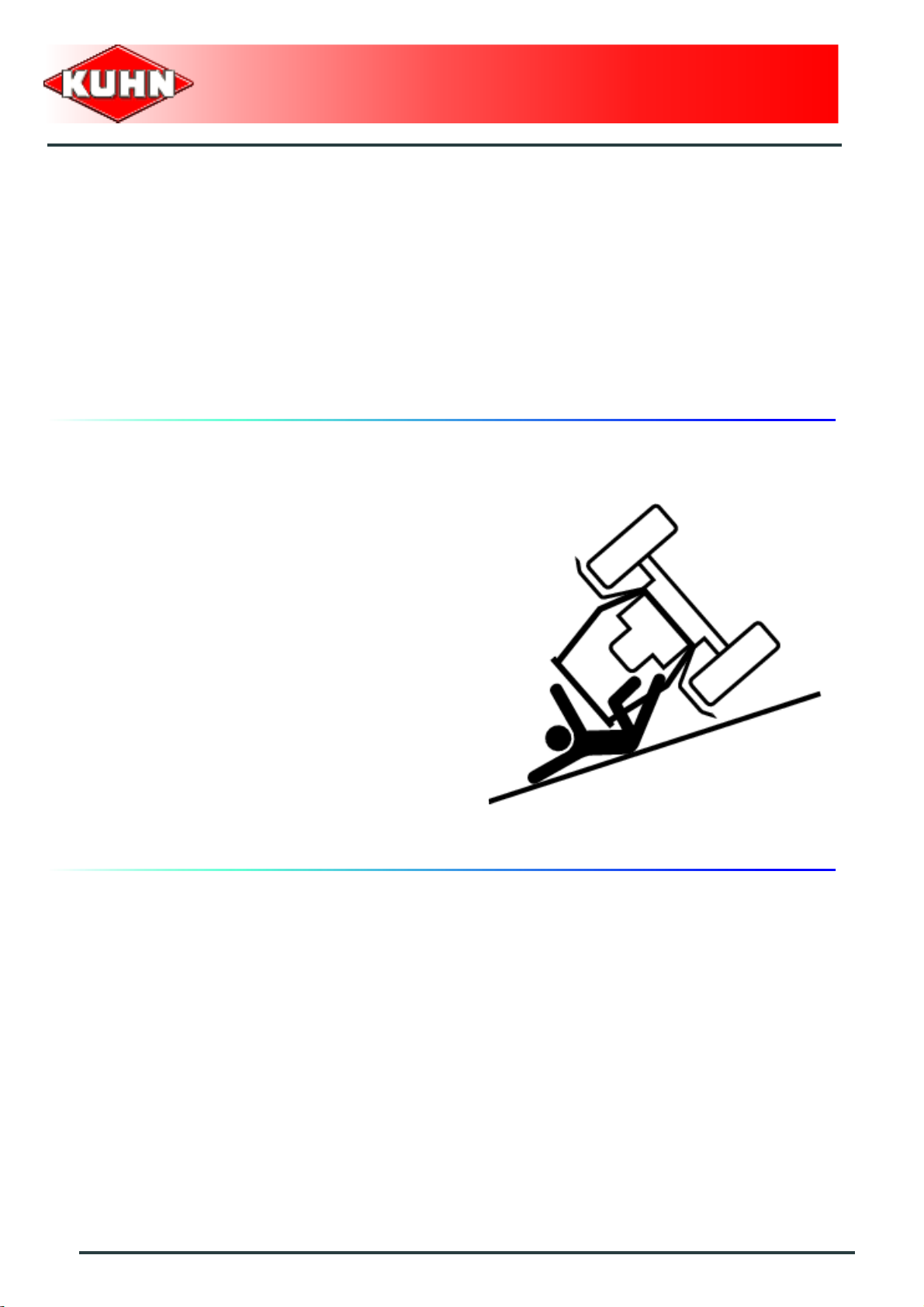

Never use a narrow track tractor on very uneven or
steeply sloping ground.
Never leave the tractor seat while the machine is
operating.
Carrying people or animals on the machine when
working or in transport is strictly forbidden.

Safety
Mounted field sprayers
OMNIS
13
Maximum speed
Always keep to the legal speed limit for driving a tractor-
machine assembly on public roads.
Precautions when driving on public roads
Dimensions
Depending on the dimensions of the machine, contact
the relevant authorities to ensure that it can be legally
transported on public roads.
If the machine is over the maximum legal size, follow the
local regulations for special transportation of oversize
equipment.
Transport position
Before transporting the machine on public roads, place
the machine into its transport position, according to the
instructions in this manual.

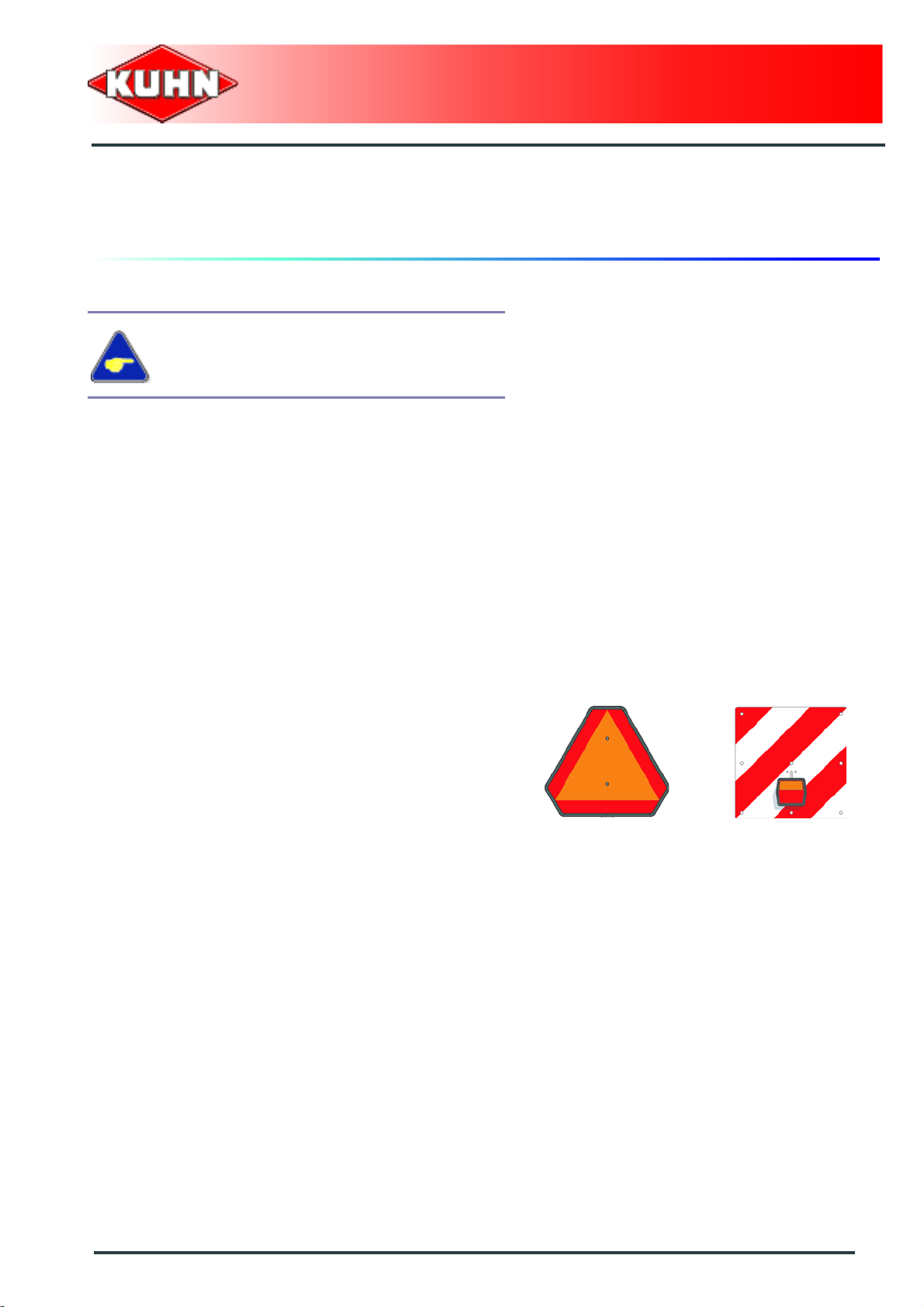

Lights and indicators.
Before transporting the machine on public roads, ensure
that all legally required lightings and signallings are in
place.
Ensure that lightings and signallings are clean and in
good working order. Replace any missing or broken
equipment.
Always obey current regulations for driving
on roads

Mounted field sprayers
14
OMNIS
Safety
Gross weight and weight per axle
Description of symbols
The drawings are not legally binding, their only aim is to illustrate the method to use.
Prior to driving on public roads, check that criteria are met to be in conformity with the countrie's
regulations:
- When coupling a tool to the front and rear 3-point lift linkage, the maximum authorized
payload must not be exceeded.
- When coupling tools to the front and rear 3-point lift linkages, the maximum load on each
axle's tires must not be exceeded.
- The load on the tractor front axle must always represent 20 % of the tractor unladen weight.
For machines with hoppers or tanks:
- If the total unit weight exceeds the tractor Gross Combined Weight Rating in accordance
with the countrie's legislation, empty the hopper to travel on public roads.
- In any case, we recommend to travel on public roads with empty hoppers and tanks.
Description Units Description
T kg Tractor unladen weight
PTAC kg Gross Combined Weight Rating
T1 kg Unladen load on tractor front axle
T2 kg Empty load on tractor rear axle
t kg Axle loads (Tractor + machine)
t1 kg Load on front axle (Tractor + machine)
t2 kg Load on rear axle (Tractor + machine)
t1 max kg Maximum load authorized on the tractor front axle according to the tires
t2 max kg Maximum load authorized on the tractor rear axle according to the tires
M1 kg Total weight of front tool or front ballast

Safety
Mounted field sprayers
OMNIS
15
Stage 1:
To measure:
- Tractor tare (T).
Stage 2:
- Couple the machine to the tractor.
To measure:
- Load on front axle (t1):
• Tractor + machine (transport position).
To do:
- If the front axle load (t1) is below 20% of the tractor
tare (T), add ballast weights (M1) to exceed the
minimum load on the front axle.
Example:
• (T) = 7500 Kg (16535 lb)
• The front axle load must be of minimum 1500 Kg
(3300 lb).(20% of T)
• (t1) = 700 Kg (1545 lb).
• 700 Kg (1545 lb) < 1500 Kg (3300 lb).
• Add ballast weights until the minimum front axle
load is exceeded.
• Repeat checking procedure.

Mounted field sprayers
16
OMNIS
Safety
Stage 3:
To measure:
- Total weight (t):
• Tractor + machine (transport position).
• Ballast weights.
Checking:
- To go to the next stage:
• Check in the tractor's operator's manual that the
value measured is below the tractor's Gross
Combined Weight Rating.
To do:
- If t < PTAC go to the next stage.
- If the total unit weight exceeds the tractor Gross
Combined Weight Rating in accordance with the
countrie's legislation, empty the hopper to travel on
public roads.
Example:
• (t) = 10000 Kg (24250 lb)
•PTAC = 13000 Kg .
• t < PTAC : Go to the next stage.
Stage 4:
To measure:
- Load on rear axle (t2):
• Tractor + machine (transport position).
• Ballast weights.
Checking:
- Check in the tractor's operator's manual that the value
measured is below the maximum allowed tractor rear
axle load.
- Check that tyre and rim specifiations are in conformity
with the requirements of the tractor manufacturer.
Example:
• Load on rear axle (t2) = 8500 Kg (18740 lb)
• Check in the tractor's operator's manual that the
value measured is below the maximum allowed
tractor rear axle load.
• Check that tyre and rim specifiations are in
conformity with the requirements of the tractor
manufacturer.

Safety
Mounted field sprayers
OMNIS
17
Precautions when coupling
Prior to coupling the machine, check that it can't move
unexpectedly (place wedges underneath the wheels or
lock handbrake) and that the parking stand is the the
adequate position.
Never stand between the tractor and the machine when
operating the three point linkage.
Do not stand between the tractor and the machine
without ensuring that the parking brake is applied.
Hydraulic circuit
Caution! The hydraulic circuit is under high pressure.
Maximum pressure at work: 200 bar.
Before connecting hoses to the tractor hydraulics,
ensure that tractor and machine circuits are not under
pressure. Before disconnecting a hose, depressurize the
hydraulic circuit.
To avoid making incorrect connections, mark hydraulic
couplers and corresponding hoses with colors.
WARNING! Functions could be reversed (for example:
lift/lower) and cause accidents.
Regularly check the hydraulic hoses. In case of normal
wear, replace the hydraulic hoses every 5 years.
Damaged or worn hoses must immediately be replaced.
When replacing the hydraulic hoses, only use hoses with
the specification recommended by the manufacturer of
the machine.
To locate a leak, use appropriate means. Protect body
and hands from liquid under pressure.
Any liquid under pressure (particularly oil from
hydraulics) can penetrate the skin and cause severe
injury. If injured, see a doctor immediately, there could
be danger of infection. Before any adjustments,
maintenance or repairs are carried out, lower the
machine to the ground, depressurize the hydraulics, turn
off the engine, remove ignition key and wait until all
moving parts have come to a complete stop.

Mounted field sprayers
18
OMNIS
Safety
PTO shaft
Use only PTO shafts supplied with the machine or
recommended by the manufacturer.
The protective shield of the tractor PTO stub, the PTO
shaft guards and the protective covering of the machine
input shaft must always be in place and in good
condition.
Make sure that the PTO shaft guards are secured with
the safety chains provided.
Any worn or damaged guards must be replaced
immediately. A worn guard or an unprotected PTO shaft
can cause a serious or even a lethal accident.
Do not wear loose clothing that could be caught in the
rotating PTO shaft.
Before attaching or removing a PTO shaft, or before
doing any work on the machine, disengage the PTO
drive, turn off the engine, remove ignition key and wait
for all moving parts have come to a complete stop.
If the primary PTO shaft is equipped with a slip clutch or
a free wheel, these must be fitted on the machine side.
Ensure that the PTO shaft is always correctly fitted and
locked into place.
Before connecting the PTO shaft, ensure that the PTO
speed (rotational frequency) and directions of rotation
are in line with manufacturer's recommendations.
Before engaging the PTO drive, make sure all people
and animals are clear from the machine. Never engage
the PTO drive when the tractor engine is stopped.
When uncoupling the machine, rest the PTO shaft on the
support specially provided, and replace protective cover
on the PTO stub of the tractor.
Read and follow the instructions in the operator's manual
provided with the PTO shaft.
