Part 1 - INSTALLATION INSTRUCTIONS
1 - GENERAL INFORMATION
This hood is designed for installation o er a cooking appliance fitted into a peninsular
or island kitchen cabinet. The hood can be fixed to the ceiling or to a wooden buttress
(fig. 2). The hood is supplied complete with a substantial ceiling fixing system which
is fully adjustable in height to suit most installation requirements. This canopy hood
is designed to be used either in the extraction mode (ducted to the outside) or in the
recirculation mode (internal recycling). Before co encing the installation,
consideration should be given to the difficulties to be found during installation
and to the bulky weight of the hood. The installation work ust be undertaken
by a qualified and co petent person in confor ity to the rules concerning the
evacuation of conta inated air. The anufacturer disclai s all liability for any
da age or injury caused as a result of not following the instructions for
installation contained in the following text.
2
ab
All manuals and user guides at all-guides.com

16
Part 1 - INSTALLATION INSTRUCTIONS

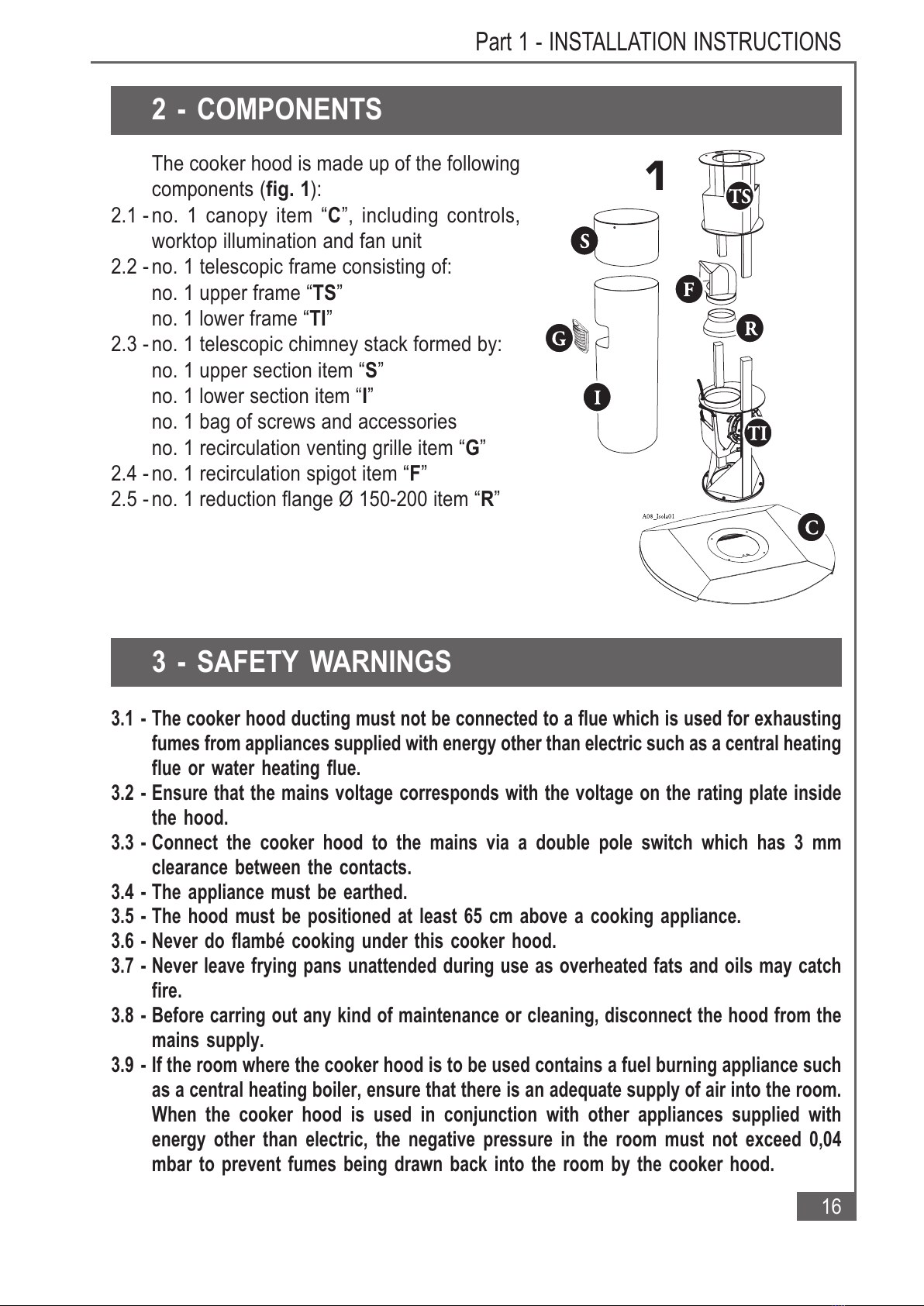

2 - COMPONENTS
The cooker hood is made up of the following
components (fig. 1):
2.1 - no. 1 canopy item “C”, including controls,
worktop illumination and fan unit
2.2 - no. 1 telescopic frame consisting of:
no. 1 upper frame “TS”
no. 1 lower frame “TI”
2.3 - no. 1 telescopic chimney stack formed by:
no. 1 upper section item “S”
no. 1 lower section item “I”
no. 1 bag of screws and accessories
no. 1 recirculation enting grille item “G”
2.4 - no. 1 recirculation spigot item “F”
2.5 - no. 1 reduction flange Ø 150-200 item “R”
3 - SAFETY WARNINGS
3.1 - The cooker hood ducting ust not be connected to a flue which is used for exhausting
fu es fro appliances supplied with energy other than electric such as a central heating
flue or water heating flue.
3.2 - Ensure that the ains voltage corresponds with the voltage on the rating plate inside
the hood.
3.3 - Connect the cooker hood to the ains via a double pole switch which has 3
clearance between the contacts.
3.4 - The appliance ust be earthed.
3.5 - The hood ust be positioned at least 65 c above a cooking appliance.
3.6 - Never do fla bé cooking under this cooker hood.
3.7 - Never leave frying pans unattended during use as overheated fats and oils ay catch
fire.
3.8 - Before carring out any kind of aintenance or cleaning, disconnect the hood fro the
ains supply.
3.9 - If the roo where the cooker hood is to be used contains a fuel burning appliance such
as a central heating boiler, ensure that there is an adequate supply of air into the roo .
When the cooker hood is used in conjunction with other appliances supplied with
energy other than electric, the negative pressure in the roo ust not exceed 0,04
bar to prevent fu es being drawn back into the roo by the cooker hood.
1
All manuals and user guides at all-guides.com

17
Part 1 - INSTALLATION INSTRUCTIONS

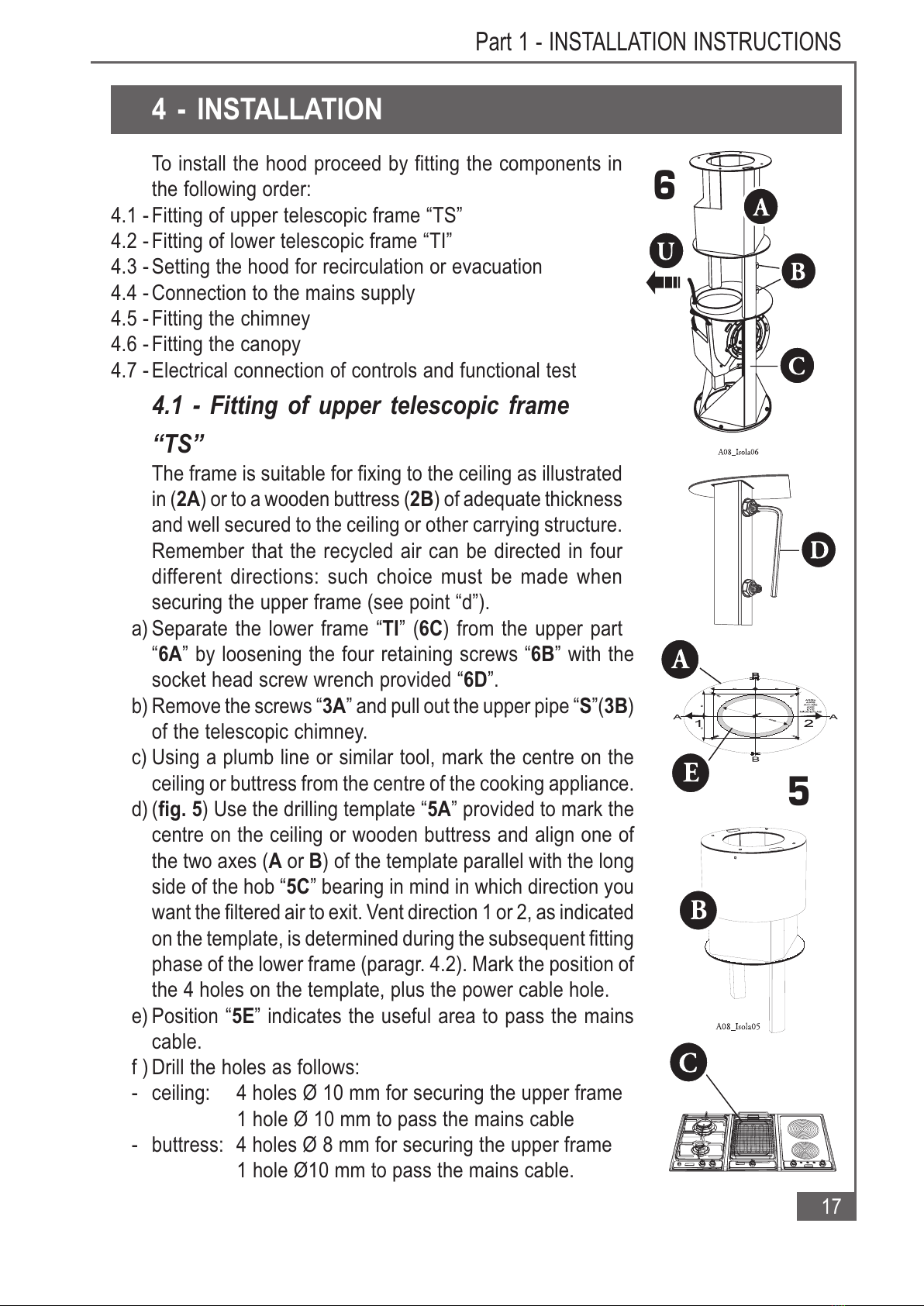

4 - INSTALLATION
To install the hood proceed by fitting the components in
the following order:
4.1 - Fitting of upper telescopic frame “TS”
4.2 - Fitting of lower telescopic frame “TI”
4.3 - Setting the hood for recirculation or e acuation
4.4 - Connection to the mains supply
4.5 - Fitting the chimney
4.6 - Fitting the canopy
4.7 - Electrical connection of controls and functional test
4.1 - Fitting of upper telescopic frame
“TS”
The frame is suitable for fixing to the ceiling as illustrated
in (2A) or to a wooden buttress (2B) of adequate thickness
and well secured to the ceiling or other carrying structure.
Remember that the recycled air can be directed in four
different directions: such choice must be made when
securing the upper frame (see point “d”).
a) Separate the lower frame “TI” (6C) from the upper part
“6A” by loosening the four retaining screws “6B” with the
socket head screw wrench pro ided “6D”.
b) Remo e the screws “3A” and pull out the upper pipe “S”(3B)
of the telescopic chimney.
c) Using a plumb line or similar tool, mark the centre on the
ceiling or buttress from the centre of the cooking appliance.
d) (fig. 5) Use the drilling template “5A” pro ided to mark the
centre on the ceiling or wooden buttress and align one of
the two axes (A or B) of the template parallel with the long
side of the hob “5C” bearing in mind in which direction you
want the filtered air to exit. Vent direction 1 or 2, as indicated
on the template, is determined during the subsequent fitting
phase of the lower frame (paragr. 4.2). Mark the position of
the 4 holes on the template, plus the power cable hole.
e) Position “5E” indicates the useful area to pass the mains
cable.
f ) Drill the holes as follows:
- ceiling: 4 holes Ø 10 mm for securing the upper frame
1 hole Ø 10 mm to pass the mains cable
- buttress: 4 holes Ø 8 mm for securing the upper frame
1 hole Ø10 mm to pass the mains cable.
5
6
All manuals and user guides at all-guides.com

18
Part 1 - INSTALLATION INSTRUCTIONS
g) For extraction mode with ceiling ent only
Use the template pro ided to mark the ø 125 mm hole on the
ceiling for ducting when the range hood is to be installed in the
extraction mode.
h) Fitting the hood to the ceiling
Attention: Due to the many differing types of ceiling construction,
the choice of fixings is left to the discretion of the installer. It is
necessary to emphasise that the fitting has to be absolutely
accurate because of the weight of the cooker hood and bacause of the flexing caused
by accidental lateral stresses on the appliance. Only the following types of ceiling
are suitable for installing the island cooker hood:
1- Solid concrete ceiling: use dowels for concrete (not supplied).
2- Solid wooden buttress ceiling: use Ø 10 mm wood screws with a minimum length
of 120 mm (not supplied).
3- Cavity ceiling with inner e pty space, having a thickness of about 20 : use,
in this case, the four dowels and screws supplied. Once fixed, make sure that the
basis is absolutely stable e en when the metal frame is subjected to lateral stresses.
4 - If the ceiling is not strong enough in the area where the hood is to be fixed, the
installer must strengthen the area adequately so that it can withstand the weight of
the hood.
i) When fitting the hood to a wooden buttress: secure the frame to the base of the
buttress using the four M6 x 80 mm nuts and bolts pro ided.
4.2 - Fitting the lower telescopic frame “TI”
a) Turn the lower telescopic frame “TI” (6C) according to the
chosen direction of filtered air ent: “6U” or rotating the
frame “6C” in the opposite direction.
b) Connect the lower frame “TI” (6C) to the upper frame “TS”
(6A) and secure by tightening the 4 screws “6B” using
the socket head screw wrench pro ided “6D”, adjusting
the height from the hob and bearing in mind that the
canopy item to be fitted subsequently is 7 cm high. In any
e ent, in this position, the lower part of the frame must
not be positioned at less than 72 cm from the underlying
hob.
6
3
All manuals and user guides at all-guides.com

19
Part 1 - INSTALLATION INSTRUCTIONS
4.3 - Setting the hood for evacuation or recirculation
1 - Setting for evacuation:
a) Apply the reducing spigot “7B” to the
upper part of the extraction unit “7D”.
b) Connect spigot “7B” to the external
ducting by means of rigid or flexible duct
“7G” (not pro ided) to be fixed using
clamps “7F” pro ided.
c) Remo e any charcoal filter in the lower
part of the canopy (see paragr. 3.2 - part
two).
2 - Setting for recirculation:
a) Apply the reducing spigot “7B” to the
upper part of the extraction unit “7D”.
b) Fit the recycling spigot “7A” to the
reducing spigot “7B”, directing it in the
position chosen for air e acuation.
c) Fit the charcoal filter inside the canopy
(see paragr. 3.2 - part two) after power
connections ha e been done (paragr.
4.7).
4.4 - Electrical connection
a) Always carefully follow all instructions in paragr. 3 concerning safety.
b) Connection to mains supply must be done by passing the power cable through the
centre hole of the frame.
c) Connect the mains cable to the mains supply.
4.5 - Fitting the chimney
a) Insert the upper pipe “S” (4B) of the telescopic chimney and
secure with the two screws “3A”.
b) Insert the lower pipe “I” (4C) of the telescopic chimney,
positioning it so that opening “4D”, in the e ent of e acuation
fitting, is aligned with the recircualtion spigot “7A”. Note: Do
not fit the small directional grille “G”. This operation must be
done after installation of the canopy “C”. Support pipe “4C”
with one hand to allow subsequent fitting of the canopy item.
7
A08_Isola04
A
B
C
D
G
4
All manuals and user guides at all-guides.com
all-guides.com

20
Part 1 - INSTALLATION INSTRUCTIONS
4.6 - Fitting the canopy
a) Remo e the three grease filters “8D” by
applying pressure to the handles “8E”.
b) If fitted, remo e the charcoal filter “8C”.
c) Position the canopy item “8A” in line with
the holes of lower frame “TI” and secure
with 4 screws “8B”. Note: No further
operation must be carried out without
ha ing tightened the 4 screws “8C”.
During this operation, until at least one
screw “8C” has been tightened, slightly
support the canopy item to a oid
accidental mo ement.
d) Fit the directional grille “4E” in slot “4D”.
4.7 - Electrical connections
a) Remo e co er “9B” by remo ing the two
screws “9A”.
b) Remo e connector “9D” and connect it to “9E” from the
motor assembly.
c) Refit the co er “9B” paying attention that the connector cable
is correctly positioned in slot “9C”.
d) Once all the connections ha e been done, check correct
operation of:
- LIGHTS
- MOTOR START
- SPEED CHANGE
A08_Isola04
A
B
C
D
G
4
8
D
E
BA
AA08_Isola09
B
C
9
All manuals and user guides at all-guides.com

21

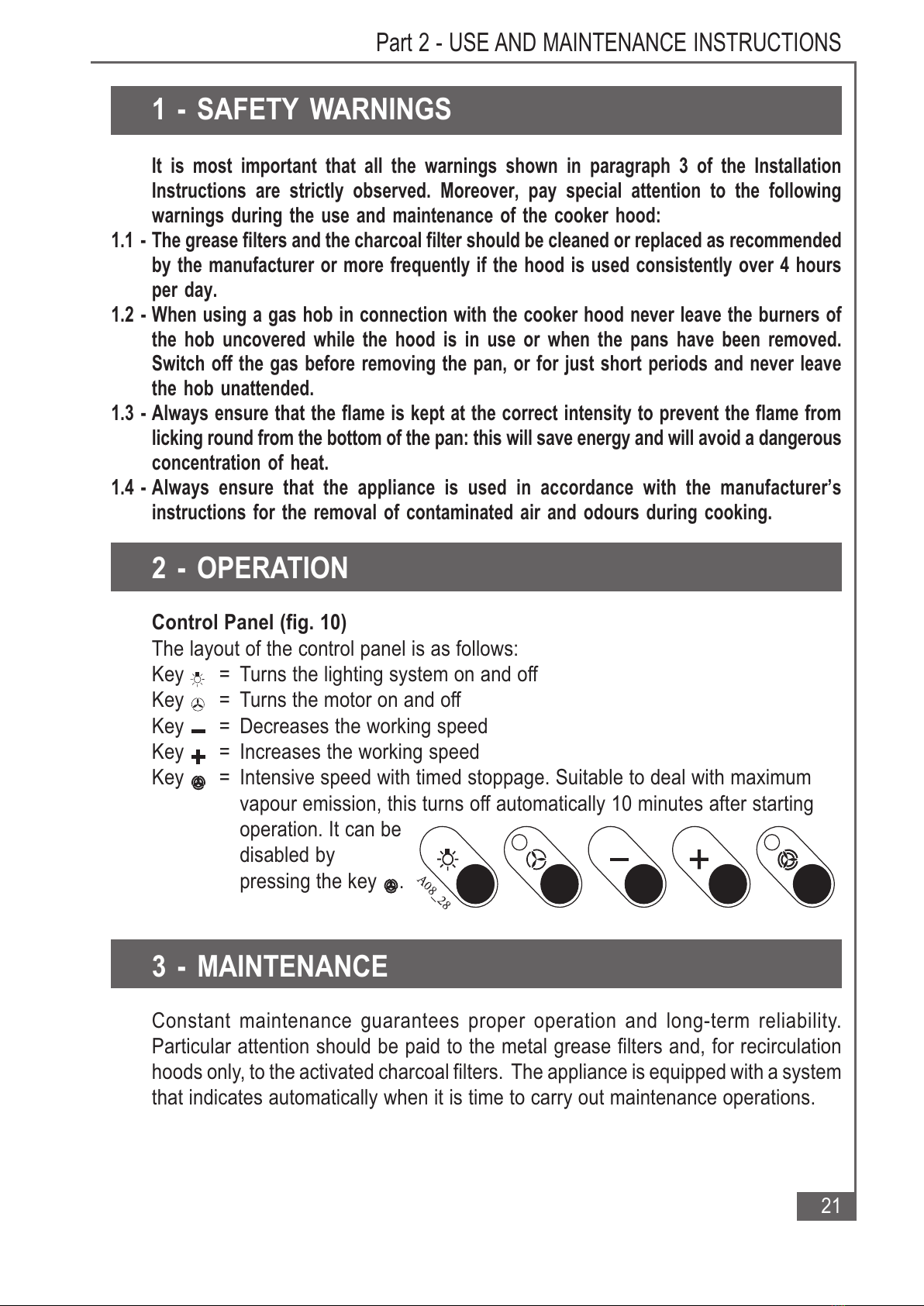

Part 2 - USE AND MAINTENANCE INSTRUCTIONS
1 - SAFETY WARNINGS
It is ost i portant that all the warnings shown in paragraph 3 of the Installation
Instructions are strictly observed. Moreover, pay special attention to the following
warnings during the use and aintenance of the cooker hood:
1.1 - The grease filters and the charcoal filter should be cleaned or replaced as reco ended
by the anufacturer or ore frequently if the hood is used consistently over 4 hours
per day.
1.2 - When using a gas hob in connection with the cooker hood never leave the burners of
the hob uncovered while the hood is in use or when the pans have been re oved.
Switch off the gas before re oving the pan, or for just short periods and never leave
the hob unattended.
1.3 - Always ensure that the fla e is kept at the correct intensity to prevent the fla e fro
licking round fro the botto of the pan: this will save energy and will avoid a dangerous
concentration of heat.
1.4 - Always ensure that the appliance is used in accordance with the anufacturer’s
instructions for the re oval of conta inated air and odours during cooking.
2 - OPERATION
Control Panel (fig. 10)
The layout of the control panel is as follows:
Key = Turns the lighting system on and off
Key = Turns the motor on and off
Key = Decreases the working speed
Key = Increases the working speed
Key = Intensi e speed with timed stoppage. Suitable to deal with maximum
apour emission, this turns off automatically 10 minutes after starting
operation. It can be
disabled by
pressing the key .
3 - MAINTENANCE
Constant maintenance guarantees proper operation and long-term reliability.
Particular attention should be paid to the metal grease filters and, for recirculation
hoods only, to the acti ated charcoal filters. The appliance is equipped with a system
that indicates automatically when it is time to carry out maintenance operations.
All manuals and user guides at all-guides.com

22

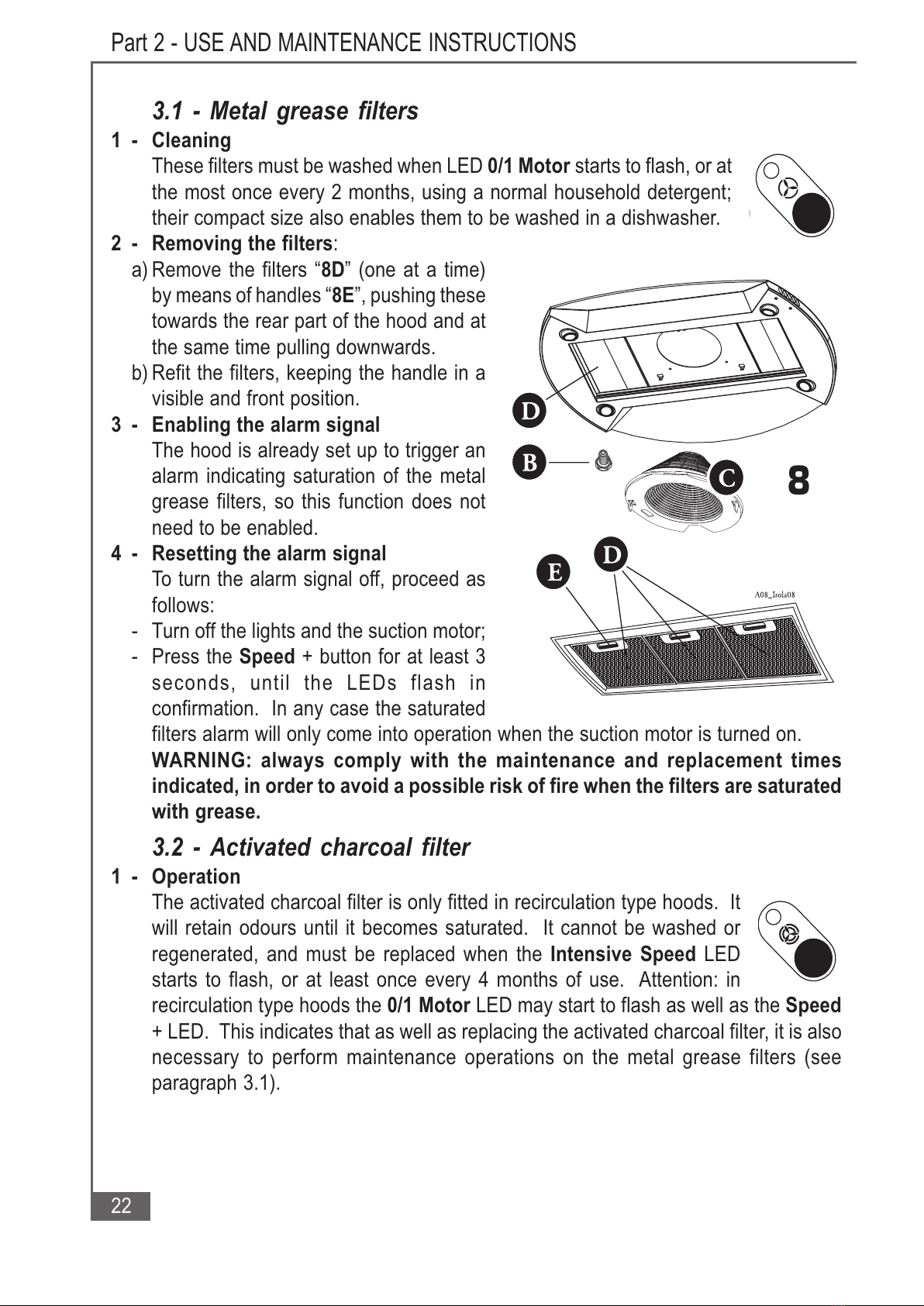

Part 2 - USE AND MAINTENANCE INSTRUCTIONS
3.1 - Metal grease filters
1 - Cleaning
These filters must be washed when LED 0/1 Motor starts to flash, or at
the most once e ery 2 months, using a normal household detergent;
their compact size also enables them to be washed in a dishwasher.
2 - Re oving the filters:
a) Remo e the filters “8D” (one at a time)
by means of handles “8E”, pushing these
towards the rear part of the hood and at
the same time pulling downwards.
b) Refit the filters, keeping the handle in a
isible and front position.
3 - Enabling the alar signal
The hood is already set up to trigger an
alarm indicating saturation of the metal
grease filters, so this function does not
need to be enabled.
4 - Resetting the alar signal
To turn the alarm signal off, proceed as
follows:
- Turn off the lights and the suction motor;
- Press the Speed + button for at least 3
seconds, until the LEDs flash in
confirmation. In any case the saturated
filters alarm will only come into operation when the suction motor is turned on.
WARNING: always co ply with the aintenance and replace ent ti es
indicated, in order to avoid a possible risk of fire when the filters are saturated
with grease.
3.2 - Activated charcoal filter
1 - Operation
The acti ated charcoal filter is only fitted in recirculation type hoods. It
will retain odours until it becomes saturated. It cannot be washed or
regenerated, and must be replaced when the Intensive Speed LED
starts to flash, or at least once e ery 4 months of use. Attention: in
recirculation type hoods the 0/1 Motor LED may start to flash as well as the Speed
+ LED. This indicates that as well as replacing the acti ated charcoal filter, it is also
necessary to perform maintenance operations on the metal grease filters (see
paragraph 3.1).
8
All manuals and user guides at all-guides.com

23

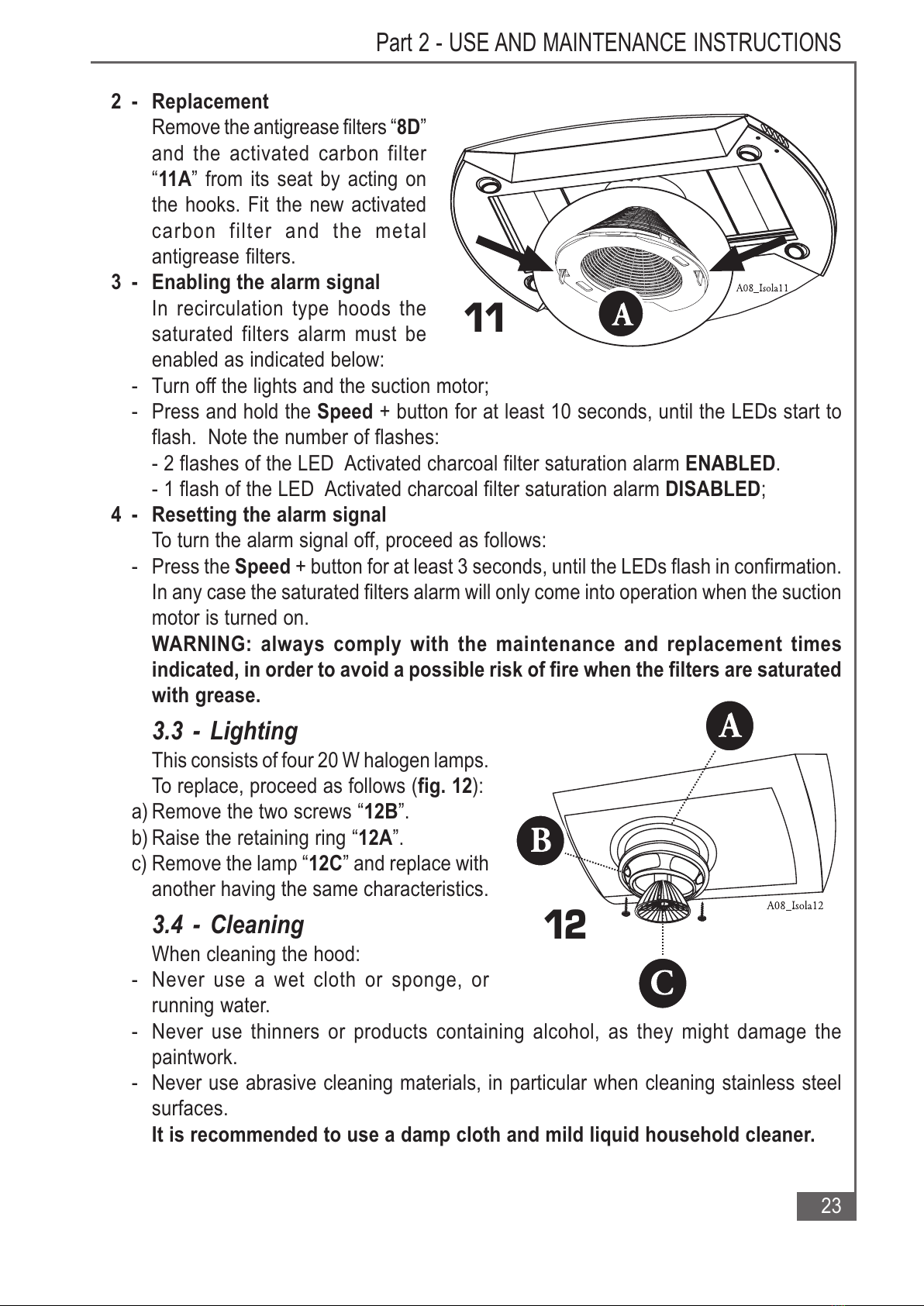

Part 2 - USE AND MAINTENANCE INSTRUCTIONS
2 - Replace ent
Remo e the antigrease filters “8D”
and the acti ated carbon filter
“11A” from its seat by acting on
the hooks. Fit the new acti ated
carbon filter and the metal
antigrease filters.
3 - Enabling the alar signal
In recirculation type hoods the
saturated filters alarm must be
enabled as indicated below:
- Turn off the lights and the suction motor;
- Press and hold the Speed + button for at least 10 seconds, until the LEDs start to
flash. Note the number of flashes:
- 2 flashes of the LED Acti ated charcoal filter saturation alarm ENABLED.
- 1 flash of the LED Acti ated charcoal filter saturation alarm DISABLED;
4 - Resetting the alar signal
To turn the alarm signal off, proceed as follows:
- Press the Speed + button for at least 3 seconds, until the LEDs flash in confirmation.
In any case the saturated filters alarm will only come into operation when the suction
motor is turned on.
WARNING: always co ply with the aintenance and replace ent ti es
indicated, in order to avoid a possible risk of fire when the filters are saturated
with grease.
3.3 - Lighting
This consists of four 20 W halogen lamps.
To replace, proceed as follows (fig. 12):
a) Remo e the two screws “12B”.
b) Raise the retaining ring “12A”.
c) Remo e the lamp “12C” and replace with
another ha ing the same characteristics.
3.4 - Cleaning
When cleaning the hood:
- Ne er use a wet cloth or sponge, or
running water.
- Ne er use thinners or products containing alcohol, as they might damage the
paintwork.
- Ne er use abrasi e cleaning materials, in particular when cleaning stainless steel
surfaces.
It is reco ended to use a da p cloth and ild liquid household cleaner.
11
12
All manuals and user guides at all-guides.com
