Kuppersbusch IKD 6700.0 User manual

Cooker hood
IKD 6700.0

Service Manual: H5-76-02
Responsible: U. Laarmann KÜPPERSBUSCH HAUSGERÄTE AG
E-mail: [e-mail]
Phone: [phone] Kundendienst
Fax: [phone] Postfach 100 132
Date: 31.08.2012 45801 Gelsenkirchen

Service Manual 3
For internal use only
Contents
1. Safety...............................................................................................................................4
2. General Information .......................................................................................................5
3. Dimensions .....................................................................................................................6
4. Mounting holes .............................................................................................................7
4.1 Screw specification................................................................................................7
5. Buttons and functions ...................................................................................................9
5.1 Buttons ..................................................................................................................9
5.2 Functions.............................................................................................................10
6. Procedure for repairs...................................................................................................11
6.1 Changing the halogen lamp ................................................................................12
6.2 Replacing the entire lamp block ..........................................................................12
7. Accessing the control panel........................................................................................13
7.1 Removing the bottom part...................................................................................13
7.2 Dismantling the control elements ........................................................................13
8. Removing the electrical components......................................................................... 14
8.1 Electrical unit casing............................................................................................14
8.2 Power supply casing ...........................................................................................14
8.3 Transformer.........................................................................................................14
9. Removing the motor block .......................................................................................... 15
10. Technical data ..............................................................................................................16
11. Faults and the cause....................................................................................................17
12. Circuit diagram ............................................................................................................. 18

4 Service Manual
For internal use only
1. Safety
Danger!
Repairs may only be carried out by a qualified electrician!
Improper repairs can be extremely dangerous for the user.
It is essential that you observe the following instructions in order to prevent electric shocks:
• The casing and the frame may be live in the event of faults!
• Touching live components inside the appliance may cause dangerous currents to flow through your
body!
• Disconnect the appliance from the mains prior to carrying out any repair work!
• When inspecting live parts, a residual current circuit breaker must always be used!
• The earthed conductor resistance must not exceed the resistance specified in the standard! It is vital
for ensuring the safety of persons and the functioning of the appliance.
• On completion of repairs, an inspection must be carried out in accordance with VDE 0701
[Association of German Electrical Engineers] or in accordance with the corresponding regulations for
your country!
Make sure you observe the following instructions:
• The appliances must be disconnected from the mains prior to all repairs. If inspections must be
carried out on live appliances, make sure you use a residual current operated device.
Attention!
Sharp edges: Use protective gloves.
Components may be electrostatic!
Observe handling precautions

Service Manual 5
For internal use only
2. General Information
A clearance of at least 30 cm must be maintained between the pan support area on the hob and the
bottom of the cooker hood. If the instructions for installation of the hob specify a larger clearance, this is
to be maintained.
The exhaust air ducts may not be connected to combustion exhaust gas chimneys (for example central
heaters, heaters, bathroom heaters, etc.).
Official regulations for discharging the exhaust air must always be observed. Furthermore, the exhaust
air may only be lead through a hole in the wall if the hole is intended for this purpose.
Attention! Care must be taken when an extraction
cooker hood and a heating system operating on
ambient air (e.g. gas, oil or coal heaters, flow
heaters or hot water boilers) since extracting the air
through the cooker hood will remove the air from
the room in which these heaters are installed and
which they need for combustion purposes.
Operation will only be safe if, in the case of
simultaneous operation of a hood and a heater
requiring ambient air, negative pressure in the
room in which the heater and the hood are installed
does not exceed 0.04 mbar, thus ensuring that the
exhaust gases of the heaters will not be re-
absorbed. The room must be fitted with ventilation
connections which ensure a constant inflow of fresh
air.
ATTENTION: This appliance must be earthed.
Make sure that the socket of electrical connections is earthed. In the case of electrical connection a
check will need to be carried out to ensure that the voltage level of the mains power supply complies with
the voltage levels indicated on the nameplate located on the inside of the appliance. If your hood has not
been fitted with a permanently connected cable with a plug or another device to enable universal
disconnection with a contact opening of at least 3 mm, suitable cut-off devices will need to be provided
for permanent connection. When installing the hood make sure that the plug is accessible if your hood
is fitted with a mains supply cable with a plug.
The hood must be disconnected from the mains power supply before it is cleaned or before any
maintenance work is carried out.
ATTENTION: DO NOT USE ANY PRODUCTS CONTAINING SILICONE NEAR THE COOKER HOOD,
SINCE THIS MAY DAMAGE THE SENSOR!

6 Service Manual
For internal use only
3. Dimensions

Service Manual 7
For internal use only
4. Mounting holes
Use the drilling template included in the bag of accessories to drill the holes in the ceiling.
One of the axes of the drilling template must correspond to the axis of the hood control elements.
Put the drilling template onto the ceiling in a vertical extension of the hob and drill the holes.
4.1 Screw specification
1. Screws for fastening onto the ceiling. Dimensions: 4.8 x 38mm, article
no. 02000069.

8 Service Manual
For internal use only
2. Screws for fastening the upper chimney, screws for
fastening between the upper chimney and the
recirculation air filter (for recirculation air mode only).
Dimensions: 3.9 x 9.5 mm, article no. 02000118.

Service Manual 9
For internal use only
5. Buttons and functions
The extractor hood is equipped with a fully automatic system for administrating all of the available
functions (Advanced Sensor Control). The air in the kitchen stays pleasant and fresh without requiring
any manual controls. The sensitive sensors detect any type of steam, vapours, odours and GAS and
automatically adjust the hood to the required fan power.

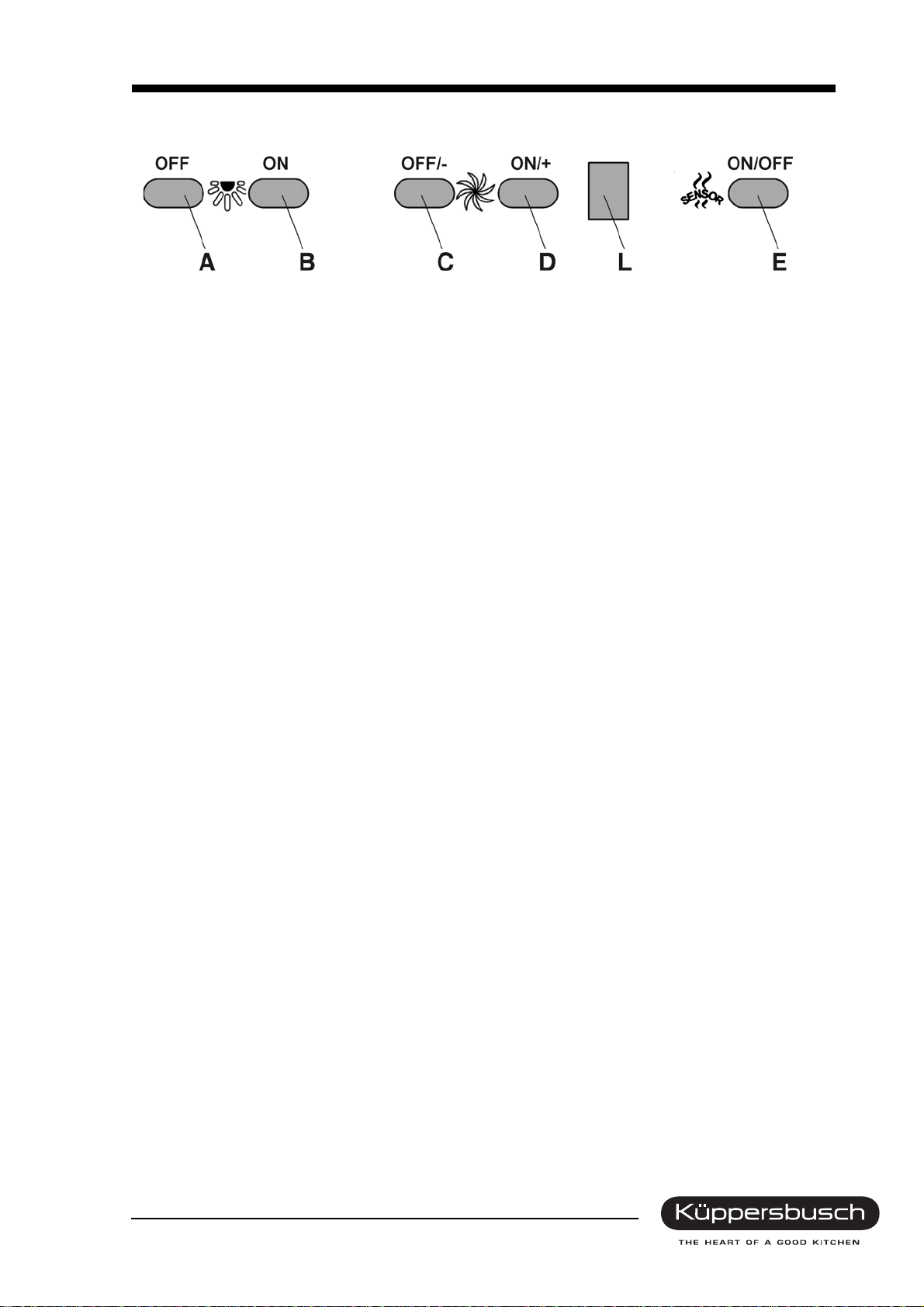

5.1 Buttons
Button A Switch off the lighting.
Button B Switch on the lighting.
Button C Reduce the motor speed to zero. The hour metre is set at zero if pressed for 2 sec.
when the filter alarm has gone off.
Button D Activate the motor (by calling up the last speed set) and drive up the speed until the top
speed is reached.
Button E Activate/deactivate the sensor (AUTOMATIC or MANUAL operation mode). The sensor
is activated in the automatic operation mode and the letter “A” will appear on the
display (L).
Button L Display:
• indicates the current speed.
• indicates the automatic operation mode; the letter "A" is shown. When the motor
speed is changed, the current speed is shown when the light comes on 3 times; the
letter "A" will then appear again.
• indicates "filter alarm" (when the motor is switched off) by showing 30s in the middle
segment.

10 Service Manual
For internal use only
5.2 Functions
Filter alarm
Is shown for 30 sec. when the motor is switched off. After an operation period of 30 hours the middle
segment on the display will light up to indicate that the anti-grease filter needs to be cleaned. After
an operation period of 120 hours the middle segment on the display will blink to indicate that the
grease filter needs to be cleaned and that the charcoal filter needs to be replaced.
After the grease filter has been cleaned (and/or the charcoal filter has been replaced), button C
(RESET) needs to be pressed while the filter alarm is being indicated in order to reset the hour
metre.
Sensitivity of the gas sensor
The sensitivity of the gas sensor may be adjusted to suit the personal needs of a user.
To adjust the sensitivity, the appliance must be in the manual operation status (i.e. the letter A is
not shown on the display, instead the current speed is shown).
Button Emay need to be pressed.
The degree of sensitivity can be adjusted by pressing buttons Dand Esimultaneously. The display
shows the level of sensitivity which has been set (from level 1 = lowest sensitivity to level 9 = highest
sensitivity).
Use buttons C(-) and D(+) to set the required level of sensitivity.
Pressing button Ewill store the “new” sensitivity setting.

Service Manual 11
For internal use only
6. Procedure for repairs
We recommend that you follow this procedure:
1. Inspection of the product and assessment of its installation.
2. Determine the problem and replace faulty parts if necessary.
3. Carry out a function test to assess that the corrective action was carried out properly.
First steps
• Disconnect the hood from the power supply.
• Pull out the power plug.
• Switch off the mains switch.
Remove the extraction panels
• to access the internal components.
Remove the metal filters
• to access the operating elements.
Remove the odour filters
• if the hood has been installed in the recirculating air mode.
Check
Before you carry out any repair work make sure that the “Check” steps to determine minor errors or faults
have been carried out.
Noises or unusual vibrations
• Check to ensure that the installation screws are tightly fastened.
• Check to ensure that the extraction panel of the edge suction device is properly closed.
The hood does not switch on
• Check to ensure that the plug is inserted firmly into the socket.
• Make sure that the power supply has not been cut off.
• Check the position of the motor controls.
Weak suction power
• Clean the metal filters or replace the charcoal filters in recirculating air hoods.
• Check to ensure that the air hole is not blocked and that it is the right size.

12 Service Manual
For internal use only
6.1 Changing the halogen lamp
If the lighting does not work the lamps will firstly need to be checked and you will need to make sure that
the control switch on the control panel of the hood has not developed a fault.
The hood must be disconnected from the mains power supply before it is cleaned or
before any maintenance work is carried out.
Proceed as follows to replace a lamp or lamp mounting:
1. Open the cover by levering it off at the
corresponding slits.
2. Replace with a new lamp of the same type.
ATTENTION: Never touch a new lamp with
your bare hands.
3. Check the functioning.
6.2 Replacing the entire lamp block
1. Use one of the two slits to lever out the lamp
block and remove it; make sure that the visible
parts are not damaged.
2. Cut off the power supply and replace the lamp
block.

Service Manual 13
For internal use only
7. Accessing the control panel
The hood must be disconnected from the mains power supply before it is cleaned or
before any maintenance work is carried out.
7.1 Removing the bottom part
1. To make it easier to access the inside of the hood, the bottom part (A) may be removed as follows:
2. Remove all 4 marked screws (B).
7.2 Dismantling the control elements
1. Remove the two marked screws (C).
2. Remove the control panels and pull out the flat cable.
C

14 Service Manual
For internal use only
8. Removing the electrical components
The hood must be disconnected from the mains power supply before it is cleaned or
before any maintenance work is carried out.
To make it easier to access the inside of the hood, the bottom part may be removed as described
in 7.1.
8.1 Electrical unit casing
1. Remove all 4 casing screws (D).
8.2 Power supply casing
1. Remove the power supply casing screw (E).
8.3 Transformer
1. Remove the transformer fastening screw (F).
2. Remove the cover of the transformer by screwing out the two
screws (G); this will give you access to another screw which
fastens the transformer and also needs to be screwed out.
3. Disconnect the electrical connections and remove the
transformer.
D
E
G
F

Service Manual 15
For internal use only
9. Removing the motor block
The hood must be disconnected from the mains power supply before it is cleaned or
before any maintenance work is carried out.
To make it easier to access the inside of the hood, the bottom part may be removed as described
in 7.1.
1. Remove the two screws on the suction pipe clamps.
2. Disconnect the electrical connections and pull out the
suction pipe.
H
H

16 Service Manual
For internal use only
10. Technical data
Voltage/frequency 220-240V / 50Hz
Appliance dimensions (WxDxH) 600 x 430 x 880(min)/1182(max)
Electrical connection 250W
Halogen lighting 4 x 20W
Air rate
Level 1
Level 2
Level 3
Level 4
300m³/h
475m³/h
630m³/h
740m³/h
Pressure
Level 1
Level 2
Level 3
Level 4
320Pa
400Pa
435Pa
455Pa
Resistance
Level 1 (red/blue)
Level 2 (red/white)
Level 3 (red/orange)
Level 4 (red/black)
129.6Ω
108.6Ω
88.2Ω
67.5Ω
Noise
Level 1
Level 2
Level 3
Level 4
37db
48db
54db
57db
Exhaust air connection 150mm

Service Manual For internal use only
11. Faults and the cause
Attention! Repairs may only be carried out by qualified electricians or specialists!
Problem Probable cause Solution
The cooker hood does not work. The power cable has not been connected to a live
socket. • Check to ensure that the cable has been properly inserted. Check to ensure that the
socket is live.
• Check the plug on the motor.
The light does not work. The lamp has burned out. Replace with the same model and reference.
The hood does not have enough power. Check whether
• the motor velocity selected is sufficient for the
quantity of smoke and steam which occurs;
• the kitchen has been sufficiently ventilated in
order to enable the air extraction opening to be
opened;
• the charcoal filter has been used up (air
circulation hood);
• the sensor is sufficiently sensitive (for hoods
with automatic operation).
The hood has gone off itself during standard
operation.
Check whether
• there has been a power cut;
• the universal switch has tripped.

18 Service Manual
For internal use only
12. Circuit diagram
