1
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
GB
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
INSTALLATION
This canopy hood is designed to be fixed to any rigid vertical surface, over a gas or
electric hotplate and can be used either in the extraction mode (ducted to the outside) or
in the recirculation mode (internal recycling).
Safety warnings
• Before commencing the installation, consideration should be given to the difficulties
to be found during installation and to the bulky weight of the hood. The installation
work must be undertaken by a qualified and competent person in conformity to the
rules concerning the evacuation of contaminated air. The manufacturer disclaims all
liability for any damage or injury caused as a result of not following the instructions
for installation contained in the following text.
• When used in the extraction mode the cooker hood ducting must not be connected to
a flue which is used for exhausting fumes from appliances supplied with energy other
than electric such as a central heating flue or water heating flue.
• When istalled, the hood must be positioned at least 65 cm above a cooking appliance.
• Never do flambé cooking under this cooker hood.
• Never leave frying pans unattended during use as overheated fats and oils may catch
fire.
• If the room where the cooker hood is to be used contains a fuel burning appliance
such as a central heating boiler then this must be of the room sealed or balanced flue
type. If other types of flue or appliance are fitted ensure that there is an adequate
supply of air into the room. When the cooker hood is used in conjunction with other
appliances supplied with energy other than electric, the negative pressure in the room
must not exceed 0,0 mbar to prevent fumes being drawn back into the room by the
cooker hood.
Components

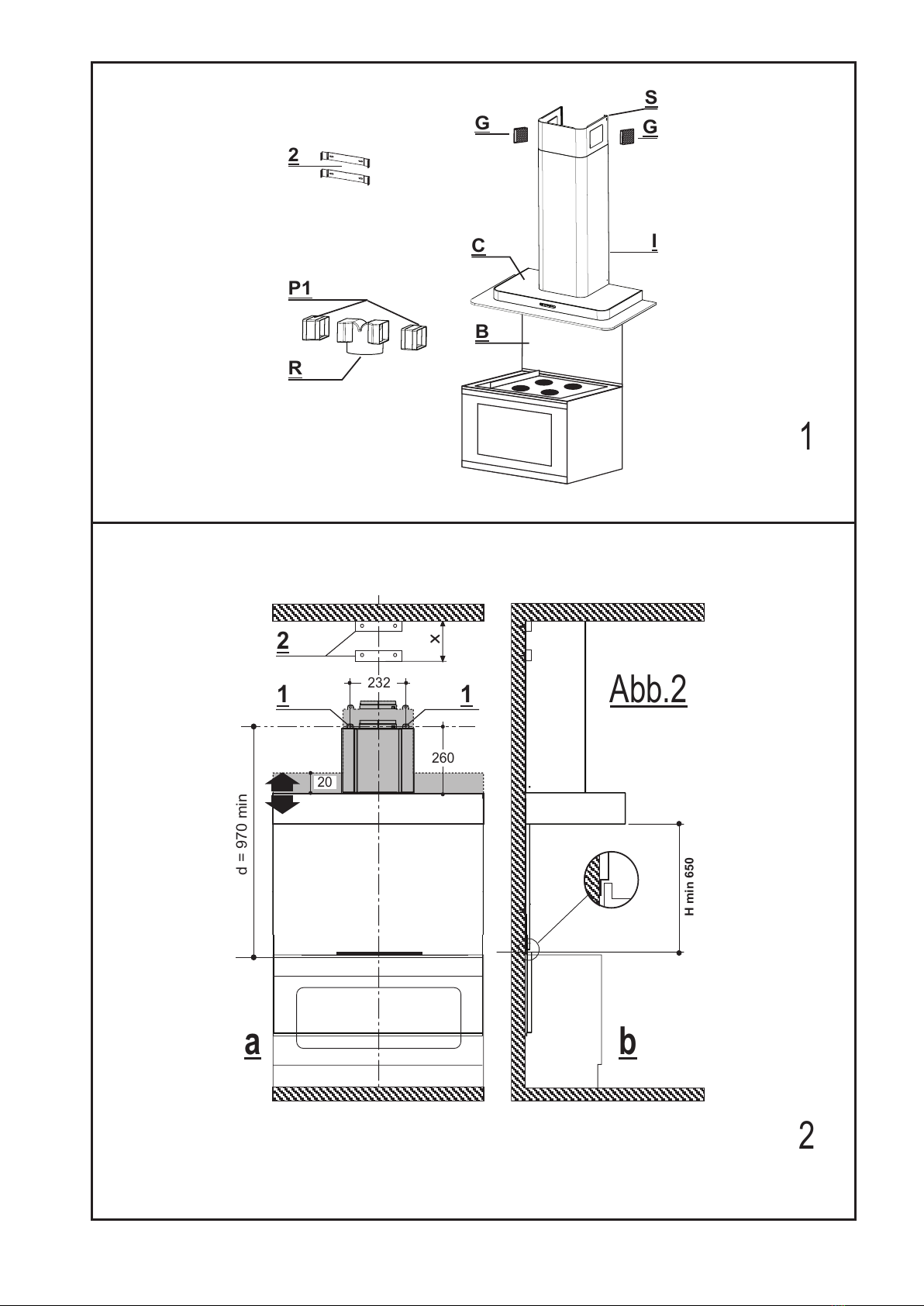

The hood comprises the following (fig.1 ):
• No.1 canopy C complete with controls, lighting and ventilator unit
• No.1 telescopic chimney, comprising:
No.1 upper chimney element S
No.1 lower chimney element I
• No.2 directional grills G
• No.1 recirculation spigot R
• No.2 additional side recirculation spigots P1
• No.1 bag containing:
No.2 brackets 2 to fix the chimney, screws, rawl plugs and documents.
• No.1 splashback B (optional)
Installation instructions
For easy installation, proceed as follows:
• Fitting the wall brackets and Splashback
• Fixing the canopy
• Electrical connection and working test
• Ducting or Recirculation fitting
• Fitting the telescopic chimney
All manuals and user guides at all-guides.com

15GB
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

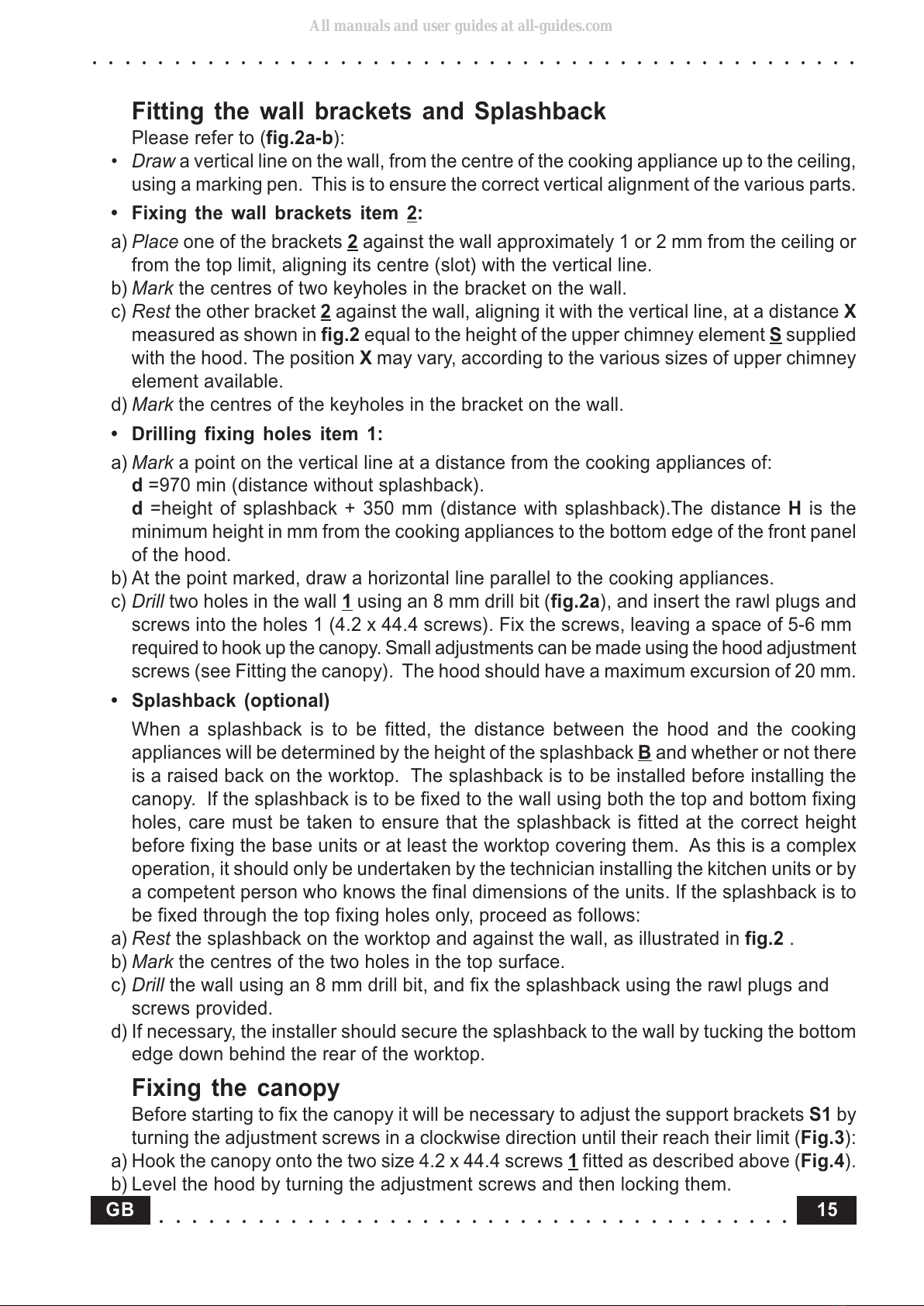

Fitting the wall brackets and Splashback
Please refer to (fig.2a-b):
•Draw a vertical line on the wall, from the centre of the cooking appliance up to the ceiling,
using a marking pen. This is to ensure the correct vertical alignment of the various parts.
• Fixing the wall brackets item 2:
a) Place one of the brackets 2 against the wall approximately 1 or 2 mm from the ceiling or
from the top limit, aligning its centre (slot) with the vertical line.
b) Mark the centres of two keyholes in the bracket on the wall.
c) Rest the other bracket 2 against the wall, aligning it with the vertical line, at a distance X
measured as shown in fig.2 equal to the height of the upper chimney element S supplied
with the hood. The position X may vary, according to the various sizes of upper chimney
element available.
d) Mark the centres of the keyholes in the bracket on the wall.
• Drilling fixing holes item 1:
a) Mark a point on the vertical line at a distance from the cooking appliances of:
d =970 min (distance without splashback).
d =height of splashback + 350 mm (distance with splashback).The distance H is the
minimum height in mm from the cooking appliances to the bottom edge of the front panel
of the hood.
b) At the point marked, draw a horizontal line parallel to the cooking appliances.
c) Drill two holes in the wall 1 using an 8 mm drill bit (fig.2a), and insert the rawl plugs and
screws into the holes 1 (4.2 x 44.4 screws). Fix the screws, leaving a space of 5-6 mm
required to hook up the canopy. Small adjustments can be made using the hood adjustment
screws (see Fitting the canopy). The hood should have a maximum excursion of 20 mm.
• Splashback (optional)
When a splashback is to be fitted, the distance between the hood and the cooking
appliances will be determined by the height of the splashback B and whether or not there
is a raised back on the worktop. The splashback is to be installed before installing the
canopy. If the splashback is to be fixed to the wall using both the top and bottom fixing
holes, care must be taken to ensure that the splashback is fitted at the correct height
before fixing the base units or at least the worktop covering them. As this is a complex
operation, it should only be undertaken by the technician installing the kitchen units or by
a competent person who knows the final dimensions of the units. If the splashback is to
be fixed through the top fixing holes only, proceed as follows:
a) Rest the splashback on the worktop and against the wall, as illustrated in fig.2 .
b) Mark the centres of the two holes in the top surface.
c) Drill the wall using an 8 mm drill bit, and fix the splashback using the rawl plugs and
screws provided.
d) If necessary, the installer should secure the splashback to the wall by tucking the bottom
edge down behind the rear of the worktop.
Fixing the canopy

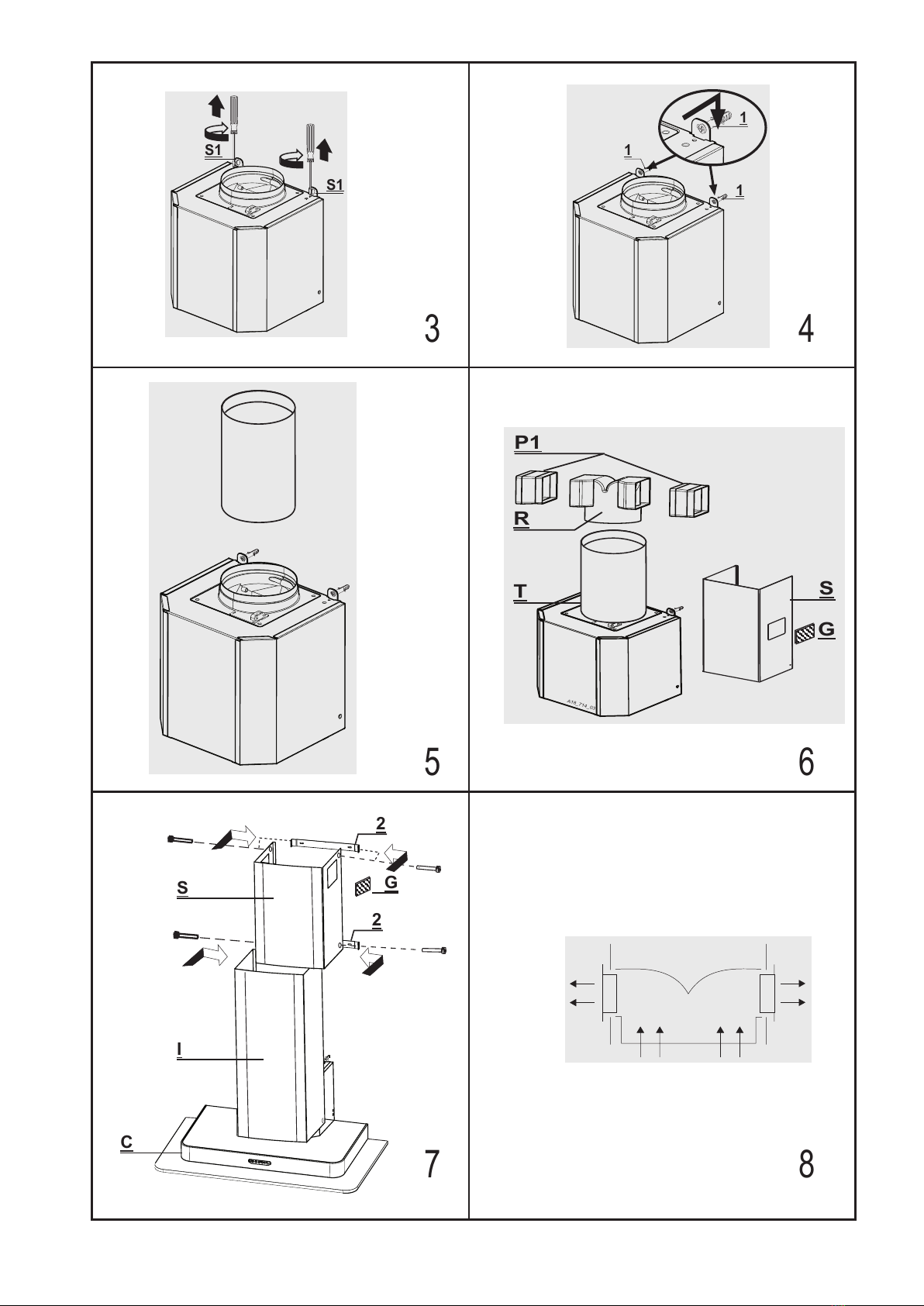

Before starting to fix the canopy it will be necessary to adjust the support brackets S1 by
turning the adjustment screws in a clockwise direction until their reach their limit (Fig.3):
a) ook the canopy onto the two size 4.2 x 44.4 screws 1 fitted as described above (Fig. ).
b) Level the hood by turning the adjustment screws and then locking them.
All manuals and user guides at all-guides.com

16
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
GB

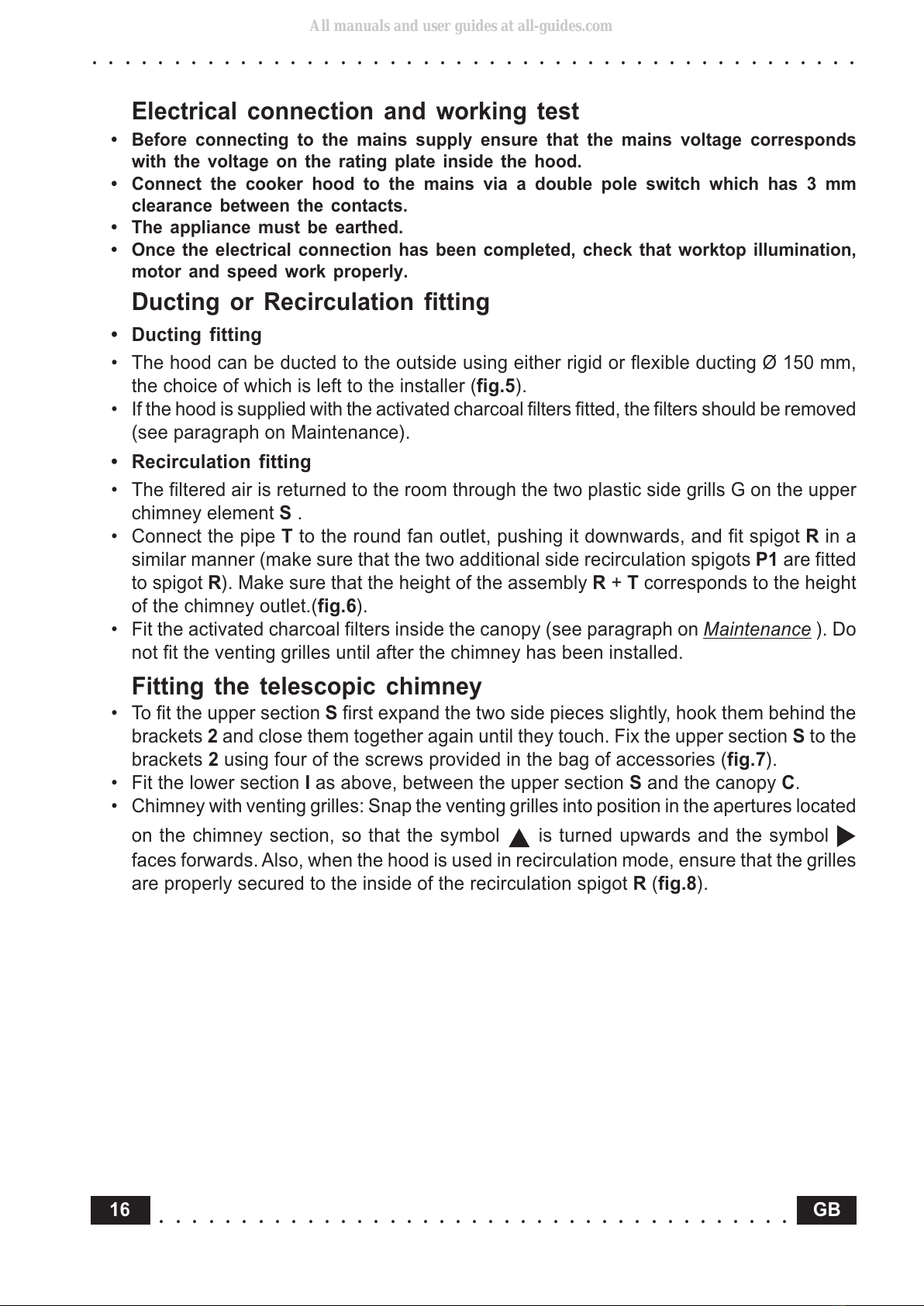

Electrical connection and working test
• Before connecting to the mains supply ensure that the mains voltage corresponds
with the voltage on the rating plate inside the hood.
• Connect the cooker hood to the mains via a double pole switch which has 3 mm
clearance between the contacts.
• The appliance must be earthed.
• Once the electrical connection has been completed, check that worktop illumination,
motor and speed work properly.
Ducting or Recirculation fitting
• Ducting fitting
• The hood can be ducted to the outside using either rigid or flexible ducting Ø 150 mm,
the choice of which is left to the installer (fig.5).
• If the hood is supplied with the activated charcoal filters fitted, the filters should be removed
(see paragraph on Maintenance).
• Recirculation fitting
• The filtered air is returned to the room through the two plastic side grills G on the upper
chimney element S .
• Connect the pipe T to the round fan outlet, pushing it downwards, and fit spigot R in a
similar manner (make sure that the two additional side recirculation spigots P1 are fitted
to spigot R). Make sure that the height of the assembly R + T corresponds to the height
of the chimney outlet.(fig.6).
• Fit the activated charcoal filters inside the canopy (see paragraph on Maintenance ). Do
not fit the venting grilles until after the chimney has been installed.
Fitting the telescopic chimney
• To fit the upper section S first expand the two side pieces slightly, hook them behind the
brackets 2 and close them together again until they touch. Fix the upper section S to the
brackets 2 using four of the screws provided in the bag of accessories (fig.7).
• Fit the lower section I as above, between the upper section S and the canopy C.
• Chimney with venting grilles: Snap the venting grilles into position in the apertures located
on the chimney section, so that the symbol is turned upwards and the symbol
faces forwards. Also, when the hood is used in recirculation mode, ensure that the grilles
are properly secured to the inside of the recirculation spigot R (fig.8).
All manuals and user guides at all-guides.com

17GB
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

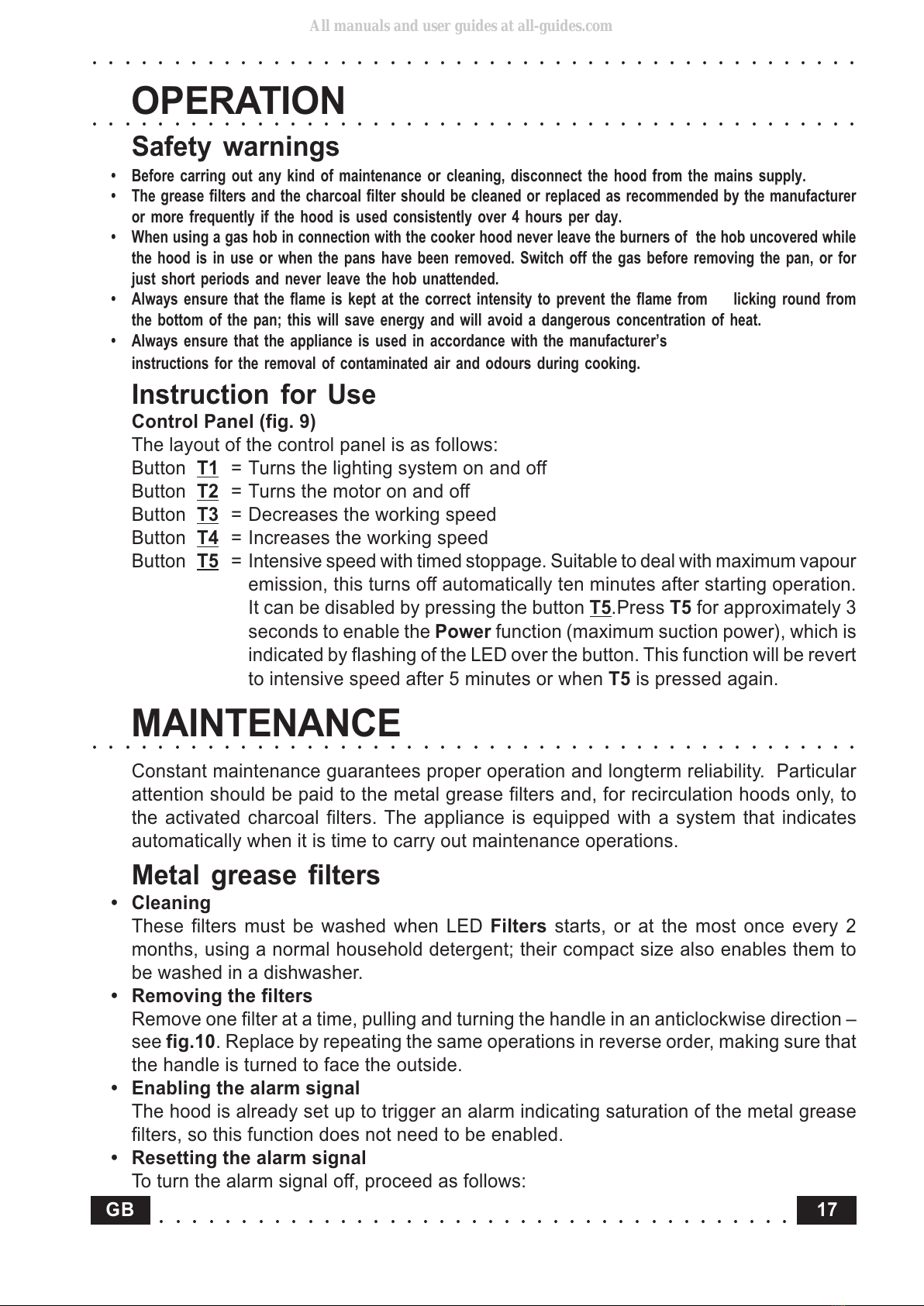

OPERATION
Safety warnings
• Before carring out any kind of maintenance or cleaning, disconnect the hood from the mains supply.
• The grease filters and the charcoal filter should be cleaned or replaced as recommended by the manufacturer
or more frequently if the hood is used consistently over 4 hours per day.
• When using a gas hob in connection with the cooker hood never leave the burners of the hob uncovered while
the hood is in use or when the pans have been removed. Switch off the gas before removing the pan, or for
just short periods and never leave the hob unattended.
• Always ensure that the flame is kept at the correct intensity to prevent the flame from licking round from
the bottom of the pan; this will save energy and will avoid a dangerous concentration of heat.
• Always ensure that the appliance is used in accordance with the manufacturer’s
instructions for the removal of contaminated air and odours during cooking.
Instruction for Use
Control Panel (fig. 9)
The layout of the control panel is as follows:
Button T1 = Turns the lighting system on and off
Button T2 = Turns the motor on and off
Button T3 = Decreases the working speed
Button T = Increases the working speed
Button T5 = Intensive speed with timed stoppage. Suitable to deal with maximum vapour
emission, this turns off automatically ten minutes after starting operation.
It can be disabled by pressing the button T5.Press T5 for approximately 3
seconds to enable the Power function (maximum suction power), which is
indicated by flashing of the LED over the button. This function will be revert
to intensive speed after 5 minutes or when T5 is pressed again.
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
MAINTENANCE
Constant maintenance guarantees proper operation and longterm reliability. Particular
attention should be paid to the metal grease filters and, for recirculation hoods only, to
the activated charcoal filters. The appliance is equipped with a system that indicates
automatically when it is time to carry out maintenance operations.
Metal grease filters
• Cleaning
These filters must be washed when LED Filters starts, or at the most once every 2
months, using a normal household detergent; their compact size also enables them to
be washed in a dishwasher.
• Removing the filters
Remove one filter at a time, pulling and turning the handle in an anticlockwise direction –
see fig.10. Replace by repeating the same operations in reverse order, making sure that
the handle is turned to face the outside.
• Enabling the alarm signal
The hood is already set up to trigger an alarm indicating saturation of the metal grease
filters, so this function does not need to be enabled.
• Resetting the alarm signal
To turn the alarm signal off, proceed as follows:
All manuals and user guides at all-guides.com

18
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○
GB

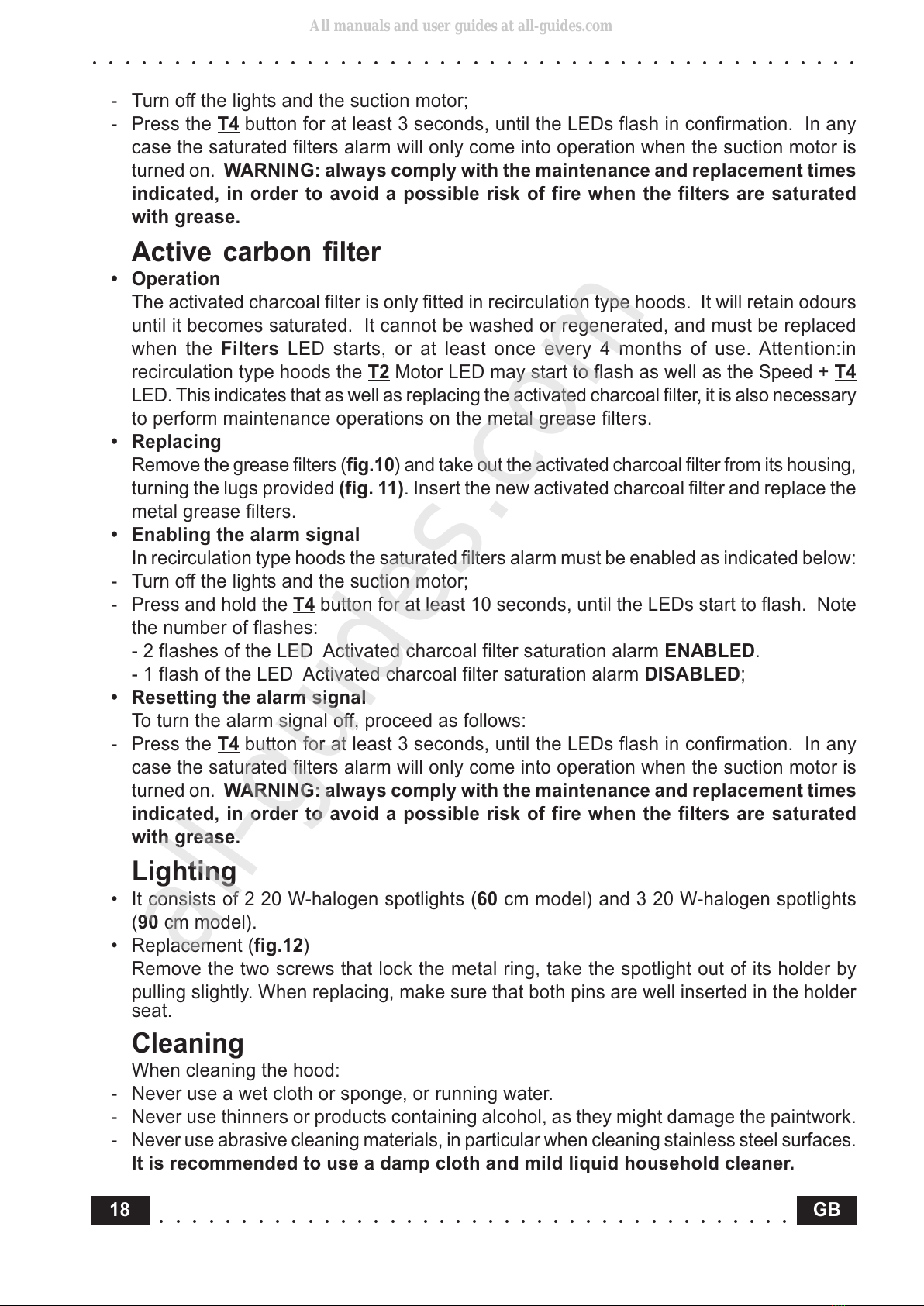

- Turn off the lights and the suction motor;
- Press the T button for at least 3 seconds, until the LEDs flash in confirmation. In any
case the saturated filters alarm will only come into operation when the suction motor is
turned on. WARNING: always comply with the maintenance and replacement times
indicated, in order to avoid a possible risk of fire when the filters are saturated
with grease.
Active carbon filter
• Operation
The activated charcoal filter is only fitted in recirculation type hoods. It will retain odours
until it becomes saturated. It cannot be washed or regenerated, and must be replaced
when the Filters LED starts, or at least once every 4 months of use. Attention:in
recirculation type hoods the T2 Motor LED may start to flash as well as the Speed + T
LED. This indicates that as well as replacing the activated charcoal filter, it is also necessary
to perform maintenance operations on the metal grease filters.
• Replacing
Remove the grease filters (fig.10) and take out the activated charcoal filter from its housing,
turning the lugs provided (fig. 11). Insert the new activated charcoal filter and replace the
metal grease filters.
• Enabling the alarm signal
In recirculation type hoods the saturated filters alarm must be enabled as indicated below:
- Turn off the lights and the suction motor;
- Press and hold the T button for at least 10 seconds, until the LEDs start to flash. Note
the number of flashes:
- 2 flashes of the LED Activated charcoal filter saturation alarm ENABLED.
- 1 flash of the LED Activated charcoal filter saturation alarm DISABLED;
• Resetting the alarm signal
To turn the alarm signal off, proceed as follows:
- Press the T button for at least 3 seconds, until the LEDs flash in confirmation. In any
case the saturated filters alarm will only come into operation when the suction motor is
turned on. WARNING: always comply with the maintenance and replacement times
indicated, in order to avoid a possible risk of fire when the filters are saturated
with grease.
Lighting
• It consists of 2 20 W-halogen spotlights (60 cm model) and 3 20 W-halogen spotlights
(90 cm model).
• Replacement (fig.12)
Remove the two screws that lock the metal ring, take the spotlight out of its holder by
pulling slightly. When replacing, make sure that both pins are well inserted in the holder
seat.
Cleaning
When cleaning the hood:
- Never use a wet cloth or sponge, or running water.
- Never use thinners or products containing alcohol, as they might damage the paintwork.
- Never use abrasive cleaning materials, in particular when cleaning stainless steel surfaces.
It is recommended to use a damp cloth and mild liquid household cleaner.
All manuals and user guides at all-guides.com
all-guides.com

1
2
B
R
P1
2
GG
S
CI
232
260
11
2
260
11
20
X
H min 650
d = 970 min
Abb.2
ba
All manuals and user guides at all-guides.com

S1
S1
S1
S1
1
1
1
1
1
1
R
P1
T
G
S
A18_714_03
R
P1
T
G
S
A18_714_03
6
43
5
8
G
2
S
I
2
C
7
All manuals and user guides at all-guides.com

T1 T2 T3 T4 T5
9
10 11
12
All manuals and user guides at all-guides.com
