Digital Multimeter
Digital AC & AC/DC Clampmeter
AC Clamp Adaptor
AC/DC Current Adaptor
Transistorised Electronic Analog & Digital
Insulation Resistance Testers(upto 10 KV)
Digital Sound Level Meter & Sound Level
Calibrator
Digital contact & Non-contact Type
Tachometer
Digital Non-contact (infrared) Thermometer
Thermo Hygrometer
Thermo Anemometer
Wood & Paper Moisture Meter
Distance Meter
Digital Hand Held Temperature Indicators
Digital Lux Meter
Network Cable Tester
Power Factor Regulator
Maximum Demand Controller/Digital Power
Meter
Earth Resistance Tester
LIST OF PRODUCTS
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*
*OPERATION
MANUAL
DIGITAL
MULTIMETER
KM 6050
An ISO 9001:2008 Company

we damage them or “burn them out”. If you incorrectly

TABLE OF CONTENTS
TITLE PAGE
SAFETY................................................................1
CAUTION & SAFETY SYMBOL...........................2
GENERAL SPECIFICATION................................3
ELECTRICAL SPECIFICATION...........................4
ELECTRICAL SYMBOLS....................................8
MULTIMETER STRUCTURE..............................9
MEASUREMENT PROCEDURE........................10
MAINTENANCE..................................................23
TEST CERTIFICATE..........................................25
WARRANTY........................................................26
1. GENERAL DESCRIPTION
KM 6050 Digital Multimeter is featured with precise
design, convenient operation, high performance
multifunction, a new protection holster and big LCD
display. To avoid improper operation, the current
jack applies mechanical protection device. Only
when you select current measurement, the mA or
20A jack is open accordingly. Otherwise this jack
is closed to avoid inserting the test lead wrong.
“VWHz” is equipped with PTC heat sensitive
element at the input terminal and this has efficient
protection for the Function / Range switch. You
can select different models to measure DCV, DCA,
ACV, ACA, Resistance, Capacitance, Frequency,
Temperature, Diode, hFE and Continuity. This
type can be applied in engineering project,
experiment test, production test work in the open
air, and electrical repairs, etc.
2. SAFETY PRECAUTIONS AND PROCEDURES
1) For your own safety and that of the apparatus,
you must read and follow the procedure
described in this instruction manual.
2) Never use the instrument before replacing the
back cover, or having the risk of electronic
shock.
3) If any unusual condition of testing end and
attachment of the meter such as breakage,
deformation, fracture, foreign substance, no
display, etc, do not conduct any measurement.
4) You must first take out the test leads before
changing to different current measuring
positions and then turn the function / range
switch so as to avoid damaging mechanical
protection device.
1

2
5) Never input signal level exceeding the limit
value to avoid shock or damaging the
instrument.
6) Don’t turn the function / range switch when
taking measurement.
7) The potential difference between the
measurement common terminal COM and earth
should not exceed 1000V to avoid electric
shock.
8) Take extreme care if the tested voltage is over
DC 60V and AC 42V to avoid electric shock.
9) When symbol “ ” occurs on the LCD, it
indicates low battery. Battery should be
replaced to ensure measurement accuracy.
10) Fuse inside must be in a good condition and
they must be replaced, if necessary, with an
indentical model.
!
Caution: Identifies conditions and actions that
could cause damage or Malfunction
in the instrument.
Warning: Identifies conditions and actions that
could result in serious injury or
even death to the user.
Terms in this manual
¢Low power consumption CMOS double
integration, A/D transform integrated circuit,
Auto zero Calibration, Auto polarity display,
Data hold, low battery and Over-range
indication.
¢DC BasicAccuracy : ±0.05
¢Capacitance measurement : 0.1~200mF
¢Test lead jack mechanical protection function
and full range over-load protection function.
¢Auto power off function : The meter will shut off
automatically about 15minutes after power is
on to avoid forgetting to turn off the meter after
using it.
¢Max reading : 19999(4½)
¢LCD Display : 70 x 48mm big screen, high
contrast, Word height : 28mm
¢Power : one 9V battery.
¢Low battery indication : “ ” will occur on the
left top of the LCD.
¢Dimension : 192 x 88 x 42mm
¢Weight : approx 400g (including battery and
holster).
¢Environmental condition :
o o
Operation Temperature : 0 C ~ 40 C
Relative Humidity : <85%
o
Storage Temperature : -10 C~50%
Relative humidity : < 85%
3. GENERAL SPECIFICATIONS
3

4. ELECTRICAL SPECIFICATIONS
Accuracy : ± (% reading + digit) one year warranty.
o o
Environment temperature : 23 C ± 5 C
Relative humidity : <75%
DC VOLTAGE
AC VOLTAGE
Range
Range
Accuracy
Accuracy
Resolution
Resolution
200 mV
2 V
20 V
200 V
1000 V
2 V
20 V
200 V
1000 V
10 mV
100 mV
100 mV
1 mV
1 mV
10 mV
10 mV
100 mV
100 mV
±(0.05% + 5)
±(0.8% + 10)
±(0.1% + 5)
±(1.2% + 15)
Input impedance : 10MW
Overload protection : 250V, (for 200mV)
DC or AC peak value.
1000V (for other ranges)
Input impedance : 2MW
Frequency Range : 40Hz ~ 400Hz
Overload protection : 250V, (for 200mV)
DC or AC peak value.
1000V (for other ranges)
Display : Average value (Sine RMS)
4
DC CURRENT
Range Accuracy Resolution
2 mA
20 mA
200 mA
20 A
100 nA
1 mA
10 mA
1 mA
±(0.75% + 5)
±(2% + 10)
Overload protection : 0.2A / 250VFuse.
Max input current : 20A(15 seconds max.)
Voltage drop measurement :
Full-range voltage drop : 200mV
±(0.5% + 2)
AC CURRENT
Range Accuracy Resolution
2 mA
20 mA
200 mA
20 A
100 nA
1 mA
10 mA
1 mA
±(1.5% + 10)
±(2% + 10)
Overload protection : 0.2A / 250VFuse.
Max input current : 20A (15 seconds max.)
Voltage drop measurement :
Full-range voltage drop : 200mV
Frequency Range : 40Hz ~ 400 Hz
Display : Average Value ( Sine RMS)
±(0.8% + 10)
5

RESISTANCE
Range Accuracy Resolution
200 W
2 KW
20 KW
200 KW
2 MW
20 MW
200 MW
0.01 W
0.1 W
1 W
10 W
100 W
1 KW
10 KW
Overload protection : 250V, DC or AC peak value.
Open circuit Voltage : <1V
(2.8V in the 200MWposition).
Note : It is normal that the test lead short-circuit
displays approx. 10 digits in the 200MW
position. Please deduct these 10 digits from
reading when measuring.
±(0.2% + 5)
CAPACITANCE
Range Accuracy Resolution
2 nF
20 nF
200 nF
0.1 pF
1 pF
10 pF
100 pF
10 nF
±(5% + 3)
Frequency measurement : Approx 400Hz.
Voltage measurement : Approx 40mV.
±(2.5% + 10)
±(0.5% + 10)
±(0.5% + 5)
±(0.2% + 1)
2 mF
200 mF
6
FREQUENCY
Range Accuracy Resolution
20 kHz 1Hz
Voltage Protection : 250V DC or AC peak value.
Input sensitivity : 150 mV RMS.
±(2% + 5)
TRIODE HFE PARAMETER MEASUREMENT
Range Description Test Condition
hFE 1b approx
10mA,
Vec approx
2.8V
It can measure NPN or
PNP type transistor
triode hFE parameter.
Indication range:0-1000 b
DIODE AND CONTINUITY MEASUREMENT
Range Description Test Condition
Forward-way
current is approx
1mA, contray-
way voltage is
approx 2.8V
Indicate approx
forward voltage
drop of diode
The buzzer inside
sounds when
continuity
Resistance is
<30 W
Open Circuit
Voltage is
approx 2.8V
Overload protection : 250V DC or AC peak value.
7

ELECTRICAL SYMBOLS
DC Current or Voltage
AC Current or Voltage
Diode
Buzzer
Low Battery
Cautions
Double Insulation
Earth (Ground)
!
Danger High Voltage
8 9
COM
VWHz
20A
mA
NPN
B
B
E
E
E
PNP
E
C
C
Cx
6. MULTIMETER STRUCTURE
4
5
6
1
7
2
3
8
1. LCD display
2. Function / range selection
3. Test lead jack
4. Power switch
5. Triode measurement jack
6. Test lead jack resistance board
7. Backlight button
8. Test leads socket : VW. Hz
9. Capacitance Socket.
10. Data Hold.
10
9

7. MEASUREMENT PROCEDURE
Press POWER key. If the battery is low “ ”
symbol will display on the left top of LCD. Now you
need to replace the battery.
(1) Set the function / range switch in DCV range.
(2) Insert the black test lead into COM jack, and
the red test lead into exposed test lead jack
(VWHz jack). Connect the test lead to the
tested load or the signal resources in parallel.
The meter will indicate the polarity of the red
test lead at the same time as it indicates the
voltage reading.
Select the function and range needed.

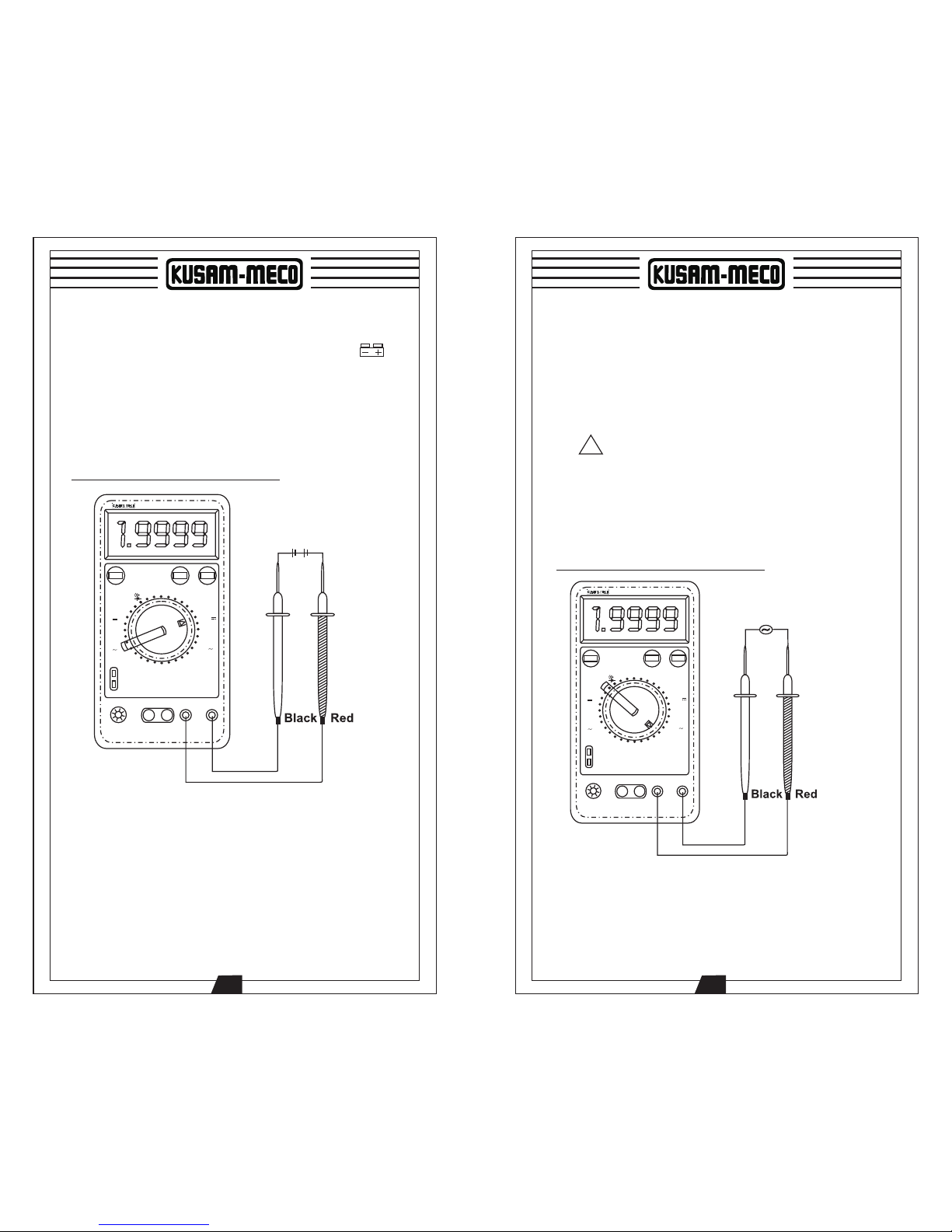

1. DC Voltage Measurement :
COM
VWHz
20A
mA
NPN
B
B
E
E
E
PNP
E
C
C
Cx
KM 6050
POWER LIGHT HOLD
Auto
Power off
200 2K 20K 200K 2M
20M
200M
200m
2V
20
200
1000
1000
200
20
V
2
2n
20n
200n
2m
200m
2m
20m
200m
20
20
200m
20m
2m
A
hFE
20kHz
A
W
F
10
2. AC Voltage Measurement :
(1) Set the function / range switch on ACV range.
(2) Insert the black test lead into COM jack, and
the red lead into exposed test lead jack
(VWHz jack). Connect the test lead to the
tested load or signal.
Remark :
A. If the tested voltage value is unknown, you
should select the highest range.
B. When only “1” occurs, it means the input
voltage has exceeded the selected range,
please select a higher range.
C. “ ” indicates not to measure voltage over
1000V. Although it may display the digit, it
may damage the meter.
D. Take extreme care when measuring high
voltage.
!
COM
VWHz
20A
mA
NPN
B
B
E
E
E
PNP
E
C
C
Cx
KM 6050
POWER LIGHT HOLD
Auto
Power off
200 2K 20K 200K 2M
20M
200M
200m
2V
20
200
1000
1000
200
20
V
2
2n
20n
200n
2m
200m
2m
20m
200m
20
20
200m
20m
2m
A
hFE
20kHz
A
W
F
11

13
Remark :
A. If the current value is unknown before
measurement, select the highest range.
B. When only “1” occur that indicates the tested
current has exceeded the selected range.
You should select a higher range.
C. When doing mA jack input, overload may melt
the fuse inside. Now replace the Fuse. The
Fuse specifications is 0.2A/ 250V.
D. When doing 20A jack input, time for inputing
the highest current 20A should not exceed 15
seconds.

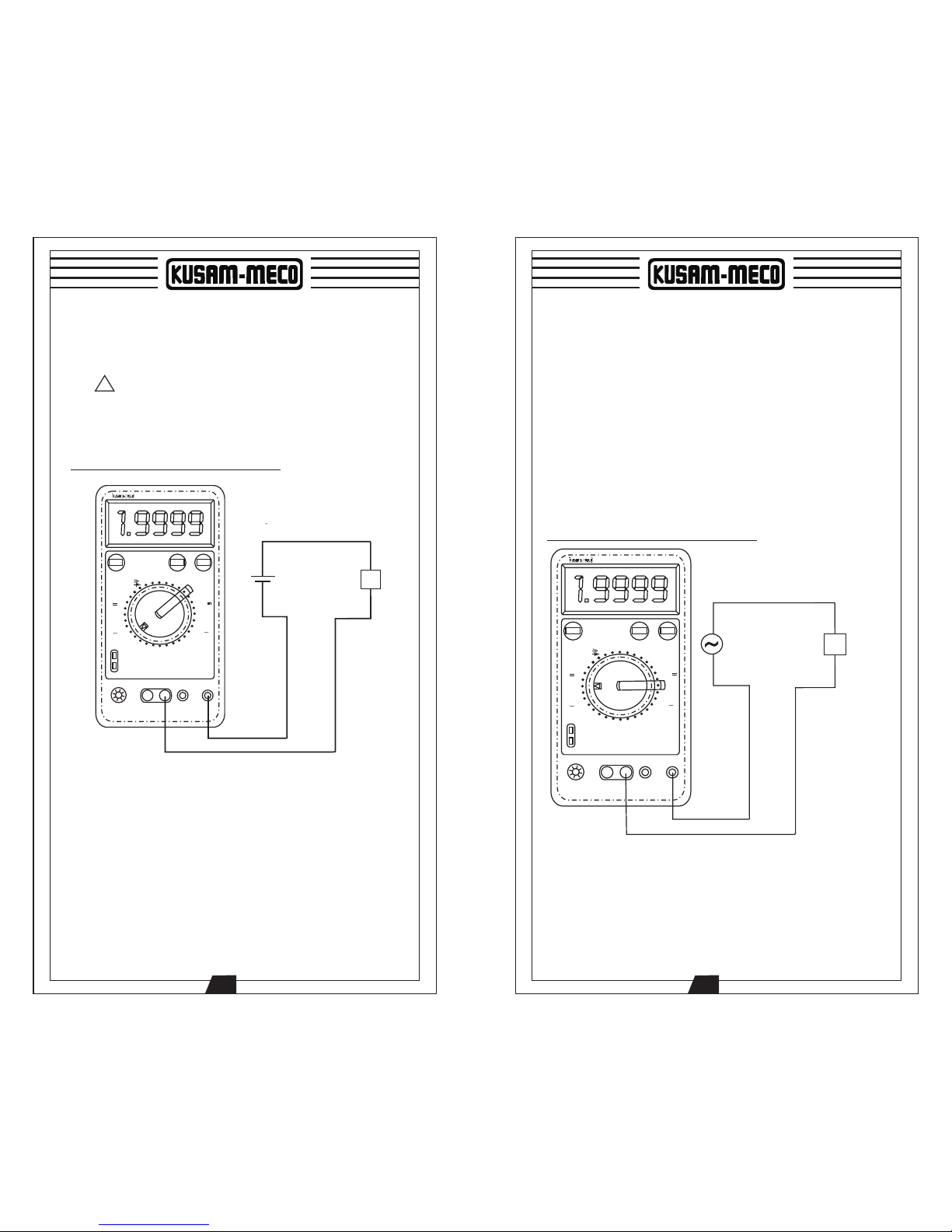

4. AC Current Measurement :
COM
VWHz
20A
mA
NPN
B
B
E
E
E
PNP
E
C
C
Cx
KM 6050
POWER LIGHT HOLD
Auto
Power off
200 2K 20K 200K 2M
20M
200M
200m
2V
20
200
1000
1000
200
20
V
2
2n
20n
200n
2m
200m
2m
20m
200m
20
20
200m
20m
2m
A
hFE
20kHz
A
W
F
(1) Remove the test lead and set the function / range
switch on ACA range position. Refer to DCA
measurement (1).
(2) Insert the black test lead into COM jack and the
red test lead into the exposed test lead jack (mA
jack or 20A jack). Connect the test lead to the
tested circuit in series.
Supply
Load
Remark :
A. Refer to DCV measurement remarks
A, B,C, D.
B. “ ” indicate not to measure the voltage over
1000V. Although it is possible to display the
reading, it will probably damage the meter.
!
3. DC Current Measurement :
(1) Remove the test lead and set the function /
range switch on DCA range.
(2) Insert the black test lead into COM jack and
the red one into the exposed test lead jack
(mA jack or 20A jack). Connect the test lead
to the tested circuit in series. The meter will
indicate the polarity of the red test lead at the
same time as the meter indicate the current
reading.
COM
VWHz
20A
mA
NPN
B
B
E
E
E
PNP
E
C
C
Cx
KM 6050
POWER LIGHT HOLD
Auto
Power off
200 2K 20K 200K 2M
20M
200M
200m
2V
20
200
1000
1000
200
20
V
2
2n
20n
200n
2m
200m
2m
20m
200m
20
20
200m
20m
2m
A
hFE
20kHz
A
W
F
12
Supply
Load

14
Remark :Refer to DCA measurement remarks
A, B, C, D.

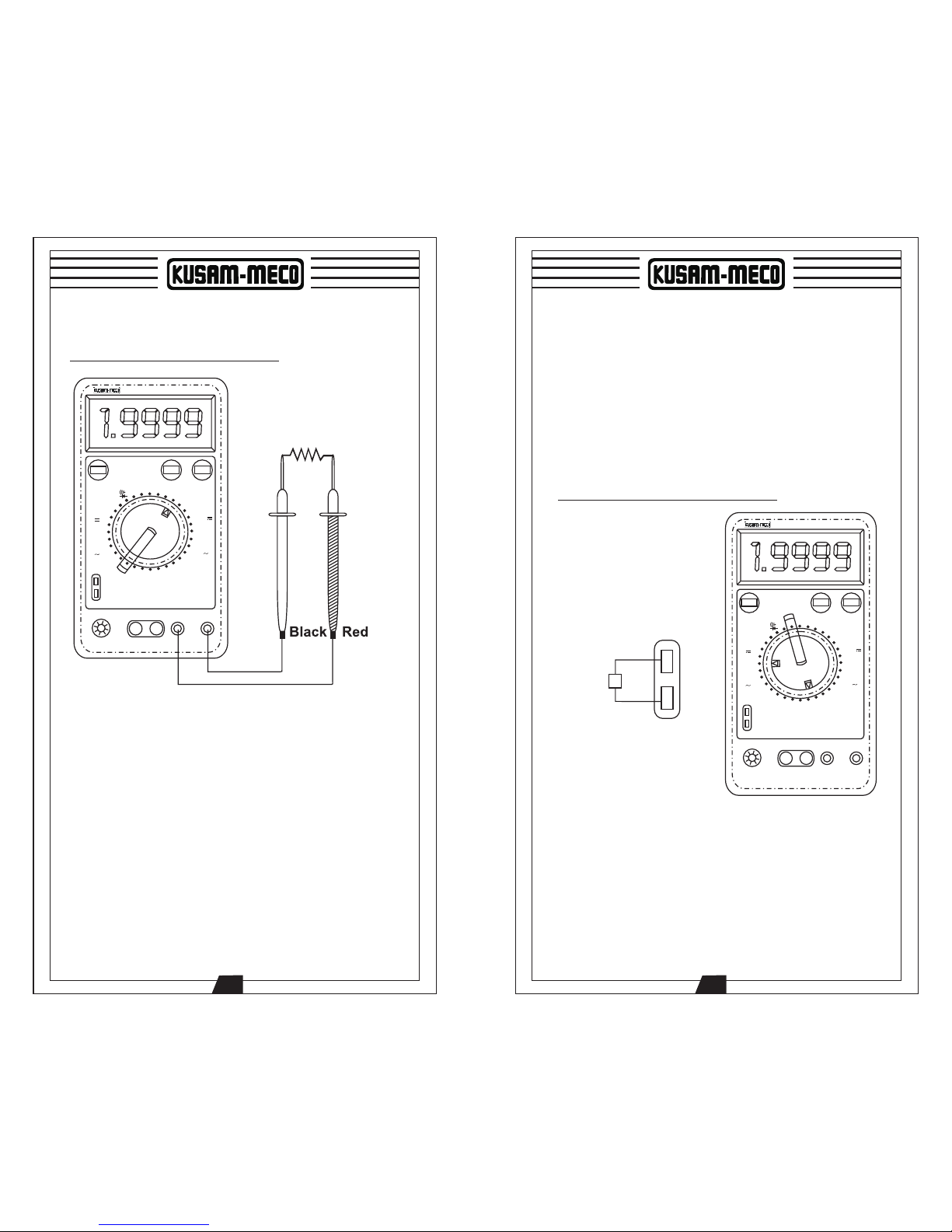

5. Resistance Measurement :
COM
VWHz
20A
mA
NPN
B
B
E
E
E
PNP
E
C
C
Cx
KM 6050
POWER LIGHT HOLD
Auto
Power off
200 2K 20K 200K 2M
20M
200M
200m
2V
20
200
1000
1000
200
20
V
2
2n
20n
200n
2m
200m
2m
20m
200m
20
20
200m
20m
2m
A
hFE
20kHz
A
W
F
Remark :
A. When doing open circuit input, the meter is in
the state of over-range, and only the highest
digit “1” is displayed.
B. When the tested resistance is over 1MW, it
takes a few seconds to stabilize the reading.
It is normal for the HWmeasurement.
(1) Set the function / range switch on Wrange
position needed.
(2) Insert the black test lead into COM jack and
the red test lead into the exposed VWHz jack
(The red test lead is the positive polarity of the
measurement circuit). Connect the test lead
to the two ends of the tested resistance.
15
6. Capacitance measurement :
(1) Set the function / range switch on the range
position needed, waiting for the meter’s Auto
zero-calibration. It is normal that about 10
digits are left in 2 nF.
(2) Discharge the capacitor.
(3) Insert the capacitor under test into “Cx” jack
and measure (It doesn’t need the test lead).
COM
VWHz
20A
mA
NPN
B
B
E
E
E
PNP
E
C
C
Cx
KM 6050
POWER LIGHT HOLD
Auto
Power off
200 2K 20K 200K 2M
20M
200M
200m
2V
20
200
1000
1000
200
20
V
2
2n
20n
200n
2m
200m
2m
20m
200m
20
20
200m
20m
2m
A
hFE
20kHz
A
W
F
C. You should turn off the power when measuring
resistance in the circuit, and discharge the
capacitors on the tested circuit.
D. 200MWposition, there are about 10 digits
when the red & black test leads are in short-
circuit. Deduct these digits from the reading
when measuring.
Cx
Capacitor

16
7. Frequency Measurement:
(1) Set the function/range switch on Hz position.
(2) Insert the black test lead into COM jack and the
red test lead or the cable into the test lead
jack (VWHz jack).
COM
VWHz
20A
mA
NPN
B
B
E
E
E
PNP
E
C
C
Cx
KM 6050
POWER LIGHT HOLD
Auto
Power off
200 2K 20K 200K 2M
20M
200M
200m
2V
20
200
1000
1000
200
20
V
2
2n
20n
200n
2m
200m
2m
20m
200m
20
20
200m
20m
2m
A
hFE
20kHz
A
W
F
Remark:
A. “ ” Never supply the voltage over 250V to
the input terminal. If the voltage value is
1000V RMS, you can get the measurement
result, but that will exceed the accuracy
range of the meter.
!
Remark :
A. Discharge the loaded capacitors, and then
measure.
B. It takes more time when measuring big
capacitors.
6 3
C. Measurement unit : 1pF=10 mF; 1nF=10 mF.
D. Don’t insert the capacitors with high voltage
into the test jack direct.
!
17
B. If the tested signal is too strong, you should
use the external attenuation so as not to
damage the meter.
C. Working in the noisy place, you had better
use the shielded cable if you measure the
small signal.
8. Transistor hFE parameter measurement
(1) Set the function/range switch on hFE position.
(2) First make sure the hFE is PNP type or NPN
type and then insert the leads E, B, C
into the respective sockets of the meter.
(3) The meter displays approx hFE value.
The measurement condition is : base current
is approx 10mA, Vce approx 2.8V.
COM
VWHz
20A
mA
NPN
B
B
E
E
E
PNP
E
C
C
Cx
KM 6050
POWER LIGHT HOLD
Auto
Power off
200 2K 20K 200K 2M
20M
200M
200m
2V
20
200
1000
1000
200
20
V
2
2n
20n
200n
2m
200m
2m
20m
200m
20
20
200m
20m
2m
A
hFE
20kHz
A
W
F
NPN
B
B
E
E
E
PNP
E
C
C
Insert Leads
in this socket.

19
A. When the two test leads are in open-circuit
state, it will display over-range
(only “1” is displayed).
B. Current going through the tested components
is approx 1mA.
10. Continuity Test :
COM
VWHz
20A
mA
NPN
B
B
E
E
E
PNP
E
C
C
Cx
KM 6050
POWER LIGHT HOLD
Auto
Power off
200 2K 20K 200K 2M
20M
200M
200m
2V
20
200
1000
1000
200
20
V
2
2n
20n
200n
2m
200m
2m
20m
200m
20
20
200m
20m
2m
A
hFE
20kHz
A
W
F
Remark :
18
9. Diode measurement :
COM
VWHz
20A
mA
NPN
B
B
E
E
E
PNP
E
C
C
Cx
KM 6050
POWER LIGHT HOLD
Auto
Power off
200 2K 20K 200K 2M
20M
200M
200m
2V
20
200
1000
1000
200
20
V
2
2n
20n
200n
2m
200m
2m
20m
200m
20
20
200m
20m
2m
A
hFE
20kHz
A
W
F
(1) Set the function/range switch on the
position.
(2) Insert the black test lead into COM socket
and the red test lead into the exposed
test lead socket (VWHz jack, and pay
attention that the inner power of the red test
lead is “+”polarity). Connect the red test lead
to the two ends of the tested Diode, and the
meter display Diode’s Forward-way voltage
drop. The unit is “volt”; It will display over-
range if the diode is connected in an opposite
direction.

20
(3) If the resistance value between the two points
to be tested is below 30W, the buzzer will
sound.
The Hold function allows operator to hold the
displayed digital values. When this function is
enabled the display shows the “H” symbol. The
Hold function will be disabled if the Hold key is
pressed again or the position of the rotary switch
is changed.
11) Data Hold Function :
Before inserting the test lead, turn the function/
o
range switch in a circle (360 ) and observe the
motion of the resistance board. This will help you
to get familiar with the meter’s function. Model
KM 6050 digital Multimeter is provided with the
mechanical protection function device as follows:
12) Mechanical Protection Function :
(2) Insert the black test lead into COM socket and
the red one into VWHz jack, and connect the
test lead to the two ends of the circuit to be
tested.
Remark :
You must cut off the power before you check
the tested circuit. It will cause the meter to
display wrong reading if the circuit is charged.
(1) Set the function / range on position.
21
Position of
Function/Range
Switch
Test lead blocked by the
blocking board
VWHz mA 20A
AC / DC Voltage
AC/DC Current
Except 20A
AC / DC Current
20A
Resistance
Capacitance F
Triode hFE
parameter
Frequency Hz
If you find the rotary switch doesn’t move, that’s
because you forget to pull out the test lead. Don’t
force the switch to move. You must pull out the
test lead before turning the rotary switch or the
meter’s mechanical protection system may be
damaged.
“ “ in the following table means
the socket is closed. The black test lead can be
inserted into “COM” jack.

8. MAINTENANCE
It is a precise electronic multimeter. Please
take care to do the maintenance well.
1. Don’t connect to the voltage over 1000 DCV or
1000ACV.
2. Don’t forget to pull out the test lead before
turning the function / range switch so as not to
damage the mechanical protection system.
3. Don’t use the meter before replacing the back
cover of it.
4. Battery replacement : Pull out the test lead and
turn off the power before replacing the battery.
5. Fuse replacement : Press the off key to turn off
the instrument, and disconnect the test leads
from the input terminals. Remove the back
cover screws and open the back cover.
Replace the fuse / fuses with new fuse of the
same type and rating : 0.2A / 250V.
6. Remove the battery and put it in a dry and airy
place if the meter is not used for a long time.
7. Don’t change the inner circuit to avoid damage
the meter.
23
13. Backlight Function
The meter is featured with backlight function for
better use when the environment light is dim.
Press the “LIGHT” button to enable the
backlight, push it again to turn off the light.
14. Select the display angle of the meter :
KM 6050 provided with protection holsters,
which can support the meter in different angles as
well as protect the meter. This is convenient to
observe the reading.
22

9. ACCESSORIES
1. User’s Manual
2. One Holster
3. One pair test lead
24 25
MUMBAI
TEST CERTIFICATE
DIGITAL MULTIMETER
This Test Certificate warrantees that
the product has been inspected and
tested in accordance with the published
specifications.
The instrument has been calibrated by
using equipment which has already
been calibrated to standards traceable
to national standards.
MODEL NO. ___________
KM 6050
SERIAL NO. ___________
DATE: ___________
ISO 9001
REGISTERED
QC
PASS
KUSAM-MECO

WARRANTY
26
Each “KUSAM-MECO” product is warranted to be
free from defects in material and workmanship
under normal use & service. The warranty period is
one year (12 months) and begins from the date of
despatch of goods. In case any defect occurs in
functioning of the instrument, under proper use,
within the warranty period, the same will be rectified
by us free of charges, provided the to and fro freight
charges are borne by you.
This warranty extends only to the original buyer or
end-user customer of a “KUSAM-MECO” authorized
dealer.
This warranty does not apply for damaged Ic’s,
fuses, burnt PCB's, disposable batteries, carrying
case, test leads, or to any product which in “KUSAM-
MECO’s” opinion, has been misused, altered,
neglected, contaminated or damaged by accident or
abnormal conditions of operation or handling.
“KUSAM-MECO” authorized dealer shall extend this
warranty on new and unused products to end-user
customers only but have no authority to extend a
greater or different warranty on behalf of “KUSAM-
MECO”.
“KUSAM-MECO’s” warranty obligation is limited, at
option, free of charge repair, or replacement of a
defective product which is returned to a “KUSAM-
MECO” authorized service center within the
warranty period.
G 17,Bharat Industrial Estate, T. J. Road,
Sewree (W), Mumbai - 400 015. INDIA.
Sales Direct : [phone]
Tel. : [phone].
Fax : [phone]
Email : [email protected]
Website : www.kusamelectrical.com,
www.kusam-meco.co.in
THIS WARRANTY IS BUYER’S SOLE AND
EXCLUSIVE REMEDY AND IS IN LIEU OF ALL
OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO ANY IMPLIED
WARRANTY OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE.
“KUSAM-MECO” SHALL NOT BE LIABLE FOR
ANY SPECIAL, INDIRECT, INCIDENTAL OR
CONSEQUENTIAL DAMAGES OR LOSSES,
INCLUDING LOSS OF DATA, ARISING FROM
ANY CAUSE WHATSOEVER.
All transaction are subject to Mumbai Jurisdiction.
27
