Kustom Signals Digital Eyewitness HD User manual

Kustom Signals, Inc.

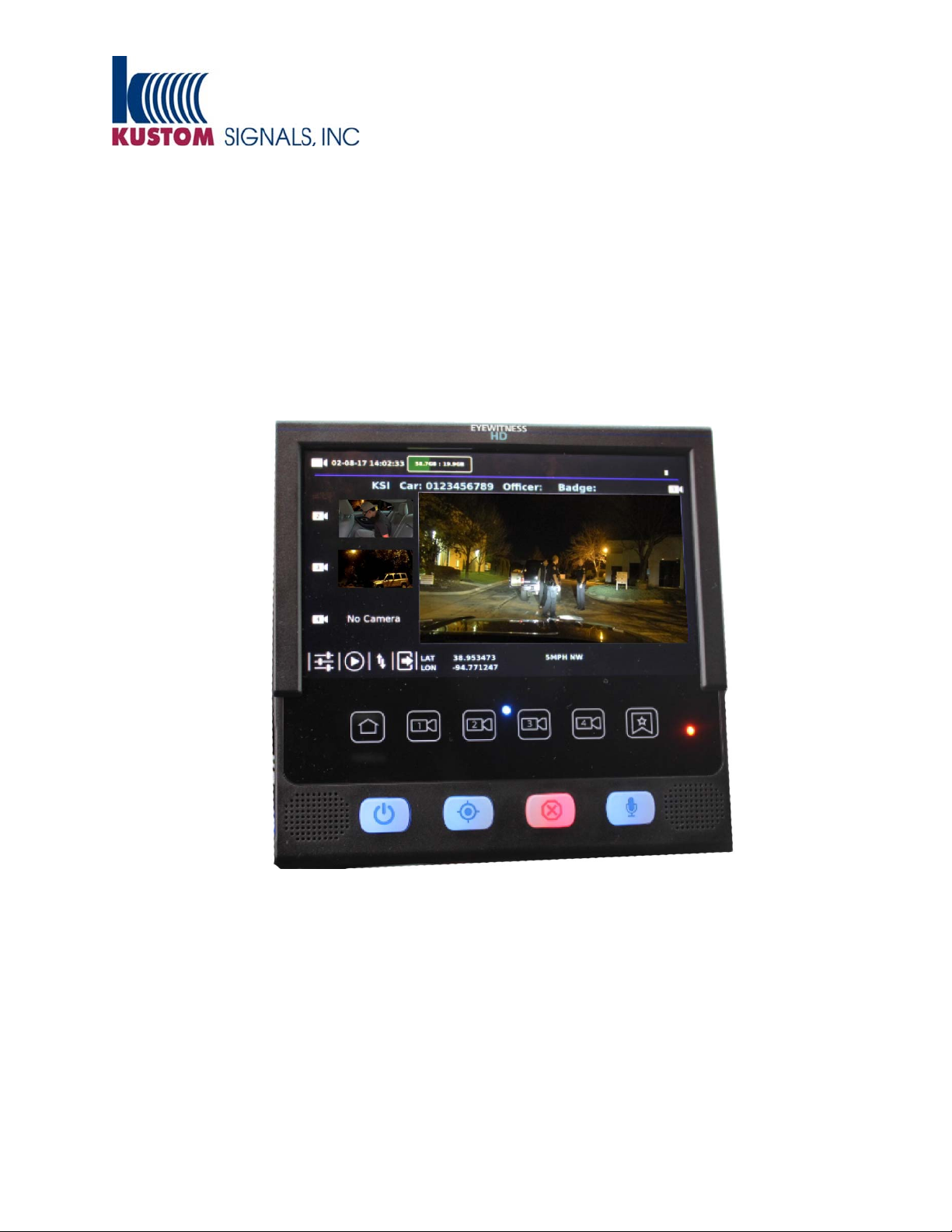

Digital Eyewitness® HD
In-Car Video System
Installation Manual
Manual Part Number: 006-1219-00 Rev. 0

Copyright © 2017, Kustom Signals, Inc.
All Rights Reserved. Printed in U.S.A.
This publication may not be reproduced, stored in a retrieval system, or transmitted in whole or
in part in any form or by any means electronic, mechanical, photocopying, recording, or
otherwise without prior written permission of Kustom Signals, Inc.
Kustom Signals, Inc.
9652 Loiret Boulevard
Lenexa, KS 66219-2406
Sales: 1-800-4-KUSTOM (1-800-458-7866)
Sales Fax: [phone]
Technical Support: 1-800-835-0156 or 1-620-431-2700
Web: www.kustomsignals.com

Manual Part Number:
006-1219-00 Rev. 0
i Digital Eyewitness® HD
In-Car Video System
Important/Notable Information
While all of the information in this manual is important, there are some pieces of information
where special attention needs to be paid to avoid equipment damage, or specific information
needs to be emphasized. This information will be handled as follows:
IMPORTANT Indicates an operating procedure, practice, or condition that, if
not strictly followed, may cause equipment damage.
Note: Indicates additional information or emphasizes a topic related to the subject
being discussed.
Field Service
Kustom Signals, Inc. can provide field service for start-up assistance, training, maintenance,
and replacement/spare parts for new and existing equipment.
Contact a Kustom Signals, Inc. technical support representative by calling 1-800-835-0156 or
1-620-431-2700.
Careful Placement of Components
Care should be taken when considering the placement of components. This is especially
important with components that will be worn by the officer (i.e., the wireless audio transmitter).
WARNING Placement of items on the duty belt can restrict ready access to
important equipment.
The location of the wireless audio transmitter or any other
device provided with this system that is carried on the officer’s
person should be chosen with great care and consideration.
After a location is chosen, the officer should test access to and
practice drawing primary items, such as service firearms and
secondary defense devices such as aerosol subject restraint,
batons, and electronic control devices, etc. Proper operation of
handheld radios and other signaling devices should also be
tested as should access to handcuffs and other restraining
devices.
Take Appropriate Steps When Drilling Holes
Some installations may require the technician to drill a hole or holes in the vehicle. In these
cases, the technician should verify prior to drilling that drilling through a panel will not result in
damage to any component behind the panel being drilled.
CAUTION The technician should make sure that the mounting location will
not result in other components being damaged during the
installation, such as when drilling the pilot holes.
If holes are drilled, the technician must be sure that the holes are
completely sealed prior to returning the vehicle to the customer.
Once the hole has been drilled, when the technician is installing the component, they need to
be sure that the hole is completely sealed. Sealing the hole will prevent fumes from outside of
the vehicle from entering the passenger compartment.

Digital Eyewitness® HD
In-Car Video System
ii Manual Part Number:
006-1219-00 Rev. 0
This Page Intentionally Left Blank

Manual Part Number:
006-1219-00 Rev. 0
iii Digital Eyewitness® HD
In-Car Video System
Digital Eyewitness® HD In-Car Video System
Table of Contents
Chapter Page
1 Product Description ..................................................................................... 1-1
General Description ........................................................................................ 1-1
Basic Digital Eyewitness® HD System ........................................................ 1-1
Optional Eyewitness® HD System Components ......................................... 1-2
Checking the Order ........................................................................................ 1-3
Installer Qualifications .................................................................................... 1-4
Order of Installation ........................................................................................ 1-4
Protecting Against RFI (Radio Frequency Interference) ................................. 1-5
Power/Ground Connection Requirements ...................................................... 1-6
Eyewitness® HD System Serial Numbers ....................................................... 1-6
2 Installing the Tablet Monitor Controller (TMC) .......................................... 2-1
General Description ........................................................................................ 2-1
Preparing the Tablet Monitor Controller (TMC) for the Ball and
Socket Mount Installation ........................................................................ 2-1
Tablet Monitor Controller Installation .......................................................... 2-4
TMC Ball and Socket Mount ..................................................................................... 2-4
Headliner Mount ....................................................................................................... 2-6
3 Installing the Cameras and In-Car Microphone (ICM) ............................... 3-1
General Description ........................................................................................ 3-1
Installing an HD Camera with Standard Combination Camera/
Expanse Audio Transmitter Base Mount (Part # 050-0695-04) ............. 3-1
Initial Checks Prior to Installing Camera on Windshield or Headliner
Mounting Tab .......................................................................................... 3-4
Installing an HD Camera with Windshield Mount (Part # 050-0615-00) ........ 3-5
Installing an HD Camera with Optional Headliner Mount
(Part # 050-0615-00) .............................................................................. 3-9
Installing the In-Car Microphone ............................................................... 3-11
Installing the Rear Seat Camera with Integrated In-Car Microphone ....... 3-12
4 Routing and Installing System Cables ....................................................... 4-1
General Description ........................................................................................ 4-1
Basic Cabling Information .............................................................................. 4-1
Side Airbag Precautions ............................................................................. 4-2
Radio Frequency Interference (RFI) Prevention ......................................... 4-2
Routing Cables Through Bulkheads ........................................................... 4-2
Managing Excess Cable ............................................................................. 4-3

Digital Eyewitness® HD
In-Car Video System
iv Manual Part Number:
006-1219-00 Rev. 0
Mini-Octopus (Mini-OTP) Cable (Part # 155-3952-00) ................................... 4-4
Accessory Cable (Part # 155-3956-25) .......................................................... 4-5
Installing the Power Cable (Part # 155-3957-25) ............................................ 4-7
Installing the Power Tamer ............................................................................. 4-8
5 Installation of GPS and Wi-Fi Antennas ..................................................... 5-1
General Information ........................................................................................ 5-1
Installing GPS Components (Part # 015-1599-00) ..................................... 5-1
Installing Wireless N File Transfer 5.0 GHz Antenna Components
(Part # 050-0860-00) ............................................................................... 5-2
6 Installation of the Digital Video Recorder (DVR) ....................................... 6-1
General Description ........................................................................................ 6-1
DVR Front Panel ......................................................................................... 6-1
DVR Rear Panel ......................................................................................... 6-2
DVR Heat Management ........................................................................................... 6-3
DVR / System Serial Number Locations ..................................................... 6-4
Preparing the DVR for Mounting ................................................................. 6-4
Mounting the DVR ....................................................................................... 6-4
7 Installation of the Mobile Data Computer (MDC) Option .......................... 7-1
General Description ........................................................................................ 7-1
Minimum System Requirements ................................................................. 7-1
Eyewitness® HD MDC Installation Instructions ........................................... 7-1
8 Field Verification of File Transfer Operability ............................................ 8-1
General Information ........................................................................................ 8-1
Index .......................................................................................................... Index-1

Manual Part Number:
006-1219-00 Rev. 0
v Digital Eyewitness® HD
In-Car Video System
List of Figures
Figure Page
Figure 1-1. Example Top Tray .............................................................................................. 1 - 3 
Figure 1-2. Example Middle Tray ......................................................................................... 1-3
Figure 1-3. Example Bottom Tray......................................................................................... 1-3

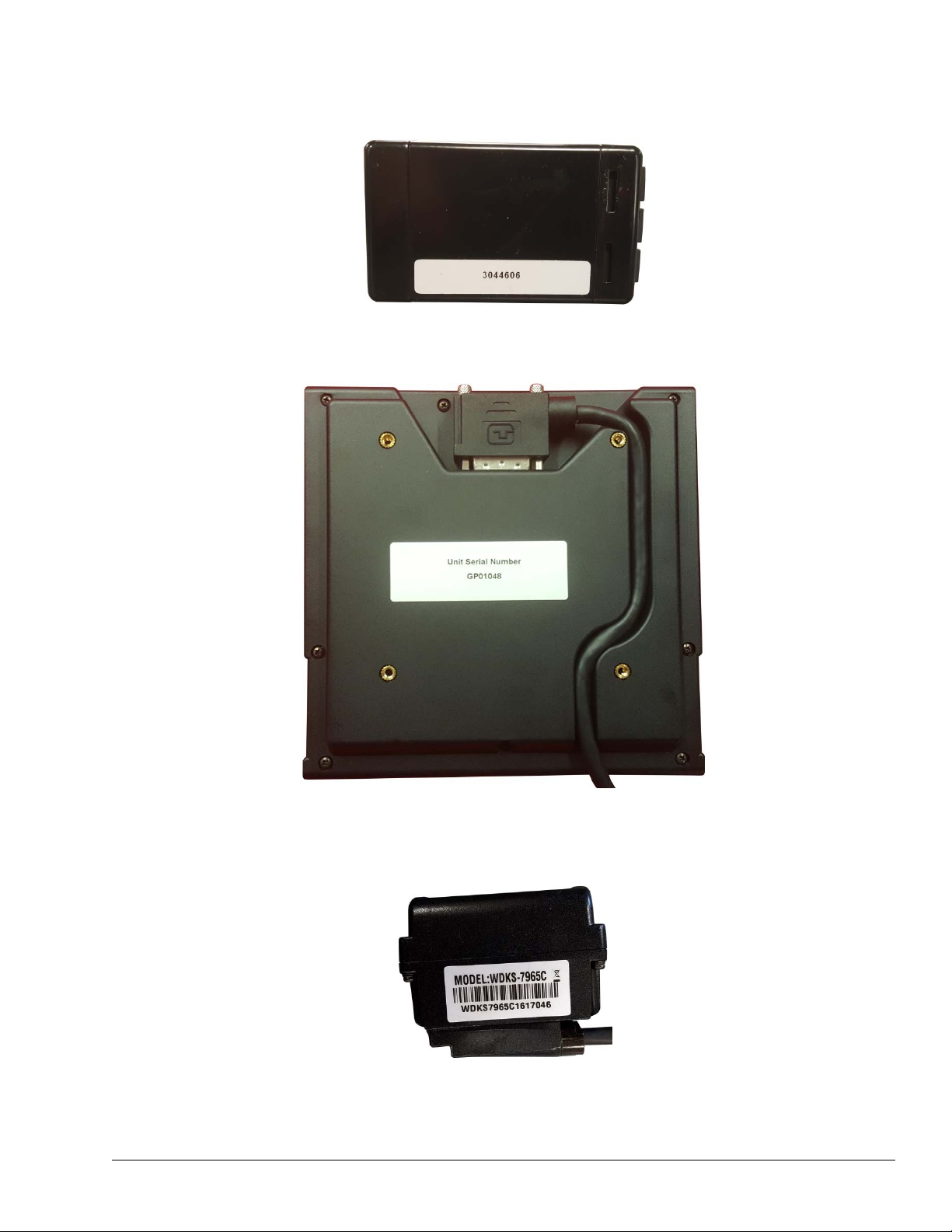

Figure 1-4. Serial Number Location on the DVR .................................................................. 1-6
Figure 1-5. HD Camera Serial Number Label ...................................................................... 1-7
Figure 1-6. Monitor Serial Number Label ............................................................................. 1-7
Figure 1-7. Rear Seat Camera Serial Number Label............................................................ 1-7
Figure 1-8. Expanse Transmitter Base Serial Number Label ............................................... 1-8
Figure 1-9. Expanse Transmitter Serial Number Label ........................................................ 1-8
Figure 2-1. Tablet Monitor Controller .................................................................................... 2-1

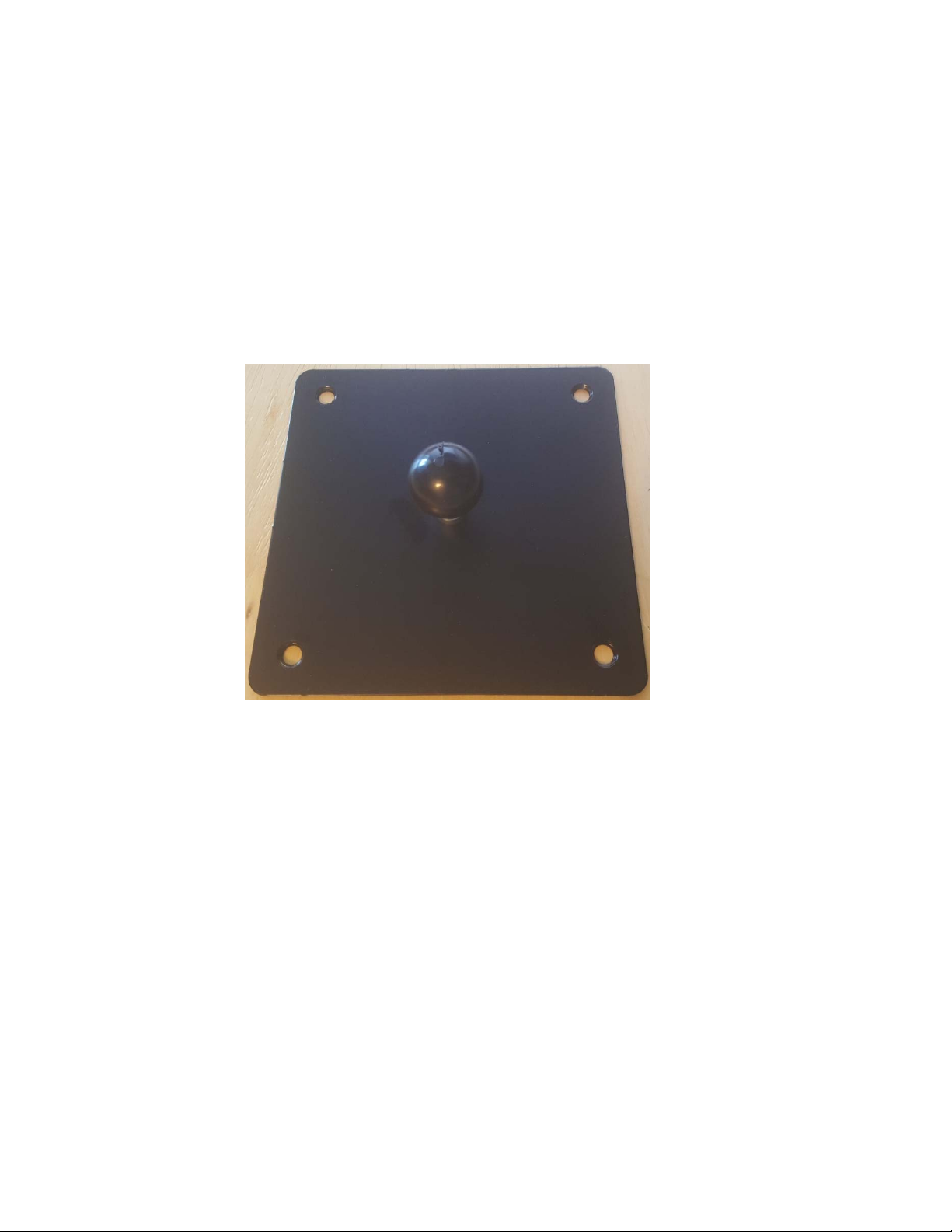

Figure 2-2. Ball Stud Installed in Display Mounting Plate ..................................................... 2-2
Figure 2-3. Tablet Monitor Controller Cable Connection and Cable Routing ........................ 2-3
Figure 2-4. Align the Display Mounting Plate with the Holes in the Display .......................... 2-3

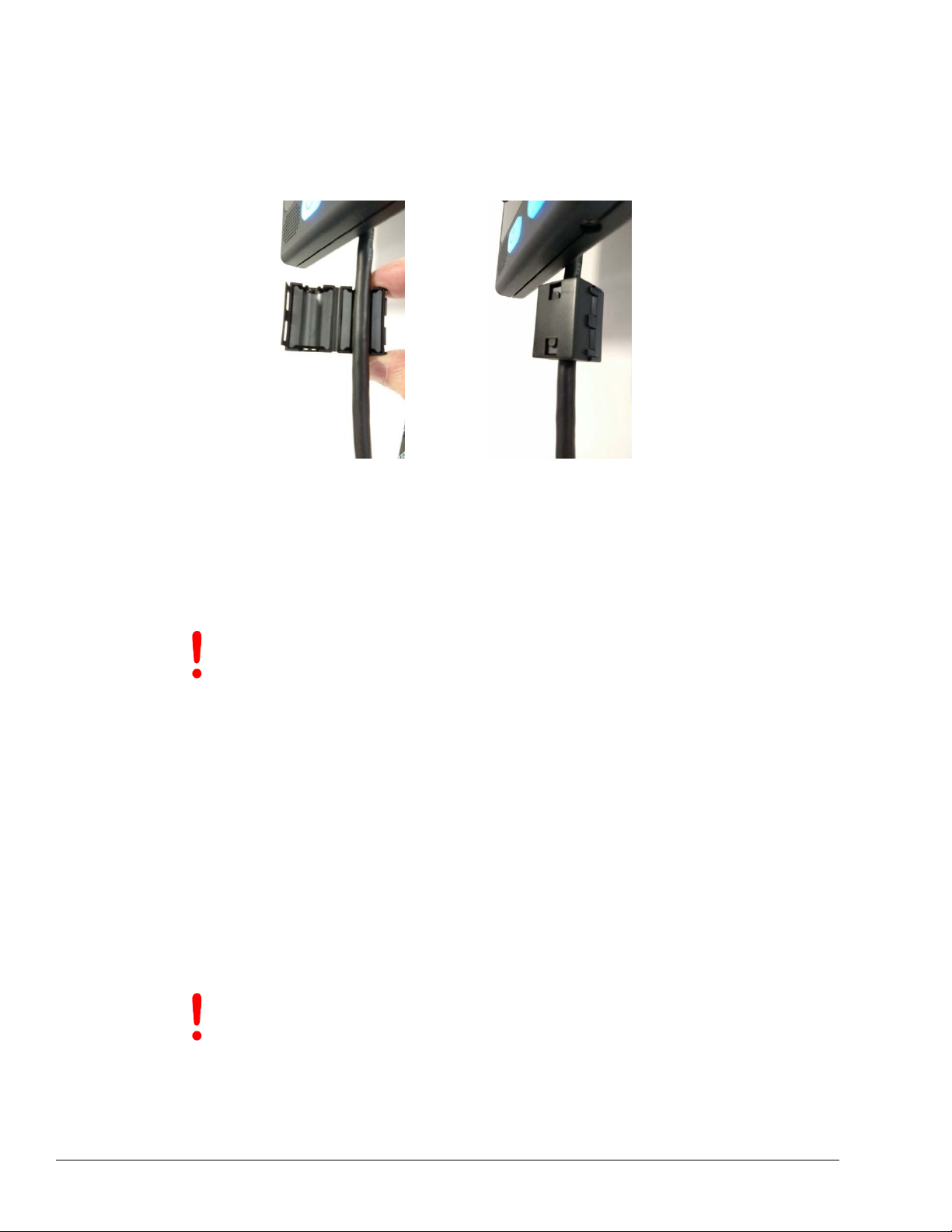

Figure 2-5. Ferrite Clamp Installation on Tablet Monitor Control Cable ................................ 2-4
Figure 2-6. Display Mount Base ........................................................................................... 2-5
Figure 2-7. Dual Ball Mount Receiver ................................................................................... 2-5
Figure 2-8. Overhead Console Removed ............................................................................. 2-6
Figure 2-9. Headliner Cutout ................................................................................................ 2-6
Figure 2-10. Creating the Hole for the Center Nut .................................................................. 2-7
Figure 2-11. Wire Routing Through Headliner ........................................................................ 2-7
Figure 2-12. Preparing the Fastener for the Center Nut ......................................................... 2-8
Figure 2-13. Final Mounting Position ...................................................................................... 2-8
Figure 3-1. Brace (Top View) ............................................................................................... 3-1
Figure 3-2. Antenna Cable Connection at Expanse Transmitter Base ................................. 3-2
Figure 3-3. Expanse Transmitter Antenna ............................................................................ 3-2
Figure 3-4. Route the Camera and Audio Transmitter Base Cables .................................... 3-2
Figure 3-5. Installing the Sun Visor Clip over the Mounting Bracket .................................... 3-3
Figure 3-6. Proper Final Position of Antenna ....................................................................... 3-4
Figure 3-7. Camera Mounting Hardware .............................................................................. 3-4
Figure 3-8. Windshield Mounting Tab ................................................................................... 3-6
Figure 3-9. Proper Orientation of the Windshield Mounting Tab .......................................... 3-6
Figure 3-10. Jam Nuts Properly Installed ............................................................................... 3-7
Figure 3-11. Top of HD Camera ............................................................................................. 3-8
Figure 3-12. HD Camera on Windshield Mount ...................................................................... 3-8
Figure 3-13. Jam Nuts Properly Installed ............................................................................... 3-9
Figure 3-14. Camera Bracket on Top of Camera ................................................................. 3-10
Figure 3-15. Headliner Mounting Tab ................................................................................... 3-10
Figure 3-16. In-Car Microphone Mounting ............................................................................ 3-11
Figure 3-17. Inline Camera Connection ................................................................................ 3-12
Figure 3-18. Inline Camera Connection Secured with Electrical Tape ................................. 3-13
Figure 4-1. Basic Eyewitness® HD Wiring Layout ................................................................ 4-1
Figure 4-2. Power Cable Routed Through Factory Pass-Thru ............................................. 4-3
Figure 4-3. Managing Cables – Creating a Dog Bone .......................................................... 4-3
Figure 4-4. OTP Cable ......................................................................................................... 4-4
Figure 4-5. OTP Cable Connection at the DVR .................................................................... 4-4

Digital Eyewitness® HD
In-Car Video System
vi Manual Part Number:
006-1219-00 Rev. 0
Figure 4-6. Wire Color and Uses .......................................................................................... 4-5
Figure 4-7. Power Cable Taped to Fish Tape ...................................................................... 4-7
Figure 4-8. Sample Power Tamer Mounting Location (Inner Fender – Crown Vic) .............. 4-8
Figure 4-9. Chassis Ground Connection (Charger Shown) .................................................. 4-9
Figure 5-1. GPS Antenna – Example A-Pillar Mount ........................................................... 5-1
Figure 5-2. Wi-Fi Antenna Mounting Screws ........................................................................ 5-2
Figure 5-3. Completed Antenna Installation ......................................................................... 5-3
Figure 5-4. Wireless Antenna Connections on Rear of DVR ................................................ 5-3
Figure 6-1. Front Panel of the DVR ...................................................................................... 6-1
Figure 6-2. Rear View of DVR .............................................................................................. 6-2
Figure 6-3. DVR Vent Holes ................................................................................................. 6-3
Figure 6-4. DVR Heat Sink ................................................................................................... 6-3
Figure 6-5. Cage Mounted DVR on Back of Rear Cage – SUV Installation ......................... 6-4
Figure 6-6. Floor Mounted Location of DVR......................................................................... 6-5
Figure 6-7. GPS Antenna Connection .................................................................................. 6-5
Figure 6-8. Wireless File Transfer Antenna Connections ..................................................... 6-6
Figure 6-9. Mini-OTP Cable Connections ............................................................................ 6-6
Figure 6-10. Tablet Monitor Controller (TMC) Connection ..................................................... 6-6
Figure 6-11. MDC Control Connection ................................................................................... 6-6
Figure 6-12. Camera Connections ......................................................................................... 6-7
Figure 6-13. Accessory Cable Connection ............................................................................. 6-7
Figure 7-1. Determine Which Port the Ethernet Cable is Connected to ............................... 7-2
Figure 7-2. Local Area Connection Properties ..................................................................... 7-2
Figure 7-3. Internet Protocol Version 4 (TCP/IPv4) Properties ............................................ 7-3
Figure 7-4. PreInitSettings.json File in Text Editor ............................................................... 7-3
Figure 7-5. MDC Controller .................................................................................................. 7-4
Figure 8-1. Wi-Fi Signal Strength Indicator .......................................................................... 8-1
Figure 8-2. Example Starting File Transfer Session Message ............................................. 8-1
Figure 8-3. Example File Transfer Messages ...................................................................... 8-2
Figure 8-4. Example File Transfer Finished Message .......................................................... 8-2
Figure 8-5. Example File Transfer Failed Message ............................................................. 8-2

Product Description
Manual Part Number:
006-1219-00 Rev. 0
1–1 Digital Eyewitness® HD
In-Car Video System
Chapter 1
Product Description
General Description
This installation manual is intended to provide the installation technician with easy to follow
instructions for installing a Digital Eyewitness® HD in-car video system. The manual is divided
into chapters, each of which provides a set of instructions for installing a specific portion of the
system.
This chapter provides the installer with high-level product information for the Eyewitness® HD
in-car video system.
The Eyewitness® HD is available as a base system package, and may be upgraded with many
additional features. A detailed list of the basic Eyewitness® HD package and the additional
features will be covered on the following pages.
IMPORTANT This manual is laid out in a component-by-component format.
The technician does not have to install components in the same
order that they appear in the manual. For example, the
technician may want to install the Tablet Monitor Controller
(TMC) prior to the DVR, even though the DVR information
appears first in the manual. All components should be installed
and cables routed prior to installing the vehicle trim panels.
Basic Digital Eyewitness® HD System
The base Eyewitness® HD system is comprised of the following components:
 Digital Video Recorder (DVR)
 64 GB removable hard drive
 Forward facing High Definition camera
 Either a Tablet Monitor Controller (TMC), or Mobile Data Computer (MDC) interface
 MDC Controller (if equipped with MDC)
 Standalone In-Car Microphone (ICM)
 Wireless audio transmitter (radio)/docking station
 DVR mounting kit
 Cabling
 Camera/wireless audio transmitter (radio) base combination mount

Product Description
Digital Eyewitness® HD
In-Car Video System
1–2 Manual Part Number:
006-1219-00 Rev. 0
Optional Eyewitness® HD System Components
The Eyewitness® HD system may be ordered in many configurations that may include any of
the following components:
 Internal 64 GB hard drive (in addition to the removable hard drive – required for
background recording)
 Dual wireless audio transmitter (radio)/docking station
 Mobile Data Computer (MDC) control (in addition to, or instead of, the 7-inch display)
 Radar interface
 Window mount or visor mount for primary standalone HD camera (forward facing)
 Additional rear seat mounted SD camera with integrated in-car microphone (standalone
in-car microphone (ICM) is not included if rear seat mounted SD camera is ordered)
 Additional HD camera or cameras (up to three (3) total) with either a windshield mount
or visor mount
 GPS
 File transfer (both wired and wireless 5.0 GHz antenna kit options are available)
 Ignition modification (used to power the system on when the vehicle ignition key is
turned to the run position)

Product Description
Manual Part Number:
006-1219-00 Rev. 0
1–3 Digital Eyewitness® HD
In-Car Video System
Checking the Order
Prior to beginning the installation of the system, the technician should check the items received
against the original order and packing slip. If any items are missing, please notify Kustom
Signals, Inc. at 1-800-835-0156 or 1-620-431-2700.
When the box is opened, the installer will find an installation guide that is a useful reference
tool during the installation. Beneath the installation guide the installer will find that the box has
three (3) foam trays that hold the various components:
 The top tray contains most of the cables that are needed for the system.
Note: Each cable has a color-coded tag at the DVR end of the cable that matches a
color key on the rear of the DVR. When installing the cables, the cables should
be routed so the labeled end of the cable is at the DVR.
Figure 1-1. Example Top Tray
 The middle tray contains the Tablet Monitor Controller (TMC) (if applicable), cameras,
wireless transmitter, the associated mounting hardware and the Expanse transmitter
antenna.
Figure 1-2. Example Middle Tray
 The bottom tray contains the DVR, GPS antenna (optional), and Wi-Fi antennas
(optional) and the associated mounting hardware for these components.
Figure 1-3. Example Bottom Tray

Product Description
Digital Eyewitness® HD
In-Car Video System
1–4 Manual Part Number:
006-1219-00 Rev. 0
Installer Qualifications
Only persons who have been properly trained and hold the appropriate qualifications should
attempt to install the Digital Eyewitness® HD in-car video system or any of its components.
WARNING Before installing, adjusting, or servicing any system
components, the technician should make themselves familiar
with the system and the electrical cabling requirements of the
system.
These instructions have been organized to allow quick access to the information needed for
the proper installation of the Digital Eyewitness® HD system. Critical details for each step in
the procedure will be presented with each step, when needed.
The technician is encouraged to read through the detailed instructions at least once – even if
the technician has previous installation experience on the Eyewitness® systems. As Kustom
Signals, Inc. continues to enhance the product, some modifications have been made to some
of the installation procedures that were presented in the past.
Order of Installation
Kustom Signals, Inc. recommends that the installer follow the following sequence when
installing the Eyewitness® HD system.
IMPORTANT When selecting the mounting locations for the various
components, the installer should be aware of how long the
cables are for each of the components and how those cables will
be routed. This will prevent having to relocate any components
later due to the cable not reaching the DVR.
1. Install the Tablet Monitor Controller (TMC) (if applicable).
2. Install the forward-facing HD camera/Expanse audio transmitter.
3. Install the standalone in-car microphone or optional rear seat SD camera/in-car
microphone.
4. Install the optional 2nd HD camera (if applicable).
5. Route the Accessory and Power cables.
6. Install the GPS antenna (if applicable).
7. Install the Wi-Fi antenna(s) (if applicable).
8. Route the remaining component cables to the DVR.
9. Install the DVR.
10. Perform the MDC configuration (if applicable).
IMPORTANT This manual is laid out in a component-by-component format.
Kustom Signals, Inc., recommends that installers follow the
general order, although the order of individual components may
be altered slightly. All components should be installed and
cables routed, prior to installing the vehicle trim panels.
Prior to starting the installation, there are some steps that should be taken by the installer to
prepare for the installation.

Product Description
Manual Part Number:
006-1219-00 Rev. 0
1–5 Digital Eyewitness® HD
In-Car Video System
1. If the system was ordered with a mounting tab that glues to the windshield, the glue that
secures the mounting tab to the windshield must have at least two (2) hours to dry before
the camera is attached. This mounting tab must be installed at the beginning of the
installation to allow adequate time for the glue to cure. Failure to allow adequate drying
time may result in the bond failing at a later date. This would result in the camera falling
from the windshield, which could result in the camera detaching from the windshield and
creating officer safety issues.
2. If ball and socket mount is being used to mount the TMC, install the ball part of the mount,
using Loctite® Thread Locker Blue 242® on the threads of the ball prior to installing into
the bracket. This must be installed at the beginning of the installation to allow adequate
time for the Loctite® to setup. The Loctite® will setup in 10 minutes and fully cure in 24
hours. Failure to allow adequate drying time may result in the bond failing at a later date.
This could result in the ball coming loose from the TMC, which could result in difficulty
positioning the TMC.
3. Determine the mounting position of the DVR. This should be done prior to routing any
cables, to prevent having to re-route cables.
IMPORTANT The fuse MUST NOT be installed in the fuse holder in the main
power connector until all other components and cables are
installed and connected. Failure to follow this recommendation
ma
y
result in dama
g
e to the s
y
stem.
Protecting Against RFI (Radio Frequency Interference)
When installing the system, the following guidelines should be followed to help eliminate
interference that may affect the video signal, audio signal, or both:
1. All of the components of the Eyewitness® HD system should be mounted as far away
from the 2-way radio (and its amplifier) as possible.
2. All cables should be routed as far away from the 2-way radio cables as possible.
3. The antenna for the Expanse transmitter should be mounted as far away as possible from
the antenna for the 2-way radio.
4. The power cable’s ground connection should be connected directly to chassis ground, as
close to the negative post of the battery as possible.
5. The ferrite clamp should be installed on the controller cable near the controller.
6. The DVR chassis should be grounded properly to the vehicle chassis using the supplied
ground cable. It will be attached to the DVR chassis from the factory.
Note: To help ensure that radio interference is eliminated or minimized, it may be
helpful to consult with an experienced radio technician.

Product Description
Digital Eyewitness® HD
In-Car Video System
1–6 Manual Part Number:
006-1219-00 Rev. 0
Power/Ground Connection Requirements
The following steps MUST be followed to ensure proper operation of the Digital Eyewitness®
HD in-car video system.
1. A power tamer is included with the system and must be installed for the system to operate
properly . DO NOT substitute other models or manufacturers of similar devices. DO NOT
connect other equipment to the power tamer that is supplied with the Eyewitness® HD
system.
2. Main system power should be connected at the positive power lug at the main power
distribution block. If the main power distribution block does not have a positive power lug
available, the power lead may be connected to the positive post of the battery as a last
resort. On Ford Interceptor vehicles, a factory jumper harness is provided for these
connections.
3. Main system ground should be connected to chassis ground, as close to the negative
post of the battery as possible. On Ford Interceptor vehicles, a factory jumper harness is
provided for these connections.
IMPORTANT Kustom Signals, Inc. strongly recommends against connecting
the ground lead directly to the negative post of the battery.
Kustom Signals, Inc. strongly recommends against cutting any
of the vehicle wiring.
Eyewitness® HD System Serial Numbers
Whenever service or technical assistance is required, contact a Kustom Signals’ customer
service representative by calling 1-800-835-0156 or 1-620-431-2700. The caller should be
prepared to provide the Serial Numbers for the system components requiring service.
The DVR serial number label is located on the rear panel of the DVR.
Figure 1-4. Serial Number Location on the DVR
Model and
Serial Number
Location

Product Description
Manual Part Number:
006-1219-00 Rev. 0
1–7 Digital Eyewitness® HD
In-Car Video System
The serial number label for the HD cameras will be located on the top of the camera housing.
Figure 1-5. HD Camera Serial Number Label
The serial number for the system monitor is located on the back of the monitor.
Figure 1-6. Monitor Serial Number Label
The serial number for the rear seat camera/ICM is located on the bottom surface of the
camera.
Figure 1-7. Rear Seat Camera Serial Number Label

Product Description
Digital Eyewitness® HD
In-Car Video System
1–8 Manual Part Number:
006-1219-00 Rev. 0

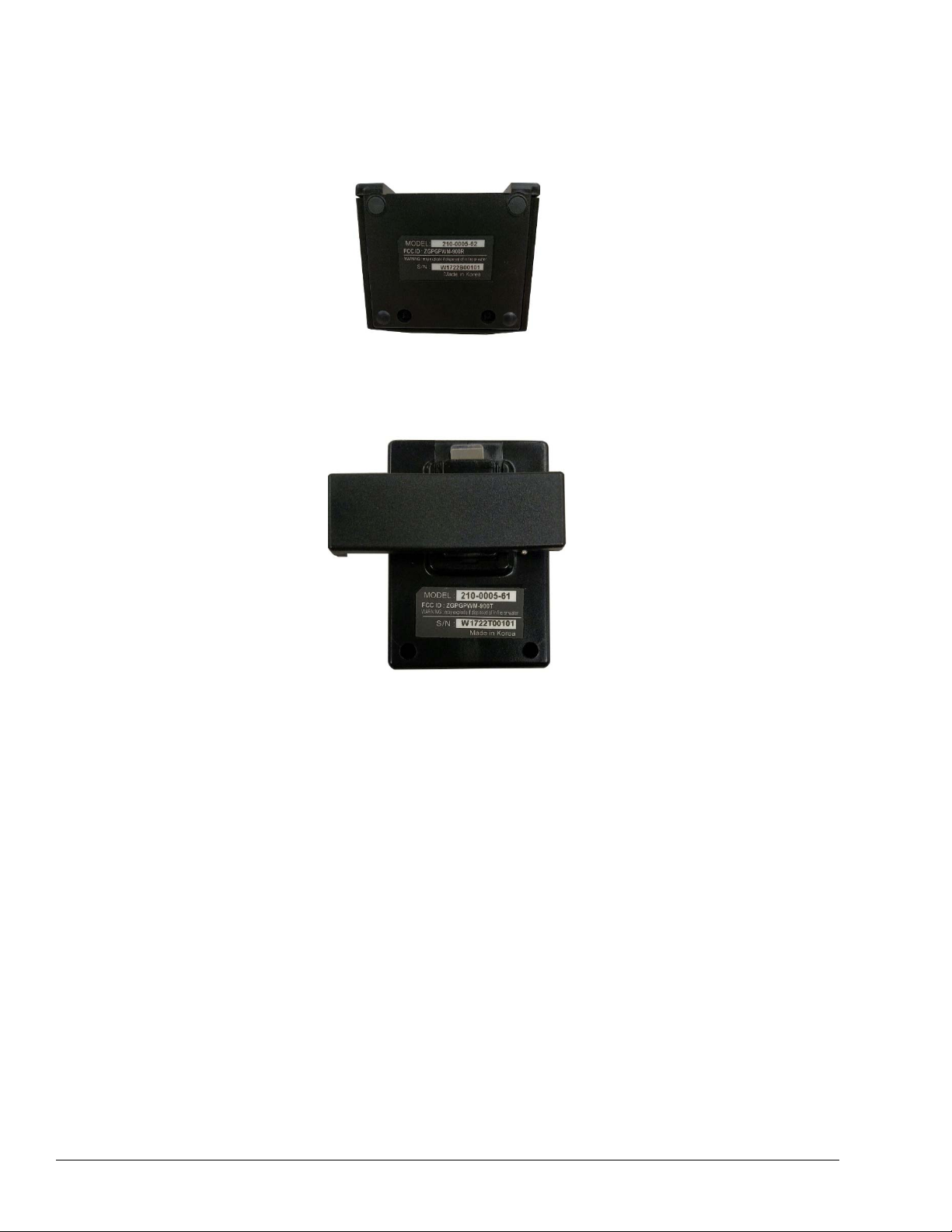

The serial number for the Expanse wireless audio base can be found on the bottom of the
base. Keep in mind that the base is typically installed face down, meaning that the bottom of
the base is actually facing the windshield of the vehicle.
Figure 1-8. Expanse Transmitter Base Serial Number Label
The serial number for the Expanse wireless audio transmitter is found on the back of the
device.
Figure 1-9. Expanse Transmitter Serial Number Label

Installing the Tablet Monitor Controller (TMC)
Manual Part Number:
006-1219-00 Rev. 0
2–1 Digital Eyewitness® HD
In-Car Video System
Chapter 2
Installing the Tablet Monitor Controller (TMC)
General Description
The Digital Eyewitness® HD in-car video system provides two monitor options:
 Tablet Monitor Controller (Part # 200-2273-00)
 Ferrite Clamp (Part # 013-0020-00)
 MDC Controller (Part # 200-3054-00)
 MDC Controller Cable (Part # 155-4002-22)
Preparing the Tablet Monitor Controller (TMC) for the Ball and
Socket Mount Installation
The installer has some flexibility when installing the Eyewitness® HD system controller,
depending on the type of vehicle and the equipment in the vehicle.
IMPORTANT Do not remove the protective film from the display until it is time
to hand the vehicle back to the customer. This will help protect
the display during installation.
Figure 2-1. Tablet Monitor Controller
The following items are needed to facilitate the installation:
 Tablet Monitor Controller (TMC)
 Mounting hardware
 Cable
 Loctite® Thread Locker Blue 242®
 Phillips head screwdriver
 Pliers
 22mm wrench

Installing the Tablet Monitor Controller (TMC)
Digital Eyewitness® HD
In-Car Video System
2–2 Manual Part Number:
006-1219-00 Rev. 0
To install the TMC use the following steps:
1. Locate the TMC and place it face down on a soft surface, such as a lint-free towel.
2. Locate the TMC mounting hardware and set them aside.
3. Grab the ball stud that will be installed on the TMC mounting bracket. Apply Loctite®
Thread Locker Blue 242® to the threads.
4. Install and tighten the ball stud in the center mounting hole on the back side of the TMC
mounting plate, using a pair of pliers. Set the mounting plate aside. The Loctite® will
setup in 10 minutes and fully cure in 24 hours.
Figure 2-2. Ball Stud Installed in Display Mounting Plate
5. Identify and acquire the cable for the TMC. The cable is color coded on the DVR end.
6. Connect the TMC end of the Tablet Monitor Controller cable to the TMC and secure the
cable with the captive retaining screws.

Installing the Tablet Monitor Controller (TMC)
Manual Part Number:
006-1219-00 Rev. 0
2–3 Digital Eyewitness® HD
In-Car Video System
7. Once the TMC cable is secured to the TMC connector, route the TMC cable in the
molded channel on the back of the display.
Figure 2-3. Tablet Monitor Controller Cable Connection and Cable Routing
8. Grasp the TMC mounting plate by the plate, not the ball stud, and position it on the back
of the TMC so that the four (4) screw holes are visible.
Figure 2-4. Align the Display Mounting Plate with the Holes in the Display
9. Acquire the four (4) screws for the TMC mounting bracket. Hand start the screws in the
four (4) holes. Once all four (4) screws have been hand started, use a Phillips head
screw driver to tighten the screws.

Installing the Tablet Monitor Controller (TMC)
Digital Eyewitness® HD
In-Car Video System
2–4 Manual Part Number:
006-1219-00 Rev. 0
10. Locate the ferrite clamp for the TMC. Open the ferrite clamp and align it with the TMC
cable, just slightly below the bottom edge of the TMC.
11. Make sure that the TMC cable is resting in the slot then close and lock the ferrite clamp.
Figure 2-5. Ferrite Clamp Installation on Tablet Monitor Control Cable
12. Set the TMC assembly aside.
Tablet Monitor Controller Installation
The installer has some flexibility when installing the Eyewitness® HD system controller,
depending on the type of vehicle and the equipment in the vehicle.
IMPORTANT Do not remove the protective film from the display until it is time
to hand the vehicle back to the customer. This will help protect
the display during installation.
Use the following criteria when determining where to install the display.
 Airbag inflation zone
 Officer safety
 Line of sight
 Critical vehicle controls
TMC Ball and Socket Mount
1. Once the mounting position for the mount has been established, position the mount
base and mark the positions for the three (3) mounting screws.
2. If possible, remove the panel that the mount will be attached to. This is done to prevent
damage to any wiring or other components behind the panel.
IMPORTANT If it is not possible to remove the panel to drill the holes, prior to
drilling, make sure that any wiring or components that reside
behind the panel being drilled will not be damaged when drilling
the holes.
3. Install the mount base to the panel using the supplied self-tapping screws.
4. If the panel that the mount is being installed on was removed from the vehicle, reinstall
it at this time.
