Swimming Pool Heat Pump
User and Service manual
English ● German

- 1 -
Regulation (EU) n° 517/2014 of 16/04/14 on fluorinated
greenhouse gases and repealing Regulation (EC) n° 842/2006
Leak checks
1. Operators of equipment that contains fluorinated greenhouses gases in
quantities of 5 tons of CO2, equivalent or more and not contained in foams shall
ensure that the equipment is checked for leaks.
2. For equipment that contains fluorinated greenhouse gases in quantities of 5
tons of CO2equivalent or more, but of less than 50 tons of CO2equivalent: at
least every 12 months.
Picture of the equivalence CO2
1. Load in kg and Tons amounting CO2.
Load and Tons amounting CO2
Frequency of test
From 2 at 30 kg load = from 5 at 50 Tons
Each year
Concerning the Gaz R 410a, 2.39kg amounting at 5 tons of CO2, commitment
to check each year.
Training and certification
1. The operator of the relevant application shall ensure that the relevant
personnel have obtained the necessary certification, which implies appropriate
knowledge of the applicable regulations and standards as well as the necessary
competence in emission prevention and recovery of fluorinated greenhouse
gases and handling safety the relevant type and size of equipment.
Record keeping
1. Operators of equipment which is required to be checked for leaks, shall
establish and maintain records for each piece of such equipment specifying the
following information:
a) The quantity and type of fluorinated greenhouse gases installed;
b) The quantities of fluorinated greenhouse gases added during installation,
maintenance or servicing or due to leakage;
c) Whether the quantities of installed fluorinated greenhouse gases have been
recycled or reclaimed, including the name and address of the recycling or
reclamation facility and, where applicable, the certificate number;
d) The quantity of fluorinated greenhouse gases recovered
e) The identity of the undertaking which installed, serviced, maintained and
where applicable repaired or decommissioned the equipment, including, where
applicable, the number of its certificate;
f) The dates and results of the checks carried out;
g) If the equipment was decommissioned, the measures taken to recover and
dispose of the fluorinated greenhouse gases.
2. The operator shall keep the records for at least five years, undertakings carrying
out the activities for operators shall keep copies of the records for at least five
years.

- 2 -
Verordnung (EU) Nr. 517/2014 vom 16/04/14 über fluorierte
Treibhausgase und die Verordnung (EG) zur Aufhebung Nr. 842/2006
Dichtheitsprüfung
1. Die Betreiber von den Geräte, die die fluorierte Treibhausgase in Mengen
von 5 Tonnen CO2-Äquivalent oder mehr enthalten und nicht in Schäumen
enthalten, müssen sicherstellen, dass das Gerät auf Dichtheit überprüft
wird.
2. Für die Geräte, die fluorierte Treibhausgase in Mengen von 5 Tonnen 5
Tonnen CO2-Äquivalent oder mehr enthalten aber weniger als 50 Tonnen
CO2-Äquivalent enthalten: mindestens alle 12 Monate.
Bild der Gleichwertigkeit CO2
1. Belastung von CO2 in kg und Tonnen.
Belastung und Tonnen von CO2
Häufigkeit der Prüfung
Von 2 bei 30 kg Belastung = von 5 bei 50 Tonnen
Jedes Jahr
In Bezug auf die Gaz R410a, 2,39 kg in Höhe von 5 Tonnen CO2,
Engagement für die Überprüfung jedes Jahr.
Ausbildung und Zertifizierung
1. Die Betreiber der betreffenden Anwendung sollen dafür Sorge tragen,
dass die zuständige Person die erforderliche Zertifizierung erlangt hat, die
die angemessene Kenntnisse der geltenden Vorschriften und Normen sowie
die notwendige Kompetenz in Bezug auf die Emissionsvermeidung und -
verwertung von fluorierten Treibhausgasen und der Handhabungssicherheit
der betreffenden Typen und Größe der Ausrüstung beinhaltet.
Aufbewahrung der Aufzeichnungen
1. Die Betreiber von den Geräte, die auf Dichtheit überprüft werden
müssen, müssen für jedes Gerät, das die folgenden Angaben enthält,
Aufzeichnungen erstellen und verwalten:
a) Die Menge und Art der installierten fluorierten Treibhausgase;
b) Die Mengen an fluorierten Treibhausgasen, die während der Installation,
Wartung oder Service oder aufgrund von Leckagen hinzugefügt werden;
c) Ob die Mengen der installierten fluorierten Treibhausgase
wiederverwandt oder zurückgefordert wurden, einschließlich der Name
und Anschrift der Wiederverwendung oder Rückgewinnungsanlage und
gegebenenfalls der Bescheinigungsnummer;
d) Die Menge der fluorierten Treibhausgase wiederhergestellt wird;
e) Die Identität des Unternehmens, das die Ausrüstung installiert, gewartet
und gegebenenfalls repariert oder außer Betrieb hat, gegebenenfalls
einschließlich der Nummer des Zertifikats;
f) Datum und Ergebnisse der Prüfung durchgeführt werden;
g) Wenn das Gerät außer Betrieb hat, wurden die Maßnahmen zur
Rückgewinnung und Beseitigung der fluorierten Treibhausgase getroffen.
2. Die Betreiber bewahrendie Aufzeichnungen für mindestens fünf Jahre
lang auf, wobei die Unternehmen, die die Tätigkeiten für die Betreiber
ausführen, die Aufzeichnungen für mindestens fünf Jahre lang
aufbewahren soll.

- 3 -
Green Energy Swimming Pool Heat pump
USER & SERVICE MANUAL
INDEX
1. Specifications
2. Dimension
3. Installation
4. Initial start up of the unit
5. Operation of the heat pump
6. Maintenance
7. Electrical Wiring
8. Troubleshooting
9. Figures of the pump
10. Accessories
11. Warranty and return
Thank you for using Green Energy swimming pool heat pump for your pool
heating, it will heat your pool water and keep the constant temperature
when the air ambient temperature is at 7 to 40℃
ATTENTION: This manual includes all necessary information for the
usual practice of the Heat Pump, please to read the Service Manual provide
with this product before installation and using.
WARNING: Please always empty the water in heat pump during winter time
or when the ambient temperature drops below 0℃, or else the Titanium
exchanger will be damaged because of being frozen, in such case, your
warranty will be lost.
WARNING: Please always cut the power supply if you want to open the
cabinet to reach inside the heat pump, because there is high voltage
electricity inside.

- 4 -
1. Specifications
Technical data of Green Energy heat pumps
Model
ECO 3
ECO 5
ECO 8
ECO 10
ECO 12
Part number
11057
11058
11059
11060
11061
* Performance at Air 27℃, Water 27℃, Humidity 80%
Heating capacity
kW
3,5
4,5
7,5
9,5
12
Power input
kW
0,78
1.02
1.6
2.06
2,55
COP
W/W
4,5
4,4
4,7
4,6
4,7
* Performance at Air 15℃, Water 26℃, Humidity 70%
Heating capacity
kW
3
3,7
5,5
6,1
8,2
Power input
kW
0,77
0,97
1,41
1,65
2,1
COP
W/W
3,9
3,8
3,9
3,7
3,9
Voltage
V
220-240/1/50
Running current
A
3,4
4,9
7,4
8
10,6
Mininum fuse
A
10
15
20
20
30
Maximum volume(good
insulation)
m³
15
20
30
45
60
Nominal water flow
m³/h
2,5
2,5
2,5
2,6
3,5
Maximum pressure drop
kPa
12
12
12
12
15
Heat exchanger
Twist-titanium tube in PVC
Water connection
50
Fan quantity
1
Ventilation type
Horizontal
Fan quantity
1
Fan speed
RPM
830~870
Fan power input
W
68
68
80
80
120
Noise level (10m)
dB(A)
37
37
39
39
43
Noise level (1m)
dB(A)
46
46
48
48
52
Net/gross weight
Kg
32/36
47/53
47/53
61/65
Net dimensions
mm
750/290/500
930/350/550
1000/360/620
Packing Dimensions
mm
850/330/540
1060/380/590
1120/380/660
* Above data is subject to modification without notice.

- 5 -

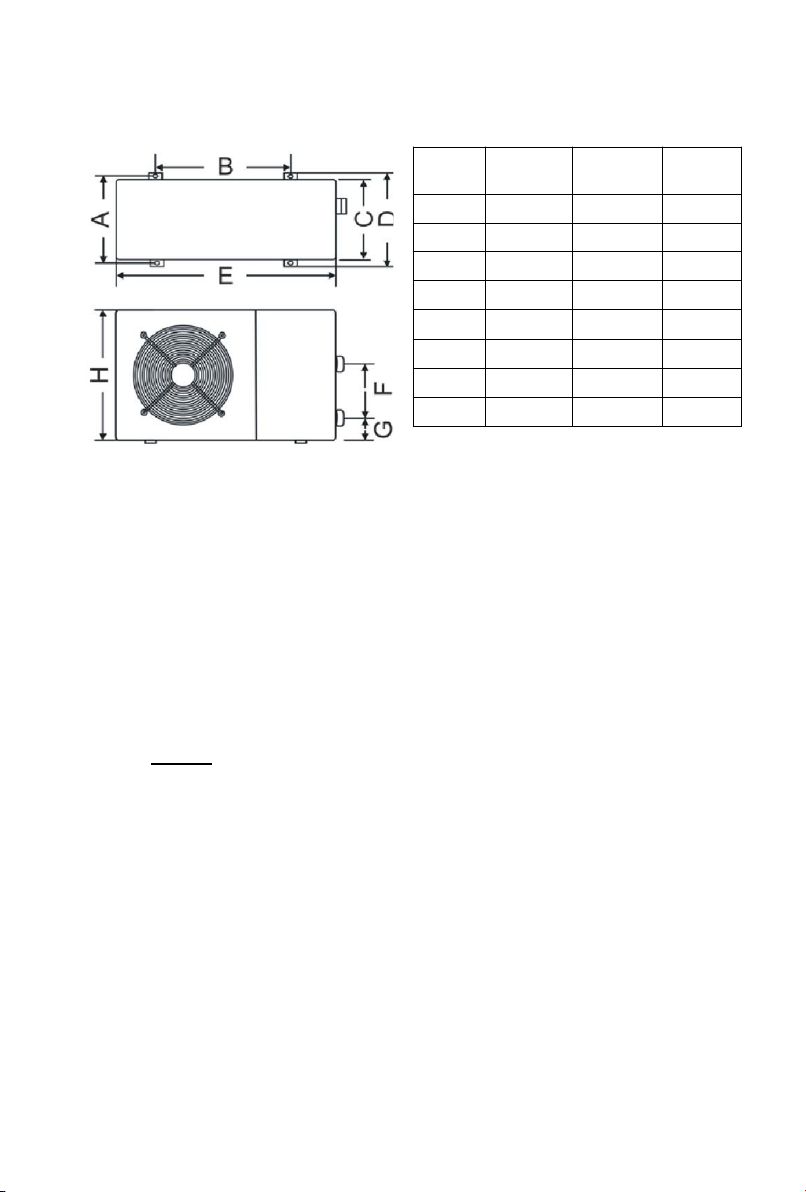

2. Dimension
Unit : mm
3. Installation and Connection
3.1 Remarks
The factory supplies the heat pump on its own. Other components,
including a by-pass where necessary, must be supplied by the user or
installation technician.
N.B.:
Please follow the steps below when installing the heat pump:
1. Any addition of chemicals must take place in the pipes located
behind the heat pump.
2. Install a by-pass if the water flow of the swimming pool pump is
more than 20% above the permitted flow through the heat
exchanger of the heat pump.
3. Install the heat pump above the surface level of the swimming
pool.
4. Always install the heat pump on a firm base and use the damping
rubbers supplied to avoid vibration and noise.
5. Always keep the heat pump straight up. If the appliance was held in
a diagonal position, wait for at least 24 hours before starting the
heat pump.
Model
ECO 3/5
ECO 8/10
ECO 12
A
273
330
330
B
423
680
655
C
260
280
300
D
293
360
360
E
747
930
1000
F
210
230
340
G
83
83
83
H
470
520
590

- 6 -
3.2 Siting of the Heat Pump
The appliance will operate properly in any location, provided that three
points are observed:
1. Fresh Air - 2. Electricity - 3. Swimming pool filters
The appliance may be installed practically anywhere outside, as long as
minimum distances to other objects are observed
.
3.3 Distance from the Swimming Pool
Install the heat pump as close as possible to the swimming pool in order to
limit heat loss through the pipes.
Ensure a firm base and place the heat pump on the rubber blocks to avoid
vibration. All exposed pipework is to
be insulated to avoid heat loss.
3.4 Installing the Check-Valve
N.B.– When using automatic chlorine and pH dosing systems, it is
extremely important to protect the heat pump from excessive
concentrations that could damage the heat exchanger. For this
CAUTION:
Do not place the appliance in
an enclosed space with
restricted volume of air where
the air expelled would be
re-used, or near to shrubbery
that might block the air inlet.
These locations hinder the
continuous flow of fresh air,
resulting in a reduction in
efficiency and possibly
obstructing adequate supply
of heat.
See diagram for the
minimum distances.

- 7 -
reason, facilities of this kind must always be installed in the piping
located BEHIND the heat pump, and it is recommended to install a
check-valve to prevent reverse flow in the absence of water circulation.
Damage to the heat pump caused by failing to observe these precautions is
not subject to the warranty.

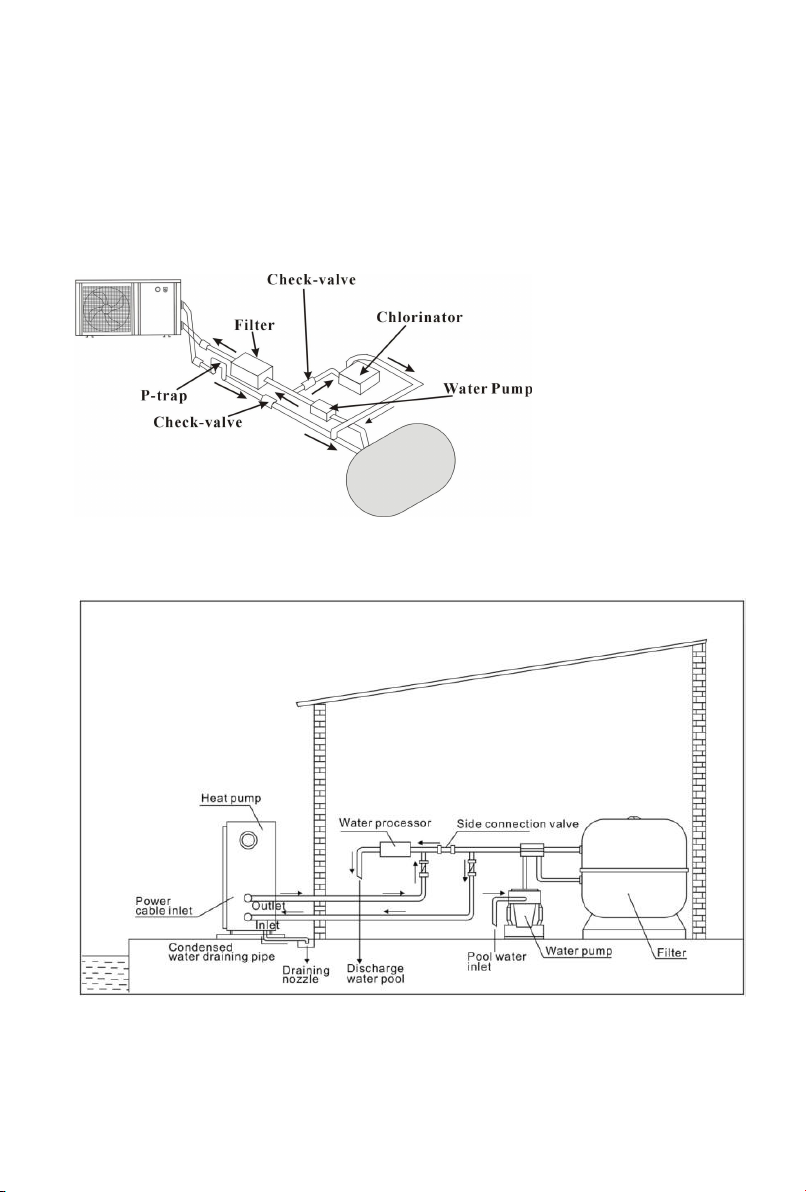

3.5 Typical Setup
Remark – This setup is only an example for demonstration

- 8 -

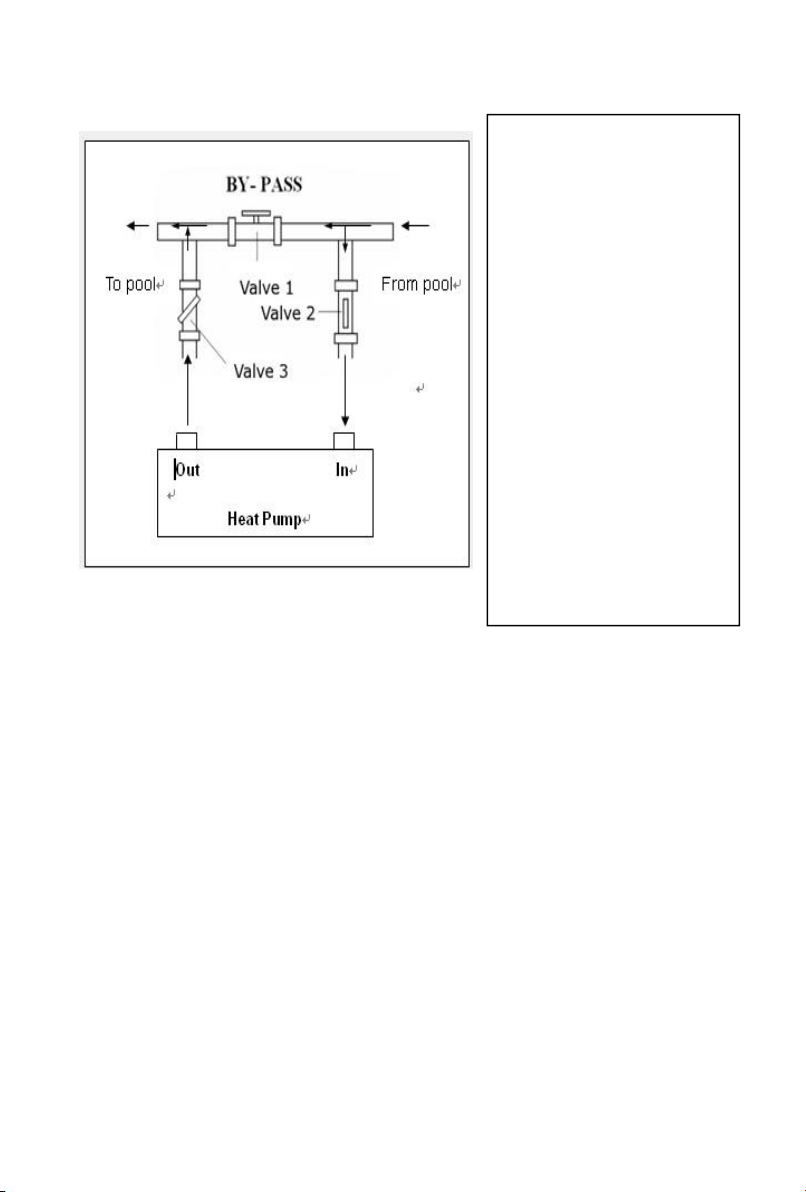

3.6 Setting the By-pass
How to get the optimum water flow:
Please turn on the heat pump under heating function, firstly close the
by-pass then open it slowly to start the heat pump (the machine can't start
running when the water flow is insufficient).
Continue to adjust the by-pass, at the meantime to check the Inlet water
temp. & Outlet water temp., it will be optimum when the difference is
around 2 degree.
Please take below steps to
adjust the by-pass:
1. Valve 1 wide open. Valve 2
& valve 3 closed.
2. Slowly open valve 2 &
valve 3 by half, then close the
valve 1 slowly to increase the
water flow to valve 2 & valve
3.
3. If it shows ‘ON’ or ‘EE3’ on
display, it means the water
flow into heat pump is not
enough, then you need adjust
the valves to increase the
water flow through the heat
pump.

- 9 -
3.7 Electrical Connection
Important - Although the heat pump is electrically insulated from the rest
of the swimming pool system, this merely prevents flow of current from
and to the swimming pool water. An earth is still necessary to protect you
against short circuits within the appliance. Ensure that there is a good
earth.
Check beforehand whether the supply voltage corresponds to the
operating voltage of the heat pump.
It is advisable to make use of a separate fuse (delay type – D curve) along
with adequate cabling (see table below).
The heat pump must be used exclusively with the filter pump. For this
reason, connect to the same fuse as the filter pump. If no water flows
through the heat pump while in operation, it may be damaged and then
the warranty is invalidated.
Connect the cable carrying the current to the clamp connector block behind
the panel located next to the fan.
Model
Supply (Volt)
Safety
Fuse (A)
Nominal
Current (A)
Cable Diameter
(mm2)
for 15 m in length
ECO 3
220-240
10
3.4
1.5
ECO 5
220-240
15
4.9
1.5
ECO 8
220-240
20
7.4
2.5
ECO 10
220-240
20
8
2.5
ECO 12
220-240
30
10.6
2.5
These should be seen as guidelines only. Check the local regulations.
3.8 Starting up for the first time
After all the connections have been made and checked, the following steps
must be taken:
1. Turn on the filter pump. Check for leaks and make certain that the
water flows from and to the swimming pool.

- 10 -
2. Connect the current to the heat pump and set the switch to ON. The
appliance will start up after the time delay (see below) has elapsed.
3. After a few minutes check whether the air being expelled from the
appliance is cooler.
4. Leave the appliance and filter pump in operation 24 hours per day until
the desired water temperature has been reached. At this point the heat
pump ceases operation. The appliance will now start up again
automatically (as long as the filter pump is in operation) whenever the
swimming pool temperature falls to 1 degree below the programmed
temperature.
Depending on the initial temperature of the swimming pool water and the
air temperature, several days may be needed to bring the water up to the
temperature required. Covering the swimming pool properly can
considerably shorten this period.
Time Delay – the appliance is fitted with built-in start-up delay of 3 minutes
as protection for the electronics and to increase the life of the contacts.
After this interval, the appliance will restart automatically. Even a brief
interruption in the flow of current will activate this delay and thus prevent
the appliance from starting up immediately. Additional interruptions in the
current during this delay will have no influence on the 3-minute
countdown.
3.9 Condensation
The intake air is cooled significantly as a result of the operation of the heat
pump when heating the swimming pool water, and water may condense on
the fins of the evaporator. When humidity is high, this could even amount
to several litres per hour. This is sometimes erroneously seen as a water
leak.

- 11 -
4. Operation
(1) Guide for operation
(2) Start the pool heat pump
Press to start the heat pump, the LED display will show the inlet water
temperature and current working mode after 5s.
(3) Stop the pool heat pump
Press once again to stop the heat pump, the LED display shows ‘OFF’
(4) Water temperature setting
Press or to set the desired water in temperature in current
working mode, then Press to save setting and exit.
(5) TIME setting
Press button ,then press to enter into “ TIME “ display ;
** HOUR SETTING**

- 12 -
Press again to “HOUR” setting , “HH” flashed ,then press or
to adjust the HOUR from 0 to 23 ;
**MINUTE SETTING**
Press to enter into MINUTE setting ,”MM” flashed , then press
or to adjust the MINUTE from 0 to 59.
(6) TIMER ON Setting
Press button ,then press button twice to enter into TIMER ON
setting .When you see the starting time displaying on controller ,Press
to confirm to enter into TIMER ON setting interface , finally press or
to adjust the starting time.
(7) TIMER OFF Setting
Press button ,then press button 3 times to enter into “ TIME
OFF” setting . When you see the stopping time displaying on
controller ,Press to confirm to enter into TIMER OFF setting interface ,
finally press or to adjust the stopping time .

- 13 -
**Above operations, you could press button to save the setting and
quick-exit the program. **
(8) How to check the parameters?
Press button ,then press to check the parameter of B - C - D - E-
F- G - H .
Code
Parameter
Range
B
Water in temperature
-9 to 99℃
C
Water out Temperature
-9 to 99℃
D
Heating pipe temperature
-29 to 99℃
E
Gas return temperature
-29 to 99℃
F
Ambient temperature
-29 to 99℃
G
Cooling pipe temperature
-9 to 99℃
H
Actual steps of Electronic expansion valve
N*5
** ATTENTION **
When you press and press button to enter into parameter
checking , the button could not be operated.
At the same as above ,when you press and press button to check
TIME - starting time of TIMER and Stopping time of TIMER ,the could
be not operated.
5. Parameter setting
This part should be operated only by qualified technicians for
after-service or maintenance.

- 14 -
(1) Press + + at same time in 5 second, display flashes ,
(2) Press or to choose the parameter you want to adjust
(3) Press again to enter into interface
(4) Press or to adjust the value setting.
(5) Finally press once again to save the data or press to save and
quick-exit the parameter setting .
Para
met
er
Meaning
Range
Default
Remarks
0
To set the entering water
temp. under cooling mode
7-35°C
28°C
Not
adjustable
1
To set the entering water
temp. under heating mode
15-42°C
28°C
Adjustable
2
Entry into defrosting time
period
30-90MIN
40MIN
Adjustable
3
Terms of Entry defrosting
function
-30°C to0°C
-7°C
Adjustable
4
Terms of Exit defrosting
2 to 30°C
20°C
Adjustable
5
Time of Exit defrosting
1 to 12MIN
12MIN
Adjustable
6
Mode: 0 Heat 1 Heat and
Cool
0-1
0
Not
adjustable
7
Mode selection of
Electronic expansion valve
0-1
1(auto)
Adjustable
A
Manual adjustment steps
of electronic expansion
valve
18-94
70
Adjustable

- 15 -
L
Entering water
temperature calibration
-9.9-9.9
0
Adjustable
Recover to Factory default setting
Long press and simultaneously in 10 second to recover to
factory default setting ,it will display “0000” and then back to “OFF”.
6. Maintenance
6.1 Maintenance
(1) You should check the water supply system regularly to avoid the air
entering the system and occurrence of low water flow, because it would
reduce the performance and reliability of HP unit.
(2) Clean your pools and filtration system regularly to avoid the damage of
the unit as a result of the dirty of clogged filter.
(3) You should discharge the water from bottom of water pump if HP unit
will stop running for a long time (specially during the winter season).
(4) In another way, you should check the unit is water fully before the unit
start to run again.
(5) After the unit is conditioned for the winter season, he is preconize to
cover the heat pump with special winter heat pump.
(6) When the unit is running, there is all the time a little water discharge
under the unit.
(7) The location of chemical’s instruction to your system is also critical to
the heater’s life.
If an automatic chlorinator or brominates is used, it must be located
downstream of the heater.
6.2 Refrigerant pressure
For checking the unit under running model, make sure there is refrigerant
pressure gauge which shows working condition of unit. The following
mapping table shows the number of refrigerant pressure and unit working
condition. If there is big difference between them, the machine is probably
malfunctioning.

- 16 -
R410A pressure and temperature mapping table
7. Malfunction and Troubleshooting
7.1 Error code on controller
Malfunction
Error
code
Reason
Solution
Low ambient
temperature
protection
PP0
Ambient temperature
is too low
Inlet water
temperature sensor
failure
PP1
The sensor in open or
short circuit
Check or change
the sensor
Outlet water
temperature sensor
failure
PP2
The sensor in open or
short circuit
Check or change
the sensor
Heating condenser
sensor failure
PP3
The sensor in open or
short circuit
Check or change
the sensor
Gas return sensor
failure
PP4
The sensor in open or
short circuit
Check or change
the sensor
Ambient
temperature sensor
failure
PP5
The sensor in open or
short circuit
Check or change
the sensor
Temperature
difference too
much protection
water inlet and
outlet
PP6
Water flow volume is
not enough
Check the water
flow volume or
water jammed
or not.
Unit
Condition
Power Off
Running
Ambient
(℃)
-5~5
5~15
15~2
5
25~3
5
/
/
/
/
/
Water
temp (℃)
/
/
/
/
10~
15
15~
20
20~
25
25~
30
30~
35
Pressure
gauge
(kg/cm2)
6.8~
9.3
9.3~
12.5
12.5
~16.
4
16.4
~21
13~
18
15~
19
16~
23
19~
28
21~
35

- 17 -
First grade
antifreeze
protection in
Winter
PP7
Ambient temperature
or water inlet
temperature is too low
Water pump will
run
automatically for
first grade
antifreeze
Second grade
antifreeze
protection in
Winter
PP7
Ambient temperature
or water inlet
temperature is too low
Heat pump will
start heating for
second grade
antifreeze
Cooling condenser
sensor failure
PP8
The sensor in open or
short circuit
Check and
change the
temperature
sensor
Cooling outlet
water temperature
is too low
PP7
Water flow volume is
not enough
Check the water
flow or water
system is
jammed or not
Cooling
temperature is too
cold
PP9
The sensor in open or
short circuit
Check or change
the sensor
High pressure
protection
EE1
1. Refrigerant is too
much
2. Air flow is not
enough
1. Discharge
redundant
refrigerant
from HP gas
system
2. Clean the air
exchanger
Low pressure
protection
EE2
1. Refrigerant is not
enough
2. Water flow is not
enough
3. Filter jammed or
capillary jammed
1. Check if
there is any
gas leakage,
re-fill the
refrigerant
2. Clean the air
exchanger
3. Replace the
filter or
capillary

- 18 -
Flow switch closed
ON
/EE3
Low water flow, wrong
flow direction, or flow
switch failure.
Check if the
water flow is
enough and flow
in right direction,
or else the flow
switch could be
failed.
Power supply
connections wrong
(for 3 phase unit)
EE4
Wrong connection or
lack of connection
Check the
connection of
power cable
Inlet and outlet
water temperature
difference
malfunction
EE5
Water flow volume is
not enough, water
pressure difference is
too low
Check the water
flow rate or
water system is
jammed or not
Communication
failure
EE8
Wire connection is not
good
Check the wire
connection
7.2 Other malfunction and solutions (No display on controller)
Malfun
ctions
Observing
Reasons
Solution
Heat
pump
is
not
runnin
g
LED wire
controller
no display.
No power supply
Check cable and
circuit breaker if it is
connected
LED wire
controller.
displays the
actual time.
Heat pump under
standby
status
Startup heat pump to
run.
LED wire
controller
displays the
actual
water
temperature.
1. Water
temperature is
reaching to
setting value, HP
under constant
temperature
status.
2. Heat pump just
starts to run.
3. Under
defrosting.
1. Verify water
temperature setting.
2. Startup heat pump
after a few minutes.
3. LED wire controller
should display
"Defrosting".
