※製品改良のため、予告なく仕様を変更する場合があります。 *SPECIFICATIONS ARE SUBJECT TO BE CHANGED WITHOUT NOTICE. No. 31255
●キットの他にそろえる物 / REQUIRED FOR OPERATION
●プロポの準備 / RADIO PREPARATION
●組立て前の注意 / BEFORE YOU BEGIN
●ランナー付プラパーツ配置図 / ARRANGEMENT OF PLASTIC PARTS ON RUNNERS
●本体の組立て / ASSEMBLY
●取扱いの注意 / OPERATING YOUR MODEL SAFELY
●分解図 / EXPLODED VIEW
●スペアパーツ・オプションパーツリスト / SPARE PARTS & OPTIONAL PARTS
2 〜3
3
4
5 〜6
7 〜28
29
30 〜31
32 〜36
目 次 INDEX
安全のための注意事項
UNDER SAFETY PRECAUTIONS
This radio control model is not a toy.
この無線操縦模型は玩具ではありません!
●この商品は高い性能を発揮するように設計されています。
 組立てに不慣れな方は、模型を良く知っている人にアド
 バイスを受け確実に組立ててください。
●小さい部品があるので、組立て作業は、幼児の手がとど
 かない所で必ず行ってください。
●動かして楽しむ場所は万一の事故を考えて、安全を確認
 してから責任をもってお楽しみください。
●組立てた後も、説明書がいつでも見られるように大切に
 保管してください。
●First-time builders should seek the advice of experienced modellers
 before commencing assembly and if they do not fully understand
 any part of the construction.
●Assemble this kit only in places out of children's reach!
●Take care before operating this model.
 You are responsible for this model's assembly and safe operation!
●Always keep this instruction manual ready at hand for quick
 reference, even after completing the assembly.
 2003 KYOSHO CORPORATION/禁無断転載複製
※ご使用前にこの説明書を良くお読みになり十分に理解してください。
Before beginning assembly, please read these instructions thoroughly!
INSTRUCTION MANUAL
組立/取扱説明書
THE FINEST RADIO CONTROL MODELS
R
1
2チャンネル2サーボ無線操縦機
(プロポ)
2ch radio control set with 2 servos.
●このキットには2チャンネル2サー
ボのプロポが必要です。
●送信機にはスティックタイプとハン
ドルタイプがありますが、お好みの
タイプを用意してください。
●リバーススイッチを使用する場合は、
プロポに付属の説明書を参考に設定
してください。
■スティックタイプ
 2チャンネルプロポ
Stick-type
2ch radio set.
■ハンドルタイプ
 2チャンネルプロポ
Wheel-type
2ch radio set.
■受信機用ニカドバッテリー
Ni-Cd Battery
■単3乾電池(送信機用)
AA-size Batteries (For Transmitter)
AAAA AAAA
■サーボ
Servo
■受信機
Receiver
19〜20mm
38〜41mm
25〜29mm
36〜42.5mm
15〜17mm
キットの他にそろえる物(1)REQUIRED FOR OPERATION (1)
使用できるサーボ・受信機サイズ
Suitable servos & receiver
2
エンジンおよびマフラー
Engine & Muffler
●このキットには12クラスエンジンが必要
です。
 ※SGシャフト(パイロットシャフト)仕
 様で、スライドキャブ仕様のリコイル
 スターターなしエンジンのみ搭載でき
 ます。
●This kit requires a .12 class engine.
*Only SG Shaft (Pilot Shaft) with Slide
Carburettor engine without pull starter
is available.
●This kit requires a 2 channel radio
con-trol set with 2 servos.
●Because there are stick-type and
wheel-type transmitters, use which
ever fits your convenience best.
●In case of using reverse switch, refer
to instruction manual included in the
radio set.
3
燃料と始動用具
Required for engine starting:
2
※No.71161 6V X‑FORCE 600 ニカドバッテ
 リーを必ず使用してください。
■12クラスカー用
 エンジン
 Engine for .12
 class cars
■マフラー
 Muffler
■マニホールド
 Manifold
■プラグ
 Plug
■エアフィルター
 Air Filter
■グラステープ
 Tape
No.96422
 クイックフュールポンプ
 Quick Fill Fuel Bottle
No.80312
 ロッキングジグ/レンチ
 Locking Jig & Wrench
No.39771
 マルチスターターBOX
 Multi Starter Box
No.71901
 
スポーツパワー2000 ニカドバッテリー
 
SPORTS POWER 2000 Ni-Cd Battery
■燃料
 Glow Fuel
■燃料ポンプ
 Fuel Pump
■プラグヒーター
 Plug Heater
■プラグレンチ
 Plug Wrench
■スターター
 Starter
■スターター用バッテリー
 Battery
4
塗料
Paint
●ボディの塗装には塗料が必要です。
 京商では、モデル用塗料、スプレーを
 販売していますのでご利用ください。
5
その他
Other equipment required.
■ボディ
 Body
●For painting the body, use Kyosho paints
for models!
京商スプレーカラー
KYOSHO SPRAY COLOR
No.76501〜76711
No.2230
ポリカカラー
POLYCA COLOR
■ジョイントパイプ
 Joining Pipe
No.39063
チュードサイレンサーセット(側方)
No.39065
チュードサイレンサーセット(後方)
No.39063 Tuned Silencer Set (Side) or,
No.39065 Tuned Silencer Set (Rear)
No.607002
RCモデルフュール
トルネード
Glow Engine
Fuel
S
P
R
A
Y
C
O
L
O
R
R
K
Y
O
S
H
O
F
U
E
L
P
R
O
F
F
P
A
I
N
T
S
P
R
A
Y
C
O
L
O
R
R
K
Y
O
S
H
O
F
U
E
L
P
R
O
F
F
P
A
I
N
T
■タイヤセッター
 Tire setter
Only use No.71161 6V X-FOURCE 600 Ni-Cd
Battery. (Do not use other batteries.)
KYOSHO CORPORATION NO.71901
RECHARGEABLE Ni-Cd BATTERY
No.695141
 
スパークブースター
 
Spark Booster
No.695142
 
DC急速充電器
 DC Quick Charger
6

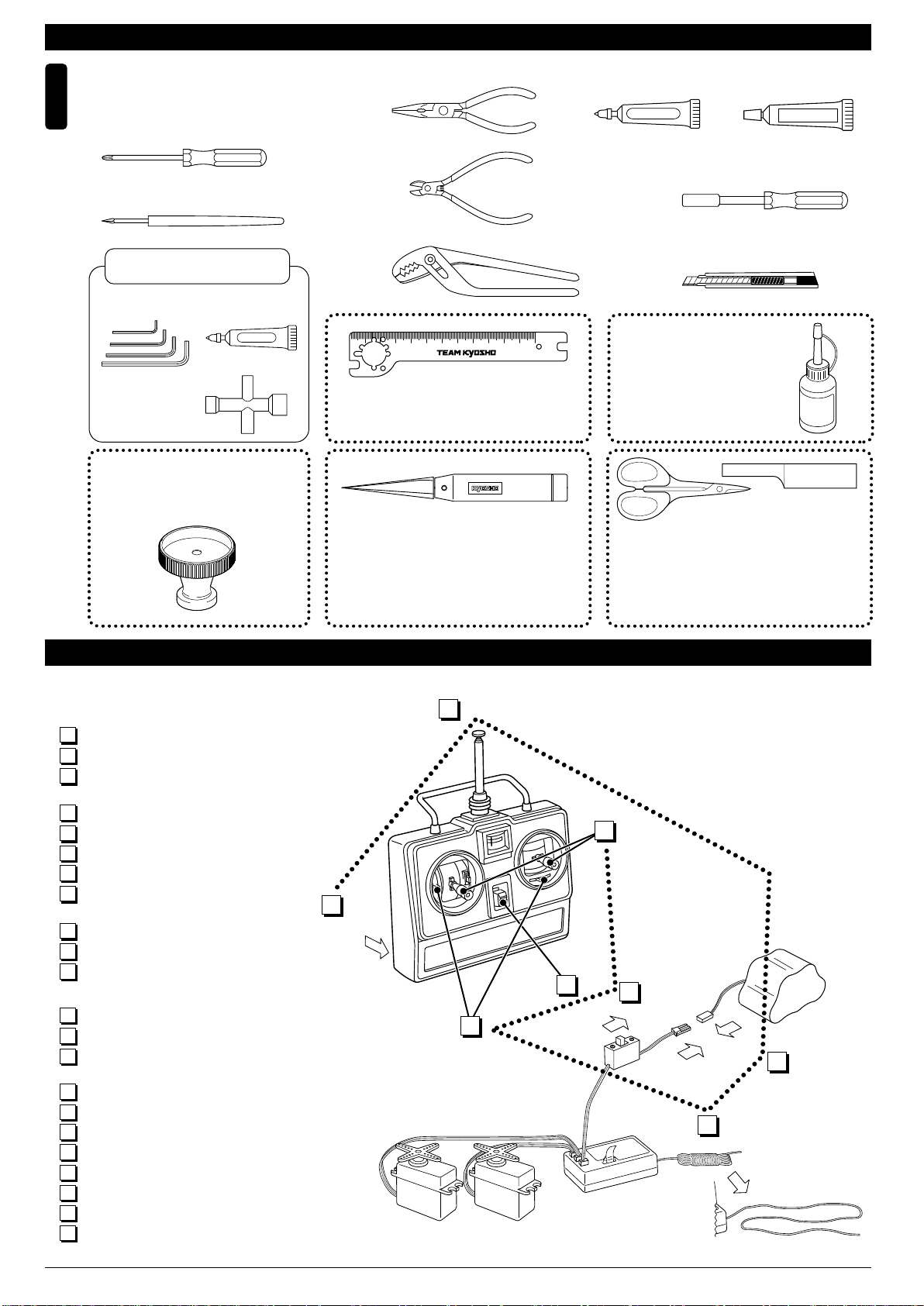

組立てに必要な工具
Tools required
キットの他にそろえる物(2)REQUIRED FOR OPERATION (2)
下穴加工が不要で、直接
1mm〜15mmの正確な穴
あけができる工具です。
No need to pre-drill!
Drills neat 1mm to 15mm
holes directly!
ラウンドカッター&サンダー
ROUND CUTTER & SANDER
No.1829
ボディのカット、仕上
げ用。 曲線部分も楽に
作業ができます。
For trimming bodies!
Cutting along curved lines
never was so easy!
3
キットに入っている工具
TOOLS INCLUDED
■カッターナイフ
Sharp Hobby Knife
■六角レンチ
Hex Wrench
■+ドライバー(大、中、小)
Phillips Screwdriver (L.M.S)
■ラジオペンチ
Needle Nose Pliers
■プライヤー
Pliers
■10mmボックスドライバー
Box Wrench
プロポの準備 RADIO PREPARATION
■十字レンチ(小)
 Cross Wrench (S)
■グリス
 Grease
■ニッパー
 Wire Cutters
Grease
■キリ
Awl
●プロポを下の順番にしたがってセットします。
Set up the radio control system as indicated below.
単3乾電池をセットする(送信機)
アンテナをのばす(送信機)
充電した受信機用ニカドバッテリーを
つなぐ。
アンテナをのばす(受信機)
トリムレバーを中央にセットする。
スイッチを入れる(送信機)
スイッチを入れる(受信機)
スティックを動かしてサーボが動くか
確認する。
スイッチを切る(受信機)
スイッチを切る(送信機)
アンテナを縮める。
1
2
3
5
6
7
8
9
10
11
4
1
START
FINISH
2
3
4
5
67
8
Install batteries. (Transmitter)
Extend the antenna. (Transmitter)
Connect the charged Ni-Cd battery to
the receiver.
Extend the antenna. (Receiver)
Center the trims.
Switch on. (Transmitter)
Switch on. (Receiver)
Make sure the servos are in command.
Switch off. (Receiver)
Switch off. (Transmitter)
Retract the antenna. (Transmitter)
1
2
3
4
5
6
7
8
9
10
11
ネジロック剤
■ネジロック剤
 Screw Cement
■ゴム系接着剤
Rubber Cement
ゴム系接着剤
KYOSHO スペシャルグルー
KYOSHO Special Glue
No.96154
瞬間接着剤
Instant Glue
KYOSHO
Special Glue
クラッチスプリングアジャストツール
Clutch Spring Adjust Tool
No.TSW5
ナイフエッジリーマー
KNIFE EDGE REAMER
No.695101
50
100
mm
No.80951B
フライホイールレンチ
Flywheel Wrench
No.80951B
1
2
3
4
5
6
組立てる前に説明書を良く読んで、おおよその構造を理解してから組立てに入ってください。
Read through the manual before you begin, so you will have an overall idea of what to do.
組立て前の注意 BEFORE YOU BEGIN
4
R
L
キットの内容をお確かめください。万一不良、不足がありましたら、お買い求めの販売店にご相談いただくか、当社「ユーザー相談室」までご連絡ください。
Check all parts. If you find any defective or missing parts, contact your local dealer or our Kyosho Distributor.
説明書の見かた
How to read the instruction manual:
No.4, No.5, No.6
5 x 10mm メタル
Metal Bushing
4
キングピン
King Pin
4
5.8mm ピロボール(黒)
Pillow Ball (Black)
2
3
6
小物部品のキーNo. 名前、
原寸図、使用数。
Key Number, Part Name,
True-to-scale Diagram,
Quantity Used
説明書内では多くのマークが使用
されています。マークに注意して
組立てを進めてください。
This instruction manual uses seve-
ral symbols. Please note them
during the entire assembly.
キット内の部品は、ビス類を除
いてキーNo.が付けられています。
スペアパーツを購入する時は
キーNo.を参照してください。
All parts except screws are identified
by key numbers. For purchasing
spare parts, find the key no. of the
part needed in the spare part list and
refer to the left column to look up the
corresponding order no.
説明書に使われているマーク
Symbols used throughout the instruction manual, comprise:
瞬間接着剤で接着する。
Apply instant glue
(CA glue, super glue).
グリスを塗る。
Apply grease.
ネジロック剤を塗る。
Apply threadlocker (screw cement).
2セット組立てる(例)。
Assemble as many times as
specified (here: twice).
x2
左右同じように組立てる。
Assemble left and right sides
the same way.
原寸図
True-to-scale diagram.
別購入品
Must be purchased separately!
仮止め。
Tentatively tighten.
2mmの穴をあける(例)。
Drill holes with the specified
diameter (here: 2mm).
可動するように組立てる。
Ensure smooth non-binding
movement while assembling.
注意して組立てる所。
Pay close attention here!
4
5
6
4
5
1
7
58
2
使用する袋詰。
Part bags used.
   をカットする。
Cut off shaded portion.
フロントサスペンション
Front Suspension
1
2mm
ゴム系接着剤で接着する。
Apply rubber cement.
〔説明例 Example〕
番号の順に組立てる。
Assemble in the specified
order.
TPビスは、部品にネジを切りながらしめつけるビスです。しめこみが固い場合が
ありますが、部品が確実に固定されるまでしめこんでください。 ただし、しめす
ぎるとネジがきかなくなりますので、部品が変形するまでしめないでください。
Self-tapping (TP) screws cut threads into the parts when being tightened. Excessive force may
permanently damage parts when tightening TP screws. It is recommended to stop tightening when
the part is attached or when some resistance is felt after the threaded portion enters the plastic.
ビスがきかない
The threads are stripped.
しめすぎ
Overtightened.
Correct
Wrong
キットには、形や長さが違うビスや小物部品が多く入っています。説明書には原寸図がありますので確認してから
組立ててください。また、ビス類は多めに入っているものもありますので、予備としてお使いください。
This kit contains screws and hardware in different metric sizes and shapes. Before using them, check the screws on the true-to-scale diagrams
on the left side in each assembly step. Some screws are extras.
●ビスの種類 SCREWS
ビス
Screw
キャップビス
Cap Screw
3x12mm サラビス
F/H Screw
TPビス
Self-tapping (TP) Screw
TPサラビス
TP F/H Screw
セットビス
Set Screw
●小物部品のサイズ例 OTHER HARDWARE
3x12mm ビス
Screw
3mm
12mm
3mm
12mm
サラビス
Flat Head (F/H) Screw
3mm ワッシャー・ナット
Washer・Nut
3mm
5x10mm メタル・ベアリング
Metal Bushing・Bearing
5mm
10mm
4mm
E4 Eリング
E-ring
5.8mm ピロボール
Pillow Ball
5.8mm
5

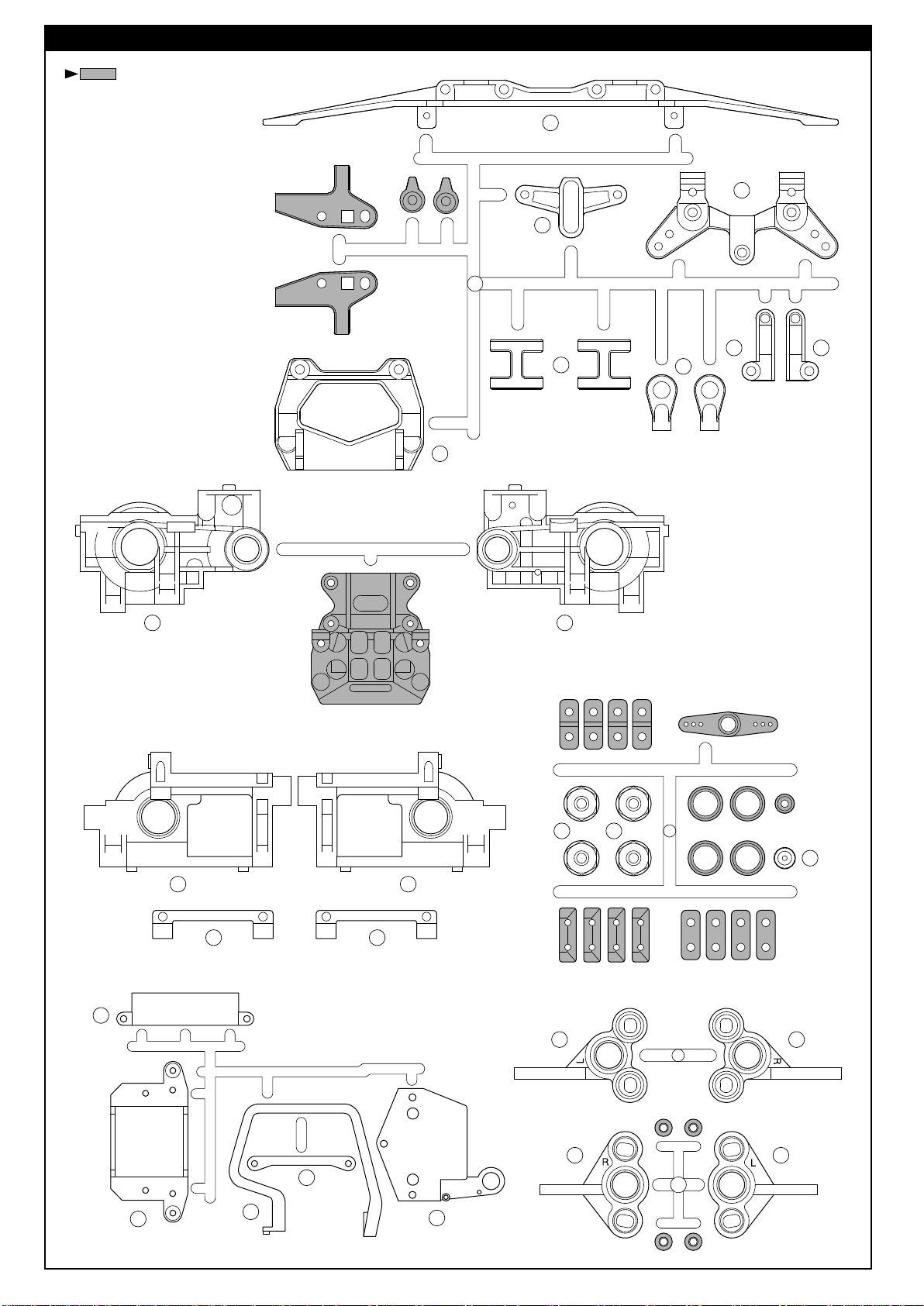

ARRANGEMENT OF PLASTIC PARTS ON RUNNERS
Shaded Parts are not used.
32
34
4
119
244 245
246
289
269
267
270 268
192
195
194
193 188
190189
3
15
14 13
16
32
246
部分の部品は、使用しません。
ランナー付プラパーツ配置図
6
ARRANGEMENT OF PLASTIC PARTS ON RUNNERS
Shaded Parts are not used.
11
54
55
47
88
176
180
181 184
182
248
265 266 263
260 261 262
259
257
258
10
256
257
264 264
254
258 255
249
250
252
252
253
251
179
11 12
部分の部品は、使用しません。
ランナー付プラパーツ配置図
No.2
7
Part bags used.

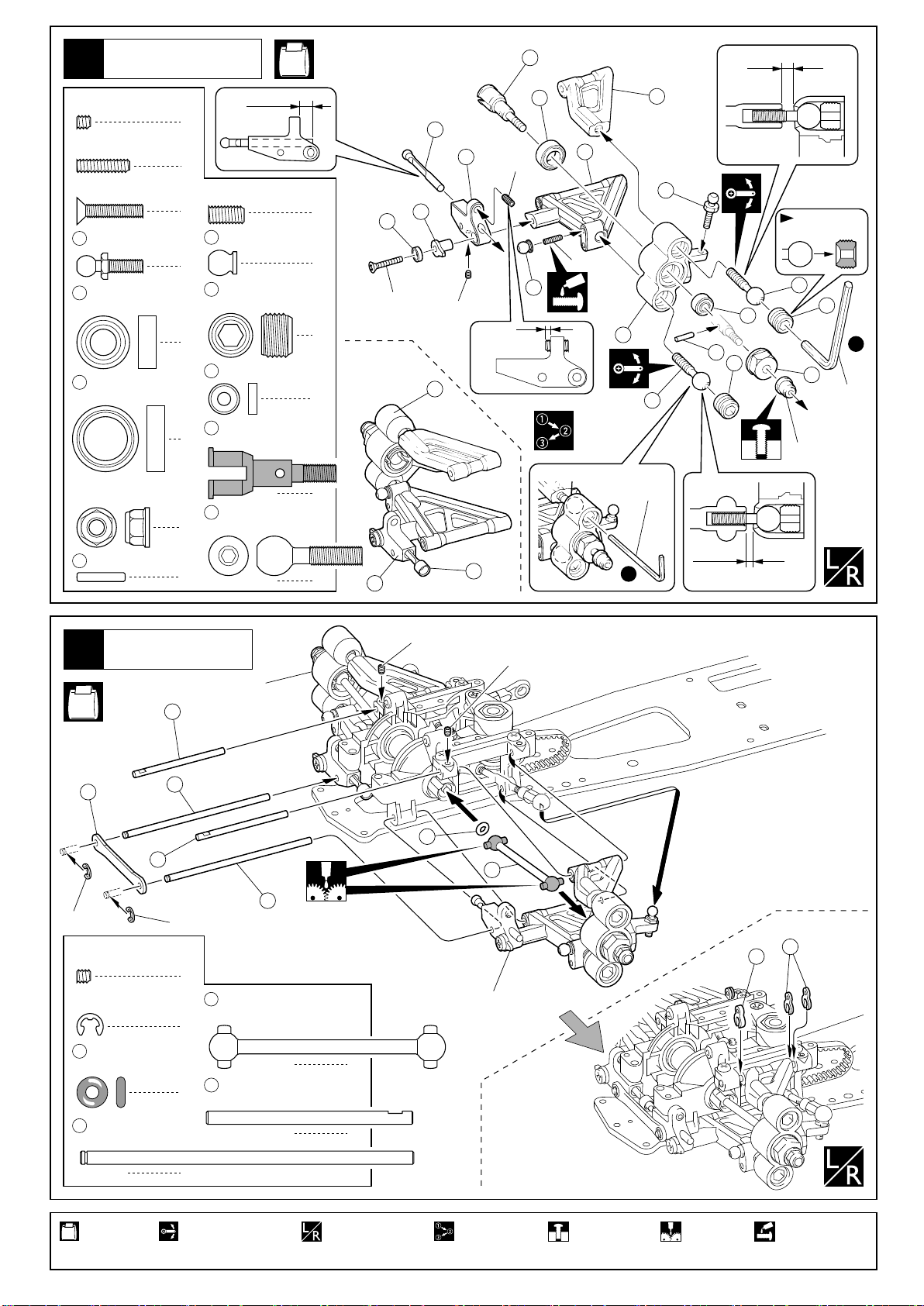

1Gear Differential
2Front Oneway
No.1, No.2,
No.3
63
2
Differential Joint
149
O-ring P5
2
151
2 x 11mm
Pin
150
2
4 x 27mm
Shaft
2
148
5 x 12mm
Shim
4
147
4 x 10mm
Shim
63
27
149
148
151
45
45
45
46
150
147
147
147
45
147
31
149
148
151
46
81
63
2.6x8mm
2.6x8mm
< >For Rear
Pour Silicon Oil (Hard) included
in the kit.
4
2.6 x 8mm
TP F/H Screw
2
Silicone Oil (Hard)
149
63
148
27
151
Apply Instant Glue.
2x8mm
Note the direction.
30 29
30
167
176
156
156
176
167
273
29
4
2 x 8mm
Screw
2
156
12 x 18mm
Ball Bearing
2
176
Front Oneway Collar
167
2
Cup Joint
Apply threadlocker (screw cement). Apply instant glue (CA glue, super glue).
使用する袋詰。
デフギヤ
フロントワンウェイ
デフジョイント
Oリング P5
ピン
シャフト
シム
シム
付属のシリコンオイル(硬)を
入れてください。
< >リヤ用
TPサラビス
高粘度シリコンオイル
向きに注意。
瞬間接着剤で へ固定する。
29
ビス
ベアリング
フロントワンウェイカラー
カップジョイント
ネジロック剤を塗る。 瞬間接着剤で接着する。
No.1, No.3, No.10
8
Part bags used.
No.3, No.10
2
3mm
Nylon Nut
2
104
4.8mm
Ball Stud
4Steering
3Front Bulkhead
4
3 x 12mm
TP F/H Screw
2
4 x 8mm
Set Screw
246
272
245
275
246
244
276
210 259
260
278
104
277
285
277
4x8mm
4x8mm
3x12mm
3x10mm
3x12mm
3x12mm
3x10mm
3x8mm
3x8mm
3x8mm
3mm
77
Front Belt
approx. 1.5mm
Front Oneway
1
3 x 10mm
F/H Screw
1
3 x 10mm
F/H Screw
3 x 8mm
Screw
Apply threadlocker (screw cement).
1
210
5.8mm
Flange Ball
4
0.5mm
使用する袋詰。
ステアリング
ナイロンナット
ボールスタッド
フロントバルクヘッド
TPサラビス
セットビス
約1.5mm
フロントベルト
フロントワンウェイ
サラビス
サラビス
ビス
ネジロック剤を塗る。
座付ボール
No.3, No.10
9
Part bags used.
No.1, No.3, No.10
4
98
4.8mm
Ball End (Medium)
71

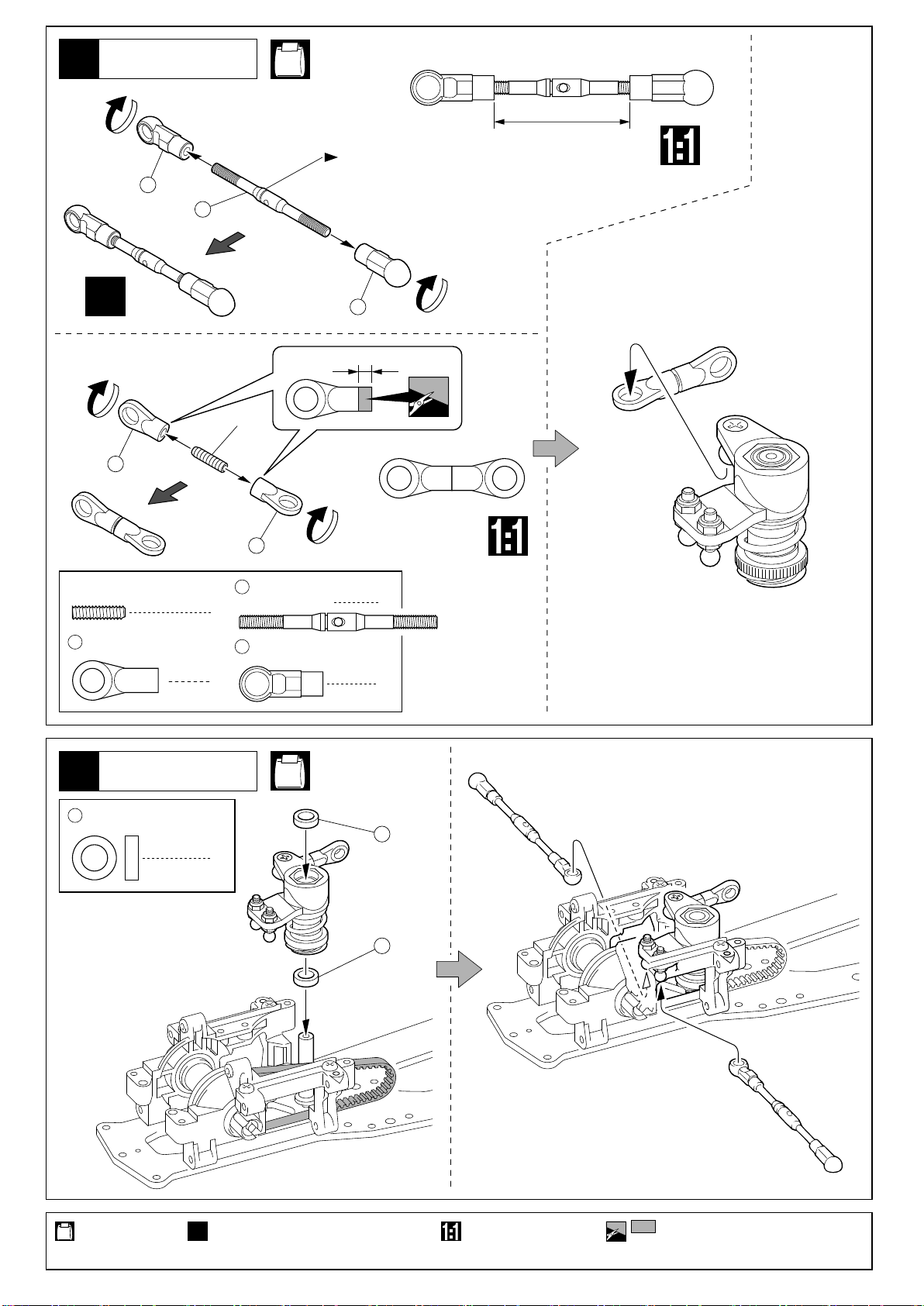

Steering Rod
5Steering
Steering
2
98
98
71
x2
approx. 31mm
The Side with groove is
reverse screw.
x2
Assemble as many times as specified. True-to-scale diagram.
6
286
286
1
3 x 12mm
Set Screw
2
287
5.8mm
Ball End
Cut off shaded portion.
2
286
6 x 10mm
Metal Bushing
173
173
3mm
3x12mm
使用する袋詰。
ステアリング
ステアリング
約31mm
ミゾのある方が逆ネジ。
ボールエンド(中)
ステアリングロッド
2セット組立てる(例)。 原寸図。
セットビス
ボールエンド
をカットする。
メタル
No.1, No.3,
No.10
No.3,
No.10
10
Part bags used.

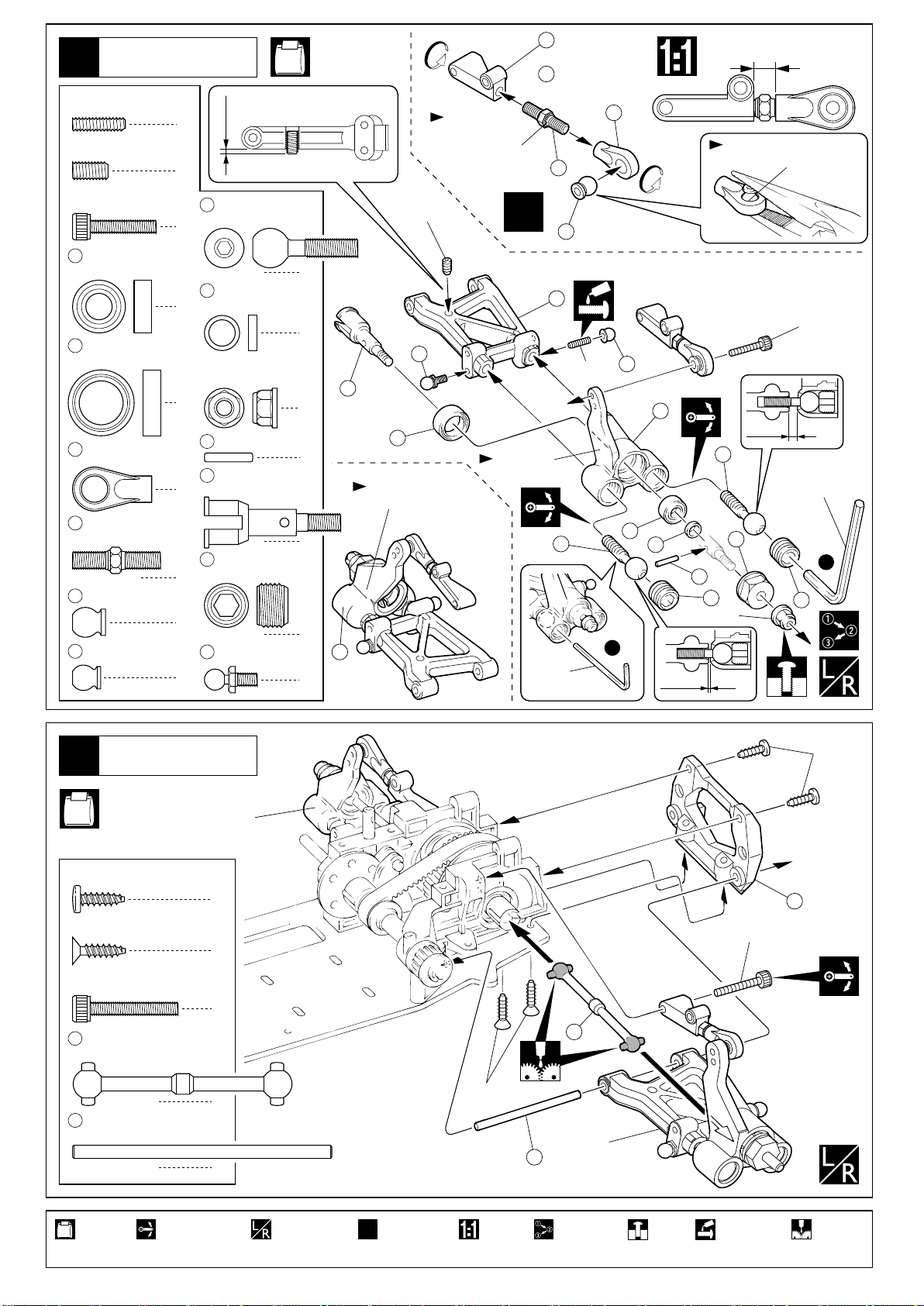

7Front Suspension Arm
8Front Suspension Arm
Assemble left and right
sides the same way.
Ensure smooth, non-binding
movement when assembling.
103 251
248
210
14
154
250
251 200
199
61
249
104
155
151
32
100
99
2
1
99
100
13
3x15mm 3x3mm
74
74
75
75
288
274
152
252
253
3x3mm
E2.5
E2.5
3x3mm
4x8mm
3x12mm
4mm
2
3 x 15mm
F/H Screw
2
103
3mm
F/H Washer
2
4 x 8mm
Set Screw
2
104
4.8mm
Ball Stud
2
155
6 x 12mm
Ball Bearing
2
154
10 x 15mm
Ball Bearing
4
99
9mm
Pillow Ball
4
100
9mm
Pillow Ball Nut
61
2
Wheel Shaft (Front) (Black)
2
151
2 x 11mm Pin
2
75
3 x 47mm
Shaft
2
74
3 x 76mm
Shaft
2
274
Swing Shaft (Front)
2
E2.5
E-ring
2
3 x 3mm
Set Screw
2
3 x 3mm
Set Screw
152
O-ring P3 (Red)
2
approx. 1mm
< >Right
< >Left
Hex Wrench
(5mm)
Hex Wrench (2.5mm)
For Left
For Right
2
4mm
Flanged Nylon Nut
2.4mm
3.7mm
Assemble in the
specified order.
Apply grease.Tentatively tighten.
2
210
5.8mm
Flange Ball
2
3 x 12mm
Set Screw
Apply threadlocker
(screw cement).
Note the direction.
8mm
使用する袋詰。
フロントサスアーム
フロントサスアーム
可動するように組立てる。
左右同じように組立てる。
サラビス
サラワッシャー
ホイルシャフト(フロント)(黒)
セットビス
ボールスタッド
ベアリング
ベアリング
ピロボール
ピロボールナット
ピン
シャフト
シャフト
スイングシャフト(フロント)
セットビス
セットビス
Eリング
Oリング P3(赤)
約1mm
右側用
左側用
< >
< >
六角レンチ
(5mm)
六角レンチ(2.5mm)
左側用
右側用
フランジ付ナイロンナット
番号の順に組立てる。
グリスを塗る。仮止め。
座付ボール
セットビス
ネジロック剤を塗る。
向きに注意。
No.1, No.10, No.11
11
Part bags used.
9

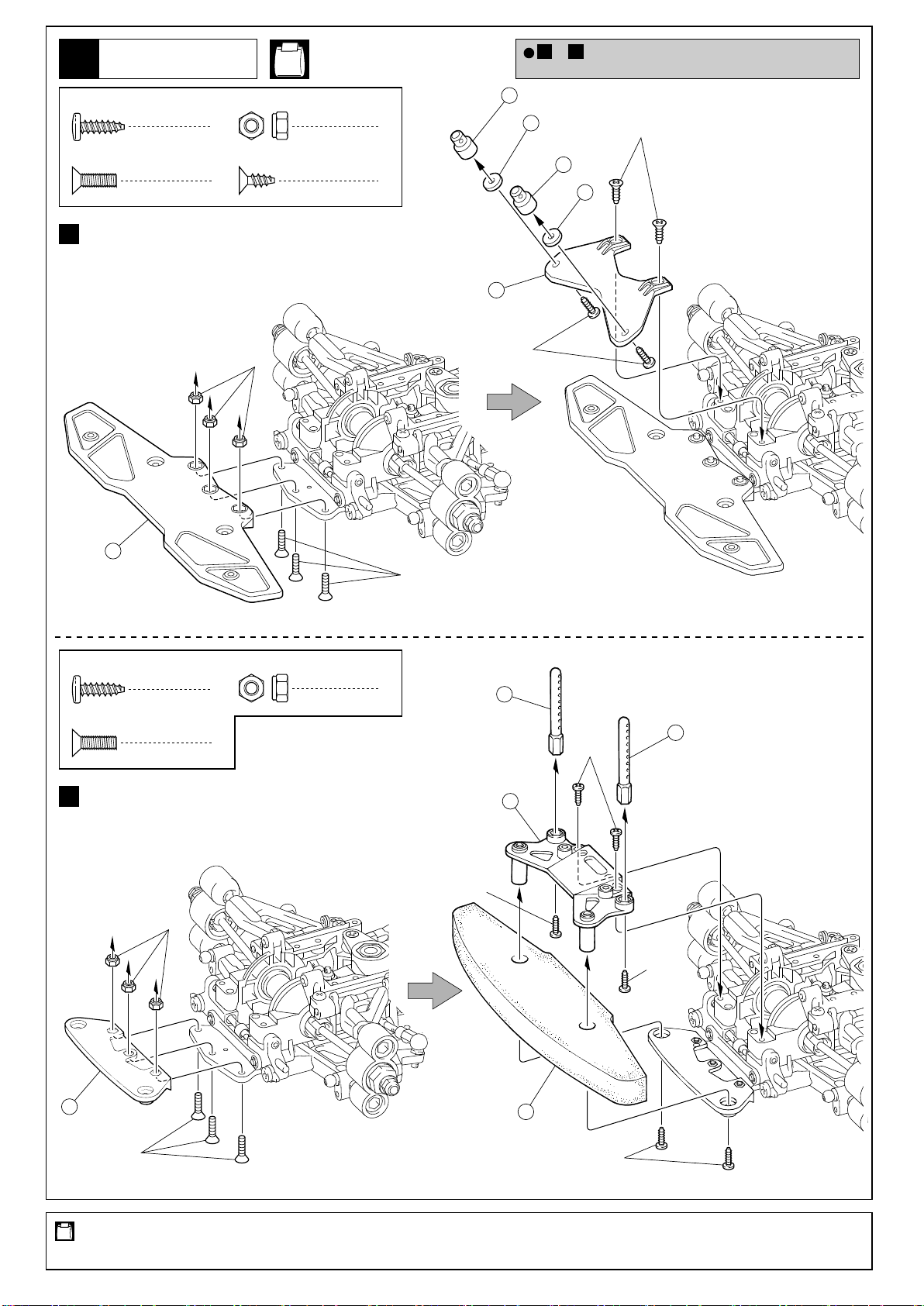

A
Bumper
2
3 x 10mm
TP Screw 3x8mm
3x10mm
3x10mm(F/H)
3mm
180
181
181
182
182
179
3mm
Nylon Nut
3 x 10mm
F/H Screw 2
3 x 8mm
TP F/H Screw
3
3
6
3 x 10mm
TP Screw
3mm
Nylon Nut
3 x 10mm
F/H Screw 3
3
3x10mm
3x10mm
3x10mm
3x10mm
3x10mm(F/H)
3mm
80
17
40
40
18
Bumper (for CAN-AM)
BBumper (for Touring Body)
Choose Bumper A or B, and then proceed with assembly.
使用する袋詰。
バンパー
TPビス ナイロンナット
サラビス TPサラビス
TPビス ナイロンナット
サラビス
カンナム用バンパー
ツーリングボディ用バンパー
かのどちらかを選んで組み立てる。A B
No.1, No.4,
No.10
No.1, No.4
12
Part bags used.
145
146
4
66
145
144
151
151
23
64
24
21
3x15mm
10
Rear Bulkhead
11
Rear Bulkhead
2
3 x 15mm
Cap Screw
1
Brake Piston
146
1
Brake Shaft
66
1
19T
Pulley
21
2
151
2 x 11mm
Pin
64
Spur Gear Shaft
1
approx. 6.5mm
Cut off.
Apply rubber type glue.
"19" Inscription
Note the
direction.
Top
No.1, No.4,
No.10
12
Rear Bulkhead
2
4 x 8mm
Set Screw
4
3 x 12mm
TP F/H Screw
1
E5
E-ring
2
155
6 x 12mm
Ball Bearing
2
156
12 x 18mm
Ball Bearing
1
151
2 x 11mm
Pin
3x12mm 3x12mm
4x8mm
E5
79
Belt (Small)
Rear Differential
Assembly
Tighten up to
the end.
4x8mm
26
21
155
151
3
156
156
143
143
4
155
"19" Inscription
使用する袋詰。
リヤバルクヘッド
リヤバルクヘッド
ブレーキピストン
ブレーキシャフト
キャップビス
プーリ ピン
スパーギヤシャフト
約6.5mm
をカット
する。
ゴム系接着剤で接着する。
19の刻印
向きに注意。
上
リヤバルクヘッド
セットビス TPサラビス
Eリング
ベアリング
ベアリング
ピン
ベルト(小)
リヤデフAssy
この面まで
しめこむ。
19の刻印
0.5mm
No.1, No.4,
No.6, No.10
13
Part bags used.
13
Rear Suspension Arm
99
15
11
212
16
154
4
210
155 214
151
100
99 32
100
188
102
101
4x8mm
3x15mm
3x12mm
4mm
2
4 x 8mm
Set Screw
2
3 x 15mm
Cap Screw
2
155
6 x 12mm
Ball Bearing
2
154
10 x 15mm
Ball Bearing
4
99
9mm
Pillow Ball
4
100
9mm
Pillow Ball Nut
212
2
Wheel Shaft (Rear) (Silver)
2
101
6.8mm
Flange Ball
2
210
5.8mm
Flange Ball
2
188
6.8mm
Ball End
102
4x20mm
Adjustable Rod
2
Assemble left and right
sides the same way.
Ensure smooth, non-binding
movement when assembling.
2
151
2 x 11mm Pin
x2
approx. 5mm
True-to-scale
diagram.
x2Assemble as many
times as specified.
< >Right
< >Left
Hex Wrench
(5mm)
approx. 2.5mm
2
4mm
Flanged Nylon Nut
The side with
the step is a
reverse screw.
Insert from wider side.
2
1
Hex Wrench (2.5mm)
Assemble in the
specified order.
Tentatively
tighten.
1.3mm
Marked ÒRÓ
2
214
6x8x2mm
Aluminium Collar
For Right
For Left
190
189
2
3 x 12mm
Set Screw
Marked ÒLÓ
Apply threadlocker
(screw cement).
No.1, No.4,
No.10
14
Rear Suspension Arm
3 x 20mm
Cap Screw
2
3 x 12mm
TP F/H Screw
2
3 x 10mm
TP Screw
2
213
Swing Shaft (Rear)
2
76
3 x 59mm
Shaft
191
76
213
3x10mm
3x12mm
3x20mm
For Left
For Right
2
Apply grease.
2
4
4.8mm
Ball Stud (S)
使用する袋詰。
ピン
リヤサスアーム
ホイルシャフト(リヤ)(銀)
座付ボール
座付ボール
ボールエンド
アジャスタブルロッド
セットビス
キャップビス
ベアリング
ベアリング
ピロボール
ピロボールナット
可動するように組立てる。
左右同じように組立てる。
約5mm
原寸図。
2セット組立てる(例)。
右側用
左側用
< >
< >
六角レンチ(5mm)
約2.5mm
フランジ付ナイロンナット
段のある方
が逆ネジ。
穴の広い方から入れる。
六角レンチ
(2.5mm)
番号の順に組立てる。
仮止め。
Lのマーク
Rのマーク
アルミカラー
右側用
左側用
セットビス
ネジロック剤を塗る。
リヤサスアーム
キャップビス
TPサラビス
TPビス
スイングシャフト(リヤ)
シャフト
左側用
右側用
グリスを塗る。
ボールスタッド(S)
14
No.5, No.10
121
121
115
118
118
1
4
13
2
119
120
119
120
2.6x12mm
3x3mm
4x4mm
2.6x12mm
3x3mm
15
2 Speed Changer
Firmly tighten the set screws onto
the flat spots.
120
2.6x12mm
3x3mm
Tighten 2.6mm Cap Screw to Collar till the
screw stops, and unscrew 3 rounds, then
please set up according to the track condition.
120
1
4 x 4mm
Set Screw
2
2.6 x 12mm
Cap Screw
2
119
2 Speed Spring
2
120
2.6 x 3 x 5.5mm
Collar
2
121
5mm
Roller
Part bags used. Apply threadlocker (screw cement). Apply grease. Assemble in the specified order.
282
No.5, No.10
281
122
123
155
155
114
3x6mm
3x6mm
3x10mm
3
3 x 6mm
F/H Screw
3 x 10mm
Cap Screw
1
16
2 Speed Changer
Note the direction.
1
1
122
3 x 8 x 12mm
Collar
123
3 x 12mm
Washer
2
155
6 x 12 x 4mm
Ball Bearing
2
3 x 3mm
Set Screw
使用する袋詰。
平らな面にセットビスを固定する。
2スピードミッション
2.6mmキャップビスを カラーにあたる
までしめた所から3回転ゆるめる。
120
ネジロック剤を塗る。 グリスを塗る。
セットビス
キャップビス
2速スプリング
カラー
ローラー
番号の順に組立てる。
向きに注意。
サラビス
キャップビス
ベアリング
カラー
ワッシャー
2スピードミッション
セットビス
2
5
No.6, No.10
15
Part bags used.
17
Middle Shaft Support
4
3 x 12mm
TP F/H Screw
3x12mm
3x12mm
54
1
8
No.1, No.6, No.10
18
Middle Shaft Support
2
151
2 x 11mm
Pin
3
E5
E-ring
2
155
6 x 12mm
Ball Bearing
1
18T
Pulley
22
1
25T
Pulley
20 78
Middle Belt
279
Middle Shaft
1
E5
E5 E5
155
151
279
55
196
197
7
1
4
3
5
2
6
8
9
10
151
26
22
155
Front Belt
"18" Inscription
"25" Inscription
"25" Inscription
Assemble in the specified order.
使用する袋詰。
TPサラビス
ミドルシャフトサポート
番号の順に組立てる。
ピン
ミドルシャフトサポート
Eリング
ベアリング
ミドルベルト
フロントベルト
ミドルシャフト
プーリ
プーリ
18の刻印
25の刻印
25の刻印

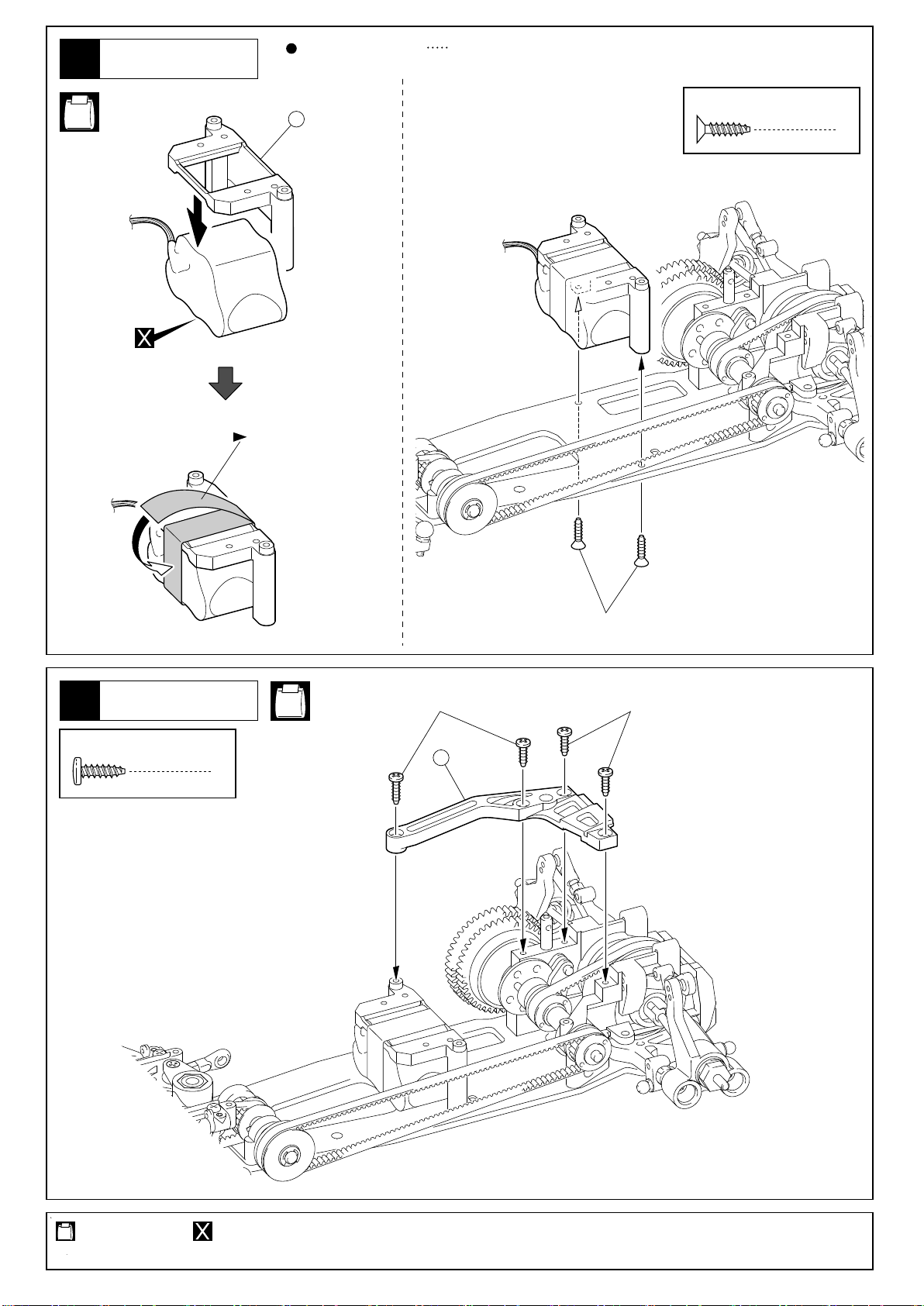

16
Part bags used.
No.6, No.10
269
Battery
Fix with Glass Tape, etc.
19
Battery KYOSHO 71161 X-FORCE 6V-600 Ni-Cd BatterySuitable Battery
No.1, No.10
20
Center Bulk
4
3 x 10mm
TP Screw
3x10mm 3x10mm
3x12mm
37
Must be purchased separately!
2
3 x 12mm
TP F/H Screw
使用する袋詰。
バッテリー
グラステープ等で巻く。
バッテリー 使用できるバッテリー 京商製 71161 X-FORCE 6V-600ニカドバッテリー
TPビス
センターバルク
別購入品。
TPサラビス
No.7
No.7, No.10
17
Part bags used.
21
Engine
22
Engine
3x10mm (Cap)
3x10mm (Cap)
For Side Exhaust, SG shaft (Pilot shaft) type.
Must be purchased separately! Apply threadlocker (screw cement).
Marked ÒO.S.Ó
In case of no space as shown, insert
the washer included in the kit.
219
206
217
208
198
207
209
109
110
218
228
229 158 283 284
205
158
221
224
220
Engine Assembly
Cut off shaded portion
if it is needed.
1
7 x 11mm
Washer
110
108
108
108
108
228
Bell Guide Washer
2
158
5 x 10 x 4mm
Ball Bearing
3 x 10mm
Cap Screw
1
3 x 12mm
Cap Screw
3 x 15mm
Cap Screw
1
221 220
0.5mm
2mm
Select according to the engine you use.
Adjust 5x0.1mm, 5x0.5mm
and
3x0.2mm so that this space
to be 0.5mm
(Refer to the Setting Sheet).
3x12mm
3x15mm
220 221
224
4
198
198
1
使用する袋詰。
エンジン
エンジン
このキットは、SGシャフト(パイロット
シャフト)仕様専用です。
別購入品。 ネジロック剤を塗る。
O.S.のマーク。
パイロットナットをしめた時ここに
隙間ができない時は、付属のワッシ
ャーを入れる。
エンジンアッセンブリー
ワッシャー
エンジンによっては、
の内側を少し削る。
108
ベルガイドワッシャー
ベアリング
キャップビス
キャップビス
キャップビス
使用するエンジンに合わせる。
ここのすきまが0.5mm(別紙
セッティングシート参照)に
なるように、 5x0.1mmシム
と5x0.5mmシムと 3x0.2
mmシムで調節する。
220
221 224
Engine
エンジン側
4.8mm 5.0mm
Note the direction.
の向きに注意。
229
No.6,
No.10
No.7, No.10
18
Part bags used.
23
Engine
4
3 x 8mm
Screw
In case of Side Exhaust engine, No.39063
Tuned Silencer or No.39065 Manifold.
Not use for Rear Exhaust
engine.
3x8mm
3x8mm
3x8mm (TP F/H)
3x10mm
1
3 x 10mm
TP Screw
Bend the wire to adjust the muffler.
Muffler
24
Tighten the screws
with one sheet of
paper inserted between
both gears.
47
3x10mm
3x3mm
222
202
Engine Assembly
1
3 x 8mm
TP F/H Screw
1
3 x 10mm
F/H Screw
1
3 x 3mm
Set Screw
Must be purchased separately!
使用する袋詰。
エンジン
ビス
サイド排気の場合、V-One R専用のNo.39063
チューンドサイレンサー又はNo.39065マニホ
ールドを使用してください。
後方排気エンジンの場合、
使用しません。
TPビス
使用するマフラーに合わせて曲げる。
マフラー
紙1枚分のすき間を
つくって固定する。
エンジンアッセンブリー
TPサラビス
サラビス
セットビス
別購入品。
19
Part bags used.
No.8
No.8
4
137
O-ring (Clear)
2
139
C-ring
2
135
Shock Collar (A)
2
138
2
2.6mm
Washer
2
2.6mm
Nylon Nut
134
138
139
137
133
135
140
130A
136
131
223
130B
82
83
132
2.6mm
2.6mm
x2
x2
141
Silicone
(Soft)
For Front (Short)

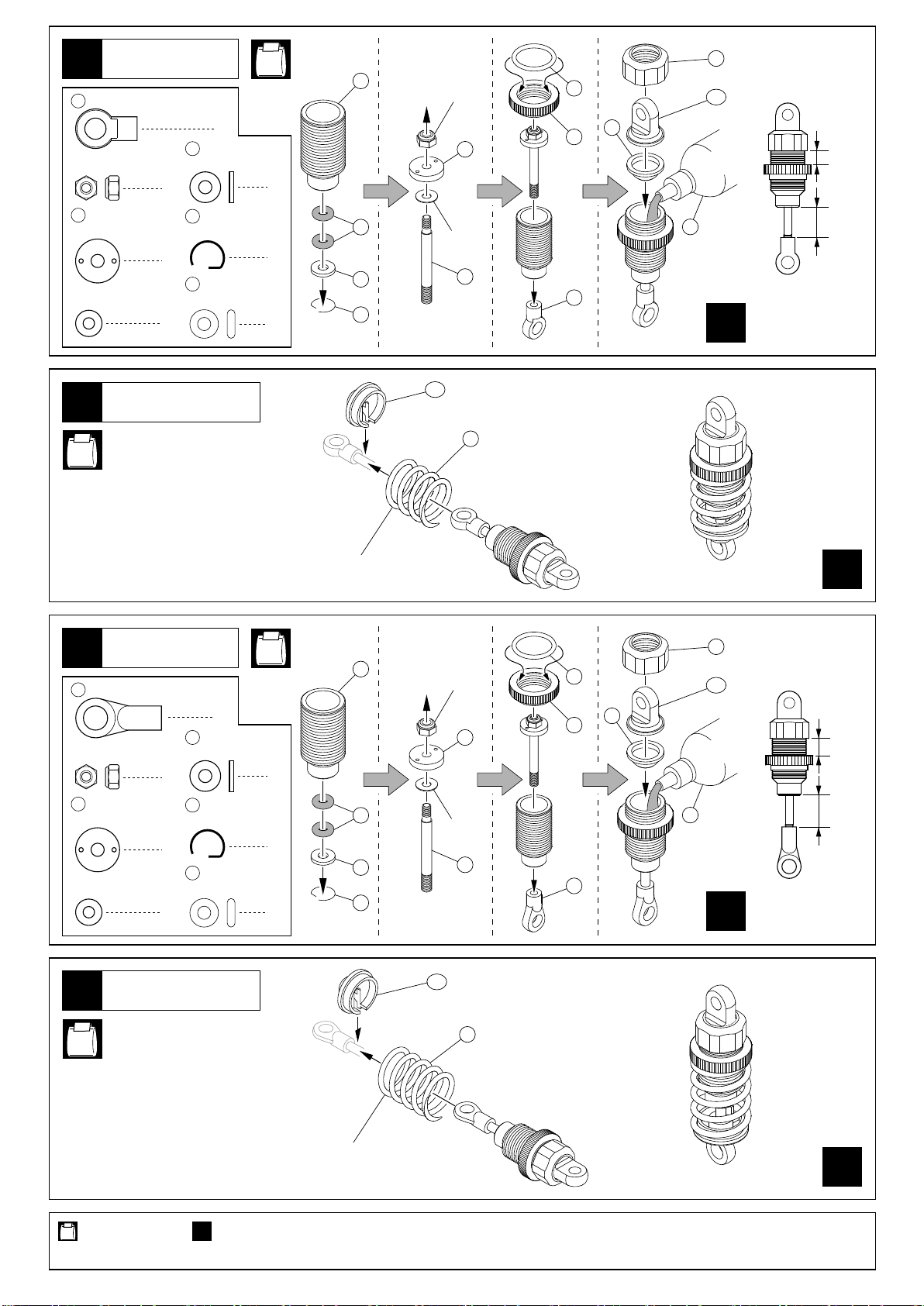

25
Front Shock
26
Front Shock
No.3, No.8
2
135
4
137
2
139
C-ring
Shock Collar (A)
2
138
2
2.6mm
Washer
2
2.6mm
Nylon Nut
27
Rear Shock
x2
Assemble as many times as specified.
No.8
x2
28
Rear Shock
For Rear (Long)
134
138
139
137
133
135
140
130A
136
131
287
132
2.6mm
2.6mm
x2
141
Silicone
(Soft)
Shock Piston
Shock Piston
(Black)
(Black)
2
223
5.8mm
Shock End
2
287
5.8mm
Shock End
5mm
11mm
6.5mm
13mm
O-ring (Clear)
使用する袋詰。
Oリング(
クリア
)
Cリング
ダンパーカラー(A)
ワッシャー
ナイロンナット
低粘度
シリコン
オイル
低粘度
シリコン
オイル
フロント用(短)
フロントダンパー
フロントダンパー
リヤダンパー
Cリング
ダンパーカラー(A)
ワッシャー
ナイロンナット
2セット組立てる(例)。
リヤダンパー
リヤ用(長)
ダンパーピストン
ダンパーピストン
(黒)
(黒)
130B
ダンパーエンド
ダンパーエンド
Oリング(
クリア
)
20
Part bags used.
30
Rear Stabilizer
No.1, No.8, No.10
No.1, No.6, No.10
29
Front Shock Stay
Front Shock
210
267
3x16mm
203 194
201
3x8mm
3x10mm
3x10mm
3x6mm
1
3 x 8mm
Screw
2
3 x 10mm
Cap Screw
2
210
5.8mm
Flange Ball
3 x 16mm
Set Screw
173
x2
292
172
2
3 x 6mm
Flanged Cap Screw
292
4.8mm
Ball End (Long)
2
65.8mm
Ball Stopper
173
5.8mm
Ball End
2
3 x 3mm
Set Screw
2
Apply threadlocker
(screw cement).
x2
Assemble as many
times as specified.
Assemble left and right
sides the same way.
True-to-scale
diagram.
2
3 x 12mm
Set Screw
0mm
3x12mm
3x3mm
2
2
5mm
使用する袋詰。
リヤスタビライザー
フロントダンパー
フロントダンパーステー
ビス
キャップビス
座付ボール
セットビス
座付キャップビス
ボールエンド(長)
ボールストッパー
ボールエンド
セットビス
ネジロック剤を塗る。 2セット組立てる(例)。
左右同じように組立てる。 原寸図。
セットビス
可動するように組立てる。
Ensure smooth non-binding
movement while assembling.

This manual suits for next models

1

Other Kyosho Motorized Toy Car manuals

Kyosho Mini-Z Racer MR-02 MM Type User manual

Kyosho

Kyosho Mini-Z Racer MR-02 MM Type User manual

Kyosho V-one RRR User manual

Kyosho

Kyosho V-one RRR User manual

Kyosho MINI-Z Racer MR-02 LM Type User manual

Kyosho

Kyosho MINI-Z Racer MR-02 LM Type User manual

Kyosho Ultima RZ6 Conversion Set User manual

Kyosho

Kyosho Ultima RZ6 Conversion Set User manual

Kyosho Advance User manual

Kyosho

Kyosho Advance User manual

Kyosho MINI-Z Racer MR-03W MM Type User manual

Kyosho

Kyosho MINI-Z Racer MR-03W MM Type User manual

Kyosho FW-05RR User manual

Kyosho

Kyosho FW-05RR User manual

Kyosho TF-5 Readyset User manual

Kyosho

Kyosho TF-5 Readyset User manual

Kyosho Mini-Z Racer MR-015 RM Type User manual

Kyosho

Kyosho Mini-Z Racer MR-015 RM Type User manual

Kyosho ULTIMA SC-R User manual

Kyosho

Kyosho ULTIMA SC-R User manual

Kyosho FX-101 Series User manual

Kyosho

Kyosho FX-101 Series User manual

Kyosho Mini-Z Racer MR-03N RM Type User manual

Kyosho

Kyosho Mini-Z Racer MR-03N RM Type User manual

Kyosho PureTen GP 4WD FW-06 Readyset User manual

Kyosho

Kyosho PureTen GP 4WD FW-06 Readyset User manual

Kyosho outlaw rampage pro Installation and operating instructions

Kyosho

Kyosho outlaw rampage pro Installation and operating instructions

Kyosho Racing Clutch Assy SP3D User manual

Kyosho

Kyosho Racing Clutch Assy SP3D User manual

Kyosho Turbo Optima Mid 3136 User manual

Kyosho

Kyosho Turbo Optima Mid 3136 User manual

Kyosho INFERNO MP-7.5 Yuichi KANAI EDITION User manual

Kyosho

Kyosho INFERNO MP-7.5 Yuichi KANAI EDITION User manual

Kyosho DRX User manual

Kyosho

Kyosho DRX User manual

Kyosho MINI-Z Racer MR-03N RM Type User manual

Kyosho

Kyosho MINI-Z Racer MR-03N RM Type User manual

Kyosho Impacta Baja 3048 User manual

Kyosho

Kyosho Impacta Baja 3048 User manual

Kyosho V-ONE SR User manual

Kyosho

Kyosho V-ONE SR User manual

Kyosho LAZER ZX-5 FS2 KIT User manual

Kyosho

Kyosho LAZER ZX-5 FS2 KIT User manual

Kyosho TR15 STADIUM FORCE Readyset User manual

Kyosho

Kyosho TR15 STADIUM FORCE Readyset User manual

Kyosho Inferno GT ReadySet User manual

Kyosho

Kyosho Inferno GT ReadySet User manual

Popular Motorized Toy Car manuals by other brands

Associated Electrics Reflex 14B manual

Associated Electrics

Associated Electrics Reflex 14B manual

Jamara BMW i4 Concept 2,4GHz instructions

Jamara

Jamara BMW i4 Concept 2,4GHz instructions

Traxxas Revo 3.3 owner's manual

Traxxas

Traxxas Revo 3.3 owner's manual

Tamiya 35215 Assembly manual

Tamiya

Tamiya 35215 Assembly manual

Serpent F110 Build manual

Serpent

Serpent F110 Build manual

Rollplay FLEX KART XL PEDAL Owner's manual and assembly instructions

Rollplay

Rollplay FLEX KART XL PEDAL Owner's manual and assembly instructions

DHK 8382 User instruction manual

DHK

DHK 8382 User instruction manual

BS RACING BS709E instruction manual

BS RACING

BS RACING BS709E instruction manual

Serpent Model Racing Cars BV f110 SF3 instruction manual

Serpent Model Racing Cars BV

Serpent Model Racing Cars BV f110 SF3 instruction manual

Reely Rat Max XL operating instructions

Reely

Reely Rat Max XL operating instructions

Tamiya Martini Porsche 935 Turbo manual

Tamiya

Tamiya Martini Porsche 935 Turbo manual

ahead RC Adventurer Crawler G3308 Assembly manual

ahead RC

ahead RC Adventurer Crawler G3308 Assembly manual

Jamara Creater instructions

Jamara

Jamara Creater instructions

Horizon Fitness FCJJ-11 Assembly guide

Horizon Fitness

Horizon Fitness FCJJ-11 Assembly guide

PRO1 Racing PRO1 2004 user guide

PRO1 Racing

PRO1 Racing PRO1 2004 user guide

Rovo Kids Lighting McQueen user manual

Rovo Kids

Rovo Kids Lighting McQueen user manual

Enabling Devices Billy Fun Wheels #2102 user guide

Enabling Devices

Enabling Devices Billy Fun Wheels #2102 user guide

HoBao Hyper 4WD 8SC instruction manual

HoBao

HoBao Hyper 4WD 8SC instruction manual

manuals.online logo
manuals.online logoBrands
  • About & Mission
  • Contact us
  • Privacy Policy
  • Terms and Conditions

Copyright 2025 Manuals.Online. All Rights Reserved.
