Thank you for buying this cooker. It should give you many
years of trouble-free cooking if installed and operated
correctly. It is important that you read this section before you
start, particularly if you have not used an induction cooker
before.
 CAUTION: This appliance is for cooking purposes
only. It must not be used for other purposes, for
example room heating. Using it for any other
purpose could invalidate any warranty or liability
claim. Besides invalidating claims this wastes fuel
and may overheat the control knobs.
Installation and Maintenance
All installations must be in accordance with the relevant
instructions in this booklet, with the relevant national
and local regulations, and with the local electricity supply
companies’ requirements.
Make sure that the cooker is correctly wired and switched on.
The hob control display will ash for about 2 seconds
during rst power setting – this is normal.
Set the clock to make sure that the ovens are functional –
see the relevant section in this manual.
Only a qualied service engineer should service the cooker,
and only approved spare parts should be used.
Always allow the cooker to cool and then switch it o at the
mains before cleaning or carrying out any maintenance work,
unless specied otherwise in this guide.
Peculiar Smells
When you rst use your cooker it may give o an odour. This
should stop after use.
Before using your cooker for the rst time, make sure that all
packing materials have been removed and then, to dispel
manufacturing odours, turn all the ovens to 200°C and run
for at least an hour.
Make sure the room is well ventilated to the outside air
(see ‘Ventilation’ below). People with respiratory or allergy
problems should vacate the area for this brief period.
Ventilation
 CAUTION: The use of a cooking appliance results in
the production of heat and moisture in the room in
which it is installed. Therefore, make sure that the
kitchen is well ventilated: keep natural ventilation
holes open or install a powered cookerhood that
vents outside. If you have several hotplates on, or
use the cooker for a long time, open a window or
turn on an extractor fan.
Personal Safety
Important information for pacemaker and implanted
insulin pump users: The functions of this hob comply with
the applicable European standards on electromagnetic
interference. If you are tted with a pacemaker or
implanted insulin pump and are concerned please consult
your doctor for medical advice.
 DO NOT modify this appliance.
 This appliance can be used by children aged from
8years and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the
appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
 WARNING: The appliance and its accessible parts
become hot during use and will retain heat even
after you have stopped cooking. Care should be
taken to avoid touching heating elements. Children
less than 8 years of age shall be kept away unless
continuously supervised.
 When the hob is in use keep magnetic items, such as
credit and debit cards, oppy disk, calculators, etc.
away.
 CAUTION: A long term cooking process has to be
supervised from time to time. A short term cooking
process has to be supervised continuously.
 Danger of re: DO NOT store items on the cooking
surfaces.
 To avoid overheating, DO NOT install the cooker
behind a decorative door.
 Accessible parts will become hot during use and will
retain heat even after you have stopped cooking.
Keep babies and children away from the cooker and
never wear loose-tting or hanging clothes when
using the appliance.
 DO NOT use a steam cleaner on your cooker.
Always be certain that the controls are in the OFF position
when the oven is not in use, and before attempting to clean
the cooker.
 Take care when touching the marked cooking areas
of the hob.
 When the oven is on, DO NOT leave the oven door
open for longer than necessary, otherwise the
control knobs may become very hot.
 When using the grill, make sure that the grill pan
is in position and pushed fully in, otherwise the
control knobs may become very hot.
1. Before You Start...

2
Always keep combustible materials, e.g. curtains, and
ammable liquids a safe distance away from your cooker.
 DO NOT spray aerosols in the vicinity of the cooker
while it is on.
Cooking high moisture content foods can create a ‘steam
burst’ when an oven door is opened (Fig.1.1). When opening
an oven stand well back and allow any steam to disperse.
Use dry oven gloves when applicable – using damp gloves
might result in steam burns when you touch a hot surface.
Do not use a towel or other bulky cloth in place of a glove – it
might catch re if brought into contact with a hot surface.
 NEVER operate the cooker with wet hands.
 DO NOT use aluminium foil to cover shelves, linings
or the oven roof.
 NEVER heat unopened food containers. Pressure
build up may make the containers burst and cause
injury.
 DO NOT use unstable saucepans. Always make sure
that you position the handles away from the edge of
the hotplate.
Never leave the hotplate unattended at high heat settings.
Pans boiling over can cause smoking, and greasy spills may
catch on re. Use a deep fat thermometer whenever possible
to prevent fat overheating beyond the smoking point.
 WARNING!
Unattended cooking on a hob with fat or oil can be
dangerous and may result in re.
 NEVER leave a chip pan unattended. Always heat fat
slowly, and watch as it heats. Deep fry pans should
be only one third full of fat. Filling the pan too full
of fat can cause spill over when food is added. If you
use a combination of oils or fats in frying, stir them
together before heating, or as the fats melt.
Foods for frying should be as dry as possible. Frost on frozen
foods or moisture on fresh foods can cause hot fat to bubble
up and over the sides of the pan. Carefully watch for spills or
overheating of foods when frying at high or medium high
temperatures. Never try to move a pan of hot fat, especially a
deep fat fryer. Wait until the fat is cool.
Do not use the top of the ue (the slots along the back of
the cooker) for warming plates, dishes, drying tea towels or
softening butter.
 DO NOT use water on grease res and never pick
up a aming pan. Turn o the controls and then
smother a aming pan on a surface unit by covering
the pan completely with a well tting lid or baking
tray. If available, use a multi-purpose dry chemical
or foam-type re extinguisher.
Take care that no water seeps into the appliance.
 This appliance is heavy so take care when moving it.
ArtNo.324-0001 Steam burst
Fig.1.1

3
ArtNo.090-0007 90 Ceramic:
oven steam out the back
Hob Care
 NEVER allow anyone to climb or stand on the hob.
 NEVER cook directly on the hob surface (Fig.1.2).
 DO NOT use the hob surface as a cutting board.
DO NOT leave utensils, foodstus or combustible items on
the hob when it is not in use (e.g. tea towels, frying pans
containing oil).
 DO NOT place plastic or aluminium foil, or plastic
containers, on the hob.
 DO NOT leave the hob zones switched on unless
being used for cooking.
DO NOT stand or rest heavy objects on the hob. Although the
ceramic surface is very strong, a sharp blow or sharp falling
object (e.g. a salt cellar) might cause the surface to crack or
break (Fig.1.3).
 Should a crack appear in the surface, disconnect the
appliance immediately from the supply and arrange
for its repair.
Always LIFT pans o the hob. Sliding pans may cause marks
and scratches (Fig.1.4). Always turn the control to the OFF
position before removing a pan.
 Take care when placing hot lids onto the hob
surface. Lids that have been covering boiling or
steaming foods can ‘stick’ to the ceramic glass.
Should this occur, DO NOT attempt to lift the lid
o the hotplate: this may damage the hob surface.
Instead, carefully slide the lid to the edge of the hob
surface and remove.
DO NOT place anything between the base of the pan and the
hob surface (e.g. asbestos mats, aluminium foil, wok stand).
 Take care NOT to place metallic objects such as
knives, forks, spoons and lids on the hob surface
since they can get hot.
 The appliance is not intended to be operated by
means of external timer or separated remote-control
system.
Cooker Care
As steam can condense to water droplets on the cool outer
trim of the oven, it may be necessary during cooking to wipe
away any moisture with a soft cloth. This will also help to
prevent soiling and discolouration of the oven exterior by
cooking vapours (Fig.1.5).
ArtNo.312-0001 Not cooking surface
ArtNo.312-0003 Moving pans
Fig.1.2
Fig.1.3
Fig.1.4
Fig.1.5

4

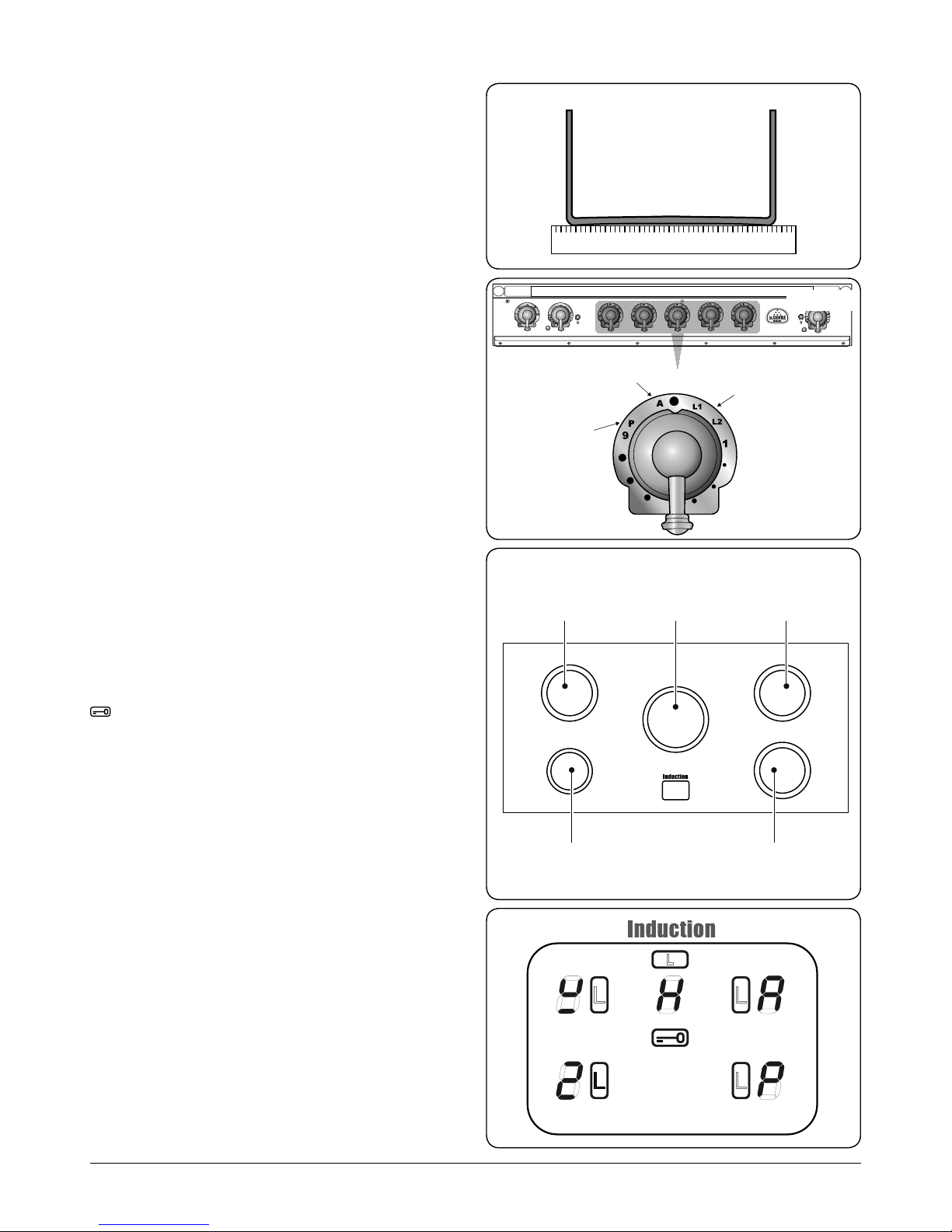

The 110 induction cooker (Fig.2.1) has the following features:
A. 5 induction cooking zones
B. Control panel
C. Main multi-function oven
D. Storage drawer
E. Main fan oven
The Hob
Use only pans that are suitable for induction hobs. We
recommend stainless steel, enamelled steel pans or cast iron
pans with enamelled bases. Note that some stainless steel
pans are not suitable for use with an induction hob so please
check carefully before purchasing any cookware.
Pans made of copper, aluminium or ceramic are not suitable
for use on an induction hob. The kind of pan you use and the
quantity of food aects the setting required. Higher settings
are required for larger quantities of food.
Pots and pans should have thick, smooth, at bottoms
(Fig.2.2). This allows the maximum heat transfer from the
hob to the pan, making cooking quick and energy ecient.
Never use a round-bottomed wok, even with a stand.
A
B
C
D
E
Fig.2.1
Fig.2.2
2. Cooker Overview

5
A
Automatic Heat-up
Setting
L1 / L2
Low Temperature
Settings
P
Power Boost
Setting
The very best pans have bases that are very slightly curved
up when cold (Fig.2.3). If you hold a ruler across the bottom
you will see a small gap in the middle. When they heat up the
metal expands and lies at on the cooking surface.
Make sure that the base of the pan is clean and dry to prevent
any residue burning onto the hob panel. This also helps
prevent scratches and deposits.
Always use pans that are the same size as (or slightly larger
than) the areas marked on the hob. Using a lid will help the
contents boil more quickly.
 Take care when placing hot lids onto the hob
surface. Lids that have been covering boiling or
steaming foods can ‘stick’ to the ceramic glass.
Should this occur, DO NOT attempt to lift the lid
o the hotplate: this may damage the hob surface.
Instead, slide the lid to the edge of the hob surface
and remove.
 Always take care before touching the surface, even
when the hob is turned o. It may be hotter than you
think!
The layout of the rotary controls for the operation of the
induction hob is shown in Fig.2.4.
The induction hob comprises of ve cooking zones
containing induction elements with dierent ratings and
diameters (Fig.2.5) each with a pan detector and residual
heat indicator, and a hob control display.
The hob control display (Fig.2.6) informs you of the following
induction hob functions:
Pan detector
HResidual heat indicator
AAutomatic heat-up
Child lock
L1/L2 Low temperature setting
P Power boost setting
Pan Detector,
IMPORTANT: After use, switch o the hob element by its
control and DO NOT RELY on the pan detector.
If a cooking area is switched on and there is no pan in place
or if the pan is too small for the cooking area, then no heat
will be generated. The symbol [ ] will appear on the hob
control display; this is the “pan-missing symbol”. Place a pan
of the correct size on the cooking area and the [ ] symbol
will disappear and cooking can begin. After 10 minutes
without detecting a pan the cooking zone will switch o
automatically.
Max: 1.85 kW
Boost: 3.0 kW
Max: 1.85 kW
Boost: 3.0 kW
Max: 2.3 kW
Boost: 3.7 kW
Max: 1.85 kW
Boost: 3.0 kW
Max: 1.4 kW
Boost: 2.2 kW
Fig.2.3
Fig.2.4
Fig.2.5
Fig.2.6

6
Table 2.1 shows the minimum pan sizes recommended for
each cooking zone.
Note: Using pans with a base diameter smaller than those
recommended will result in a power reduction.
Residual Heat Indicator, H
After use, a cooking zone will remain hot for a while as heat
dissipates. When a cooking zone is switched o the residual
heat indicator symbol [H ], will appear in the display. This
shows that the cooking zone temperature is above 60 °C and
may still cause burns. Once the temperature has dropped to
below 60 °C the [H ] will go out.
Automatic Heat-up, A
This function is available on all of the cooking zones. It
allows rapid heating up of the element to bring the selected
cooking zone up to temperature. Once the zone is at the
required cooking temperature the power level will reduce
automatically to the preset level.
The function is selected by turning the control knob to the
‘A’ position. This can be selected by turning the control knob
momentarily counter-clockwise from the zero position until
the symbol [A ] is shown on the hob control display.
Once the [A ] is displayed, turn the control knob to the level
of your choice (1 to 9). The pan will heat up at 100% power
for a specied time before the power is reduced to the level
selected.
When the Automatic Heat-up function is activated, the hob
control display will ash alternately between the [A ] setting
and the chosen power level.
Once the Automatic Heat-up time has ended the hob display
will stop ashing and will show the chosen power level.
The Automatic Heat-up function can be stopped by either
turning the control knob back to the “0”power setting or
turning the control knob to the “9”power setting.
For your guidance Table 2.2 shows the time available at
100% power depending on the power level selected in the
Automatic Heat-up mode.
Child Lock,
To prevent the unwanted use by children, the hob can be
locked.
IMPORTANT: This can only be activated when all the
cooking zones are switched o.

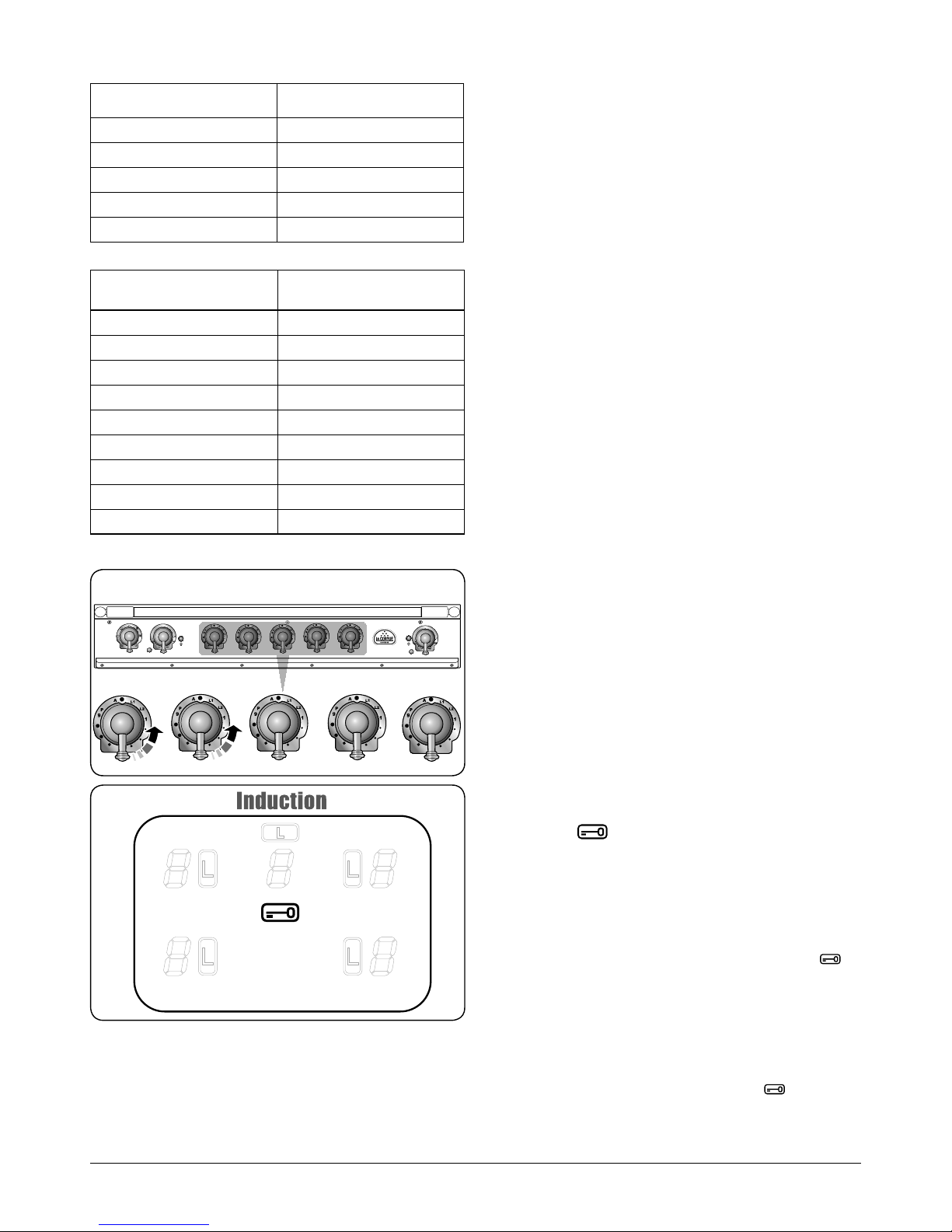

To lock the hob, simultaneously turn the two left-hand hob
controls counter-clockwise (Fig.2.7) and hold until the
symbol appears in the centre of the hob control display
(Fig.2.8).
Note: [A ] will ash when locking the hob – this is normal.
Locking the hob will NOT aect the oven; it can still be used.
To unlock the hob, simultaneously turn the two left-hand hob
controls counter-clockwise and hold until the symbol
disappears from the centre of the hob control display.
Power level Automatic heat-up time at
100% (min:sec)
1 0:48
2 2:24
3 3:50
4 5:12
5 6:48
6 2:00
7 2:48
8 3:36
9
Cooking Zone Minimum Pan Diameter
(Pan Base) mm
Front left 120
Rear left 140
Centre 160
Rear right 140
Front right 140
Fig.2.7
Fig.2.8
Table 2.1
Table 2.2

7
Low Temperature Setting, L1/L2
Each cooking area is equipped with 2 low temperature
settings:
• L1 will maintain a temperature of about 40 °C – ideal for
gently melting butter or chocolate.
• L2 will maintain a temperature of about 90 °C – ideal for
simmering (bring the pan to the boil and then select L2
to keep soups, sauces, stews, etc at an optimal simmer).
The maximum time this setting can be used is 2 hours, after
which the hob will switch o automatically. If required, you
can immediately restart the Low Temperature function by
reactivating L1 or L2.
The maximum times for all other power levels are shown in
Table 2-3.
Power Boost Setting, P
All of the induction cooking zones have Power Boost
available, activated by turning the control knob clockwise
until [P ] is shown on the hob control display.
Power Boost allows additional power to be made available for
each of the cooking zones. This is useful to bring a large pan
of water to the boil quickly.
The Power Boost function operates for a maximum
of 10minutes on each zone, after which the power is
automatically reduced to setting 9.
When using the Power Boost function, the cooking zones are
linked.
Fig.2.9 shows the hob layout. Zones A and B are linked
together as are zones D and E. The centre area C runs
independently, regardless of the use of other cooking areas.
This means that when using zone A on Power Boost and then
switching zone B to power boost, the power to zone A will
reduce slightly. The last zone switched to Power Boost always
takes priority. Zones D and E work in the same way.
 This is a built in safety device.
Deactivate the Power Boost function by turning the control
knob to a lower setting.
Overheat Function
This function identies when the temperature of the pan rises
rapidly and works to maintain a safe level of pan temperature.
It should not interfere with normal cooking.
Cookware with bases that become distorted (Fig.2.2) when
heated may interfere with the operation of the Overheat
Function. This may result in damage to your cookware or
Induction Glass Hob.

Please remember not to leave the hob unattended.
Care should be taken to not allow your cookware to
boil dry. Damage to your cookware and Induction
Glass Hob may result.
Please read and follow the manufacturers’ instructions
carefully before using cookware on your induction hob.
A D
BE
C
A & B linked D & E linked
ArtNo.051-0002 - Min pan diameter
Power Level Maximum Operating Time
2 hours
6 hours
6 hours
5 hours
5 hours
4 hours
1.5 hours
1.5 hours
1.5 hours
1.5 hours
10 minutes
L1 and L2
1
2
3
4
5
6
7
8
9
Power Boost
Table 2.3
Fig.2.9

8
The Ovens
References to ‘left-hand’ and ‘right-hand’ ovens apply as viewed
from the front of the appliance.
The left-hand oven is a multi-function oven.
The right-hand oven is a fan oven.
Multi-function Ovens
Multi-function ovens have an oven fan and oven fan element,
as well as two extra heating elements (Fig.2.10). One element
is in the top of the oven and the second is under the oven
base. Take care to avoid touching the top element and
element deector when placing or removing items from the
oven.
The multi-function oven has 3 main cooking functions: fan,
fan assisted and conventional cooking. These functions
should be used to complete most of your cooking.
The browning element and base heat can be used in the
latter part of the cooking process to ne tune the results to
your particular requirements.
Use fanned grilling for all your grilling needs and defrost to
safely thaw small items of frozen food.
Table 2.4 gives a summary of the multi-function modes. The
multi-function oven has many varied uses. We suggest you
keep a careful eye on your cooking until you are familiar with
each function. Remember, not all functions will be suitable
for all food types.
Function Use
Defrost To thaw small items in the oven without
heat
Fan oven A full cooking function, even heat
throughout, great for baking
Fanned grilling Grilling meat and fish with the door
closed
Fan assisted A full cooking function good for roasting
and baking
Conventional oven A full cooking function for roasting and
baking in the lower half of the oven
Browning element To brown and crisp cheese topped
dishes
Base heat To crisp up the bases of quiche, pizza or
pastry
Table 2.4
B
A
C
A – Grill elements, B – Convection elements, C – Base heat elements
ArtNo.280-117 - MF Knob Symbols
F
E
D
C
B
A
G
A – Defrost, B – Fan oven, C – Fanned grilling, D – Fan assisted oven,
E – Conventional oven, F – Browning element, G – Base heat
Fig.2.10
Fig.2.11

9

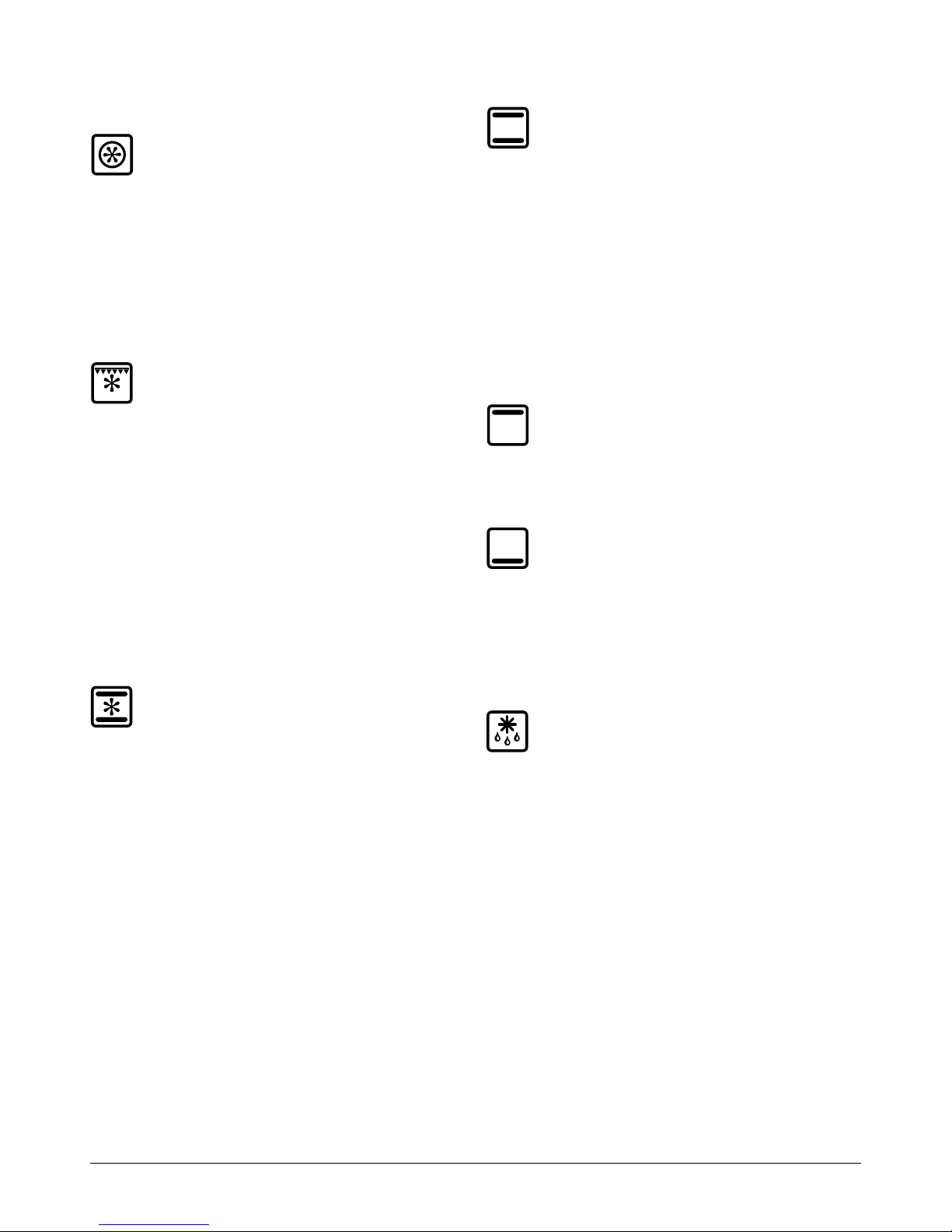

Multi-function Oven Functions (Fig.2.11)
Fan Oven
This function operates the fan and the heating
element around it. An even heat is produced
throughout the oven, allowing you to cook large
amounts quickly.
Fan oven cooking is particularly suitable for baking on several
shelves at one time and is a good‘all-round’ function. It may
be necessary to reduce the temperature by approximately
10 °C for recipes previously cooked in a conventional oven.
If you wish to preheat the oven, wait until the indicator light
has gone out before inserting the food.
Fanned Grilling
This function operates the fan whilst the top element
is on. It produces a more even, less erce heat than a
conventional grill. For best results, place the food to
be grilled, on a trivet over a roasting tin, which should be
smaller than a conventional grill pan. This allows greater air
circulation. Thick pieces of meat or sh are ideal for grilling in
this way, as the circulated air reduces the erceness of the
heat from the grill.
The oven door should be kept closed while grilling is in
progress, so saving energy.
You will also nd that the food needs to be watched and
turned less than for normal grilling. Preheat this function
before cooking.
For best results we recommend that the grill pan is not
located on the uppermost shelf.
Fan Assisted Oven
This function operates the fan, circulating air heated
by the elements at the top and the base of the oven.
The combination of fan and conventional cooking
(top and base heat) makes this function ideal for cooking
large items that need thorough cooking, such as a large meat
roast.
It is also possible to bake on two shelves at one time,
although they will need to be swapped over during the
cooking time, as the heat at the top of the oven is greater
than at the base, when using this function.
This is a fast intensive form of cooking; keep an eye on the
food cooking until you have become accustomed to this
function.
Conventional Oven (Top and Base Heat)
This function combines the heat from the top and
base elements. It is particularly suitable for roasting
and baking pastry, cakes and biscuits.
Food cooked on the top shelf will brown and crisp faster than
on the lower shelf, because the heat is greater at the top of
the oven than at the base, as in ‘Fan Assisted Oven’function.
Similar items being cooked will need to be swapped around
for even cooking. This means that foods requiring dierent
temperatures can be cooked together, using the cooler zone
in the lower half of the oven and hotter area to the top.
The exposed top element may cook some foods too quickly,
so we recommend that the food be positioned in the lower
half of the oven to cook. The oven temperature may also need
to be lowered.
Browning Element
This function uses the element in the top of the oven
only. It is a useful function for the browning or
nishing of pasta dishes, vegetables in sauce,
shepherds pie and lasagne, the item to be browned being
already hot before switching to the top element.
Base Heat
This function uses the base element only. It will crisp
up your pizza or quiche base or nish o cooking the
base of a pastry case on a lower shelf. It is also a
gentle heat, good for slow cooking of casseroles in the
middle of the oven or for plate warming.
The Browning and Base Heat functions are useful additions
to your oven, giving you exibility to nish o items to
perfection.
Defrost
This function operates the fan to circulate cold air
only. Make sure the temperature control is at 0°C and
that no heat is applied. This enables small items such
as desserts, cream cakes and pieces of meat, sh and poultry
to be defrosted.
Defrosting in this way speeds up the process and protects
the food from ies. Pieces of meat, sh and poultry should
be placed on a shelf, over a tray to catch any drips. Be sure to
wash the shelf and tray after defrosting.
Defrost with the oven door closed.
Large items, such as whole chickens and joints should not be
defrosted in this way. We recommend this be carried out in a
refrigerator.
Defrosting should not be carried out in a warm oven or when
an adjoining oven is in use or still warm.
Make sure that dairy foods, meat and poultry are completely
defrosted before cooking.

10
Fan Ovens
Fan ovens circulate hot air continuously, which means
faster, more even cooking. The recommended cooking
temperatures for a fan oven are generally lower than those
for a non-fan oven.
Operating the Ovens
Multi-function Oven
The multi-function oven has two controls: a function control
and a temperature control (Fig.2.12).
Turn the function control to a cooking function. Turn the oven
temperature knob to the temperature required (Fig.2.13).
The oven indicator light will glow until the oven has reached
the temperature you selected (Fig.2.13). It will then cycle on
and o during cooking as the oven maintains the selected
temperature.
Fan Oven
Turn the oven knob to the desired temperature (Fig.2.14).
The oven indicator light will glow until the oven has reached
the temperature you selected (Fig.2.15). It will then cycle on
and o during cooking as the oven maintains the selected
temperature.
Temperature ControlFunction Control
Fig.2.12
Fig.2.13
Fig.2.14
Fig.2.15

11
Accessories
Oven Shelves
Each cooker is supplied with:

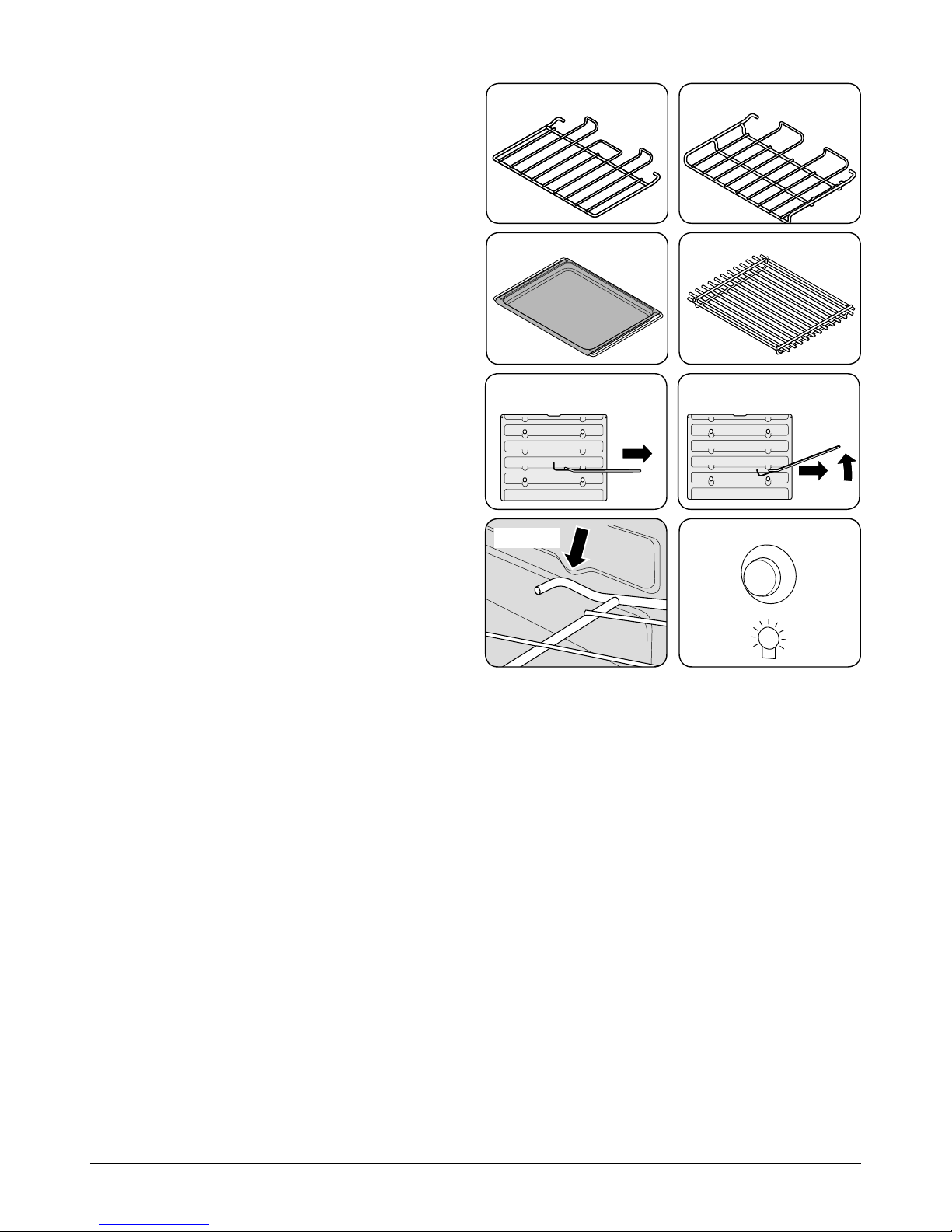

• 2x Flat shelves (Fig.2.16)
• 2x Drop shelves (Fig.2.17)
• 1x Deluxe oven tray (Fig.2.18)
• 1x Deluxe oven tray trivet (Fig.2.19)
In addition to the at shelves your cooker is supplied with
drop shelves (Fig.2.17). The drop shelves increase the
possibilities for oven shelf spacing.
The oven shelves can be easily removed and retted.
Pull the shelf forward until the back of the shelf is stopped by
the shelf stop bumps in the oven sides (Fig.2.20).
Lift up the front of the shelf so the back of the shelf will pass
under the shelf stop and then pull the shelf forward
(Fig.2.21).
To ret the shelf, line up the shelf with a groove in the oven
side and push the shelf back until the ends hit the shelf stop.
Lift up the front so the shelf ends clear the shelf stops, and
then lower the front so that the shelf is level and push it fully
back (Fig.2.22).
Main Oven Light
Press the button to turn the light on (Fig.2.23).
If the oven light fails, turn o the power supply before
changing the bulb. See the ‘Troubleshooting’ section for
details on how to change the bulb.
ArtNo.320-0013 Removing the shelf 3
ArtNo.320-0011 Removing the shelf 1
ArtNo.320-0012 Removing the shelf 2
Fig.2.16
Fig.2.18
Fig.2.20
Fig.2.22
Fig.2.17
Fig.2.19
Fig.2.21
Fig.2.23

12
Storage Drawer
The bottom drawer is for storing oven trays and other
cooking utensils.
It can get very warm so do not store anything in it that may
melt or catch re. Never store ammable materials in the
drawer. This includes paper, plastic and cloth items, such as
cookbooks, plastic ware and towels, as well as ammable
liquids. Do not store explosives, such as aerosol cans, on or
near the appliance.
Flammable materials may explode and result in re or
property damage.
The drawer can be removed completely for cleaning, etc.
To Remove the Storage Drawer
1. Note: To avoid exterior damage to the storage drawer.
Ensure a soft cushioned mat is placed on the oor and
covers the width and depth of the storage drawer.
2. Slide the storage drawer out until it stops.
3. Unscrew the two fasteners and remove the screw
washers from either side of the storage drawer runner
brackets (Fig.2.24).
To Fit the Storage Drawer
1. Note: To avoid exterior damage to the storage drawer.
Ensure a soft cushioned mat is placed on the oor and
covers the width and depth of the storage drawer.
2. Align the two holes on either side of the storage drawer
with the runner brackets (Fig.2.24).
3. Fasten the two fasteners and screws washers on either
side of the storage drawer.
4. Close drawer and check the alignment. Adjust storage
drawer position accordingly.
5. Check the alignment is correct and ensure all fasteners
are fully tightened.
Fig.2.24

13
Hints on Using Your Induction Cooker
If you have not used an induction cooker before please be
aware of the following:
• Make sure that the pans you have or buy are suitable
for use on the induction hob. Stainless steel, enamelled
steel or cast iron is ideal. Double check before you
buy pans – they must have bases that would attract a
magnet.
• Allow time to get used to induction cooking; it is fast
and powerful as well as being gentle. When simmering,
you may notice that liquids appear to stop bubbling and
then start again almost immediately. This is perfectly
normal.
• You may notice a faint vibrating sound coming from
the pans when using the induction hob. Again, this is
perfectly normal and will depend upon the type and
style of pans you are using.
• The induction heating elements will phase on and off
when cooking. Although an active cooking zone may
appear to switch on and off, a constant heat is still being
supplied to the base of the pan – this is completely
normal.
General Oven Tips
The wire shelves should always be pushed rmly to the back
of the oven.
Baking trays with food cooking on them should be placed
level with the front edge of the oven’s wire shelves. Other
containers should be placed centrally. Keep all trays and
containers away from the back of the oven, as overbrowning
of the food may occur.
For even browning, the maximum recommended size of a
baking tray is 340 mm (13½”) by 340 mm (13 ½”).
When the oven is on, do not leave the door open for
longer than necessary, otherwise the knobs may get very
hot.
• Always leave a “finger’s width”between dishes on
the same shelf. This allows the heat to circulate freely
around them.
• To reduce fat splashing when you add vegetables to hot
fat around a roast, dry them thoroughly or brush lightly
with cooking oil.
• Where dishes may boil and spill over during cooking,
place them on a baking tray.
• The ‘Cook & Clean’ oven liners (see ‘Cleaning Your
Cooker’) work better when fat splashes are avoided.
Cover meat when cooking.
• If you want to brown the base of a pastry dish, preheat
the baking tray for 15 minutes before placing the dish in
the centre of the tray.
3. Cooking Tips DocNo.030-0010 - Cooking tips - 110 induction GENERIC

14
4. Cooking Table
ArtNo.050-0007
Oven shelf positions
Oven Shelf Positions
Top (T)
Centre (C)
Base (B)
The oven control settings and cooking times given in the table below are intended to be used
AS A GUIDE ONLY. Individual tastes may require the temperature to be altered to provide a
preferred result.
Food is cooked at lower temperature in a fan oven than in a conventional oven. When using
recipes, reduce the fan oven temperature by 10°C and the cooking time by 5-10 minutes. The
temperature in the fan oven does not vary with height in the oven so you can use any shelf.
Food
Meat
Beef (no bone)
Lamb
Pork
Poultry
Chicken
Turkey
Duck
Casserole
Yorkshire Pudding
Cake
Very rich fruit - Christmas,
wedding, etc.
Fruit 180 mm tin
Fruit 230 mm tin
Madeira 180 mm
Small cakes
Scones
Victoria sandwich
180 mm tin
210 mm tin
Desserts
Shortcrust tarts
Fruit pies
Tartlets
Puff pastry
Meringues
Baked egg custard
Baked sponge pudding
Milk pudding
Bread
Fish
Fillet
Whole
Steak
Approximate Cooking Time
30-35 minutes per 500g +30-35 minutes.
20-25 minutes per 500g +20-25 minutes.
30-35 minutes per 500g +30-35 minutes.
25-30 minutes per 500g +25-30 minutes.
35-40 minutes per 500g +35-40 minutes.
25-30 minutes per 500g +25-30 minutes.
20-25 minutes per 500g +20-25 minutes.
15-20 minutes per 500g +15-20 minutes.
20 minutes per 500g +20 minutes.
15 minutes per 500g +15 minutes.
25-30 minutes per 500g.
20 minutes per 500g.
2-4 hours according to recipe.
Large tins 30-35 minutes; individual 10-20 minutes.
45-50 minutes per 500g of mixture.
2-2½ hours.
Up to 3½ hours.
80-90 minutes.
15-25 minutes.
10-15 minutes.
20-30 minutes.
30-40 minutes.
20-30 minutes on a preheated tray.
35-45 minutes.
10-20 minutes according to size.
20-40 minutes according to size.
2-3 hours.
45-60 minutes.
40-45 minutes.
2 to 3 hours.
20-30 minutes.
15-20 minutes.
15-20 minutes per 500g.
Steaks according to thickness.
Conventional Oven
Temperature °C
(Shelf Position)
160 (C)
200 (C)
160 (C)
200 (C)
160 (C)
200 (C)
160 (C)
200 (C)
160 (C)
200 (C)
160 (C)
200 (C)
140-150 (C)
220 (C)
140 (C/B)
150 (C/B)
150 (C/B)
160 (C/B)
170 (C/B)
200 (C/B)
170 (C/B)
170 (C/B)
200 (C/B)
180 (C/B)
180 (C/B)
210 (C/B)
100 (C/B)
160 (C/B)
180 (C/B)
140-150 (C/B)
210 (C)
Fanned Grilling
190 (C/B)
190 (C/B)
190 (C/B)
Fan Oven
Temperature
°C
150
190
150
190
150
190
150
190
150
190
150
190
130-140
210
130
140
140
150
160
190
160
160
190
170
170
200
90
150
170
130-140
200
190 (C/B)
190 (C/B)
190 (C/B)
Thoroughly thaw frozen joints before
cooking. Meat may be roasted at
220°C (210°C for fan oven) and the
cooking time adjusted accordingly.
For stuffed and rolled meats, add
approximately 10 minutes per 500g,
or cook at 200°C (190°C) for 20
minutes then 160°C (150°C) for the
remainder.
For stuffed poultry, you could cook
at 200°C (190°C) for 20 minutes
then 160°C (150°C) for remainder.
Do not forget to include the weight
of the stuffing.
For fresh or frozen prepacked
poultry, follow instructions on the
pack. Thoroughly thaw frozen
poultry before cooking.
Using the conventional oven: when
two tier cooking leave at least one
runner space between shelves.
Position the baking tray with the
front edge along the front of the
oven shelf.
ArtNo.050-0001 Gas cooking table
Using the conventional oven: for
even browning the maximum size of
baking tray recommended is 340 mm
x 340 mm. This ensures free heat
circulation.
If cooking a two tier load, the trays
should be interchanged
approximately halfway though the
cooking time.
Up to three tiers can be cooked in a
fan oven at the same time but make
sure to leave at least one runner
space between each shelf being
cooked on.
T - Top; C - Centre; B - Base
DocNo.031-0004 - Cooking table - electric & fan single cavity

15
ArtNo.312-0010 Cleaning; scraping the ceramic hob
Isolate the electricity supply before carrying out any major
cleaning. Allow the cooker to cool.
 NEVER use paint solvents, washing soda, caustic
cleaners, biological powders, bleach, chlorine based
bleach cleaners, coarse abrasives or salt.
 DO NOT mix dierent cleaning products – they may
react together with hazardous results.
All parts of the cooker can be cleaned with hot soapy water
– but take care that no surplus water seeps into the
appliance.
Remember to switch the electricity supply back on before
reusing the cooker.
Hob
 CAUTION — Do not use abrasive cleaners or pads,
oven aerosols, pads or stain removers on the surface.
Daily Care
First of all make sure that all heat indicator lights are o and
that the cooking surface is cool. Apply a small dab of ceramic
cleaning cream in the centre of each area to be cleaned.
Dampen a clean paper towel and work the cream onto the
cooking surface. As a nal step, wipe the cooking surface with
a clean, dry paper towel.
Cleaning Spills
For spills and boil-overs that occur while cooking, turn the
unit o and wipe the area surrounding the hot zone with a
clean paper towel. If a spill (other than a sugary substance) is
on the hot zone, do not clean until the unit has completely
cooled down, and then follow the instructions below
(‘Cleaning Burned-on Spills’).
If you accidentally melt anything on the surface, or if you spill
foods with a high sugar content (preserves, tomato sauce,
fruit juice, etc.), remove the spill IMMEDIATELY with a razor
scraper, while the unit is still hot.
IMPORTANT: Use an oven glove to protect your hand from
potential burns.
Scrape the major spill or melted material from the cooking
zone and push into a cold area. Then, turn the unit ‘OFF’ and
allow it to cool before cleaning further. After the cooking
surface cools down and the heat indicator lights go o, follow
the ‘Daily Care’ procedure outlined above.
Cleaning Burned-on Spills
Make sure that the heat indicator lights are o and that the
hob is cool. Remove the excess burned-on substance with a

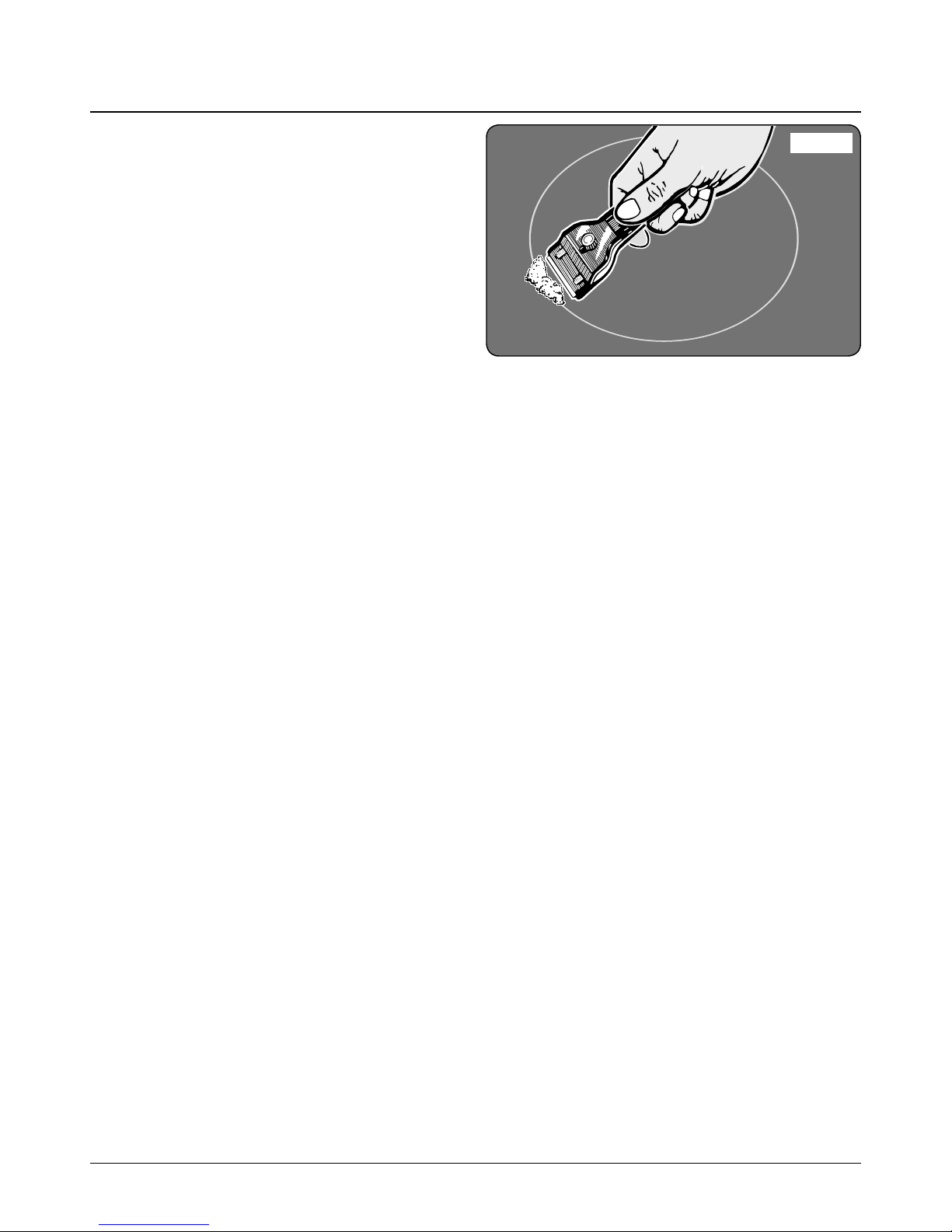

single-edged razor scraper. Hold the scraper at an angle of
about 30° to the surface and then scrape o the burned-on
matter (Fig.5.1).
Once you have removed as much as possible with the scraper,
follow the ‘Daily Care’ procedure outlined above.
5. Cleaning Your Cooker
Fig.5.1

16
Control Panel and Doors
Avoid using any abrasive cleaners including cream cleaners.
For best results, use a liquid detergent. The same cleaner can
also be used on the doors, or alternatively, using a soft cloth
wrung out in clean hot soapy water – but take care that no
surplus water seeps into the appliance. After cleaning, polish
with a dry cloth.
Ovens
‘Cook & Clean’ Panels
The ovens have side ‘Cook & Clean’ panels which have been
coated with a special enamel that partly cleans itself. This
does not stop all marks on the lining, but helps to reduce the
amount of manual cleaning needed.
These panels work better above 200 °C. If you do most of your
cooking below this temperature, occasionally remove the
panels and wipe with a lint free cloth and hot soapy water.
The panels should then be dried and replaced and the oven
heated at 200°C for about one hour. This will ensure that the
panels are working eectively.
Removing the Panels to Clean the Enamel
Interior
Some of the lining panels can be removed for cleaning.
If you wish to clean the enamel interior of the oven, you
will need to remove the shelves before removing the ‘Cook
& Clean’ panels. You do not have to remove the support
brackets to remove the panels. Lift each panel upward and
slide forward o the support brackets (Fig.5.2).
Once the panels have been removed, the oven enamel
interior can be cleaned.
 DO NOT use steel wool, oven cleaning pads, or any
other materials that will scratch the surface.
Ret in the reverse order.
Fig.5.2

17
Cleaning Table
Cleaners listed (Table 5.1) are available from supermarkets or
electrical retailers as stated.
For enamelled surfaces use a cleaner that is approved for use
on vitreous enamel.
Regular cleaning is recommended. For easier cleaning, wipe
up any spillages immediately.
Hotplate
Part Finish Recommended Cleaning Method
Induction hob Toughened glass Hot soapy water; cream cleaner/scourer if necessary.
Warming zone (some models only) Toughened glass Hot soapy water, cream cleaner/scourer if necessary.
Outside of Cooker
Part Finish Recommended Cleaning Method
Door, door surround and storage
drawer exterior
Enamel or paint Hot soapy water, soft cloth.
Any stubborn stains, remove gently with a liquid detergent.
Stainless steel E-cloth (electrical retailers) or microbre all-purpose cloth
(supermarket).
Sides and plinth Painted surface Hot soapy water, soft cloth.
Splashback Enamel or stainless steel Hot soapy water, soft cloth. Cream cleaner, with care, if necessary.
Control panel Paint, enamel or stainless steel Warm soapy water. Do not use abrasive cleaners on lettering.
Control knobs/handles & trims
Plastic/chrome, copper or
lacquered brass Warm soapy water, soft cloth.
Brass Brass polish.
Oven door glass/glass lid (some
models only) Toughened glass Hot soapy water, cream cleaner/scourer if necessary.
Oven
Part Finish Recommended Cleaning Method
Sides, oor & roof of oven NOT
COOK & CLEAN OVEN PANELS (see
below)
Enamel
Any proprietary oven cleaner that is suitable for enamel.
CAUTION: CORROSIVE/CAUSTIC OVEN CLEANERS: FOLLOW
MANUFACTURER’S INSTRUCTIONS.
Do not allow contact with the oven elements.
Cook & Clean oven panels Special enamel that partly
cleans itself
This surface cleans itself at 200 °C and above, or the panels can be
removed and washed with hot soapy water and a nylon brush.
Oven shelves Chrome An oven interior cleaner that is suitable for chrome. Soap lled pad.
Dishwasher.
Table 5.1

DocNo.053-0017 - Troubleshooting - IN G5
18
 Interference with and repairs to the hob MUST NOT
be carried out by unqualied persons. Do not try
to repair the hob as this may result in injury and
damage to the hob. Please arrange for repair by a
suitably competent person.
Note: The induction hob is able to self-diagnose a
number of problems and can show this information to
the user via the hob control display. Error codes may be
displayed if your hob has developed a fault.
If your appliance reports an error or is not working,
you may be able to correct the fault by consulting the
following.
Error code E2 is displayed
The electronic unit is too hot. Please check the
installation of the cooker, making sure that there is
sucient ventilation. In extreme cases, if a cooking
utensil has been allowed to boil dry this error code
may also be displayed. If in doubt please contact your
installer or a qualied repair engineer.
No display operation
Over voltage or loss of supply voltage to the cooker. If in
doubt please contact your installer or a qualied repair
engineer.
Error code U400 is displayed
The cooker has been incorrectly connected. The control
will switch o after approximately 1 second and the
error code will be permanently displayed.
Consult your installer or a qualied repair engineer.
Error code Er followed by a number is displayed
The appliance has developed an internal technical fault
that cannot be rectied by the user.
Consult your installer or a qualied repair engineer.
The fuse blows or the RCD trips regularly
Please contact your installer or a qualied repair
engineer.
The hob will not switch on
Has the wiring system in the house blown a fuse or
tripped an RCD?
Has the hob been correctly connected to the mains
supply?
Has the child lock been activated? Please refer to the
child lock section for details of this function.
The induction hob is noisy
When using the induction hob there may be some
‘noise’ emitted from the pan. This is normal and may be
most noticeable when cooking on high power settings
or if 5 pans are used simultaneously. The type of pan
may also contribute to induction‘noise’.
The cooling fan
The induction hob incorporates a cooling fan. This
cooling fan is active when either the grill or ovens
are on. Under certain conditions, the cooling fan may
remain active when the grill or ovens are switched o.
This is normal and the fan will switch o automatically.
A crack has appeared in the hob surface
Disconnect the cooker immediately from the power
supply and arrange for its repair. Do not use the cooker
until after the repair.
My hob is scratched
Always use the cleaning methods recommended in this
guide, and make sure that the pan bottoms are smooth
and clean.
Marks from mineral deposits from water or food can be
removed with a cleaning cream. However, tiny scratches
are not removable but will become less visible in time as
a result of cleaning.
The oven fan is noisy
The sound of the oven fan may change as the oven
heats up – this is perfectly normal.
Grill not cooking properly
Are you using the pan and trivet supplied with the
cooker? Is the grill tray pushed back fully to the ‘back
stop’ position?
The knobs get hot when I use the oven or grill. Can I avoid
this?
Yes, this is caused by heat rising from the oven or the
grill, and heating them up. Do not leave the oven door
open. Make sure that the grill pan is pushed right back
to the ‘back stop’ when grilling.
If there is an installation problem and I don’t get my
original installer to come back to x it, who pays?
You do. Service organisations will charge for their call-
outs if they are correcting work carried out by your
original installer. Therefore, it’s in your own interest to
keep track of this installer so that you can contact them
as required.
Food is cooking too slowly, too quickly, or burning
Cooking times may dier from your previous oven.
Check that you are using the recommended
temperatures and shelf positions – see the oven
cooking guide.
You can then adjust the settings according to your own
individual tastes.
The oven is not cooking evenly
Do not use a baking tray with dimensions larger than
those specied in the section on ‘General Oven Tips’.
6. Troubleshooting
