Dear Customer,
Thank you for purchasing a La Cornue cooker. We hope that you will really enjoy
preparing delicious meals with it.
The aim of this installation guide is to familiarise you with the potential of a
professional quality appliance designed for domestic use and to facilitate its upkeep.
Above all, a La Cornue cooker is manufactured from noble and pure materials. The
specific choices for certain components, such as brass for the burners and cast-iron for
the hotplate, correspond to technicality and professional performance requirements
which are not attainable with other materials or protective treatments. We are very
much attached to the authenticity of our cookers and we are convinced that you will
appreciate them even more as you use them.
We recommend you follow the advice provided in the “Instructions for Use” brochure;
this will ensure that you are satisfied with your cooker for a long time.
Thank you for placing your trust in us.
Xavier Dupuy
President and Managing Director
GRAND-MAMAN MODEL

2
Dear Customer,
Please complete the appliance details opposite and keep them safe for future reference –
this information will enable us to accurately identify your particular appliance and help us
to help you. Filling this in now will save you time and inconvenience if you later have a
problem with your appliance. It may also be of benefit to keep your purchase receipt with
this leaflet. You may be required to produce the receipt to validate a warranty service visit.
* This information is on the appliance data badge and on the warranty certificate.
If you have a problem
In the unlikely event that you have a problem with your appliance, please refer to the rest
of this booklet and Instructions for Use, to check that you are using the appliance correctly.
If you are still having difficulty, contact your retailer.
HEADQUARTERS AND WORKSHOP
14, rue du Bois du Pont - Z.I. Les Béthunes
95310 SAINT OUEN L’AUMONE
POSTAL ADDRESS:
BP 99006 - 95070 Cergy Pontoise Cedex
FRANCE
Tel: [phone]
Fax: [phone]
www.lacornue.com
e-mail: [email protected]
LA CORNUE - Notice d’installation Europe GB - Ligne “Cornuchef” CENTENAIRE.
08NOTINSTGSC100/GB-4
September 2011 - Anna Kowalczyk
Appliance Serial Number*:
Model*:
Colour:
Fuel type*:
Tension*:
Retailers Name & Address:
Date of Purchase:
Installer's Name & Address:
Date of Installation:

3
Notice d’installation ligne “Cornuchef” Centenaire - GB
08NOTINSTGSC100/GB-4
WARNING ................................................................................................................................ 4
DESCRIPTION .......................................................................................................................... 9
1. General description .............................................................................................................. 9
2. Energy power and gas flow rates ........................................................................................ 10
3. Power ratings for the electrical elements ............................................................................ 11

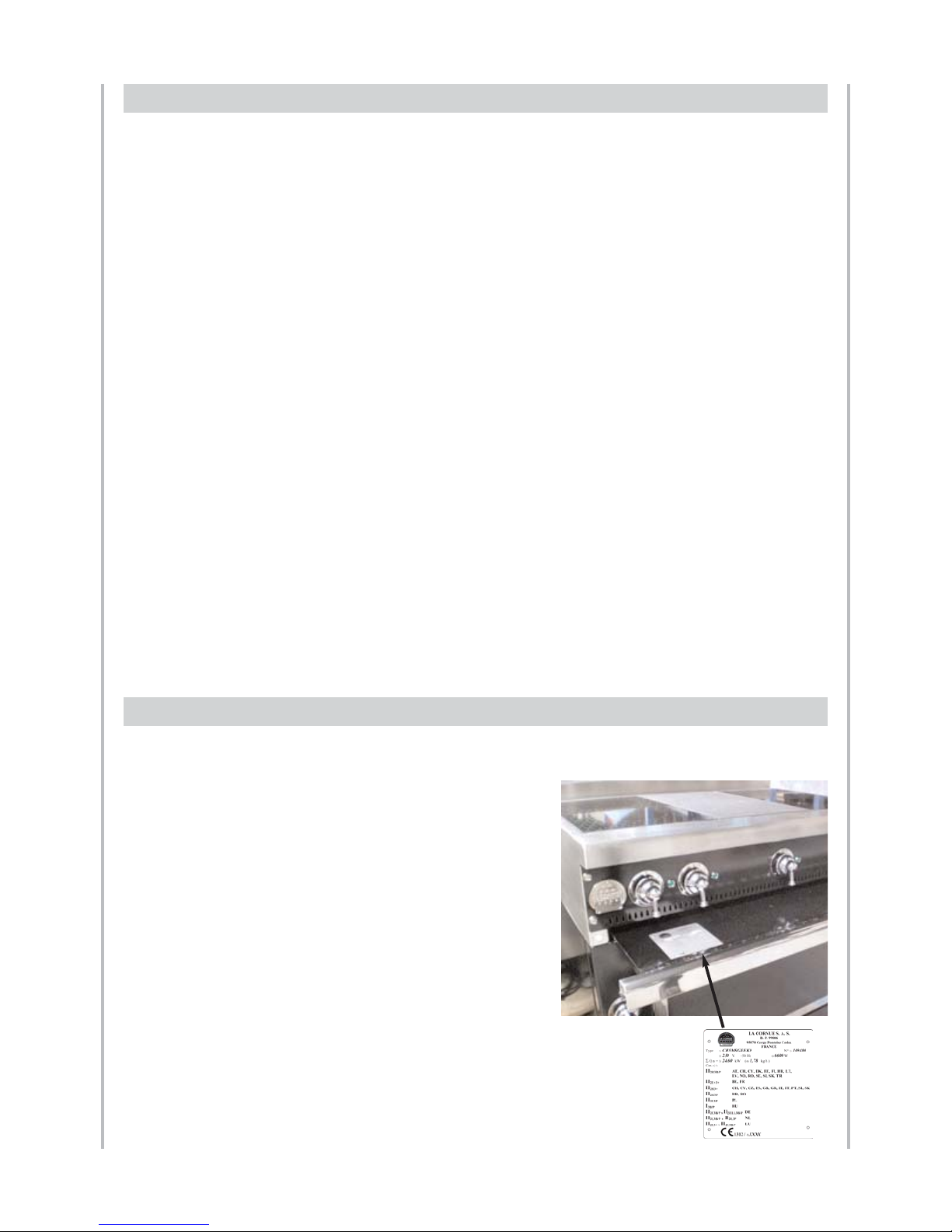

4. Rating plate ........................................................................................................................ 11
COOKER AND COOKTOP “GRAND - MAMAN 90” .............................................................. 12
1. Dimensions ........................................................................................................................ 12
2. Hob configurations ............................................................................................................. 12

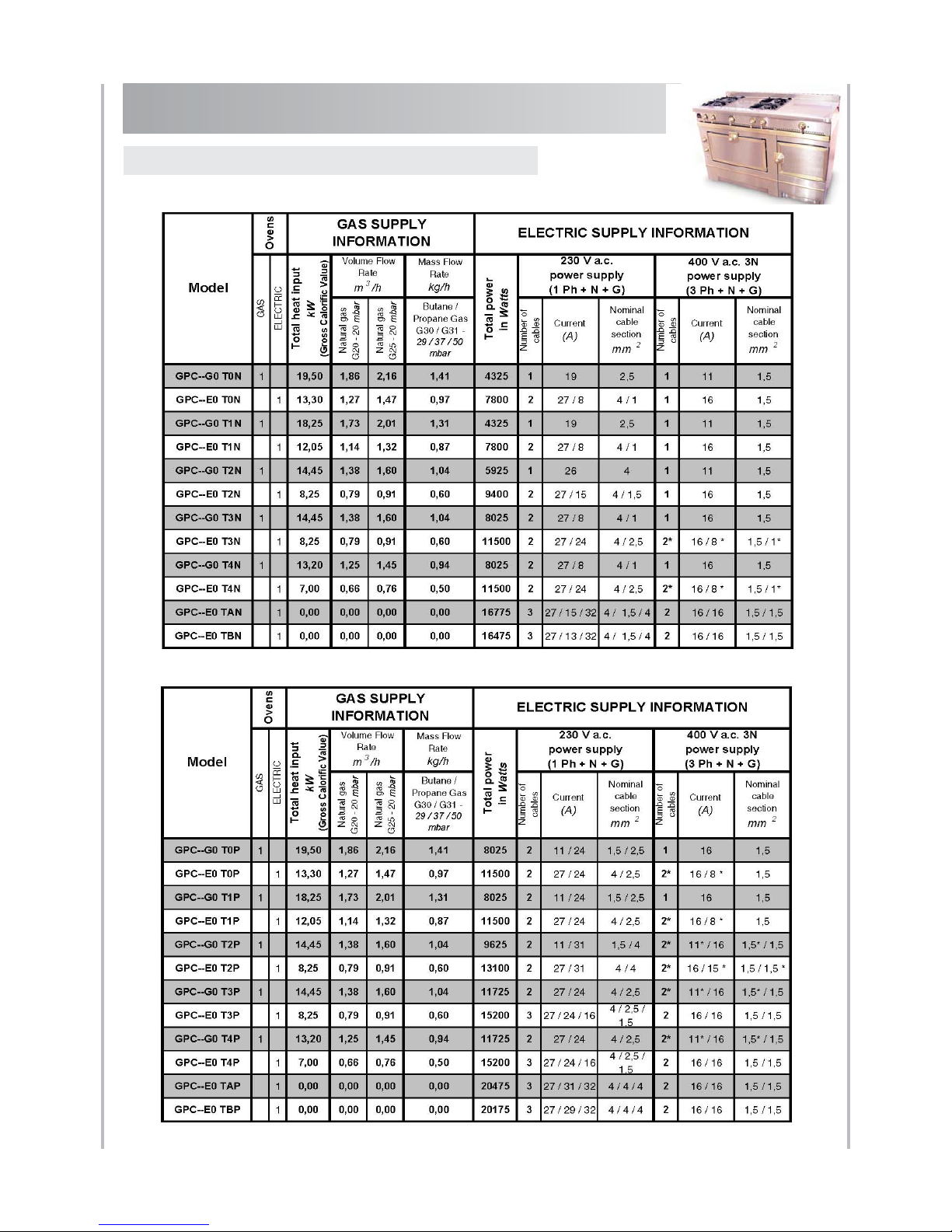

3. Power for gas and electric cookers ...................................................................................... 13

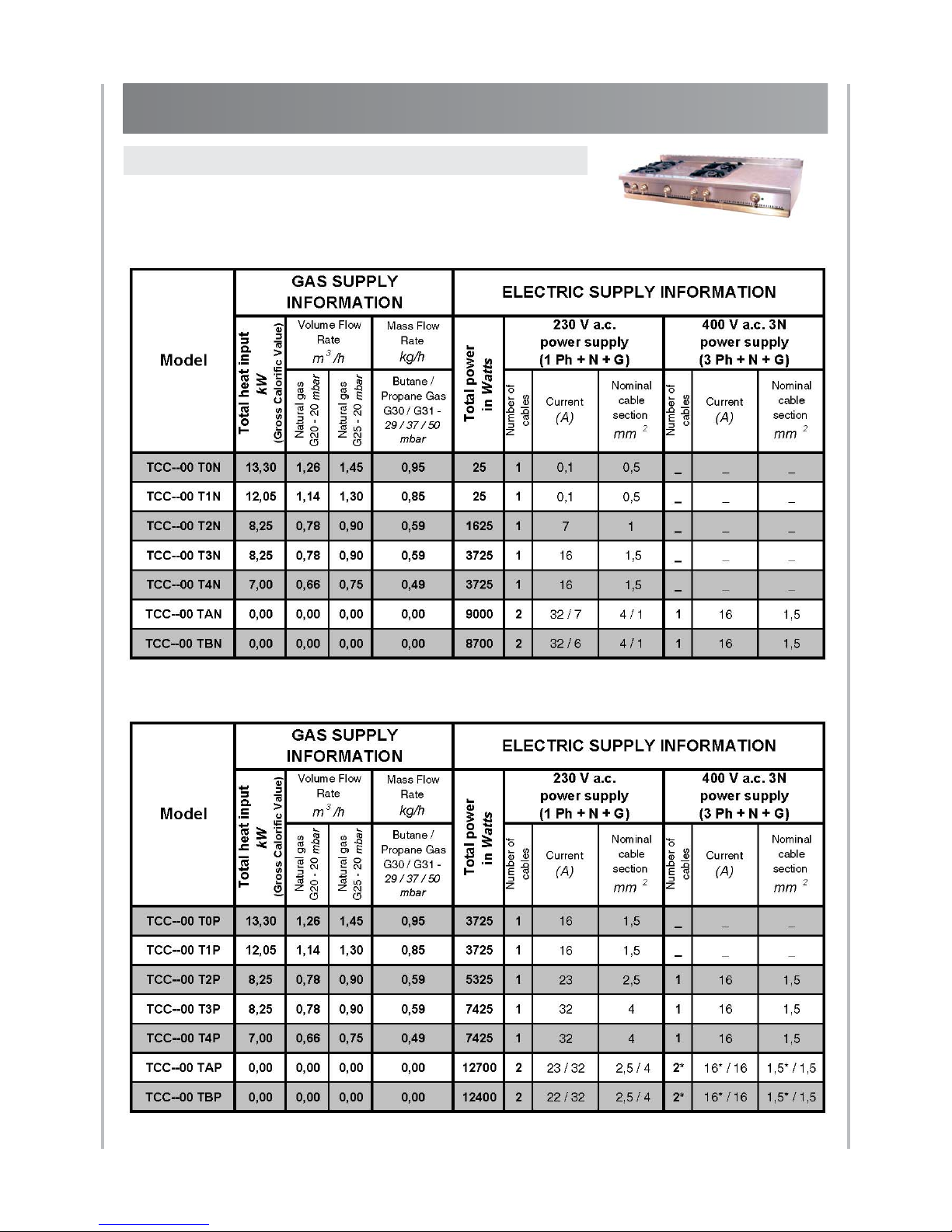

4. Power for gas and electric cooktops .................................................................................... 14

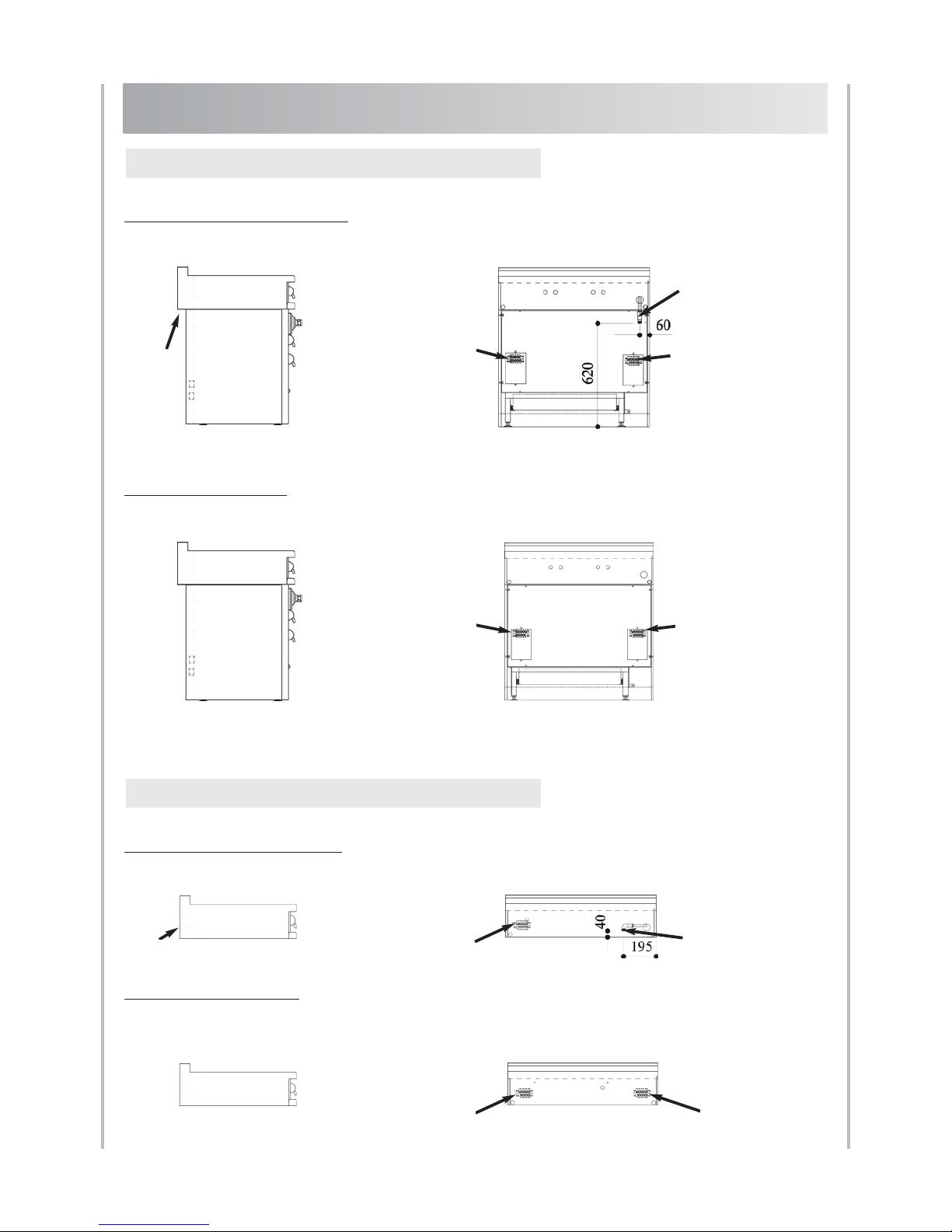

5. Cooker connections ............................................................................................................ 15
6. Cooktop connections .......................................................................................................... 15
COOKER AND COOKTOP “GRAND - PAPA 135” .................................................................. 16
1. Dimensions ........................................................................................................................ 16
2. Hob configurations ............................................................................................................. 16
3. Power for gas and electric cookers ...................................................................................... 17
4. Power for gas and electric cooktops .................................................................................... 18
5. Cooker connections ............................................................................................................ 19
6. Cooktop connections .......................................................................................................... 19
COOKER AND COOKTOP “GRAND - PAPA 180” .................................................................. 20
1. Dimensions ........................................................................................................................ 20
2. Hob configurations ............................................................................................................. 20
3. Power for gas and electric cookers ...................................................................................... 21
4. Power for gas and electric cooktops .................................................................................... 22
5. Cooker connections ............................................................................................................ 23
6. Cooktop connections .......................................................................................................... 23
BEFORE DELIVERY ............................................................................................................... 24
1. Safety requirements ........................................................................................................... 24
2. Electrical supply ................................................................................................................. 25
3. Gas supply .......................................................................................................................... 26
4. Installation ......................................................................................................................... 26
CONNECTIONS ...................................................................................................................... 27
1. Electrical connections ......................................................................................................... 27
2. Gas connection ................................................................................................................... 28
IGNITION - ADJUSTMENTS .................................................................................................. 30
1. Starting with the cooktop elements ................................................................................... 30
2. Starting with the ovens ...................................................................................................... 35
3. Replacing the oven light ..................................................................................................... 36
4. Changing the injectors ....................................................................................................... 37
5. Adjusting the low settings .................................................................................................. 38
6. Injectors table ..................................................................................................................... 39
COMPLIANCE WITH EUROPEAN DIRECTIVES .................................................................... 40
WARRANTY ........................................................................................................................... 41
CONTENTS

4Notice d’installation ligne “Cornuchef” Centenaire - GB
08NOTINSTGSC100/GB-4
WARNING
This appliance must be installed by a qualified professional in accordance with the
current regulations in the country where the appliance is installed and must only be
used in a well ventilated area. Read the guides before installing and using this
appliance.
Appliance categories (see pt. 1.2, page 25 “Installation”):
- Class 1: Free-standing cooking appliance not normally in direct contact with the kitchen
units or the surrounding walls.
-Class 2: Cooking appliance that can be integrated between two kitchen units, whose walls
can be in direct contact with the surrounding units. This type of appliance can be in
contact with only one kitchen unit during installation.
- Class 2 / Sub-Class 1: Class 2 appliance that can be free-standing or installed so that the
side panels are accessible.
Before installing the appliance, ensure that the local gas supply conditions (gas
type and pressure) and the adjustment of the appliance are compatible.
The adjustment conditions for this appliance are indicated on the label at the
back of the hob and on the test certificate.
Make sure that the gas supply is turned on and that the cooker is wired in and switched
on. The cooker needs electricity.
This appliance is not intended to be connected to a ventilation system or a ventilation shaft
for combustion products. It should be installed and connected in accordance with the
current regulations, and special attention should be paid to the applicable ventilation
regulations.
The use of a gas cooking appliance results in the production of heat and moisture in the
room where it is installed. Ensure that the room is well ventilated: keep natural ventilation
holes open or install a mechanical ventilation device (mechanical extractor hood).
Prolonged or intensive use of the appliance may call for additional ventilation, e.g. by
opening a window, or for more effective ventilation, by increasing the power of the
mechanical ventilation system installed.
When you first use your cooker it may give off a slight odour. This should stop after a little
use.
The parts that are protected by the manufacturer must not be manipulated by the installer
or the user.
Read all instructions before using this appliance. Save these instructions for future reference.

WarningWARNING
5
Notice d’installation ligne “Cornuchef” Centenaire - GB
08NOTINSTGSC100/GB-4
Please note:
The accessible parts may be hot when the oven is being used: keep young children at a safe
distance.
Children should be supervised to ensure that they do not play with the appliance.
If you smell gas:
u Don’t turn electric switches on or off.
u Don’t smoke.
u Don’t use naked flames.
u Do turn off the gas at the meter or cylinder.
u Do open doors and windows to get rid of the gas.
u Call your gas supplier.
The cooker should be serviced by a qualified service engineer and only approved spare
parts used. Have the installer show you the location of the cooker control switch. Mark it
for easy reference.
Always allow the cooker to cool and then switch off at the mains and before cleaning
or carrying out any maintenance work, unless specified otherwise in this guide or in an
“Instructions for use” guide.
All parts of the cooker become hot with use and will retain heat even after you have
stopped cooking. Take care when touching cooker, to minimize the possibility of burns,
always be certain that the controls are in the OFF position and that it is cool before
attempting to clean the cooker.
Clean with caution. If a wet sponge or cloth is used to wipe spills on a hot surface, be
careful to avoid steam burns.
Some cleansers can produce noxious fumes if applied to a hot surface.
DO NOT use a steam cleaner to clean the cooker.
Do not spray aerosols in the vicinity of the cooker while it is in on.
Do not store or use combustible materials, or flammable liquids in the vicinity of this
appliance.
Take great care when heating fats and oils, as they will ignite if they get too hot. Use
a deep fat thermometer whenever possible to prevent overheating fat beyond the smoking
point.
WARNING

6Notice d’installation ligne “Cornuchef” Centenaire - GB
08NOTINSTGSC100/GB-4
WARNINGWarning
Never leave a chip pan unattended. Always heat fat slowly, and watch as it heats.
Deep fry pans should be only one third full of fat. Filling the pan too full of fat can cause
spill over when food is added. If you use a combination of oils or fats in frying, stir them
together before heating, or as the fats melt.
Foods for frying should be as dry as possible. Frost on frozen foods or moisture on fresh
foods can cause hot fat to bubble up and over the sides of the pan.
Do not use the top of the flue (the slot along the back of the cooker) for warming
plates, dishes, drying tea towels or softening butter.
Take care that no water seeps into the appliance.
The oven should NOT be used for heating the kitchen, not only does this waste fuel
but the control knobs may become overheated.
When the oven is on DO NOT leave the oven door open for longer than necessary.
Before using the range make sure all the packing materials have been removed.
Destroy the carton and plastic bags after unpacking the range. Never allow children to play
with packaging material.
NEVER leave any items on the range cooktop. The hot air from an oven vent may ignite
flammable items and may increase pressure in closed containers, which may cause them
to burst.
Many aerosol-type spray cans are EXPLOSIVE when exposed to heat and may be highly
flammable.
Avoid their use or storage near an appliance.
Several types of plastic are combustible, and most of them can be damaged by heat.
Remove any objects made from paper, plastic or fabrics (such as cooking books, plastic
cooking utensils, towels, etc.) as well as flammable liquids from any parts of the range lia-
ble to get hot.
Preferably, there should be no cupboards or shelving above the appliance. In the event of
cupboards/shelving being above the appliance, make sure that they hold objects seldom
used, which can be safely kept in a place exposed to the heat generated by the appliance.
NEVER COVER the slits, apertures or holes in the bottom part of the appliance, and never
cover the grills with products such as aluminum foil; doing so would prevent air circula-
tion inside the oven and the aluminum foil could cause heat to build up leading to a risk
of fire.
DO NOT use the oven for storage.
WARNING

7
Notice d’installation ligne “Cornuchef” Centenaire - GB
08NOTINSTGSC100/GB-4
WarningWARNING
Flammable materials should not be stored in an oven or near the cooktop burners. This
includes paper, plastic and cloth items, such as cookbooks, plasticware and towels, as well
as flammable liquids.
NEVER TOUCH THE BURNER or the surfaces around the burner.
Note also that the burner can remain hot for a certain time even after it has been turned
off. Surfaces located around the gas burner can become sufficiently hot to cause burns.
Likewise, make sure that there is no contact between clothing and other flammable pro-
ducts and heating elements or appliance internal surfaces.
Wear appropriate clothing.
Do not use loose-fitting clothing (sleeves, etc.) when operating the appliance.
If there are shelves or cupboards above the appliance, be careful when reaching for pro-
ducts they might contain.
Flammable products can ignite on contact with a burner flame or a warm surface, leading
to serious burns.
Use only oven gloves or kitchen gloves that are dry.
Using wet gloves on warm surfaces can lead to burns caused by the vapor. Avoid all contact
between oven gloves and warm heating elements.
Never use a towel, thick cloth or similar instead of an insulating glove; they may catch fire
on contact with a hot surface.
Never operate the appliance using wet hands.
Make sure that your appliance has been correctly installed and grounded by a qualified
technician.
USE THE RIGHT SIZE PAN.
This appliance is equipped with burners of different sizes. Use utensils with flat bottoms.
Do not use unstable pans and position the handles away from the edge of the cooktop.
Make sure the flames are under the pans. It’s not safe to let the flames burn up the sides
of the pan; the handle may get too hot.
DO NOT use cooking vessels that may overlap the edges of the hotplate.
For induction hob, it is recommended not to leave any metallic utensils as knife, fork,
spoon or covers on the cooktop, as they may become hot.
WARNING

8Notice d’installation ligne “Cornuchef” Centenaire - GB
08NOTINSTGSC100/GB-4
Warning WARNING
The cooktop is not intended to be set on function with a timer or with a separate remo-
te device.
All our cooking appliances are intended for domestic use only; i.e., not profes-
sional. In the event of non-domestic use, the manufacturer shall not incur any
liability, and the warranty shall be considered void.
This appliance is not intended for use by persons (including children) with redu-
ced physical, sensory or mental capabilities, or lack of experience and knowled-
ge, unless they have been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
All of our cooking appliance belong to Class 1 and Class 2 / Sub-Class 1. They meet the requirements of the
2009/142/CE European Directive (“Gas Appliances”), European Standard EN30 and the 2006/95/EC
European Directive (“Low Voltage Directive”).
WARNING

9
Notice d’installation ligne “Cornuchef” Centenaire - GB
08NOTINSTGSC100/GB-4
DESCRIPTION General description
DESCRIPTION
1. GENERAL DESCRIPTION
COOKERS:
“
Grand-Maman 90”
Model GMC featuring a large vaulted
oven.
Width: 90 cm.
“
Grand-Papa 135”
Model GPC featuring a large vaulted oven
anda warming cupboard.
Width: 135 cm.
“
Grand-Papa 180”
Model GSC consisting of two large vaulted
ovens
Width: 180 cm.
COOKTOPS
“
Grand-Maman 90”
Model TCM.
Width: 90 cm.
“
Grand-Papa 135”
Model
TCC.
Width: 135 cm.
“ Grand-Papa 180”
Model
TCS.
Width:
180 cm.
The range of "CORNUCHEF" cooking appliances consists of 6 models. Each of the cooker
or hot top models includes several sub-models, depending on the chosen hot top and its
combination with the oven.
The cookers in the "CORNUCHEF" range consist of:
- a thermostatically-controlled electric or gas oven or 2 ovens;
- one hot top bounded at the rear by a stainless steel skirting creating a gap between the
cooker and the wall, thus ensuring the removal of burnt gases and smells.

10 Notice d’installation ligne “Cornuchef” Centenaire - GB
08NOTINSTGSC100/GB-4
DESCRIPTIONEnergy power
All of our appliances belong to Category II and are designed for gases from the second and
third groups.
The gas used can be either natural gas, propane or butane, depending on availability. Refer
to pages 37 – 39 for information about adapting your cooker or your hob to the various
types of gas.
The tables below summarise for each gas type and for each burner the heat flow rate
(energy power in kW, Gross Calorific Value) and the volume flow rate (in m3/hour) or the
mass flow rate (in kg/hour) of useful gas.
NOMINAL HEAT INPUT
REDUCED HEAT INPUT
2. ENERGY POWER AND GAS FLOW RATES

11
Notice d’installation ligne “Cornuchef” Centenaire - GB
08NOTINSTGSC100/GB-4
DESCRIPTION Energy power
Large vaulted electric oven (74 litres, large volume) ............................................... 6 000 W
3 500 W oven floor + 2 500 W vault
Grill in large vaulted gas oven ..............................................................................… 2 500 W
Baking stone ............................................................................................................ 3 000 W
Oven light ..................................................................................................................... 25 W
Ignition for large vaulted gas oven ............................................................................... 25 W
Automatic ignition for gas burners ............................................................................... 25 W
Warming cupboard, width: 450 mm ....................................................................… 1 750 W
Electric ceramic hob, Ø 145 mm .............................................................................. 1 200 W
Electric ceramic hob, Ø 180/110 mm (2 zones) ............................................. 1 700 / 700 W
Induction plates (2 burners: Ø 145 mm and Ø 180 mm) ....................................… 3 700 W
Round electric plate, Ø 180 mm .............................................................................. 2 000 W
Round electric plate, Ø 220 mm .............................................................................. 2 000 W
Electric hotplate ..........……………………………..................................................... 1 300 W
(small, dimensions: 284 x 476 mm)
Small “La Cornue” Teppan-Yaki .................................................….......................... 1 600 W
(dimensions: 284 x 478 mm)
Large “La Cornue” Teppan-Yaki .............................................................................. 2 000 W
(dimensions: 419 x 478 mm)
Large induction plate (burner Ø 280 mm) ..........................…................................. 3 700 W
Large induction Wok (burner Ø 300 mm) .......................….................................... 3 000 W
The rating plate of your appliance is on inside the spill
tray. To see this rating plate, pull out the spill tray.
You will find on this plate the name and address of the
manufacturer as well as the following information:
1) Kind of appliance (model)
2) Serial number (order number) and the manu-
facture date
3) Voltage rating in Volt (AC)
4) Power assigned (Watt), including power of the
induction hob (if applicable)
5) ΣQn: Total heat input of gas in kW (gross calo-
rific value)
6) Mass flow rate - Butane and Propane Gas only
7) Appliance category
8) CE approval number
3. POWER RATINGS FOR THE ELECTRICAL ELEMENTS
4. RATING PLATE

12 Notice d’installation ligne “Cornuchef” Centenaire - GB
08NOTINSTGSC100/GB-4
DESCRIPTIONGrand - Maman 90
COOKER AND COOKTOP GRAND - MAMAN 90
1. Cooker (model GMC):
Cooktop (model TCM):
1. DIMENSIONS
Cooktop weight: 70 - 90 kg. depending on the model
2 electric induction plates
1 electric hotplate
2 electric induction plates
M0
M1
M2
M3
M4
MA
MB
Cooker weight: 110 - 150 kg. depending on the model
2. HOB CONFIGURATIONS
2 gas burners (small burner at the rear)
1 single gas burner
2 gas burners (small burner in front)
2 gas burners (small burner at the rear)
1 gas hotplate
2 gas burners (small burner in front)
2 gas burners (small burner at the rear)
1 single gas burner
2 electric induction plates
2 gas burners (small burner at the rear)
1 gas hotplate
2 electric induction plates
2 gas burners (small burner at the rear)
1 single gas burner
1 small electric teppan-yaki
2 electric induction plates
1 small electric teppan-yaki
2 electric induction plates

13
Notice d’installation ligne “Cornuchef” Centenaire - GB
08NOTINSTGSC100/GB-4
DESCRIPTION Grand - Maman 90
3. POWER FOR GAS AND ELECTRIC COOKERS
COOKER GRAND - MAMAN 90

4. POWER FOR GAS AND ELECTRIC COOKTOPS
GRAND - MAMAN 90
DESCRIPTIONGrand - Maman 90
Notice d’installation ligne “Cornuchef” Centenaire - GB
08NOTINSTGSC100/GB-4
14

Mixed gas/electric cooker
All-electric cooker
Mixed or all-gas cooktop
All-electric cooktop
6. COOKTOP CONNECTIONS
5. COOKER CONNECTIONS
15
Notice d’installation ligne “Cornuchef” Centenaire - GB
08NOTINSTGSC100/GB-4
DESCRIPTION Grand - Maman 90
GRAND - MAMAN 90
Rear view
Rear view
Rear view
Rear view
TERMINAL
BLOCK 2 TERMINAL
BLOCK 1
GAS INLET
MALE G 1/2
CONNECTION
GAS INLET
MALE G 1/2
CONNECTION
TERMINAL
BLOCK 2 TERMINAL
BLOCK 1
TERMINAL
BLOCK 1
TERMINAL
BLOCK 1
TERMINAL
BLOCK 2
GAS INLET
MALE G 1/2
CONNECTION
GAS INLET
MALE G 1/2
CONNECTION

Cooker and Cooktop GRAND - PAPA 135
16 Notice d’installation ligne “Cornuchef” Centenaire - GB
08NOTINSTGSC100/GB-4
DESCRIPTION
1. Cooker (model GPC):
Cooktop (model TCC):
1. DIMENSIONS
2. HOB CONFIGURATIONS
Cooktop weight: 80 - 100 kg. depending on the model
2 gas burners (small burner at the rear)
1 single gas burner
2 gas burners (small burner in front)
+ option
2 gas burners (small burner at the rear)
1 gas hotplate
2 gas burners (small burner in front)
+ option
2 gas burners (small burner at the rear)
1 single gas burner
2 electric induction plates
+ option
2 gas burners (small burner at the rear)
1 gas hotplate
2 electric induction plates
+ option
2 electric induction plates
1 electric hotplate
2 electric induction plates
+ option
2 gas burners (small burner at the rear)
1 single gas burner
1 small electric teppan-yaki
+ option
2 electric induction plates
1 small electric teppan-yaki
2 electric induction plates
+ option
TLarge electric teppan-yaki
PLarge electric induction plate
WLarge electric induction WOK
NStainless steel countertop
Grand - Papa 135
T0
T1
T2
T3
T4
TA
TB
OPTIONS GRAND - PAPA 135
Cooker weight: 180 - 220 kg. depending on the model

Cooker Grand - Papa 135 with “Stainless steel countertop”
Cooker Grand - Papa 135 with option “Large Induction Plate”
17
Notice d’installation ligne “Cornuchef” Centenaire - GB
08NOTINSTGSC100/GB-4
DESCRIPTION Grand - Papa 135
3. POWER FOR GAS AND ELECTRIC COOKERS
Cooker GRAND - PAPA 135
* PLEASE NOTE: For 2 cables and a 400 V a.c. 3N power supply (3 Ph + N + T):
- 1 cable is 400 V a.c., 3-PHASE
- 1 cable is 230 V a.c., SINGLE-PHASE

Cooktop Grand - Papa 135 with “Stainless steel countertop”
Cooktop Grand - Papa 135 with option “Large Induction Plate”
18 Notice d’installation ligne “Cornuchef” Centenaire - GB
08NOTINSTGSC100/GB-4
DESCRIPTION
4. POWER FOR GAS AND ELECTRIC COOKTOPS
Grand - Papa 135
Cooktop GRAND - PAPA 135
* PLEASE NOTE: For 2 cables and a 400 V a.c. 3N power supply (3 Ph + N + T):
- 1 cable is 400 V a.c., 3-PHASE
- 1 cable is 230 V a.c., SINGLE-PHASE

Mixed gas/electric cooker
All-electric cooker
Mixed or all-gas cooktop
All-electric cooktop
6. COOKTOP CONNECTIONS
5. COOKER CONNECTIONS
19
Notice d’installation ligne “Cornuchef” Centenaire - GB
08NOTINSTGSC100/GB-4
DESCRIPTION
Rear view
Rear view
Rear view
Rear view
TERMINAL
BLOCK 3
TERMINAL
BLOCK 1
TERMINAL
BLOCK 2
TERMINAL
BLOCK 3
TERMINAL
BLOCK 2
TERMINAL
BLOCK 1
GAS INLET
MALE G 1/2
CONNECTION
TERMINAL
BLOCK 1
TERMINAL
BLOCK 1
GAS INLET
MALE G 1/2
CONNECTION
GAS INLET
MALE G 1/2
CONNECTION
Grand - Papa 135
GRAND - PAPA 135
GAS INLET
MALE G 1/2
CONNECTION
TERMINAL
BLOCK 2

20 Notice d’installation ligne “Cornuchef” Centenaire - GB
08NOTINSTGSC100/GB-4
DESCRIPTION
1. Cooker (model GSC):
Cooktop (model TCS):
1. DIMENSIONS
2. HOB CONFIGURATIONS
Cooktop weight: 100 - 130 kg. depending on the model
2 gas burners (small burner at the rear)
1 single gas burner
2 gas burners (small burner in front)
+ option
2 gas burners (small burner at the rear)
1 gas hotplate
2 gas burners (small burner in front)
+ option
2 gas burners (small burner at the rear)
1 single gas burner
2 electric induction plates
+ option
2 gas burners (small burner at the rear)
1 gas hotplate
2 electric induction plates
+ option
2 electric induction plates
1 electric hotplate
2 electric induction plates
+ option
S0
S1
S2
S3
S4
SA
SB
2 gas burners (small burner at the rear)
1 single gas burner
1 small electric teppan-yaki
+ option
OPTIONS GRAND - PAPA 180
2 electric induction plates
1 small electric teppan-yaki
2 electric induction plates
+ option
TLarge electric teppan-yaki
PLarge electric induction plate
WLarge electric induction WOK
Grand - Papa 180
Cooker and Cooktop GRAND - PAPA 180
Cooker weight: 280 - 320 kg. depending on the model
