La Crosse Technology WS-6002U User manual

WS-6002U
Atomic Clock
Instruction Manual
              

2
TABLE OF CONTENTS
Topic Page
Inventory of Contents/ Additional Equipment 3
About WWVB 3
Quick Set-Up Guide 4
Detailed Set-Up Guide
Battery Installation 5
Program Mode
Function Buttons 6
Time Zone Setting 7
DST (Daylight Saving Time) Setting 7-8
Language Selection 8
Time Setting 8
Calendar Setting 9
12/24-Hour Setting 9
Selecting °F or °C 10
Features & Operations
Displaying the Seconds 10
Indoor Temperature 10
Mounting 11-12
Maintenance & Care 12
Troubleshooting 12-13
Specifications 13
Warranty Information 14-15

3
INVENTORY OF CONTENTS
1) WS-6002U
2) Instruction manual and warranty card.
ADDITIONAL EQUIPMENT (not included)
1) Two fresh 1.5V AA batteries.
2) Three wall-hanging screws.
3) Appropriate screwdriver for screws.
ABOUT WWVB (Radio Controlled Time)
The NIST (National Institute of Standards and Technology—Time
and Frequency Division) WWVB radio station is located in Ft.
Collins, Colorado, and transmits the exact time signal continuously
throughout the United States at 60 kHz. The signal can be
received up to 2, 000 miles away through the internal antenna in
the Atomic Clock. However, due to the nature of the Earth’s
Ionosphere, reception is very limited during daylight hours. The
Atomic Clock will search for a signal every night when reception
is best. The WWVB radio station derives its signal from the NIST
Atomic clock in Boulder, Colorado. A team of atomic physicists is
continually measuring every second, of every day, to an accuracy
of ten billionths of a second per day. These physicists have created
an international standard, measuring a second as 9,192,631,770
vibrations of a Cesium-133 atom in a vacuum. This Atomic Clock
regulates the WWVB transmitter.

4
QUICK SET-UP GUIDE
1) Insert two AA batteries into the Atomic Clock.
2) Wait 15 minutes for WWVB reception.
3) If there is no WWVB reception, manually set the time and date
(instructions in the Program Mode).
4) Program the settings.
5) Mount the WS-6002U in a suitable location, where WWVB
signals can be received.

DETAILED SET-UP GUIDE
SET

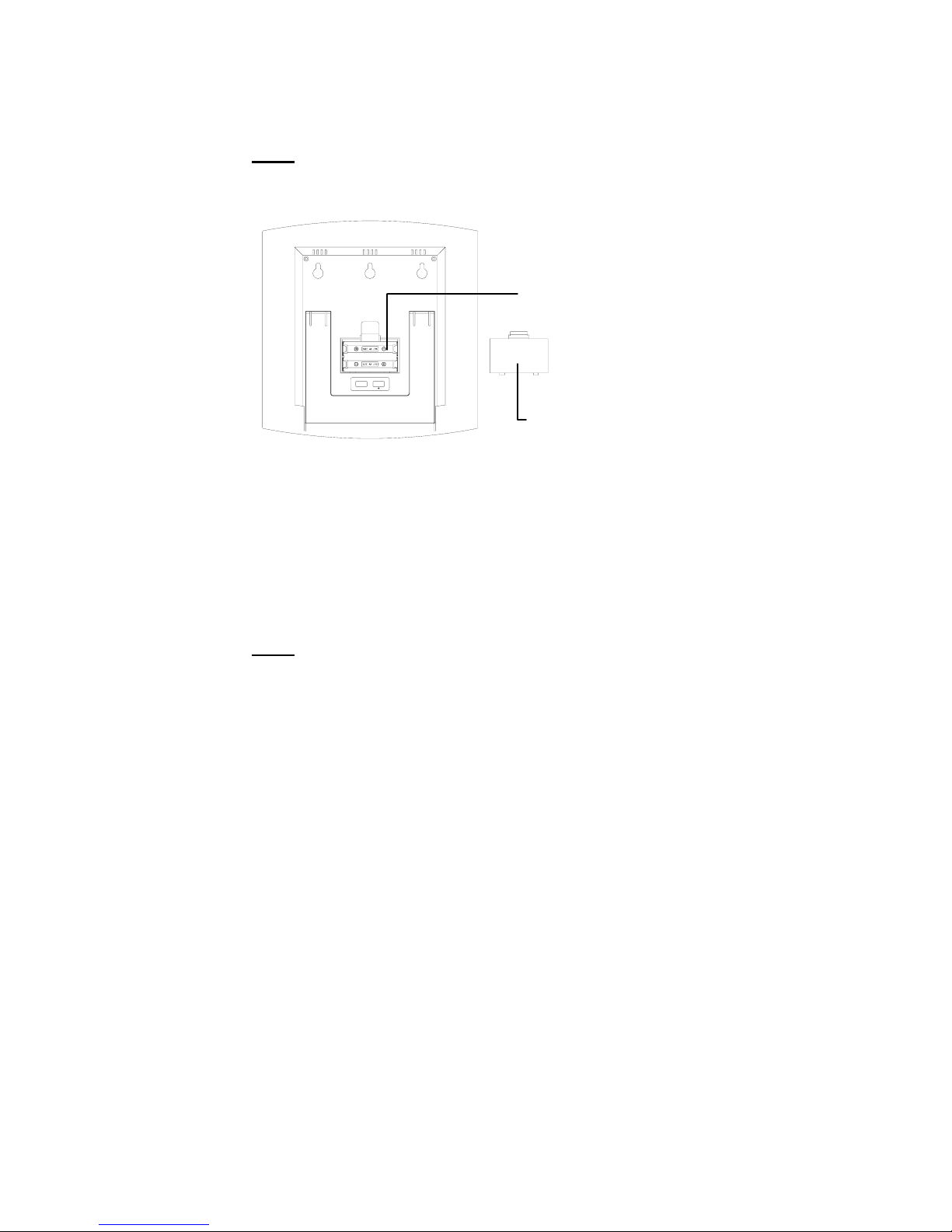

I) BATTERY INSTALLATION
Note: To avoid start-up problems make sure that the batteries
do not spring free.
Battery Compartment
Battery Cover
A) ATOMIC CLOCK
1) Remove the battery cover, located on the backside of the
function buttons.
2) Observe the correct polarity, and install 2 AA batteries.
3) Replace the battery cover.
Note: After the batteries have been installed all the LCD’s
(Liquid Crystal Display) will briefly light up. Then the indoor
temperature, the date as “1/ 1” and the weekday as “MON”
will be displayed. Also, the time will appear as “-:--” for
approximately 1 minute. Then the WWVB search is
automatically initiated, and a tower icon appears and flashes
with the time colon (no tower icon will appear if the WWVB is
too weak to be detected). While the WWVB search is being
conducted various numbers will appear in the time display.
The numbers “0”, “1”, or “8” will appear in the hour position
and the seconds will appear in the minute display. The Atomic
Clock will either display the WWVB time, or discontinue the
5

search after 10 minutes if the time is not found. When the
search is cancelled “-:--”will appear in the time LCD. The
Atomic Clock will conduct a WWVB search every hour until the
first signal is found. Once the WWVB time is found, a search is
automatically conducted nightly at midnight. If the signal is
found at midnight, the tower icon will remain, if not, another
search will take place every hour (up to 6:00 am) until the
signal is found successfully. If no signal is found during this
period, the tower icon will not appear and the clock will search
again at 12:00 am the next night.
WWVB Tower Icon
Indoor
Temperature
Weekday
Month/Date
PROGRAM MODE
To enter the Program Mode hold down the “SET” button for 2
seconds, until “-5EST” flashes in the Date LCD. The Program
Mode is laid out in a manner that allows you to program each
function separately, or you can follow the instructions entirely to
program the Atomic Clock. Complete programming is usually
done for the initial set-up, and will require you to skip step 1 of
programming sections III through VIII. Wait approximately 15
seconds for the Atomic Clock to automatically return to normal
operation.
I) FUNCTION BUTTONS
There are 2 function buttons located on the backside of the
Atomic Clock. The function buttons are labeled: SET and +.
6

7
II) TIME ZONE SETTING
1) Hold down the “SET” button for 2 seconds, the default setting
“-5EST” will flash in the Date LCD.
2) Press and release the “+” button to select the appropriate time
zone. There are 13 time zones to choose from:
-5EST Eastern Time (default setting)
-6CST Central Time
-7MST Mountain Time
-8PST Pacific Time
-9ALA Alaskan Time
-10HAW Hawaiian Time
-11
-12
GMT Greenwich Mean Time
-1
-2
-3
-4ATL Atlantic Time
3) Press and release the “SET” button to confirm the time zone
setting, and to advance to DST (Daylight saving time) setting.
III) DST (DAYLIGHT SAVING TIME) SETTING
Note: The DST default is “On”, meaning that the WWVB will
automatically change the time according to Daylight Saving
Time in the spring and fall. For areas that do not recognize
DST changes (Arizona and parts of Indiana) turn the DST
“OFF”.
1) Hold down the “SET” button for 2 seconds (the selected time
zone will flash), press the “SET” button once more until “On”
flashes in the time LCD and “DST” flashes where the Weekday
normally appears.

8
2) Press and release the “+” button to turn the DST off, as will be
indicated by the display of “OFF” in the time LCD.
3) Press and release the “SET” button to confirm the DST setting,
and to advance to select the language for the weekday.
IV)LANGUAGE SELECTION FOR THE WEEKDAY
1) Hold down the “SET” button for 2 seconds (the selected time
zone will flash), press the “SET” button 2 more times, until the
default language “US” flashes in the time LCD.
2) Press and release the “+” button to toggle through and to select
the desired language. There are 3 languages to select from:
US English
F French
E Spanish
3) Press and release the “SET” button to confirm the language
setting, and to advance to manually set the time.
V) TIME SETTING
Note: When the WWVB signal is found, that time will over-ride
the manually set time.
1) Hold down the “SET” button for 2 seconds (the selected time
zone will flash), press the “SET” button 3 more times, until the
hour “12:00” flashes in the time LCD.
2) Press and release the “+” button to select the hour.
Note: when setting the hour, “PM” will appear to the left of
the hour display, if it is AM nothing will be displayed.
3) Press and release the “SET” button to confirm the hour setting,
and to shift to select the minutes.
4) Press and release the “+” button to select the minutes.
5) Press and release the “SET” button to confirm the time setting,
and to advance to manually set the calendar.

9
VI)CALENDAR SETTING
Note: When the WWVB signal is found, that date will over-ride
the manually set date.
1) Hold down the “SET” button for 2 seconds (the selected time
zone will flash), press the “SET” button 5 more times, until the
default year “00” flashes in the date LCD.
2) Press and release the “+” button to select the year.
3) Press and release the “SET” button to confirm the year, and to
set the month.
4) The default month “1” will flash. Press and release the “+”
button to select the appropriate month.
5) Press and release the “SET” button to confirm the month, and
to set the date.
6) The default date “1” will flash. Press and release the “+”
button to select the appropriate date.
7) Press and release the “SET” button to confirm the date, and to
set the weekday.
8) The default weekday “MON” (depends on selected language)
will flash. Press and release the “+” button to select the
appropriate weekday.
9) Press and release the “SET” button to confirm the calendar
settings, and to advance to select either 12 or 24-hour time
display.
VII) 12/24-HOUR SETTING
1) Hold down the “SET” button for 2 seconds (the selected time
zone will flash), press the “SET” button 9 more times, until the
“12” hour time display flashes in the time LCD.
2) Press and release the “+” button to toggle between 12 and 24
hour time.
3) Press and release the “SET” button to confirm the 12/24-hour
time display, and to advance to select either °F or °C.
Note: The “24 hour time” option is not recommended. The
LCD display will not show the first digit “2”.

10
VIII) SELECTING °F OR °C
1) Hold down the “SET” button for 2 seconds (the selected time
zone will flash), press the “SET” button 10 more times, until
the default “°F” flashes in the time LCD.
2) Press and release the “+” button to toggle between °F and °C.
3) Press and release the “SET” button to confirm the °F or °C
selection, and exit the Program Mode.
FEATURES & OPERATIONS
I) CHANGING DISPLAY MODE (DAY, SECONDS, AND
TEMPERATURE)
There are three possible display modes to view the day,
seconds, and temperature. The month & date/ weekday/ indoor
temperature is the default.
To change the display:
1) Press and release the “+” button. The display should now
show the month & date/ weekday/ seconds.
2) Press and release the “+” button a second time and the
display will now show the month & date/ seconds/ indoor
temperature.
3) Press and release the “+” button a third time and the display
will return to the normal display.
II) INDOOR TEMPERATURE
The Indoor Temperature appears on the right side of the Date
LCD. The temperature is checked every 10 seconds, and
updated whenever there is a change.

MOUNTING
11
There are two possible ways to mount the atomic clock:
SET
Hanging
Holes
Function
Buttons
Foldout Table
Stand
• use of the foldout table stand, or
• wall mounting.
I) FOLDOUT TABLE STAND
The foldout table stand leg is located on the backside of the atomic
clock. The hinge is towards the center of the atomic clock, and the
end (with no hinge) needs to be folded in towards the center. Once
the foldout table stand is extended, place the atomic clock in an
appropriate location.
II) WALL MOUNTING

1) Using a straightedge, horizontally space at 3-15/16 of an inch
(100.58mm) three screw positions on a wall.
2) Install three mounting screws (not included) into a wall within
transmission range—leaving approximately 3/16 of an inch
(5mm) extended from the wall.
3) Place the Atomic Clock onto the screws, using the hanging
holes on the backside. Gently pull the Atomic Clock down to
lock the screws into place.
MAINTENANCE & CARE
• Extreme temperatures, vibrations, and shock should be avoided
to prevent damage to the units.
• Clean displays and units with a soft, damp cloth. Do not use
solvents or scouring agents—they may mark and damage the
displays and casings.
• Do not submerge in water.
• Immediately remove all low powered batteries to avoid leakage
and damage. Replace with new batteries only, and of
recommended size.
• Opening the casings invalidates the warranty. Do not try to
repair the units. Contact La Crosse Technology for Repairs.
TROUBLESHOOTING
Problem: The LCD is faint.
Solution: 1) Replace the batteries.
Problem: “OFL” appears in the LCD.
Solution: 1) Move unit to an area with warmer or cooler
surrounding temperature. Current surrounding
temperatures are outside measuring range.
Problem: No reception of WWVB signal.
Solution: 1) It may help reception to face the front of the
Atomic Clock in the general direction of Ft.
Collins, Colorado.
2) Wait overnight for signal.
3) Be sure the Atomic Clock is at least 6 feet
from an
y
electrical devices, i.e. TV sets,
12

13
computers, or other radio controlled clocks.
4) Remove batteries for five minutes, reinsert
and leave the unit alone overnight without
pressing buttons.
5) If problems persist contact La Crosse
Technology.
Problem: Hour is incorrect (minute and date are correct).
Solution: 1) Be sure correct time zone and daylight
saving time are selected.
Note: For any questions not answered, contact La Crosse
Technology with the contact information found at the end of this
instructional manual.
SPECIFICATIONS
Temperature:
Measuring
range: 32°F to 122°F with 0.2°F resolution
(0°C to 50°C with 0.1°C resolution)
Outside
range: “OFL” will be displayed
Checking
intervals: Every 10 seconds
Power source:
Battery type: 2 x AA, IEC LR6, 1.5V (Alkaline)
Battery life: Approximately 12 months
Dimensions
(L x W x H): 8.3 x 1.2 x 8.4 in
(211.8 x 30.5 x 214.4mm)

14
WARRANTY INFORMATION
La Crosse Technology, Ltd provides a 1-year limited warranty on this product against
manufacturing defects in materials and workmanship.
This limited warranty begins on the original date of purchase, is valid only on products
purchased and used in North America and only to the original purchaser of this product.
To receive warranty service, the purchaser must contact La Crosse Technology, Ltd for
problem determination and service procedures. Warranty service can only be performed
by a La Crosse Technology, Ltd authorized service center. The original dated bill of sale
must be presented upon request as proof of purchase to La Crosse Technology, Ltd or La
Crosse Technology, Ltd’s authorized service center.
La Crosse Technology, Ltd will repair or replace this product, at our option and at no
charge as stipulated herein, with new or reconditioned parts or products if found to be
defective during the limited warranty period specified above. All replaced parts and
products become the property of La Crosse Technology, Ltd and must be returned to La
Crosse Technology, Ltd. Replacement parts and products assume the remaining original
warranty, or ninety (90) days, whichever is longer. La Crosse Technology, Ltd will pay
all expenses for labor and materials for all repairs covered by this warranty. If necessary
repairs are not covered by this warranty, or if a product is examined which is not in need
or repair, you will be charged for the repairs or examination. The owner must pay any
shipping charges incurred in getting your La Crosse Technology, Ltd product to a La
Crosse Technology, Ltd authorized service center. La Crosse Technology, Ltd will pay
reasonable return shipping charges to the owner of the product.
Your La Crosse Technology, Ltd warranty covers all defects in material and workmanship with the
following specified exceptions: (1) damage caused by accident, unreasonable use or neglect
(including the lack of reasonable and necessary maintenance); (2) damage occurring during shipment
(claims must be presented to the carrier); (3) damage to, or deterioration of, any accessory or
decorative surface; (4) damage resulting from failure to follow instructions contained in your
owner’s manual; (5) damage resulting from the performance of repairs or alterations by someone
other than an authorized La Crosse Technology, Ltd authorized service center; (6) units used for
other than home use (7) applications and uses that this product was not intended or (8) the products
inability to receive a signal due to any source of interference.. This warranty covers only actual
defects within the product itself, and does not cover the cost of installation or removal from a fixed
installation, normal set-up or adjustments, claims based on misrepresentation by the seller or
performance variations resulting from installation-related circumstances.
LA CROSSE TECHNOLOGY, LTD WILL NOT ASSUME LIABILITY FOR
INCIDENTAL, CONSEQUENTIAL, PUNITIVE, OR OTHER SIMILAR DAMAGES
ASSOCIATED WITH THE OPERATION OR MALFUNCTION OF THIS PRODUCT.
THIS PRODUCT IS NOT TO BE USED FOR MEDICAL PURPOSES OR FOR
PUBLIC INFORMATION. THIS PRODUCT IS NOT A TOY. KEEP OUT OF
CHILDREN’S REACH.
This warranty gives you specific legal rights. You may also have other rights specific to
your State. Some States do no allow the exclusion of consequential or incidental
damages therefore the above exclusion of limitation may not apply to you.

15
For warranty work, technical support, or information contact:
La Crosse Technology, Ltd
190 Main Street
La Crescent, MN 55947
Phone: [phone]
Fax: [phone]
e-mail:
[email protected]
(warranty work)
[email protected]
(information on other products)
web:
www.lacrossetechnology.com
All rights reserved. This handbook must not be reproduced in any form, even in excerpts,
or duplicated or processed using electronic, mechanical or chemical procedures without
written permission of the publisher.
This handbook may contain mistakes and printing errors. The information in this
handbook is regularly checked and corrections made in the next issue. We accept no
liability for technical mistakes or printing errors, or their consequences.
All trademarks and patents are acknowledged.
