Lacanche CHAGNY User manual

             
Lacanche Range Cooker
CHAGNY - MACON
(uk)
LG 1053 GE/ EE/ GCT/ ECT
LCF 1053 GE/ EE/ GCT/ ECT - LVTR 1053 EE/ ECT
Chagny - Macon (UK) - Ft 138a - GB - Rév 06 - Modifié le : 07/10/2013 1/42

             
TECHNICAL DATA
—————————————————————————————————————————3
INSTALLER’S MANUAL 7

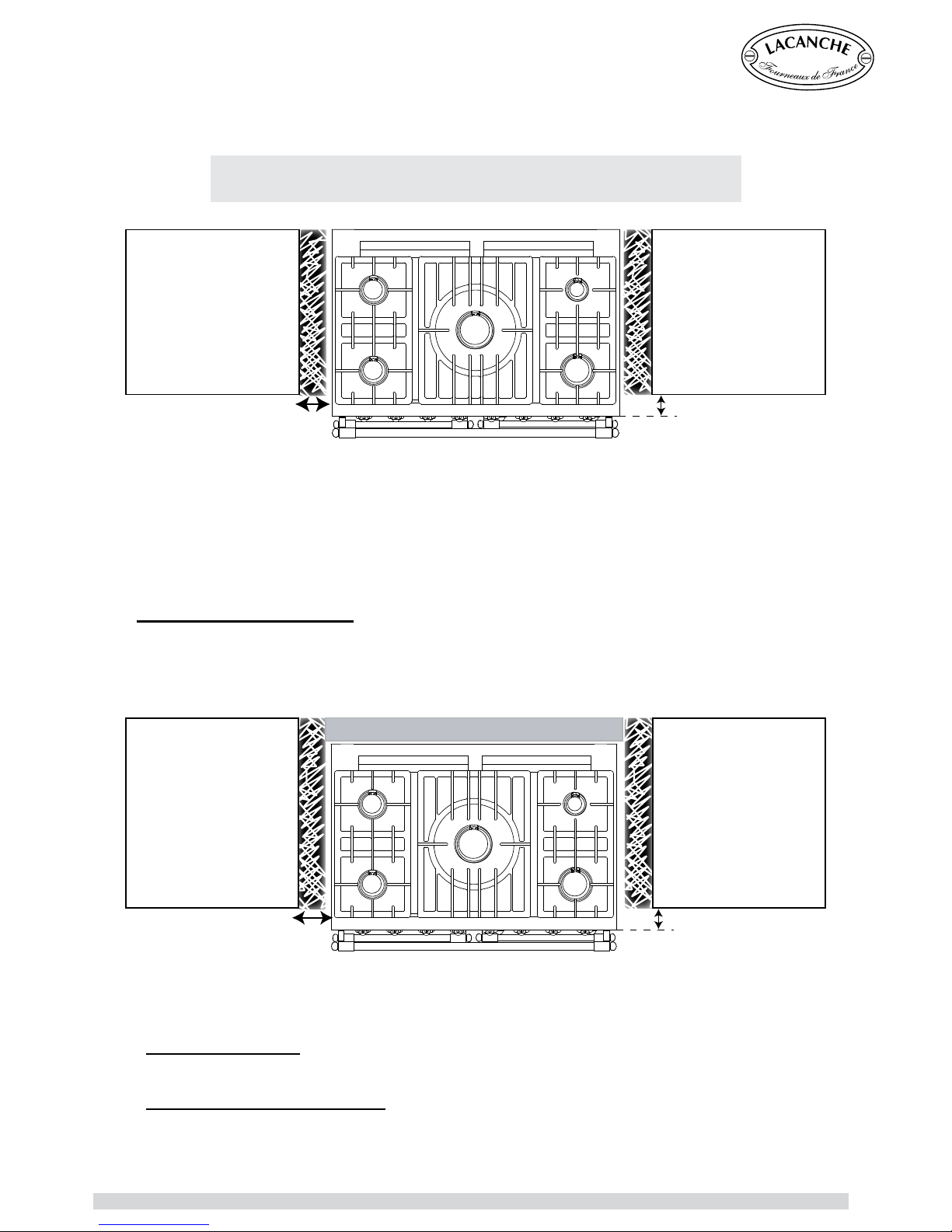

INSTALLATION / POSITIONING
—————————————————————————————————————————9
GAS CONNECTION
—————————————————————————————————————————11

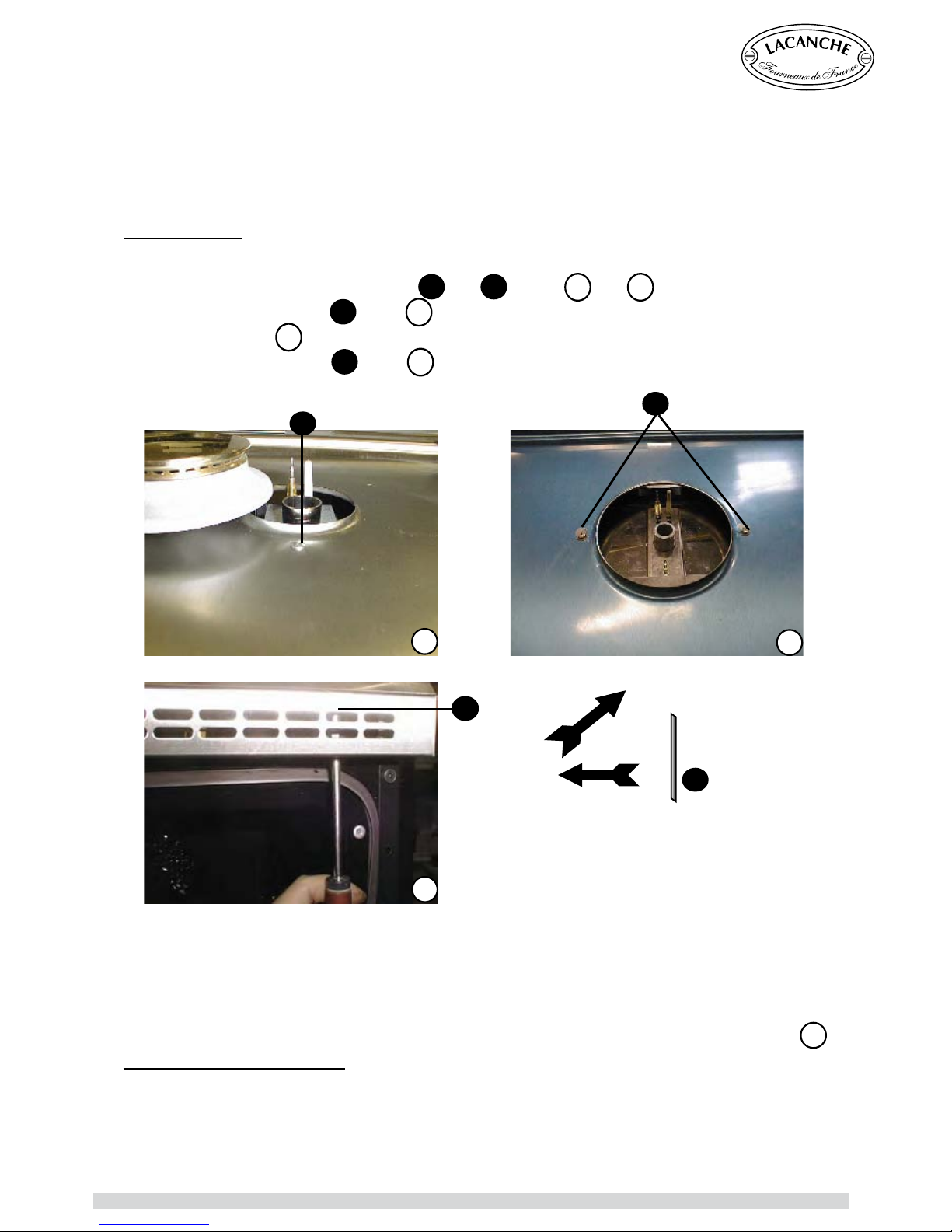

OPENING AND CLOSING THE HOB
—————————————————————————————————————————12

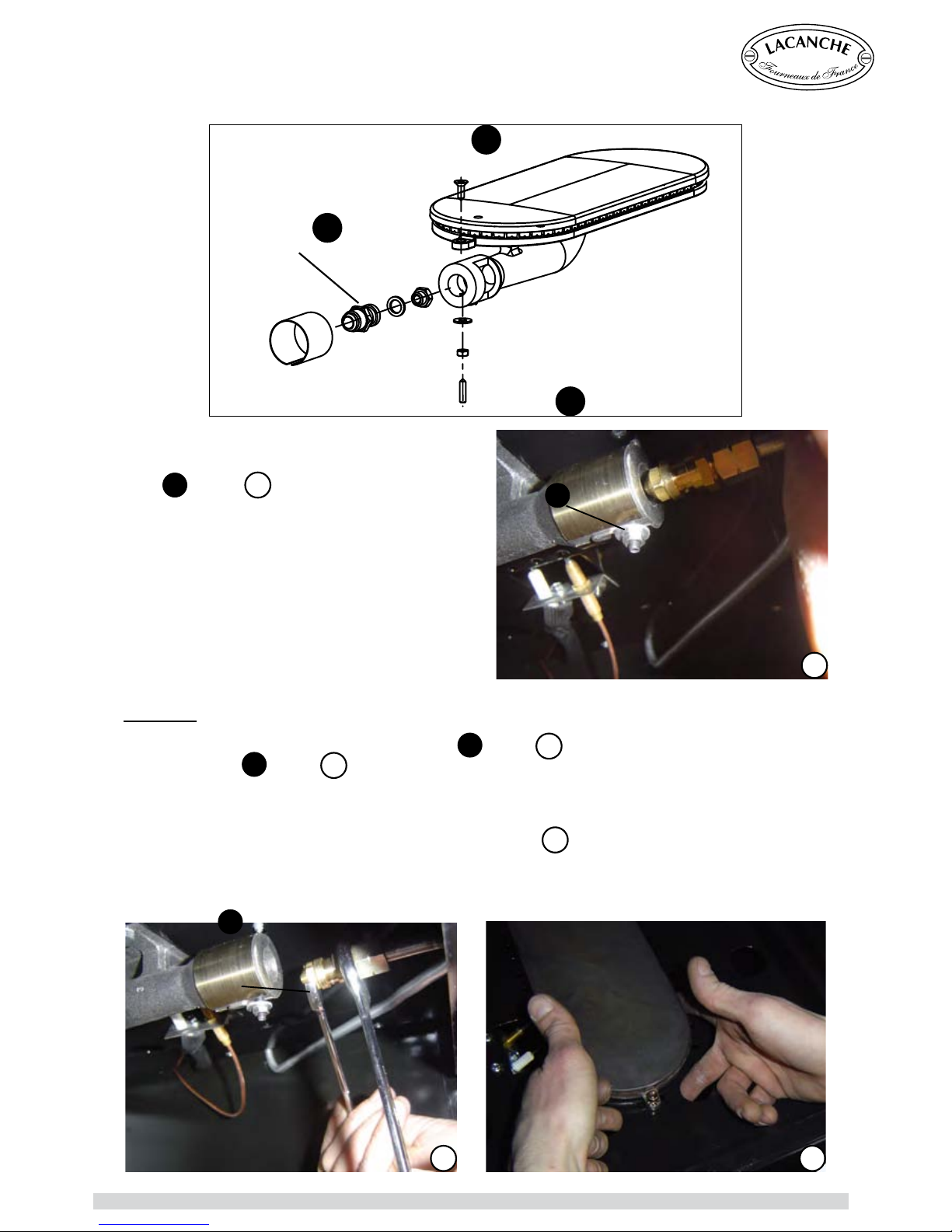

CHANGING GAS TYPE
—————————————————————————————————————————13
ELECTRIC CONNECTION
—————————————————————————————————————————17
SERVICING / REPAIRS
—————————————————————————————————————————18
ELECTRIC CIRCUIT DIAGRAMS
—————————————————————————————————————————19
GAS CIRCUIT
—————————————————————————————————————————22
USER’S MANUAL 23
CAUTION
—————————————————————————————————————————25
GAS HOB
—————————————————————————————————————————27
SIMMER PLATE (ON TRADITIONAL HOB)
—————————————————————————————————————————29
RADIANT ELECTRIC HOB
—————————————————————————————————————————30
RECOMMENDATIONS BEFORE USING OVENS
—————————————————————————————————————————33
GAS OVEN
—————————————————————————————————————————34
SMALL ELECTRIC OVEN
—————————————————————————————————————————36
STATIC ELECTRIC OVEN
—————————————————————————————————————————37
CONVECTION ELECTRIC OVEN
—————————————————————————————————————————38
CLEANING AND MAINTENANCE
—————————————————————————————————————————39
Information regarding the elimination of electric and electronic waste
—————————————————————————————————————————42
CONTENTS
CHAGNY - MACON
(uk)
Chagny - Macon (UK) - Ft 138a - GB - Rév 06 - Modifié le : 07/10/2013 2/42

INSTALLER’S MANUAL
►MACON : TRADITIONAL GAS HOB
5 Gas Burners with simmer plate :
- 5 burners of different size and power (see hob T,
C, Dtable 1, appendix 0)
- Large cooking zone equipped with a simmer plate
385 x 510 mm.
- Individually controlled by a thermocouple safety
valve.
- Electric push button ignition.
►MACON : CLASSIC 5 BURNER GAS HOB
5 Gas Burners :
- 5 burners of different size and power (see hob A,
C, Dtable 1, appendix 0).
- Individually controlled by a thermocouple safety
valve.
- Electric push button ignition.
CHAGNY - MACON(uk) CLASSIC AND TRADITIONAL : GAS HOBS
1000
527
815
280
935
725
650
896
900
TECHNICAL DATA
385
C
C
B
D
A
500
C
C
B
D
T
385 500
Gas connection : Tube ∅15/21, 1/2” gas thread, on male
coupling
The height of the cooker is adjustable between 900 and 916 mm.
Electric connection, on terminal block at the rear of the appliance
► Front body panels : Stainless steel or enamelled steel.
► Hob : Pressed stainless steel.
Chagny - Macon (UK) - Ft 138a - GB - Rév 06 - Modifié le : 07/10/2013 3/42

INSTALLER’S MANUAL
Gas Oven :
► Enamelled sheet metal.
► Dimensions L x H x P : 400 mm x 305 mm x 405 mm, 55 litre.
► 3 shelf levels with 70 mm spacing in between.
► Thermostatically controlled oven with thermocouple.
► Electric push button ignition.
Power : 3500 W – Supply 230 V 1N~ 50 Hz/ 400 V 3N~ 50 Hz
Static Electric Oven :
► Enamelled sheet metal.
► Dimensions L x H x P : 400 mm x 305 mm x 405 mm, 55 litre.
► 3 shelf levels with 70 mm spacing in between.
► Thermostatically controlled roof (700 W) and base (1500 W) heating elements, safety thermostat.
► Fifted with an electric grill (2100 W).
Power : 2200 W – Supply 230 V 1N~ 50 Hz
Convection Electric Oven :
► Enamelled sheet metal.
► Dimensions L x H x P : 400 mm x 305 mm x 405 mm, 49 litre.
► 3 shelf levels with 70 mm spacing in between.
► The oven is heated by a circular 2650 W element in the back wall, surrounding a fan unit.
► Thermostatically controlled roof and base heating elements, safety thermostat.
► Fifted with an electric grill (2100 W).
Power : 2650 W – Supply 230 V 1N~ 50 Hz/ 400 V 3N~ 50 Hz
Small Electric Oven :
► Enamelled sheet metal.
► Dimensions L x H x P : 400 mm x 145 mm x 440 mm, 25 litre.
► 1 shelf level.
► Thermostatically controlled roof and base heating elements, safety thermostat.
► Fifted with an electric grill (2400 W).
Power : 1500/ 2400 W – Supply 230 V 1N~ 50 Hz/ 400 V 3N~ 50 Hz
Accessories :
Gas Oven : One roasting tray.
One oven rack.
Electric Oven : One roasting tray.
One grill insert with ts into the roasting tray.
One oven rack.
Small Electric Oven : One roasting tray.
One grill insert with ts into the roasting tray.
Pressures and hourly consumption :
Appliance gas supplying can be switched, please refer to rating plate and marking at the rear of the
appliance (O, T, A, B, C, D : table 3, appendix 0).
Directives :
Gas appliances : 2009/142/CEE.
Low Voltage : 2006/95/CEE.
CEM : 2004/108/CEE.
TECHNICAL DATA
Chagny - Macon (UK) - Ft 138a - GB - Rév 06 - Modifié le : 07/10/2013 4/42

INSTALLER’S MANUAL
CHAGNY - MACON(uk) ELECTRIC RADIANT HOB
►MACON : ELECTRIC RADIANT HOB
- 5 Radiants Rings of different sizes and power
under a 6 mm glass-ceramic surface (Rings A, B,
Ctable 2 in appendix 0).
Power : 10600 W – 230 V 1N~ 50 Hz/ 400 V
3N~ 50 Hz
500
B
A
A
B
C
1000
527
725
650
900
150
894
TECHNICAL DATA
The height of the cooker is adjustable between 900 and 916 mm.
Electric connection, on terminal block at the rear of the appliance
► Front body panels : Stainless steel or enamelled steel.
► Hob : Pressed stainless steel.
Chagny - Macon (UK) - Ft 138a - GB - Rév 06 - Modifié le : 07/10/2013 5/42
