Laguna Tools REVO 10 User manual

1
2072 Alton Parkway, Irvine, CA 92606 www.lagunatools.com 800.234.1976

2
Dear Woodworker,
Thank you for your purchase and welcome to the Laguna Tools group of
discerning woodworkers. I understand that you have a choice of where to
purchase your machines and appreciate the confidence you have shown in
our products.
Every machine sold by Laguna Tools has been carefully designed and well
thought through from a woodworker’s perspective. I cut on our bandsaws,
lathes, table saws and combination machines. Through my hands-on
experience, I work hard to make our machines better. I strive to give you
machines that inspire you to create works of art; machines that are a joy to
run and work on; machines that encourage your performance.
Today, we offer high-performance machines with innovative solutions that
meet the needs of woodworkers and their ever-evolving craft.
I started Laguna Tools as a woodworker, I still am one.
Thank you again for becoming a Laguna Tools customer.
Torben Helshoj
President and Founder - Laguna Tools
Imagination, Innovation and Invention at Work.

3
Table of contents
Page number
Safety rules
4
Warranty
5
Noise emission
6
Specification sheet
6
Receiving your machine
6
Introduction to your machine
7
Parts of the machine
7
Where to locate your machine
9
Unpacking your machine
9
Assembly and setup
10
Maintenance and troubleshooting
15
Exploded view drawings
17

4
Safety Rules
As with all machinery, there are certain hazards involved with the operation
and use of your new machine. Using it with caution will considerably
lessen the possibility of personal injury. However, if normal safety
precautions are overlooked or ignored, personal injury to the operator may
result. If you have any questions relating to the installation or operation, do
not use the equipment until you have contacted your supplying distributor.
Read the following carefully and completely before operating the machine.
1. Keep the working area clean and ensure adequate lighting is
available.
2. Do not wear loose clothing, gloves, bracelets, necklaces or
ornaments.
3. Do wear face, eye, respiratory and body protection devices as
indicated for the operation or the environment.
4. Ensure that the power is disconnected from the machine before tools
are serviced or any attachment is to be fitted or removed.
5. Never leave the machine with the power on.
6. Do not use dull, gummy or cracked cutting tools.
7. Ensure that the keys and adjusting wrenches have been removed
and all the nuts and bolts are secured.

5
Limited Warranty
New woodworking machines sold by Laguna Tools, Inc., carry a one-year
warranty from the date of shipping. Laguna Tools guarantees all new machines
sold to be free of manufacturer’s defective workmanship, parts and materials.
We will repair or replace, without charge, any parts determined by Laguna Tools,
Inc., to have a manufacturer's defect. We require the defective item/part to be
returned to Laguna Tools, Inc., In the event the item/part is determined to have
been damaged due to lack of maintenance, cleaning or misuse/abuse, the
customer will be responsible for the cost of replacement of the item/part, plus all
related shipping charges.
This limited warranty does not apply to natural disasters, acts of terrorism,
normal wear and tear, product failure due to lack of maintenance or cleaning,
damage caused by accident, neglect, lack of or inadequate dust collection,
misuse/abuse or damage caused when repair or alterations have been made or
attempted by others.
Laguna Tools, Inc., is not responsible for additional tools or modifications sold or
performed [other than from/by Laguna Tools, Inc.] on any Laguna Tools, Inc.,
woodworking machine. Warranty may be voided upon the addition of such tools
and/or modifications, determined on a case-by-case basis.
Normal user alignment, adjustment, tuning and machine settings are not covered
by this warranty. It is the responsibility of the user to understand basic
woodworking machinery settings and procedures and to properly maintain the
equipment in accordance with the standards provided by the manufacturer.
Parts under warranty are shipped at Laguna Tools, Inc.'s cost either by common
carrier, FedEx Ground service or similar method.
Technical support to install replacement parts is primarily provided by phone, fax,
or e-mail. The labor required to install replacement parts is the responsibility of
the user.
Laguna Tools, Inc., is not responsible for damage or loss caused by a freight
company or other circumstances not in our control.
Only new machines sold to the original owner are covered by this warranty. For
warranty repair information, call 1-800-332-4094.
Copyright 2010 Laguna Tools, Inc.
** Warning –no portion of these materials may be reproduced without written
approval from Laguna Tools, Inc.

6
Noise emission
Notes concerning noise emission:
Given that there exists a relationship between noise level and exposure times, it
is not precise enough to determine the need for supplementary precautions. The
factors affecting the true level of exposure to operators are clearly the amount of
time exposed; the characteristics of the working environment, such as other
sources of dust and noise, etc. For example, adjacent machines may impact the
level of ambient noise. It is also possible that exposure level limits will vary from
country to country.
Specification sheet
Receiving your machine
Note: It is probable that your machine will be delivered by a third party. Before
you unpack your new machine, you will first need to inspect the packing, invoice
and shipping documents supplied by the driver.
Ensure that there is no visible damage to the packing or to the machine. You
must do this prior to the driver leaving. All damage must be noted on the delivery
documents and signed by you and the delivery driver. You must then contact the
seller (Laguna Tools, Inc.) as soon as is practical. If damage is found after
delivery, contact the seller as soon as is practical.
Note: It is probable that you will find sawdust within your machine. This is
because the machine has been tested prior to shipment from the factory and or
Laguna Tools, Inc.
Motor
1/2 HP
Voltage
110V
Amps
6 amps
Swing over bed
5" (127mm), 10" diameter (254mm)
Distance between centers
16" (406mm)
RPM range
410 to 3700 rpm
Spindle
Bore 0.433" (11mm)
Thread 1" x 8 TPI RH
Outboard thread 3/4" x 16 TPI LH
Head and tail stock Morse taper
No. 2
Tool rest
6" (152mm)
Face plate
3" (76.2mm)
Tail stock travel
2.25" (57mm)
Weight
79lbs (36kg)
Shipping weight
86lbs (39kg)

7
Laguna Tools, Inc. endeavors to test machines prior to shipping to customers as
movement can take place during transportation. It must be noted that additional
machine movement can take place between Laguna Tools and delivery to the
end user, and some adjustments may have to be undertaken by the customer.
These adjustments are covered in the appropriate sections of this manual.
Introduction to lathes
This machine is designed to give you years of safe service. Read this owner's
manual in its entirety before assembly or use.

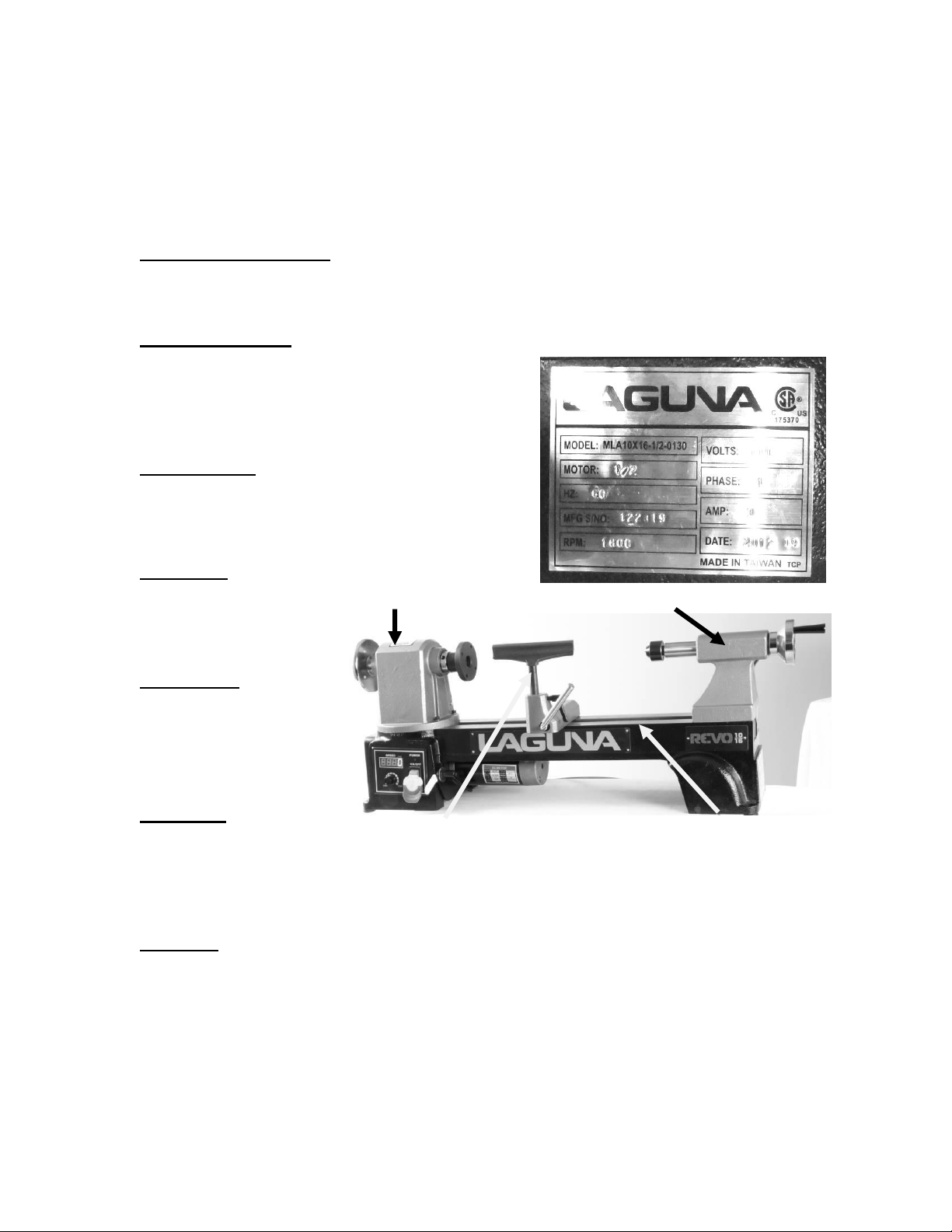

Parts of the lathe
The lathe consists of a number of major
parts, which are discussed in this manual.
Take the time to read this section and
become familiar with the machine.
Identification
There is a plate at the back of the machine
listing all the manufacturing data, including
the serial number, model, etc.
Lathe bed
The bed is a
machined heavy
casting.
Head stock
The head stock is cast
iron and houses the
pulleys and lathe
spindle.
Tail stock
The tail stock is of
cast iron construction, and the spindle has a travel of 2.1/4". It can accommodate
centers and other tools that have a No. 2 Morse taper. The tail stock can be
moved to any position on the lathe bed and locked to suit the job at hand.
Tool rest
The tool rest can be moved to any position on the lathe bed and locked to suit
the job at hand.
Head stock Tail stock
Tool rest Lather bed

8
Back tool rest (optional)
The back tool rest can be
swiveled and adjusted to suit the
job being turned on the back
faceplate.
Variable speed control
The variable speed control is
located on the front of the lathe.
The associated electronics are
located in a black box at the rear
of the lathe.
Electrical system
A power cord with a 3-pin 110V
plug is provided.
What you will receive with the
lathe
Allen wrench Centers
Safety glasses Knock out rod
Back tool rest holder
Allen wrench Fixing screws and washers
Variable speed control
Back tool rest

9
Where to locate your machine
Before you remove your machine from the packaging, select the area where you
will use your machine. There are no hard-and-fast rules for its location, but below
are a few guidelines:
1. There should be an area at the front of the machine suitable for comfortable
working.
2. There should be sufficient area at the back of the machine to allow access for
adjustments and maintenance to be conducted.
3. Adequate lighting. The better the lighting, the more accurately and safely you
will be able to work.
4. Solid workbench or similar.
5. Locate it close to a power source and dust collection point.
6. Allow an area for the storage of blanks, finished products and tools.
Unpacking your machine
To unpack your machine, you will
need tin snips and a knife.
1. Using the tin snips, cut the
banding that is securing the packing
box (If fitted) to the pallet.
WARNING: EXTREME CAUTION
MUST BE USED, AS THE
BANDING WILL SPRING AND
COULD CAUSE INJURY.
2. Open the box and remove the
parts that are supplied with the lathe.
3. Remove the upper packaging.
4. Lift out the lathe and place it on the workbench.
Note: The lathe is heavy, and you will need two people to lift it out of the
packaging.
Note: If you have any doubt about the described procedure, seek professional
assistance. Do not attempt any procedure that you feel is unsafe or that you may
not have the physical capability of achieving.
Packaged lathe

10
Assembly and setup
The machine comes mostly assembled. You will have to assemble the optional
back tool rest holder onto the bed of the machine.
Clamping Screws
Back tool rest holder
Tool rest moved from the bed of
the lathe to the back tool rest
holder
1. Fit the back tool rest holder to the rear of
the lathe with the three ratchet clamping
screws.
2. Remove the tool rest holder from the bed
of the lathe by removing the clamping nut on
the underside of the bed of the lathe.
3. Replace the nut onto the thread and slide
onto the tool rest holder.
4. Adjust the nut until the clamping handle
locks the tool rest holder.
Connecting the electrical supply
Ensure that the electrical supply corresponds
with that of the machine (single phase 110V).
It is recommended that you use a 15-amp main breaker.
Cleaning the machine
Remove the rust protection grease with WD 40 or a similar solvent.
It is important that you remove all the grease and re-lubricate with a Teflon-based
lubricant. Teflon has less tendency to attract sawdust and cause clogging.
View under the bed of the
lathe showing the tool rest
clamping nut

11

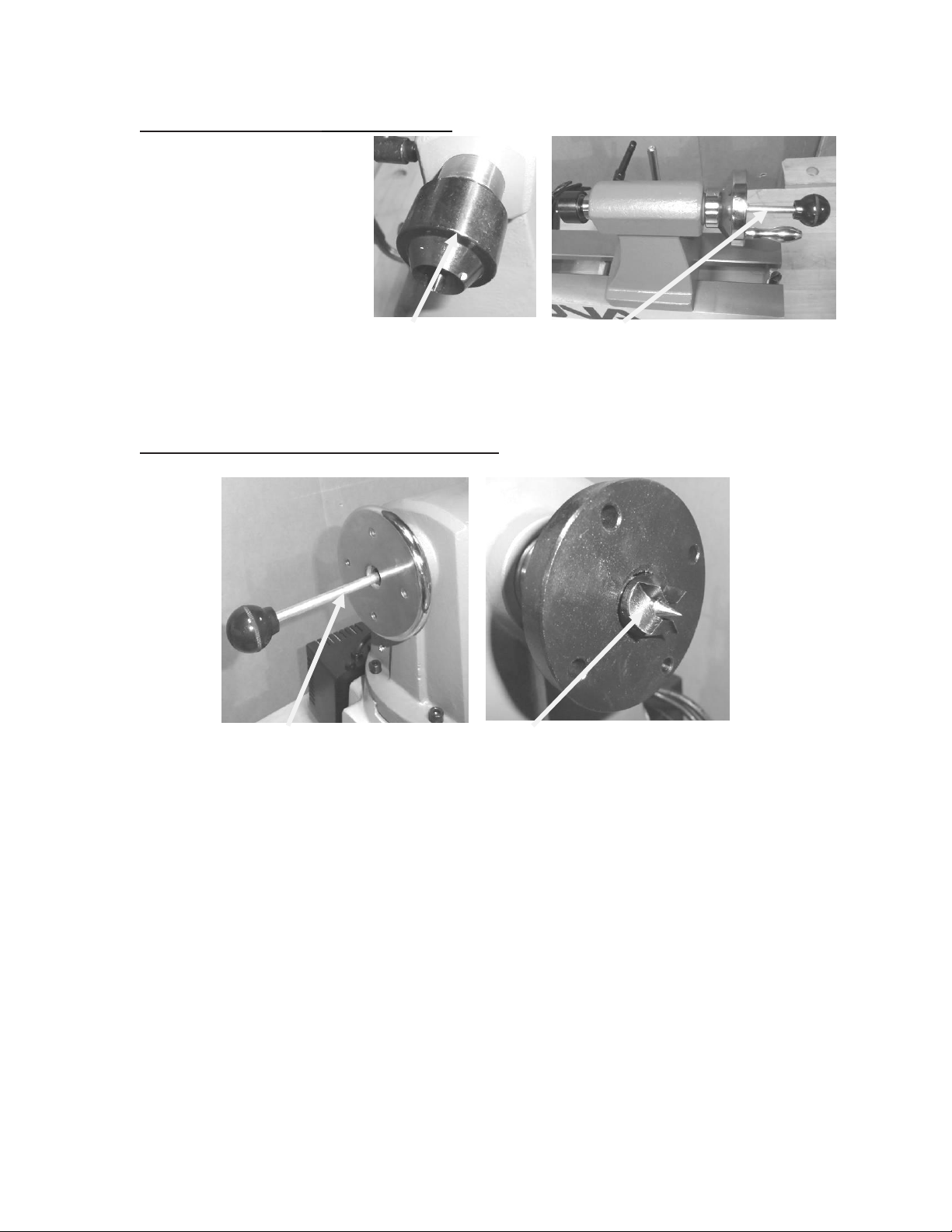

Fitting the tail stock rotating center
Ensure that the bore of
the tail stock is clean.
The rotating center has a
No. 2 Morse taper that
fits into the tail stock.
Push the center into the
tail stock bore firmly and
ensure that it is securely
located. To remove the
center, push the knock
out shaft into the back of the tail stock and give it a sharp knock. This will remove
the rotating center.
Note: Do not leave the knock-out shaft in the tail stock with the machine running.
Fitting the drive center in the head stock
Knock-out rod
Drive center
Ensure that the bore of the head stock is clean. The drive center has a No. 2
Morse taper that fits into the head stock.
Push the center into the head stock bore firmly and ensure that it is securely
located. To remove the center, push the knock-out shaft into the back of the head
stock and then give it a sharp knock. This will remove the drive center.
Note: Do not leave the knock out shaft in the head stock with the machine
running.
Rotating center
Knock-out rod

12
Fitting and removing the face plate
The face plate has flats for a wrench. To remove
the face plate from the head stock spindle, insert
the knock out rod or a shaft of the same
diameter into the hole on the side of the lathe
spindle and loosen the face plate with a wrench.
To fit a face plate reverse the removal
procedure, as described earlier.
Variable speed control
The speed of the spindle is adjustable
between 410 rpm and 3700 rpm.
The lathe is provided with a three pulley
system to optimize the torque. Always
select suitable pulleys for the type of
work being undertaken.
Changing pulleys is covered later in the
manual.
On-off switch
The on-off switch activates or
deactivates the motor. The switch is
provided with a safety pullout. With the
yellow pull out removed, the switch is
deactivated.
Wrench flats Face plate
Knock-out rod
Speed display
Speed-control knob
On/Off switch
Safety pullout
Speed display
Speed-control knob

13
Tail stock
The tail stock can be moved to any position on
the bed of the lathe. To move the tail stock,
unlock the locking handle, slide the tail stock to
the required position and lock. The tail stock
spindle can be extended and retracted by rotating
the handle located at the back of the tail stock.
The spindle can be locked in position with the
screw on the side of the tail stock. Always lock
the spindle when operating the lathe.
Changing pulleys
Pulley clamp handle
Pulley adjustment handle
Cover transport locking
screw
Pulleys
Pulleys viewed from the
underside of lathe
Pulley speed range
The pulleys are accessed from the back of the lathe. There is a hinged door. The
door has a transport screw that keeps the door closed during transport. To open
the door, remove the screw and store in a safe place in case you need to
transport the lathe.
To select a different set of pulleys proceed as follows.
Spindle lock
Locking handle

14
1. Disconnect the power to the lathe.
2. Loosen the pulley clamp handle.
3. Move the pulley adjustment handle vertically as far as it can go and lock the
pulley clamp handle.
4. Move the drive belt to the required set
of pulleys. To access the lower pulleys
the electrical control box has to be hinged
away. The box is held in place with a
spring clip. Once the pulley selection has
been completed, the control box must be
clipped back in position. Never run the
late with the control box not clipped in
position, as the pulleys are dangerously
exposed.
5. Loosen the pulley clamp handle. Move
the pulley adjustment handle down to
apply tension onto the drive belt and
tighten the pulley clamp handle. The drive belt should be tensioned similar to a
car fan belt. Pressing on the side of the drive belt with moderate pressure, there
should be approximately 1/8" deflection.
6. Reconnect the power to the lathe.

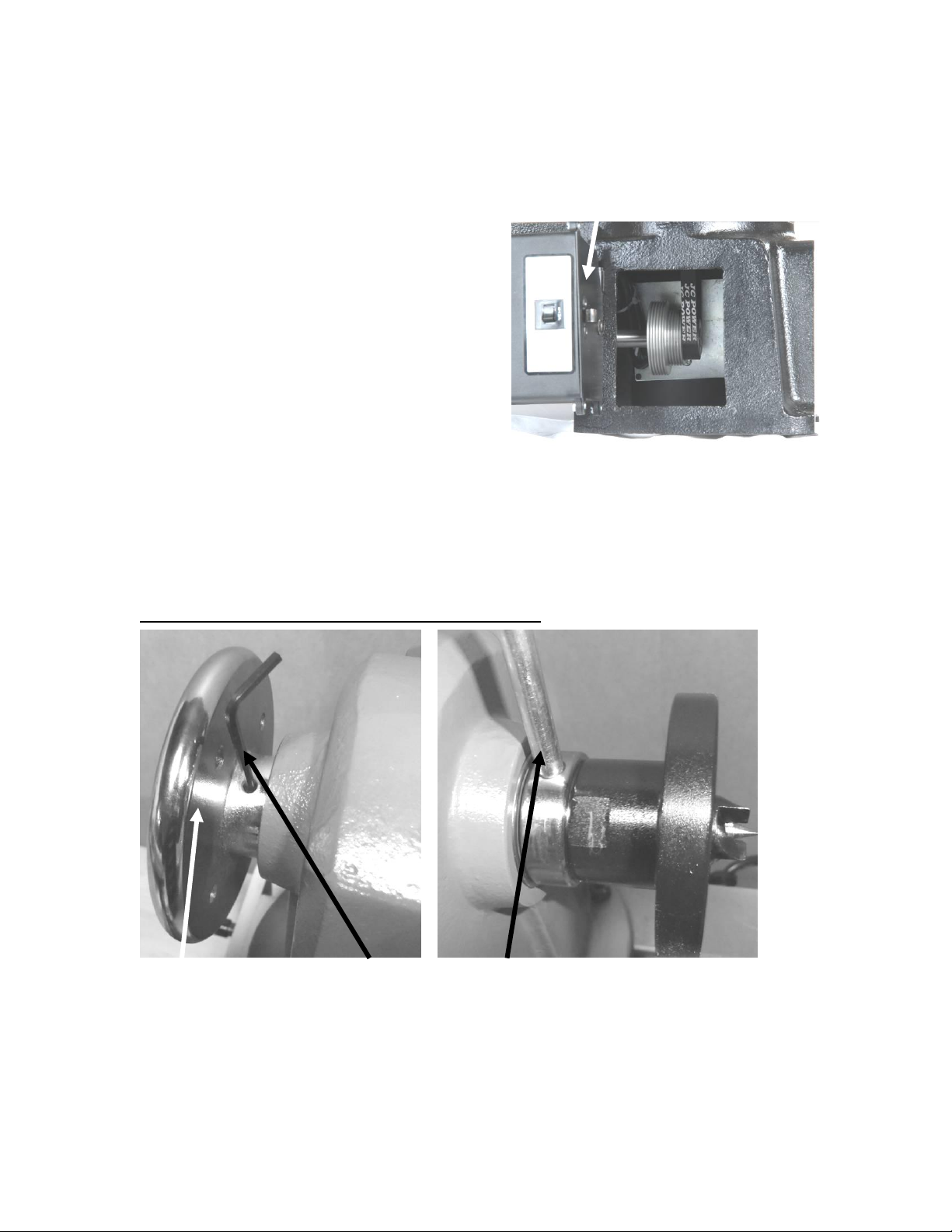

Removing the rear face plate / spindle handle
Rear face plate Allen key
Knock out rod
The rear face plate can be removed and another face plate (not supplied) fitted
as follows.
1. Disconnect the power to the lathe.
2. Loosen and remove the clamp screw with the Allen key.
Electrical control box
Access to lower pulleys

15
3. Fit the knock-out rod into the spindle to control the rotation of the spindle and
rotate the face plate until it is removed.
4. To fit the new face plate, reverse the procedure.
Maintenance
General
Keep your machine clean. At the end of each day, clean the machine. Wood
contains moisture, and if sawdust or wood chips are not removed, they will cause
rust.
In general, we recommend that you only use a Teflon-based lubricant on the
lathe. Regular oil attracts dust and dirt. Teflon lubricant tends to dry and has
fewer tendencies to accumulate dirt and sawdust.
Periodically check that all nuts and bolts are tight.
Drive belt
The drive belt should last for many years (depending on the usage) but needs to
be inspected regularly for cracks, cuts and general wear. If damage is found,
replace the belt.
Bearings
All bearings are sealed for life and do not require any maintenance. If a bearing
becomes faulty, replace it.
Rust
The lathe is made from steel and cast iron. All nonpainted surfaces will rust if not
protected. It is recommended that they are protected by applying wax or a
Teflon-based lubricant
Troubleshooting
Lathe will not start
1. Check that the start switch is in the
correct position.
2. Check that the electrical power cord is
plugged into the power outlet.
3. Check that the electrical supply is on
(reset the breaker).
4. With the power disconnected from the
machine, check that the wiring to the plug is
correct. Check that the rubber insulation is
stripped enough and is not causing a bad
connection. Check that all the screws are
tight.
5. The lathe has a built-in trip system that is
designed to protect the lathe from overloading the electrical system. Should the
trip system cut the power to the machine, the reset button has to be reset.
Electrical reset

16
The machine will not stop
This is a very rare occurrence, as the machine is designed to fail-safe. If it should
occur and you cannot fix the fault, seek professional assistance. The machine
must be disconnected from the power and never run until the fault has been
rectified.
1. Stop switch faulty. Replace the stop switch.
Motor tries to start but will not turn
1. With the power disconnected from the machine, try to turn the spindle by hand.
If the spindle will not turn, check the reason for the jamming.
2. Capacitor faulty. Replace the capacitor.
3. Motor faulty. Replace the motor.
Motor overheats
The motor is designed to run hot, but should it overheat, it has an internal
thermal overload protector that will shut it down until the motor has cooled, and
then it will reset automatically. If the motor overheats, wait until it has cooled and
restart. If the motor shuts down consistently, check for the reason. Typical
reasons are dull cutting tools, over-feeding the job and excessive ambient
temperature.
Squeaking noise
1. Check the bearings.
2. Check the drive belt.
Spindle slows down during a cut
1. Dull cutting tools. Replace the tool or have it resharpened.
2. Feeding the wood too fast. Slow down the feed rate.
3. Oil or dirt on the drive belt. Clean or replace the drive belt.
Machine vibrates
1. Machine not level on the bench. Re-level the machine, ensuring that it has no
movement.
2. Damaged drive belt. Replace the belt.
3. Job is not balanced. Change to slower speed and/or balance the job.
4. Damaged pulley. Replace the pulley.

17
Parts breakdown and exploded view

18

19

20
PARTS LIST FOR MLA10X16-1/2-0130
Key
Part No.
Descriptions
Q'ty
1
003201-101
SET SCREW
1/4"-20NC*1/4"
3
2
050932-907
FACE PLATE
1
3
030214-002
BALL BEARING
6004
1
4
006720-100
WAVE WASHER
BWW-6302
1
5
660114-000
SENSOR RING
1
6
380562-901
COLLAR
2
7
090167-000
SPINDLE PULLEY
1
8
014331-000
POLY V-BELT
230J-5
1
9
000201-101
SET SCREW
M4*0.7P*6
3
10
171962-901
SENSOR BRACKET
1
11
000101-101
CAP SCREW
M4*0.7P*8
2
12
000203-102
SET SCREW
M6*1.0P*8
2
13
003303-207
PHLP HD SCREW
3/16"-24NC*5/8"
3
14
021102-000
CORD CLAMP
ACC-2.5
2
15
009003-200
HEX. NUT
3/16"-24NC
2
16
172202-000
REAR ACCESS COVER
1
17
003303-210
PHLP HD SCREW
3/16"-24NC*1"
1
18
280118-901
TENSION SPRING
1
19
011001-106
ROLL PIN
3*20
2
20
030201-002
BALL BEARING
6005
1
21
012003-007
KEY
5*5*20
1
22
360731-907
SPINDLE
1
23
381061-902
FACEPLATE
1
24
922457-000
CENTER POINTER
1
.1
380925-901
SPUR CENTER
1
.2
380926-906
CENTER POINTER
1
26
050927-000
HEADSTOCK
1
27
003103-107
CAP SCREW
1/4-20NC*1"
4
28
006304-200
LOCK WASHER
6.5*12.8*2.0t
4
29
021508-000
GROMMET
1
