Lamarche LMC SUN Series User manual

106 Bradrock Dr. Des Plaines 60018-1967
Tel: [phone] Fax: [phone] CPN 142881
Instruction Drawing Number: P25-LLMSN-1
Revision A00 Rev. Date: 04/21 ECN: 22861
Issue Date: 2/12 Rev. A01 ECN: 19412
La Marche Manufacturing Company
www.lamarchemfg.com
LMC –Sun Series
Hybrid Inverter (Grid-Tied / Off-Grid)
Installation and Operation Manual
This manual is subject to change without notice. You may obtain the newest version of the manual at www.lamarchemfg.com

1
Important Safety Instructions
Before using this equipment, read all manuals and other documents related to this inverter and other
equipment connected to this unit. Always have a copy of an inverter’s manual on file nearby, in a safe place;
if a replacement copy of a manual is needed, it can be found at www.lamarchemfg.com.
Electrical Safety
WARNING: Hazardous voltages are present at the input of power systems. The output from
inverters and batteries may be low in voltage but can have a very high current capacity that may
cause severe or even fatal injury.
When working with any live battery or power system, follow these precautions:
•Never work alone on any live power system, someone should always be close enough to come to your aid.
•Remove personal metal items such as rings, bracelets, necklaces, and watches.
•Wear complete eye protection (with side shields) and clothing protection.
•Always wear gloves and use insulated hand tools.
WARNING: Lethal voltages are present within the power system. Parts inside the unit may still be
energized even when the unit has been disconnected from the DC input power. Check with a meter
before proceeding. Do not touch any parts that are not insulated.
•A licensed electrician should be used in the installation of any unit.
•Always disconnect the unit from the supply, batteries, and loads before performing maintenance or cleaning.
•If the unit is hot-swappable, simply remove it from the shelf for any maintenance or cleaning.
•Always assume that an electrical connection is live and check the connection relative to the ground.
•Be sure that neither liquids nor any wet material comes in contact with any internal components.
•Do not operate this unit outside the input and output ratings listed on the unit nameplate.
•Do not use this unit for any purpose not described in the operation manual.
Mechanical Safety
•This unit or parts of the unit may get very hot during normal operation, use care when working nearby.
•Do not expose equipment to rain or snow. Always install in a clean, dry location.
•Do not operate the equipment if it has received a sharp blow, been dropped, or otherwise damaged in any
way.
•Do not disassemble this unit. Incorrect re-assembly may result in a risk of electric shock or fire.
Battery Safety
WARNING: Follow all of the battery manufacturer’s safety recommendations when working with
or around battery systems. DO NOT smoke or introduce a spark or open flame in the vicinity of a
battery. Some batteries generate explosive gases during normal battery operation.
•To reduce the risk of arc, connect, and disconnect the battery only when the unit is off.
•If it is necessary to remove the battery connections, always remove the grounded terminal from the battery
first.
•Remove personal metal items such as rings, bracelets, necklaces, and watches.
•Always wear rubber gloves, safety glasses, and a rubber-lined vest/apron when working near a battery.
•Have plenty of freshwater and soap nearby in case the battery electrolyte contacts skin, clothing, or eyes.
•If the battery electrolyte contacts skin or clothing, wash immediately with soap and water.
•If the electrolyte enters the eye, immediately flood the eye with running cold water for at least ten (10)
minutes and seek medical attention immediately.
•Do not drop metal on a battery. A spark or short-circuit could occur and could cause an explosion.

2
Unit Location
•Allow at least 6 inches of free air on all vented surfaces for proper cooling.
•Do not operate this unit in a closed-in area or restrict ventilation in any way.
•Do not set any battery on top of this unit.
•Never allow battery electrolyte to drip on this unit when reading the specific gravity or filling the battery.
•Never place this unit directly above a standard flooded battery. Gases from the battery will corrode and
damage equipment.
•A sealed maintenance-free or valve-regulated lead-acid (VRLA) battery may be placed below this
equipment.
Check for Damages
Before unpacking the product, note any damage to the shipping container and take pictures. Unpack the
product and inspect the exterior and interior of the product for damage. If any damage is observed, take
pictures and contact the carrier immediately to file a damage claim. Contact La Marche for a Return Material
Authorization number to have the inverter sent back for evaluation and repair.
CAUTION: Failure to properly file a claim for shipping damages or provide a copy of the claim to La
Marche, may void warranty service for any physical damages reported for repair.
Returns for Service
Save the original shipping container. If the product needs to be returned for service, it should be packaged in
its original shipping container. If the original container is damaged/unavailable, make sure the product is
packed with at least three inches of shock-absorbing material to prevent shipping damage. La Marche is not
responsible for damage caused by improper packaging of returned products.
Inspection Checklist
The enclosure exterior and interior are not marred or dented.
No visible damage to the components.
All hardware and connections are tight.
All wire terminations are secure.
All items on the packing list have been included.
Handling
Equipment can be very heavy with uneven distribution of weight. Use adequate manpower or equipment for
handling. Until the equipment is securely mounted, care must be used to prevent equipment from being
accidentally tipped over or dropped.

3
Table of Contents
Important Safety Instructions..................................................................................................1
Electrical Safety .......................................................................................................................................1
Mechanical Safety....................................................................................................................................1
Battery Safety...........................................................................................................................................1
Unit Location............................................................................................................................................2
Check for Damages .................................................................................................................................2
Returns for Service ..................................................................................................................................2
Inspection Checklist.................................................................................................................................2
Handling...................................................................................................................................................2
Table of Contents ......................................................................................................................3
Model Scope/General Description ............................................................................................4
Understanding the Model Number............................................................................................4
Optional Accessories Included in the Inverter .........................................................................4
Product Overview......................................................................................................................5
1.0 Equipment Handling ........................................................................................................6
1.1 Storing the LMC SUN....................................................................................................................6
1.2 Moving the LMC SUN....................................................................................................................6
2.0 Installation ......................................................................................................................6
2.1 Preparation....................................................................................................................................6
2.2 Mounting the LMC SUN ................................................................................................................6
2.2.1 Wall Mounting the LMC SUN ....................................................................................................7
2.3 Electrical Connections...................................................................................................................7
2.3.1 Battery Connection....................................................................................................................7
2.3.2 AC Input/Output Connection .....................................................................................................8
2.3.3 PV Connection...........................................................................................................................9
2.3.4 Communication Connection....................................................................................................10
3.0 OPERATION ...................................................................................................................11
3.1 Power ON/OFF:...........................................................................................................................11
3.2 Operation and Display Panel.......................................................................................................11
3.3 LCD Display Icons.......................................................................................................................12
3.4 LCD Setting.................................................................................................................................13
3.5 Display Setting.............................................................................................................................21
3.6 Operating Mode Description........................................................................................................25
3.7 Warning Indicator ........................................................................................................................27
3.8 Faults Reference Code ...............................................................................................................27
Specifications..........................................................................................................................28
Trouble Shooting.....................................................................................................................29
Manufacturer’s Warranty........................................................................................................30
Document Control and Revision History.................................................................................31

4
Model Scope/General Description
The LMC SUN Series is an intelligent power conversion and energy storage system combining functions of solar charger,
battery charger and inverter. The LMC SUN Series Hybrid operation allows the flexibility to operate as an Off-Grid inverter
in the case of utility power loss. In contrast to single function traditional PV inverters; at normal operating conditions the
LMC SUN inverter can simultaneously feed in power back to the grid while charging the battery. The LMC SUN inverters
allow for cost efficient operation by supporting self-consumption via the battery when PV energy is low. All LMC SUN
models are equipped with a powerful and easy to use LCD controller interface and are available with adjustable charging
current feature for different battery technologies. The LMC SUN series supports a wide range of applications from
electronics, computer and server systems, common appliances to motor-based appliances and loads. The LMC Sun hybrid
PV inverter can provide power to connected loads by utilizing PV power, utility power and battery power.
Understanding the Model Number
The LMC SUN model number is coded to describe the features that are included. Find the model number on the
nomenclature nameplate of the enclosure. Follow the chart below to determine the configuration of the inverter.
Optional Accessories Included in the Inverter
This inverter may have been outfitted with a number of optional accessories or option packages. To determine the options
included (if any) refer to the cover page of the manual package. If the manual package that is included with the inverter
is no longer available, contact La Marche and provide the model or serial number to receive a list of the included
accessories.

5
Product Overview
3kW 5kW

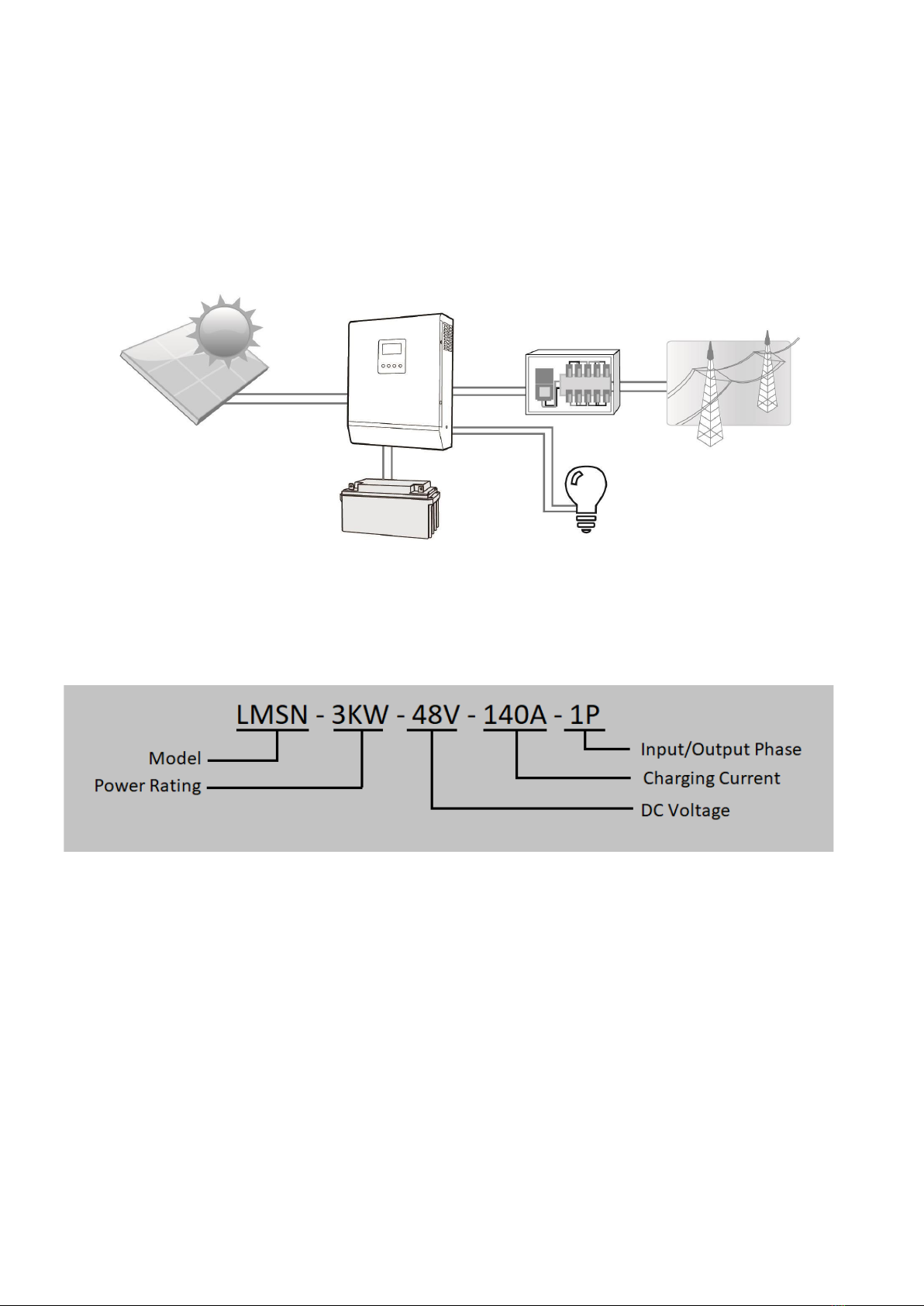

Figure 1: Basic hybrid PV System Overview
NOTE: For parallel model installation and operation, please check separate parallel installation guide for
the details.
1. LCD display 9. PV connectors
2. Status indicator 10. Battery connectors
3. Charging indicator 11. Circuit breaker
4. Fault indicator 12. Parallel communication cable
5. Function buttons 13. Current sharing cable
6. Power on/off switch 14. Dry contact
7. Grid connectors 15. RS-232 communication port
8. AC output connectors (Load connection) 16. USB communication port
2KW

6
1.0 Equipment Handling
1.1 Storing the LMC SUN
If the LMC SUN is to be stored for more than a few days after delivery, it should be stored within its shipping container.
The location chosen for storage should be within an ambient temperature of 32 to 122° F (0 to 50°C) with a non-
condensing relative humidity of 0 to 90%. Storage should not exceed 2 years due to the limited shelf life of the filter
capacitors when they are not in service.
1.2 Moving the LMC SUN
After careful inspection and upon verification that the LMC SUN is undamaged, identify the enclosure style and weight of
the inverter. Refer to Table 1 below.
Output Power
(kW)
Output
Voltage
Output
Amps
Input AC
Voltage
Input PV
Voltage
Dimensions
(D x W x H)
Weight
(lbs)
LMC SUN
2kW
230VAC
8.7A
170 -280
VAC
30–115 VDC
3.9 x 11.8x 17.3”
17.6
3kW
13A
60-115 VDC
4.7 x 11.6 x 18.4”
24.2
5kW
21.7A
7.4 x 11.6 x 19”
35.3

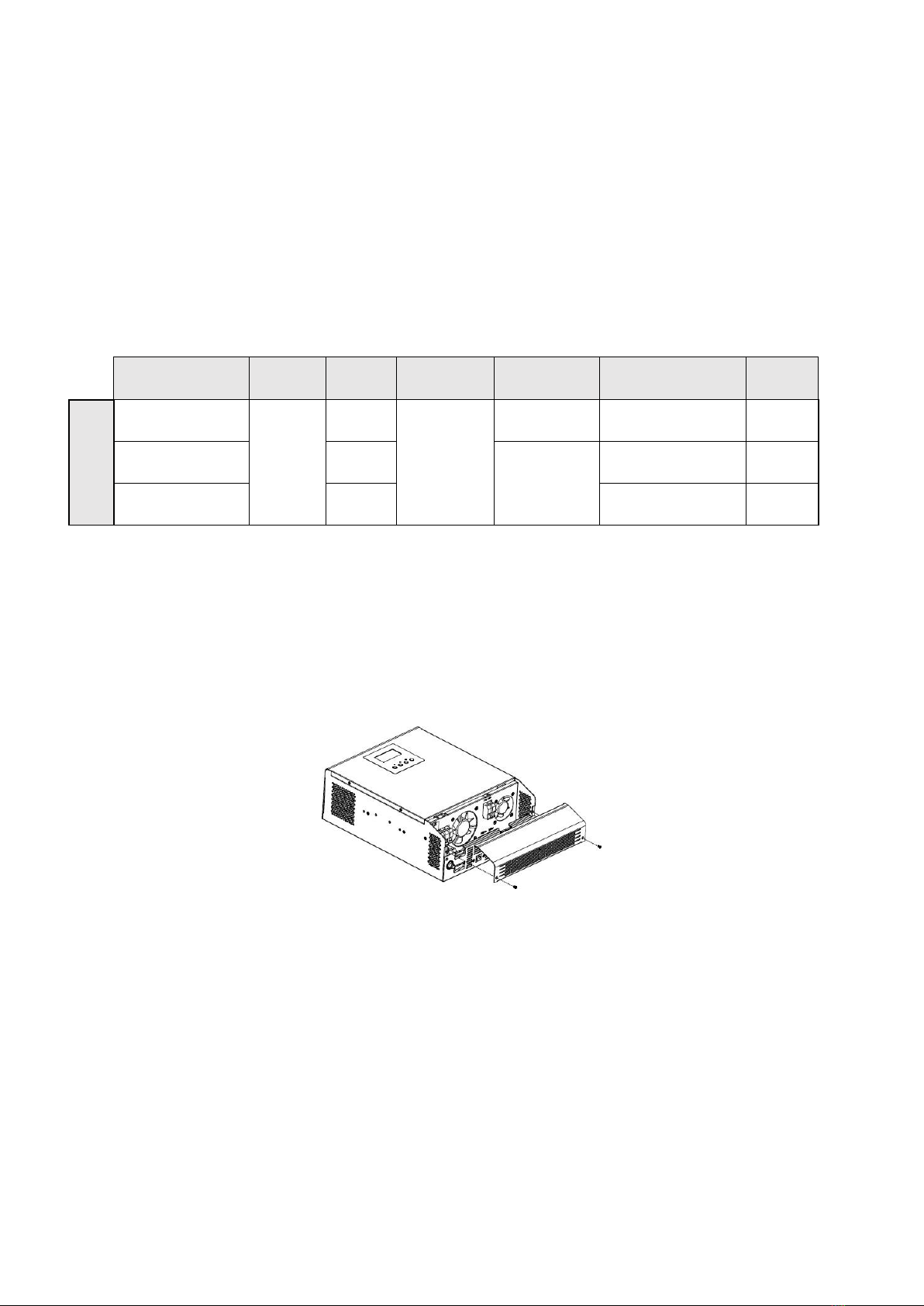

Table 1 - Case and Weight
2.0 Installation
2.1 Preparation
Before connecting all wirings, please take off bottom cover by removing two screws as shown below.
Figure 2: Open bottom cover by removing screws
2.2 Mounting the LMC SUN
LMC SUN has wall mounting bracket installation. When mounting the LMC SUN, consider the size and weight of the
Inverter. The solid surface must be able to support the weight of the inverter, as well as an additional safety factor. Refer
to Table 1 to verify the weight of the inverter. The location chosen for the inverter should be within an ambient
temperature range of 32˚F to 122˚F (0˚C to 50˚C) with a non-condensing relative humidity no higher than 90%. The
inverter should be mounted in an area free of explosive materials and away from any liquids. Avoid using equipment in a
location with corrosive gases (e.g., over flooded Lead Acid batteries) and dust.

7
2.2.1 Wall Mounting the LMC SUN
Consider the following points before selecting where to install:
⚫ Do not mount the inverter on flammable construction
materials.
⚫ Mount on a solid surface
⚫ Install this inverter at eye level in order to allow the LCD
display to be read at all times.
⚫ The ambient temperature should be between 0°C and 50°C
to ensure optimal operation.
⚫ The recommended installation position is to be adhered to
the wall vertically.
⚫ Be sure to keep other objects and surfaces as shown in the
right diagram to guarantee sufficient heat dissipation and
to have enough space for removing wires.
SUITABLE FOR MOUNTING ON CONCRETE OR OTHER NON-COMBUSTIBLE SURFACE ONLY.
Install the unit by screwing three screws. It’s recommended to use M4 or M5 screws.
2kW and 3kW model 5KW model
Figure 3: Mounting holes per unit
2.3 Electrical Connections
Before beginning any work on the inverter, ensure that all incoming and output power is de-energized. Verify that no
voltage is present by using a voltmeter at all input and output terminals. Check that the voltage and frequency match the
inverter front nameplate specifications.
2.3.1 Battery Connection
CAUTION: For safety operation and regulation compliance, it’s requested to install a separate DC over-current
protector or disconnect device between battery and inverter. It may not be requested to have a disconnect
device in some applications, however, it’s still requested to have over-current protection installed. Please refer
to typical amperage in below table as required fuse or breaker size.
WARNING: All wiring must be performed by qualified personnel. It's very important for system safety and
efficient operation to use appropriate cable for battery connection. To reduce risk of injury, please use the
proper recommended cable and terminal size as below.

8
Recommended battery cable and terminal size: Ring terminal:
Model
Typical
Amperage
Battery
Capacity
Wire Size
Ring Terminal
Torque
Value
Cable
mm2
Dimensions
D (mm)
L (mm)
2KW and
3KW
140A
200AH
1*2AWG
38
6.4
39.2
2-3 Nm
2*6AWG
28
6.4
33.2
5KW
180A
600AH
2*4AWG
44
10.5
55
10-12 Nm
Table 2: Recommended battery cable and terminal size
User should follow below steps to implement battery connection:
Assemble battery ring terminal based on recommended battery cable and terminal size. Insert the ring terminal of battery
cable flatly into battery connector of inverter and make sure the bolts are tightened with mentiontorque in above table. Make
sure polarity at both the battery and the inverter’s charger is correctly connected and ring terminals are tightly screwed to
the battery terminals.
Figure 4: Battery connection to the inverter
2.3.2 AC Input/Output Connection
CAUTION: Before connecting to AC input power source, please install a separate AC breaker between inverter
and AC input power source. This will ensure the inverter can be securely disconnected during maintenance
and fully protected from over current of AC input. There are two terminal blocks with “INPUT” and “OUTPUT”
markings. Please do NOT mis-connect input and output connectors.
WARNING: All wiring must be performed by qualified personnel. It's very important for system safety and
efficient operation to use appropriate cable for battery connection. To reduce risk of injury, please use the
proper recommended cable and terminal size as below.
Recommended AC input/output cable size:
Model
Gauge
Torque Value
2KW
14 AWG
0.8-1.0 Nm
3KW
12 AWG
1.2-1.6 Nm
5KW
10 AWG
1.4-1.6Nm
Table 2: Recommended AC input/output cable size
User should follow below steps to implement AC input/output connection:
Before making AC input/output connection, open DC breaker first. Remove insulation sleeve 10mm for six conductors.
Insert AC input wires according to polarities indicated on terminal block and tighten the terminal screws. Be sure to connect
PE protective conductor ( ) first.

9

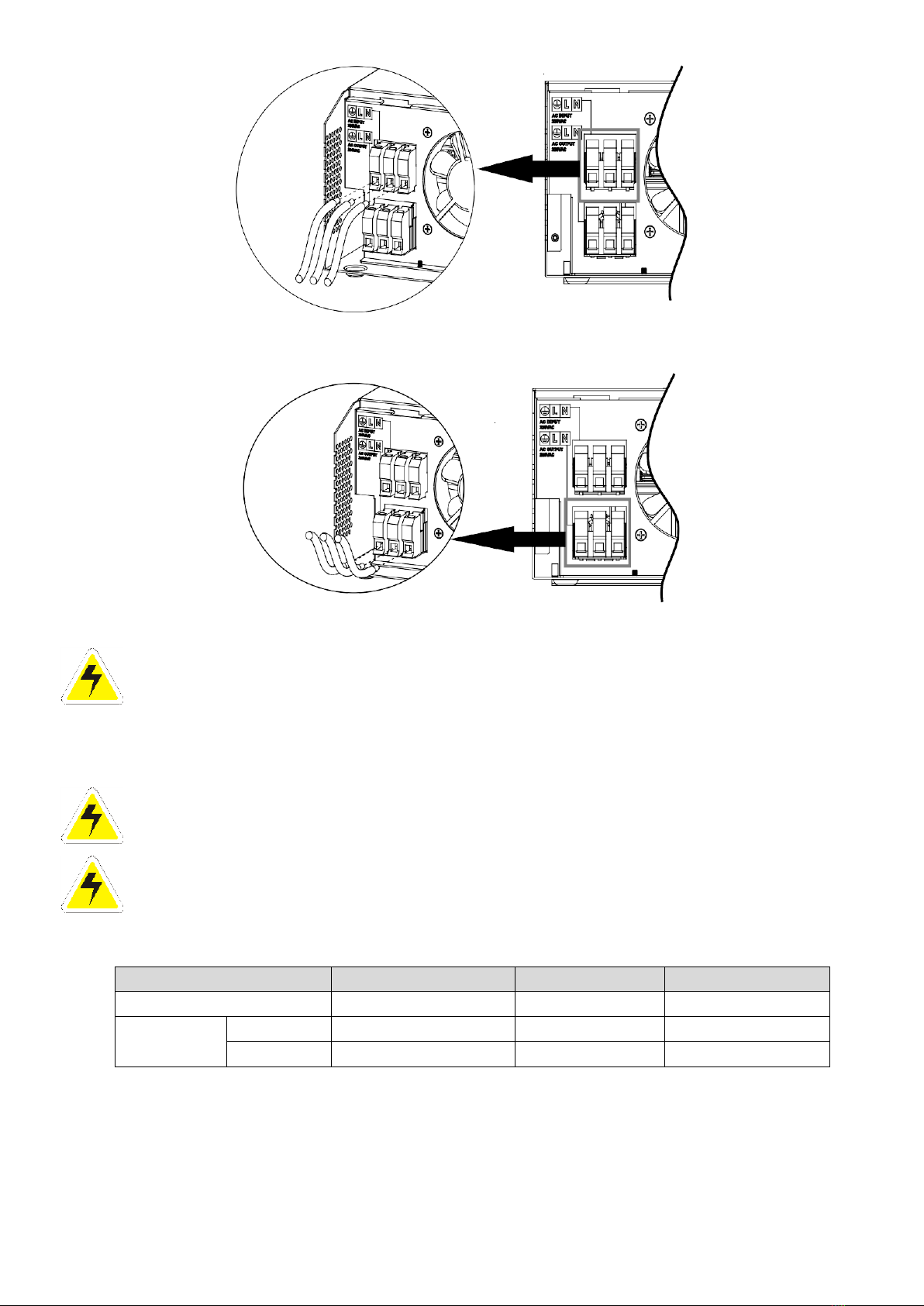

Figure 5: AC Input connection to the inverter
Figure 6: AC Output connection to the inverter
CAUTION: Be sure to connect AC wires with correct polarity. If L and N wires are connected reversely, it
may cause utility short-circuited when these inverters are worked in parallel operation.
2.3.3 PV Connection
CAUTION: Before connecting to PV modules, please install separately a DC circuit breaker between inverter
and PV modules.
WARNING! All wiring must be performed by qualified personnel. It's very important for system safety and
efficient operation to use appropriate cable for PV module connection. To reduce risk of injury, please use the
proper recommended cable size as below.
Recommended PV connection cable size:
Model
Typical Amperage
Cable Size
Torque
2KW and 3KW
80A
6AWG
2.0-2.4Nm
5KW
PV 1
60A
8AWG
2.0-2.4Nm
PV 2
60A
8AWG
2.0-2.4Nm
Table 3: Recommended PV connection cable size
PV Module Selection:
When selecting proper PV modules, please be sure to consider open circuit Voltage (Voc) of PV modules not exceeds
maximum. PV array open circuit voltage of inverter. Open circuit Voltage (Voc) of PV modules should be higher than
minimum battery voltage.

10
Solar Charging Mode
INVERTER MODEL
2KW
3KW
5KW
Max. PV Array Open Circuit Voltage
145Vdc
PV Array MPPT Voltage Range
30 - 115Vdc
60 - 115Vdc
MPP Number
1
1
2

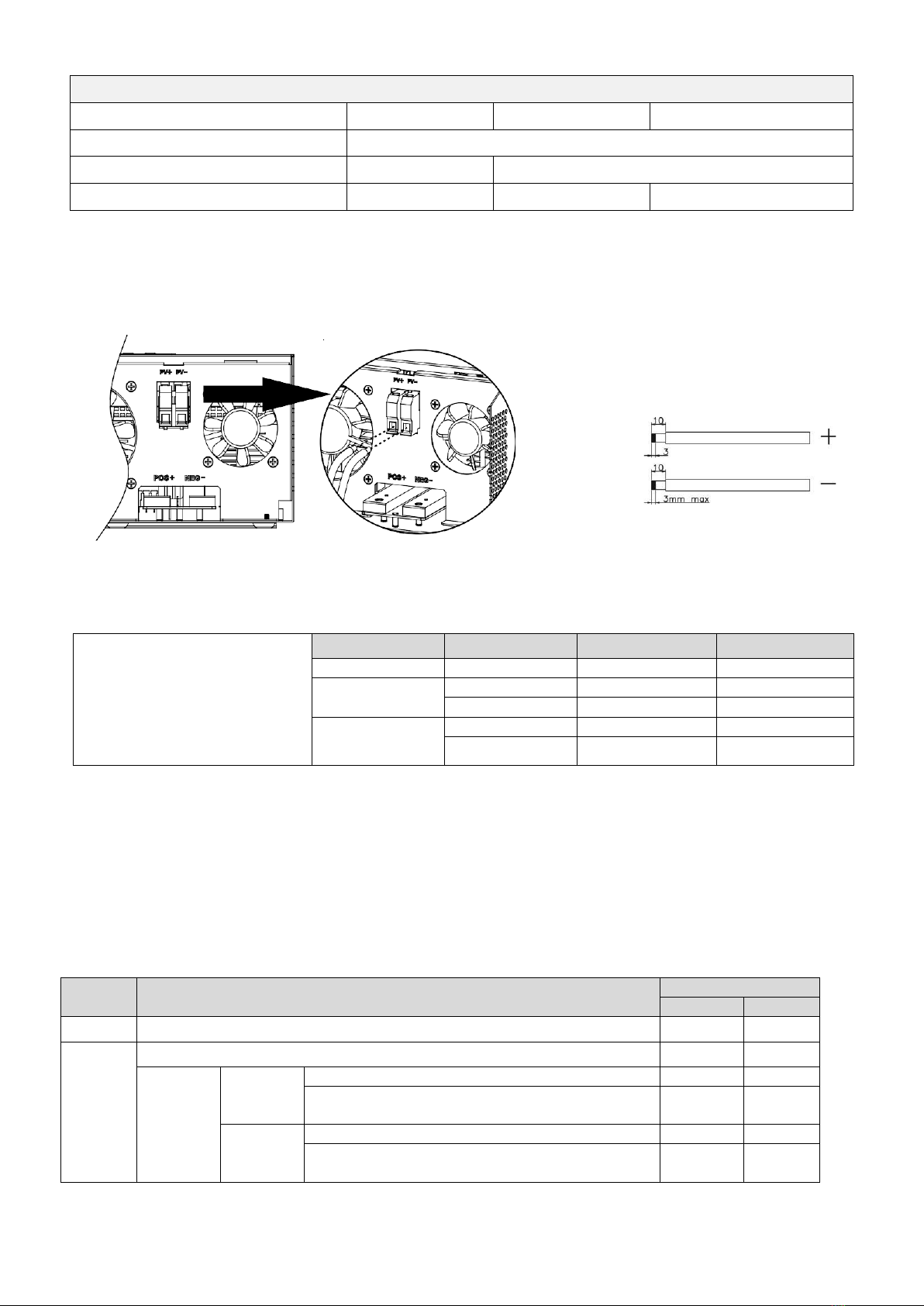

User should follow below steps to implement PV module connection:
Remove insulation sleeve 10 mm for positive and negative conductors. Check correct polarity of connection cable from
PV modules and PV input connectors. Then, connect positive pole (+) of connection cable to positive pole (+) of PV
input connector. Connect negative pole (-) of connection cable to negative pole (-) of PV input connector.
Figure 7: PV connection to the Inverter
Recommended PV module Configuration
PV Module Spec. (reference)
- 250Wp
Vmp: 30.7Vdc
- Imp: 8.15A
Voc: 37.4Vdc
- Isc: 8.63A
- Cells: 60
Inverter Model
SOLAR INPUT 1
SOLAR INPUT 2
Q'ty of modules
2KW
2S4P
N/A
8pcs
3KW
2S8P
N/A
16pcs
3S5P
N/A
15pcs
5KW
2S6P
2S6P
24pcs
3S4P
3S4P
24pcs
Table 4: Recommended PV module configuration
2.3.4 Communication Connection
Use supplied communication cable to connect to inverter and PC. Insert bundled CD into a computer and follow on-screen
instruction to install the monitoring software. For the detailed software operation, please check user manual of software
inside of CD. There is one dry contact (3A/250VAC) available on the rear panel. It could be used to deliver signal to external
device when battery voltage reaches warning level.
Unit
Status
Condition
Dry contact port:
NC & C
NO & C
Power Off
Unit is off and no output is powered.
Close
Open
Power On
Output is powered from Utility.
Close
Open
Output is
powered
from
Battery or
Solar.
Program 01
set as SUB
Battery voltage < Low DC warning voltage
Open
Close
Battery voltage > Setting value in Program 21 or
battery charging reaches floating stage
Close
Open
Program 01
is set as
SBU
Battery voltage < Setting value in Program 20
Open
Close
Battery voltage > Setting value in Program 21or
battery charging reaches floating stage
Close
Open

11
3.0 OPERATION
3.1 Power ON/OFF:

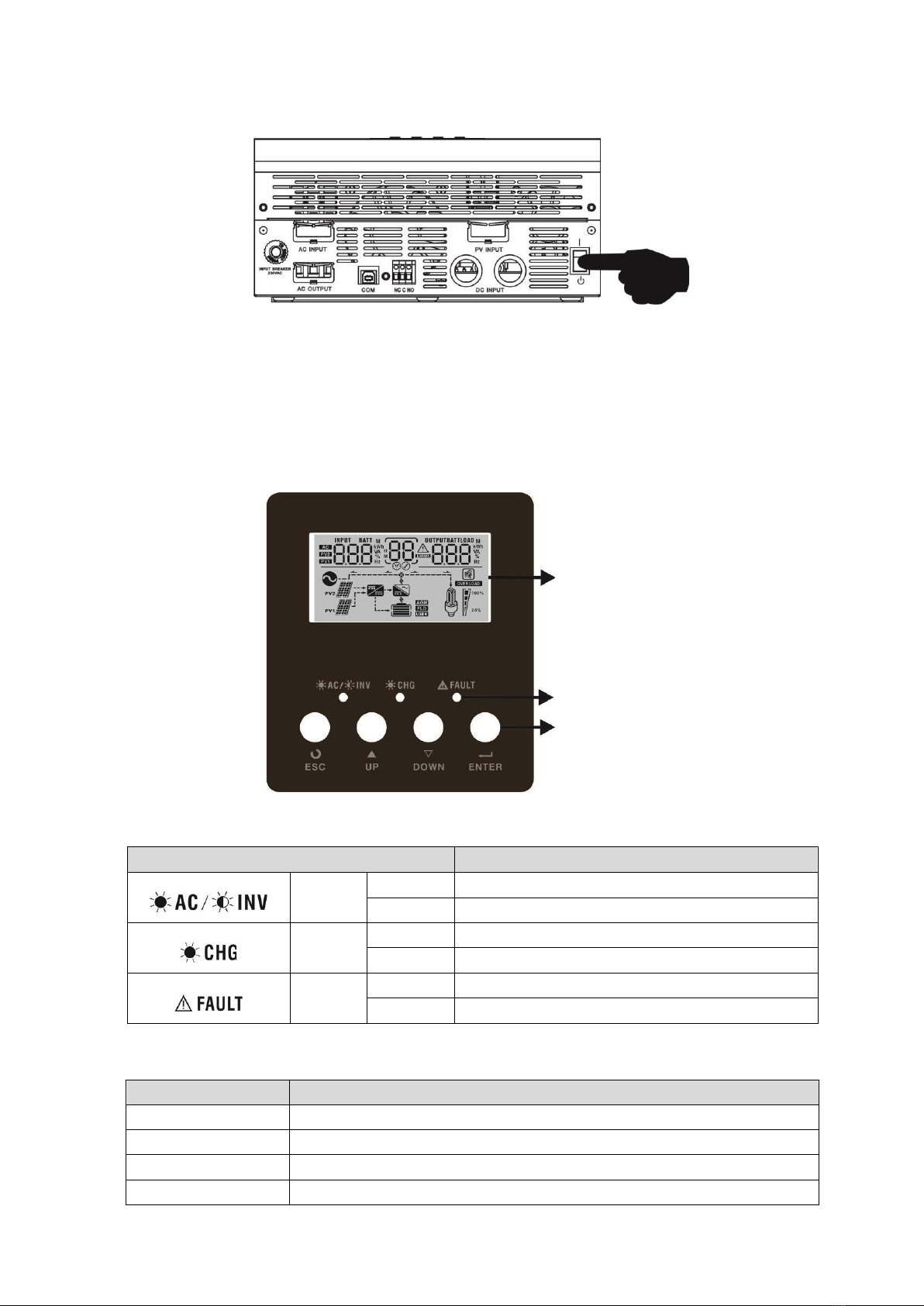

Figure 7: Power On/Off switch of the inverter
Once the unit has been properly installed and the batteries are connected well, simply press on/Off switch (located on
the button of the case) to turn on the unit.
3.2 Operation and Display Panel
The operation and display panel, shown in below chart, is on the front panel of the inverter. It includes three indicators,
four function keys and LCD display, indicating the operating status and input/output power information.
LCD display
LED indicators
Function keys
LED Indicator
LED Indicator
Description
Green
Solid On
Output is powered by utility in Line mode.
Flashing
Output is powered by battery or PV in battery mode.
Green
Solid On
Battery is fully charged.
Flashing
Battery is charging.
Red
Solid On
Fault occurs in the inverter.
Flashing
Warning condition occurs in the inverter.
Function Keys
Function Key
Description
ESC
To exit setting mode
UP
To go to previous selection
DOWN
To go to next selection
ENTER
To confirm the selection in setting mode or enter setting mode

12
3.3 LCD Display Icons
Icon
Function
Input source information
Indicates the AC input
Indicates the 1st PV panel input
Indicates the 2nd PV panel input
Left digital display information
Indicate input voltage, input frequency, battery voltage, PV1 voltage, PV2
voltage, charger current
Middle digital display information
Indicates the setting programs.
Indicates the warning and fault codes.
Warning: Flashing with warning code
Fault: display with fault code
Right digital display information
Indicate the output voltage, output frequency, load percent, load VA, load
W, PV1 charger power, PV2 charger power, DC discharging current.
Battery information
Indicates battery level by 0-24%, 25-49%, 50-74% and 75-100% and
charging status.
Indicates the battery type: AGM, Flooded or User-defined battery.
Load information
Indicates overload.
Indicates the load level by 0-24%, 25-50%, 50-74%, and 75-100%.
0%-24%
25%-50%
50%-74%
75%-100%

13

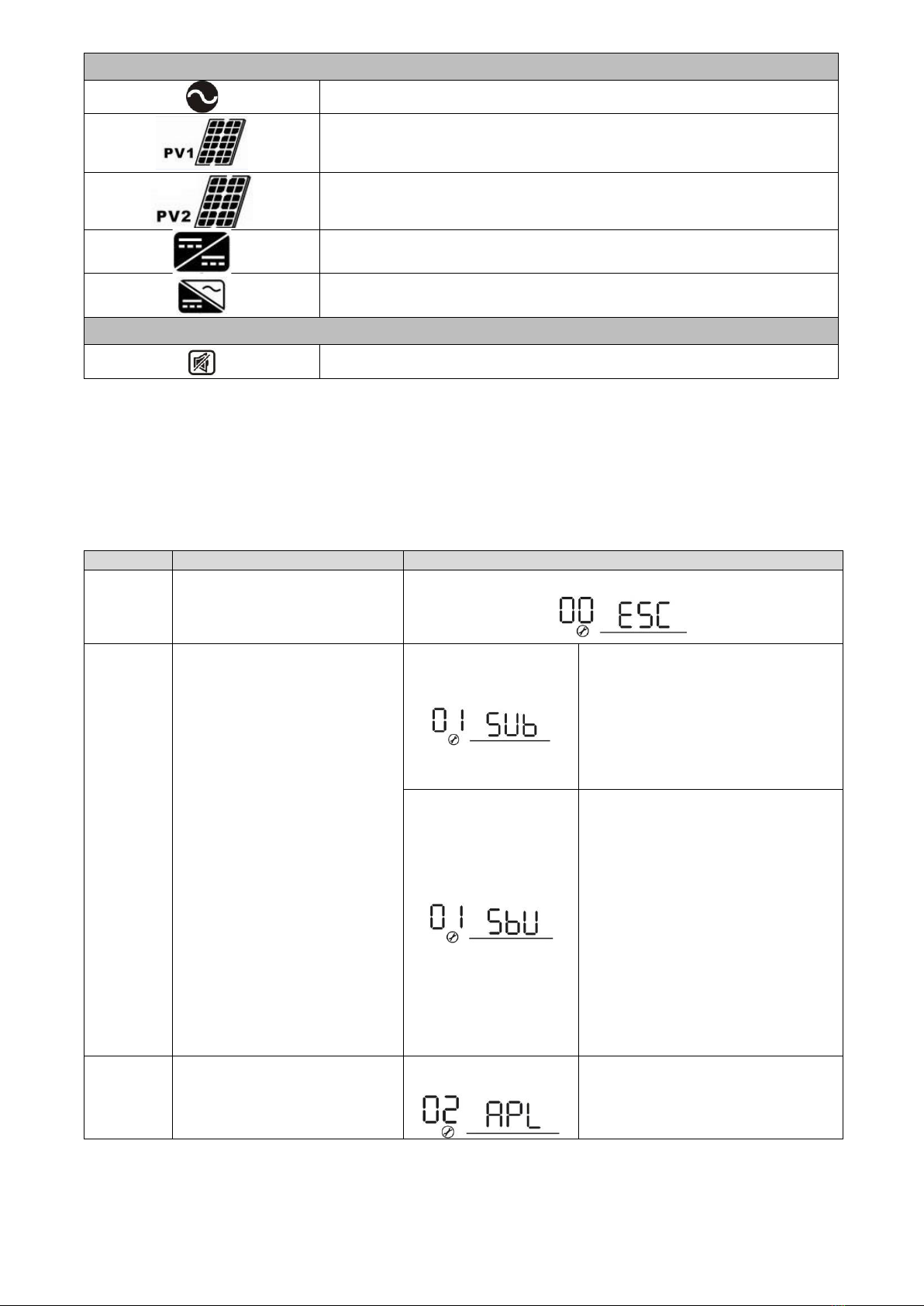

Mode operation information
Indicates unit connects to the mains.
Indicates unit connects to the 1st PV panel
Indicates unit connects to the 2nd PV panel
Indicates the solar charger is working
Indicates the DC/AC inverter circuit is working.
Mute operation
Indicates unit alarm is disabled.
3.4 LCD Setting
After pressing and holding ENTER button for 3 seconds, the unit will enter setting mode. Press “UP” or “DOWN” button to
select setting programs. And then, press “ENTER” button to confirm the selection or ESC button to exit.
Program
Description
Selectable option
00
Exit setting mode
Escape
01
Output source priority selection
Solar energy provides power to the
loads as first priority. If solar energy
is not sufficient to power all
connected loads, Utility energy will
supply power to the loads at the same
time.
Solar energy provides power to the
loads as first priority. If solar energy
is not sufficient to power all
connected loads, battery energy will
supply power to the loads at the same
time. Utility provides power to the
loads only when battery voltage drops
to either low-level warning voltage or
the setting point in program 20 or
solar and battery is not sufficient.
02
AC input voltage range
Appliances (default)
If selected, acceptable AC input
voltage range will be within
90-280VAC.

14
UPS
If selected, acceptable AC input
voltage range will be within 170-
280VAC.
03
Output voltage
220Vac
230V (Default)
240Vac
04
Output frequency
50Hz (default)
60Hz
05
Solar supply priority
Solar energy provides power to
charge battery as first priority.
Solar energy provides power to the
loads as first priority.
06
Overload bypass:
When enabled, the unit will
transfer to line mode if overload
occurs in battery mode.
Bypass disable (default)
Bypass enables
07
Auto restart when overload
occurs
Restart disable (default)
Restart enables
08
Auto restart when over
temperature occurs
Restart disable (default)
Restart enables
09
Solar or battery energy feed to
grid configuration
Solar or battery energy feed to grid
disable.
Solar or battery energy feed to grid
enable.
10
Charger source priority:
To configure charger source
priority
If this inverter/charger is working in Line, Standby or Fault
mode, charger source can be programmed as below:
Solar first
Solar energy will charge battery as
first priority. Utility will charge battery
only when solar energy is not
available.
Solar and Utility (default)
Solar energy and utility will charge
battery at the same time.
Only Solar
Solar energy will be the only charger
source no matter utility is available or
not.
If this inverter/charger is working in Battery mode or Power
saving mode, only solar energy can charge battery. Solar
energy will charge battery if it's available and sufficient.

15

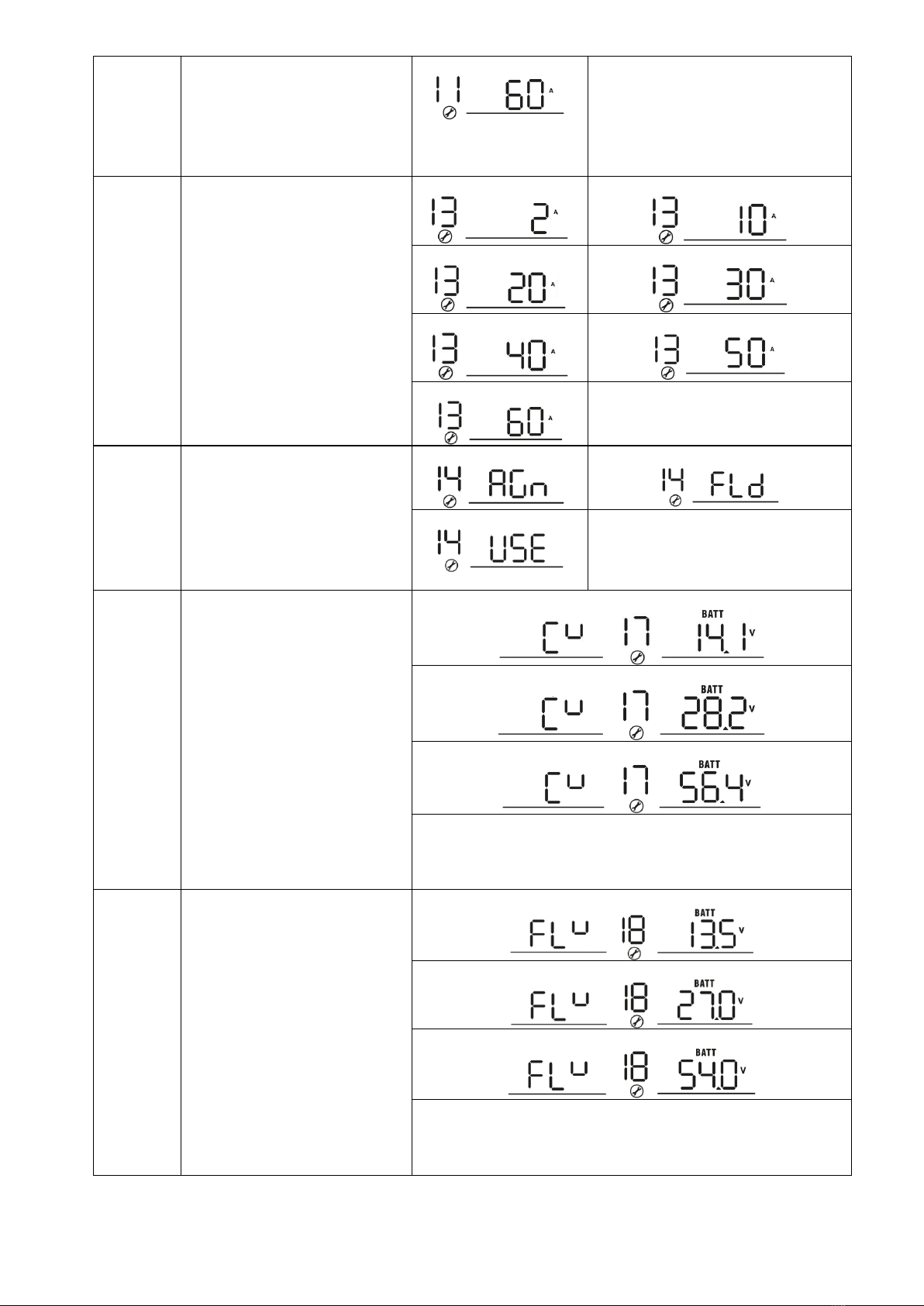

14
Battery type
AGM (default)
Flooded
User-Defined
If “User-Defined” is selected, battery
charge voltage and low DC cut-off
voltage can be set up in
program 17, 18 and 19.
17
Bulk charging voltage (C.V
voltage)
12V model default setting: 14.1V
24V model default setting: 28.2V
48V model default setting: 56.4V
If self-defined is selected in program 14, this program can be
set up. Setting range is from 12.0V to 14.6V for 12Vdcmodel,
24.0V to 29.2V for 24Vdc model and 48.0V to 58.4V for 48Vdc
model. Increment of each click is 0.1V.
18
Floating charging voltage
12V model default setting: 13.5V
24V model default setting: 27.0V
48V model default setting: 54.0V
If self-defined is selected in program 14, this program can be
set up. Setting range is from 12.0V to 14.6V for 12Vdcmodel,
24.0V to 29.2V for 24Vdc model and 48.0V to 58.4V for 48Vdc
model. Increment of each click is 0.1V.
11
Maximum charging current: To
configure total charging current
for solar and utility chargers.
(Max. charging current = utility
charging current + solar charging
current)
60A (default)
For 2kW and 3kW models, setting
range is from 10A to 140A. For 5KW
model, setting range is from 10A to
180A. Increment of each click is 10A.
13
Maximum utility charging current
2A
10A
20A
30A (default)
40A
50A
60A

16
19

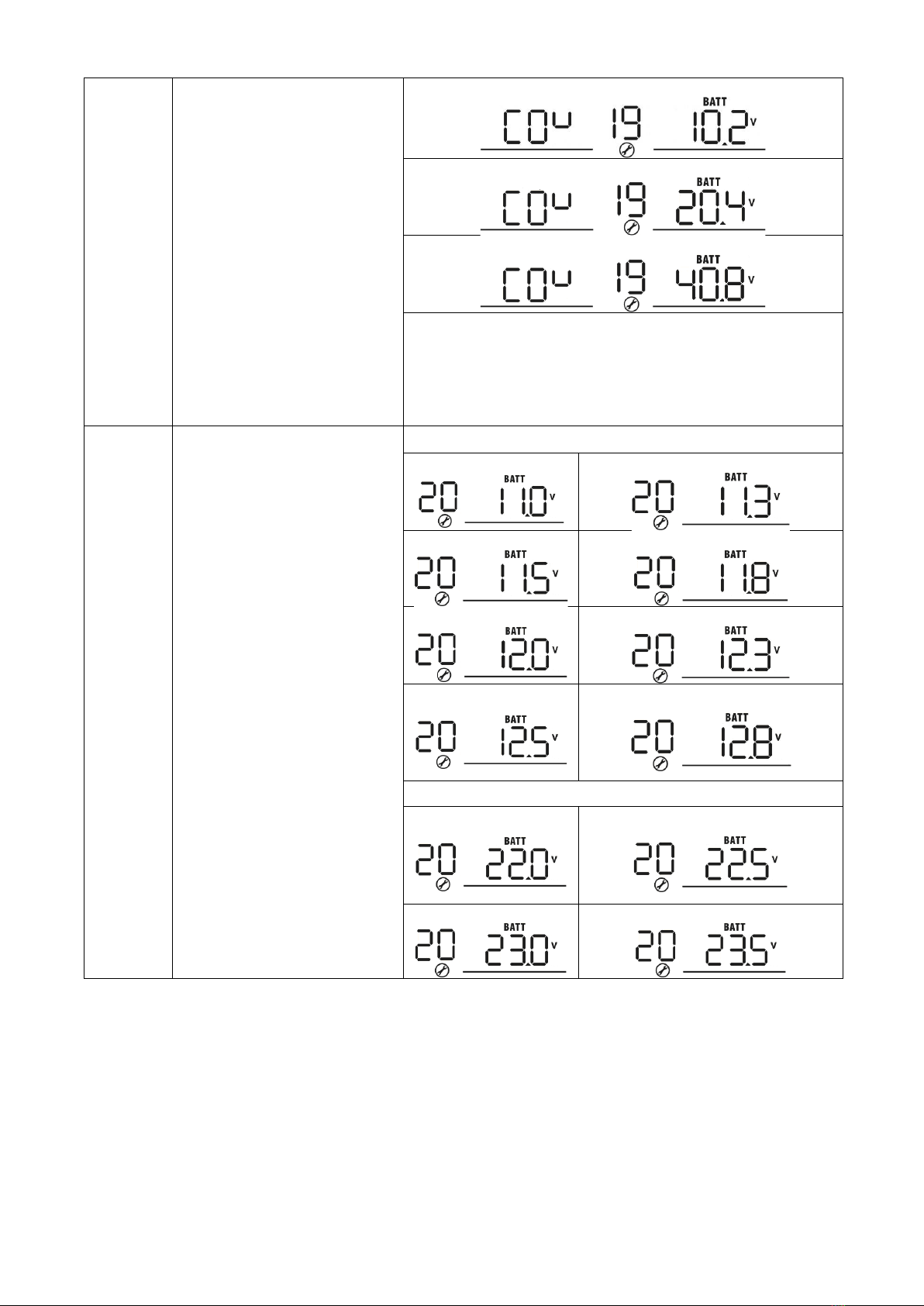

Low DC cut off battery voltage
setting
12V model default setting: 10.2V
24V model default setting: 20.4V
48V model default setting: 40.8V
If self-defined is selected in program 14, this program can be
set up. Setting range is from 10.2V to 12.0V for 12Vdc model,
20.4V to 24V for 24Vdc model and 40.8V to 48.0V for 48Vdc
model. Increment of each click is 0.1V. Low DC cut-off voltage
will be fixed to setting value no matter what percentage of
load is connected.
20

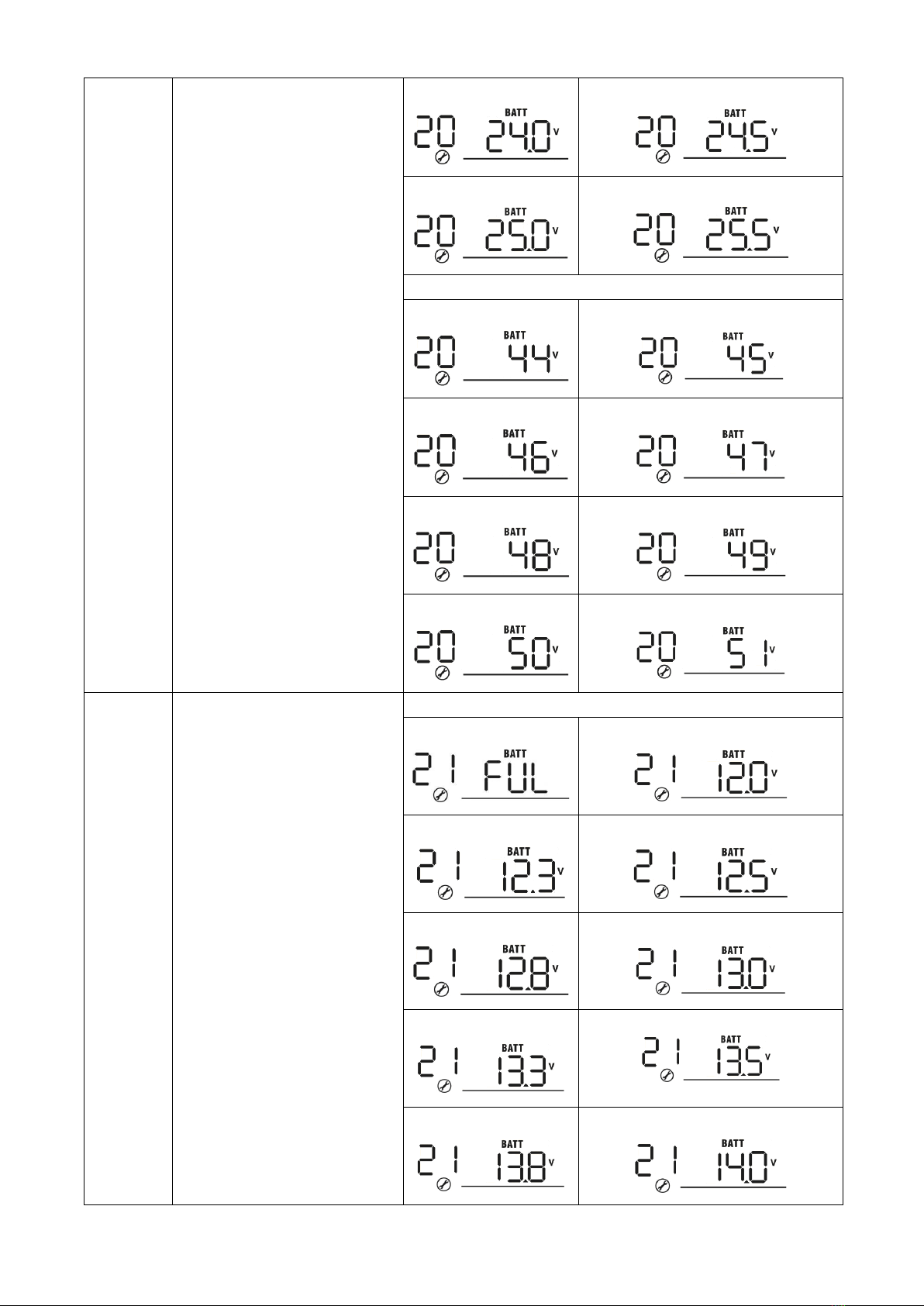

Battery stop discharging voltage
when grid is available
Available options for 12V models:
11.0V
11.3V
11.5V (default)
11.8V
12.0V
12.3V
12.5V
12.8V
Available options for 24V models:
22.0V
22.5V
23.0V (default)
23.5V

17
20
Battery stop discharging voltage
when grid is available
24.0V
24.5V
25.0V
25.5V
Available options for 48V models:
44.0V
45.0V
46.0V (default)
47.0V
48.0V
49.0V
50.0V
51.0V
21

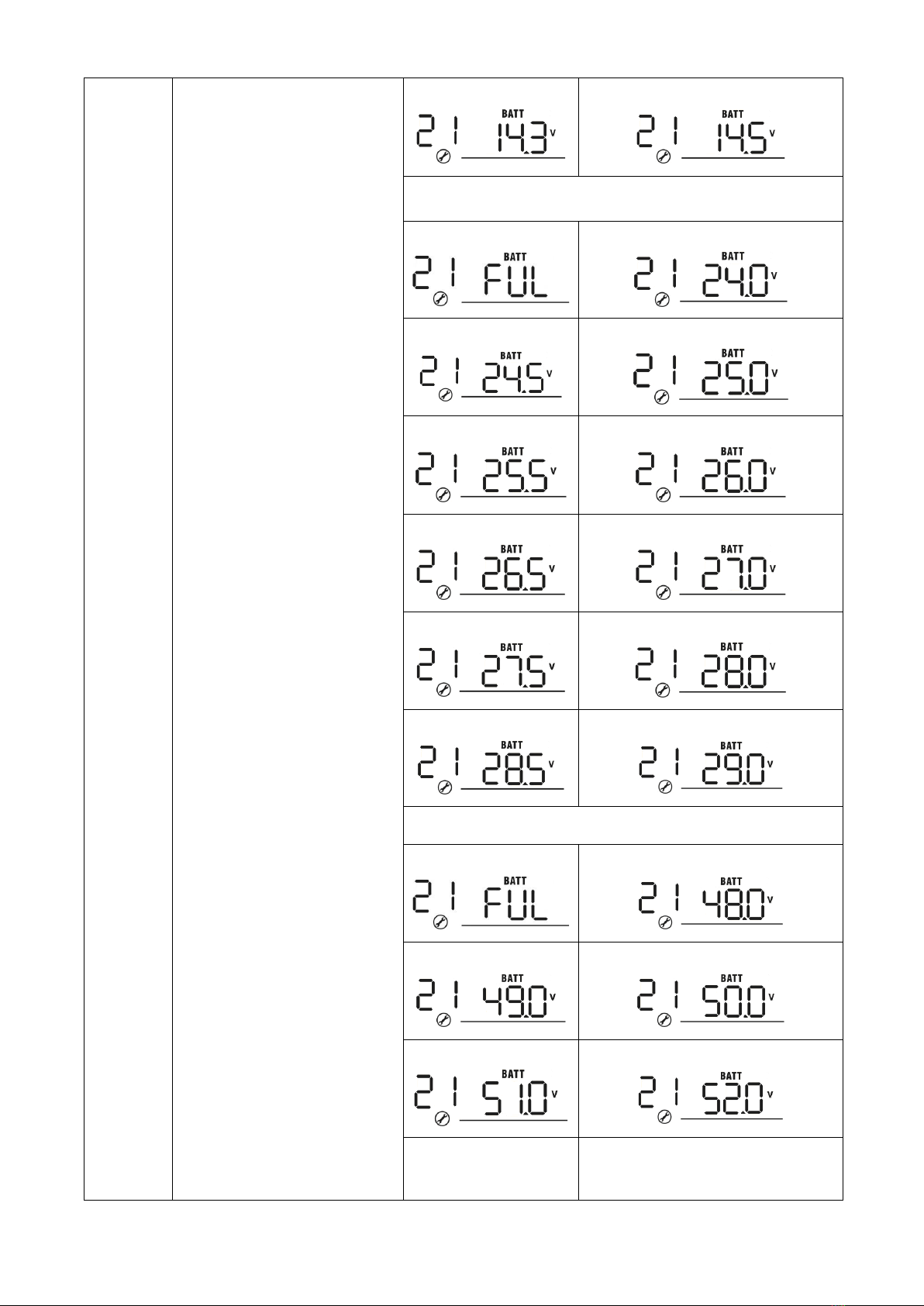

Battery stop charging voltage
when grid is available
Available options for 12V models:
Battery fully charged
12.0V
12.3V
12.5V
12.8V
13.0V
13.3V
13.5V (default)
13.8V
14.0V

18
21
Battery stop charging voltage
when grid is available
14.3V
14.5V
Available options for 24V models:
Battery fully charged
24V
24.5V
25V
25.5V
26V
26.5V
27V (default)
27.5V
28V
28.5V
29V
Available options for 48V models:
Battery fully charged
48.0V
49.0V
50.0V
51.0V
52.0V
53.0V
54.0V

19
21
Battery stop charging voltage
when grid is available
55.0V
56.0V
57.0V
58.0V
22
Auto return to default display
screen
Return to default display
screen (default)
If selected, no matter how users
switch display screen, it will
automatically return to default display
screen (Input voltage/output voltage)
after no button is pressed for 1
minute.
Stay at latest screen
If selected, the display screen will
stay at latest screen user finally
switches.
23
Backlight control
Backlight on (default)
Backlight off
24
Alarm control
Alarm on (default)
Alarm off
25
Beeps while primary source is
interrupted
Alarm on (default)
Alarm off
27
Record Fault code
Record enables(default)
Record disable
28
AC output mode
*This setting is only available
when the inverter is in standby
mode (Switch off).
29
Reset PV energy storage
Not reset (Default)
Reset
