Lamona HJA2480 User manual

60cm Extractor
LAM2401 Black
Instillation & User Instruction
HJA2480 Stainless Steel
Issue 4Apr 2012

2
Contents Page
Environmental note 3
IMPORTANT SAFETY INFORMATION 4 –6
Specifications of your extractor 7 –8
Dimensions 7
Specifications 7 - 8
Using your extractor 9 - 10
Before first use 9
To use your extractor 9 - 10
Cleaning your extractor 10
General cleaning 10
The grease filters 10
Maintenance 11 - 13
Removing and cleaning the grease filters 11
Changing a light bulb 12
Fitting the carbon filters 13
Installation 14 - 22
Electrical connection 14 - 15
Before beginning installation 15 - 16
Installing your extractor 16 - 18
Connecting to external ducting 19
Fitting the chimney 19 –21
Completing the installation 22
Extraction mode or recirculation mode? 22
Troubleshooting 23
Guarantee 24
Contact Details Rear Cover

3
ENVIRONMENTAL NOTE
Note: Before discarding an old appliance, switch off and
disconnect it from the power supply. Cut off and render any
plug useless. Cut the cable off directly behind the appliance to
prevent misuse. This should be undertaken by a competent
person.
oThe packaging materials are environmentally friendly and can be
recycled.
oPlease discard all packaging material with due regard for the
environment.

4
IMPORTANT SAFETY INFORMATION
Your safety is of the utmost importance. Please make
sure that you read this instruction booklet before
attempting to install or use the appliance.
IMPORTANT: Any installation work must be
carried out by a qualified electrician or
competent person.
oThe extractor must be installed in accordance with the
installation instructions and all measurements followed.
oIf the cooker hood is installed for use above a gas appliance then
the provision for ventilation must be in accordance with the Gas
Safety Codes of Practice BS.6172, BS.5440 & BS.6891 (Natural
Gas) and BS.5482 (LP Gas) 1994, the Gas Safety (Installation &
Use) Regulations, the Building Regulations issued by the
Department of the Environment, the Building Standards
(Scotland) (Consolidated) Regulations issued by the Scottish
Development Department.
oIt is dangerous to alter the specifications or to modify this
product. Do not tamper with it or attempt to modify the
appliance in any way.
oWhen installing the hood, ensure that the following distances are
observed between the worktop and the bottom of the cooker
hood:
Recommended: 750 mm
Minimum: 700 mm
IMPORTANT: DO NOT SET YOUR EXTRACTOR
LESS THAN 700mm ABOVE YOUR WORKTOP.
oWhen installed between adjoining wall cabinets, the cabinets
must not overhang the hob.
oThe edges of the extractor are sharp –be mindful of this as you
handle your appliance, especially during installation and
cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTERS!

5
oIf the room where the extractor is to be used contains a fuel
burning appliance such as a central heating boiler then its flue
must be of the sealed or balanced flue type.
oIf other types of flue or appliances are fitted, ensure that there is
an adequate supply of air in the room.
oWhen the extractor is being used in its extractor function, ensure
that the ducting is fire retardant and that there are no bends
sharper than 90 degrees as this will reduce the efficiency of the
hood.
oEnsure the ducting for the extractor function has the same
diameter as the outlet hole all the way through.
oKeep young children from using, playing with
or tampering with the cooker hood. Older
children and infirm persons should be
supervised if they are using the cooker hood.
oYour extractor is for domestic use only.
oPlease dispose of the packing material carefully –children are
especially vulnerable to it.
oDirty oil is an even greater fire risk.
oAlways put lids on pots and pans when cooking
on a gas cooker.
oThe manufacturer refuses to accept any responsibility for
damages arising to the extractor or it catching on fire, from a
failure to observe the fire safety advice contained in this
instruction booklet.
oRemember that when in extraction mode, your extractor is
removing air from your room. Ensure that proper ventilation
measures are being observed.

6
oNote: Your extractor is designed to remove cooking
odours from the room and not steam.
oWarning - Always ensure that the extractor
has been disconnected from the power
supply before carrying out any work,
including replacing light bulbs.
oDo not connect the ducting system of this appliance to any
existing ventilation system which is being used for any other
purpose.
oDo not install above a cooker with a high level grill.
oNever leave frying pans unattended during use
as overheated fats and oils might catch fire.
oThe lights on this appliance should only be used during operation
of the extractor. They should not be left on permanently and
used as a lighting source.
oThe extractor should not be exposed to a direct heat source from
the cooking device underneath it, i.e. a naked flame from a gas
burner or heat from electric hob zones without a pan on them.
oDo not attempt to use the extractor if it is damaged in any way.
Never attempt to use it without the grease filters fitted or if the
filters are excessively greasy!
oNever flambé cook under this extractor.
THE MANUFACTURER DECLINES ALL
RESPONSIBILITY IN THE EVENT OF FAILURE TO
OBSERVE THE INSTRUCTIONS GIVEN HERE, FOR
INSTALLATION, MAINTENANCE AND SUITABLE
USE OF THE EXTRACTOR.

7
Specifications
PRODUCT DIMENSIONS
Height: 563* mm –933 mm
Width: 600 mm
Depth: 475 mm
DIMENSIONS OF CHIMNEY SECTION:
175 mm x 220 mm
Your stainless steel extractor is fitted with:
oHigh extraction tangential motor
oPush button control operation
o3 Speeds
o2 Metallic grease filters
o2 lights

8
Extraction capacity: 350 m³/hr
Noise level min/max: 52 –62 dB
*If you are using the appliance in recirculation mode, then PLEASE
NOTE that some of the vent in the upper chimney section must be
exposed. You will have to take this into account when calculating the
minimum height of the extractor when installed.

9
Using your extractor
IMPORTANT: THIS PROCESS MUST BE FOLLOWED
BEFORE THE EXTRACTOR IS USED FOR THE FIRST
TIME.
oYou should use a good quality stainless steel cleaner and polish
on ALL of the stainless steel areas of your extractor, before it is
used for the first time.
oThis will help to leave a silicone water-resistant film to protect
the stainless steel surfaces.
To use your extractor

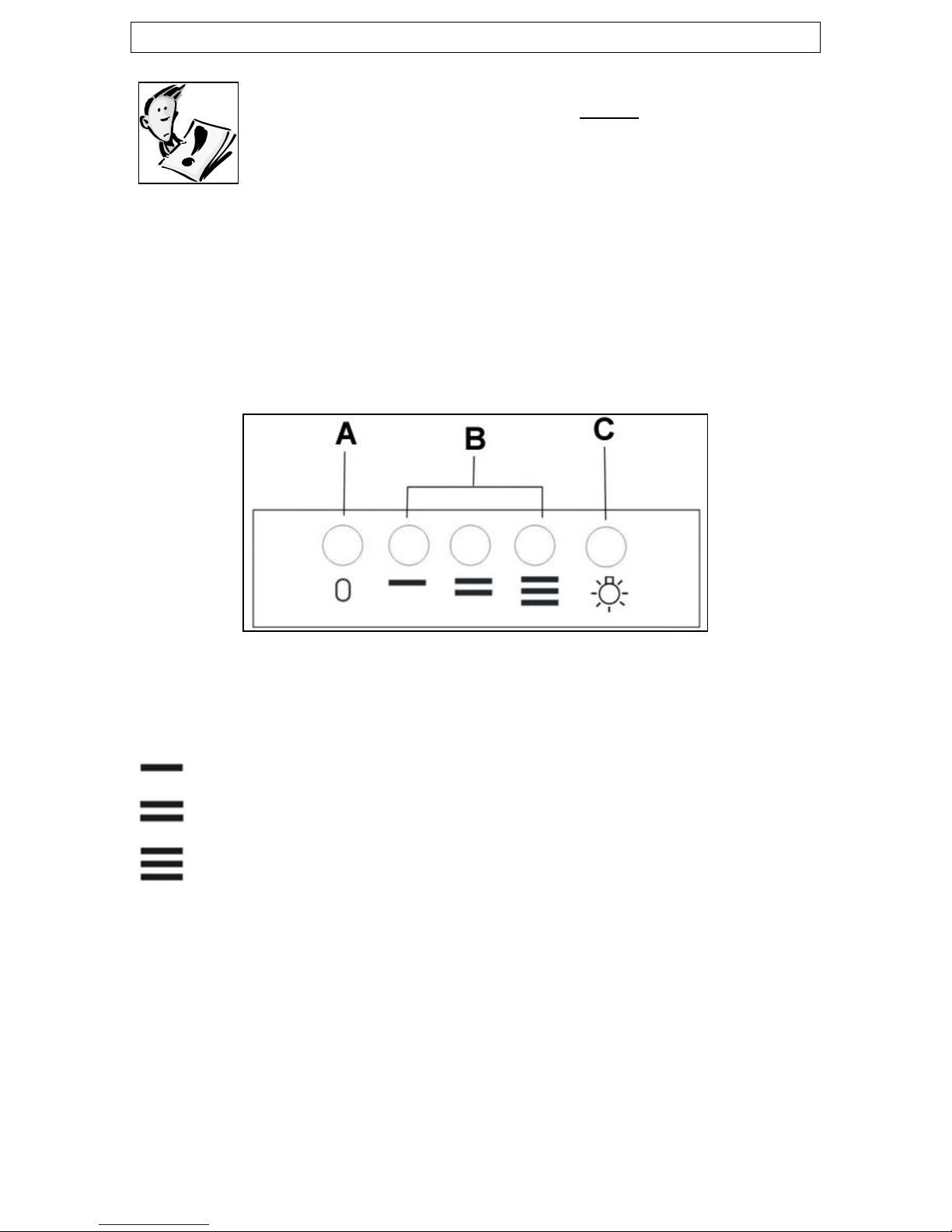

oA = ON/OFF button
oB = Speed selection buttons
= Low speed
= Medium speed
= High speed
oC = Light on/off button
oBefore operating the extractor, make sure that it has been
installed by a suitably qualified person, as per the information
contained in these installation instructions.
oFind the control panel, which is located at the front right.
oThere are several buttons on the control panel, which perform
separate functions.

10
IMPORTANT: IDEALLY YOU SHOULD SWITCH ON
YOUR EXTRACTOR TEN MINUTES BEFORE YOU START
TO COOK, OR AT THE VERY LEAST WHEN YOU BEGIN
COOKING. YOU SHOULD ALSO RUN YOUR
EXTRACTOR FOR TEN MINUTES AFTER YOU HAVE
FINISHED COOKING.
Cleaning your extractor
IMPORTANT: BEFORE CLEANING, ALWAYS
ENSURE THAT YOU HAVE SWITCHED YOUR
EXTRACTOR OFF AT THE OMNI-POLAR SWITCH,
SET AT THE WALL FROM THE CABLE.
Cleaning
oClean the external parts of your extractor with mild liquid
detergent and a new damp cloth.
oNever use abrasives, corrosive solvents or brushes.
oNever insert pointed objects into the motor’s protective grid.
oOnly clean the control panel and grease filter grill with mild liquid
detergents and a new damp cloth.
oIf you are using the appliance in recirculation mode, then be
sure to replace the carbon filters at the recommended intervals
(see section on “Fitting the carbon filter”). A build up of grease
could cause a fire hazard.
oNever attempt to clean the area above the grease filters.
The Grease Filters
oYour extractor is fitted with grease filters, which help to absorb
grease particles and protect your kitchen and furniture from
greasy residues.
oThese metallic filters may become inflammable if you allow them
to get saturated with this greasy residue.
oTo prevent this fire hazard, the filters should be cleaned
regularly. Depending on use, this should be done every 10-15
days or at least once a month, using hot water and normal
washing-up detergent.
oDO NOT WASH THE GREASE FILTERS IN A DISHWASHER.

11
Maintenance
Removing and cleaning the grease filters

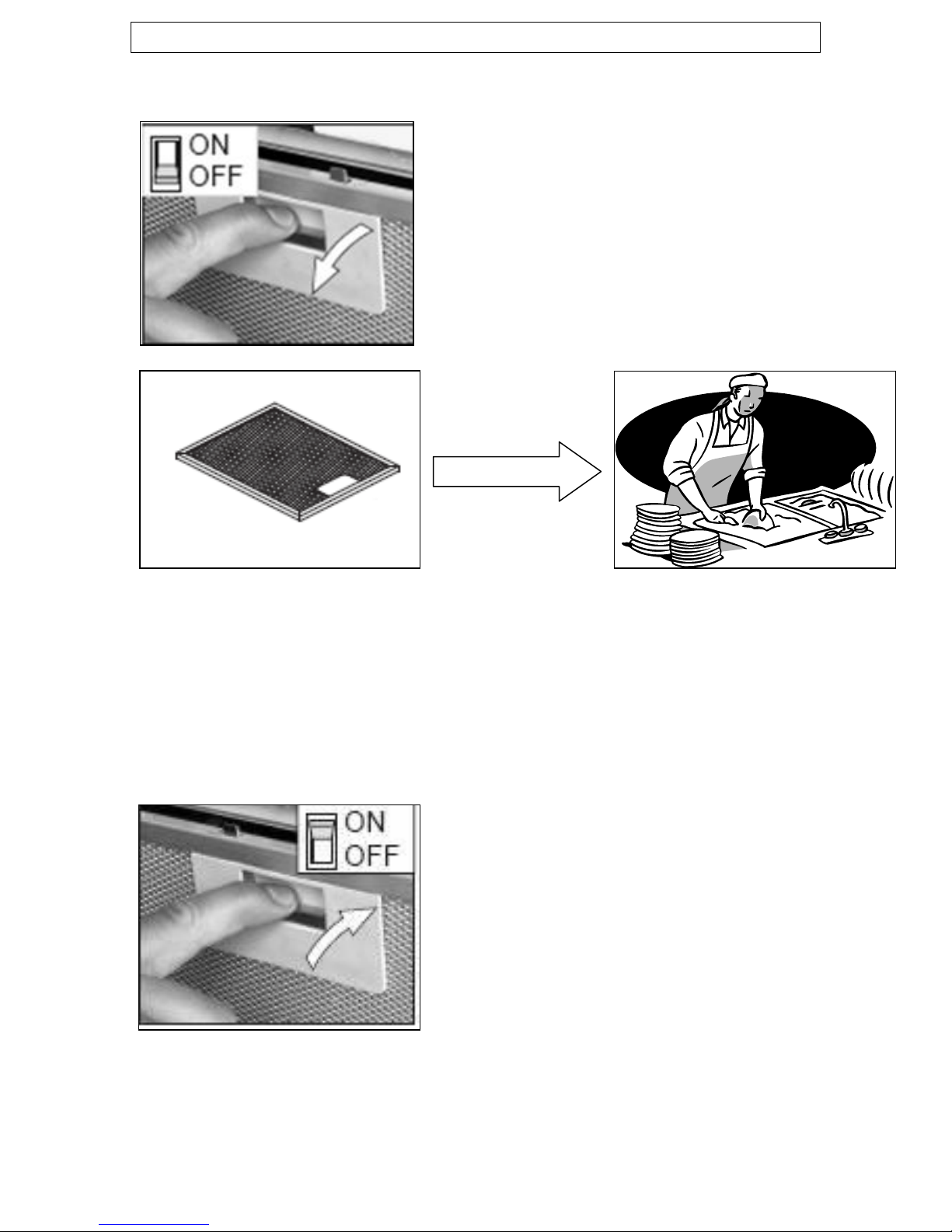

oFirst remove the grease filters by
pulling down on the handle and
pulling them away from the
extractor.
oSoak the grease filters in hot water and washing up liquid for
about an hour.
oRinse them off thoroughly with hot water.
oRepeat the process if required.
oRefit the grease filters once they
have dried.
oIMPORTANT: Let the grease filters dry thoroughly before
refitting them.

12
Changing a light bulb
IMPORTANT: BEFORE ATTEMPTING TO CHANGE
A LIGHT BULB, YOU MUST ENSURE THAT YOU
HAVE DISCONNECTED THE EXTRACTOR FROM
YOUR MAINS SUPPLY.
oRemove the grease filters (as
described on page 11).
oPrior to touching the light bulbs ensure they are cooled down.
oFind the bulb that requires replacement, you will find it located in
the light fixture which is inside the exposed section of the
canopy.
oUnscrew the light bulb that needs to be replaced and insert a
new E14 40W (max) bulb.
oIMPORTANT: Defective bulbs should be replaced immediately.
oIf the lights still do not work, make sure that the lamps are fitted
properly into their housings before you call for technical
assistance.
oRefit the grease filters.

13
Fitting the carbon filters
If the appliance is being used to be used in recirculation mode then it
is necessary to fit carbon filters. This will help to absorb unpleasant
odours caused by cooking.
IMPORTANT: BEFORE ATTEMPTING TO FIT OR
REMOVE THE CARBON FILTERS, YOU MUST
ENSURE THAT YOU HAVE DISCONNECTED THE
EXTRACTOR FROM YOUR MAINS SUPPLY.
1) Remove the grease filters.
2) Press the carbon filter against
one end of the motor, the fixing
point is in the centre of the
carbon filter.
3) Turn the carbon filter
clockwise, until you feel it click
into place.
oRepeat this process for the
second carbon filter. You
need to place a carbon
filter at either end of the
motor.
oRefit the grease filters.
oThe carbon filters should be replaced every 3 - 6 months or if
they show signs of damage.

14
Installation
IMPORTANT: Before installation and usage read
all the instructions and make sure that the
voltage (V) and the frequency (Hz) indicated on
the rating plate are exactly the same as the
voltage and frequency in your home. The rating
plate can be found behind the grease filter.

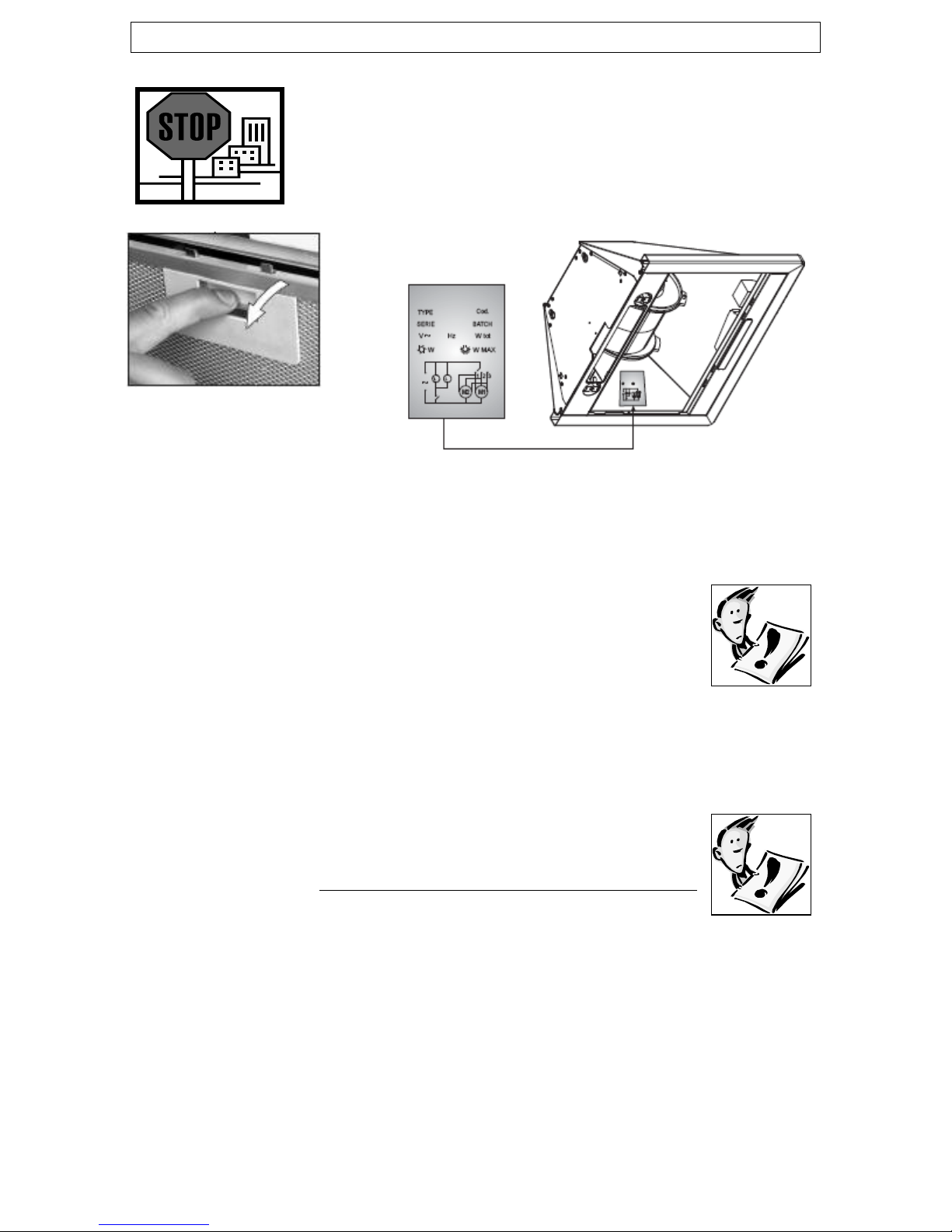

The manufacturer declines all responsibility in the event of the installer
failing to observe all the accident prevention regulations in force,
which are necessary for normal use and the regular operation of the
electric system.
Electrical connection
YOUR EXTRACTOR IS INTENDED FOR FITTED AND
PERMANENT INSTALLATION.
oThe extractor’s power cable must be fitted upstream from the
electrical connection, using an omni-polar switch with a contact
distance of at least 3 mm. THE FUSE MUST BE RATED AT 3
AMPS.
WARNING: THIS APPLIANCE MUST BE EARTHED. It
should only be connected by a competent person, using
fixed wiring via a double pole switched fused spur outlet
with a minimum contact clearance of 3mm in all poles.
(UK ONLY).
We recommend that the appliance is connected by a qualified
electrician, who is a member of the N.I.C.E.I.C. and who will comply
with the I.E.E. and local regulations. The wires in the mains lead are
coloured in accordance with the following UK code:
Blue = Neutral, Brown = Live, Green/Yellow = Earth

15
oAs the colours of the wires in the appliance’s mains lead may not
correspond with the coloured markings identifying the terminals
in your spur box, please proceed as follows:
oThe blue wire must be connected to the
terminal marked “N” (neutral), or black.
oThe brown wire must be connected to the
terminal marked “L” (live), or red.
oThe green/yellow wire must be
connected to the terminal marked “ “
(earth) or green.
Before beginning installation
oCheck that the product purchased is of a suitable size for the
chosen installation area. In addition check whether there is an
electrical socket available that will be accessible once the
extractor is mounted. If the product is going to be used in
extraction mode, then there should also be space to connect a
ducting hose to the outside.
oCarry out all necessary masonry work prior to the fitting of the
extractor.
oEnsure that all electrical connections are carried out by a suitably
qualified person.
oBefore commencing installation of the extractor the grease filters
should be removed.
oCheck inside the product and insure that there is no transit
packaging or any other materials, such as packets of screws,
guarantees etc. These should be removed and kept for future
use.
oIf possible, disconnect and move freestanding or slot-in cookers
from their position, to provide easier access to the rear wall and
ceiling. If this is not possible, then a thick, protective covering
should be placed over the worktop, hob top or cooker. This will
help to protect these surfaces from damage and debris.
oSelect a flat surface for assembling the extractor. Cover that
surface with a protective covering and place all parts and fittings
on to it.
oRawl plugs are provided to secure the extractor to most types of
walls and ceilings. However a qualified technician must verify the
suitability of the materials, in accordance with the type of wall

16
and ceiling. The wall and ceiling must be strong enough to take
the weight of the extractor.
oDo not tile, grout or silicone this appliance to the wall. This
appliance is designed to be surface mounted only.
Installing your extractor
IMPORTANT: YOU WILL HAVE TO DECIDE BEFORE
INSTALLING YOUR EXTRACTOR WHETHER TO USE IT
IN EXTRACTION MODE OR RECIRCULATION MODE.
PLEASE TURN TO PAGE 22 NOW TO UNDERSTAND
THE DIFFERENCES BETWEEN THESE TWO MODES.
oWe recommend that at least two people install this extractor.
IMPORTANT: YOUR EXTRACTOR SHOULD BE CONNECTED TO
YOUR MAINS SUPPLY AFTER THE REST OF THE INSTALLATION
PROCESS HAS BEEN COMPLETED.
1) Remove the metal grease filters.
2) Position the extractor against the wall
that you are intending to install it on and
mark the position of the support holes
that are to be drilled (as shown in the
figure below).
2a) The support screw holes are indicated by figure Ain this drawing
and the anchoring screw holes are indicated by figure B.

17

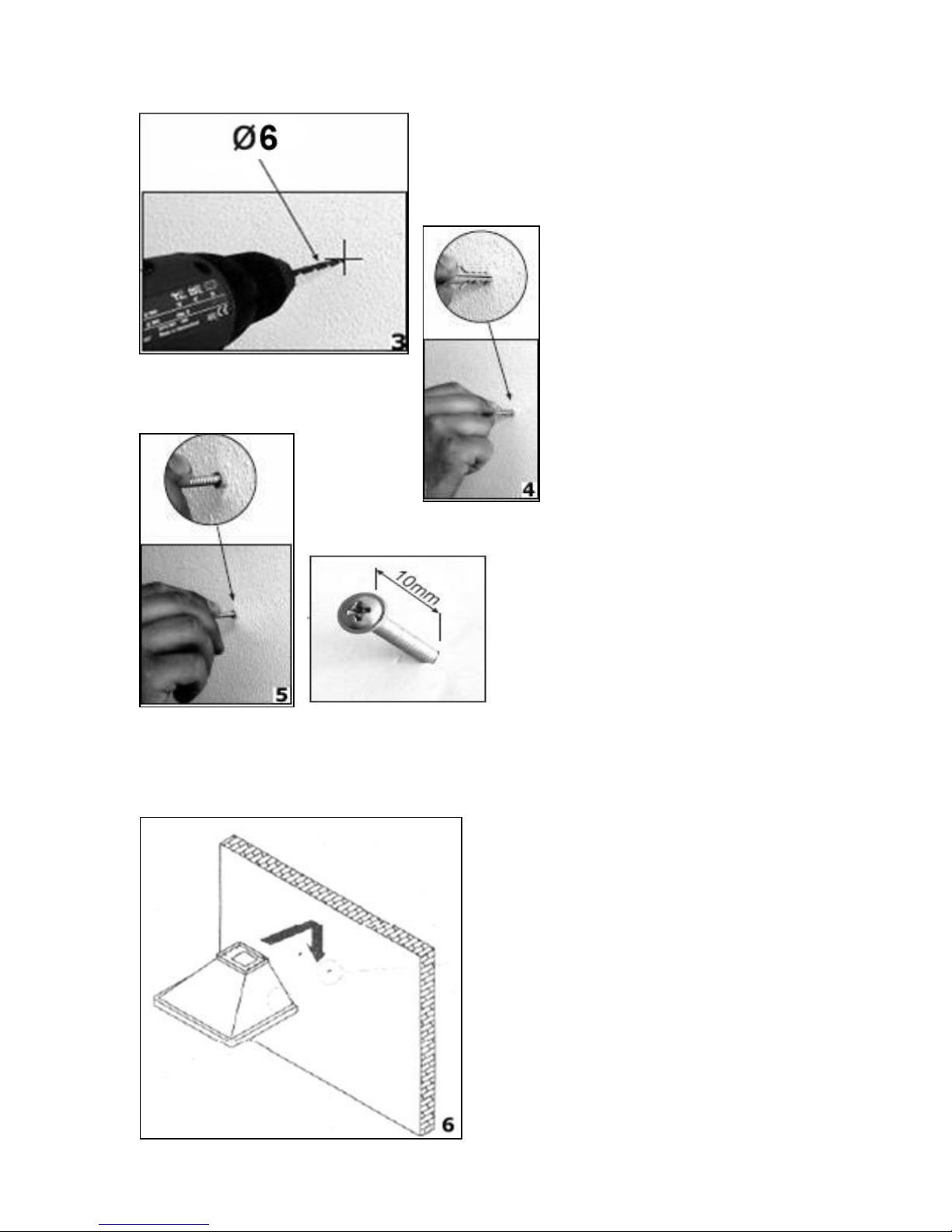

3) Using a drill bit with a 6 mm
diameter, make holes in the wall on the
positions that you have marked in step
2.
4) Insert rawl plugs into
all of the holes that you
have drilled.
5) Fasten the support screws halfway in, leaving them 10 mm out of
the wall.
6) Hang the extractor onto the
support screws.

18
7) Fully tighten the support screws (A) and then screw the anchoring
screws (B) through the relevant holes in the extractor. Fully tighten
the anchoring screws into the wall.

19
Connecting to external ducting
8) Connect the coupling to the top of the extractor, and then connect
a 125 mm ducting hose to the coupling (please note that the ducting
hose is not supplied with the appliance).
oThe other end of the ducting hose should be connected to a
discharge outlet that is suitable for cooking vapours. It should
have a cross section of at least 150 cm².
oThe maximum distance between the coupling and your discharge
outlet should be 3 metres, with one 90 degree bend. For each
additional 90 degree bend, the maximum distance is reduced by
a further metre.
Fitting the chimney
9) Take the two chimney sections
(C) and (D).
oRest the bottom of chimney
section (C) on the top of the
extractor. You should take
care to position the tabs on
the chimney section into the
rear of the extractor.
oMark the side measurement of
both sides of chimney section
(C) on the wall with a pencil.

20

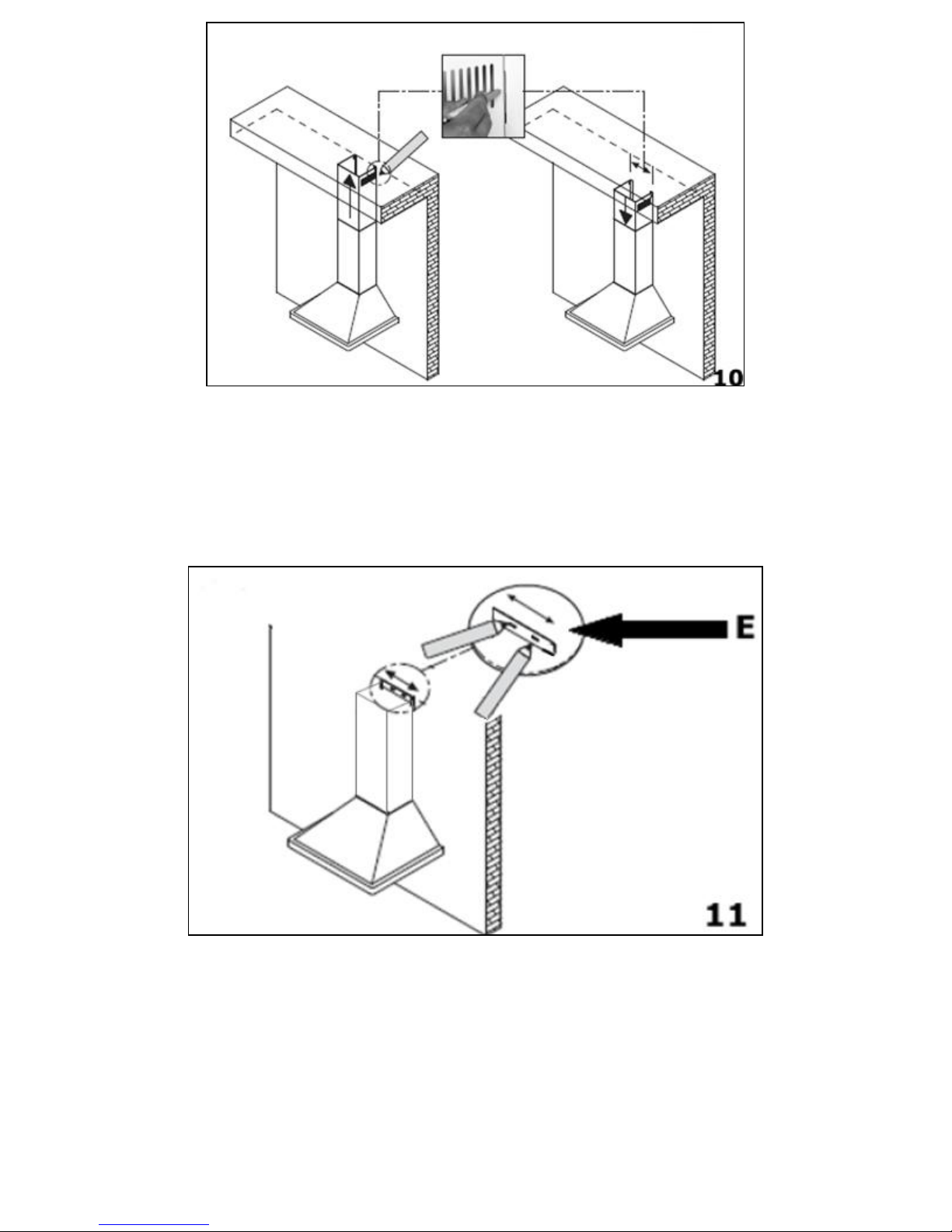

10) Lift chimney section (D) upwards until it reaches the ceiling. You
must ensure that it is perpendicular to the extractor.
oMark the side measurements of both sides of chimney section
(D) on the wall with a pencil and then remove chimney section
(D).
11) Take the flat bracket (E) and place it between the two pencil
marks that you made in step 9
oKeeping the bracket in contact with the wall, use a pencil to
mark on the wall the anchoring holes that are cut out of the
bracket.
