Lamona LAM2600 Assembly Instructions

Stainless Steel & Glass
Island Extractor
LAM2600
Instillation & User Instructions
issuF+VMZ

Page 2www.howdens.com
Contents
Environmental note 3
Important Safety & Technical Information 4
Product Information 5
Methods of Extraction 6
Installation 7
Electrical Connections 11
Operating Your Extractor 12
The Grease Filters
The Carbon lters
Maintenance 13
General Cleaning
Replacing the halogen Lamps
Troubleshooting 14
Your Guarantee 15
Product guarantee details
What to do if you need to report a problem

Page 3www.howdens.com
Environmental note
This appliance is marked according to the European directive 2002/96/EC on Waste
Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of
correctly, you will help prevent potential negative consequences for the environ-
ment and human health, which could otherwise by inappropriate waste handling
of this product.
The symbol on the product, or on the documents accompanying the product, indicates that this appli-
ance may not be treated as household waste. Instead it shall be handed over to the applicable collection
point for recycling of electrical and electronic equipment.
Disposal must be carried out in accordance with local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this product, please contact
your local city oce, your household waste disposal service or the shop where you purchased the
product.
• The packaging materials that Lamona uses are environmentally friendly and can be recycled
• Please discard all packaging material with due regard for the environment.

Page 4www.howdens.com
Important safety information
Your safety is of the utmost importance to Lamona. Please make sure that
you read this instruction booklet before attempting to install or use the
appliance. If you are unsure of any of the information contained in this
booklet, please contact the Lamona Advice Line.
Keep this Book in a handy place for reference; it contains important details on the safe and proper
use of your appliance. Should you sell the extractor please remember to pass on the instruction
book to the new owner.
Technical Information
The extractor is designed to give you the option to extract air by ducting to the outside and away (via
an exterior wall), or to re-circulate through charcoal lters to minimise odours, steam and condensation.
The choice is yours to decide at installation, and both systems are explained in the booklet.
Data
Power Supply: 230/240v ~ 50Hz
Rating: 470 W
Fuse Rating: 3 A
4 bulbs Halogen Lamps 50 W each
Our policy is one of continual improvement in design and development, therefore strict accuracy of
illustrations and descriptions cannot be guaranteed.
!

Page 5www.howdens.com
Product Information
On opening your box you will nd the extractor hood, glass canopy, a telescopic decorative outer chimney,
adjustable inner chimney assembly, a ducting connector, and a bag of xings and screws.
Upper chimney
Extractor hood
Ducting connector
(150mm diameter)
Duct adapter
(diameter 150mm to 125mm)
Glass canopy
Upper plate
Upper support
Lower support
Lower chimney

Page 6www.howdens.com
Methods of Extraction
The very best method of cleaning the kitchen of unwanted odours is by connecting the appliance to
an exhaust duct and venting to the outside atmosphere via the ceiling to an exterior wall. (Suitable
ductingkits may be purchased from the store where you bought your extractor.) You do not need a
charcoal lter when using the ducting mode.
REMEMBER: BEFORE DRILLING OR CHISELLING THE CEILING OR WALL, CHECK FOR PIPES AND
POWER CABLES.
1. Ensure the ducting tube is kept as short as possible and with the minimum of bends to permit the
smoothest airow. (Maximum length 3 metres.)
2. Ducted air must not be discharged into a ue, which is used for exhausting fumes from appliances
supplied with energy other than electricity.
3. Ensure the requirements of the local authorities are adhered to concerning the discharge of exhaust air.
4. Ensure adequate room ventilation is provided when the extractor is used in the same room as appliances
supplied with energy other than electricity.
5. Never duct into a hot air ow such as a central heating duct.
WE STRONGLY ADVISE THAT ALL EXTERIOR OUTLETS BE FITTED WITH A NON-RETURN VALVE OR
LOUVRED SLATTING
DUCTING MODE
(NO CHARCOALFILTER RE-
QUIRED)
RECIRCULATING MODE
CHARCOAL FILTER RE-
QUIRED)
FIG. 2
FIG. 1
Carbon
Filters
DUCTING MODE
(NO CHARCOALFILTER RE-
QUIRED)
RECIRCULATING MODE
CHARCOAL FILTER RE-
QUIRED)
FIG. 2
FIG. 1
Carbon
Filters
DUCTING MODE
(no charcoal lter required)
RECIRCULATING MODE
(charcoal lter required)

Page 7www.howdens.com
Installation
This instruction must be strictly adhered to. Failure to comply could result in overheating and
serious damage to your appliance.
It is recommended that the installation is carried out by at least two people.
1. Mark and drill four holes using to the
dimensions shown and install the ducting facilities
(if ducting the extractor out) in the ceiling. Ensure
that the extractor is secured into joists (it may be
necessary to add wooden struts between the
joists).
188
259
259
188
H (min. 62,7cm,
max. 102,7cm)
75cm recommended
worktop
70cm minimum
2 of 6
Lower 2 holes
(62.7 to 80.3cm)
2. Mount the upper plate onto the ceiling using 4
suitable screws and washers
2 of 6
Lower 2 holes
(62.7 to 80.3cm)
3. Secure the ducting connector and glass canopy
to the extractor body

Page 8www.howdens.com
5. The recommended clearance Between
the extractor and the work top is 750mm. The
minimum allowable clearance is 700mm
188
259
188
259
H (min. 62,7cm,
max. 102,7cm)
75cm recommended
worktop
70cm minimum
32 of 48

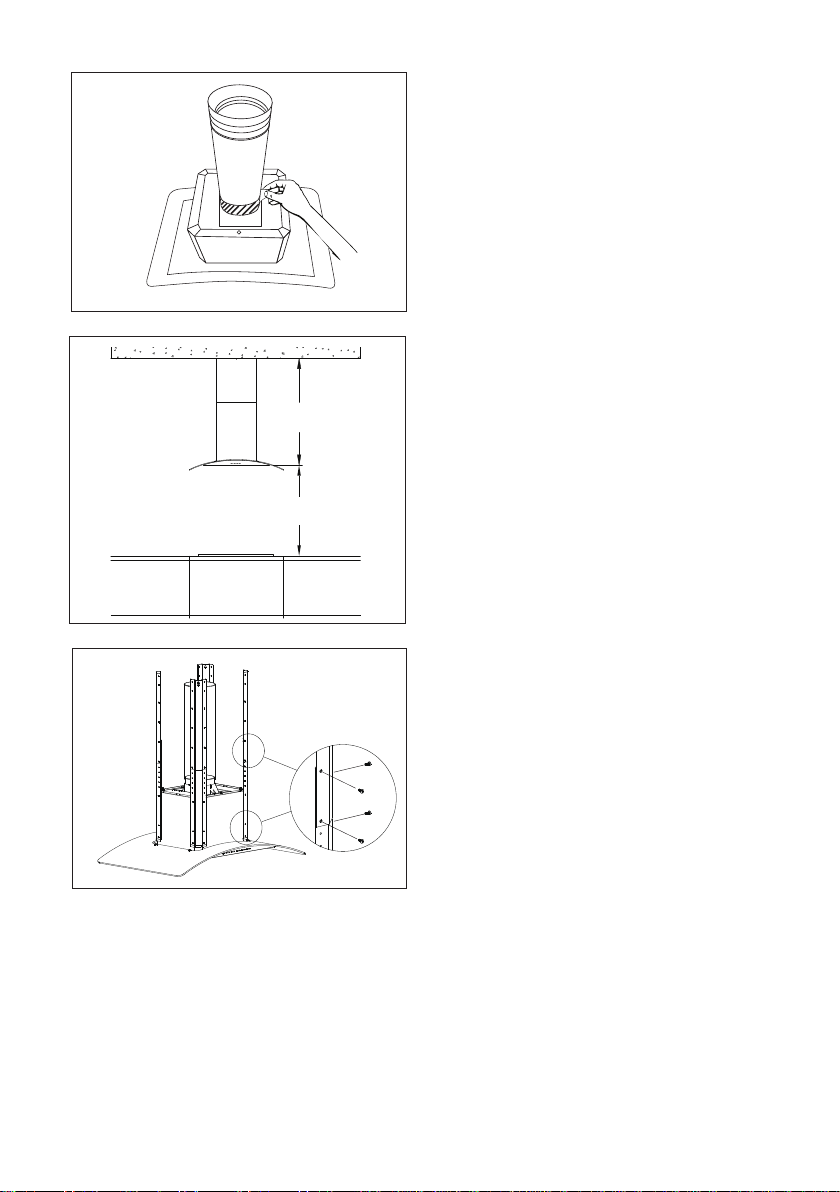

4. Place the exhaust duct onto the connector and
secure it with duct tape or tie wrap
32 of 48
6. Fix the lower and upper supports to the
extractor hood at the required length with 32
screws

Page 9www.howdens.com
Mains lead
Socket on the ceiling
16 of 48
Mains lead
Socket on the ceiling
16 of 48

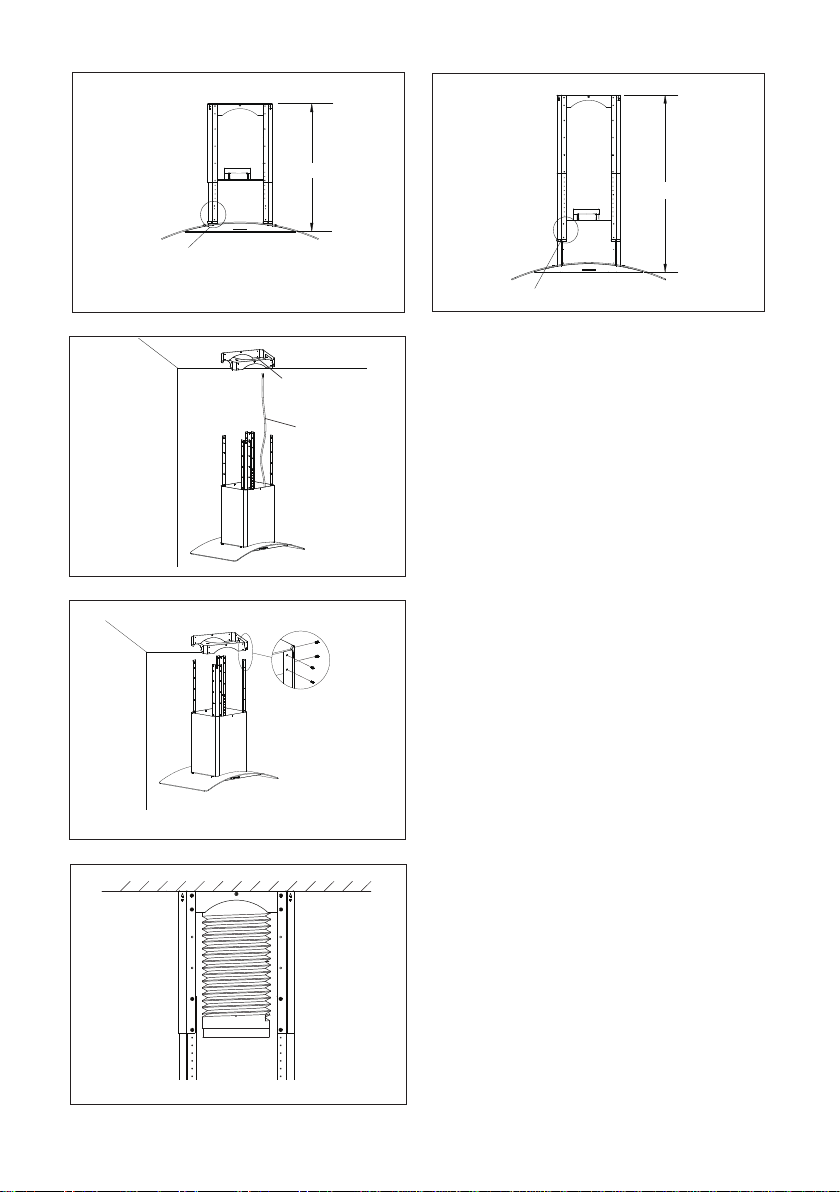

7. Place the inner and outer chimneys on the
extractor hood, and make the electrical connection.
8. Fix the extractor assembly to the upper plate
with 16 screws.
2 of 6
2 of 6
9. Connect the duct to the outlet on the ceiling if
ducting out, or to the lter if recirculating.
Upper 2 holes
(82.8 to 102.7cm)
2 of 6
Lower 2 holes
(62.7 to 80.3cm)

Page 10www.howdens.com
2 of 6
2 of 6
11. Finally x the outer chimney to the extractor
hood with 2 screws.
2 of 6
2 of 6
10. Slide up the inner chimney and x it to the
upper plate with 2 screws.
