INSTALLATION & USER MANUAL LAM2950
LAMONA CEILING HOOD
WWW.HOWDENS.COM

See back page for product serial number

Page_3Exclusive to Howdens
Dear Customer,
Congratulations on your choice of Lamona Ceiling Hood.
The user manual will help you use your product quickly and safely.
• Please read this user manual before installing and using the hood.
• Always follow the safety instructions.
• Keep this user manual within easy reach for future reference.
• Please read any other documents supplied with the product.
Explanation of symbols
Throughout this user manual the following symbols are used:
Energy Efficiency
In order to optimise efficiency of the product and reduce environmental impact we recommend the following:
• Product is installed in ducted configuration, using maximum Ø of ducting advised in this manual,
ducting as straight and as short as possible.
• Any filters are cleaned/replaced when necessary to maintain good airflow and grease filter efficiency.
• Switch on the hood at the minimum speed required to clear unwanted cooking odours.
• Switch off lighting when not in use or not required.
Metal Surfaces of the Hood and Condensation
When cooking with pans using a large water content, large quantities of vapour and steam can be
produced very quickly. This steam may condense onto the cold metallic surfaces of the hood and even the
splash back area if tiled, glazed etc.
(This is not a fault with either the hob or hood if correctly installed.)
The amount of this condensation on any particular surface will depend on many factors including the ambient
temperature in the kitchen, the related ambient temperature of the metal surfaces, the general ventilation within
the kitchen, the type of food being cooked and the duration. Using lids on pans can help reduce the amount of
steam being released and subsequent condensation.
This appliance is marked according to the European Directive 2012/19/EU on Waste Electrical and
Electronic Equipment (WEEE). By ensuring this product is disposed of correctly you will help prevent
potiential negative consequences for the environment and human health. The symbol on this
product indicates that this product may not be treated as household waste. Instead it should be
handed over to the applicable collection point for recycling or electrical and electronic equipment.
Disposal must be carried out in accordance with local environmental regulations for waste disposal.
For more detailed information please contact your local council household waste site.
By placing the marking on this product, we declare, on our own responsibility, compliance to all of
European safety, health and environmental requirements stated in the legislation for this product.
Important information or useful tips about usage.
Warning for possible hazards to health and property.
Warning possibility of electric shock.

Page_4 www.howdens.com
Contents
Before using the hood 05
Safety 05
Fire safety 06
Ventilation 06
Inportant safety information 07
Electrical safety 07
General Information & Operation 08
Ceiling Hood Layout 08
Control Panel Layout 08
Using Your Ceiling Hood 09
Speed selection 09
Light control 09
Remote controls 09
Battery 10
Connecting the remote control 10
Care and maintenance 11
General cleaning 11
Grease filters 11
Carbon filters 12
Replacing the lamps 13
Installation 14
Methods of extraction 14
Extraction via ducting 14
Extraction via recirculation 14
Before beginning installation 15
Surface Mounted
Recirculating installation 16
Electrical Connections 17
Fitting Carbon Filters 18
Connecting the Remote Control 18
Installation 19
Recessed ducted installation 19
Void Requirements 19
Electrical connections 20
Ducting Connections 21
Connecting the Remote Control 21
Technical Specifications 21
Trouble Shooting 21
Your Guarantee 22

Page_5Exclusive to Howdens
• Make sure that you have removed all packaging, wrappings,
stickers and films from the Hood.
• It is recommended that you clean the hood’s surface before using
for the first time.
Before using the Ceiling Hood
Safety
Important!
Always switch off the electricity
supply at the mains during
installation, maintenance and
cleaning.
• This appliance can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental
capabilities or lack of experience
and knowledge if they have been
given supervision or instruction
concerning use of the appliance
in a safe way and understand the
hazards involved. Children shall not
play with the appliance. Cleaning
and user maintenance shall not
be made by children with-out
supervision.
• Caution: The appliance and its
accessible parts can become hot
during operation. Children younger
than 8 years old should stay away
unless they are under permanent
supervision.
• The Ceiling Hood must be installed
in accordance with the instructions
and all measurements followed.
• All installation work must be
carried out by a competent person
or qualified electrician.
• Please dispose of the packing
material carefully. Children are
vulnerable to it.
• Pay attention to the sharp edges
inside the Ceiling Hood especially
during installation and cleaning.
• If the Ceiling Hood is damaged, do
not attempt to use.
• If the supply cord is damaged,
it must be replaced by the
manufacturer, its service agent or
similarly qualified persons in order
to avoid a hazard.
• Ceiling Hood is for domestic
use only (see guarantee page for
definition).
• Use suitable and appropriate
fittings for mounting the hood.

Page_6 www.howdens.com
Important Safety Information
• Do not leave frying pans
unattended during use because
overheated fats or oils might catch
fire.
• Never leave naked flames under
the Ceiling Hood.
• There is a fire risk if cleaning is not
carried out in accordance with the
instructions.
• Do not flambé under the Ceiling
Hood.
• Do not use the Ceiling Hood
without the Grease filters in place.
• The minimum distance between
the pan supports on the hob and
the lowest part of the Ceiling Hood.
(min 650mm for electric hobs, min
750mm for gas hobs, min 800mm
for coal or oil hobs)
• When in extraction mode, air in
the room is being removed by the
Ceiling Hood. Please make sure that
proper ventilation measures are
being observed. The Ceiling Hood
removes odours from room but not
steam.
• The air must not be discharged
into a flue that is used for
exhausting fumes from appliances
burning gas or other fuels.
• Make sure the ducting has no
bends sharper than 90 degrees as
this will reduce the efficiency of the
Ceiling Hood (max duct length 3m,
150mm Ø).
• Always put lids on pots and pans
when cooking.
• Large quantities of vapour and
steam can be produced very
quickly. This steam may condense
onto the cold metallic surfaces of
the Ceiling Hood (This is not a fault
with either the hob or Ceiling Hood
if correctly installed.) The amount of
this condensation on any particular
surface will depend on many factors
including the general ventilation
within the kitchen, the type of food
being cooked and the duration.
Fire Safety
Ventilation
• There shall be adequate
ventilation of the room when the
Ceiling Hood is used at the same
time as appliances burning gas or
other fuels.

Page_7Exclusive to Howdens
Important Safety Information
Using lids on pans can help reduce
the amount of steam being released
and subsequent condensation.
Induction hobs offer a powerful,
more efficient heating process but
do not generate the higher levels of
ambient heat that would normally
help dissipate vapour and steam as
with older hob technology.
• The manufacturer refuses to
accept any responsibilty for
damage to or damages arising from
failure to observe these instructions.
• Ensure the ducting for Ceiling
Hood has the same diameter all the
way through and at the outlet.
• If the Ceiling Hood is installed for
use above a gas appliance then
the provision for ventilation must
be in accordance with the Gas
Safety Codes of Practice BS.6172,
BS.5440 & BS.6891 (Natural
Gas) and BS.5482 (LP Gas) 1994,
the Gas Safety (Installation &
Use) Regulations, the Building
Regulations issued by the
Department of the Environment,
the Building Standards (Scotland)
(Consolidated) Regulations issued
by the Scottish Development
Department.
• Do not use high level grills or BBQ
type products under this Ceiling
Hood.
• Do not operate the ceiling hood
with the access flaps in the open
position.
• Do not operate the ceiling hood
without the grease filters in place.
• In case of any damage, switch off
the product and disconnect it from
the mains. To do this, turn off the
fuse at the fuse box. Make sure that
fuse rating is compatible with the
product.
Electrical Safety

Page_8 www.howdens.com
General Information & Operation
Hood Contents
Control Panel Layout
Note: after 7 minutes intensive speed 3 will automatically revert to speed 2.
Touch the on/off button to switch the
hood on or put it in standby mode.
Touch the light button, to turn the
task lighting on/off, this is controlled
separately and will not effect any other
functions.
Touch the timer button, to turn the
timer function on/off. Timer function
will run for a period 9 of minutes and
will switch the hood off.
Touch the speed button to switch the
fan on to speed 1 – Low, 2nd press for
speed 2 – Normal, 3rd press for speed
3 – intensive.
Timer SpeedLight Display on/off
Reducer FixingsCable Grid
2x Installation Chains
Remote Control
(1 X CR2025 Battery Supplied)
Hood and
Décor Panels

Page_9Exclusive to Howdens
Press the button once, the light activates, press the button again, the light will be turned off.
The lighting button is controlled separately and will not effect any other functions.
Turning On / Increasing Fan Speed:
1st Press, LOW speed, 2nd Press,
MEDIUM speed, 3rd Press, Intensive speed
Turning Off / Decreasing Fan Speed
Press the button and the motor begins to adjust to a lower setting and the
LCD screen displays the speed. If it is pressed again it will decrease to the
‘off’ setting.
Timer
Press the timer button, this turns the timer setting function on / off.
Timer function will run for a period of 9 minutes, at the end the cooker
hood will switch off.
Using Your Ceiling Hood
Make sure that it has been installed by a suitably qualified person, as per the installation instructions.
Note: Speed 3 is an intensive/boost setting and will automatically revert to speed 2 after 7 minutes
Ideally you should turn on your hood ten minutes before you start to
cook, or at the very least when you begin cooking. You should also
run your hood for ten minutes after you have finished cooking.
Caution - Accessible parts may become hot when used with cooking
appliances.
Speed Selection
Light Control

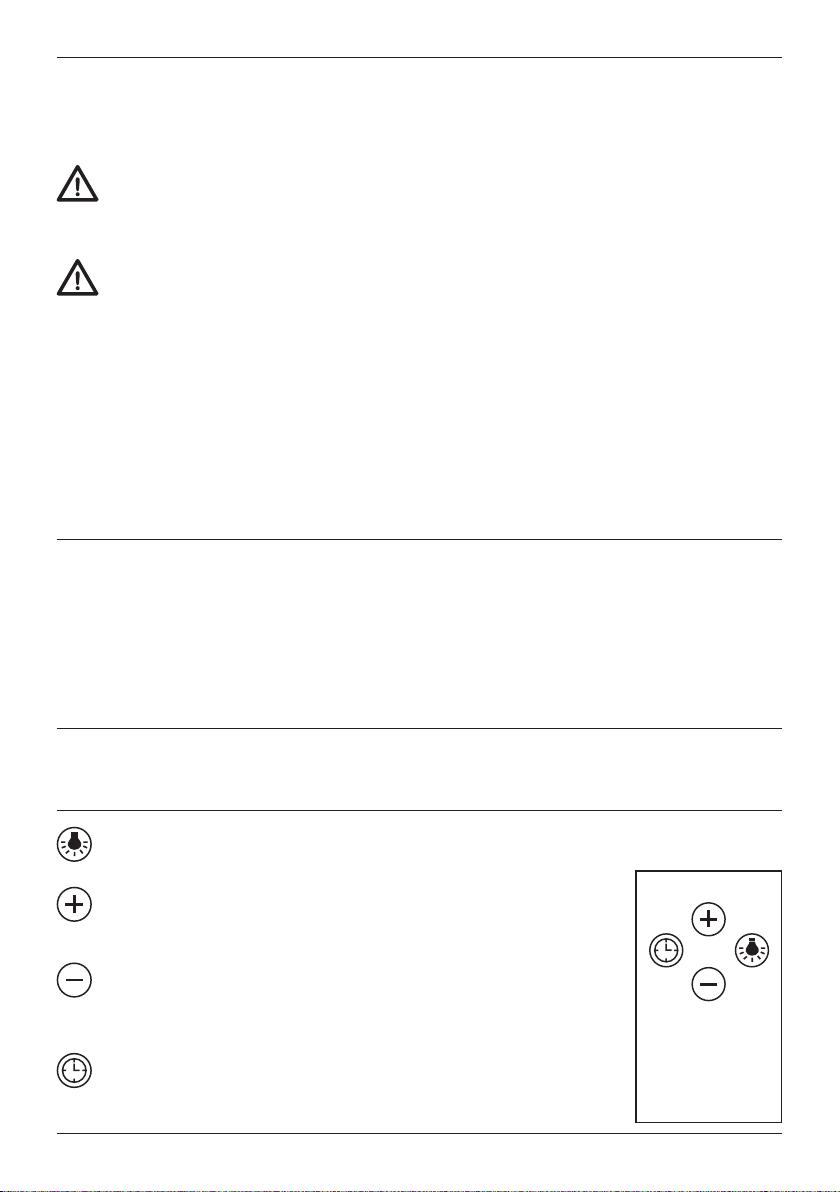

Remote Controls
Induction Hobs - Metal Surfaces of the Hood and Condensation
Large quantities of vapour and steam can be produced very quickly. This steam may condense onto
the cold metallic surfaces of the Ceiling Hood and even the splash back area if tiled, glazed etc. (This is not
a fault with either the hob or Ceiling Hood if correctly installed).
The amount of this condensation on any particular surface will depend on many factors including the
general ventilation within the kitchen, the type of food being cooked and the duration. Using lids on pans
can help reduce the amount of steam being released and subsequent condensation. Induction hobs offer
a powerful, more efficient heating process but do not generate the higher levels of ambient heat that would
normally help dissipate vapour and steam as with older hob technology.
• If you press the selection button once, the motor will run at low speed.
• Press the speed selection button twice and the motor will run at medium speed.
• Press the speed selection button three times and the motor will run at high speed. Another press of
• the button will return the motor to low speed.
• To turn off the hood, press the on/off button. The speed and power symbols will disappear.
• When you next press the on/off button, the Ceiling Hood will continue working at the speed it last
• selected set on.
• Touch the light on/off button once, to turn on the Ceiling Hood lights and touch again to turn off.

Page_10 www.howdens.com
Battery
Connecting The Remote Control
A new remote control has to estabish a connection to the Ceiling Hood when used for the first time.
And may need to be repeated if the mains supply has been disconnected for a prolonged period or if the remote
battery has been replaced.
Connection Process Between Remote Control And Ceiling Hood:
1. within 15 seconds after ceiling hood connects to the power supply, long press for 5 seconds, the indicator
lights begin flashing from one button to another:- the Ceiling Hood is in connection mode. The press any button on
the remote control to confirm the connection. The connection process is finished and the remote can be used for
speed selection, lighting and timer setting.
2. If you want to connect again you will need to clear the code that has been
entered previously:
3. To clear the code: Press the for 5 seconds, the indicator lights begin flashing one button to another:- the
cookeris in connection mode. Then, press the for 5 seconds immediately again: the previous
connection code is cleared
4. When the previous code has been, the ceiling hood back to standby mode, press for 5 seconds:- the indicator
lights begin flashing from one button to another:- the Ceiling Hood is in connection mode. Then press any button of
the remote control to confirm connection.
The remote control requires a CR2025 battery. The battery can be accessed fromthe bottom, as shown in
the below picture.
Carefully release the tab and
pull the battery tray out.
+ve side faces the bottom of the remote

Page_11Exclusive to Howdens
General Cleaning
The Grease Filters
The manufacturer declines all liability in cases where the instructions for the appropriate installation,
maintenance and use of the Ceiling Hood are not observed.
Wipe the external surfaces of the appliance regularly using warm water and a mild detergent.
NEVER use abrasive cleaners.
Your Ceiling Hood includes grease filters which helps to protect your kitchen & furniture from greasy residues by
filtering out grease particles.
• Over time, the grease may become a risk if the
greasy residue is allowed to build up.
• To prevent a fire hazard, the grease filter should be
cleaned.
• Depending on use, this should be done every
3months.
• First remove the grease filters by pushing the in the
button on the handle and pulling the filter away from
the Ceiling Hood.
• Soak the grease filters in hot water and washing up
liquid for at least 3 minutes. The use a soft brush to
loosen any grease deposits that have formed. Rinse
the filters thoroughly with hot water. Repeat the
process if necessary.
• Allow the grease filter to dry completely before
refitting
• The Ceiling Hood must never be operated without
the grease filter in position.
• If grease filters are washed in a dishwasher (60˚c)
the plastic may discolour
To avoid the possibility of fire, adhere strictly to all of the recommendations included in this booklet,
paying particular attention to the grease filters to ensure grease deposits do not build up
Care and Maintenance
Before cleaning or attempting any type of maintenance, always
make sure that the electricity supply is disconnected.

Page_12 www.howdens.com
The Carbon Filter
If the appliance is going to be used in recirculation mode then it is necessary to fit carbon filter. This will help absorb
odours caused by cooking.
Carbon filters have a limited life. We advise you to change them when there is a noticable drop in peformance.
The intervals between changing the filter will depend entirely upon the amount of cooking you do, but on
average they will last about 3-6 months.
Before installing or replacing the carbon filters, please remove power to the unit.
1. Open the access flaps on the underside of the ceiling hood.
2. Press the lock on the filter frames and remove all the grease filters for ease of access.
3. Turn the carbon filter on both side of the motor anti-clockwise and remove the filter.
4. Replace the carbon filters by locating on the central spigot and turn clockwise.
5. Replace the mesh filters by locating the rear lugs in first and then pushing into place ensuring the lock is
properly engaged.
6. Close the access flaps on the underside of the ceiling hood
7. Connect the power supply to the wall socket.
NOTE: Carbon filters will reduce the suction power of the appliance, they are designed to remove
smells and cooking odours, they will not remove moisture or condensation from the air.
LAM2950 Uses Carbon Filter HJA2906 (2Pk)

Page_13Exclusive to Howdens
Replacing the Lamps
• This appliance is fitted with energy efficient LED Lamps designed to last the life of the product
• Before working on the appliance, make sure that the mains supply is switched off & it has completely
cooled down.
• Always use appropriate PPE when cleaning, maintaining or installing this appliance.
Changing the lights:
1. Use a flat headed screwdriver to pry out the lamp along the edge of the lamp hole.
2. Slowly pull the light connecting wire out, and disconnect the terminal block.
3. Connect the new lamp unit to the terminal and push it back into place being careful not to trap the cable .
Please see the Lamona warranty information page at the rear of this booklet for more information on obtaining
spares.
• ILCOS D code for this lamp is: DSS-1.5/30-S-120/33
• LED modules –rectangle lamp
• Max wattage: 4×1.5 W
• Voltage range: DC 12V
• Dimensions:

Page_14 www.howdens.com
Installation
The very best method of clearing the kitchen of unwanted odours is by connecting the appliance to an exhaust
duct and venting to the outside atmosphere via the ceiling.
Methods of Extraction
Surface Mounted
Recirculating
Semi Recessed
Ducted
Fully Recessed
Ducted

Page_15Exclusive to Howdens
Before Begining Installation
Surface Mount - Recirculating
Fully Recessed - Ducted
Semi Recessed - Ducted
Original Ceiling
Original Ceiling
230mm
290mm
False ceiling
595 x 425mm
Cutout required
False ceiling
1100 x 700mm
Cutout required
Check that the product purchased is of a
suitable size for the chosen installation area.
In addition check whether there is an electrical
socket available that will be accessible once
the hood is mounted.
If the product is going to be used in extraction
mode, then there should also be space to
connect a ducting hose to the outside.
Carry out all necessary masonry work prior to
the of the Ceiling Hood and cabinetry.
Ensure that all electrical connections are
carried out by a suitably person.
• Check inside the product and ensure that
there is no transit packaging or any other
materials, such as packets of screws,
guarantees etc. These should be removed
and kept for future use.
Protect any hob already installed below with a
blanket or cardboard etc, to prevent possible
damage.
• The maximum distance between the Ceiling
Hood and your discharge outlet should be 3
metres, with one 90 degree bend. For each
additional 90 degree bend, the maximum
distance is reduced by a metre. Use 150mm
ducting for optimum performance.
Use appropriate fixings for ceiling construction
type.
The ceiling must be able to bear a minimum
loading of 120kg and have a minimum
thickness of at least 30mm.
Appropriate measures should be taken in
order to maintain any existing firewalls, in
accordance with all local and national building
regulations. If in doubt seek advice from your
building control office.

Page_16 www.howdens.com
3) Attach the installation chains as shown below.
With assistance, lift the hood up to the mounting plate and secure the free end of the installation chains into the
hood body to support the load.
Feed the mains cable through the hole in the mounting plate for easier access later.
Secure the 8 mounting screws through the mounting plate to the support struts.
Remove the installation chains.
2) Using the mounting plate as a template place it on the ceiling and mark and drill the Φ8mm holes, use either the
anchor bolts or the ST6*40mm screws & wall plugs supplied in the fixings pack.
1) Unscrew 8 pcs M4*12mm screws from the mounting plate and keep them to one side. Remove the mounting plate
noting the orientation of the plate and the holes.
Max 1500mm
Surface mounted installation (Recirculating)
The Ceiling Hood should be positioned at a distance of no more than 1500mm from the cooking
surface otherwise performance may be reduced.
Mounting
Plate
Installation
Chains
Electric Hob Min 650mm
Gas Hob Min 750mm
Coal/Oil Hob Min 800mm

Page_17Exclusive to Howdens
IMPORTANT: The wires in the mains lead are coloured in accordance with the following code:-
Blue.....................Neutral
Brown..................Live
Green / Yellow..................Earth
As the colours of the wires in the mains lead of this appliance may not correspond with the coloured
markings identifying the terminals in your spur box, proceed as follows;
The wire which is coloured blue must be connected to the terminal which is marked with the letter
‘N’ or coloured BLACK. The wire which is coloured brown must be connected to the terminal which
is marked with the letter ‘L’ or coloured RED. The wire which is coloured GREEN / YELLOW must be
connected to the terminal marked
5) Fit the decorative panels in the locations and orientation shown, the lugs fit into the slots and then slide into place.
Fig 3. Fig 4.
N
L
L
N
LOAD
SUPPLY
LOAD
SUPPLY
DP
250V~
FUSE ON
Blue.
(Neutral)
Brown.
(Live)
Green / Yellow.
(Earth)
The terminology DOUBLE POLE -/+ means that both the live and
neutral supplies are switched and disconnected at the same time.
The terminations labelled SUPPLY are the connections for the internal
house wiring and the terminations labelled LOAD are for connection
to the appliance.
IMPORTANT: Ensure that the electricity supply is switched off before
connecting.
4) Your appliance must be connected via the use of a double pole switched fused spur with at least
3mm contact separation, the isolation switch must be accessible after installation. Additional protection
measures such as RCD devices are recommended.

Page_18 www.howdens.com
Fitting the Carbon Filters (recirculation only)
NOTE: Carbon filters have a limited life. We advise you to change them when there is
a noticable drop in performance. The intervals between changing the filter will depend
entirely upon the amount of cooking you do, but on average they will last about 3 months.
Please quote the part reference number HJA2906 (pack of 2) when reordering.
Before attempting to change or fit the charcoal filters ensure power
to the extracor is switched off.
Carbon filters only required for recirculation mode.
6) Open the access flaps and remove the grease filters.
Fit the carbon filters (Supplied separately) to the fan motor inlet by locating on the central spigot and rotating to
lock into place.
7) See page 10 for how to connect and pair the remote control to the ceiling hood.

Page_19Exclusive to Howdens
Ceiling decorative board
Ceiling decorative board
Semi and Fully Recessed Installation (Ducted)
2) Undo the 8 M4*25mm mounting bolts indicated with the mounting warning labels and keep aside.
Turn the appliance the correct way up and remove the mounting plate and the support strut subassembly.
Unscrew the fan motor outlet flange
1) Remove the decorative panels by sliding sideways these are not required for ducted install.
Carefully turn the appliance upside down for ease of access.
Open the access flaps and remove the grease filters and central support brace.
Semi recessed = 230mm void from
the original ceiling height.
595 *425mm opening required 1100 *700mm opening required
Fully recessed = 290mm void from
the original ceiling height.
This method can be used to install the product with the false ceiling already erected.
If the false ceiling is to be erected afterwards, follow the installation guide for surface mounting.
Note: the chimney décor panels must be removed in all ducted installations

Page_20 www.howdens.com
5) With assistance, lift the hood body up to the mounting plate and strut assembly
Secure the 8 mounting screws through the body to the support struts.
Pull the ducting and the mains supply cables through the motor box opening.
4) The hood outlet can be fitted in any 3 orientations depending on where the ducting needs to be routed to.
Support the hood body ensuring to take the weight off the fan motor box.
Unscrew the fan motor box and remove from the hood body disconnecting the electrical harness and earthing
cable & place aside.
Prepare the ducting in the void.
3) Using the mounting plate as a template place it on the ceiling and mark and drill the Φ8mm holes, use either the
anchor bolts or the ST6*40mm screws & wall plugs supplied in the fixings pack to mount the plate to the original
ceiling.
Semi Recessed Installation
230mm deep false ceiling
A 595 x 425mm cutout is required
Fully Recessed Installation
290mm deep false ceiling
A 1100 x 700mm cutout is required
Max 1500mm
IMPORTANT: Ensure that the electricity supply is switched off before
connecting.
6) Your appliance must be connected via the use of a double pole switched fused spur with at least 3mm contact
separation, the isolation switch must be accessible after installation. Additional protection measures such as RCD
devices are recommended.
