Lamona LAM2475 Guide

Instructions and Installation
LAM2475
LAM2476
60cm/90cm Touch Control Extractor
www.howdens.com/appliance-registration

See back page for product serial number

www.howdens.com
Page _ 2
LAMONA Appliances
Dear Customer,
Congratulations on your choice of a LAMONA domestic appliance.
The user manual will help you use your product quickly and safely.
• Please read this user manual before installing and using the product.
• Always follow the safety instructions.
• Keep this user manual within easy reach for future reference.
• Please read any other documents supplied with the product.
Explanation of symbols
Throughout this user manual the following symbols are used:
Important information or useful tips about usage.
Warning for possible hazards to health and property.
W
Metal Surfaces of the Extractor and Condensation
When cooking with pans using a large water content, large quantities of vapour and steam
can be produced very quickly. This steam may condense onto the cold metallic surfaces of the
extractor and even the splash back area if tiled, glazed etc.
(This is not a fault with either the hob or extractor if correctly installed).
The amount of this condensation on any particular surface will depend on many factors including the
ambient temperature in the kitchen, the related ambient temperature of the metal surfaces, the
general ventilation within the kitchen, the type of food being cooked and the duration. Using lids on
pans can help reduce the amount of steam being released and subsequent condensation.
This appliance is marked according to the European Directive 2012/19/EU on Waste
Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of
correctly you will help prevent potiential negative consequences for the environment
and human health. The symbol on this product indicates that this product may not be
treated as household waste. Instead it should be handed over to the applicable
collection point for recycling or electrical and electronic equipment. Disposal must be
carried out in accordance with local environmental regulations for waste disposal. For
more detailed information please contact your local council household waste site.
arning possibility of electric shock.
By placing the marking on this product, we declare, on our own responsibility, compliance to all of
European safety, health and environmental requirements stated in the legislation for this product.
Energy Eciency
In order to optimise eciency of the product and reduce environmental impact we recommend
the following:
• Product is installed in ducted configuration, using maximum Ø of ducting advised in this manual,
ducting as straight and as short as possible.
• Any filters are cleaned/replaced when necessary to maintain good airflow and grease filter
eciency.
• Switch on the hood at the minimum speed required to clear unwanted cooking odours.
• Switch o lighting when not in use or not required.

Exclusive to Howdens Joinery.co Page _ 3
User manual LAM2475 LAM2476
Index
Before Using The Extractor
Safety
General
Safety For Children
Safety When Working With Electricity
General Information & Operation
r LayoutotcartxE
Control Panel Layout
Care & Maintenance
General Cleaning
Grease Filters
Carbon filters
Replacing The Lamps
Installation
Methods Of Extraction
Extraction Via Ducting
Extraction Via Recirculation
Parts Identification

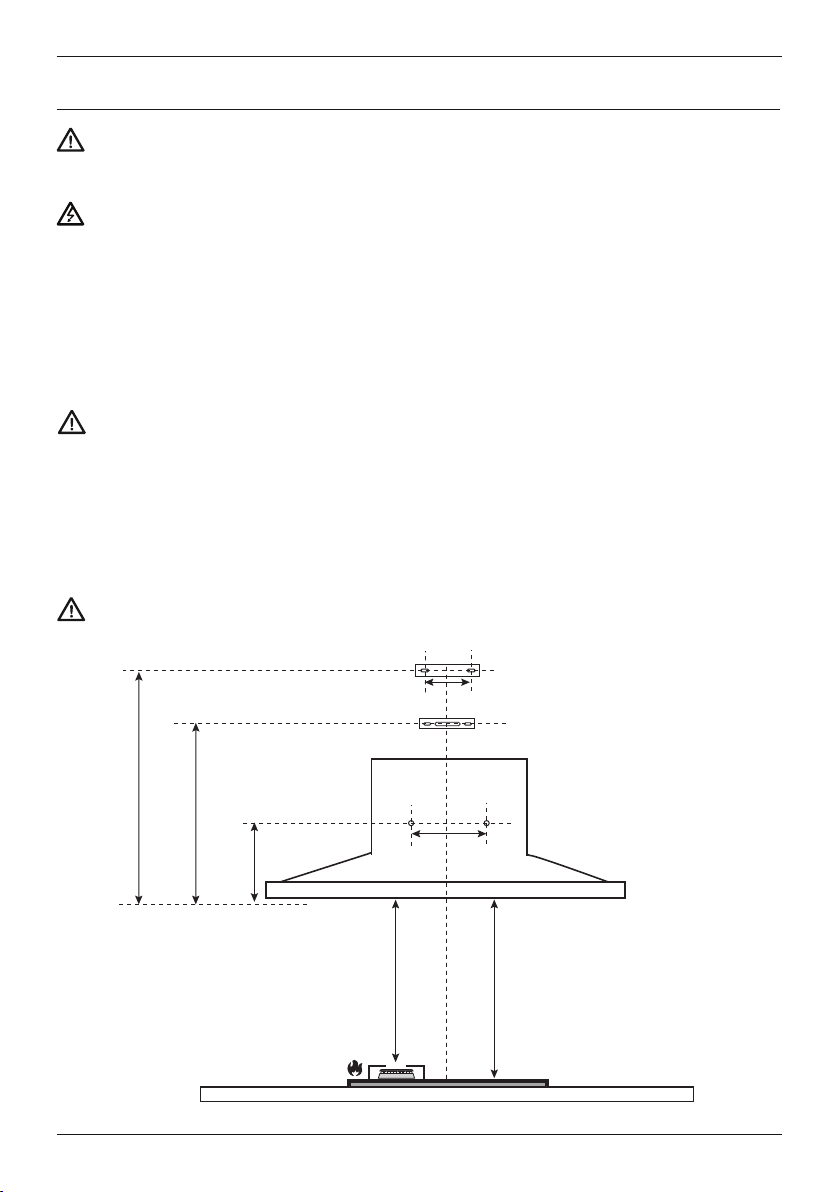

Hanging Your Extractor

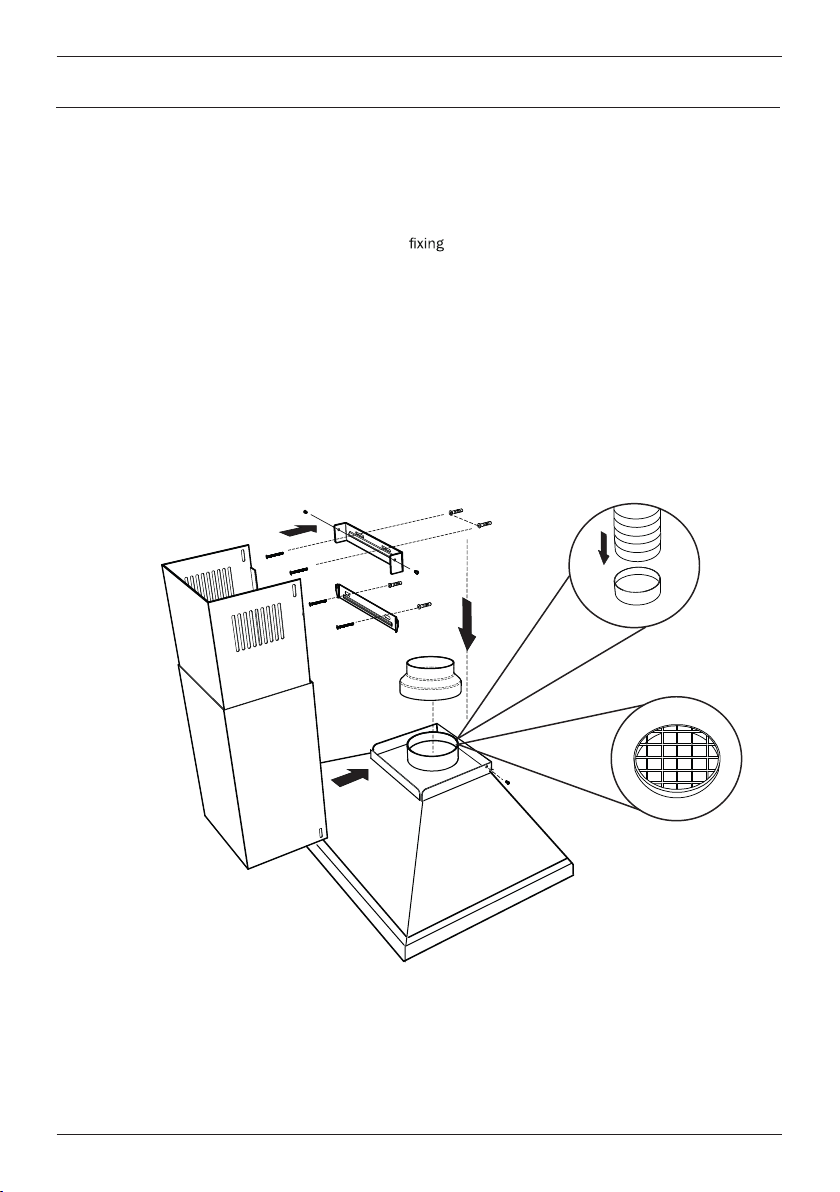

Decorative Chimney Fitting

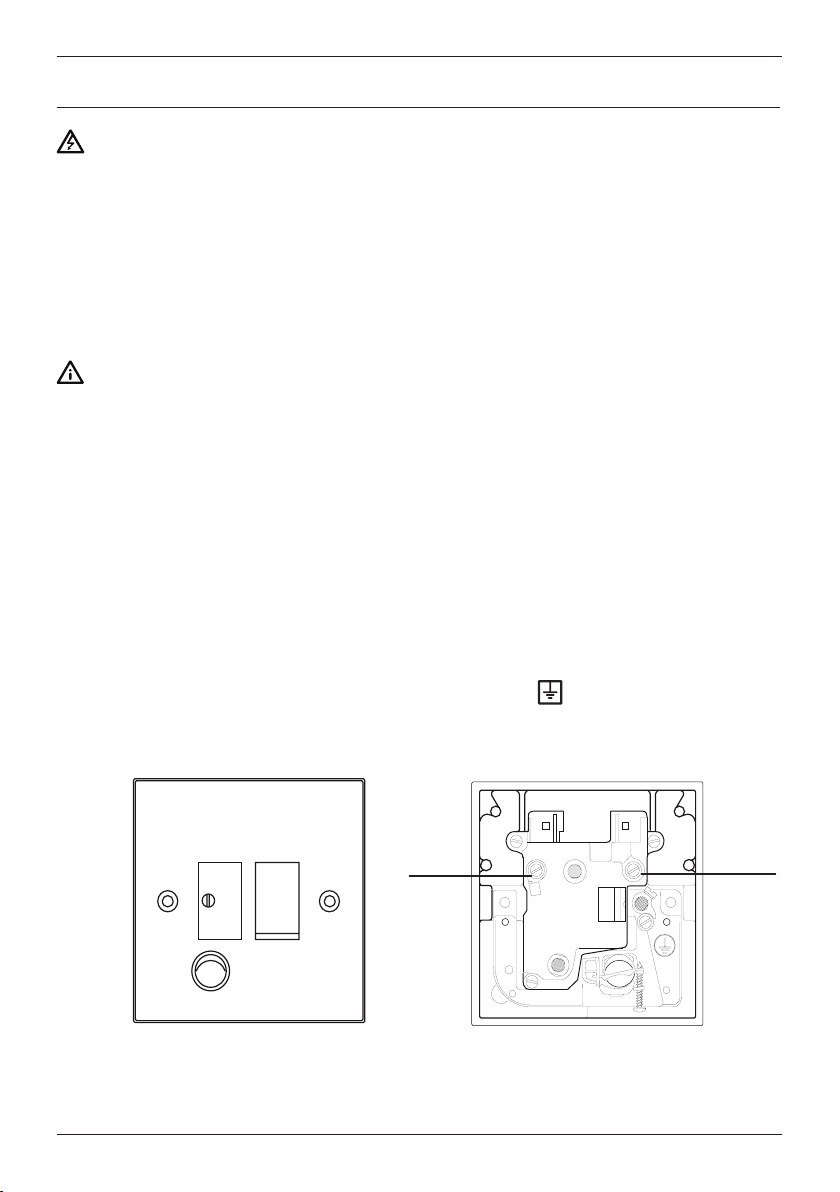

Electrical Connections
04
04
04
04
04
05
05
05
06
06
06
07
07
08
08
08
08
09
10
11
12
13
13
14
Technical Specification
Your Guarantee
Troubleshooting

www.howdens.com
Page _ 4
LAMONA Appliances
• Make sure that you have removed all packaging, wrappings, stickers and films from
the Extractor.
• It is recommended that you clean the extractor’s surface before using for the first time.
Before Using The Extractor
This appliance is for domestic extraction
purposes only. It must not be used for other
purposes. Commercial use will void the
guarantee.
The manufacturer shall not be liable for any
damage caused by improper use, installation or
handling errors.
General
This product is not intended to be used by
persons with physical, sensory, mental disorders
or unlearned or inexperienced people (including
children) unless they are supervised by a person
who will be responsible for their safety or who
will instruct them accordingly in the use of the
product.
• Do not operate the product if the power
cable is damaged. Call qualified service
agent.
•
Never wash down the product with excessive
water, there is a risk of electric shock!
Never use the product when your judgement
or coordination is impaired by the use of
alcohol and/or drugs.
Product must be disconnected from the
mains during installation, maintenance,
cleaning and repair procedures.
Repair procedures must be always be
performed by qualified service agents. The
manufacturer shall not be held responsible
for damages arising from procedures carried
out by unauthorised persons, which may also
void the guarantee.
Do not carry out any repairs or modifications
on the product. However, you may remedy
some the problems that do not require any
repairs or modifications. See troubleshooting
at the rear of this manual.
•
•
•
•
DO NOT flambè under the extractor.•
• Keep all ventilation slots clear of obstruction,
as this may cause premature failure of the
appliance
• Do not trap the mains cable and do not route
it over surfaces which may become hot. The
cable insulation may melt and cause a fire
as a result of a short circuit.
• Make sure that the product function buttons
are switched o after every use.
• Product must be installed by a qualified
person in accordance with the regulations in
force otherwise, the guarantee may become
void.
Safety For Children
Electrical products can be dangerous to children.
Keep children away from the product when it is
operating and do not allow them to play with or
near the product.
The packaging materials will be dangerous for
children. Keep the packaging materials away
from children. Please dispose of all parts of the
packaging according to environmental standards.
Safety When Working With
Electricity
In case of any damage, switch o the product
and disconnect it from the mains. To do this,
turn o the fuse at the fuse box.
Make sure that fuse rating is compatible with
the product.
Safety

Exclusive to Howdens Joinery.co Page _ 5
User manual LAM2475 LAM2476
1. Upper Chimney Section
2. Recirculation Vent
3. Lower Chimney Section
4. Fan and Light Controls
5. Extractor Body
6. Grease Filters
7. Light
General Information & Operation
Extractor Layout
Control Panel Layout
1. Reduce Power Level
1 2 3 4 5
2. Increase Power Level
3. Light On/O
4. Timer
5. Power On/O
5.
6.
4.
2.
1.
3.
7.

www.howdens.com
Page _ 6
LAMONA Appliances
Before cleaning or attempting any type of maintenance, always make sure that the electricity
To avoid the possibility of fire, adhere strictly to all of the recommendations included in this
booklet, paying particular attention to the grease filters to ensure grease deposits do not
build up.
CAUTION: Accessible parts may become hot when used with cooking appliances.
supply is disconnected.
The manufacturer declines all liability in cases where the instructions for the appropriate
installation, maintenance and use of the extractor hood are not observed.
If the power cable is cut or damaged in any way, disconnect the extractor from the electricity
supply and call the service number on the rear cover of this booklet or a suitably qualified repairer.
General Cleaning
Wipe the external surfaces of the appliance regularly using warm water and a mild detergent.
NEVER use abrasive cleaners, or strong household cleaners as they may aect the appearance of the
product and /or artwork on the control panel, voiding the manufacturers warranty.
Care & Maintenance
The Grease Filters
The grease filter
The grease filters should be cleaned every three
months or sooner depending on the type of cooking
being performed.
is of a metallic material and should
be washed regular using neutral detergent.
Grease filters should be washed separately to
crockery and kitchen utensils.
Grease filters should be thoroughly
dried before reinstalling on the
extractor.
1. Push latch
2. Lower to remove
Installation is the reverse of the
removal process.
To remove grease filters:

Exclusive to Howdens Joinery.co Page _ 7
User manual LAM2475 LAM2476
The Carbon Filters (Supplied Separately)
Carbon filters have a limited life. We advise you to change them when there is a noticeable drop in
performance. The intervals between changing the filter will depend entirely upon the amount of
cooking you do, but on average they will last about 3 months. Please quote the part reference number
HJA2906 (pack of 2) when reordering.

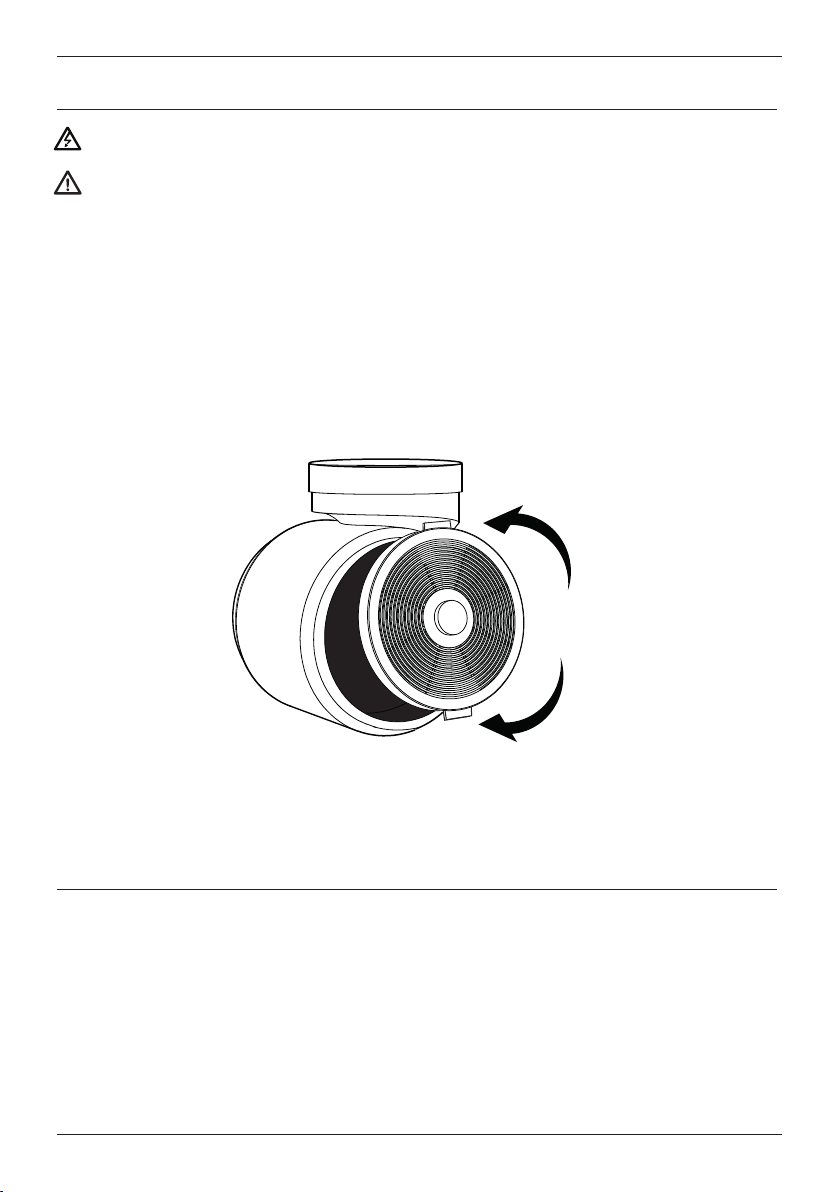

• To gain access to the carbon filters, first of all remove the grease filters as above.
Remove the old filters and install new charcoal filters by placing the pin on the filter into the
rectangular hole, and rotate the filter to lock into place.
Refit grease filters and reconnect the power supply.
Open
Closed
NOTE: The suction will be lower when installed in recirculation mode, this is normal and not a
product fault.
•
•
Replacing The Lamps
The lamps on this model are service fix only and replacement should be carried out by an authorised
service agent.
The extractor hood is fitted with one 1.5W LED lamps which will give many years of reliable service.
In the event of one of the lamps failing please call the service number.
The lamps on this appliance should only be used during operation of the cooker hood. They should not be
left on permanently and used as a main lighting source. The extractor is for domestic use only.
Before attempting to change or fit the charcoal filters ensure power to the extractor is
switched o.
Carbon filters only required for recirculation mode.

www.howdens.com
Page _ 8
LAMONA Appliances
Methods Of Extraction
The very best method of clearing the kitchen of unwanted odours is by connecting the appliance to an
exhaust duct and venting to the outside atmosphere via the ceiling or an exterior wall.
(Suitable ducting kits may be purchased from the depot where you bought the extractor.) You do not
need charcoal filters when using the external ducting mode.
Fig 1.
Ducting mode
(No charcoal filters required)
Fig 2.
Recirculation mode
(Charcoal filters HJA2906 required)
Extraction Via Ducting
Never use the hood in areas where devices with
exhaust pipes connected to the outside are
already operating unless perfect ventilation can
be guaranteed. There shall be adequate
ventilation in the room when the extractor is
used at the same time as an appliance burning
gas or other fuels.
• Connect the external ducting kit to the outlet
of the extractor.
Charcoal filters are not required if the
extractor is to be ducted out.
Tips for ducting optimal air extraction:
• Keep duct work short and straight.
• Do not reduce the size or diameter of the duct.
• Keep ductwork taut to minimise pressure loss.
Extraction Via Recirculation
For extraction via recirculation, attach 2 charcoal
Before attempting to change or fit the
charcoal filters ensure the power to
the extractor is switched o.
filters to the sides of the motor inside the hood.
These can be ordered separately quoting part
reference
• Remove the grease filters.
• Align the carbon filtersover the pins located
on either side of the fan motor.
• Turn the carbon gently, until you feel them
click into position.
• Replace the grease filters before the power
supply it turned back on.
Installation
(HJA2906).
Ducting kit
supplied separately
Vent through
external wall
ceiling
Filtered air
recirculated

Exclusive to Howdens Joinery.co Page _ 9
User manual LAM2475 LAM2476

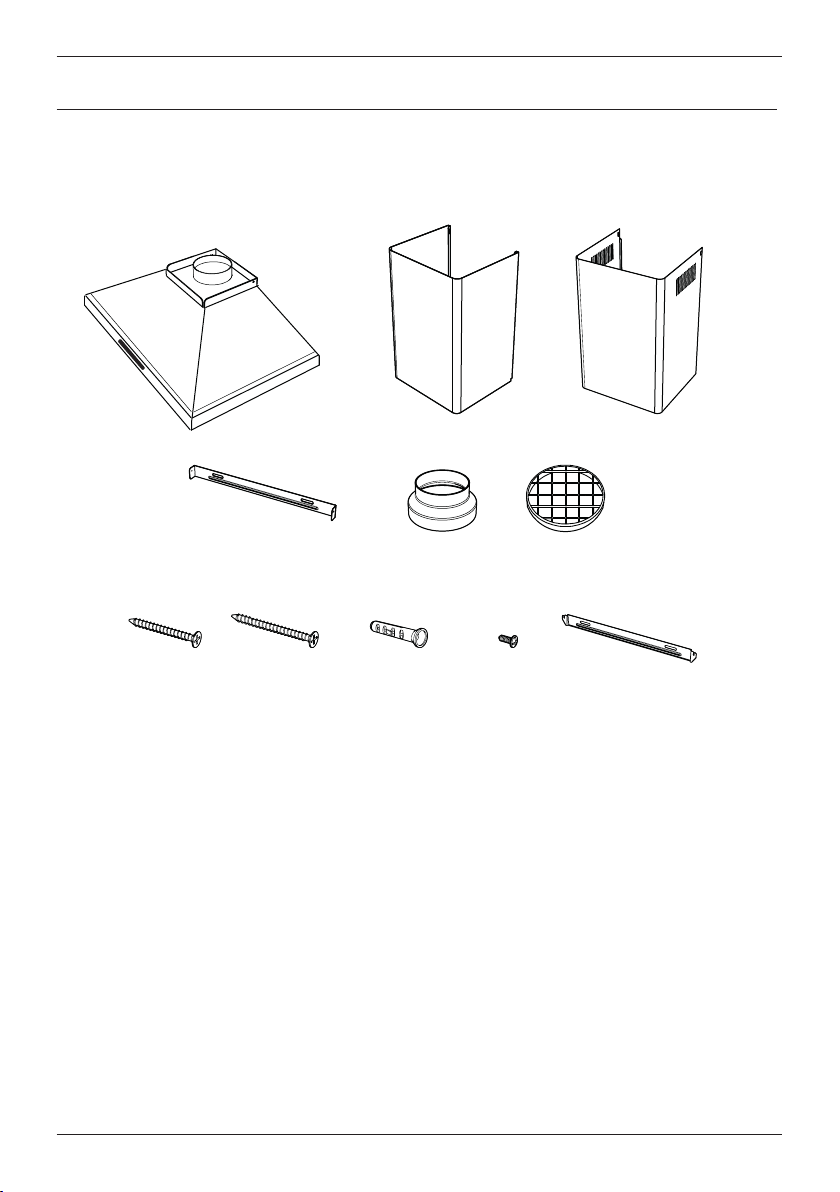

Part Indentification
On opening your box you will find the extractor body, two piece telescopic decorative chimney, a
of wall fixings and screws, two fixing brackets, a ducting connector and reducer.
1. Main Extractor Body
2. Lower Chimney
3. Upper Chimney
4. Chimney Bracket
5. Outlet Reducer
6. Cable Grid
7. 4x 4mm x 30mm Fixing Screw
8. 2x 4mm x40mm Fixing Screw
9. 6x Rawl Plugs
10. 4x Chimney Fixing Screws
11. Lower Chimney Bracket
1. 2. 3.
4.
5. 6.
7. 8. 9. 10. 11.

www.howdens.com
Page _ 10
LAMONA Appliances
Hanging Your Extractor
This instruction must be strictly adhered to. Failure to comply could result in overheating and
serious damage to your appliance. It is recommended that the installation is carried out by
two people.
105mm
250mm
285mm
480mm
Min 485mm
Max 955mm
Electrical Hob
650mm Minimum
Gas Hob
750mm Minimum
Worktop
Before drilling or chiselling the ceiling or wall, check for pipes and power cables.
We strongly advise that all exterior outlets be fitted with non return flap or louvred slatting.
Ensure extractor is installed level above the worktop.
•
•
•
If ducting externally ensure the ducting tube is kept as short as possible and with the minimum
of bends to permit the smoothest airflow (Maximum length 3 meters). Ducted air must not be
discharged into a flue which is used for exhausting fumes from appliances supplied with energy
other than electricity (E.g gas boilers).
Ensure the requirements of the local authorities are adhered to concerning the discharge of
exhaust air.
Ensure adequate room ventilation is provided when the extractor is used in the same room as
appliances supplied with energy other than electricity.
Never duct into a hot air flow such as a central heating duct.
Remove the grease filters before trying to install.
The recommended fixing height for the hood is 750mm above the worktop. This can be reduced
to be a minimum of 650mm if required.
Mark and drill the holes required to mount the extractor body.
The principle securing point is the two upper screws (9), secure in position but not fully flush.
With the help of an assistant, hang the extractor body on the upper screws and secure in position
through the lower two mounting screws (8).
1.
2.
3.
4.
5.

Exclusive to Howdens Joinery.co Page _ 11
User manual LAM2475 LAM2476
Decorative Chimney Fitting
1. Connect the extractor to the electricity supply (see electrical connections page). We recommend an
isolation switch that is accessible after installation.
2. The outlet reducer (5) maybe required depending on your ducting kit (supplied separately).
3. Fit the appropriate ducting kit if venting externally.
4. Rest the chimney sections on the main extractor body and extend the upper section to the ceiling
5. Use the extended chimney sections to mark-up the appropriate position of bracket (4).
6. Remove the chimney sections, drill and secure brackets with appropriate fixings (8).
7. Resit the chimney sections on to the extractor body, hooking the lower section on to bracket (4) and
secure to the wall bracket using screws (10) provided.
DO NOT: Operate the extractor without the grease filters in position.
To achieve minimum height
only fit section (2)
2. Lower Chimney
1. Hood
5. Outlet Reducer
Ducting hose to
be attached for
external ducting
For non-vented
extraction fit the
grid
3. Upper Chimney
4. Upper Chimney
Bracket
6. Lower Chimney
Bracket
Min: 485mm
Max: 955mm

www.howdens.com
Page _ 12
LAMONA Appliances
Electrical Connections
IMPORTANT: Ensure that the electricity supply is switched o before connecting.
IMPORTANT: The wires in the mains lead are coloured in accordance with the following code:-
Blue.....................Neutral
Brown..................Live
Green/ Yellow.....Earth
As the colours of the wires in the mains lead of this appliance may not correspond with the coloured
markings identifying the terminals in your spur box, proceed as follows;
The wire which is coloured blue must be connected to the terminal which is marked with the letter
‘N’ or coloured BLACK. The wire which is coloured brown must be connected to the terminal which
is marked with the letter ‘L’ or coloured RED. The wire which is coloured Green and Yellow must be
connected to the terminal which is marked with the letter ‘E’’ or Symbol
Fig 3. Fig 4.
N
L
L
N
LOAD
SUPPLY
LOAD
SUPPLY
DP
13A 250V~
FUSE ON
Blue.
(Neutral)
Brown.
(Live)
The terminology DOUBLE/POLE -/+ means that both the live and neutral supplies are switched
and disconnected at the same time.
The terminations labelled SUPPLY are the connections for the internal house wiring and the
terminations labelled LOAD are for the connection to the appliance.
When fitting in recirculation mode (with no carbon filters) ensure the cable is shortened or securely
held in place to prevent the loose cable from falling back into the motor.
Your appliance must be connected to fixed wiring via the use of a double pole switched fused spur
outlet with at least 3mm contact separation. The isolation switch must be accessible after installation
(technical data for fuse rating).
We strongly recommend the appliance is connected by a suitably qualified person.
The product must be installed in accordance with all local regulations.

Exclusive to Howdens Joinery.co Page _ 13
User manual LAM2475 LAM2476
If you cannot eliminate the problem after following the instructions in this section, consult your
Metal Surfaces of the Extractor and Condensation
When cooking with pans using a large water content, large quantities of vapour and steam can be
produced very quickly. This steam may condense onto the cold metallic surfaces of the extractor and
even the splash back area if tiled, glazed etc (This is not a fault with either the hob or extractor if
correctly installed). The amount of this condensation on any particular surface will depend on many
factors including the ambient temperature in the kitchen, the related ambient temperature of the
metal surfaces, the general ventilation within the kitchen, the type of food being cooked and the
duration. Using lids on pans can help reduce the amount of steam being released and subsequent
condensation.
depot or the Authorised Service Agent. Never try to repair a nonfunctional product yourself.
Troubleshooting
Technical Specification
TECHNICAL INFORMATION
General
Total power consumption 73W
Fuse 3 A
Voltage /Frequency 220-240 V ~ 50 Hz
Cable type / section 0.75mm, 3 core or equivalent
Cable length max. 1.5m
Lamps 2x1.5W LED warm white 3000k (DSR-1.5/30-S-64)
TROUBLESHOOTING GUIDE
Symptoms Possible Cause Solutions
Lamps fail to operate?
Light functions but fan
does not
• Lamps internal fault.
Clogged filters can reduce the
products eciency. Check the
grease and charcoal filters (if
fitted) also ensure any venting
is not obstructed?
Clogged filters can reduce the
products eciency and may
cause unwanted smells.
The mains fuse maybe defective
or tripped.
• Power is cut (extractor will not
function).
• Lamp has passed its usable life.
• Motor temp has exceeded and
thermal fuse has tripped.
Call the authorised service agent.
Clean the grease filters with warm water and mild
detergent, and/or replace any charcoal filters
Clean the grease filters with warm water and mild
detergent, and/or replace any charcoal filters
• Switch o the extractor and allow it to cool down
and the fuse will auto reset.
•
•
•
•
•
•
Check the filter condition and clean or replace
as required.
Motor is on but fan does
not seem to be as ecient
as usual?
The extractor works
normally but smells linger?
•
•
Product does not operate? • Check fuses in the fuse box. If necessary, replace
or reset them.
• Product is not connected properly. Check all power connections.

www.howdens.com
Page _ 14
LAMONA Appliances
Your Guarantee
Product Guarantee Details (UK Only)
Where to find the model
and serial number on
your machine.
Remove grease filter
sticker inside the main
body.
Your appliance has the benefit of a comprehensive manufacturer’s guarantee which covers the cost
of breakdown repairs. (Details of which are shown on your Proof of purchase Document).
• Any claim during the period of the guarantee MUST BE ACCOMPANIED BY THE PROOF OF
PURCHASE.
• The product must be correctly installed and operated in accordance with the manufacturer’s
instructions and used for normal domestic purposes.
• This guarantee does not cover accidental damage, misuse or alterations which are likely to aect
the product.
• The guarantee is invalid if the product is tampered with, or repaired by any unauthorised person.
(The guarantee in no way aects your statutory or legal right)
What to do if you need to report a problem.
Please ensure you have ready:
• The product’s model and serial numbers.
• Howdens Proof of Purchase Document.
• Your full contact details.
Call the Depot number on your Proof of Purchase
Document supplied with the product / kitchen.
or
Call the LAMONA Service Line on 0344 460 0006
*Product installed within a domestic kitchen or a non-domestic kitchen where 8 or fewer
people are using the appliance.

Product serial number
(Place sticker here)
ISSUE v1 070219
