Lamona LAM2703 Guide

Instructions and Installation
LAM2703 60cm Stainless Steel
LAM2704 60cm Black
LAM2705 90cm Stainless Steel
LAM2706 90cm Black
Angled Extractor
www.howdens.com/appliance-registration

See back page for product serial number

www.howdens.com
Page _ 2
LAMONA Appliances
Dear Customer,
Congratulations on your choice of a LAMONA domestic appliance.
The user manual will help you use your product quickly and safely.
• Please read this user manual before installing and using the product.
• Always follow the safety instructions.
• Keep this user manual within easy reach for future reference.
• Please read any other documents supplied with the product.
Explanation of symbols
Throughout this user manual the following symbols are used:
Important information or useful tips about usage.
Warning for possible hazards to health and property.
Warning possibility of electric shock.
This product’s packaging material is recyclable. Help recycle it and protect the environment
by dropping it off in the municipal receptacles provided for this purpose. Your product also
contains a great amount of recyclable material. It is marked with this label to indicate
the used appliances that should not be mixed with other waste. This way, the appliance
recycling organised by your manufacturer will be done under the best possible conditions,
in compliance with European Directive 2012/19/EU on Waste Electrical and Electronic
Equipment. Contact your town hall or your retailer for the used appliance collection points
closest to your home. We thank you doing your part to protect the environment.
By placing the marking on this product, we declare, on our own responsibility, compliance to all of
European safety, health and environmental requirements stated in the legislation for this product.
Metal Surfaces of the Extractor and Condensation
When cooking with pans using a large water content, large quantities of vapour and steam
can be produced very quickly. This steam may condense onto the cold metallic surfaces of the
extractor and even the splash back area if tiled, glazed etc.
(This is not a fault with either the hob or extractor if correctly installed.)
The amount of this condensation on any particular surface will depend on many factors including the
ambient temperature in the kitchen, the related ambient temperature of the metal surfaces, the
general ventilation within the kitchen, the type of food being cooked and the duration. Using lids on
pans can help reduce the amount of steam being released and subsequent condensation.
Energy Efficiency
In order to optimise efficiency of the product and reduce environmental impact we recommend the following:
• Product is installed in ducted configuration, using maximum Ø of ducting advised in this manual, ducting
as straight and as short as possible.
• Any filters are cleaned/replaced when necessary to maintain good airflow and grease filter efficiency.
• Switch on the hood at the minimum speed required to clear unwanted cooking odours.
• Switch off lighting when not in use or not required.

Exclusive to Howdens Joinery.co Page _ 3
User manual LAM2703 2704 2705 2706
Index
Before Using The Extractor
Safety
General
Safety for children
when working with electricityytefaS
General Information and Operation
r layoutotcartxE
Control panel layout
Care and maintenance
General cleaning
Grease filters
Carbon filters
Replacing the lamps
Installation
Methods of extraction
Extraction via ducting
Extraction via recirculation
Parts indentification
Hanging your extractor
Decorative chimney fitting
Electrical connections
04
04
04
04
04
05
05
05
06
06
06
07
07
08
08
08
08
09
10
11
12
13
13
14
Technical Specification
Your Guarantee
Troubleshooting

www.howdens.com
Page _ 4
LAMONA Appliances
• Make sure that you have removed all packaging, wrappings, stickers and from the Extractor
• It is recommended that you clean the extractor’s surface before using for the time.
Before Using the Extractor
This appliance is for domestic extraction
purposes only. It must not be used for other
purposes. Commercial use will void the guarantee.
The manufacturer shall not be liable for any damage
caused by improper use, installation or handling
errors
General
This product is not intended to be used by persons
with physical, sensory or mental disorders or
unlearned or inexperienced people (including
children) unless they are supervised by a person
who will be responsible for their safety or who will
instruct them accordingly in the use of the product.
• Do not operate the product if the power cable
is damaged. Call service agent.
• Do not carry out any repairs or
on the product. However, you may remedy
some the problems that do not require any
repairs or See Troubleshooting,
at the rear of this manual.
• Never wash down the product with excessive
water, as there is the risk of electric shock!
• Never use the product when your judgment or
coordination is impaired by the use of alcohol
and/or drugs.
• Product must be disconnected from the mains
during installation, maintenance, cleaning and
repair procedures.
• Repair procedures must always be performed
by service agents. The manufacturer
shall not be held responsible for damages
arising from procedures carried out by
unauthorised persons, which may also void
the guarantee.
DO NOT flambè under the extractor.•
• Keep all ventilation slots clear of obstructions,
as this may cause premature failure of the
appliance
• Do not trap the mains cable and do not route
it over surfaces which may become hot. The
cable insulation may melt and cause a as
a result of a short circuit.
• Make sure that the product function buttons
are switched off after every use.
• Product must be installed by a person
in accordance with the regulations in force
otherwise, the guarantee may become void.
Safety for children
Electrical products can be dangerous to children.
Keep children away from the product when it is
operating and do not allow them to play with or near
the product.
The packaging materials will be dangerous for
children. Keep the packaging materials away
from children. Please dispose of all parts of the
packaging according to environmental standards.
Safety when working with
electricity
In case of any damage, switch off the product and
disconnect it from the mains. To do this, turn off the
fuse at the fuse box.
Make sure that fuse rating is compatible with the
product.
Safety

Exclusive to Howdens Joinery.co Page _ 5
User manual LAM2703 2704 2705 2706
1. Upper Chimney Section
2. Recirculation Vent
3. Lower Chimney Section
4. Fan and Light Controls
5. Extractor Body
General Information & Operation
Extractor layout
1.
2.
5.
3.
4.
Control panel layout
1 2 3i
Extractor Light On/Off
1. Extractor Power Level 1
2. Extractor Power Level 2
3. Extractor P
(3i Intensive - push twice)
Delay function
The delay function will automatically switch off the hood 5 minutes after setting. The delay function can be
activated on all power functions. When on press and the hold the power level icon for 5 seconds, the icon
will flash when activated. It can be ended sooner by pressing the power level icon again.
Intensive Function
On power level 3, push twice to activate intensive speed. Intensive speed runs for 6 minutes after which
the hood switches off automatically. Press power level 3 again to deactivate.
ower Level 3

www.howdens.com
Page _ 6
LAMONA Appliances
Before cleaning or attempting any type of maintenance, always make sure that the electricity
CAUTION: Accessible parts may become hot when used with cooking appliances.
supply is disconnected.
The manufacturer declines all liability in cases where the instructions for the appropriate installation,
maintenance and use of the extractor hood are not observed.
If the power cable is cut or damaged in any way, disconnect the extractor from the electricity supply and call
the service number on the rear cover of this booklet or a suitably repairer.
General cleaning
Wipe the external surfaces of the appliance regularly using warm water and a mild detergent. NEVER use
abrasive cleaners, or strong household cleaners as they may affect the appearance of the product and /or
artwork on the control panel, voiding the manufacturers warranty.
Care and Maintenance
The grease filters
The grease
The grease filters should be cleaned every two
months or sooner depending on the type of cooking
being performed.
is of a metallic material and should
be washed regularly using a neutral detergent,
it can be cleaned in a dishwasher.
Grease filters should be washed separately to
crockery and kitchen utensils.
Grease filters should be thoroughly
dried before reinstalling on the
extractor.
1 Push latch to remove
Installation is the reverse of the
removal process.
2 Lower
2
1

Exclusive to Howdens Joinery.co Page _ 7
User manual LAM2703 2704 2705 2706

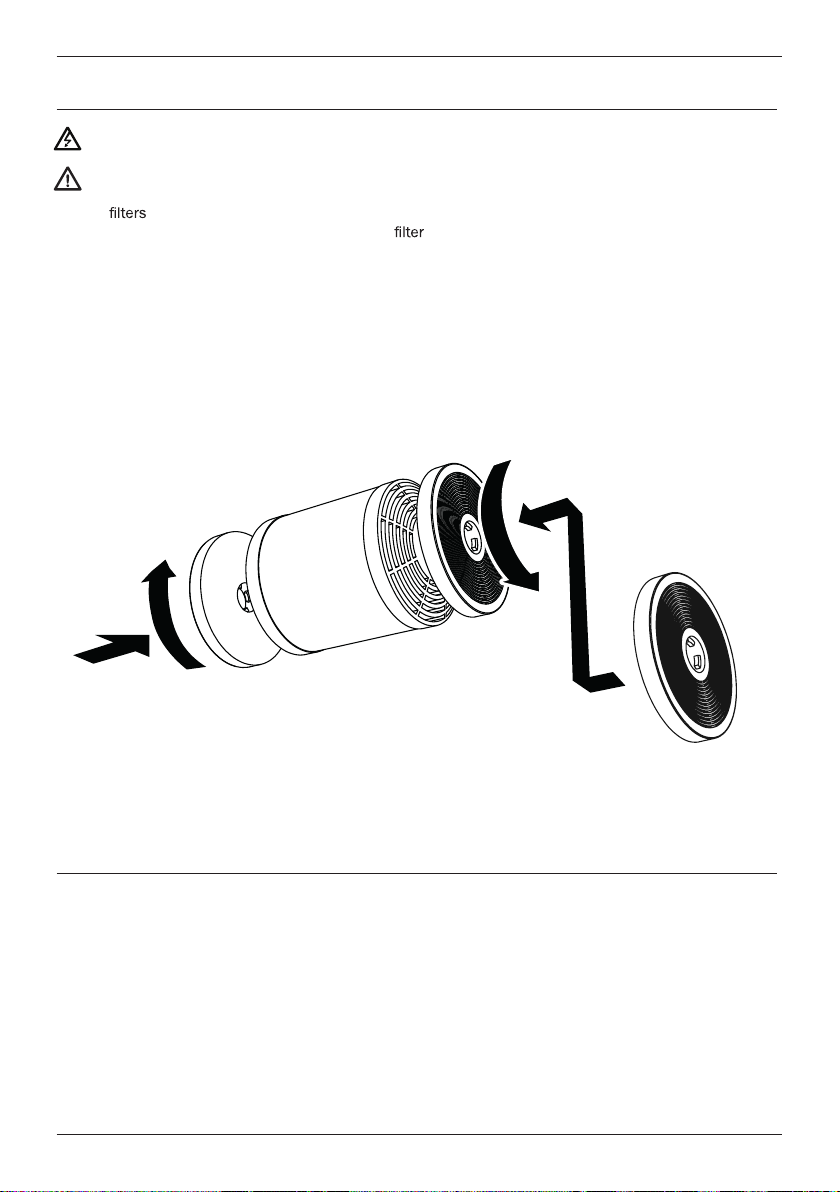

The carbon filters (supplied separately)
Carbon have a limited life. We advise you to change them when there is a noticeable drop in
performance. The intervals between changing the will depend entirely upon the amount of cooking you
do, but on average they will last about 3 months. Please quote the part reference number LAM2004
(pack of 2) when reordering.
• To gain access to the carbon filters, first of all remove the grease filters as above.
Remove the old filters and install new charcoal filters by turning them gently.
Refit grease filters.
Reconnect the power supply.
NOTE: The suction will be lower when installed in recirculation mode, this is normal and not a product fault.
•
•
•
Replacing the lamps
The lamps on this model are service fix only and replacement should be carried out by an authorised
service agent.
The extractor hood is fitted 1W LED lamps which will give many years of reliable service.
In the event of one of the lamps failing please call the service number.
The lamps on this appliance should only be used during operation of the cooker hood. They should not be
left on permanently and used as a main lighting source. The extractor is for domestic use only.
Before attempting to change or fit the charcoal filters ensure power to the extractor is switched off.
Carbon filters only required for recirculation mode.

www.howdens.com
Page _ 8
LAMONA Appliances
Methods of extraction
The very best method of clearing the kitchen of unwanted odours is by connecting the appliance to an
exhaust duct and venting to the outside atmosphere via the ceiling or an exterior wall. (Suitable ducting kits
may be purchased from the depot where you bought the extractor.) You do not need charcoal when
using the external ducting mode.
Filtered air
recirculated
Fig 1.
Ducting mode
(No charcoal required)
Fig 2.
Recirculation mode
(Charcoal LAM2004 required)
Extraction via ducting
Never use the hood in areas where devices with
exhaust pipes connected to the outside are
already operating unless perfect ventilation can be
guaranteed.
There shall be adequate ventilation in the room when
the extractor is used at the same time as an appliance
burning gas or other fuels.
• Connect the external ducting kit to the outlet
of the extractor.
Charcoal filters are not required if the extractor
is to be ducted out.
Tips for ducting optimal air extraction:
• Keep duct work short and straight.
• Do not reduce the size or diameter of the duct.
• Keep ductwork taut to minimise pressure loss.
Extraction via recirculation
For extraction via recirculation, attach 2 charcoal
to the sides of the motor inside the hood.
These can be ordered separately quoting part
reference
switched off.
• Remove the grease
• Align the carbon over the pins located
on either side of the fan motor.
• Turn the carbon gently, until you feel them
click into position.
• Replace the grease before the power
supply it turned back on.
Installation
(LAM2004).
Ducting kit (APL2805/6/7)
Supplied Separately
Vent through external
wall or ceiling

1. 2.
3.
4. 5. 6. 7. 8. 9.
Exclusive to Howdens Joinery.co Page _ 9
User manual LAM2703 2704 2705 2706
Part indentification
On opening your box you will the extractor body, a two-piece telescopic decorative chimney, a bag of
wall and screws, two brackets, and an outlet reducer.
1. Main Extrac tor Body
2. Lower Chimney
3. Upper Chimney
4. Outlet Reducer
5. Chimney fixing screws
6. Upper Chimney Screws
7
8. Rawl Plugs
. Lower Chimney Screws
9. Extractor Brackets

12
3
www.howdens.com
Page _ 10
LAMONA Appliances

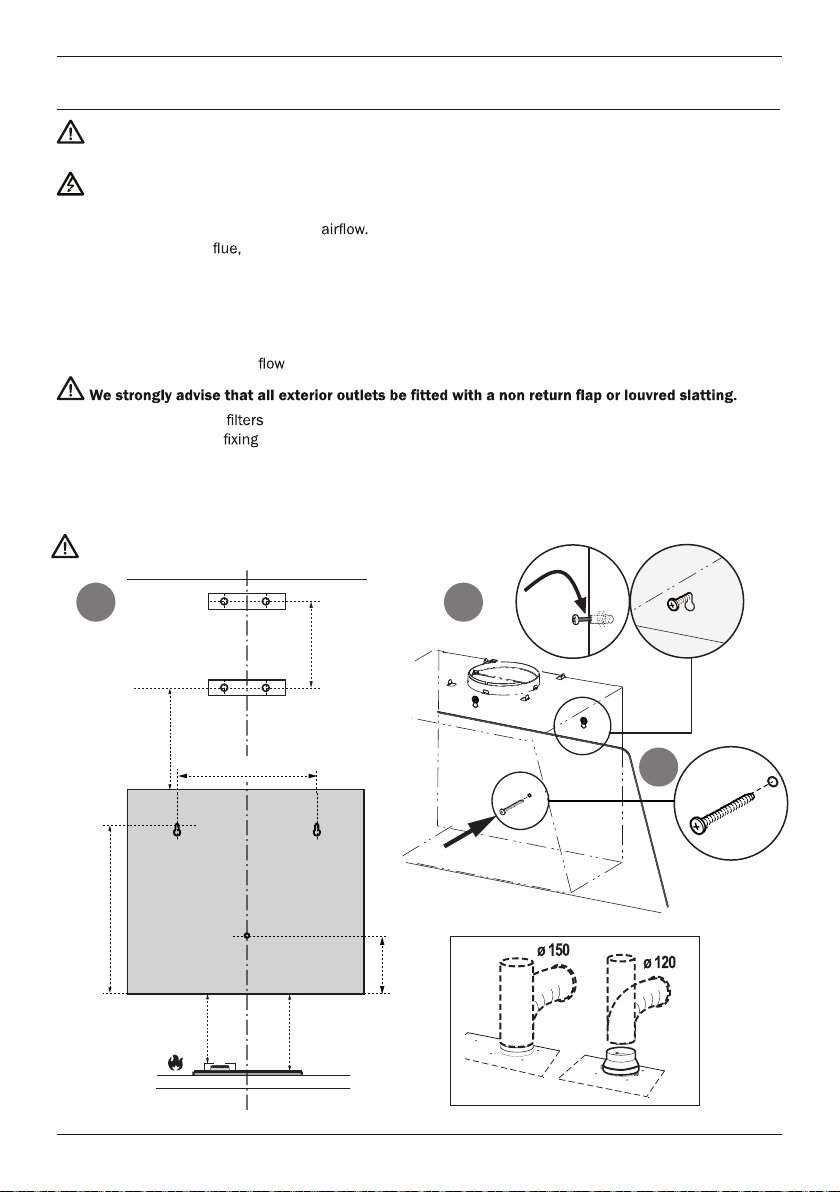

Hanging your extractor
This instruction must be strictly adhered to. Failure to comply could result in overheating and
serious damage to your appliance. It is recommended that the installation is carried out by two people.
Before drilling or chiselling the ceiling or wall, check for pipes and power cables.
Ensure extractor is installed level above the worktop.
• If ducting externally ensure the ducting tube is kept as short as possible and with the minimum
of bends to permit the smoothest (Maximum length 3 metres.). Ducted air must not be
discharged into a which is used for exhausting fumes from appliances supplied with energy other
than electricity. (E.g. gas boilers)
• Ensure the requirements of the local authorities are adhered to concerning the discharge of exhaust
air.
• Ensure adequate room ventilation is provided when the extractor is used in the same room as
appliances supplied with energy other than electricity.
• Never duct into a hot air such as a central heating duct
1. Remove the grease before trying to install.
2. The recommended height for the hood is 700mm above the hob. This can be reduced to
a minimum of 465mm above the top of the hob if required.
3. Mark and drill the holes required to mount the extractor body, fit the screws in holes (A).
4. With the help of an assistant, hang the extractor body on the upper screws (A) and secure in position
with the lower mounting screw (B).
316mm
465 min.
465 min.
260mm
Gas Electric
370mm
108mm
AA
A
A
A
B
B
B
380mm Max
Duct = 20mm Min
Recir = 170mm Min

1 2
34
5
Exclusive to Howdens Joinery.co Page _ 11
User manual LAM2703 2704 2705 2706
Decorative chimney fitting
1. Connect the extractor to the electricity supply (see electrical connections page). We recommend an
isolation switch that is accessible after installation.
2. The outlet reducer maybe required depending on your ducting kit (supplied separately).
3. Fit the appropriate ducting kit if venting externally.
4. Follow installation steps below.
5. Fit the carbon filters if required.
6. Refit the grease filters.

www.howdens.com
Page _ 12
LAMONA Appliances

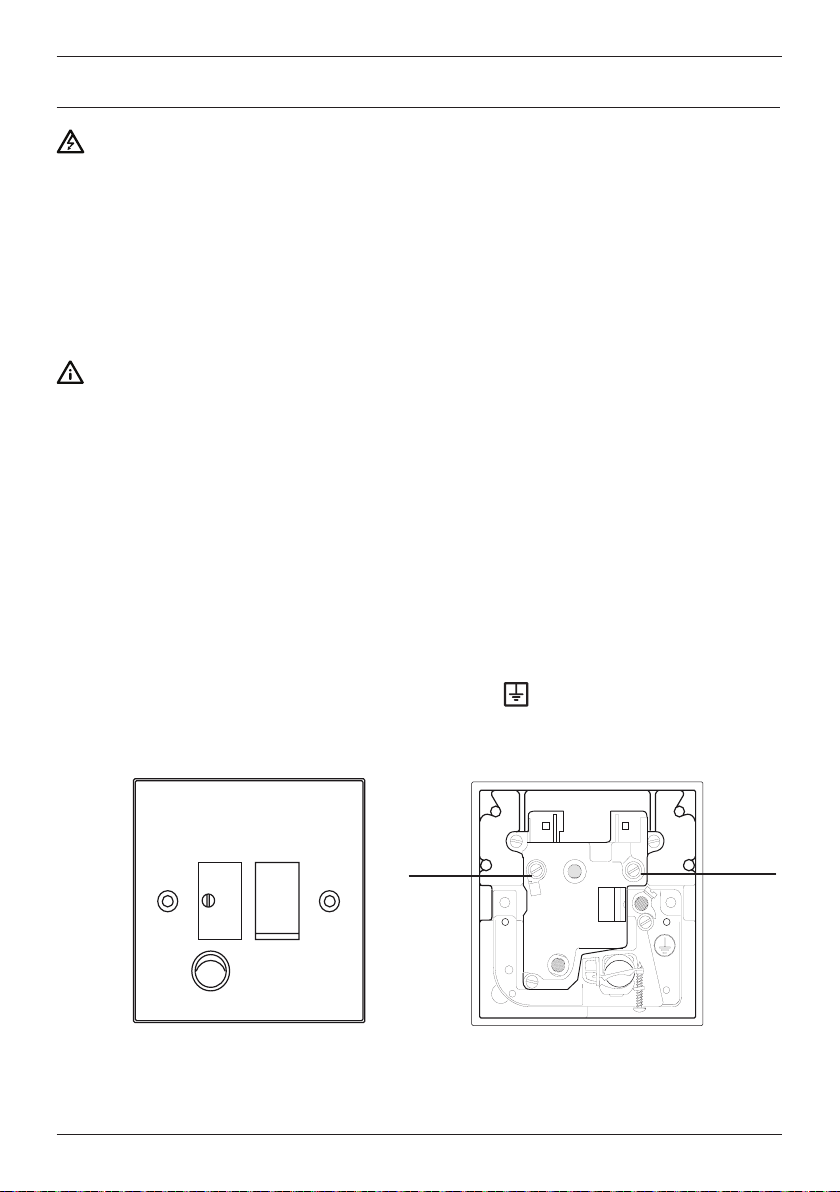

Electrical connections
IMPORTANT: Ensure that the electricity supply is switched off before connecting.
Your
When fitting in recirculation mode (with carbon filters) ensure the cable is shortened or securely held in place to prevent
the loose cable from falling back into the motor.
appliance must be connected to fixed wiring via the use of a double pole switched fused spur outlet
with at least 3mm contact separation, The isolation switch must be accessible after installation. (See
technical data for fuse rating).
We strongly recommend the appliance is connected by a suitably qualified person.
The product must be installed in accordance with all local regulations.
The terminology DOUBLE POLE -/+ means that both the live and neutral supplies are switched and
disconnected at the same time.
The terminations labelled SUPPLY are the connections for the internal house wiring and the terminations
labelled LOAD are for connection to the appliance.
IMPORTANT: The wires in the mains lead are coloured in accordance with the following code:-
Blue.....................Neutral
Brown..................Live
Green/ Yellow.....Earth
As the colours of the wires in the mains lead of this appliance may not correspond with the coloured
markings identifying the terminals in your spur box, proceed as follows;
The wire which is coloured blue must be connected to the terminal which is marked with the letter
‘N’ or coloured BLACK. The wire which is coloured brown must be connected to the terminal which
is marked with the letter ‘L’ or coloured RED. The wire which is coloured Green and Yellow must be
connected to the terminal which is marked with the letter ‘E’ or Symbol
Fig 3. Fig 4.
N
L
L
N
LOAD
SUPPLY
LOAD
SUPPLY
DP
13A 250V~
FUSE ON
Blue.
(Neutral)
Brown.
(Live)

Exclusive to Howdens Joinery.co Page _ 13
User manual LAM2703 2704 2705 2706
If you cannot eliminate the problem after following the instructions in this section, consult your
Metal Surfaces of the Extractor and Condensation
When cooking with pans using a large water content, large quantities of vapour and steam can be produced
very quickly. This steam may condense onto the cold metallic surfaces of the extractor and even the splash
back area if tiled, glazed etc (This is not a fault with either the hob or extractor if correctly installed). The
amount of this condensation on any particular surface will depend on many factors including the ambient
temperature in the kitchen, the related ambient temperature of the metal surfaces, the general ventilation
within the kitchen, the type of food being cooked and the duration. Using lids on pans can help reduce the
amount of steam being released and subsequent condensation.
depot or the Authorised Service Agent. Never try to repair a nonfunctional product yourself.
Troubleshooting
TECHNICAL INFORMATION
General
Total power consumption 142W
Fuse 3 A
Voltage /Frequency 220-240 V ~ 50 Hz
Cable type / section 0.75mm², 3 core or equivalent
Cable length max. 1.5m
Lamps 2X 1W LED natural white 4000k
TROUBLESHOOTING GUIDE
Symptoms Possible Cause Solutions
Lamps fail to operate?
Light functions but fan
does not
• Lamps internal fault.
• Power is cut (extractor will not function).
• Lamp has passed its usable life.
• Motor temp has exceeded and
thermal fuse has tripped.
Call the authorised service agent.
• Switch off the extractor and allow it to cool down
and the fuse will auto reset.
• Check the filter condition and clean or replace
as required.
Motor is on but fan does
as usual?
• Clogged can reduce the
product’s Check the grease
and charcoal (if also
ensure any venting is not obstructed?
Clean the grease with warm water and mild
detergent, and/or replace any charcoal
The extractor works
normally but smells linger?
• Clogged can reduce the
product’s and may cause
unwanted smells.
Clean the grease with warm water and mild
detergent, and/or replace any charcoal
Product does not operate? • The mains fuse maybe defective or
has tripped
Check fuses in the fuse box. If necessary, replace or
reset them.
• Product is not connected properly. Check all power connections.

www.howdens.com
Page _ 14
LAMONA Appliances
Your guarantee
Product guarantee details (UK only)
Where to find the model
and serial number on
your machine.
Remove grease filter
sticker inside the main
body.
Your appliance has the benefit of a comprehensive manufacturer’s guarantee which covers the cost of
breakdown repairs. (Details of which are shown on your Proof of purchase Document).
• Any claim during the period of the guarantee MUST BE ACCOMPANIED BY THE PROOF OF
PURCHASE.
• The product must be correctly installed and operated in accordance with the manufacturer’s
instructions and used for normal domestic purposes.
• This guarantee does not cover accidental damage, misuse or alterations which are likely to affect
the product.
• The guarantee is invalid if the product is tampered with, or repaired by any unauthorised person.
(The guarantee in no way affects your statutory or legal right)
What to do if you need to report a problem.
Please ensure you have ready:
• The product’s model and serial numbers.
• Howdens Proof of Purchase Document.
• Your full contact details.
Call the Depot number on your Proof of Purchase
Document supplied with the product / kitchen.
or
Call the LAMONA Service Line on 0344 460 0006
*Product installed within a domestic kitchen or a non-domestic kitchen where 8 or fewer people
are using the appliance.

Product serial number
(Place sticker here)
ISSUE v1 050718
