LaMotte Tracer 1741 User manual

Water Testing Leader Since 1919!
Leader en analyse d’eau depuis 1919!
TracerTM
pH PockeTester
Code 1741
Do Not allow pH sensor to
dry out.
¬ Store Upright
¬ Before first use, tap meter
against palm to move
electrolyte to tip.
¬ See pages 7 and 10.
Ne laissez pas le capteur
sécher.
¬ Stockez l’instrument à la
verticale.
¬ Avant toute utilisation,
tapotez l’instrument contre
la paume de votre main
pour déplacer l’électrolyte
vers le bout du capteur.
¬ Reportez-vous aux pages
22 et 26.

WARNING! This set contains chemicals
that may be harmful if misued. Read
cautions on individual containers
carefully. Not to be used by children
except under adult supervision.

3
INTRODUCTION
Thank you for selecting the pH TRACERTM PockeTester. This instrument is
designed for high accuracy pH testing. This device is shipped fully tested
and calibrated and, with proper use, will provide years of reliable service.
SPECIFICATIONS
Display Multifunction LCD with Bar graph
Operating Conditions 32 to 122°F (0 to 50°C) and < 80% RH
pH Range & Accuracy 0.01 to 14.00/±0.01 pH typical
Temperature Compensation Automatic from 32 to 194°F (0 to 90°C)
Temperature Range 23 to 194°F (–5 to 90°C)
Temperature Resolution 0.1° up to 99.9, then 1° thereafter
Temperature Accuracy ±1.8°F/1°C [from 23 to 122°F (–5 to 50°C)]
±5.4°F/3°C [from 122 to 194°F (50 to 90°C)]
Measurement storage 15 tagged (numbered) readings
Power Four CR2032 button batteries (see Page 6)
Low battery indication BAT appears on the LCD
Auto power off After 10 minutes of inactivity
Dimensions 1.4 x 6.8 x 1.6” (35.6 x 172.7 x 40.6 mm),
3.85 oz (110g)

4
PARTS & ACCESSORIES
pH Replacement Electrode Code 1733
Weighted Stand w/Sample Cups (5) Code 1746
Sample Cups w/caps (24) Code 1745-24
pH 4.01 Mini Buffer Tablets (100) Code 3983A-J
pH 7.01 Mini Buffer Tablets (100) Code 3984A-J
pH 10.0 Mini Buffer Tablets (100) Code 3985A-J
CONTENTS
pH TRACER PockeTester Kit, 0.00-14.00 pH Range Code 1741
Includes: Sample Cup w/cap †
Tablet Crusher
Buffer Tablets, pH 4.0, 7.0, & 10.0 †
Code 0175
†Not sold in this quantity. See Parts & Accessories.
*WARNING: Reagents marked with an * are considered to be potential health hazards. To
view or print a Safety Data Sheet (SDS) for these reagents go to www.lamotte.com. Search
for the four digit reagent code number listed on the reagent label, in the contents list or in
the test procedures. Omit any letter that follows or precedes the four digit code number.
For example, if the code is 4450WT-H, search 4450. To obtain a printed copy, contact
LaMotte by email, phone or fax.
Emergency information for all LaMotte reagents is available from Chem-Tel:
(US, 1-800-255-3924) (international, call collect, 813-248-0585)
To order individual reagents or test kit components, use the specified code number.

5

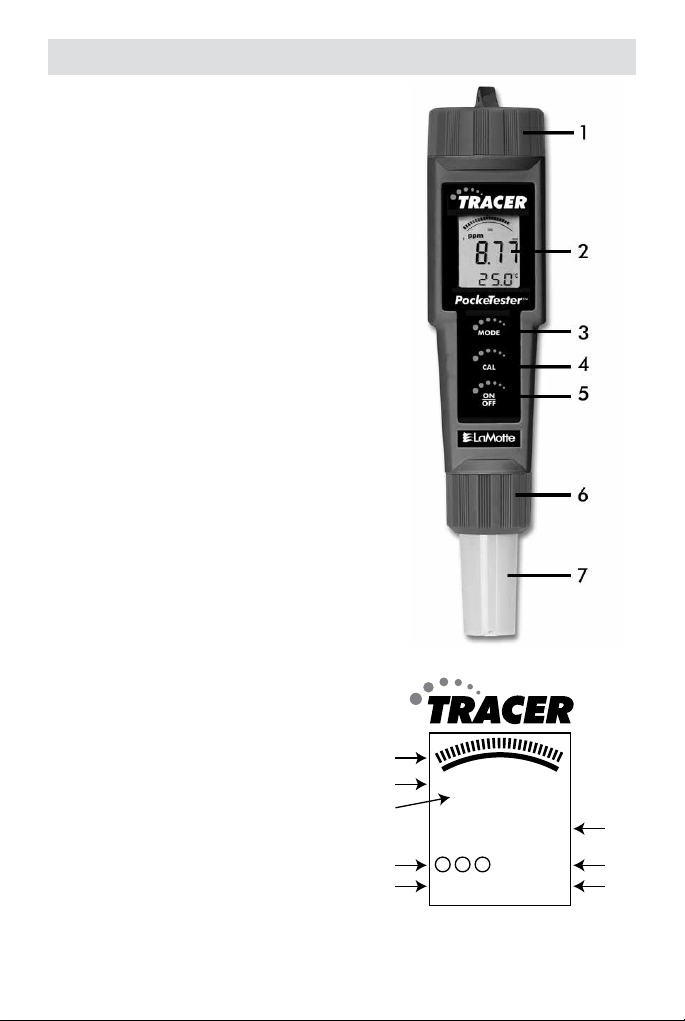

METER DESCRIPTION
Front Panel Description
1. Battery compartment cap
2. LCD display
3. MODE button
4. CAL button
5. ON/OFF button
6. Electrode collar
7. Electrode
(Note: The Electrode cap is not shown)
TRACER DISPLAY
1. Bar graph reading
2. Bar graph scale designations
3. Units of measure
4. Calibration indicators
5.
RENEW and CAL indicators
6. Measurement reading
7.
BAT (low battery) and
HOLD (data hold) indicators
8. Temperature display
3
2
7
1
4
5
6
8
1074
2.0
012
1000
7.0
500
BAT HOLD
mvpHppm
10.04
°C
°F
78.6
RENEW
CAL

6
BASIC OPERATION
Powering the TRACER
If the batteries are weak, the BAT indicator will appear on the display. Press
the ON/OFF button to turn the TRACER on or off. The auto power off feature
will shut the TRACER off automatically after 10 minutes of inactivity.
Automatic Electrode Recognition
When the TRACER is turned on, it will recognize the type of electrode that
is connected and will display the appropriate unit of measure. An electrode
must be attached before turning the meter on.
Changing the Displayed Temperature Units
Press and hold the CAL button for approximately 3 seconds. The °C or °F icon
will change first and the numerical temperature value will change only after
the button is released.
NOTE: If the calibration mode is accidentally accessed and CAL appears on
the display, turn the TRACER off and begin again.
Data Hold
Press the MODE button to freeze the current reading. The HOLD display icon
will appear along with the held reading. The held reading will be stored in
memory. Press the MODE button to return to normal operation.
DISPLAY MESSAGES
CAL Reminder
When the TRACER is turned on for the 15th time, without recalibration the
CAL icon will appear on the display indicating the the TRACER may require
calibration. Some applications may require recalibration of the electrode
sooner than others. The CAL display is a reminder and will turn off when the
pH electrode is recalibrated.
RENEW
A flashing “RENEW” warning indicates that the probe may be nearing the end
of its useful life. If cleaning or recalibration does not cause the Renew icon
to disappear, replace the electrode (see optional accessories). The Renew
display appears when the output of the pH electrode fails a diagnostic test.

7
pH TESTING
Overview
pH is a unit of measure (ranging from 0 to 14 pH) indicating the degree of
acidity or alkalinity of a solution. pH tests are the most commonly performed
measurements in water analysis, using the negative log of the hydrogen ion
activity of a solution which is an indicator of acidity or alkalinity. Solutions
with a pH of less than 7 are considered acidic, solutions with a pH of
higher than 7 are known as bases, and solutions with a pH of exactly 7 are
considered neutral.
The pH scale is logarithmic, so, for example, if Sample A is 1 pH less than
Sample B, this means that sample A is 10 times more acidic than Sample B.
A difference of 1 pH represents a ten-fold increase or decrease in acidity.
pH Display
When the electrode is placed in a solution, the main display and bar graph
will indicate the pH reading while the lower display will read temperature.
Readings flash until they have stabilized. The bar graph is ‘center zero’, i.e. at
pH 7 there is no display. As the pH rises, the bar will move from the center to
the right. If the pH drops, the bar will move from the center to the left.
Getting Started
1. Remove the cap from the bottom of the TRACER to expose the
electrode glass surface and reference junction.
2. Before first use or after storage, soak the electrode (with cap
removed) in a pH 4 buffer or tap water for 10 minutes.
3. Before first use, hold the meter by the top battery compartment
and swiftly tap the back of the meter downward into your palm (not
a hard surface). This assures that the internal electrolyte solution
moves to the very tip of the electrode. The electrolyte should fill the
circular junction window at the tip of the electrode.
4. White KCl crystals may be present in the cap. These crystals will
dissolve in the soak or they can be rinsed off with tap water.
5. Always calibrate close to the expected measurement value.
6. A sponge is located in the electrode protective cap. Keep this sponge
soaked with a pH 4 solution to prolong the life of the electrode during
storage.

8
Preparation of Buffers
1. Fill a sample cup with 20 mL of distilled or deionized water.
2. Add one buffer tablet:
pH 4.0 Code 3983A
pH 7.0 Code 3984A
pH 10.0 Code 3985A
3. Use the tablet crusher (0175) to crush the tablet. Stir until the tablet
has disintegrated.
NOTE: Buffers should be prepared fresh daily.
pH Calibration
The TRACER can be calibrated at 1, 2 or 3 points. For the most accurate
results with a two point calibration, calibrate the TRACER with a pH 7 buffer
first, then calibrate with either a pH 4 or pH 10 buffer whichever is closest
to the pH value of the sample to be tested. When performing a three point
calibration, calibrate with the pH 7 buffer first, followed with the pH 4 buffer
and then the pH 10 buffer. For the most accurate results, always calibrate at
the sample temperature.
1. Place the electrode into a buffer solution (4, 7, or 10 pH) and press
the CAL button. Typically, pH 7 is calibrated first, then 4 or 10,
depending on the measurement range. If readings are going to be
made over the entire range, calibrate with 4, 7 and 10 buffers.
2. The TRACER will automatically recognize the solution and calibrate
itself to that value. The circled number on the display will match the
pH of the buffer.
Note that if the buffer is more than 1 pH unit off from the 4, 7, or 10
pH buffer, the TRACER will assume an error and abort the calibration.
CAL and END will be displayed.
3. During calibration, the pH reading will flash on the main display.
4. When calibration is complete, the TRACER will automatically display
END and return to the pH measurement mode.
5. Rinse the electrode with distilled water.
6. The appropriate circled indicator (4, 7, or 10) will appear on the
display when a calibration has been completed. The calibration will be
stored until a new calibration is performed.
7. For a two- or three-point calibration, repeat Steps 1-5.
8. The meter should be calibrated before each use to obtain the most
accurate results.

9
9. Always turn the meter off and then on before calibrating to allow
sufficient
time to complete the calibrations during one power cycle. If
the meter auto powers off during calibration the calibrations remain
valid, but new calibrations will turn the circled indicators off.
Meter Reset
If the meter will not calibrate or displays a -1, reset the meter and attempt
to re-calibrate.
1. Turn off the meter.
2. Remove the battery cartridge from the top of the meter.
3. Press the ON/OFF button for 10 seconds to bleed off all charges
within the meter.
4. Re-insert the batteries and turn the meter on.
5. Follow the pH Calibration procedure.
pH Measurement
1. Place the electrode in the test sample.
2. Record the pH after the reading becomes stable and the display
stops flashing.
3. Press the ON/OFF button to turn the meter off. Rinse the electrode
with distilled water. Replace cap
pH Measurement of Soil
1. Place a 1:1 ratio of soil and distilled water in a small beaker. For most
analyses, 20 grams of soil and 20 grams distilled water are sufficient.
2. Wait 15 minutes. Stir occasionally with a stirring rod.
3. Stir the sample. Immediately place the electrode in the sample.
4. Wait until the display stabilizes. Record the pH.
5. Rinse the electrode in distilled water. Replace cap.
NOTE: The flat surface electrode will allow for readings directly from the soil
if there is enough moisture present in the soil.
Storing Readings

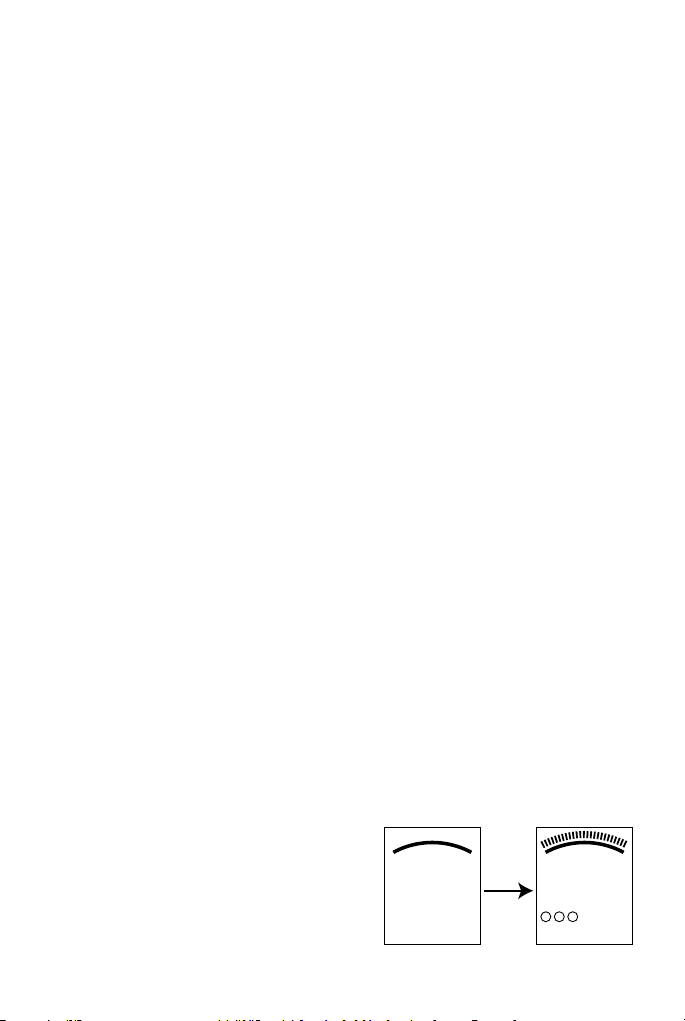

1. After the reading is made press the
MODE button to store the current
reading The storage location number
will be displayed followed by the
reading being stored.
HT4 HOLD
pH
10.04
°F
78.6
4

10
2. Press the MODE button to return to normal operation.
3. Repeat step 1 to store the next reading.
4. If an attempt is made to store more than 15 readings, the stored
readings (starting with the first reading) will be overwritten.
Recalling Stored Readings
NOTE: First ensure that the HOLD symbol is not displayed. If it is, exit the
MODE function by pressing the MODE button.
1. Press the CAL button once and then press the MODE button
immediately after CAL is displayed; the location number (1 through
15) will flash. If the CAL mode is accidentally accessed (display
flashing), press the CAL button again to exit.
2. The last stored reading taken will be displayed first. To advance
through the stored readings, press the MODE button. The location
number is displayed first, followed by the reading stored in that
location.
3. To exit the recall mode, press the CAL button and the TRACER will
return to normal operation. If the batteries are removed, any stored
readings and user calibrations will be discarded.
MAINTENANCE
Care/Storage of Electrode
1. Always rinse the electrode in tap, distilled or deionized water between
measurements to avoid cross-contamination of the samples. Double
rinsing
is recommended when high accuracy is required.
2. To preserve electrode life keep the sponge in the protective cap
soaked with a pH 4 buffer. Cap TRACER when not in use. Store
vertically.
Do Not allow sensor to dry out.
3. Do not touch the electrodes. Touching the surface of the electrodes
may damage and reduce the life of the electrodes.
4. Salt deposits may build up in the storage cap and should periodically
be
rinsed away. These deposits could affect measurements at low
conductivity.

11
Battery Replacement
1. Twist off the battery compartment cap.
2. Hold the battery housing in place with one finger. Remove the battery
carrier by pulling on the small tabs.
3. Replace the four CR2032 batteries. Observe polarity.
4. Replace the battery compartment cap.
NOTE: If the batteries are removed, stored data and user calibrations
will be cleared. A new user calibration will be required. Factory
calibrations will be retained.
All EU users are legally bound by the Battery Ordinance to
return all used batteries to community collection points or
wherever batteries/accumulators are sold.
Disposal in household trash or refuse is prohibited.
DISPOSAL: Follow the valid legal stipulations in respect of the disposal of the
device at the end of its life cycle
Other Battery Safety Reminders
¬Never dispose of batteries in a fire. Batteries may explode or leak.
¬Never mix battery types. Always install new batteries of the same type.
Cleaning and Conditioning the Electrode
Surface Cleaning – Only in case of visible surface contamination or if
readings should become erratic, use a disposable laboratory towel wetted
with ethanol or isopropyl alcohol and gently rub the surface, until no more
residue is visible.

12
Replacing the Electrode
The TRACER is shipped with an electrode attached. Electrode life is limited
and is dependant on the frequency of use and care. If the electrode needs to
be replaced, follow these steps for removing and connecting electrodes.
1. Turn meter off.
2. To remove the electrode, turn the collar counter-clockwise and
remove it.
3. Gently rock the electrode from side to side, pulling it downwards, until
it disconnects from the meter.
4. To attach an electrode, carefully plug the electrode into the meter
socket. Note that the electrode connector is keyed to ensure a proper
connection.
CAUTION: Take case to align pins carefully. Bent or broken ins will
cause the meter to malfunction.
5. Tighten the electrode collar firmly enough to make a good seal. A
rubber gasket will seal the electrode with the meter.

13
TROUBLESHOOTING
Power on
but no display
Batteries Insert batteries
Batteries Verify correct polarity
Batteries Replace batteries
Unstable
readings
Electrode Immerse electrode more deeply
in sample
Electrode Condition electrode before first
use
Electrode Remove air bubbles caught
under electrode
Electrode Clean electrode
Electrode Replace electrode
Slow response
time or reading
drift
Clogged junction Soak in 4.07M Potassium
Chloride (KCl) at 60°C for 30
minutes
Strong alkaline
measurement
Soak in 0.1M Hydrochloric acid
(HCl) overnight
Deteriorated gel layer Replace electrode
Protein coating on
electrode surface
Soak in 1g Pepsin dissolved in 10
mL of 0.1M HCl for 30 minutes or
as needed
Oil, paint, dyes,
suspended solids on
electrode
Rinse electrode alternately with
materials solvent then a buffer
7.00
Dry bulb Dehydrated membrane,
long term storage
without wetting
Soak electrode tip in wetting cap
filled with 1 mL 4.0 buffer for
24-48 hours
Static charge Wiping electrode Rinse electrode in 4.0 buffer and
blot. Do not wipe electrode
Same readings
in different
buffers and
samples
Cracked or broken
electrode
Replace electrode. Use bulb
guard. Avoid plunging electrode
into bottom of container and stir
bars.

14
Erratic LCD
display
Samples have low ionic
strength (lack salt);
e.g. distilled, deionized,
boiled, lake water (high
pressure)
For each 50 mL of sample add
1 drop (50 mL) of saturated
Potassium Chloride (KCl). No
alteration in pH will occur by
inert KCl.
Unexpected
readings
Buffers Calibrate with fresh buffers
Buffers Calibrate with buffers that
bracket sample pH
Display frozen HOLD function Press MODE or turn meter off
Button response Remove batteries press ON/OFF
button for 3 seconds. Reinsert
batteries (stored data will be
lost)
Steady “-1 ”
display
Wait Reading not stable yet
If the meter will not calibrate or displays a -1, reset the meter and attempt
to re-calibrate.
1. Turn off the meter.
2. Remove the battery cartridge from the top of the meter.
3. Press the ON/OFF button for 10 seconds to bleed off all charges
within the meter.
4. Re-insert the batteries and turn the meter on.
5. Follow the pH Calibration procedure.
¬If the unit appears to be locked (display frozen) it is possible that the
Data Hold mode has been inadvertently accessed by pressing the
MODE button. Press the MODE button again or turn the meter off and
restart if the display appears frozen.
¬If the meter does freeze and no button presses revive it, remove the
batteries, press the ON button for 10 seconds and then reinsert the
batteries.
¬If the batteries are removed, any stored readings will be discarded and
the user calibration data for pH will be cleared. New user pH calibration
data is required. However, factory calibration data will be retained.

15
EXPAND YOUR TRACER
Interchangeable electrodes are available to convert the pH TRACER to a Total
Chlorine TRACER or an ORP TRACER.
Remember to ask for instructions and appropriate reagents or buffer tablets
when ordering the Total Chlorine or ORP electrodes.
Total Chlorine TRACER Electrode, 0.0-10.0 ppm
The Total Chlorine TRACER Electrode (Code 1732) requires the
use of TRACER TCL Tablets. Order Code 7044-J (100 pack).
Code 1732
ORP TRACER Electrode, ±999 mV
The ORP TRACER Electrode (Code 1734) requires an initial
soaking in a pH 4.0 buffer solution. Order pH 4.0 Mini Buffer
Tablets/100 pack (Code 3893-J).
Code 1734
SAFETY
¬This device is not a toy. Keep out of the hands of children. It contains
hazardous objects as well as small parts that children could swallow.
If a child swallows any part of this instrument, contact a physician
immediately.
¬Do not leave batteries and packing material unattended. They can be
dangerous to children if used as toys.
¬If the device is going to be unused for an extended period of time,
remove the batteries to prevent draining.
¬Expired or damaged batteries can cause cauterization on contact with
the skin. Always use the appropriate gloves and safety precautions
when handling batteries.
¬Do not allow the batteries to short-circuit or throw batteries into a fire.

16
WARRANTY
LaMotte Company warrants this instrument to be free of defects in parts
and workmanship for 1 year from the date of shipment and warrants this
probe to be free of defects in parts and workmanship for 6 months from the
date of shipment. If it should become necessary to return the instrument for
service
during or beyond the warranty period, contact our Technical Service
Department
at 1-800-344-3100 or [email protected] for a return authorization
number or visit www.lamotte.com for troubleshooting help. The sender is
responsible for
shipping charges, freight, insurance and proper packaging
to prevent damage in
transit. This warranty does not apply to defects
resulting from action of the
user such as misuse, improper wiring, operation
outside of specification, improper
maintenance or repair, or unauthorized
modification. LaMotte Company specifically disclaims any implied
warranties or merchantability or fitness for a specific purpose and will
not be liable for any direct, indirect, incidental or
consequential damages.
LaMotte Company’s total liability is limited to repair or
replacement of the
product. The warranty set forth above is inclusive and no other warranty,
whether written or oral, is expressed or implied.
To register your meter with the LaMotte Service Department,
go to www.lamotte.com and choose SUPPORT on the top navigation bar.

17

18
INTRODUCTION
Félicitations pour votre achat de la TRACER PockeTester. This est livré
entièrement testé et calibré et, avec une utilisation correcte, vous fournira
des années de service fiable.
SPÉCIFICATIONS
Afficheur écran à cristaux liquides avec graphique à
barres
Conditions de fonctionnement 0 à 50°C (32 à 122°F) / < 80% RH
Registre et précision 0,00 à 14,00 / ± 0,01pH type
Compensation de température Automatique de 0 à 90°C (32 à 194°F)
Registre de température -5 à 90°C (23 à 194°F)
Résolution de température de 0,1° à 99,9 puis 1° par la suite
Précision de température ± 1°C / 1,8°F [de -5 à 50°C (23 à 122°F)]
± 3°C / 5,4°F [de 50 à 90°C (122 à 194°F)]
Stockage des mesures 15 lectures étiquetées (numérotées)
Alimentation Quatre (4) piles bouton CR2032
Indication de piles faibles "BAT" (piles) apparaît sur l'afficheur
Coupure automatique après 10 minutes d'inactivité
Dimensions 1.4 x 6.8 x 1.6” (35.6 x 172.7 x 40.6 mm),
3.85 oz (110g)
Dimensions 40 x 187 x 40 mm (1,6 x 7,4 x 1,6”)
Poids 87 g (87,88 g)
AVERTISSEMENT ! Ce kit contient des
produits chimiques qui peuvent être no-
cifs s’ils sont utilisés de façon impropre.
Lisez avec attention les avertissements
sur chaque récipient. Ce produit n’est
pas destiné à être utilisé par des enfants,
sauf sous la surveillance d’un adulte.

19
PIÈCES ET ACCESSOIRES
Électrode de rechange pH Code 1733
Support lesté avec récipients d’échantillon (5) Code 1746
Récipients d’échantillon avec bouchons (24) Code 1745-24
Pastilles tampon mini pH 4,0 (100) Code 3983A-J
Pastilles tampon mini pH 7,0 (100) Code 3984A-J
Pastilles tampon mini pH 10,0 (100) Code 3985A-J
CONTENTS
Kit TRACER PockeTester pH, plage de pH 0,00-14,00 Code 1741
Comprend : Un récipient d’échantillon avec bouchon †
Un broyeur de pastille
Des pastilles tampon pH 4,0, 7,0 et 10,0 †
Code 0175
†Produit non vendu dans cette quantité. Reportez-vous à la section Pièces et accessoires.
*AVERTISSEMENT : Les réactifs signalés par une astérisque * sont considérés comme
représentant des dangers potentiels pour la santé. Pour afficher ou imprimer les fiches de
données de sécurité (FDS) de ces réactifs, accédez à www.lamotte.com. Cherchez le code
à quatre chiffres du réactif indiqué sur l’étiquette du réactif, dans la liste du contenu ou
dans les procédures d’analyse. Ignorez toute lettre précédant ou suivant le code à quatre
chiffres.
Par exemple, si le code est 4450WT-H, tenez compte uniquement de 4450. Pour obtenir
une version imprimée, contactez LaMotte par courriel, téléphone ou fax.
En cas d’urgence, des informations pour tous les réactifs LaMotte sont disponibles auprès
de Chem-Tel : (US 1-800-255-3924) (appel international, en PCV, 813-248-0585).
Pour commander à nouveau des réactifs ou des composants de kit d’analyse séparément,
utiliser les numéros de code indiqués.

20
DESCRIPTION DE TRACER
Panneau de commandes avant
1. Couvercle du logement des piles
2. Afficheur LCD
3. Touche de fonction MODE
4. Touche de fonction CAL (Étalonnage)
5. Touche ON/OFF (en marche/arrêt)
6. Collet à électrodes
7. Électrode
(Le capuchon à électrodes n'est pas illustré)
Affichage
1. Lecture du graphique à barres
2. Lecture de mesures
3. Indicateurs BAT (piles faibles)
Et HOLD (maintien des données)
4. Affichage de la température
5. Désignations d'échelle du
graphique à barres
6. Unités de mesure
7. Indicateurs d’Étalonnage
8. Indicateurs RENEW
(remplacer) et CAL (Étalonnage)
3
2
7
1
4
5
6
8
1074
2.0
012
1000
7.0
500
BAT HOLD
mvpHppm
10.04
°C
°F
78.6
RENEW
CAL
