LaMotte DC1500 CHLORINE User manual

DC1500 FLUORIDE
Fluoride Colorimeter Kit
Code 3243
ACCEPTED

CONTENTS
DC1500 Fluoride Kit
Kit Contents.......................................................................................... 5
Accessories .......................................................................................... 5
Test Method Specifications
Introduction.......................................................................................... 6
Application............................................................................................ 6
Range..................................................................................................... 6
Method .................................................................................................. 6
Handling & Preservation .................................................................... 6
Interferences........................................................................................ 6
Analysis
Fluoride ................................................................................................. 7
Calibration
Standards ............................................................................................. 9
Calibration Procedure......................................................................... 9
Set Up
Setting the Clock ...............................................................................13
Logging Data ......................................................................................14
Factory Setup.....................................................................................15
Setting Power Save ...........................................................................15
Setting Backlight Time .....................................................................16
Selecting A Language .......................................................................17
Looping Menus...................................................................................18
Computer Connection
Output..................................................................................................19
Computer Connection.......................................................................19
Battery
Battery/AC Operation........................................................................19
Battery Replacement........................................................................20
Maintenance
Cleaning ..............................................................................................20
Returns................................................................................................20
Meter Disposal ...................................................................................21
General Operating Information
Overview..............................................................................................21
General Operating Information .......................................................21
The Keypad .........................................................................................22
The Display and Menus .....................................................................22
Tubes and Chambers.........................................................................24
Sample Dilution Techniques ............................................................25

4
General information
Packaging and Delivery ....................................................................25
General Precautions..........................................................................25
Safety Precautions............................................................................26
Limits of Liability ...............................................................................26
Specifications ....................................................................................27
CE .........................................................................................................28
IP67......................................................................................................28
Warranty .............................................................................................28
Trouble Shooting Guide
Error Messages ..................................................................................29
Calibration ..........................................................................................29
Stray Light ..........................................................................................29
Troubleshooting Guide......................................................................30

5
DC1500 FLUORIDE KIT
Kit Contents
QUANTITY CONTENTS CODE
2 x 100 mL *Acid-Zirconly-SPADNS Reagent *3875-J
2 x 60 mL *Sodium Arsenite Solution *4128-H
1 Pipet, 0.5 mL, plastic 0353
1 Pipet, 1 mL Plastic 0354
1 Colorimeter Tubes, w/caps,set of 6 0290-6
1 Water Sample Collecting Bottle 0688
1 1500 Colorimeter for Fluoride 27926-FL
1 USB Wall Adapter 1721
1 USB Cable 1720-01
1 DC1500-FL Fluoride Colorimeter, Manual 3243-MN
1 DC1500-FL Fluoride Colorimeter,
Quick Start Guide
3243-QG
*WARNING: Reagents marked with an * are considered to be potential health
hazards. To view or print a Safety Data Sheet (SDS) for these reagents go to
www.lamotte.com. Search the four digit reagent code number listed on the
reagent label, in the contents list or in the test procedures. Omit any letter
that follows or precedes the four digit code number. For example if code is
4450WT-H, search 4450. To obtain a printed copy, contact LaMotte by e-mail,
phone or fax.
Emergency information for all LaMotte reagents is available from Chem-Tel
(US, 1-800-255-3924) (International, call collect, 813-248-0585).
To order individual reagents or test kit components, use the specified code
number.
Accessories
DESCRIPTION CODE
Test Tubes, with Caps 0290-6
Replacement Chamber 3-0038
USB Cable 1720-01
USB Wall Adapter 1721
Car Charger 5-0132
WARNING: Only use the USB Cable (1720-01) that is supplied with the kit.
Make no substitutions.

6
TEST METHODS SPECIFICATIONS
INTRODUCTION
Fluoride may occur naturally in some ground waters or it may be added
to public drinking water supplies to maintain a 1.0 mg/L concentration to
prevent dental cavities. At higher concentrations, fluoride may produce an
objectionable discoloration of tooth enamel called Fluorosis, though levels up
to 8 mg/L have not been found to be physiologically harmful.
APPLICATION
Drinking and surface waters; domestic and industrial waters.
RANGE
0.0 to 2.0 ppm Fluoride
METHOD
Colorimetric test based upon the reaction between Fluoride and zirconium
dye lake. The Fluoride reacts with the dye lake, dissociating a portion of it into
a colorless complex ion and dye. As the Fluoride concentration increases, the
color produced becomes progressively lighter.
HANDLING & PRESERVATION
Samples may be stored and refrigerated in plastic containers.
INTERFERENCES
The following substances produce a positive interference at the concentration
given:
Chloride (Cl-) 7000 mg/L
Phosphate (PO4
-3) 16 mg/L
Hexametaphosphate (NaPO3)61 mg/L
The following substances produce a negative interference at the
concentration given:
Alkalinity (CaCO3) 5000 mg/L
Aluminum (Al+3) 0.1 mg/L
Iron (Fe+3) 10 mg/L
Sulfate (SO4
-2) 200 mg/L
Color and turbidity must be removed or compensated for in the procedure.
Temperature should be maintained within 5 degrees Celcius of room
temperature.

7
ANALYSIS
PROCEDURE

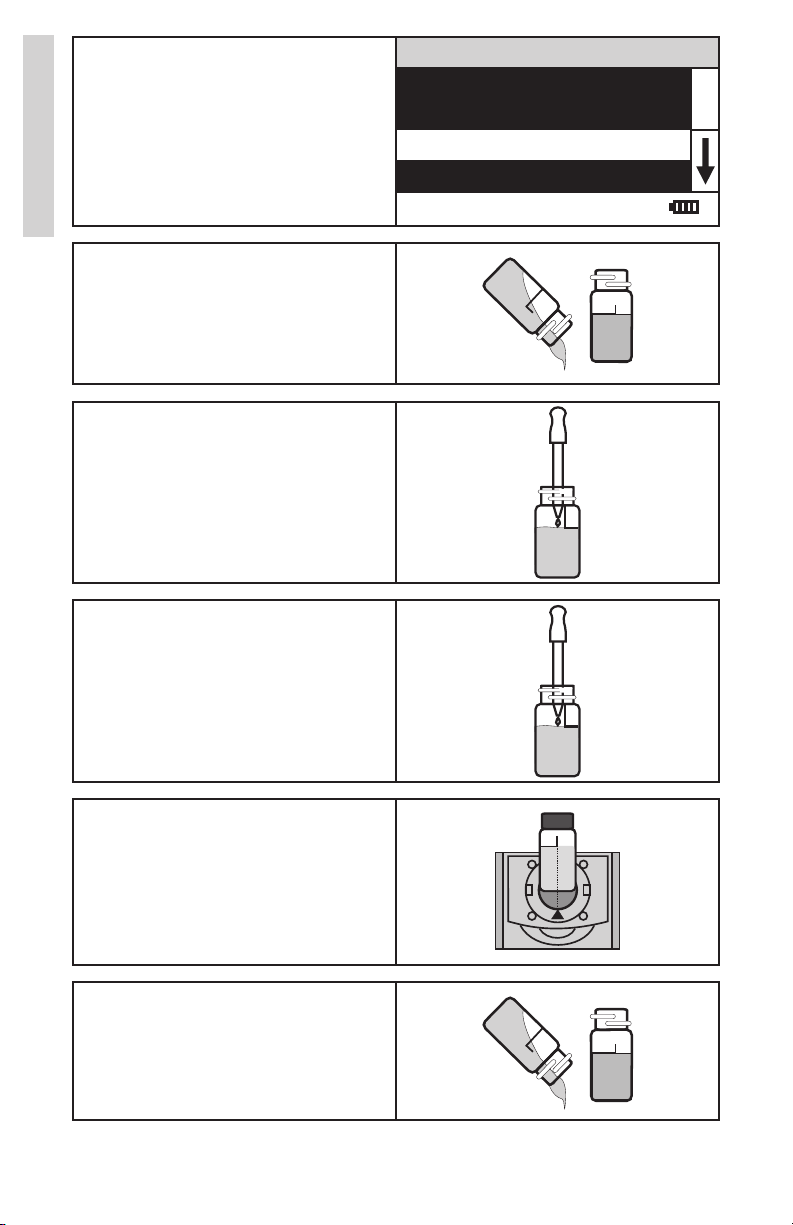

1. Fill the Water Sample Collecting
Bottle (0688) with sample
water.
2. Press and hold until
colorimeter turns on.
Main Menu
Testing Menu
Editing Menu
12:00:00 001/500
3. Press ENTER to select Testing
Menu.
All Tests
045 Fluoride
12:00:00 001/500
4. Scroll to and select 045 Fluoride
from menu.
045 Fluoride
Scan Blank
Scan Sample
12:00:00 001/500
5. This test requires a reagent
blank. Rinse a clean colorimeter
tube (0290) with clear, colorless,
Fluoride free water. Fill to the
10 mL line with clear, colorless,
Fluoride free water.
Analysis

8
6. Use the 0.5 mL pipet (0353) to
add 0.5 mL of *Sodium Arsenite
Solution (4128). Cap and mix.
7. Use the 1.0 mL pipet (0354)
to add 2 measures of *Acid-
Zirconyl SPADNS Reagent
(3875). Cap and mix thoroughly.
(This is the reagent blank.) Dry
the tube with a lint-free cloth.
8. Insert tube into chamber, close
lid and select Scan Blank.
9. Rinse a clean colorimeter tube
(0290) with sample water. Fill
to the 10 mL line with sample
water.
10. Use the 0.5 mL pipet (0353) to
add 0.5 mL of *Sodium Arsenite
Solution (4128). Cap and mix.
11. Use the 1.0 mL pipet (0354)
to add 2 measures of *Acid-
Zirconyl SPADNS Reagent
(3875). Cap and mix thoroughly.
(This is the reagent blank.) Dry
the tube with a lint-free cloth.
Analysis

9
12. Insert tube into chamber. Close
lid. Select Scan Sample. Record
result as Fluoride.
045 Fluoride
0.9 ppm
Scan BLank
Scan Sample
12:00:00 001/500
NOTE: Zeroing the meter with the sample water will result in an error. Meter
must be zeroed with a reagent blank.
NOTE: The meter will remember the last scanned blank reading. It is not
necessary to scan a blank each time the test is performed. To use the
previous blank reading, instead of scanning a new one, scroll to Scan Sample
and proceed. For the most accurate results, the meter should be blanked
before each test and the same tube should be used for the blank and the
reacted sample.
CALIBRATION
STANDARDS
The meter should be calibrated with fluoride standards. The calibration should
be done with a distilled or deionized water blank and one fluoride standard of
known concentration. The concentration of the calibration standard should be
similar to the expected concentration of the sample that will be tested.
CALIBRATION PROCEDURE
1. Press and briefly hold to
turn the meter on. The LaMotte
logo screen will appear for about
3 seconds and the Main Menu
will appear.
Main Menu
Testing Menu
Editing Menu
12:00:00 001/500
2. Press ENTER to select Testing
Menu.
All Tests
045 Fluoride
12:00:00 001/500
Calibration

10
3. Scroll to and select 045 Fluoride
from menu.
045 Fluoride
Scan Blank
Scan Sample
12:00:00 001/500
4. This test requires a reagent
blank. Rinse a clean colorimeter
tube (0290) with clear, colorless,
Fluoride free water. Fill to the
10 mL line with clear, colorless,
Fluoride free water.
5. Use the 0.5 mL pipet (0353) to
add 0.5 mL of *Sodium Arsenite
Solution (4128). Cap and mix.
6. Use the 1.0 mL pipet (0354)
to add 2 measures of *Acid-
Zirconyl SPADNS Reagent
(3875). Cap and mix thoroughly.
(This is the reagent blank.) Dry
the tube with a lint-free cloth.
7. Insert tube into chamber, close
lid and select Scan Blank.
8. Rinse a clean colorimeter tube
(0290) with sample water. Fill
to the 10 mL line with sample
water.
Calibration

11
9. Use the 0.5 mL pipet (0353) to
add 0.5 mL of *Sodium Arsenite
Solution (4128). Cap and mix.
10. Use the 1.0 mL pipet (0354)
to add 2 measures of *Acid-
Zirconyl SPADNS Reagent
(3875). Cap and mix thoroughly.
(This is the reagent blank.) Dry
the tube with a lint-free cloth.
11. Insert tube into chamber. Close
lid. Select Scan Sample.
045 Fluoride
0.9 ppm
Scan BLank
Scan Sample
12:00:00 001/500
12. Press to scroll to
Calibrate.
045 Fluoride
0.9 ppm
%T/Abs
Calibrate
12:00:00 001/500
13. Press ENTER to select Calibrate.
A reverse font (light background
with dark characters) will appear
to indicate that the reading can
be adjusted.
045 Fluoride
0.9 ppm
∧, ∨=Edit, ENTER=Save
∧ +ENTER=Default
12:00:00 001/500
Calibration

12
14. Press or to
adjust the value shown to the
concentration of the prepared
standard, 1.0 in this example.
NOTE: A maximum adjustment
of 25% is possible.
045 Fluoride
1.0 ppm
∧, ∨=Edit, ENTER=Save
∧ +ENTER=Default
12:00:00 001/500
15. Press ENTER to save the value.
To leave the Calibration
procedure without saving the
adjustment, press EXIT .
Press and ENTER at any
time to return to the default
value.
The calibration has now been
standardized and can be used
for testing. Scroll to Scan Blank
and begin testing.
045 Fluoride
1.0 ppm
%T/Abs
Calibrate
12:00:00 001/500
Calibration

13
SET UP
SETTING THE CLOCK
Setting the clock allows the correct time and date stamp to be stored with
each reading in the data logger.
1. From the Editing Menu, press
or to scroll to Set
Clock.
Editing Menu
Set Clock
Logging
Factory Setup
Set Power Save
12:00:00 001/500
2. Press ENTER to select Set Clock.
The year is displayed. Press
or to scroll to the
appropriate character. Press
ENTER to select the character.
The month, day, hour, format
hour, minute, second, AM/PM
will be dislpayed. Repeat for
each.
Set Time
Year: 2000
12:00:00 001/500
3. Press ENTER to select the final
character. The time and date
will be saved and the meter will
return to the Editing Menu.
Editing Menu
Set Clock
Logging
Factory Setup
Set Power Save
12:00:00 001/500

14
LOGGING DATA
The default setting for the data logger is enabled. The meter will log the last
500 data points. The counter in the center bottom of the display will show how
many data points have been logged. The display will show 500+ when the data
logger has exceeded 500 points and the data points are being overwritten.
1. From the Editing Menu, press
or to scroll to
Logging.
Editing Menu
Set Clock
Logging
Factory Setup
Set Power Save
12:00:00 001/500
2. Press ENTER to select Logging. Logging
Display Test Log
Logging Enabled
Logging Disabled
Erase Log
12:00:00 001/500
3. Press or to scroll to
desired function.
Logging
Display Test Log
Logging Enabled
Logging Disabled
Erase Log
12:00:00 001/500
4. Press ENTER . The screen will
display Storing... for about 1
second and return to the Editing
Menu.
Editing Menu
Set Clock
Logging
Factory Setup
Set Power Save
12:00:00 001/500

15
FACTORY SETUP
The Factory Setup menu is used in manufacturing of the colorimeter. This
menu is not for use by the operator in the field.
SETTING POWER SAVE
The power saving Auto Shutoff feature will turn the meter off when a button
has not been pushed for a set amount of time. The default setting is disabled.
To change the setting:
1. From the Editing Menu, press
or to scroll to Set
Power Save.
Editing Menu
Set Clock
Logging
Factory Setup
Set Power Save
12:00:00 001/500
2. Press ENTER to select Set Power
Save.
Set Power Save
Disable
5 Minutes
15 Minutes
30 Minutes
12:00:00 001/500
3. Press or to scroll to
desired function.
Set Power Save
Disable
5 Minutes
15 Minutes
30 Minutes
12:00:00 001/500
4. Press ENTER . The screen will
display Storing.... for about 1
second and the meter will retun
to the Editing Menu.
Editing Menu
Set Clock
Logging
Factory Setup
Set Power Save
12:00:00 001/500

16
SETTING THE BACKLIGHT TIME
The backlight illuminates the display for enhanced viewing. The default setting
is 10 seconds. If Button Control is chosen the backlight button on the key pad
will act as an on/off switch and the backlight will remain on or off when the
meter is being used. When one of the other settings – 10, 20 or 30 seconds –
is chosen, the display will be illuminated for the specified amount of time after
any button is pressed.
NOTE: The backlight feature uses a significant amount of power. The longer
the backlight is on, the more frequently the battery will have to be charged if
the USB/Wall Adapter is not being used.
1. From the Editing Menu, press
or to scroll to
Backlight Time.
Editing Menu
Logging
Factory Setup
Set Power Save
Set Backlight Time
12:00:00 001/500
2. Press ENTER to select Set
Backlight Time.
Set Backlight Time
Button Control
10 seconds
20 seconds
30 seconds
12:00:00 001/500
3. Press or to scroll to
desired option.
Set Backlight Time
Button Control
10 seconds
20 seconds
30 seconds
12:00:00 001/500
4. Press ENTER . The screen will
display Storing... for about 1
second and the meter will return
to the Editing Menu.
Editing Menu
Logging
Factory Setup
Set Power Save
Set Backlight Time
12:00:00 001/500

17
SELECTING A LANGUAGE
There are eight languages available: English, Spanish, French,
Portuguese, Italian, Chinese, Japanese, and Turkish.
1. From the Editing Menu, press
or to scroll to
Select Language.
Editing Menu
Factory Setup
Set Power Save
Set Backlight Time
Select Language
12:00:00 001/500
2. Press ENTER to select Select
Language.
Select Language
English
Spanish
French
Portugese
12:00:00 001/500
3. Press or to scroll to
desired language.
Select Language
English
Spanish
French
Portugese
12:00:00 001/500
4. Press ENTER . The screen will
display Storing... for about 1
second and the meter will return
to the Editing Menu.
Editing Menu
Set Power Save
Set Backlight Time
Bluetooth Menu
Select Language
12:00:00 001/500
NOTE: If meter unintentionally switches to another language, use the
procedure above to reset the meter to the desired language. For example, to
reset the meter to English:
Turn meter on.
1. Press one time. Press ENTER .
2. Press five times. Press ENTER .
3. Press ENTER .

18
LOOPING MENUS
Long menus, such as the Tsting Menu, incorporate a looping feature which
allows the user to quickly reach the last choice in the menu from the first
choice. In a looping menu the last choices in the menu are above the first
choice and scrolling upward moves through the menu in reverse order.
Scrolling downward moves through the menu from first choice to last but
the menu starts over following the last choice. So all menu choices can be
reached by scrolling in either direction. The diagrams below demonstrate a
looping menu.
AND SO ON AND SO ON AND SO ON
: : : : : : : : :
: : : : : : : : :
THIRD TO LAST LAST CHOICE LAST CHOICE
SECOND TO LAST AND SO ON AND SO ON
LAST CHOICE : : : : : :
TESTING MENU TESTING MENU TESTING MENU
FIRST CHOICE : : : : : :
SECOND CHOICE THIRD TO LAST THIRD TO LAST
THIRD CHOICE SECOND TO LAST SECOND TO LAST
ANOTHER LAST CHOICE LAST CHOICE
12:00:00 001/500 12:00:00 001/500 12:00:00 001/500
AND ANOTHER FIRST CHOICE FIRST CHOICE
AND SO ON SECOND CHOICE SECOND CHOICE
: : : THIRD CHOICE THIRD CHOICE
: : : ANOTHER ANOTHER
LAST CHOICE AND ANOTHER AND ANOTHER
The feature called Looping Menu can be turned on and off in the Editing
Menu. The default setting is ON.

19
COMPUTER CONNECTION
OUTPUT
USB
COMPUTER CONNECTION
USB Type A, USB mini B, Order Cable Code 1720-01.
WATERLINK CONNECT 2
The meter may be interfaced with any Windows-based 64-bit computer
by using the LaMotte WaterLink Connect 2 program and a USB cable. The
program will store test information and results in a local database and allow
for exporting this data to a comma separated value (CSV) file. The meter
will send the following data: name of test, sample value, sample units, time/
date stamp, and meter name. To download WaterLink Connect 2 go to http://
softwarecenter.lamotte.com/. Select “WaterLink Connect 2 FREE Download”.
BATTERY
BATTERY/AC OPERATION
The meter may be operated on battery power using a USB wall adapter or USB
computer connection. If using the meter as a bench top unit, use the wall
adapter if possible to extend the battery life. The meter will remain on when
the USB adapter is used.
To charge the lithium ion battery with the wall adapter, plug the smaller end of
the USB cable (USB mini B connector) into the meter and the larger end of the
USB cable (USB type A connector) into the wall adapter. Plug the wall adapter
into an AC outlet. Reinsert the rubber USB port plug after charging. Failure
to insert the USB port plug when the meter is not connected to a computer
by USB or actively charging by USB could result in damage to internal
components.
To charge the battery from a computer, plug the smaller end of the USB cable
(USB mini B connector) into the meter and the larger end of the USB cable
(USB Type A connector) into a USB port on a computer. Reinsert the USB port
plug after charging. Failure to insert the USB port plug when the meter is not
connected to a computer by USB or actively charging by USB could result in
damage to internal components.
The battery icon will show no bars and flash when the unit first turns on. Then
the indicator will indicate the battery status by showing 0, 1, 2, 3, or 4 bars.
It will take 6 hours to fully charge a low battery. The battery icon will flash
when the battery is charging. The battery icon will show four bars and stop
flashing when it is fully charged. The charging circuit will automatically switch
to a float charge when the battery is fully charged. The charger may remain
connected. Some computers will NOT supply power to their USB ports during
standby operation. The wall adapter will charge the unit continuously. Storing
the meter above ambient room temperature will decrease the battery charge
more quickly than storage at room temperature. If the meter does not turn
on, it means that the battery is at a very low charge. Charging the battery with

20
the wall adapter in this state may take up to 10 hours. At low temperatures,
approaching 0 °C, the battery will charge more slowly. It will not charge at all
below 0 °C.
The battery icon will show no bars and continuously flash if the battery is
getting low but the unit will still operate normally. A “Low Battery” message
on the status bar of the display will replace the time when the battery voltage
is too low for proper operation and accuracy may be degraded. A “Shutdown
Low Batt” message on the display will appear for a few seconds before the
power is switched off when the battery is too low to operate the unit. When
the battery icon simultaneously flashes bars 1 and 2 followed by bars 3 and 4,
it is an indication that the battery is damaged and technical support should
be contacted.
To extend the life of the battery:
• Shut down the unit with the power switch when not taking
measurements or use the power save option to have the unit
automatically turn off after 5 minutes.
• Store the unit at a moderate temperature.
• Fully charge the battery before storing the unit for extended periods
of time.
• Fully charge the battery at least once per year. Failure to do so may
result in a permanently drained battery.
• Limit backlight use. The unit consumes three times the normal power
when the backlight is on. Set the backlight time option to 10 seconds
or select “Button Control” and keep the backlight off.
BATTERY REPLACEMENT
The lithium ion battery used in this unit should last for many years with
normal use. When it no longer powers the unit long enough to meet testing
requirements it will need to be replaced. Lithium ion batteries that are
properly charged and stored do not usually lose all capacity; they just have
less capacity after hundreds of charge cycles. This unit uses a custom battery
assembly that is only available from LaMotte Company. Battery replacement
must be performed at a LaMotte authorized repair facility. The water resistant
housing of this meter should not be opened by the user. Contact LaMotte
Company by phone [phone]) or email ([email protected]) for a
return authorization number.
MAINTENANCE
CLEANING
Clean the exterior housing with a damp, lint-free cloth. Do not allow water
to enter the light chamber or any other parts of the meter. To clean the
light chamber and optics area, point a can of compressed air into the light
chamber and blow the pressurized air into the light chamber. Use a cotton
swab dampened with Windex®window cleaner to gently swab the interior of
the chamber. Do not use alcohol; it will leave a thin residue over the optics
when dry.
