SETUP
BEFORE FIRST USE
¬Fully charge battery using the Spin Touch USB cable and adapter plug in AC
outlet.
¬Ensure your Spin Touch has latest firmware
1. Download and install WaterLink® Connect Application for Windows at
http://softwarecenter.lamotte.com/. Select WaterLink® Connect Software
for Windows FREE Download.
2. Plug meter into the computer with the provided USB cable and launch
WaterLink Connect Application from the Start Menu.
3. Any firmware updates will automatically be applied to the meter.
METER
1. The meter can be powered from an AC outlet, a computer or the internal battery.
2. Use the USB cable and the adapter to plug the meter into an AC outlet.
3. Use the USB cable to connect the meter to the USB port of a computer.
CHARGE THE BATTERY
1. Use the USB cable and the adapter to plug the meter into an AC outlet to charge the
battery.
2. The battery icon on the screen will show the battery status. Charge the battery until
the battery indicator is full.
FIRMWARE UPDATES
After updating firmware it is recommended that the Alignment Procedure on page 13 be
performed.
For technical issues, firmware updates, and other support issues contact technical support
at 800-344-3100 or [email protected].
PC CONNECTION
When the WaterLink®Spin Touch®is connected to a computer via USB, the onboard
touchscreen becomes disabled and operation of the lab is performed using the WaterLink®
Connect application for Windows®. This application is available for free at http://
softwarecenter.lamotte.com/. Via the WaterLink®Connect desktop application, results
from the Spin Touch can be transferred to a water analysis program such as WaterLink®
Solutions™.
DEVICE CONNECTION
The WaterLink®Spin Touch®supports connections to a Windows® based PC (over USB) and
to Android and iOS mobile devices (via Bluetooth).
CONNECTING VIA USB
Using the provided USB cable, the WaterLink®Spin Touch®can be connected to a Windows®
based PC. Before connecting a meter via USB, download and install the free WaterLink®
Connect Windows®application from http://softwarecenter.lamotte.com. When the
WaterLink®Spin Touch®is connected to the PC via USB, the onboard touch screen controls
will be disabled and operation of the meter is performed using the WaterLink®Connect
application. LaMotte offers robust water analysis programs as well, such as WaterLink®
SETUPDEVICE CONNECTION PC CONNECTION
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

3
Solutions™, to collect test results and offer detailed treatment recommendations. Learn
more about LaMotte software products at http://softwarecenter.lamotte.com.
CONNECTING VIA BLUETOOTH
The WaterLink®Spin Touch®is capable of connecting to a Bluetooth enabled device, such
as a phone or tablet. The Spin Touch is also compatible with a LaMotte Bluetooth Printer
[Code 5-0066]. Other Bluetooth printers are not supported.
Transferring results over Bluetooth to a mobile device requires that a mobile app is
installed on the device and an active account for the associated software program. For
example, with an active WaterLink®Solutions™account and the WaterLink®Solutions™
mobile app on a phone or tablet, results can be transferred from the meter into the
application. Mobile apps for LaMotte software products are available from iTunes (for
iOS devices) and Google Play (for Android devices). Learn more about LaMotte software
products at http://softwarecenter.lamotte.com.
To transfer results from the WaterLink®Spin Touch®to a LaMotte software product mobile
app:
1. Log into the LaMotte software product mobile app.
2. Search for a customer or Site record. You may need to create one before you can
begin testing.
3. Start a Water Test in the mobile app.
4. Perform a water test from the Spin Touch onboard touchscreen normally. The Spin
Touch and the Bluetooth enabled mobile device will connect automatically.
5. When the connection is available the will light on the touch screen. When the is
dim, the meter and device are not connected. Tap the to transfer results to the
mobile app.
Whenever the appears on the touch screen the Spin Touch is capable of connecting
to the Mobile Bluetooth Printer (Code 5-0066). The button will be highlighted when
connected and dim when not connected.
The Spin Touch cannot connect to both mobile device and the printer at one time. (See the
Save, Print and Send, page 7)
USING BLUETOOTH LOW ENERGY
The WaterLink®Spin Touch®will automatically connect to the nearest Bluetooth enabled
phone or tablet or printer. It is not necessary to pair the Spin Touch to the Bluetooth
enabled device. Barriers to wireless signals can reduce the range of wireless devices.
The WaterLink Spin Touch will work best if there are no walls between it and the receiving
devices.
DEVICE CONNECTION
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

4
FILLING: Single-Use Disks
When the syringe is placed in the water sample, and the plunger is
pulled all the way up, the syringe will hold more than enough water
sample to adequately fill the disk. Hold the syringe vertically and
insert the tip into the fill hole in the disk. Press the plunger slowly
and smoothly to fill the disk.
1. Fill the disk using slow, even pressure. The
sample water will fill the spaces between
the baffles in a counterclockwise order.
Each space will fill from the bottom to the
top. Sample water should be added until the
sample water in the fourth chamber fills to the
top of the chamber slightly past the embossed
fill line. It is OK to fill slightly past the fill line. Correct Fill
(Fill line)
2. Do not overfill the disk. If the disk is overfilled,
sample water will flow out of the overflow
hole in the center of the disk. The disk is not
leaking. Dry the disk and run the test.
Overfilled
(Dry disk before placing in meter)
3. Do not under fill the disk. If the disk is under
filled, the reagent chambers will not fill entirely
and results will be inaccurate.
Underfilled
4. Do not introduce air bubbles into the disk.
The reagent chambers will not fill entirely
and results will be inaccurate. As soon as a
bubble starts to form, pull back on the plunger
to draw the bubble out of the disk. Begin the
filling process again.
Air
Bubble
5. Wet disks should be dried thoroughly with a
lint free wipe. The disk should be handled by
the edges.
6. Disks should be filled and used within 10 minutes. They cannot be filled ahead of
time.
For filling and troubleshooting tips go to: www.lamotte.com/spin
FILLING
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

5
GENERAL OPERATING PROCEDURES
METER
When a filled disk is placed in the chamber and the lid is closed, the meter spins at high
speed to distribute the sample to the test wells. Next the meter slows to maximize the
pumping action of the stainless steel mixing beads as the reagents mix with the sample
water. Each reaction is then read at the proper time and wavelength for that reagent
system.
The button located in the lower center of the top of the meter turns the
instrument on and off.
The Blue indicator light of the on/off button indicates the status of the instrument.
Steady blue light – the blue LED will remain steady to indicate that the meter is on and
ready to run a test.
Blinking blue light (three blinks/second) – a test is in progress and the disk is spinning. Do
not open the lid when the disk is spinning.
Care should be taken when closing the lid. Do not slam the lid. Wiring between the lid and
the body of the photometer passes through the hinge. The meter will not run with the lid
open.

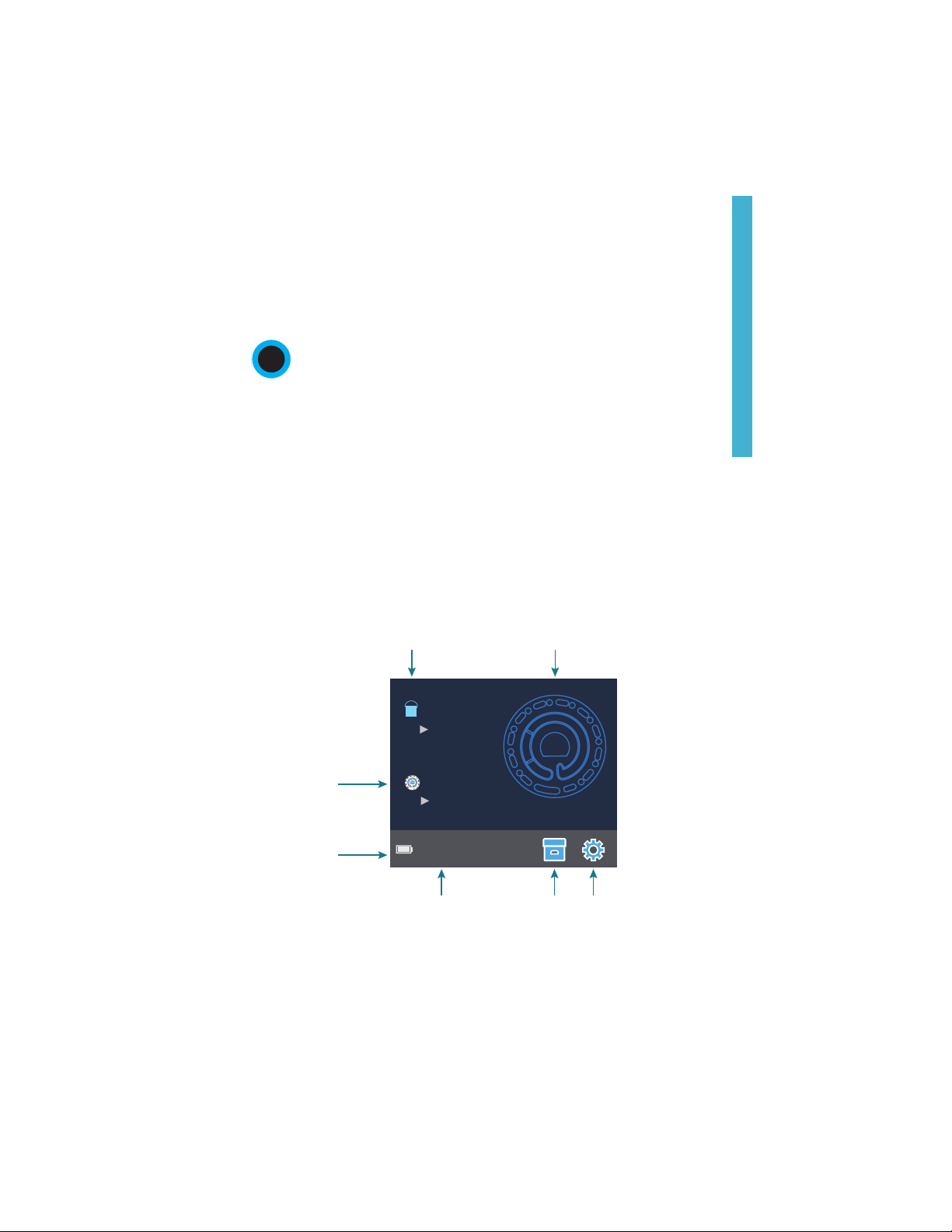

TOUCHSCREEN DISPLAY
When the button is pressed to turn the meter on, the Test Screen will be displayed.
12:14 PM
30-Jan-19
Fuente
Disco
Fresco
FX103
Pulse para
Iniciar análisis
Selección de
fuente de agua Iniciar el test
Tipo de
disco
Encendido-
apagado/
Estado de
la batería
Fecha y
hora Historial de tests Ajustes
The display screen is touch-activated. To make a selection, tap the icon or word on the
screen with a fingertip, fingernail, pencil eraser, or stylus.
¬Gently wipe smudges from the screen with the Cloth Wipe (3580-WIPE).
¬Do not touch the screen with a sharp object.
GENERAL OPERATING PROCEDURES
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

6
¬Do not place objects on the screen that will scratch or damage it.
¬Avoid touching the screen with wet fingers.
TESTING
12:14 AM
30-Jan-18
Source
Disk Series
Treated Water
DW13
Tap to
Start Test
1. Press and hold until the meter turns on.
2. Tap . Select a Water Source type. Tap
s
o
to confirm.
3. Tap . Select a disk series (found on disk packaging). Tap to confirm.
NOTE: Disk Series are limited by Water Source Type selection.
4. Remove a disk from the packaging.
5. Use the syringe (1189) to fill the disk with the water sample.
6. Insert the disk. Cover the disk with the Universal Disk Cover. Close the lid.
7. Tap to start test. Tap to cancel the test.
8. The results will be displayed.
9. Choose an option.
¬Tap to add a tag.
¬Tap the highlighted to save the test results to the test log if Auto Save is
not enabled.
¬Tap the hightlighted to send the results to the enabled Mobile Bluetooth
Printer.
¬Tap the highlighted to send the results to a Bluetooth enabled device.
¬Tap to return to the Test Screen.
10. Press and hold for 2 seconds to turn the meter off.
NOTE: For water samples over 100 °F (38 °C) subtract 0.3 from pH result or, for the most accurate
result, wait until water sample is below 90 °F (32 °C) to test.
GENERAL OPERATING PROCEDURES
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

7

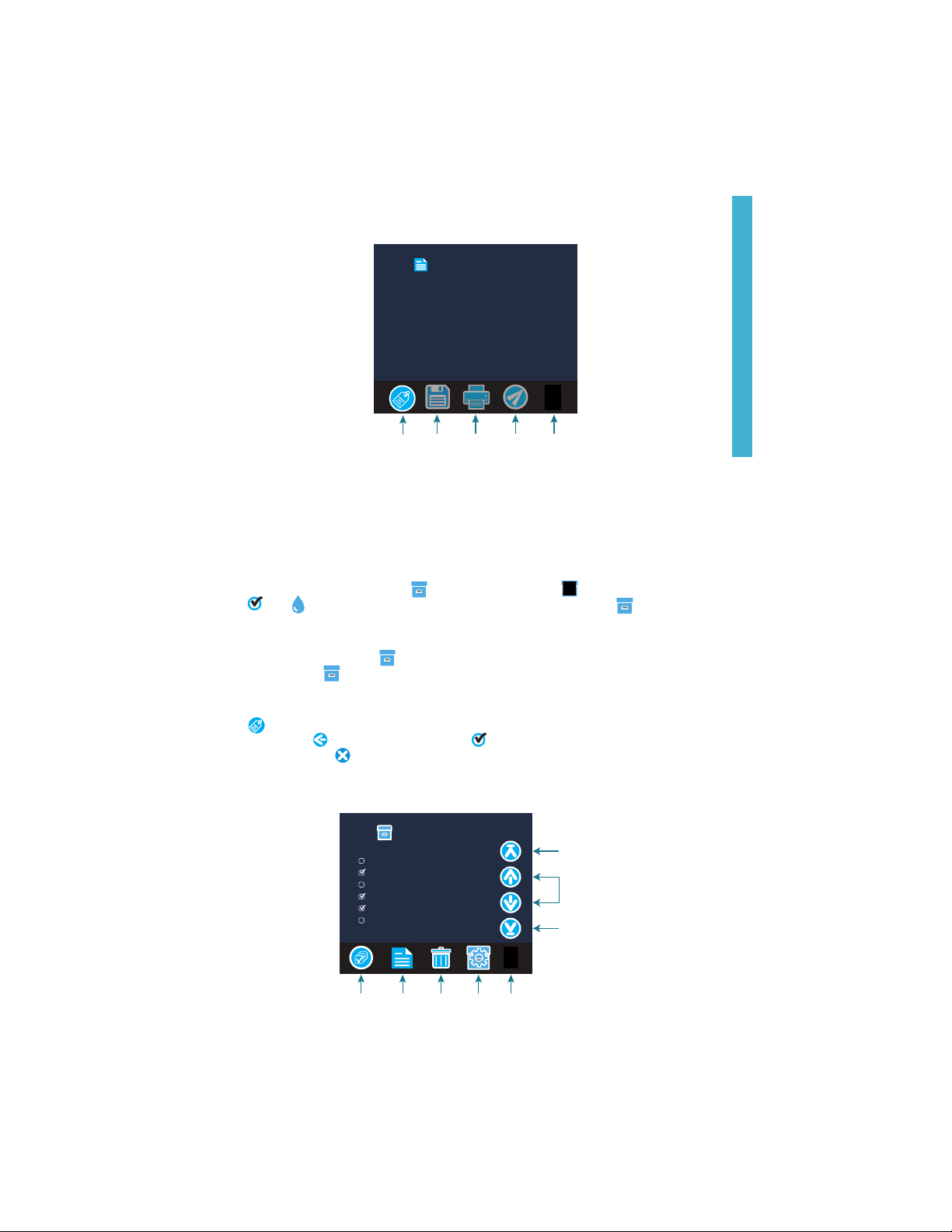

SAVE AND PRINT TEST RESULTS
Test results can be saved and sent to the Mobile Bluetooth Printer (Code 5-0066).
Test Time 05:30:06 30-Jan-2018
Test Results
FCL 1.31
TCL 1.31
CCL 0.00
PH 7.8
ALK 100
HARDgpg 29.2
T IRON 0.1
FERROUS 0.0
FERRIC 0.1
Transfer
Results
via
Bluetooth
(Not Available)
Return
to Test
Screen
Save
Results Print Results
Tagging
Test History Settings
The WaterLink®Spin Touch®can log test results for 250 water samples in the Test History.
The results for the most recent sample will be located at the top of the list. All results can
be logged automatically or results for an individual sample can be logged after the sample
has been tested.
To turn on automatic logging, tap on the Test Screen. Tap . Select Auto-Save Tests.
Tap and
ut
t
o
to return to the test screen. When Auto Save is selected will not be
highlighted on the Test Results screen.
To manually log results for one sample at a time, Auto-Save Tests must be disabled. If
Auto-Save Tests is disabled will be highlighted on the Test Results screen. After the test
has been run, tap to save the results for that water sample to the Test History.
A user defined identification tag can be assigned to an individual sample result. The tag
can be up to 4 hexadecimal characters. It cannot begin with a zero. To tag a test result,
tap on the bottom of the Test Results screen and use the buttons to enter up to four
characters. Tap to erase a character. Tap to save the tag and return to the Test
Results screen. Tap to return to the Test Results screen without saving the tag. The
tagged result will appear on the Test Results screen and the Test History screen. The tag
will be preceded by “T-“.
Select All/
De-Select All
00.35 09-Jan-2018 Treated DW13
00.22 09-Jan-2018 Treated DW13
21.44 09-Jan-2018 T-4650 Treated DW13
21.43 09-Jan-2018 Treated DW13
20.41 09-Jan-2018 T-ABC7 Treated DW13
20.36 09-Jan-2018 Treated DW13
Test History
View
Selected
Results
Delete
Selected
Results
History
Settings
Select
Auto Save
Go to Top
Go to Bottom
Scroll up
or down
the test
list by 5
entries
Home
GENERAL OPERATING PROCEDURES
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

8
Logged results are viewed in Test History. Controls for viewing and managing single or
multiple test records are located on the Test History screen. Tap the checkbox next to a
test record to select it, then tap one of the buttons along the bottom to perform an action
with the selected records.
Print Results
The WaterLink®Spin Touch®can print to the Mobile Bluetooth Printer. The highlighted
will show when the printer function is active.
There are two modes of operation for connecting to the printer – Fast Printer Connect ON
and Fast Printer Connect OFF. The default mode is Fast Printer Connect ON. Fast Printer
Connect can be turned on or off from the Bluetooth Menu that is located in the Settings
Menu.
If Fast Printer Connect is ON, the meter will connect immediately to the printer upon
recognizing it. The printer will start printing immediately when is tapped. The will
dim in intensity while the printer is printing.
If Fast Printer Connect is OFF, the meter will connect to the printer only after has been
tapped so printing will be delayed a few seconds while the connection to the printer is
being established. The will dim in intensity while the printer is printing.
SYRINGE
A plastic 3 mL syringe (Code 1189) is used to fill the disks. A
precision tip on the syringe fits into the fill hole on the disk. The
syringe tip should not be removed from the syringe. Syringes should
be cleaned between water samples. Pump air in and out of the
syringe a few times to clear the previous sample or rinse the syringe
with a small amount of the next water sample before filling it with
the next sample.
REAGENT DISK
The WaterLink®Spin Touch®uses a disk reagent system. The dried
reagents are packaged in single test amounts in a sealed, polystyrene
disk. Stainless steel mixing beads in the reaction chambers mix the
sample water and the dried reagents. Tests for all factors in the series
are performed at one time. It is not possible to isolate the well for a
single factor and perform a test for one test factor only. Single-use
disks contain reagents for a single series. Disks should not be filled in
the meter chamber.
DISK HANDLING
The disk should be handled only by the edges. Avoid touching the
top or bottom of the disk. The light passes through the non-frosted
areas of the disk so these areas must be kept free of smudges and
fingerprints. Wet disks should never be placed in the meter. Wet
disks should be dried with a lint free cloth before placing them into
the chamber.
GENERAL OPERATING PROCEDURES
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

9
The disk is positioned in the chamber by aligning the D-shaped hole in the center of the
disk over the D-shaped hub in the photometer chamber. The disk should be placed gently
on the hub. There is no need to firmly press the disk down onto the hub.
DISK STORAGE
Disks are sensitive to moisture. Avoid opening more packs
than are needed. Disks have a limited shelf life and should not
be exposed to the humidity in the air more than necessary.
Store disks at 70-80 °F/21-27 °C. Do not transport the
meter with a disk in the chamber.
DISK COVER
The black disk cover is placed over the disk in the photometer
chamber to reduce interference from stray light. The disk cover
is positioned over the disk by aligning the D-shaped hole in the
center of the disk over the D-shaped hub in the photometer
chamber. The disk cover should be placed gently on the hub.
There is no need to firmly press the disk cover down onto the hub.
The test will be aborted if the disk cover is not used.
METER CHECK DISK
The Meter Check Disk serves two purposes:
¬When the Meter Check Disk (MCD) is run as an option from the Disk Series menu, the
values on the display are compared to the values on the chart on the Meter Check
Disk package to determine whether the meter is reporting results in the expected
ranges.
¬If the Meter Check Disk is inserted in the meter and Rotary Calibration is chosen from
the Settings Menu, the alignment of the hub and disk is evaluated. The results are
analyzed and reported as Pass or Fail.
For use of the Meter Check Disk see page 13.
USB CABLE
A USB cable connects the WaterLink®Spin Touch®to a Windows®-based PC. When used
with the AC Power Adapter, it connects the meter to an AC outlet.
WARNING: only use the USB cable and wall adapter that are supplied with the kit. Make no
substitutions.
BATTERY
A fully charged battery will last for approximately 150 tests under average conditions. The
battery life will vary based on usage patterns. The meter should be turned off after testing
to prolong the battery life. The standard life cycle of a lithium ion battery is 500 cycles.
The battery will fully charge in approximately 10-12 hours. The battery is designed to be
charged overnight and should be charged indoors only. The battery is rated at 12 V and 8.1
AH capacity. Power the meter from the battery pack or from AC power. The USB cable and
AC adapter are used to plug the meter into an AC outlet. WARNING: only use the AC adapter
supplied with this equipment. Do not substitute.
The battery charge status is indicated by the battery icon on the display. The battery icon
GENERAL OPERATING PROCEDURES
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

10
will indicate when the battery charge is full, partial, low, empty or charging. The empty
battery icon will flash to indicate that meter should be connected to AC power source. If the
meter continues to be used at low battery power without connecting it an AC power source,
the meter will go into an auto-shutdown mode. In this mode the meter will be
locked until meter is connected to an AC source and the battery is charged to
a sufficient voltage. While charging, the charging battery icon will be displayed.
The meter should remain plugged in until the battery is fully charged. When the
battery is completely charged, the charging icon will change to the full
battery icon.
SETTINGS
Tap to enter the SETTINGS menu. Tap to return to the test screen at any time.
Brightness The brightness level of the display can be adjusted from 00 to 10. Tap
and to adjust the brightness. Tap to exit to the Settings
menu.
Date/Time The Year, Month, Day, Format, Hour, Minute, AM/PM can be set. Tap
or to adjust the displayed value. Tap to move to the next
value. After the last value has been chosen (minutes for 24 hour
format, AM/PM for 12 hour format) tap to return to the Settings
menu. Tap to exit to the Settings menu at any time.
Set Language There are ten language options – English, French, Spanish, German,
Dutch, Swedish, Portuguese, Italian, Turkish, Chinese. Tap selection.
Tap to exit to the Settings menu.
Calibration Tap to run an angle calibration to evaluate the alignment of the hub
and disk. Tap to exit to the Settings menu.
Power
Options
There are three power options: Auto Dim Time, Auto Off Time, and
Power. Tap the options then tap a selection. Tap selection. Tap to
exit to the Settings menu.
Bluetooth There are two Bluetooth options: Bluetooth Enabled and Fast Printer
Connect that are used to print test results. Tap to exit to the
Settings menu.
Market Type Tap to select the market type. Select Drinking Water. Tap to exit to
the Settings menu.
GENERAL OPERATING PROCEDURES
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

11
Other Settings Units allows the selection of units for the Hardness test results to be
reported a gpg or ppm for the Drinking Water market. It also allows
the selection of the Nitrate test results to be reported as ppm Nitrate
(NO3) or ppm Nitrate Nitrogen (NO3-N). When results are reported as
ppm Nitrate (NO3) the nitrite results will be reported as ppm Nitrite
(NO2). When results are reported as nitrate nitrogen NO3-N) the
nitrite results will be reported as ppm Nitrite Nitrogen (NO2-N).
About… lists the Serial Number, Firmware Version, Bluetooth MAC
address, Bluetooth Version and Test Count. The Test Count shows
the number of complete tests that have been performed over the
lifetime of the meter. Tap to return to the Settings menu.
Ranges Enabled allows the option of having test results that are
out of the range of the reagent system displayed in red. The default
setting is on.
When Show Market Type is selected, the market type will be displayed
on the Testing Screen. The default setting is OFF. Tap to return to
the Settings menu.
Select Disk Detection to display an error message and abort the
test when improper testing conditions, such as No Disk, No Disk
Cover, Used Disk or Meter Check Disk, are present that would result
in inaccurate or no test results. The default setting is OFF. Tap to
return to the Settings menu.
TROUBLESHOOTING
TROUBLESHOOTING GUIDE
Problem Reason Solution
“No Disk, Test Aborted” No disk in chamber
Empty chamber
Place filled disk in chamber. Cover
with disk cover. Select OK. Start
test.
Insert filled disk. Cover with disk
cover. Select OK. Start test.
“No Disk Cover, Test
Aborted”
Disk cover was not used Use disk cover. Select OK. Start
test.
“Lid Open, Test Aborted” Lid opened Close lid. Select OK. Start test.
“Used Disk” Reacted disk in chamber Select “Continue” to go to Test
Results screen. Select “Abort” to
go to Testing screen and run test
with new disk.
Meter Check Disk Meter Check Disk in chamber
instead of reagent disk
Select “Continue” to go to Test
Results screen. Select “Abort” to
go to Testing screen and run test
with reagent disk.
“Sanitizer” appears on
test screen instead of
“Source”
Wrong Market Type was chosen Go to Settings. Change Market
Type to Drinking Water
GENERAL OPERATING PROCEDURES
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

12
!on Test History
screen
Meter is using the default blank
due to under filled disk or air
bubble.
Solution: Fill disk correctly (see
FILLING)
Range Error Raw data out of range Contact Support
Output Error Decreased light intensity.
Possibly dirty lens
Clean lens (see CLEANING).
Follow Range Check Procedure. If
error message persists, contact
Support.
High pH results Water sample temperature above
100 °F (38 °C) interferes with pH
reagent
For water samples over 100 °F (38
°C) subtract 0.3 from pH result or,
for the most accurate result, wait
until water sample is below 90 °F
(32 °C) to test
Disc not spinning Lid open, meter not powered on,
low battery, disk or disk cover
pressed down too tightly on hub
Close lid, power on meter, charge
the battery or plug meter into a
stable power source, remove the
disk/disk cover and place back in
the meter more gently
Fast electrical transients may
disrupt operation of the Spin
Touch™meter
Restart the test to resume normal
operation
Test result value on the
display is red
Results are out of range of
reagent system
Dilute sample. Retest for out of
range test factor. (All factors
except pH.)
Unexpected low Chlorine
results
High chlorine concentrations
will bleach chlorine, and other
reagents
Check sample with chlorine test
strips (Code 2987)
Trouble connecting to
Bluetooth device
Bluetooth not enabled
Too many Bluetooth devices near
the meter
Printer power is ON and Fast
Printer Connection is ON
Enable Bluetooth
Have only one device near the
meter
Turn printer power OFF. Or turn
Past Printer Connection OFF.
Trouble connecting to
computer by USB
Broken connection Press and hold power button for 1
second.
Results not printing Printer not on
The Spin Touch™will only print
to the Mobile Bluetooth Printer
(Code 5-0066)
Turn printer on
Connect to Mobile Bluetooth
Printer (Code 5-0066)
TROUBLESHOOTING WITH THE METER CHECK DISK
Do not attempt to separate the components of the Meter Check Disk (Code 1705). The
Meter Check Disk consists of a disk with a permanently attached cover.
Do not fill the Meter Check Disk with water. Water is not used during the meter check
procedure.
Range Check Procedure
The Meter Check Disk is used to verify the performance of a meter. It is not used to
recalibrate the meter. Meters are calibrated at the time of manufacture. The meter is
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

13
performing satisfactorily if readings using the Meter Check Disk are within the ranges
provided on the Meter Check Disk pouch. Range specifications are specific to the disk
identified by the serial number on the pouch. The range specifications will vary from disk to
disk. The exact readings from a specific disk may vary from meter to meter.
1. Follow the Cleaning procedure on page 17 to clean the light chamber and optic lenses.
2. Tap select Disk Series.
3. Tap MCD to select Meter Check Disk.
4. Tap
MC
M
to return to the test screen.
5. Remove the Meter Check Disk from the foil pouch. DO NOT remove the black cover
from the disk.
6. Insert the Meter Check Disk. Close the lid.
7. Tap to start test.
8. Results will be displayed.
9. Compare the results on the display to the values on the chart shown on the pouch. If
the results are not within the range shown on the pouch, contact Support.
10. Replace the Meter Check Disk in the foil pouch for storage.
Alignment Procedure
The Meter Check Disk is inserted in the meter and Calibration is chosen from the Settings
Menu to perform an angle calibration which checks the alignment of the hub and disk. The
results are analyzed and reported as Pass or Fail. If the measurements pass, the settings
will be saved. If the analysis fails, contact tech support.
1. Follow the Cleaning procedure on page 17 to clean the light chamber and optic lenses.
2. Tap to go to Settings.
3. Tap Calibration.
4. Remove the Meter Check Disk from the foil pouch. DO NOT remove the black cover
from the disk.
5. Insert the Meter Check Disk. Close the lid.
6. Tap
Start to begin the meter check procedure.
7. If the meter is performing satisfactorily, “Angle Calibration Successful” will be
displayed and the settings will be saved.
If the meter is not performing satisfactorily, “Angle Calibration Unsuccessful. Contact
Support.” will be displayed.
8. Tap
p
p
p
p
p
p
p
p
p
to return to the Testing Menu and resume testing.
email: [email protected]
phone: [phone] option 3 | Mon-Fri 9am-5pm EST
HELPFUL HINTS
¬Do not touch top or bottom of disk. Handle disk by the edge.
¬Do not fill disk while in the meter. Fill disk on clean, dry surface.
¬Fill the disk on a dark surface to more easily see the sample water.
¬The disk should not contain any large air bubbles. Air bubbles will result in erroneous
results.
¬Always use the disk cover.
¬Only the Universal Disk Cover (Code 1719) can be used with the WaterLink®Spin
Touch®.
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

14
¬Empty syringe of old sample before filling with next sample.
¬Remove filled disk from meter after testing. Do not travel with filled disks in meter.
They may leak.
RANGES AND SPECIFICATIONS
Test Factor Range Display Abbreviation
Alkalinity, Total 0–250 ppm ALK
Chlorine, Free 0.00–15.00 ppm FCL
Chlorine, Total 0.00–15.00 ppm TCL
Combined Chlorine 0.00–15.00 ppm CCL
Copper 0.0-6.0 ppm COPPER
Hardness, Total 0–70 gpg/0-1200 ppm Hardgpg/T HARD
Iron, Ferrous, soluble 0.0–6.0 ppm FERROUS
Iron, Ferric, soluble 0.0–6.0 ppm FERRIC
Iron, Total, soluble 0.0-6.0 ppm T IRON
pH (4336) 6.4-10.0 pH
pH (4337) 4.5-8.6 pH
Nitrate 0-45 ppm/0-11 ppm NITRATE/NITRATE-N
Nitrite 0.0-2.0 ppm/0.0-0.6 ppm NITRITE/NITRITE-N
Go to SETTINGS>Other Settings to select hardness and nitrate units.
Copper concentrations over 4 ppm will result in low total hardness results.
Test results that are out of range of the reagent system wil be RED. RED test results may
not be accurate. Go SETTINGS>Other Settings to turn the Ranges Enabled feature OFF.
Instrument Type Centrifugal Fluidics Photometer
Wavelengths
(interference filters)
390 nm, 428 nm, 470 nm, 525 nm, 568 nm, 635 nm
Display Color Capacitive Touchscreen,
3.5 in, 320 x 240 pixel resolution
Wavelength Accuracy ±2 nm
Wavelength Bandwidth 10 typical
Photometric Range -2 to 2 AU
Photometric Precision ±0.01 AU at 1.0 AU
Photometric Accuracy ±0.01 AU at 1.0 AU
Sample Chamber Accepts prefilled disk
Light Source 6 LEDS
Detectors 6 silicon photodiodes
Pre-Programmed Tests Yes, with automatic wavelength selection
Languages English, French, Spanish, German, Dutch, Swedish, Portuguese,
Italian, Chinese, Turkish
Temperature Operation: 0-50 °C; storage – 40-60 °C
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

15
Operation Humidity Range 0- 90 % RH, non-condensing
Communication USB-C, Bluetooth low energy technology (BLE)
Calibration Factory set, field calibration via internet connection
Firmware Internet updateable (New Test, New Test Calibrations, etc.)
Software Android & iOS Apps, WaterLink® Solutions, WaterLink® Connect
Power Requirements USB wall adapter, USB computer connection or internal lithium
ion rechargeable battery
Battery Type Lithium ion
Minimum Capacity 12 V/2.6 AH
Charge Life Approximately 150 tests
Battery Life Approximately 500 charges
Full Charge 10-12 hours
Water Resistance Rubber over-molded base, rubber USB Port Plug, gasketed
display and hinge.
Electrical Rating Rated voltage (5V), Rated power of input current (1.6 A) at USB
C
Auto Off Yes, default 15 (only with battery power)
Power Save Yes, default OFF
Data Logger 250 test results stored for download to PC or transfer by
Bluetooth
Certifications EZ-BLE™PRoC™
Module,
CYBLE-022001-00
RF Radio:
FCC (USA):
Industry
Canada (IC)
Certification:
FCC ID:
WAP2001
License IC:
7922A-2001
CE (Europe): Complies with
Directive
1999/5/EC
MIC (Japan): 005-101007
KC (Korea): MSIP-CRM-
Cyp-2001
EMC: EU: ETSI EN 301489-1
US: FCC PART 15 B
CAN ICES-3 (B)/NMB-3(B)
AS/NZS: CSPR 22
Safety: EU: EN61010-1:2010
AS/NZS: national differences
Dimensions 21.6 X 12.4 X 10.4 cm (L X W X H)
8.5 X 4.9 X 4.2 in
Weight 0.79 Kg, 1.74 lb
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

16
ACCESSORIES AND REPLACEMENT PARTS
Description Code
WaterLink®Spin Touch® DW Meter
Water Sample Bottle (30 mL) 0689
Syringe with tips (3) 1189-3
Syringe tips (3) 1189-TIP
Cleaning Tissues 0669
Meter Check Disk (North American) 1705
Meter Check Disk (Europe) 1705-EU
Universal Disk Cover 1719
USB Cable 1712
AC Adapter (North America) 1713
Cloth Wipe 3580-WIPE
Mobile Bluetooth Printer 5-0066
WaterLink®Spin Touch® DW Manual 3585-MN
WaterLink®Spin Touch® DW Quick Guide 3585-QG
For available WaterLink®Spin Touch®DW reagent disks, see page 16.
DISK DESCRIPTIONS
Treated Water Disk DW13
(Code 4336-H)
Total Alkalinity
Free Chlorine
Total Chlorine
Combined Chlorine
Total Hardness
Copper
Total Iron
pH
pH
Total
Alkalinity
Low Range
Total Hardness
Free
Chlorine
Blank
Total
Iron
High
Range
pH
Copper
High Range
Total Hardness
Total
Chlorine
Empty
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

17
Well Water Disk DW21
(Code 4337-H)
Total Alkalinity
pH
Total Hardness
Ferrous Iron
Ferric Iron
Total Iron
Copper
Nitrate
Nitrite
pH
Total
Alkalinity
Low Range
Total Hardness
Low
Range
pH
Blank
Total
Iron
Ferrous
Iron
Nitrate
Copper
High Range
Total Hardness
Nitrite
NOTE: Colored reagents may be visible in the disk before adding sample water.
MAINTENANCE
CLEANING
The optical system of the WaterLink®Spin Touch®must be kept clean and dry for optimal
performance. Dry the disk with a lint-free wipe before placing it into the chamber to avoid
introducing moisture. For best results, store the instrument in an area that is dry and free
from aggressive chemical vapors. Clean the exterior housing with a damp, lint-free cloth.
Do not allow water to enter the light chamber or any other parts of the meter. To clean the
light chamber and optic lenses, point a can of compressed air into the light chamber and
the lid and blow the pressurized air into the light chamber and lid. Focus the pressurized
air around the LEDs which are the small round lenses positioned at 2:00, 4:00, 6:00, 8:00,
10:00 and 12:00 in the lid. The photodiodes are located on the bottom of the chamber
around the hub. This area must be kept clean and dry. Use a cotton swab dampened with
Windex®window cleaner to gently swab the LED and photodiode lenses. Do not use alcohol;
it will leave a thin residue over the optics when dry.
Remove smudges due to routine use from the touchscreen with the Cloth Wipe (Code
3580-WIPE). Use a cloth dampened with alcohol for more thorough cleaning when
necessary. Do not use Windex®window cleaner, or similar cleaners, on the touchscreen.
REPAIRS
Should it be necessary to return the meter for repair or servicing, pack the meter carefully
in a suitable container with adequate packing material. A return authorization number
must be obtained from LaMotte Company by calling 800- 344-3100, ext. 3 (US only) or
410-778-3100, ext. 3, faxing 410-778-6394, or emailing softwaresupport@lamotte.
com. Often a problem can be resolved over the phone or by email. If a return of the meter
is necessary, attach a letter with the return authorization number, meter serial number, a
brief description of problem and contact information including phone and FAX numbers
to the shipping carton. This information will enable the service department to make the
required repairs more efficiently.
METER DISPOSAL
Waste Electrical and Electronic Equipment (WEEE)
Natural resources were used in the production of this equipment. This equipment may
contain materials that are hazardous to health and the environment. To avoid harm to
the environment and natural resources, the use of appropriate take-back systems is
recommended. The crossed out wheeled bin symbol on the meter encourages the use of
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

18
these systems when disposing of this equipment.
Take-back systems will allow the materials to be reused or recycled in a
way that will not harm the environment. For more information on approved
collection, reuse, and recycling systems contact local or regional waste
administration or recycling services. Do not incinerate the equipment.
DISK DISPOSAL
The disks cannot be reused. Over time, the water in reacted disks will evaporate. Disks
can be recycled. Warning: Recyclers should check with the local authorities. Some states
may require that no chemical residue remains on the plastic or may not be able to accept
plastic waste with stainless steel mixing beads. Used disks may be returned, at the
customer’s expense, to LaMotte for recycling.
GENERAL INFORMATION
PACKAGING AND RETURNS
Experienced packaging personnel at LaMotte Company assure adequate protection against
normal hazards encountered in transportation of shipments. After the product leaves
the manufacturer, all responsibility for its safe delivery is assured by the transportation
company. Damage claims must be filed immediately with the transportation company to
receive compensation for damaged goods. Should it be necessary to return the instrument
for repair or servicing, pack the instrument carefully in a suitable container with adequate
packing material. A return authorization number must be obtained from LaMotte Company
by calling 1-800-344-3100 or 1-410-778-3100, ext. 3 or emailing tech@lamotte. com.
Attach a letter with the authorization number to the shipping carton which describes the
kind of trouble experienced. This valuable information will enable the service department to
make the required repairs more efficiently.
GENERAL PRECAUTIONS
Read the instruction manual before attempting to set up or use the instrument. Failure to
do so could result in personal injury or damage to the meter. The WaterLink®Spin Touch®
should not be stored or used in a damp or excessively corrosive environment. Care should
be taken to prevent water or reagents from entering the photometer chamber. Wet disks
should never be put into the photometer chamber.
SAFETY PRECAUTIONS
Read the safety precautions on the labels of all reagent containers and packaging prior to
use. Safety Data Sheets (SDS) can be found at www.lamotte.com. Additional emergency
information for all LaMotte reagents is available 24 hours a day from the National Poison
Control Center at 1-800-222-1222 or by contacting the 24 hour emergency line for
ChemTel at 1-800-255-3924 (USA, Canada, Puerto Rico). For locations outside of the
North American continent call 813-248-0585 collect.
Ensure that the protection provided by this equipment is not impaired. Do not install or use
this equipment in a manner that is not indicated in this manual.
LIMITS OF LIABILITY
Under no circumstances shall LaMotte Company be liable for loss of life, property, profits,
or other damages incurred through the use or misuse of its products.
CE MARK
The WaterLink®Spin Touch®meter has been independently tested and has earned the
European CE Mark of compliance for electromagnetic compatibility and safety. To view
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]

19
certificates, go to the LaMotte website at www.lamotte.com.
This device complies with Part 15 of the FCC rules. Operation is subject to the following
two conditions (1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired
operation.
Note: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
residential environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
¬Reorient or relocate the receiving antenna.
¬Increase the separation between the equipment and receiver.
¬Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
¬Consult the dealer or an experienced radio/TV technician for help.
WARRANTY
LaMotte Company warrants this instrument to be free of defects in parts and workmanship
for 2 years from the date of shipment. If it should become necessary to return the
instrument for service during or beyond the warranty period, contact our Technical Service
Department at 1-800-344-3100 or 1-410-778-3100, ext. 3 or softwaresupport@lamotte.
com for a return authorization number or visit www.lamotte.com for troubleshooting help.
The sender is responsible for shipping charges, freight, insurance and proper packaging to
prevent damage in transit. This warranty does not apply to defects resulting from action
of the user such as misuse, improper wiring, operation outside of specification, improper
maintenance or repair, or unauthorized modification. LaMotte Company specifically
disclaims any implied warranties or merchantability or fitness for a specific purpose and
will not be liable for any direct, indirect, incidental or consequential damages. LaMotte
Company’s total liability is limited to repair or replacement of the product. The warranty
set forth above is inclusive and no other warranty, whether written or oral, is expressed or
implied.
To register your meter with the LaMotte Service Department, go to www.lamotte.com and
choose SUPPORT on the top navigation bar.
Serial Number ______________________________________________________
www.GlobalTestSupply.com
Find Quality Products Online at: [e-mail]
