Land Pride Backhoe BH1560 User manual

Backhoes
BH1560 & BH1575
19364 340-036P
Parts Manual
Read the Operator's manual entirely. When
you see this symbol, the subsequent
instructions and warnings are serious - follow
without exception. Your life and the lives of
others depend on it!
© Copyright 2008 Printed 05/02/08
Cover photo may show optional equipment not
supplied with standard unit.
Table of Contents Part Number Index

Section 1: Introduction.................................................4

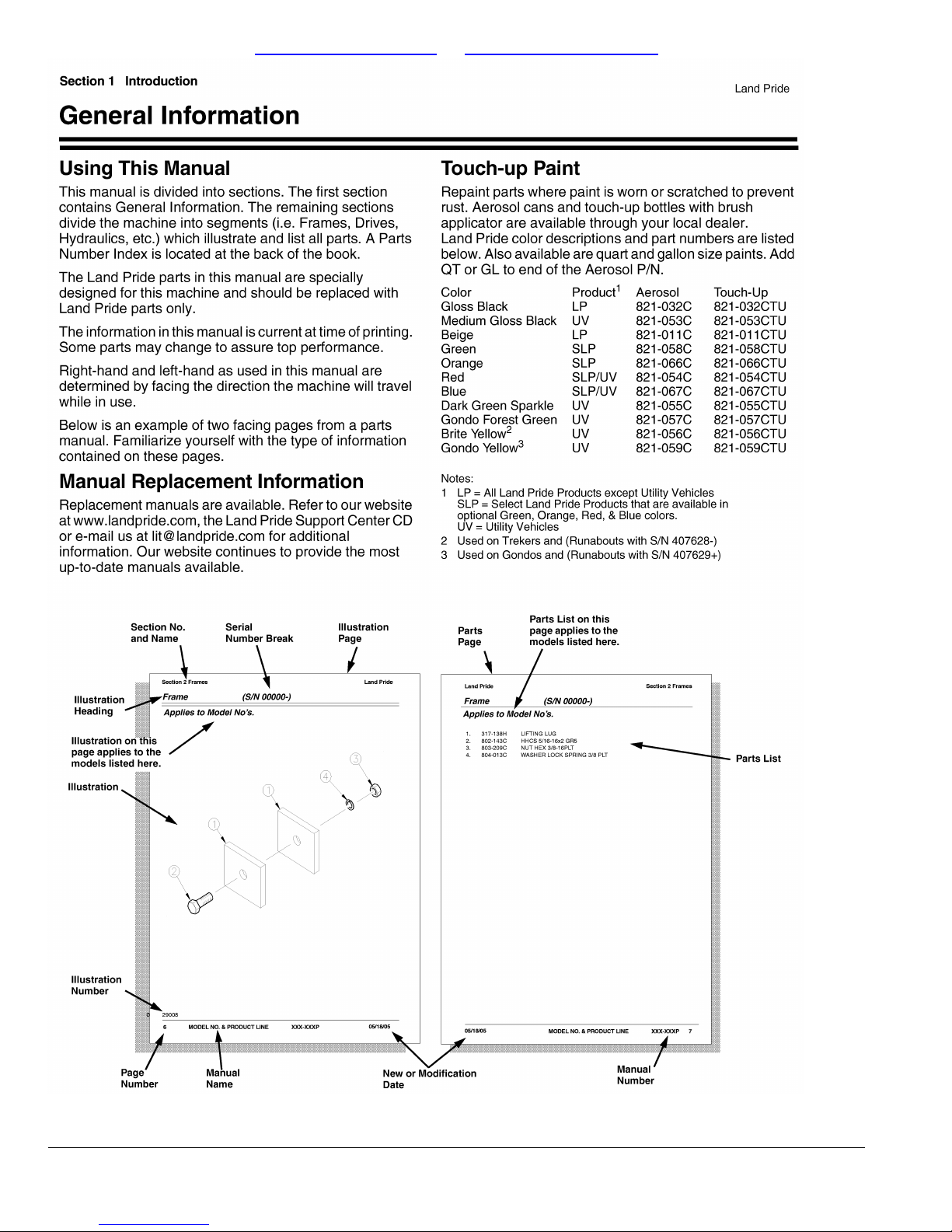

Using This Manual...............................................................4
Manual Replacement Information.......................................4
Manual Revisions................................................................4
Touch-up Paint....................................................................4

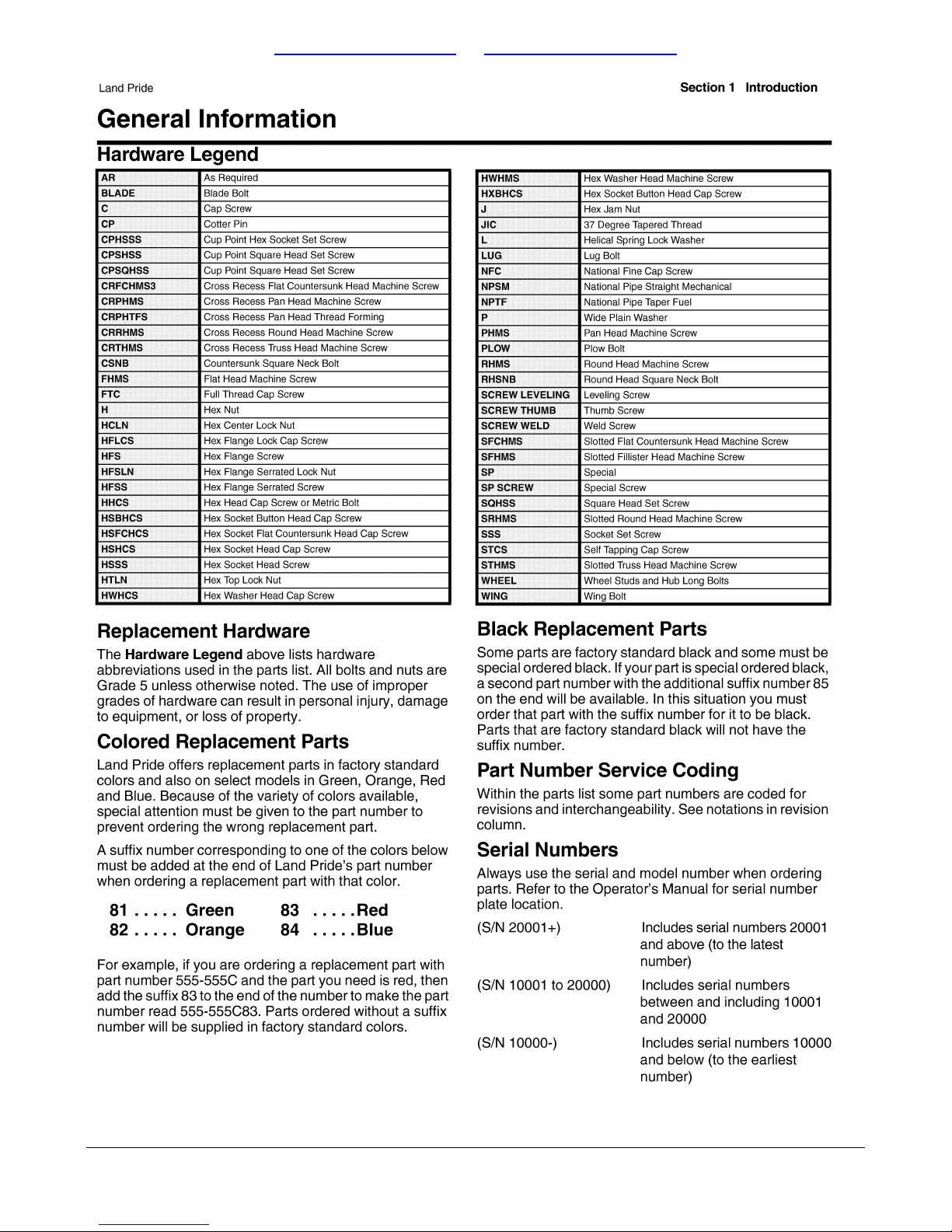

Hardware Legend................................................................5
Replacement Hardware......................................................5
Serial Numbers...................................................................5
Part Number Service Coding..............................................5
BH15 SERIES
Section 2: Frame............................................................6
Boom & Swing (BH1560 Shown)........................................6
Bucket & Dipper Stick (BH1560 Shown).............................8
Frame & Stabilizer Arms (BH1560 Shown).......................10
Section 3: Stabilizer....................................................12
Stabilizer Assembly...........................................................12
Section 4: Hydraulics..................................................14
Hydraulic Control Assembly (BH1560 Shown)..................14
Hydraulic Cylinder Boom (839-682C) Shown &
(839-504C)..................................................................16
Hydraulic Cylinder Bucket (839-684C) Shown &
(839-505C)..................................................................18
Hydraulic Cylinder Dipper Stick (839-683C) Shown &
(839-506C)..................................................................20
Hydraulic Cylinder Stabilizers (839-709C) Shown &
(839-503C)..................................................................22
Hydraulic Cylinder Swing (839-681C) Shown & (839-507C)
(839-508C)..................................................................24
Hydraulics Boom & Swing.................................................26
Hydraulics Boom & Swing (BH1560)................................28
Hydraulics Bucket & Pressure Hose (BH1560 Shown).....30
Hydraulics Dipper Stick & Stabilizers (BH1560 Shown).....32
Section 6: Label Placement........................................34
Label Placement...............................................................34
Part Number Index.......................................................36
© Copyright 2008. All rights reserved.
Land Pride provides this publication “as is” without warranty of any kind, either expressed or implied. While every precaution has been taken in the preparation of this manual,
Land Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained herein. Land
Pride reserves the right to revise and improve its products as it sees fit. This publication describes the state of this product at the time of its publication, and may not reflect
the product in the future. The illustrations in this manual are not intended for safe and proper assembly or disassembly of equipment. The illustrations are intended for
ordering parts only.
Land Pride is registered trademark.
All other brands and product names are trademarks or registered trademarks of their respective holders.
Printed in the United States of America.
2BH1560 & BH1575 Backhoes 340-036P 05/02/08
Table of Contents Part Number Index
Table of Contents

BH15 SERIES
BBoom & Swing (BH1560 Shown)...................................6
Bucket & Dipper Stick (BH1560 Shown)........................8
FFrame & Stabilizer Arms (BH1560 Shown)..................10
HHydraulic Control Assembly (BH1560 Shown).............14
Hydraulic Cylinder Boom (839-682C) Shown &
(839-504C).............................................................16
Hydraulic Cylinder Bucket (839-684C) Shown &
(839-505C).............................................................18
Hydraulic Cylinder Dipper Stick (839-683C) Shown &
(839-506C).............................................................20
Hydraulic Cylinder Stabilizers (839-709C) Shown &
(839-503C).............................................................22
HydraulicCylinderSwing (839-681C) Shown&(839-507C)
(839-508C).............................................................24
Hydraulics Boom & Swing............................................26
Hydraulics Boom & Swing (BH1560)............................28
Hydraulics Bucket & Pressure Hose (BH1560
Shown)...................................................................30
Hydraulics Dipper Stick & Stabilizers (BH1560
Shown)...................................................................32
LLabel Placement..........................................................34
SStabilizer Assembly......................................................12
Table of Contents Part Number Index
Alphabetized Table of Contents
05/02/08 BH1560 & BH1575 Backhoes 340-036P 3

4BH1560 & BH1575 Backhoes 340-036P 05/02/08
Table of Contents Part Number Index

05/02/08 BH1560 & BH1575 Backhoes 340-036P 5
Table of Contents Part Number Index

20535
6BH1560 & BH1575 Backhoes 340-036P 05/02/08
Table of Contents Part Number Index
Land Pride Section 2: Frame
BH15 SERIES

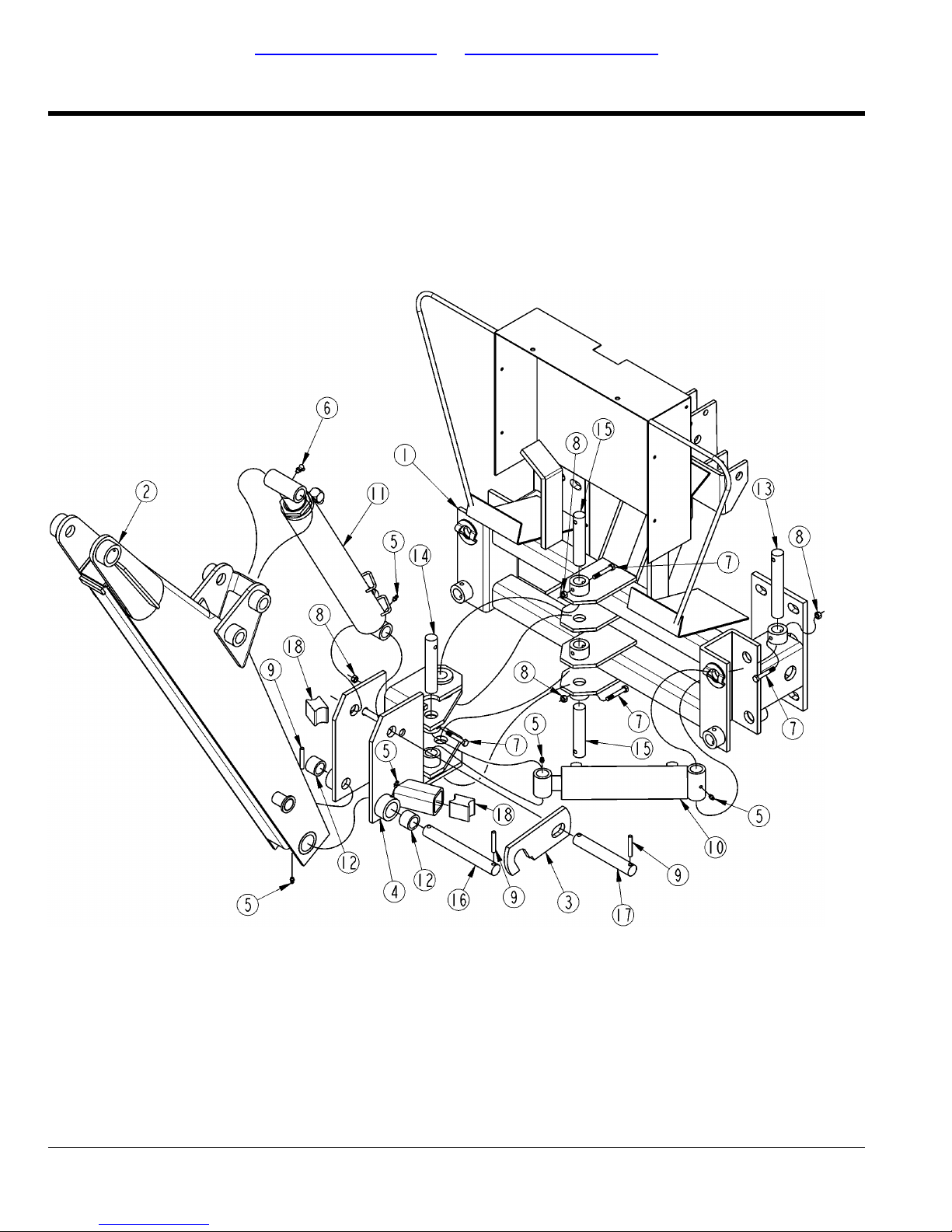

Boom & Swing (BH1560 Shown)
Applies to BH1560, BH1575

RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg20535 FRAME WELDMENT BH1560340-011H1. FRAME WELDMENT BH1575340-024H1. BOOM WELDMENT BH1560340-012H2. BOOM WELDMENT BH1575340-025H2. BOOM SAFETY LOCK BAR BH15600-0340-014D3. BOOM LOCK BH1575340-008D3. SWING WELDMENT BH1560340-014H4. SWING WELDMENT BH1575340-027H4. GREASE ZERK STRAIGHT 1/4-28800-001C5. GREASE ZERK 1/4-28 X 90-DEG800-073C6. HHCS 5/16-18X2 GR5802-115C7. NUT LOCK 5/16-18 PLT803-011C8. PIN ROLL 5/16 X 2 LG.PLT805-053C9. CYL SWING BH1560839-681C10. CYL.,SWING LH BH1575839-507C10. CYL.,SWING RH BH1575839-508C10. CYL BOOM BH1560839-682C11. CYL.,BOOM BH1575839-504C11. BUSHING STEEL 1"IDX1 BH1560839-686C12. BUSHING,1 1/4 X 1 BH839-500C12. PIN 1"X 6 3/8 BH1560839-688C13. PIN, 1X7 SWG CYL BASE BH1575839-510C13. PIN 1"X 5 3/8 BH1560839-689C14. PIN, 1X6 3/8 SWG CYL ROD 1575839-511C14. PIN 1"X 4 7/8 BH1560839-690C15. PIN.1 1/4X5 1/4SWG PIVOT 1575839-512C15. PIN 1"X 8 1/8 BH1560839-691C16. PIN,1 1/4X8 1/8 BOOM PIVT 1575839-513C16. PIN 1"X 6 1/2 BH1560839-692C17. PIN,1X7 1/8 BOOM CYL ROD 1575839-514C17. RUBBER SWING BUMPER BH1560839-697C18.
05/02/08 BH1560 & BH1575 Backhoes 340-036P 7
Table of Contents Part Number Index
Section 2: Frame Land Pride
BH15 SERIES
Boom & Swing (BH1560 Shown)
Applies to BH1560, BH1575

20538
8BH1560 & BH1575 Backhoes 340-036P 05/02/08
Table of Contents Part Number Index
Land Pride Section 2: Frame
BH15 SERIES

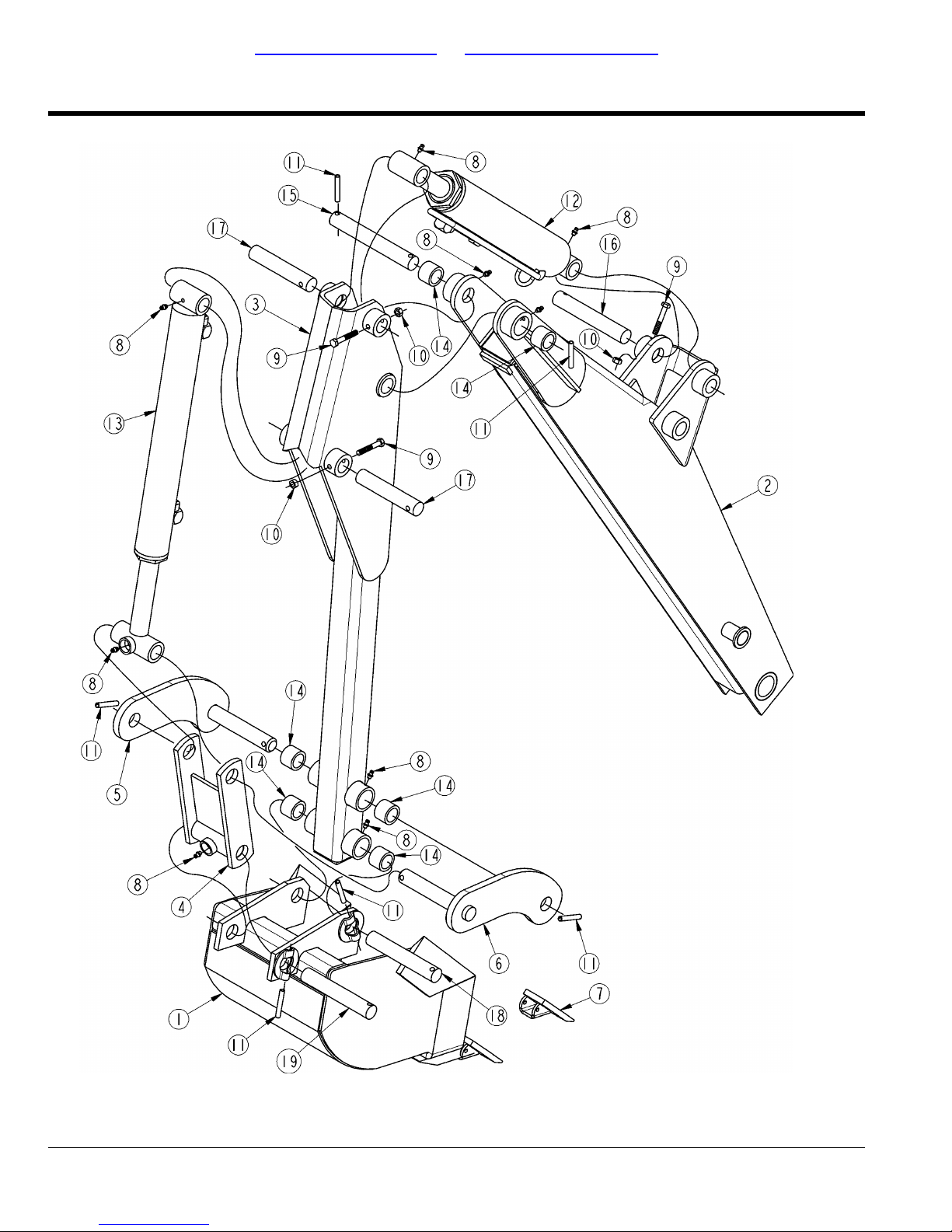

Bucket & Dipper Stick (BH1560 Shown)
Applies to BH1560, BH1575

RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg20538 BUCKET 9" WELDED TOOTH BH1560340-005A1. BUCKET 9" REPL TOOTH BH1560340-006A1. BUCKET 12" WELDED TOOTH BH1560340-007A1. BUCKET 12" REPL TOOTH BH1560340-008A1. BUCKET 15" WELDED TOOTH BH1560340-009A1. BUCKET 15" REPL TOOTH BH1560340-010A1. BUCKET 9" REPL. TOOTH BH1575340-045A1. BUCKET 12" REPL. TOOTH BH1575340-047A1. BUCKET 15" REPL. TOOTH BH1575340-049A1. BUCKET 18" REPL. TOOTH BH1575340-051A1. BOOM WELDMENT BH1560340-012H2. BOOM WELDMENT BH1575340-025H2. STICK WELDMENT BH1560340-013H3. STICK WELDMENT BH1575340-026H3. BUCKET LINK WLDMT REAR BH1560340-015H4. BUCKET LINK REAR BH1575340-028H4. BUCKET LINK WLDMT TOPRH BH1560340-016H5. BUCKET LINK TOP BH1575340-029H5. BUCKET LINK WLDMT TOPLH BH1560340-017H6. BUCKET LINK TOP BH1575340-029H6. REPLACEABLE POINT TOOTH839-747C7. GREASE ZERK STRAIGHT 1/4-28800-001C8. HHCS 5/16-18X2 GR5802-115C9. NUT LOCK 5/16-18 PLT803-011C10. PIN ROLL 5/16 X 2 LG.PLT805-053C11. CYL DIPPER BH1560839-683C12. CYL.,DIPPER BH1575839-506C12. CYL BUCKET BH1560839-684C13. CYL.,BUCKET BH1575839-505C13. BUSHING STEEL 1"IDX1 BH1560839-686C14. BUSHING,1 1/4 X 1 BH839-500C14. PIN 1"X 7 3/8 BH1560839-693C15. PIN.1 1/4X7 3/8 DIP PIVOT 1575839-515C15. PIN 1"X 6 3/8 BH1560839-694C16. PIN, 1X7 SWG CYL BASE BH1575839-510C16. PIN 1"X 5 3/8 BH1560839-695C17. PIN, 1X7 SWG CYL BASE BH1575839-510C17. PIN 1"X 6 1/8 BH1560839-696C18. PIN,1X8 1/8 BUCKET LINK 1575839-516C18. PIN 1"X 6 1/8 BH1560839-696C19. PIN,1 1/4X8 1/8 BUCK PIVT 1575839-517C19.
05/02/08 BH1560 & BH1575 Backhoes 340-036P 9
Table of Contents Part Number Index
Section 2: Frame Land Pride
BH15 SERIES
Bucket & Dipper Stick (BH1560 Shown)
Applies to BH1560, BH1575

19383
10 BH1560 & BH1575 Backhoes 340-036P 05/02/08
Table of Contents Part Number Index
Land Pride Section 2: Frame
BH15 SERIES

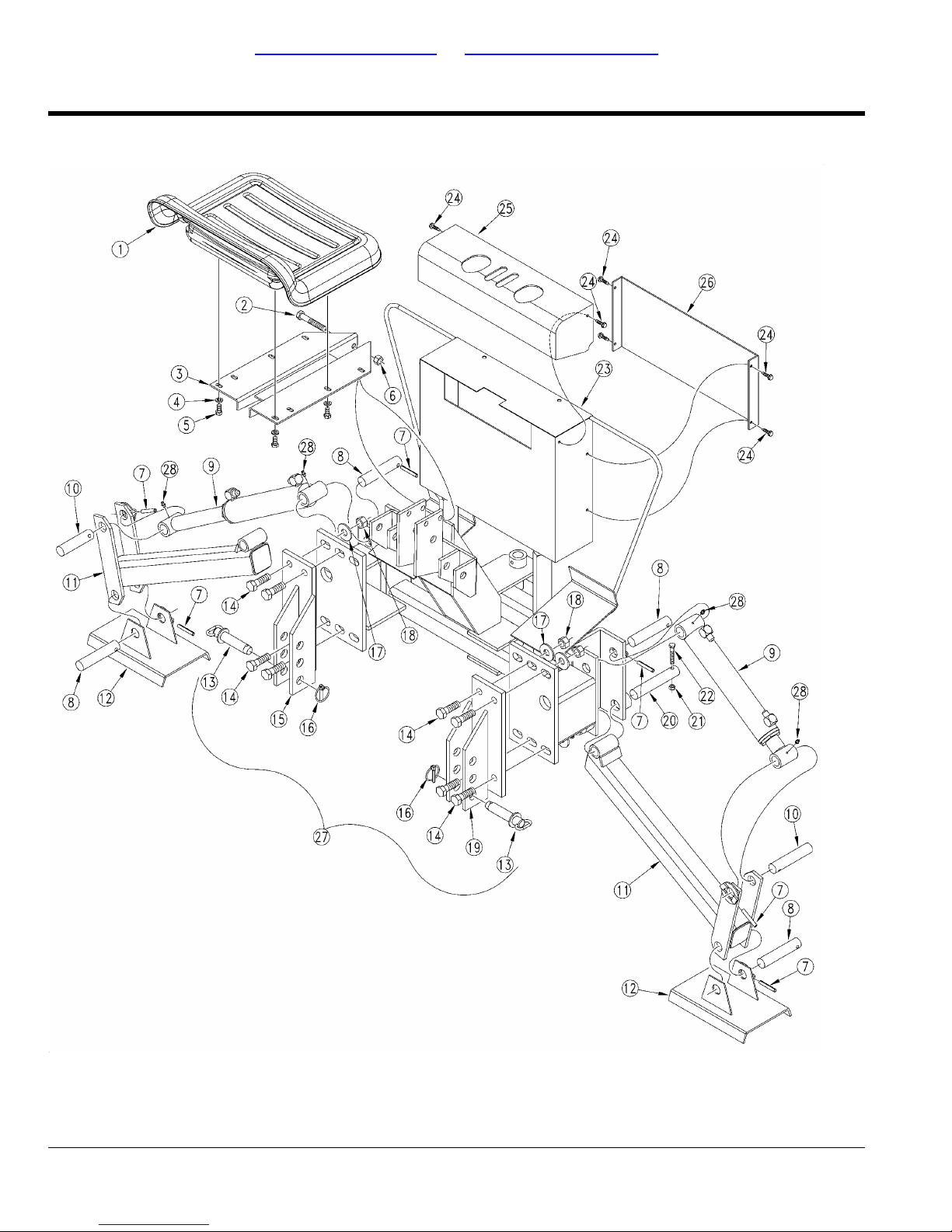

Frame & Stabilizer Arms (BH1560 Shown)
Applies to BH1560, BH1575

RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg19383 SEAT BH1575839-502C1. HHCS 1/2-13X3 GR5802-039C2. SEAT BASE WELD BH1575340-039H3. HHCS 3/8-16X3/4 GR5802-014C4. WASHER LOCK SPRING 3/8 PLT804-013C5. NUT LOCK 1/2-13 PLT803-019C6. PIN ROLL 5/16 X 2 LG.PLT805-053C7. PIN 1"X 4 7/8 BH1560839-699C8. PIN, 1X7 SWG CYL BASE BH1575839-510C8. CYL STABILIZER BH1560839-709C9. CYL.,STABILIZER BH1575839-503C9. PIN 1"X 4 BH1560839-698C10. PIN,3/4X4 1/2 STAB CYL ROD1575839-518C10. STABILIZER WELDMENT BH1560340-068H11. STABILIZER ARM WELD BH1575340-037H11. STABILIZER PAD WELDMT BH1560340-069H12. STABILIZER PAD WELD BH1575340-038H12. PIN LOWER HITCH 7/8X3 1/2 1560839-659C13. HHCS 5/8-11X2 GR5802-055C14. LOWER BRKT LH BH1560340-065H15. 1/4" LYNCH PIN BH STABILIZER839-526C16. WASHER FLAT 5/8 USS PLT804-019C17. NUT LOCK 5/8-11 PLT803-024C18. LOWER BRKT RH BH1560340-064H19. PIN 1"X 5 5/8 BH1560839-700C20. PIN, 1X7 SWG CYL BASE BH1575839-510C20. NUT LOCK 5/16-18 PLT803-011C21. HHCS 5/16-18X2 GR5802-115C22. FRAME WELDMENT BH1560340-011H23. FRAME WELDMENT BH1575340-024H23. SELF TAPPING SCREW BH839-634C24. PLASTIC CONTROL COVER BH1560839-818C25. PLASTIC CONTROL COVER BH1575839-938C25. COVER BH1560839-685C26. VALVE COVER BH1575839-522C26. Includes items 13 through 20LOWER HITCH BRKT KIT BH1560340-063K27. GREASE ZERK STRAIGHT 1/4-28800-001C28.
05/02/08 BH1560 & BH1575 Backhoes 340-036P 11
Table of Contents Part Number Index
Section 2: Frame Land Pride
BH15 SERIES
Frame & Stabilizer Arms (BH1560 Shown)
Applies to BH1560, BH1575

20533
12 BH1560 & BH1575 Backhoes 340-036P 05/02/08
Table of Contents Part Number Index
Land Pride Section 3: Stabilizer
BH15 SERIES

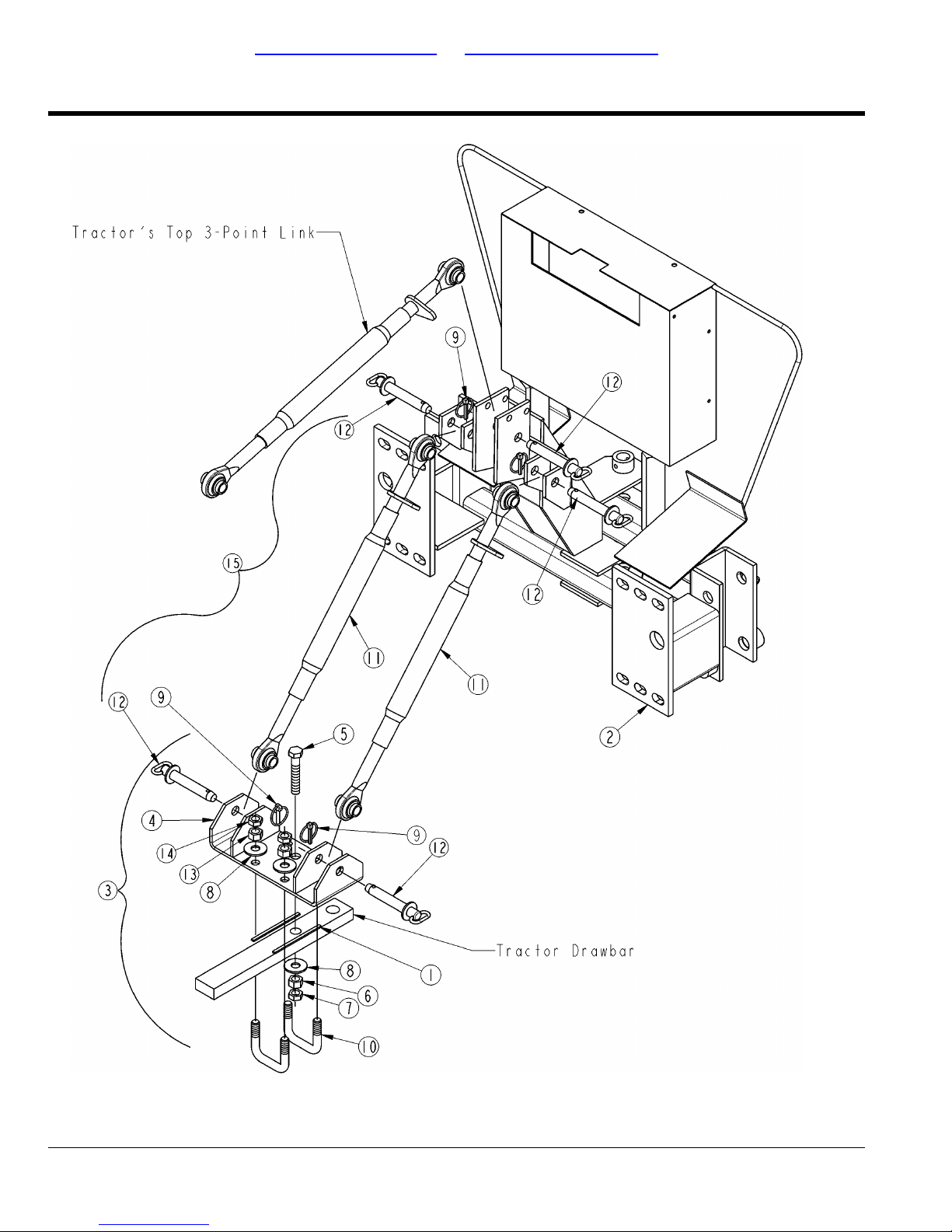

Stabilizer Assembly
Applies to BH1560, BH1575

RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg20533 STABILIZER SPACER BAR BH1575340-009D1. FRAME WELDMENT BH1560340-011H2. Includes items 1, 4 through 10, 13 &
14
DRAWBAR BRACKET KIT BH1575340-052K3.
DRAWBAR BRACKET WELDMT BH1575340-055H4. HHCS 5/8-11X3 1/2 GR5802-162C5. HHCS 3/4-10X3 1/2 GR5802-066C5. NUT HEX 5/8-11 PLT803-021C6. NUT HEX 3/4-10 PLT803-027C6. NUT HEX JAM 5/8-11 PLT803-023C7. NUT HEX JAM 3/4-10 PLT803-048C7. WASHER FLAT 5/8 USS PLT804-019C8. 1/4" LYNCH PIN BH STABILIZER839-526C9. U-BOLT 5/8X2 1/2X2 3/4 BH839-527C10. ADJ.STABILIZER LINK CAT1 BH839-528C11. PIN,3/4X4 1/2 W/LOOP BH839-529C12. NUT HEX 5/8-11 PLT803-021C13. NUT HEX JAM 5/8-11 PLT803-023C14. Includes items 9, 11 & 123 PT STABILIZER KIT BH1575340-053K15.
05/02/08 BH1560 & BH1575 Backhoes 340-036P 13
Table of Contents Part Number Index
Section 3: Stabilizer Land Pride
BH15 SERIES
Stabilizer Assembly
Applies to BH1560, BH1575

20534
14 BH1560 & BH1575 Backhoes 340-036P 05/02/08
Table of Contents Part Number Index
Land Pride Section 4: Hydraulics
BH15 SERIES

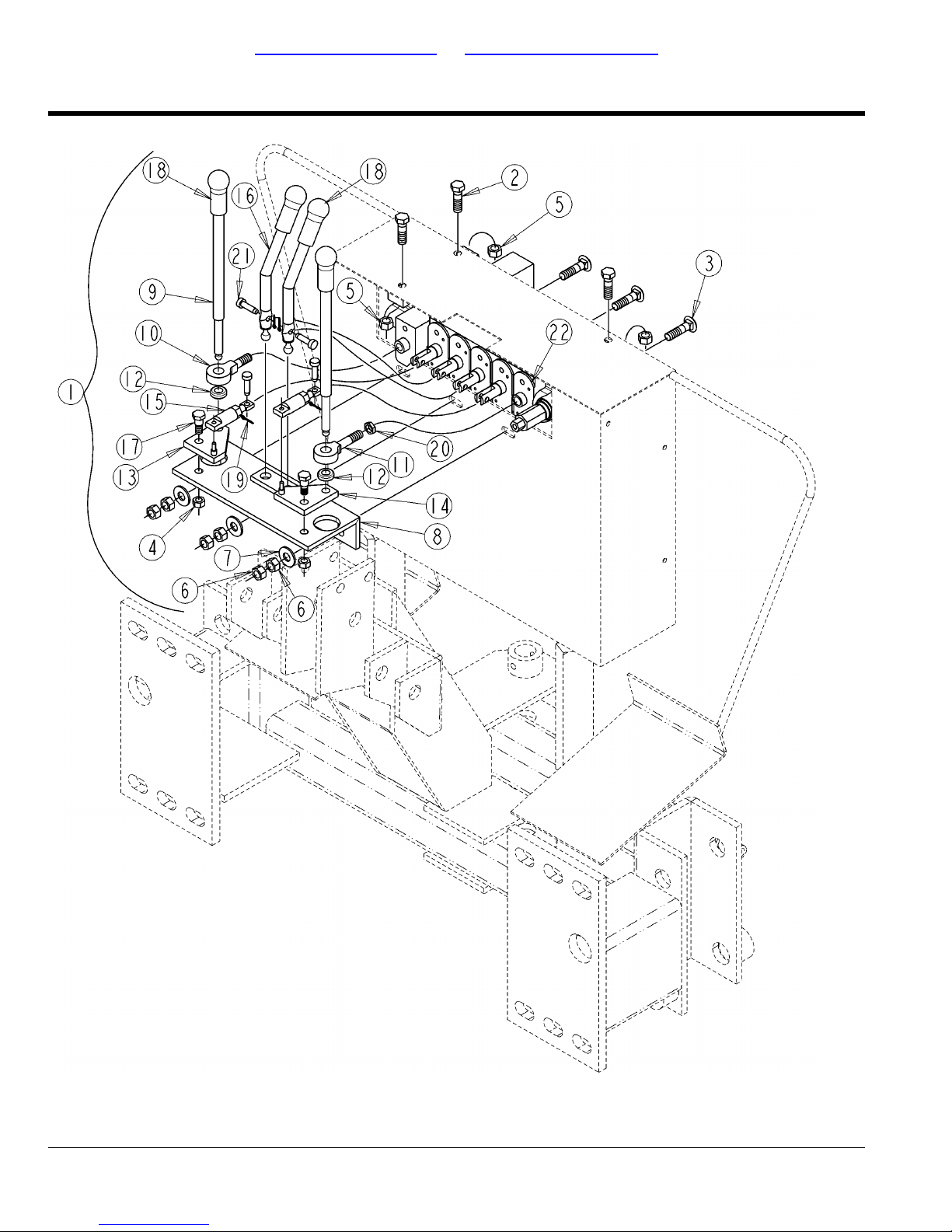

Hydraulic Control Assembly (BH1560 Shown)
Applies to BH1560, BH1575

RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg20534 VALVE CONTROL KIT BH1560,75340-057K1. HHCS 3/8-16X1 1/4 GR5802-079C2. RHSNB 3/8-16X1 1/2 GR5802-453C3. NUT HEX 5/16-18 PLT803-008C4. NUT LOCK 3/8-16 PLT803-013C5. NUT HEX 3/8-16 PLT803-014C6. WASHER FLAT 3/8 USS PLT804-011C7. MAIN CONTROL BASE BH839-530C8. MAIN CONTROL LEVER BH839-531C9. SHORT SPHERICAL LINK BH839-532C10. LONG SPHERICAL LINK BH839-533C11. MAIN CONTROL LOCK COLLAR BH839-534C12. LH CONTROL TRUNION BH839-535C13. RH CONTROL TRUNION BH839-536C14. CONTROL LINKS,2 3/8" BH839-537C15. STABILIZER CONTROL LEVER BH839-538C16. SHOULDER BOLT 5/16X7/8 BH839-539C17. PLASTIC KNOB BH YELLOW839-540C18. PLASTIC KNOB BH BLACK839-966C18. COTTER 1/16 X 3/4 BH839-542C19. 3/8 NF JAM NUT BH839-543C20. CLEVIS PIN 1/4 X 3/4 BH839-544C21. VALVE,BH1560 BH1575839-509C22.
05/02/08 BH1560 & BH1575 Backhoes 340-036P 15
Table of Contents Part Number Index
Section 4: Hydraulics Land Pride
BH15 SERIES
Hydraulic Control Assembly (BH1560 Shown)
Applies to BH1560, BH1575

20541
16 BH1560 & BH1575 Backhoes 340-036P 05/02/08
Table of Contents Part Number Index
Land Pride Section 4: Hydraulics
BH15 SERIES

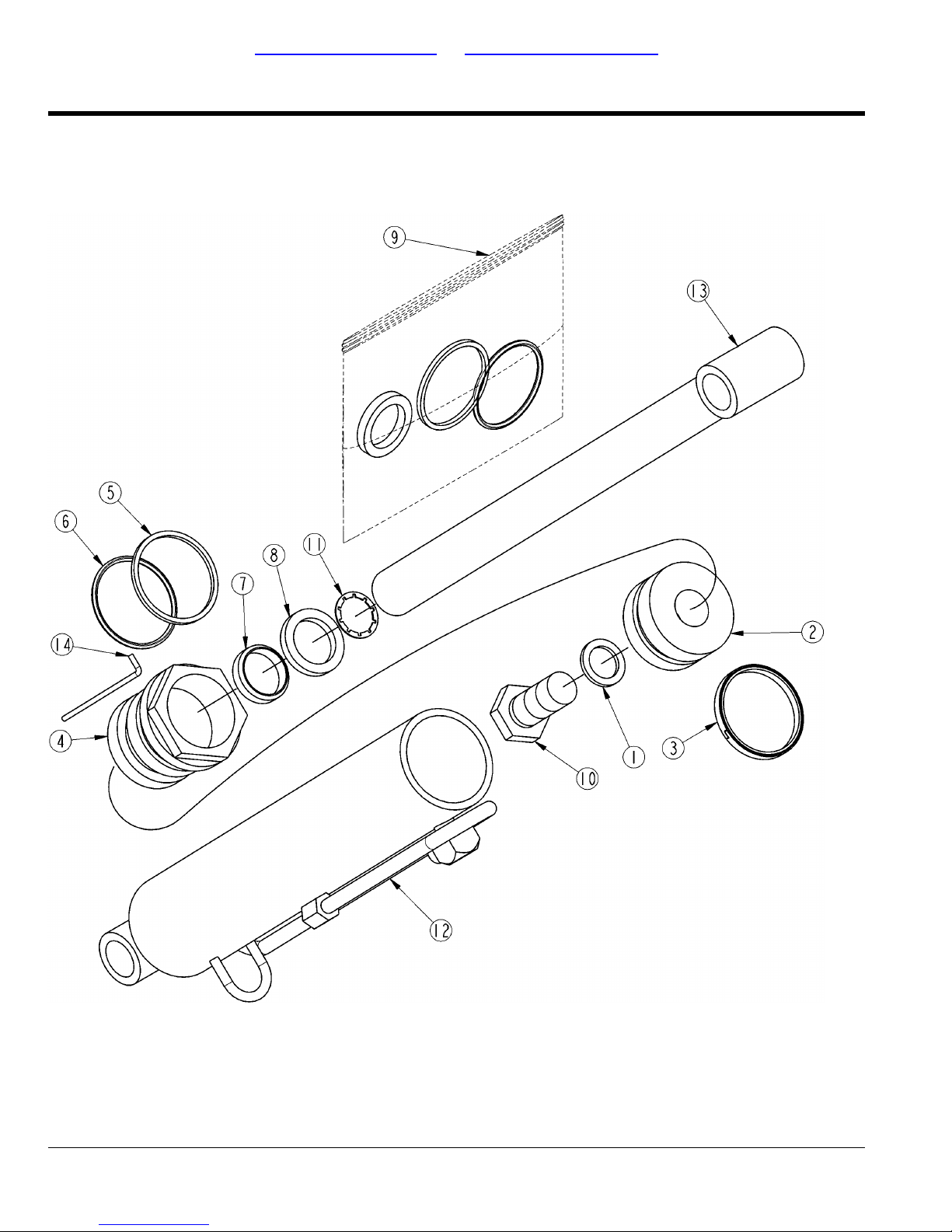

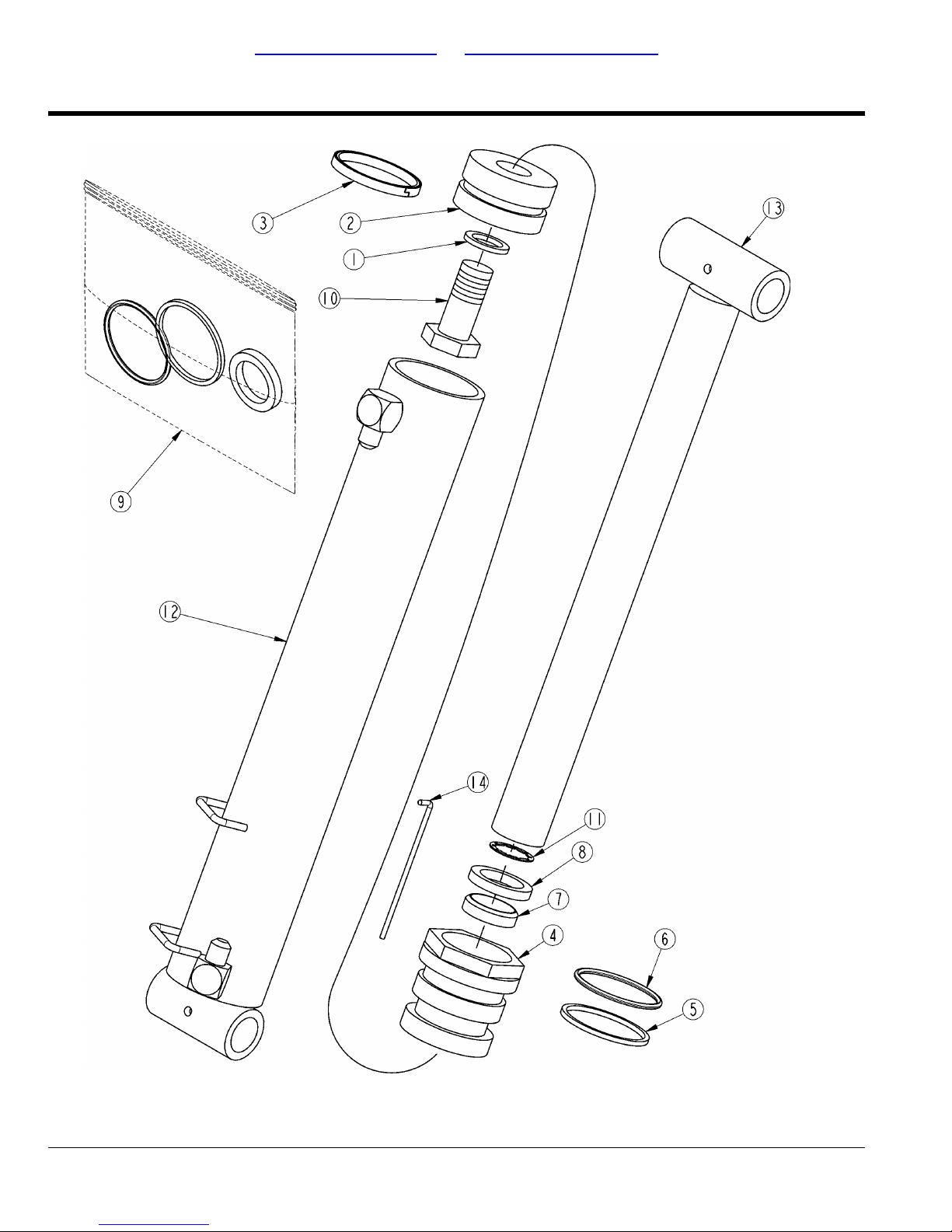

Hydraulic Cylinder Boom (839-682C) Shown & (839-504C)
Applies to BH1560, BH1575

RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg20541 CYL BOOM BH1560839-682C CYL.,BOOM BH1575839-504C Found only in seal kit item #9DYNA-SEAL 7/8" BH1. PISTON, 2 1/2" BH839-639C2. Found only in seal kit item #9PISTON SEAL 2 1/2" BH3. CYL HEAD 2 1/2" BH839-641C4. Found only in seal kit item #9BACK UP RING 2 1/2" BH5. Found only in seal kit item #9O-RING 2 1/2" BH6. Found only in seal kit item #9ROD SEAL 2 1/2" BH7. Found only in seal kit item #9ROD WIPER 2 1/2" BH8. SEAL KIT 2 1/2" BORE839-647C9. BOLT 7/8 NF X 2 GR5 BH839-650C10. WASHER 7/8 INTERNAL STAR BH839-651C11. 839-682CCYL BOOM 14" BARREL BH1560839-660C12. 839-504CCYL BOOM 20" BARREL BH1575839-652C12. 839-682CCYL BOOM 14" ROD BH1560839-661C13. 839-504CCYL BOOM 20" ROD BH1575839-653C13. LOCKWIRE 2 1/2" BH839-831C14.
05/02/08 BH1560 & BH1575 Backhoes 340-036P 17
Table of Contents Part Number Index
Section 4: Hydraulics Land Pride
BH15 SERIES
Hydraulic Cylinder Boom (839-682C) Shown & (839-504C)
Applies to BH1560, BH1575

20543
18 BH1560 & BH1575 Backhoes 340-036P 05/02/08
Table of Contents Part Number Index
Land Pride Section 4: Hydraulics
BH15 SERIES

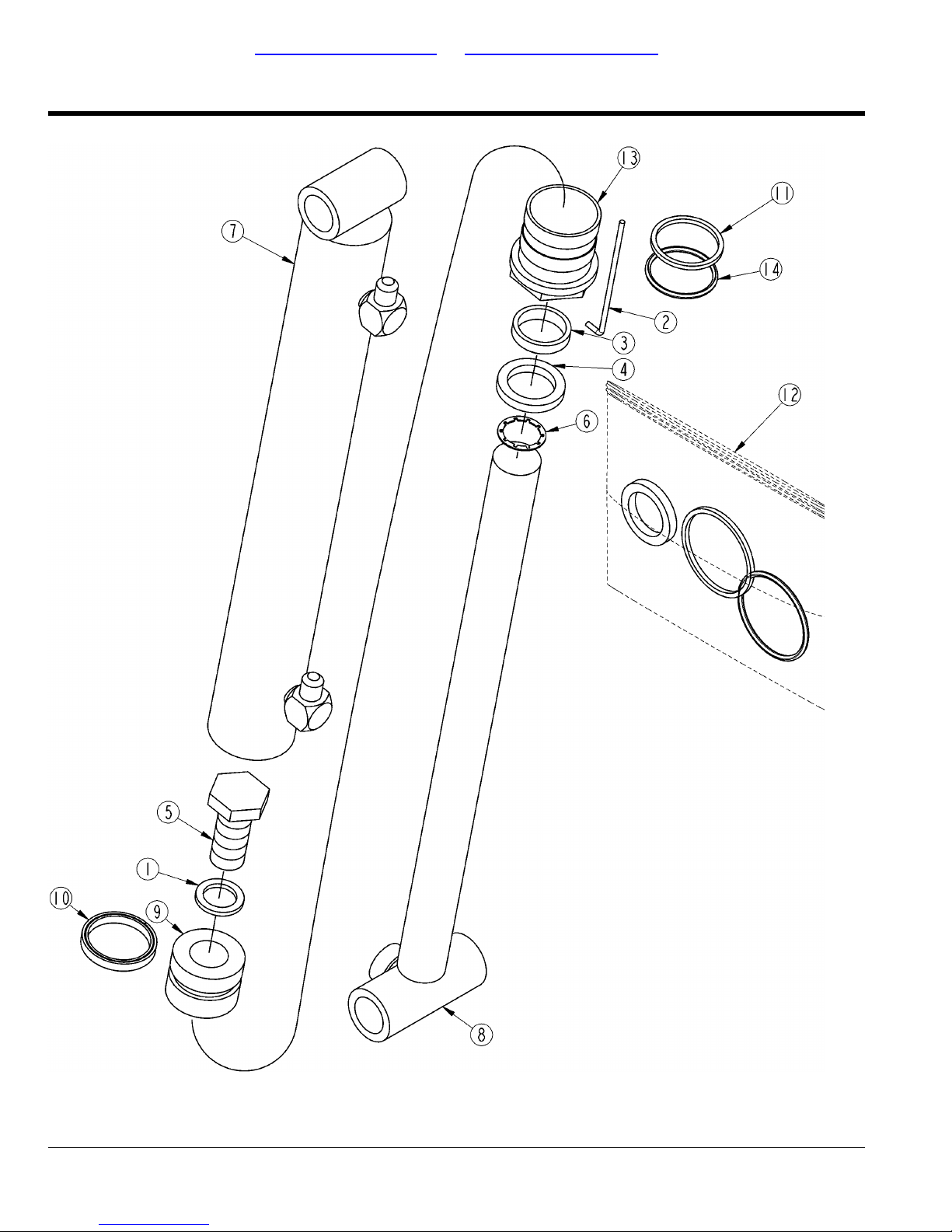

Hydraulic Cylinder Bucket (839-684C) Shown & (839-505C)
Applies to BH1560, BH1575

RevisionCommentsPart DescriptionPart No.Ref.
Drawing Image Numberdwg20543 CYL BUCKET BH1560839-684C CYL.,BUCKET BH1575839-505C Found only in seal kit item #12DYNA-SEAL 7/8" BH1. BH1560 (839-684C)LOCKWIRE 2" BH839-644C2. BH1575 (839-505C)LOCKWIRE 2 1/2" BH839-831C2. Found only in seal kit item #12ROD SEAL BH3. Found only in seal kit item #12ROD WIPER BH4. BOLT 7/8 NF X 2 GR5 BH839-650C5. WASHER 7/8 INTERNAL STAR BH839-651C6. 839-684CCYL BUCKET 12" BARREL BH1560839-665C7. 839-505CCYL BUCKET 14" BARREL BH1575839-654C7. 839-684CCYL BUCKET 12" ROD BH1560839-666C8. 839-505CCYL BUCKET 14" ROD BH1575839-655C8. BH1560 (839-684C)PISTON 2" BH839-667C9. BH1575 (839-505C)PISTON, 2 1/2" BH839-639C9. Found only in seal kit item #12PISTON SEAL BH10. Found only in seal kit item #12BACKUP RING BH11. BH1560 (839-684C)SEAL KIT 2" BH1560839-670C12. BH1575 (839-505C)SEAL KIT 2 1/2" BORE839-647C12. BH1560 (839-684C)CYL HEAD 2" BH839-714C13. BH1575 (839-505C)CYL HEAD 2 1/2" BH839-641C13. Found only in seal kit item #12CYL O-RING BH14.
05/02/08 BH1560 & BH1575 Backhoes 340-036P 19
Table of Contents Part Number Index
Section 4: Hydraulics Land Pride
BH15 SERIES
Hydraulic Cylinder Bucket (839-684C) Shown & (839-505C)
Applies to BH1560, BH1575

20542
20 BH1560 & BH1575 Backhoes 340-036P 05/02/08
Table of Contents Part Number Index
Land Pride Section 4: Hydraulics
BH15 SERIES
Hydraulic Cylinder Dipper Stick (839-683C) Shown & (839-506C)
Applies to BH1560, BH1575
