RTA25, RTR25 & RTA35 Series Rotary Tillers
Down Pressure Kit
Assembly Instructions
5/15/07
Manual No. 311-134M
Assembly Instructions
Tools required:
•Safety glasses
•Work gloves
•9/16" box end or open end wrench

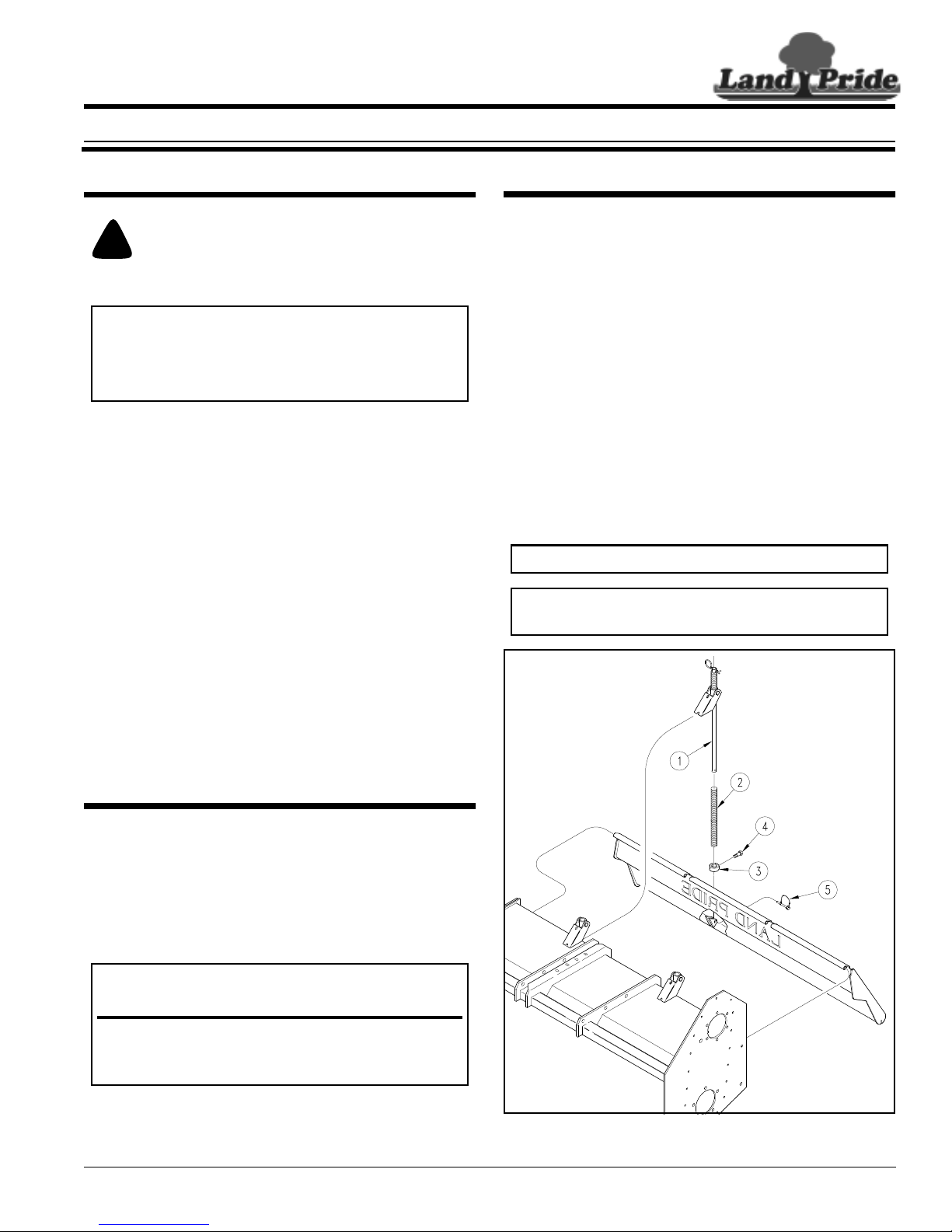

Refer to Figure 1:
1. Remove wire lock pin (#5).
2. Rotate bottom of spring rod (#1) back.
3. Slide down pressure spring (#2) up the spring rod.
4. Slide locking collar (#3) up spring rod and lightly
tighten 3/8" x 3/4" long bolt (#4).
5. Rotate spring rod back to mounting ears on rear
deflector and reinstall wire lock pin.
6. Repeat steps 1 through 5 for other spring rod.
7. Adjust lock collars up or down to achieve desired
amount of down pressure on the rear deflector.
Down Pressure Kit Assembly
Figure 1
NOTE: The lock collars should be the same height.
NOTE: Too much pressure will cause premature
wear on the underneath side of the rear deflector.
10364
Before You Start
Your Down Pressure Kit is exclusively designed for your
Land Pride Rotary Tiller. Please read these installation
instructions and your Rotary Tiller Operator’s Manual
thoroughlybeforebeginning.Especiallyreadinformation
relating to safety concerns. Also included in the
Operator’sManualisimportantinformation onoperation,
adjustment, troubleshooting, and maintenance for this
attachment (some manual sections do not apply to all
accessories).
A separate Parts Manual for replacement parts can be
purchasedfrom yourdealer oravailable freeof charge at
www.landpride.com. Have model and serial numbers
handy when placing an order.
Manual Part Numbers:
•RTA 25 Series Operator’s Manual . . . . 311-254M
•RTA 35 Series Operator’s Manual . . . . . 311-254M
•RTR 25 Series Operator’s Manual. . . . . 311-251M
•Parts Manual (All Three Series). . . . . . . .311-251P
General Information
This assembly instructions apply to the following Down
Pressure Kit listed below:
311-162 A Down Pressure Kit
Adetailedlistingofpartsfor this accessorykitisprovided
below. Use the list as a checklist to inventory parts
received.Please contact yourlocal Land Pride dealer for
any missing hardware.
When you see this symbol, the subsequent
instructions and warnings are serious - follow
without exception. Your life and the lives of
others depend on it!
!
IMPORTANT: Before you begin, read these
instructions and check to be sure all parts and tools
are accounted for. Please retain these installation
instructions for future reference and parts ordering
information.
2 311-209D SPRING ROD COLLAR RTA25/35
2 802-014C HHCS 3/8-16X3/4 GR5
2 807-005C DOWN PRESSURE SPRING
Your Kit Includes:
Qua. Part No. Part Description
