Land Pride RCRM2510 Series User manual

104
Rotary Cutters Single Deck
Specifications & Capacities
Designs, specifications, features and information are subject to change without notice.
RCR25 Series
RCR2596 (540 RPM) RCR2510 (540 RPM) RCRM2510 (1000 RPM)
Machine Weight (With Front and
Rear Chain Shields) Lift-Type 1,380 lbs.
Pull-type 1,665 lbs. Lift-Type 1,750 lbs Pull-Type 2,035 lbs.
Hitch Lift-Type Category 1 & 2
Quick hitch adaptable
Pull-Type - w/Dual Level Rods
Lift-Type Category 2 & 3
Quick-Hitch adaptable
Pull-Type - w/Dual Level Rods
Cutting Width 94” 118”
Overall Width 99 3/4” 123 1/2”
Overall Length Lift-Type: 106”
Pull-Type: 140 3/4” Lift-Type: 112” Pull-Type: 150”
Deck Height 9 5/8”
Cutting Height 2” - 12”
Cutting Capacity 1 1/2” 1"
Tractor H.P. Rating (PTO) Lift-Type: 50 - 110
Pull-Type: 40 - 110 Lift-Type: 60 - 110 Pull-Type: 50 - 110
PTO Speed
Gearbox Rating H.P. Center - 100 HP Outboard 60 HP
Gearbox
(Speed up beveled gears) 540 rpm or 1000 rpm PTO Driven Gearbox
Cast Iron Housing, Beveled Gears
Gearbox Lubrication 80-90W EP
Gearbox Oil Capacity End Boxes
T-Box 2.5 Pints 4.5 Pints 2.5 Pints 4.5 Pints
Gear box Input/ Output Shaft Size Input Shaft = 1 3/4” - 20 Spline
Output Shaft = 2” Dia.
Deck Material Thickness 10 gauge
Deck Side Skirt Thickness
Skids Replaceable
Stump Jumper Round Pan 3/16”
Blades (2) 1/2” x 4" Heat Treated
Free-Swinging Suction Blades
Blade Bolts Keyed with Harden Flat Washer and Lock Nut
Blade Tip Speed 540 RPM 14,592 fpm 540 RPM 17,749 fpm
1000 RPM 18,035 fpm
Driveline Cat 4, w/Equal Angle U-Joint Cat 4 w/Equal Angle U-Joint or
Constant Velocity U-Joint
Driveline Protection 540 rpm - 4 plate slip clutch
1000 rpm - 2 plate slip clutch
Tailwheel Lift-Type: 2 ea. 4” x 8” x 15 1/4” Laminated
Pull-Type: 2 ea. 6” x 9” x 21” Laminated or 24” Aircraft tires or 15” Automotive Rims
Optional Safety Shields Front & Rear Chain/ Front & Rear Rubber
312-753S continues on next two pages 3/05/12

105
Rotary Cutters Single Deck
Specifications & Capacities
Designs, specifications, features and information are subject to change without notice.

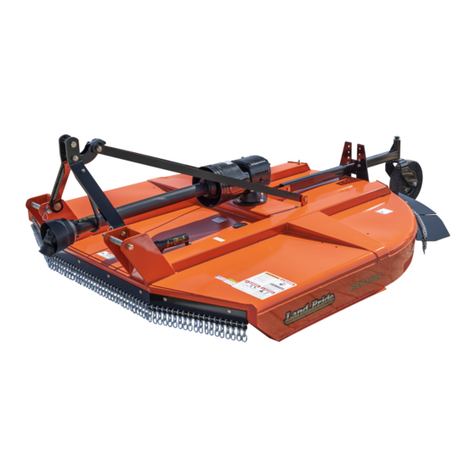

3-Point Type RCR25 Series
26815
312-753S continues on next page 3/05/12

106
Rotary Cutters Single Deck
Specifications & Capacities
Designs, specifications, features and information are subject to change without notice.
Pull Type RCR25 Series
26816
312-753S end 3/05/12
