Landa SEA 2.8/1000 User manual

9.801-720.0 - AJ 02/09/21
SEA MS
Cold Water - Electric Powered
Operator’s Manual Pressure Washer
MODELS: SEA 2.8/1000
1.106-583.0
SEA 4.2/2000 A
1.106-584.0
SEA 4.2/2000 B
1.106-585.0
SEA 4.2/2000 C
1.106-586.0
SEA 4.2/2000 H
1.106-587.0
SEA 3.5/3000 B
1.106-588.0
SEA 3.5/3000 C
1.106-589.0

2 Landa SEA MS Operator’s Manual 9.801-720.0 - AJ

3
Machine Data Label . . . . . . . . . . . . . . . . . . . . . . . . . .2
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . .3
How To Use This Manual . . . . . . . . . . . . . . . . . . . . .4
Introduction & Safety Information . . . . . . . . . . . . . . .5
Owner/User Responsibility:. . . . . . . . . . . . . . . . . . . .5
Important Safety Information. . . . . . . . . . . . . . . . . . .6
Component Identification . . . . . . . . . . . . . . . . . . . . .8
Assembly Instructions . . . . . . . . . . . . . . . . . . . . . . . .9
Operating Instructions. . . . . . . . . . . . . . . . . . . . . . .10
Detergents And General
Operating Techniques. . . . . . . . . . . . . . . . . . . . .11
Thermal Pump Protection . . . . . . . . . . . . . . . . . . . .11
Cleaning Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Shutting Down And Clean-Up . . . . . . . . . . . . . . . . .12
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Preventative Maintenance . . . . . . . . . . . . . . . . . . .15
Oil Change Record . . . . . . . . . . . . . . . . . . . . . . . . .15
Hose & Spray Gun . . . . . . . . . . . . . . . . . . . . . . . . 18
Multi-Room Installation . . . . . . . . . . . . . . . . . . . . . 19
Landa SEA MS Left . . . . . . . . . . . . . . . . . . . . . . . 20
Landa SEA MS Right . . . . . . . . . . . . . . . . . . . . . . 21
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Pump. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
VB8 Unloader Valve . . . . . . . . . . . . . . . . . . . . . . . 30
LBP Series Pump . . . . . . . . . . . . . . . . . . . . . . . . . 32
LM.3 Series Pump . . . . . . . . . . . . . . . . . . . . . . . . 34
VRT3 Unloader . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Landa SEA MS Operator’s Manual 9.801-720.0 - AJ

4
This manual contains the following sections:
• How to Use This Manual
• Safety
• Operations
• Maintenance
• Parts List
The HOW TO USE THIS MANUAL section will tell you
how to find important information for ordering correct
repair parts.
Parts may be ordered from authorized dealers. When
placing an order for parts, the machine model and
machine serial number are important. Refer to the
MACHINE DATA box which is filled out during the
installation of your machine. The MACHINE DATA box
is located on the inside of the front cover of this manual.
The model and serial number of your machine is
located on the back of the machine.
The SAFETY section contains important information
regarding hazardous or unsafe practices of the
machine. Levels of hazards are identified that could
result in product damage, personal injury, or severe
injury resulting in death.
The OPERATIONS section is to familiarize the operator
with the operation and function of the machine.
The MAINTENANCE section contains preventive main-
tenance to keep the machine and its components in
good working condition. They are listed in this general
order:
• Storage
• Troubleshooting
• Preventative Maintenance
• Oil Change Record
The PARTS LIST section contains assembled parts
illustrations and corresponding parts list. The parts lists
include a number of columns of information:
•REF – column refers to the reference number
on the parts illustration.
•PART NO. – column lists the part number for
the part.
•QTY – column lists the quantity of the part used
in that area of the machine.
•DESCRIPTION – column is a brief description
of the part.
•NOTES – column for information not noted by
the other columns.
NOTE: If a service or option kit is installed on your
machine, be sure to keep the KIT INSTRUCTIONS
which came with the kit. It contains replacement parts
numbers needed for ordering future parts.
NOTE: The manual part number is located on the
lower right corner of the front cover.
Landa SEA MS Operator’s Manual 9.801-720.0 - AJ

5
Introduction & Safety Information
Thank you for purchasing this Pressure Washer.We
reserve the right to make changes at any time without
incurring any obligation.
Owner/User Responsibility:
The owner and/or user must have an understanding of
the manufacturer’s operating instructions and warnings
before using this pressure washer. Warning information
should be emphasized and understood. If the operator
is not fluent in English, the manufacturer’s instructions
and warnings shall be read to and discussed with the
operator in the operator’s native language by the
purchaser/owner, making sure that the operator
comprehends its contents.
Owner and/or user must study and maintain for future
reference the manufacturers’ instructions.
The operator must know how to stop the machine
quickly and understand the operation of all controls.
Never permit anyone to operate the engine without
proper instructions.
SAVE THESE INSTRUCTIONS
This manual should be considered a permanent
part of the machine and should remain with it if
machine is resold.
When ordering parts, please specify model and
serial number. Use only identical replacement
parts.
This machine is to be used only by trained opera-
tors.
Landa SEA MS Operator’s Manual 9.801-720.0 - AJ

6

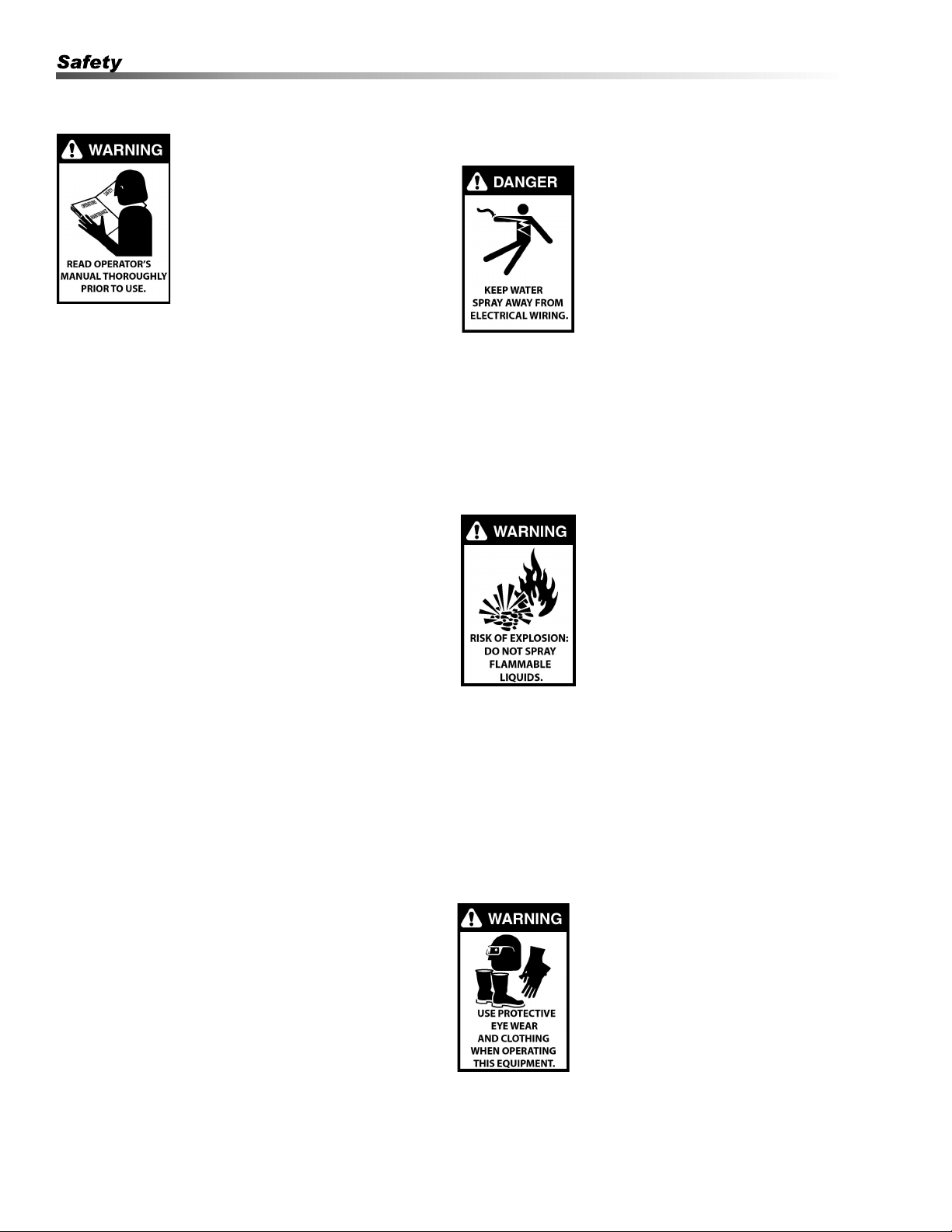

Important Safety Information
WARNING: To reduce the risk of
injury, read operating instructions
carefully before using.
AVERTISSEMENT: Pour réduire le
risque de blessures, lire attentive-
ment les instructions de
fonctionnement avant l'utilisation.
1. Read the owner's manual thor-
oughly. Failure to follow instructions could cause
malfunction of the machine and result in death,
serious bodily injury and/or property damage.
2. Know how to stop the machine and bleed pressure
quickly. Be thoroughly familiar with the controls.
3. Stay alert — watch what you are doing.
4. All installations must comply with local codes.
Contact your electrician, plumber, utility company
or the selling dealer for specific details. If your
machine is rated 250 volts or less, single phase a
ground fault circuit interrupter (GFCI) will be
provided. If rated more than 250 volts, or more
than single phase this product should only be
connected to a power supply protected
by a GFCI.
WARING: Must be plugged into properly wired three
hole grounded outlet that accommodates plug on
power cord. Failure to comply could result in elec-
trical shock.
AVERTISSEMENT: Doit être raccordé dans une sortie
à trois trous mise à la masse et correctement câblée
qui peut accueillir une fiche sur un cordon d'alimenta-
tion. Le non-respect de cette consigne pourrait causer
un choc électrique.
DANGER: Improper connection of the equipment-
grounding conductor can result in a risk of electrocu-
tion. Check with a qualified electrician or service
personnel if you are in doubt as to whether the outlet
is properly grounded. Do not modify the plug
provided with the product - if it will not fit the outlet,
have a proper outlet installed by a qualified electri-
cian. Do not use any type of adapter with this product.
DANGER: Une mauvaise connexion du conducteur de
terre de l'équipement peut entraîner un risque d'élec-
trocution. Vérifier auprès d'un électricien qualifié ou
du personnel d'entretien si vous avez des doutes
quant à savoir si lasortie est correctement mise à la
masse. NE PAS modifier la fiche fournie avec le
produit - si elle n'entre pas dans la sortie, faire
installer une sortie appropriée par un électricien
qualifié. NE JAMAIS utiliser un adaptateur avec ce
produit.
DANGER: Keep wand, hose, and
water spray away from electric
wiring or fatal electric shock may
result.
AVERTISSEMENT: Garder la lance,
le boyau et le jet d'eau à l'écart de
tout câblage électrique ou des
chocs électriques mortels pour-
raient survenir
5. To protect the operator from
electrical shock, the machine must be electrically
grounded.
It is the responsibility of the owner to connect this
machine to a UL grounded receptacle of proper
voltage and amperage ratings. Do not spray water
on or near electrical components. Do not touch
machine with wet hands or while standing in water.
Always disconnect power before servicing.
WARNING: Flammable liquids can
create fumes which can ignite,
causing property damage or severe
injury.
AVERTISSEMENT: Des liquides
inflammables peuvent produire des
vapeurs qui peuvent s'enflammer,
causant ainsi des dommages à la
propriété ou des blessures graves.
WARNING: Risk of explosion — Do
not spray flammable liquids.
AVERTISSEMENT: Risque d'explosion -Ne pas
pulvériser de liquides inflammables.
6. Do not allow acids, caustic or abrasive fluids to
pass through the pump.
7. Never run pump dry or leave spray gun closed
longer than 1-2 minutes.
8. Keep operating area clear of all persons.
WARNING: High pressure spray can
cause paint chips or other particles
to become airborne and fly at high
speeds. To avoid personal injury,
eye, hand and foot safety devices
must be worn.
AVERTISSEMENT: Un jet haute
pression peut écailler la peinture ou
provoquer l'émission d'autres parti-
cules dans l'air et leur projection à
hautes vitesses. Pour éviter les lésions corporelles,
Landa SEA MS Operator’s Manual 9.801-720.0 - AJ

7
une protection des yeux, du visage, des mains et des
pieds doit être portée lors de l'utilisation de cet équi-
pement.
9. Always wear properly rated eye protection such as
safety goggles or face shield while spraying.(safety
glasses do not provide full protection)
WARNING: Grip cleaning wand
securely with both hands before
starting. Failure to do this could
result in injury from a whipping
wand.
AVERTISSEMENT: Agripper la lance
de nettoyage avec les deux mains
avant de commencer. Le non-
respect de cette consigne pourrait
mener à des blessures causées par
le mouvement violent de la lance.
WARNING: High pressure developed
by these machines will cause
personal injury or equipment
damage. Keep clear of nozzle. Use
caution when operating. Do not
direct discharge stream at people
and animals, or severe injury or
death will result.
AVERTISSEMENT: La haute
pression générée par ces machines
causera des lésions corporelles ou des dommages à
l'équipement. Se tenir à l'écart de la buse. Faire
preuve de prudence lors de l'utilisation. Ne pas
décharger directement le jet vers des personnes ou
des animaux, car cela risquerait de causer des
blessures graves ou même la mort.
10. To reduce the risk of injury, close supervision is
necessary when a machine is used near children.
Do not allow children to operate the pressure
washer. This machine must be attended during
operation.
11. Never make adjustments on machine while in
operation.
12. Be certain all quick coupler fittings are secured
before using pressure washer.
WARNING: Protect machine from
freezing.
AVERTISSEMENT: Protéger la
machine contre le gel.
13. To keep machine in best
operating conditions, it is
important you protect machine
from freezing. Failure to protect machine from
freezing could cause malfunction of the machine
and result in death, serious bodily injury, and/or
property damage. Follow storage instructions
specified in this manual.
14. Inlet water must be clean fresh water and no hotter
then 185°F.
15. Manufacturer will not be liable for any changes
made to our standard machines or any compo-
nents not purchased from us.
16. The best insurance against an accident is precau-
tion and knowledge of the machine.
WARNING: Be extremely careful
when using a ladder, scaffolding or
any other relatively unstable
location. The cleaning area should
have adequate slopes and drainage
to reduce the possibility of a fall due
to slippery surfaces.
AVERTISSEMENT: Faire preuve
d'une extrême prudence au moment
d'utiliser une échelle, des
échafaudages ou toute autre surface relativement
instable. La zone de nettoyage doit avoir une pente et
un drainage adéquats pour réduire la possibilité d'une
chute due à une surface glissante.
17. Do not overreach or stand on unstable support.
Keep good footing and balance at all times.
18. Do not operate this machine when fatigued or
under the influence of alcohol, prescription medica-
tions, or drugs.
WARNING: If connection is made to
potable water supply, a back flow
device must be provided. Si une
connexion est établie avec un
approvisionnement en eau potable,
un dispositif de protection contre le
retour d'eau doit être fourni.
WARNING: Do not spray machine or
any people, animals or electrical
parts.
AVERTISSEMENT: Ne pas vaporiser
sur la machine ou les gens, les
animaux ou les pièces électriques.
Follow the maintenance
instructions specified in
the manual.
Landa SEA MS Operator’s Manual 9.801-720.0 - AJ

8
Component Identification
Detergent Injector - Allows you to siphon and mix
detergents, when the variable pressure control handle
is turned to low pressure.
High Pressure Hose — Connect one end to water
pump discharge nipple and the other end to spray gun.
Spray Gun — Controls the application of water and
detergent onto cleaning surface with trigger device.
Includes safety latch.
Wand — Must be connected to the spray gun.
Swivel Connector - Allows free range of movement to
avoid coiling hoses.
NOTE: If trigger on spray gun is released for more
than 2 minutes, water will leak from pump
protector valve. Warm water will discharge onto
floor and cool water will allow the pump protector
to seal. This system prevents internal pump
damage.
Landa SEA MS Operator’s Manual 9.801-720.0 - AJ

9
Assembly Instructions
STEP 1: Attach the high pressure
hose to the spray gun using teflon
tape on hose threads. Use safety
latch to prevent from opening.
STEP 2: Connect garden hose to
the cold water source. Before
installing nozzle, turn on water
supply and run machine, allowing
water to flush through the system
until clear.
STEP 3: Insert nozzle into coupler.
Release the coupler collar and
push the nozzle until the collar
clicks. Pull the nozzle to make sure
it is seated properly.
Landa SEA MS Operator’s Manual 9.801-720.0 - AJ
STEP 4: Connect the high pressure hose to the outlet
discharge fitting. Push coupler collar forward until
secure. Connect the garden hose to pump water inlet.
Inspect inlets.
CAUTION: Do not run the pump without water or
pump damage will result.
ATTENTION: Ne pas faire fonctionner la pompe sans
eau pour éviter d'endommager la pompe.

10
Operating Instructions
STEP 1: Connect garden hose to
the cold water source and turn
water on completely. Never use hot
water.
STEP 4: Turn machine on by
pushing switch at front of machine.
STEP 2: Trigger the spray gun to
eliminate trapped air then wait for a
steady flow of water to emerge
from the spray wand. Then install
nozzle.
STEP 3: Connect to appropriate
power supply. Push GFCI reset
button.
WARNING! Never replace
nozzles without engaging the
safety latch on the spray gun
trigger.
AVERTISSEMENT: Ne jamais
remplacer les buses sans
d'abord mettre le dispositif de
sécurité sur la détente du
pistolet pulvérisateur.
Landa SEA MS Operator’s Manual 9.801-720.0 - AJ
The five color-coded quick connect nozzles provide a wide array of spray
widths from 0° to 40° and are easily accessible when placed in the conve-
nient rubber nozzle holder, which is provided on the front of the machine.
NOTE: For a more gentle rinse, select the white 40° or green 25° nozzle.
To scour the surface, select the yellow 15° or red 0° nozzle.

11
Detergents And General
Operating Techniques
WARNING: Some detergents may
be harmful if inhaled or ingested,
causing severe nausea, fainting or
poisoning. The harmful elements
may cause property damage or
severe injury.
AVERTISSEMENT: Certains
détergents peuvent être dangereux
s'ils sont inhalés ou ingérés,
provoquant de fortes nausées, des
évanouissements et l'empoisonnement. Les
éléments dangereux peuvent causer des dommages
à la propriété ou des blessures graves.
STEP 1: Use detergent designed
specifically for pressure washers.
Household detergents could damage
the pump. Prepare detergent solution
as required by the manufacturer. Fill a
container with pressure washer deter-
gent. Place the filter end of detergent
suction tube into the detergent
container.
STEP 2: Apply safety latch to spray
gun trigger. Turn variable pressure
control handle counter clockwise to
low pressure.
NOTE: Detergent cannot be
applied using the Yellow nozzle.
STEP 3: With the engine running, pull trigger to operate
machine. Liquid detergent is drawn into the machine and
mixed with water. Apply detergent to work area. Do not
allow detergent to dry on surface.
IMPORTANT: You must flush the detergent injection
system after each use by placing the suction tube
into a bucket of clean water, then run the pressure
washer in low pressure for 1-2 minutes.
Thermal Pump Protection
If you run your pressure washer for 2 minutes without
pressing the trigger on the spray gun, circulating water in
the pump can reach high temperatures. When the water
reaches this temperature, the pump protector engages
and cools the pump by discharging the warm water onto
the ground. This thermal device prevents internal
damage to the pump.
Cleaning Tips
Pre-rinse cleaning surface with fresh water. Place
detergent suction tube directly into cleaning solution and
apply to surface at low pressure (for best results, limit
your work area to sections approximately 6’ square and
always apply detergent from bottom to top). Allow
detergent to remain on surface 1-3 minutes. Do not allow
detergent to dry on surface. If surface appears to be
drying, simply wet down surface with fresh water. If
needed, use brush to remove stubborn dirt. Rinse at high
pressure from top to bottom in an even sweeping motion
keeping the spray nozzle approximately 1’ from cleaning
surface. Use overlapping strokes as you clean and rinse
any surface. For best surface cleaning action spray at a
slight angle.
Recommendations:
• Before cleaning any surface, an inconspicuous
area should be cleaned to test spray pattern and
distance for maximum cleaning results.
• If painted surfaces are peeling or chipping, use
extreme caution as pressure washer may
remove the loose paint from the surface.
• Keep the spray nozzle a safe distance from the
surface you plan to clean. High pressure wash a
small area, then check the surface for damage. If
no damage is found, continue to pressure
washing.
CAUTION - Never use:
• Bleach, chlorine or other corrosive chemicals
• Liquids containing solvents (i.e., paint thinner,
gasoline, oils)
• Tri-sodium phosphate products
• Ammonia products or acid-based products
ATTENTION: Ne jamais utiliser :
• Eau de Javel, produits à base de chlore et
autres produits chimiques corrosifs
• Liquides contenant des solvants (c.-à-d. diluant
à peinture, essence, huiles, etc.)
• Produits à base de tripolyphosphate de sodium
• Ammoniac ou produits à base d'acide
These chemicals will harm the machine and will damage
the surface being cleaned.
Landa SEA MS Operator’s Manual 9.801-720.0 - AJ

12
Shutting Down And
Clean-Up
STEP 1: Remove
detergent suction tube
from soap container and
insert into one gallon of
fresh water.Turn variable
pressure control handle
to low pressure with
detergent injector. Pull
trigger on spray gun and
siphon water for one
minute.
STEP 2: Turn off
machine by pushing
switch on front panel.
STEP 3: Turn off water
supply.
STEP 4: Press trigger to
release water pressure.
STEP 7: Engage the
spray gun safety lock.
Landa SEA MS Operator’s Manual 9.801-720.0 - AJ
STEP 5: Disconnect the garden hose
from the water inlet on the machine.
Protect from freezing.
STEP 6: Disconnect the high pressure
hose from high pressure outlet.
Rinsing
It will take a few seconds for the detergent to clear. Apply safety latch to spray gun. Remove black soap nozzle from
the quick coupler. Select and install the desired high pressure nozzle.
NOTE: You can also stop detergent from flowing by simply removing detergent siphon tube from bottle.

13
Storage
Pump Storage
CAUTION: Always store your pressure washer in a location where the temperature will not fall
below 32° F (0° C). The pump in this machine is susceptible to permanent damage if frozen.
FREEZE DAMAGE IS NOT COVERED BY WARRANTY.
ATTENTION: Toujours entreposer la laveuse à pression dans un endroit où la température ne sera
pas inférieure à 32°C (0 °F). La pompe sur cette machine est susceptible de subir des dommages si
elle est exposée au gel.
LES DOMMAGES DUS AU GEL NE SONT PAS COUVERTS PAR LA GARANTIE.
If you must store your pressure washer in a location where the temperature is below 32° F, you can minimize the
chance of damage to your machine by draining your machine as follows:
1. Stop the pressure washer and detach supply hose and high pressure hose. Squeeze the trigger of the spray
gun to drain all water from the wand and hose.
2. Restart pressure washer and let it run briefly (about 5 seconds) until water no longer discharges from the high
pressure outlet.
Landa SEA MS Operator’s Manual 9.801-720.0 - AJ

14
Troubleshooting
PROBLEM POSSIBLE CAUSE SOLUTION
PUMP RUNNING
NORMALLY
BUT PRESSURE
LOW ON
INSTALLATION
Pump sucking air Check water supply and possibility of air.
Check valves sticking Check and clean or replace if necessary.
Unloader valve seat faulty Check and replace if necessary.
Nozzle incorrectly sized Check and replace if necessary.
Worn piston packing Check and replace if necessary.
FLUCTUATING
PRESSURE
Valves worn Check and replace if necessary.
Blockage in valve Check and clean if necessary.
Pump sucking air Check water supply connections.
Worn piston packing Check and replace if necessary.
Insufficient water Check filter and hose for breakage.
PRESSURE LOW
AFTER PERIOD
OF NORMAL USE
Nozzle worn Check and replace if necessary.
Suction or delivery valves worn Check and replace if necessary.
Suction or delivery valves blocked Check and clean if necessary.
Unloader valve seat worn Check and replace if necessary.
Unloader adjusted improperly
Call local Landa dealer. Tampering with the factory
setting may cause personal injury and/or property
damage and will void the manufacturer's warranty.
Worn piston packing Check and replace if necessary.
Bypass valve within unloader
is obstructed or leaking Remove and clean bypass cartridge.
PUMP
NOISY
Air in suction line Check water supply and connections on suction
line.
Broken or weak suction
or delivery valve spring Check and replace if necessary.
Foreign matter in valves Check and clean if necessary.
Worn bearings Check and clean if necessary.
Excessive temperature of water Reduce to below 140°F.
PRESENCE OF
WATER IN
PUMP OIL
Oil seal worn Check and replace if necessary.
High humidity in air Check and change oil twice as often.
Piston packing worn Check and replace if necessary.
WATER DRIPPING
FROM UNDER PUMP
Piston packing worn Check and replace if necessary.
O-Ring plunger retainer worn Check and replace if necessary.
OIL DRIPPING
FROM PUMP Oil seal worn Check and replace if necessary.
EXCESSIVE
VIBRATION IN HIGH
PRESSURE HOSE
Irregular functioning of the pump
valves Check and replace if necessary.
Obstruction in filter Clean inlet filter.
MOTOR WILL
NOT RUN
Motor overload
Push in the overload button located on the motor
(single phase) or the overload button on the
magnetic start switch (three phase).
Step down transformer fuses Check fuses and voltage. Replace if necessary.
Coil of magnetic starter defective Replace coil after the timer and unloader switch
have been tested.
MACHINE WILL NOT
TURN ON WHEN
SWITCH IS PUSHED
Timer is defective Join wires 15 and 16 together on timer. If machine
works, replace timer.
Landa SEA MS Operator’s Manual 9.801-720.0 - AJ

15
Preventative Maintenance
This pressure washer was produced with the best available materials and quality craftsmanship. However, you as
the owner, have certain responsibilities for the correct care of the equipment. Attention to regular preventative main-
tenance procedure will assist in preserving the performance of your equipment. Contact your dealer for mainte-
nance. Regular preventative maintenance will add many hours to the life of your pressure washer. Perform
maintenance more often under severe conditions.
Oil Change Record
Check pump oil level before first use. Change pump oil after first 50 hours and every year or 500 hours thereafter.
Use SAE 10W-40 non-foaming oil.
MAINTENANCE SCHEDULE
Pump Oil SAE 10W-40
(non-foaming)
Inspect 25 Hours or Weekly
Change Yearly
Check Valve Clearance Yearly
Water Filter Inspect Every 6 Hours or Daily
Clean Yearly
Date Oil Changed
Month/Day/Year
Estimated Operating
Hours Since Last Oil
Change
Date Oil Changed
Month/Day/Year
Estimated Operating
Hours Since Last Oil
Change
Landa SEA MS Operator’s Manual 9.801-720.0 - AJ
