Lander Hawker Hunter Quick start guide

HAWKER HUNTER
OPERATIONAL MANUAL

- 2 -
Please read before operating this system!
W
e would like thank you for purchasing our new product –Hawker
Hunter designed for the hobby enthusiast. Base on its full - scale
counterpart, thisAmerican Jet can finish loops, inverted flight and
rolls and other aerobatics easily. It is also made as a highly
maneuverable model for the intermediate to expert pilot. With the
Hawker Hunter model which includes EDF set*, speed controller,
electric servo, flaps, retractable landing gear with front steering and
full scale functional gear doors system (optional requirement). You
will have joyful time in model flying.
Remarks:*
We have several different metal EDF sets for your selection.
1) EDF68-1A is a higher grade EDF set which is an aluminum alloy
material EDF more powerful output, efficient and durability.
2) Please be noticed that all servo have been pre-set the center point
before out of factory. It maybe appeared some difference due to
difference band mark radio control. Kindly make sure to do the
adjustment (special to pre-set the travel of gear servo up to 130
%. If you select gear doors system with special modified travel
throw servos. You are needed to pre-set the travel of gear servo
up to 110-120%) with your own radio equipment before installation
this jet model.
4) From main wing edge to center around 130mm is the CG point.
5) Please make sure to use a little piece of attached magic sticker for
your LiPo battery for fixing on the battery bay before on flight.

- 3 -

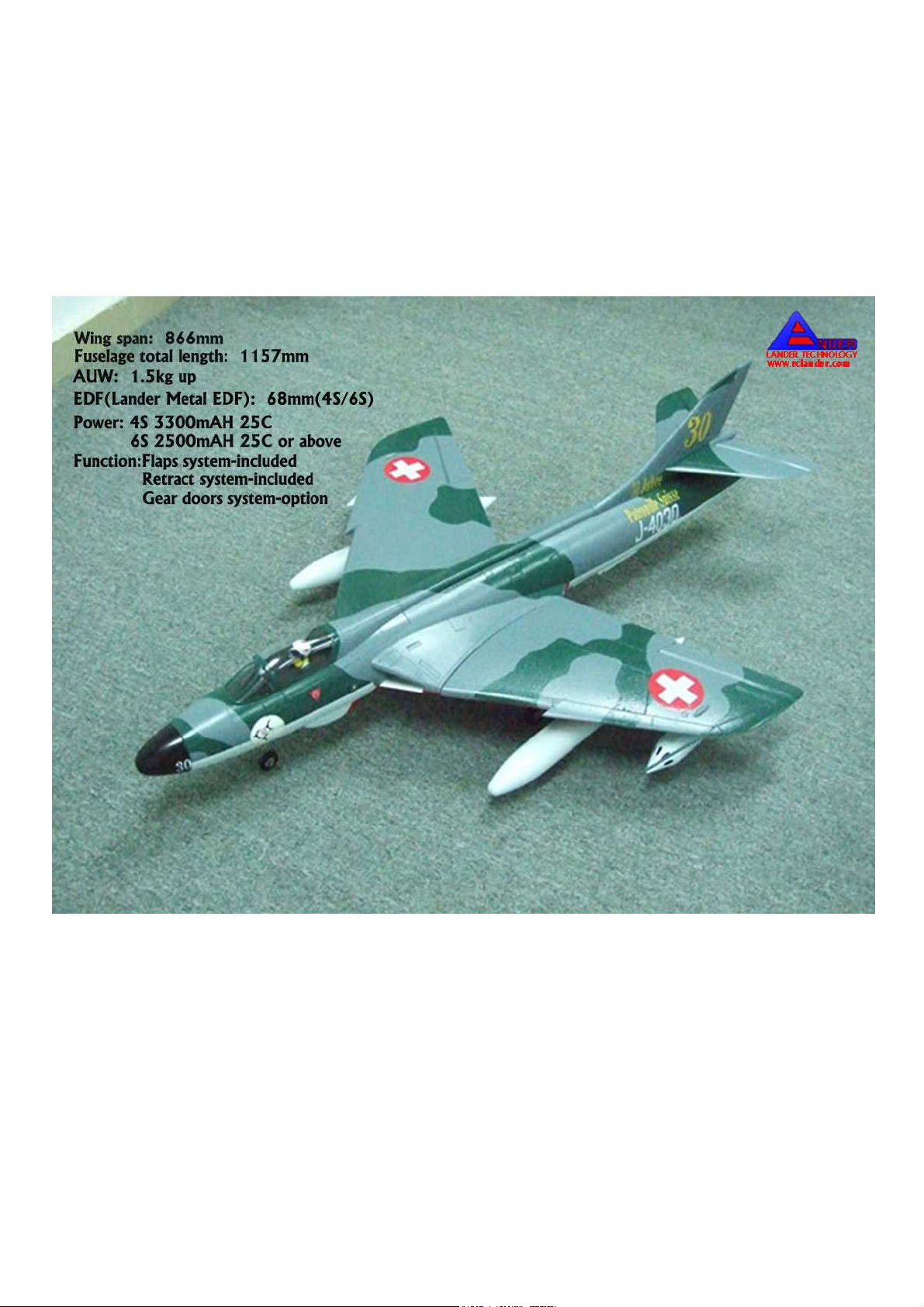

Specifications:
Wing Span :
866mm
Fuselage total Length:
1157mm
AUW:
1.5kg up
EDF(Lander Metal EDF):
68mm(4S/6S)
Power:
4S 3300mAH 25C
6S 2500mAH 25C or above
Function:
1) Flaps system-included
2) Metal Housing Retracts system-included
3) Gear doors system & suspension legs (option items)
EDF SYSTEM
EDF68
EDF68EDF68
EDF68-
--
-1A
1A1A
1A
Material: Aluminum Alloy, Metal special
Weight: Ca. 90g(Motor not included)
Rotor: 68mm dia, 5-bladed.
Max rpm 48,000 rpm
Application: 200-800W
Staic Thrust: 1.23 - 1.7kg

- 4 -
Main Accessories
NOSE CONE GEAR PLASTIC COVER METAL HOUSING RETRACT
FRONT LOWER FUSELAGE MAIN WING COVER SET CANOPY SET
VERTICAL STABILIZER HORIZONTAL STABILIZER REAR EXHAUST COVER SET
EDF COVER SET MAIN WING SET MAIN FUSELAGE

- 5 -

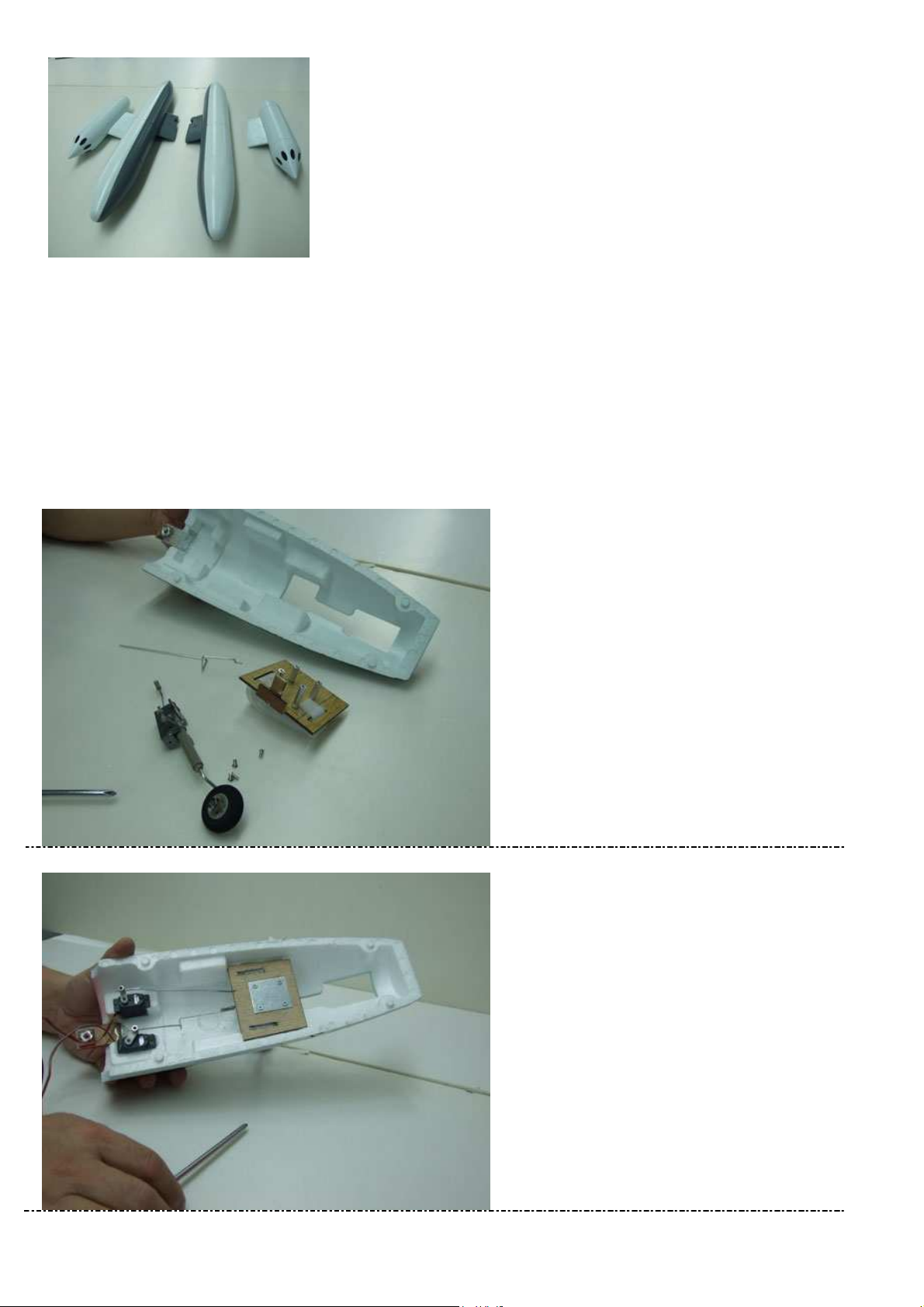

DROP TANKS & ROCKET TUBES
Remarks: 1) Operational Manual (included)
2) 5 Min. epoxy set (included)
3) Extension cord x 1& Y cord x 4 (included exceptARF version)
4) Push rods for Elevator, Rudder, Aileron, and Retract Gear & Steering (included)
5) One plastic bag includes screws, Control Horns, Linkage Stoppers & Retract Landing Gear.
Assembling the aircraft
01
1) Install the nose gear plate with the epoxy
or hot melt glue on the front lower
fuselage.
2)Tight the nose retrace gear on the gear
bay with 2.6mm screw X 4 pcs.
02
1) Link up the related push rods with nose
gear and steering.

- 6 -
03

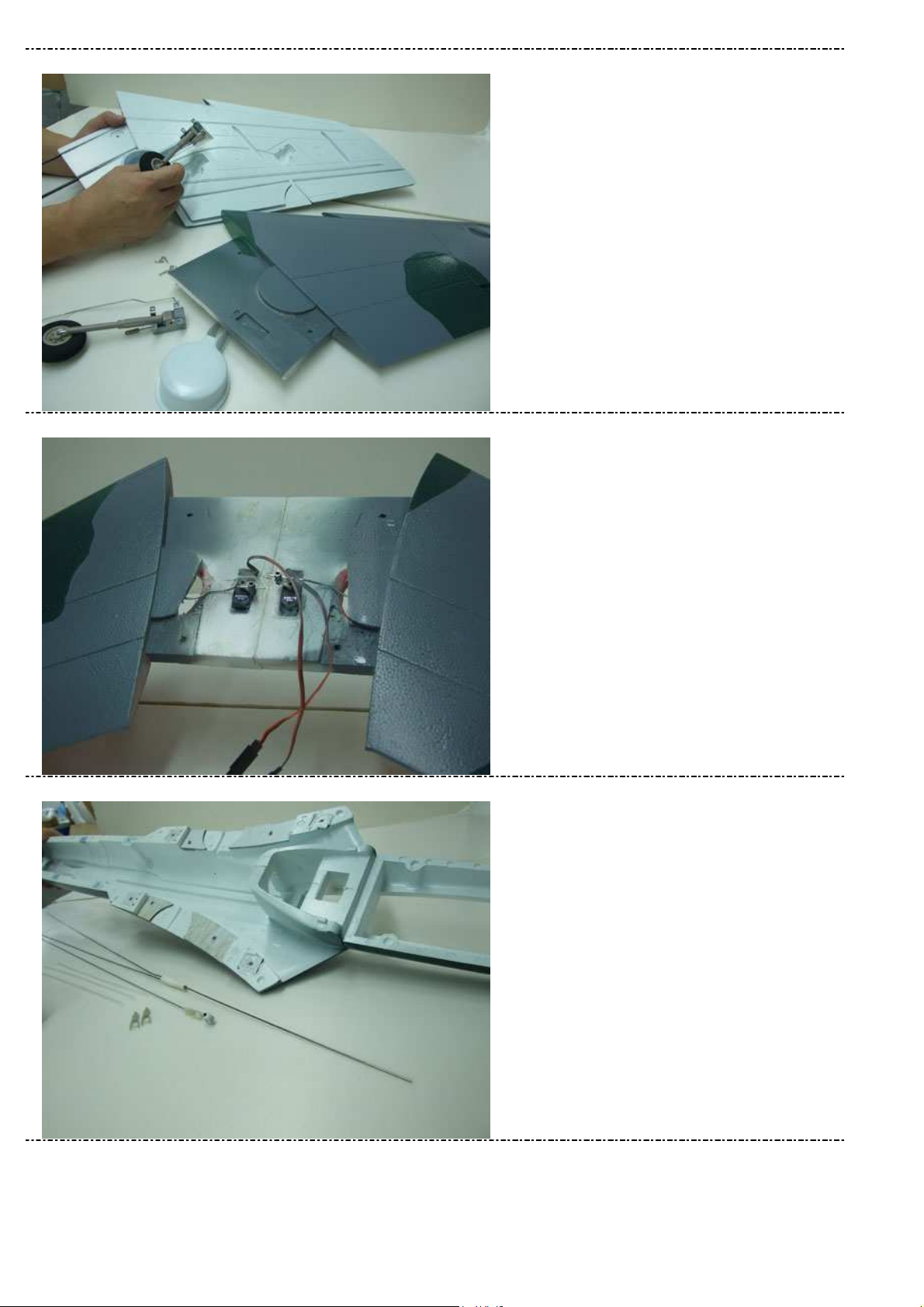

1) Install the main gear set on the main wing
gear bay.
04
1) Link up the related push rods with the
retract servos.
05
1) Install the elevator and rudder push rods
inside the main fuselage.
06

- 7 -
1) Firstly take some hot melt glue to fix the
clear pvc tubes (one for rudder and two
for elevator) on the both side as shown.
2) Then insert elevator and rudder push
rods into the fixed pvc tubes. Please be
reminded the elevator push rods must
be passed through the main fuselage to
the rear part.
07

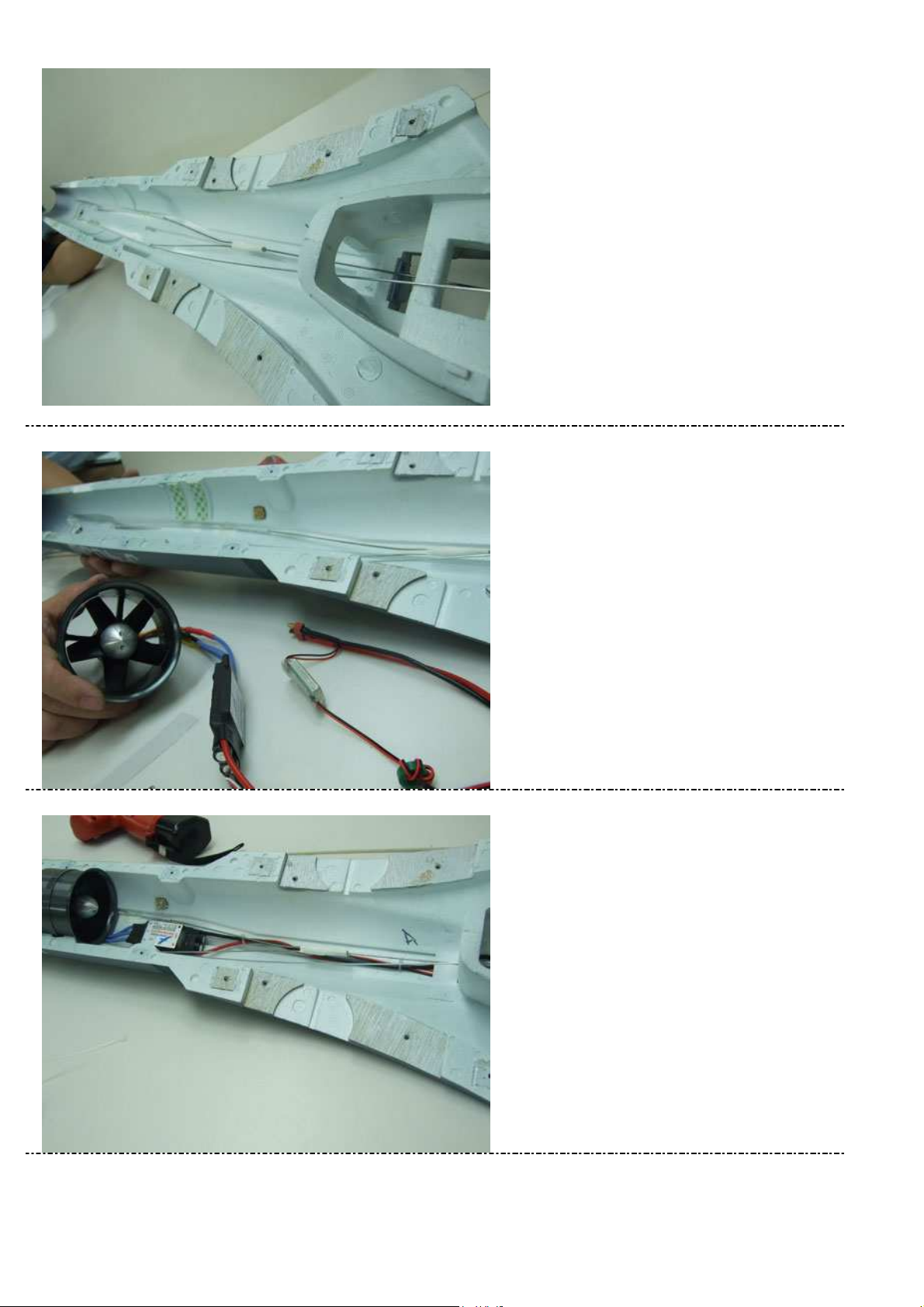

1）Put the provided strong foam double
tapes on the EDF set bay first.
08
1) Put on the EDF set on the bay and make
sure the EDF set on the right position
and alignment is correct.
2) Tight up the ESC and leading the related
power and control cords to the front of
the main fuselage compartment
09

- 8 -
1) Take four provided 3mm X 30mm long
screw to tight up the EDF cover set.
Please be reminded to put some hot melt
on the both side of EDF in order to
strengthen the installation issue before
tight up the EDF cover.
10
1) Take some epoxy on the slot of horizontal
stabilizer then insert into the vertical
stabilizer slot.
11
1) Firstly, pass through the rudder control
push rod (with the pvc tube) from vertical
to horizontal stabilizer.
12

- 9 -
1) Glue up the rudder on the vertical
stabilizer as shown.
13
1) Take enough epoxy to glue up the whole
set tail set on main fuselage as shown.
2) Link up the elevator push rods control
horn.
14
1) Link up the rubber control horn with push
rod..
15

- 10 -
1）Screw up the control horn
16
1) Take some clear thin pvc sheet to cover
the slot to make sure the whole exhaust
without any barrier in order to make sure
the EDF thrust power to have the best
efficience.

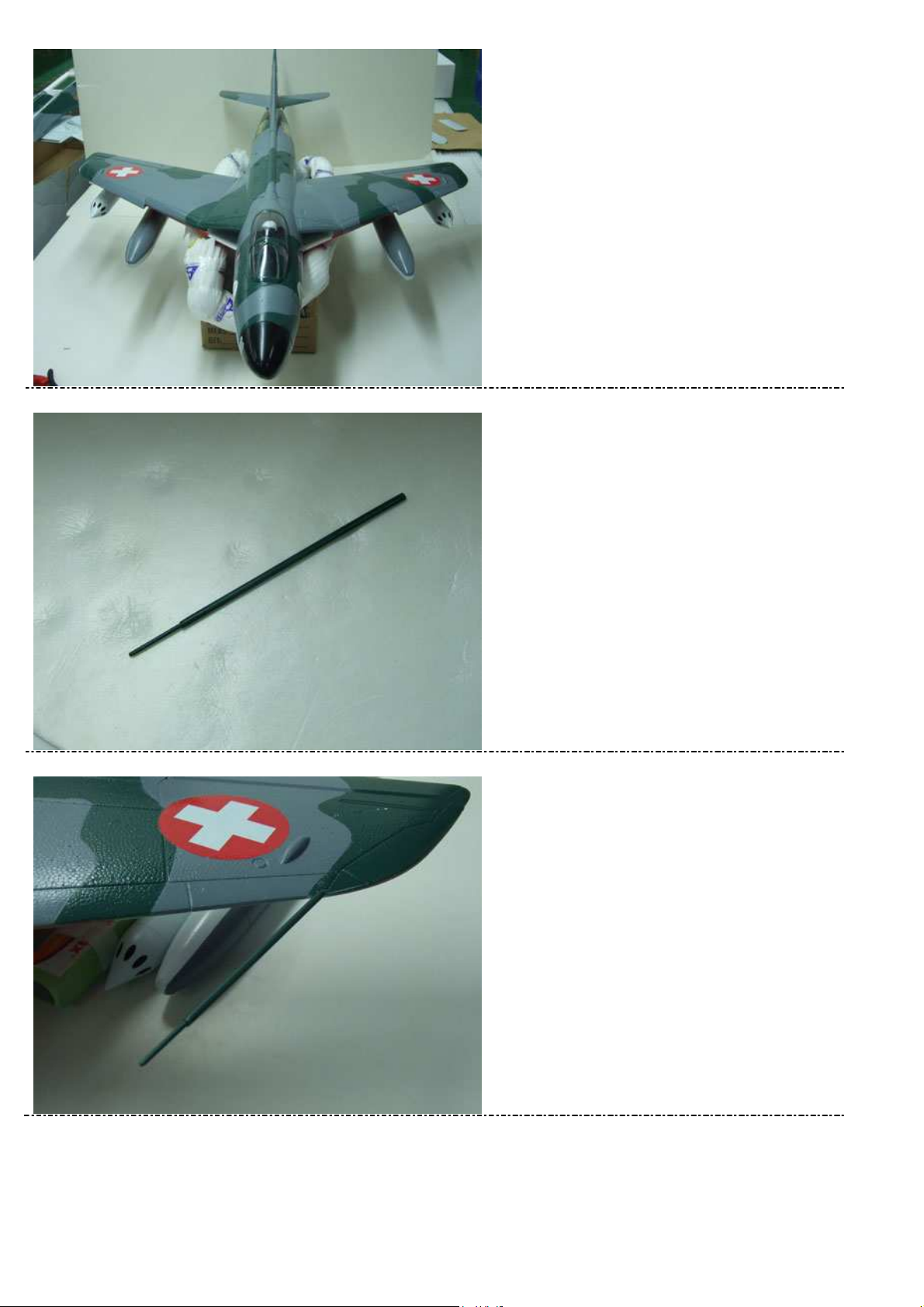

17
1) take some epoxy to glue the main lower
fuselage on the main fuselage.
18
