Landice 8700 Series User manual

1
111 Canfield Avenue •Randolph, New Jersey 07869 •1-800-LANDICE •FAX [phone]
8700-Series
Home and Commercial Treadmill
Diagnostic and Service Manual
2001
This guide covers all 8700 series treadmills manufactured from
1993 – 2000.
HOME TREADMILLS – 8700 SPRINT 1-4 / PRG / SST
NOTE: Early HOME treadmills listed as: 8700R & 8700P are the same as the LTD models.
The only difference was the warranty coverage.
LTD / 110V UNITS – 8700R (REGILAR NO PROGRAMS) / P (WITH PROGRAMS) / PT1 / PT2
CLUB / 220V UNITS – 8700R (REGILAR NO PROGRAMS) / P (WITH PROGRAMS) / PT1 / PT2
Version M/C.1
For Technical Service Call 1-(800)-LANDICE

2
Service Manual Ver M/C.1
Page 2 Table of Contents
SECTION 1- Introduction
Page 3 How to use this manual
Page 4-5 Landice warranty and policy
Page 6 Tools needed for repairs
SECTION 2- Installation
Page 7-9 Safety warnings
Page 10-13 Membrane panel identification
SECTION 3- - Parts Identification
Page 14-16 Parts listing
Page 17 Commercial motor pan picture

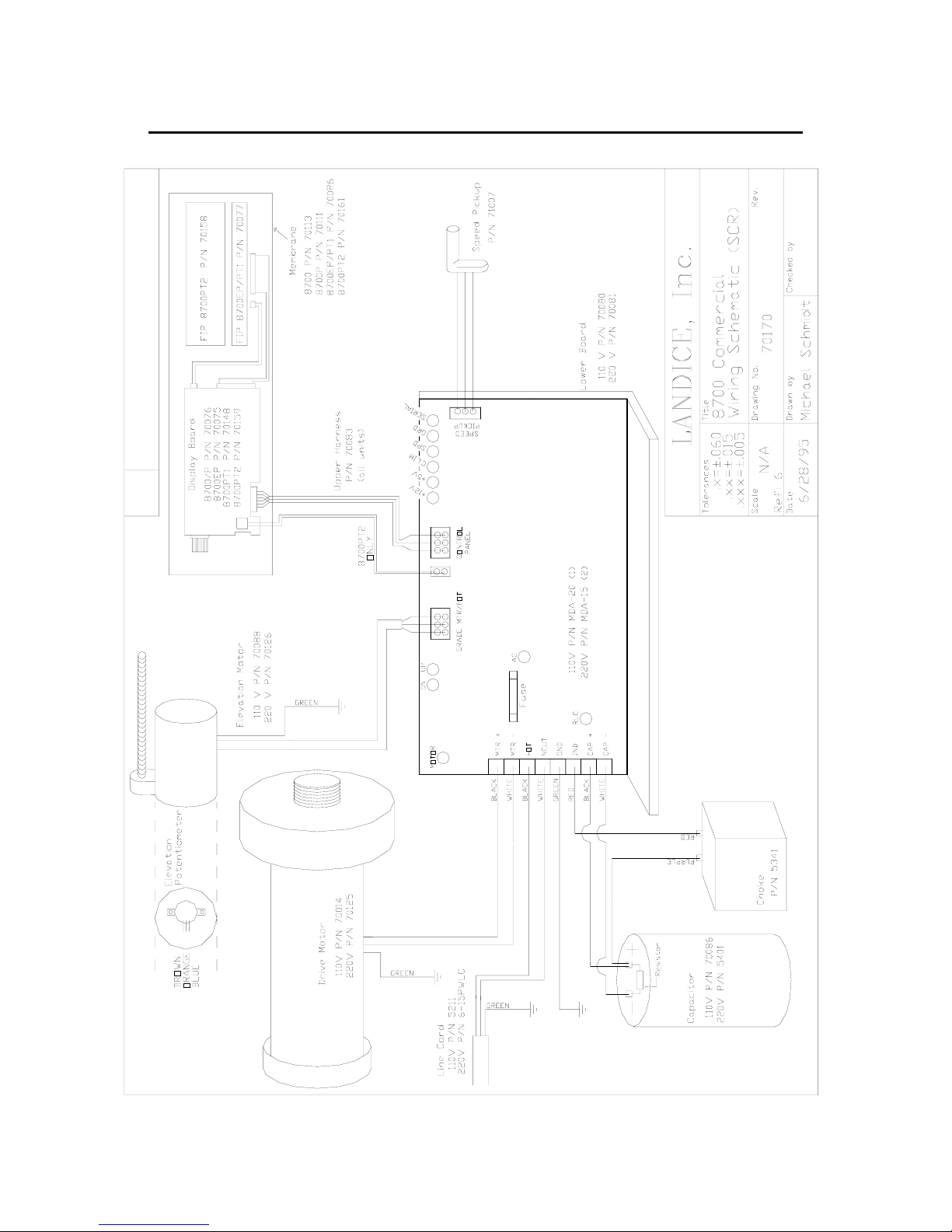

Page 18 Commercial (LTD / CLUB) motor pan lower wiring schematic
Page 19-20 LED lights / SCR lower board
Page 21 Home motor pan picture
Page 22 Home motor pan wiring schematic
Page 23 LED lights / PWM board
Page 24 LED lights / RELAY board
Page 25 SST, PRG, SPRINT-3 (Open Loop); lower wiring schematic
Page 26 SPRINT – 2; lower wiring schematic
Page 27 SPRINT – 1; lower wiring schematic
Page 28 SPRINT – 1&2; upper wiring schematic
SECTION 4 –Servicing Landice Treadmills
Page 29-31 Definitions of components
Page 32-34 Testing components
Page 35-37 Common symptoms
Page 38 Calibrating speed potentiometers
Page 39-45 Removal and replacement of components
Page 46-48 Noises
Page 49 Voltage checks
Page 50 Diagnostics and error codes
Page 51-59 8700 LTD / CLUB diagnostic flow charts
Page 60-65 8700 HOME (Closed Loop / SPRINT-4, SST, PRG) diagnostic flow charts
Page 66-68 SPRINT –3 Diagnostics
Page 69-75 SPRINT –2 Diagnostics
Page 76-77 Tracking and Tensioning
Page 78-79 Treadmill maintenance
Page 80-84 Index

3
How to Use this Manual
This manual is designed to help service technicians in the installation, maintenance, or repair of
Landice 8700 model treadmills. It covers terminology, installation, tools needed, diagnostics, removal
and replacement of parts, estimated time of repairs, warranty forms, wiring schematics, and
recommended maintenance. If you find a problem not covered in this manual please call 1-800-
LANDICE to talk to a Landice Service Technician.

4
Landice Warranty and Policies
PARTS
Our policy requires that all defective parts be returned to Landice. All warranty parts
will be billed to the dealer at dealer cost. Landice will credit this invoice upon receipt
of defective parts. Landice will pay the freight to send out any defective parts. It is the
dealer's responsibility to pay the freight to return the defective parts to Landice. If the
defective parts are not returned within 30 days, payment of invoice is expected in full.
LABOR
Landice will reimburse the selling dealer according to our flat rate labor schedule. If
you are a service provider for Landice and do not sell our product, you have the option
of billing us direct or you can bill the dealer your providing service for. Generally, if our
capped rate does not cover your labor charge you would bill the selling dealer. The
current rate is $30.00 per hour and is capped at a maximum of one hour labor and
one hour travel per treadmill failure. Diagnostic
and return trips are not covered. Note that treadbelt tracking, treadbelt/drivebelt
tensioning, blown fuses, and set-up procedures are not covered by this warranty.
Set-Up Includes: Assembly, adjusting treadbelt and drive belt (if needed), walking
the treadbelt and deck wax in and performing any additional adjustments that may
have been upset during shipping.
The dealer must call for a service authorization number prior to performing any service
to verify the treadmill is under labor warranty. It is advisable to call Landice from the
treadmill location to successfully diagnose the problem. This will ensure that the
correct part will be shipped out the first time. Labor claim forms must be submitted
within three months from the date service was performed. Labor claim forms must be
completely filled out and have the Landice authorization number at the top.
FLOOR MODELS
The following warranty applies to floor models and dealer stock.
If the dealer sells a treadmill to a customer within one year of its purchase from
Landice, the warranty period will be extended to start from the date of sale to the
customer.
If a treadmill is over 1 year old when sold to a customer, the remainder of the parts
warranty will be honored from the date of shipment and 1 year labor.

5
September 1, 2001
Treadmill Warranty Summary
TREADMILL PARTS
All defective parts must be delivered to Landice (freight prepaid) where they will either be repaired or
replaced at Landice's discretion. This warranty does not cover cosmetic damage, damage due to acts
of God, accident, misuse, abuse, improper maintenance, or negligence to the product. This warranty
does cover normal wear and tear. This warranty is valid only in the United States and Canada.
SERVICE LABOR
For a period of 1 year, Landice will reimburse the selling dealer according to the terms, rates and
conditions in effect at the time of service. A service authorization number must be obtained prior to
performing service in order to qualify for service reimbursement. This service warranty does not cover
customer instruction, installation, setup, or adjustments. Note that treadbelt tensioning and tracking is
the responsibility of the user and is not covered by this warranty. Instructions for treadbelt tensioning
and tracking are located in the owner's manual. This warranty is valid only in the United States and
Canada.
Landice Factory Warranty Summary
Home Treadmills
07-15-1998 Lifetime Frame 5 Year Parts 1 Year Labor
07-15-1996 Lifetime Frame 3 Year Parts 1 Year Labor
07-15-1993 Lifetime Frame 2 Year Parts 1 Year Labor
8700LTD Limited Institutional Use Treadmills (120VAC)
(In applications with under 5 hours usage per day)
09-01-1996 3 Years Parts 1 Year Labor
09-01-1993 1 Year Parts 1 Year Labor
8700 CLUB Treadmills (220VAC)
(Scheduled maintenance required)
11-15-1996 3 Years Parts 1 Year Labor
11-15-1993 1 Year Parts 1 Year Labor

6
Recommended tools for servicing Landice treadmills
1. Deep socket set 3/8 drive with ratchet and extension: Must have 3/8, 7/16, 1 /2, 5/16, 9/16 socket.
2. Combination wrench set: Must have 3/8, 7/16, 1 /2, 5/16, 9/16
3. #1, 2, and 3 Philips head screwdriver (or electric screwdriver)
4. #1, 2, and 3 flat head screwdriver (or electric screwdriver)
5. Socket head cap screw wrench set/ multi Allen Wrench
6. Rubber mallet
7. Diagonal cutting pliers
8. Wire stripper
9. Wire crimping tool
10. Digital voltmeter (We recommend Radio Shack Pocket Digital Voltmeter). Analog voltmeters are
not recommended.
11.Utility knife
12. Pulse simulator

7
Important Operating Safety Instructions
WARNING: Failure to observe the following operating instructions can result in serious
injury!
1 If you are suffering from any illness, condition, or disability which affects your ability to
run, walk or exercise, do not use this product without consulting your doctor first.
2 If you are suffering from any illness, condition, or disability which affects your ability to
run, walk or exercise, do not use this product without supervision present. Failure to do
so can result in serious injury should you fall while the treadbelt is moving.
3 Failure to leave ample clearance around the treadmill could result in the user becoming
trapped between the treadmill and a wall, resulting in burns or other serious injury from
the moving treadbelt.
Allow a minimum clearance of 18 inches on each side of the treadmill.
Allow a minimum clearance of 4 feet at the rear of the treadmill.
4 Never stand on the treadbelt when starting the treadmill. A sudden start could cause you
to lose your balance. Always stand with one foot on each side rail until the belt starts
moving.
5 Always wear the emergency stop safety strap securely around your wrist while
exercising. Failure to do so can result in severe injuries should you accidentally fall while
exercising.
6 Test the emergency stop safety key on a regular basis by pulling on the cord and
ensuring that the treadbelt comes to a complete stop.
7 Always remove the safety key from the treadmill when you are through exercising,
especially if children are present. This will prevent them from accidentally starting the
treadmill.
8 Be sure to familiarize yourself with the owner manual. Look it over carefully. Be sure you
understand the control panel operation before using the treadmill.

8
DANGER
To reduce the risk of electric shock, always unplug the treadmill from the electrical outlet
immediately after using. Always unplug the treadmill before cleaning or removing the
motor cover.
WARNING
To reduce the risk of burns, fire, electric shock, or injury to persons:
1 Treadmill should never be left unattended when plugged in. Unplug from outlet when not
in use.
2 Close supervision is necessary when this unit is used by or near children or disabled
persons.
3 Use this treadmill only for its intended use as described in this manual.
4 Do not operate this treadmill if it has a damaged cord or plug, if it is not working properly or if it
has been damaged. Call your selling dealer immediately for examination and repair.
5 Keep the power cord away from heated surfaces. Be sure the line cord has plenty of
slack and does not get pinched underneath the treadmill when it elevates and lowers. If
an extension cord must be used do not use one longer than 6 feet with 12 gauge wire.
6 Never operate the treadmill with the air openings blocked. Keep the air openings free of
lint, hair, and the like.
7 Never drop or insert any object into any opening. Be sure no objects are near or
underneath the moving treadbelt when using the treadmill.
8 Do not use outdoors.
9 Do not operate where aerosol spray products are being used or where oxygen is being
administered.
10 Connect this appliance to a properly grounded outlet only. Do not use a GFI outlet.
11 To disconnect, press the OFF button, remove the SAFETY LANYARD, and unplug the
unit from the wall outlet.
GROUNDING INSTRUCTIONS
This product must be grounded. If it should malfunction or break down, grounding provides a
path of least resistance for electric current to reduce risk of electric shock. This product is
equipped with a cord having an equipment-grounding conductor and a grounding plug. The
plug must be plugged into an outlet that is properly installed and grounded in accordance with
all local codes and ordinances. We do not recommend using a GFI outlet.
120 Volt Treadmills (15 Amp dedicated line)
Treadmills marked 120 VAC are intended for use in a nominal 120-volt circuit with a
grounding plug. Make sure the product is connected to an outlet having the same
configuration as the plug. No adapter should be used with this product.

9
200 - 250 Volt Treadmills (15 Amp dedicated line)
Treadmills marked 200-250 VAC are intended for use on a circuit having a nominal rating
more than 120V and are factory-equipped with a specific cord and plug to permit connection
to a proper electric circuit. Make sure the product is connected to an outlet having the same
configuration as the plug. No adapter should be used with this product. If the product must
be reconnected for use on a different type of electric circuit, the reconnection should be made
by qualified service personnel.
DANGER! Improper connection of the equipment-grounding connector can result in a risk of
electric shock. Check with a qualified electrician or serviceman if you are in doubt as to
whether the product is properly grounded. Do not modify the plug provided with the product.
If it will not fit in the outlet, have a proper outlet installed by a qualified electrician.

10

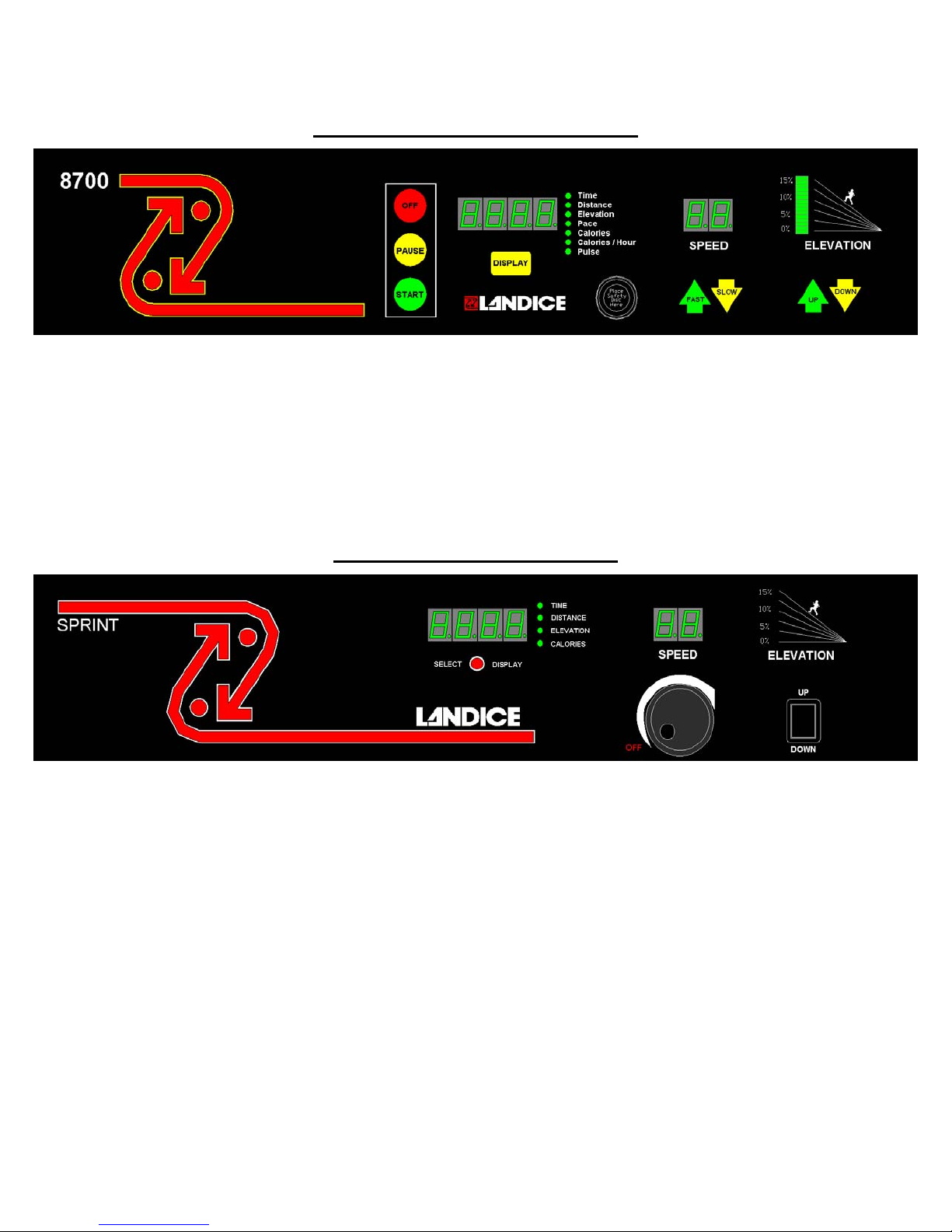

8700 Standard Membrane
Models That Used This Membrane: 8700, 8700-R, 8700-LTD, 8700-LTD-VFX,
8700-CLUB, 8700-CLUB-VFX
Production Time Frame: 1991-1999
Electronics: Standard 110V SCR (220V SCR for CLUB units), commercial motor pan.
See Wiring Diagram.
Settings Used In: Home and Commercial (LTD’s and CLUB’s)
Key Features: Closed Loop Treadmill (w/ speed sensor), Safety Lanyard, 0.5-11MPH Push Button
Speed and Elevation Control
8700 Sprint Membrane
Models That Used This Membrane: 8700 Sprint-1, 8700 Sprint-2
Production Time Frame: Sprint-1 1991-1995, Sprint-2 1995-1996
Electronics: 110V Unit, See Wiring Diagrams for 8700 Sprint-1 and Sprint-2
Settings Used In: Home
Key Features: Open Loop Treadmill (w/o speed sensor), Safety Lanyard on Sprint-2 only, 1.0-
9.0MPH Rheostat Speed Control, Rocker Switch Elevation Control.

11

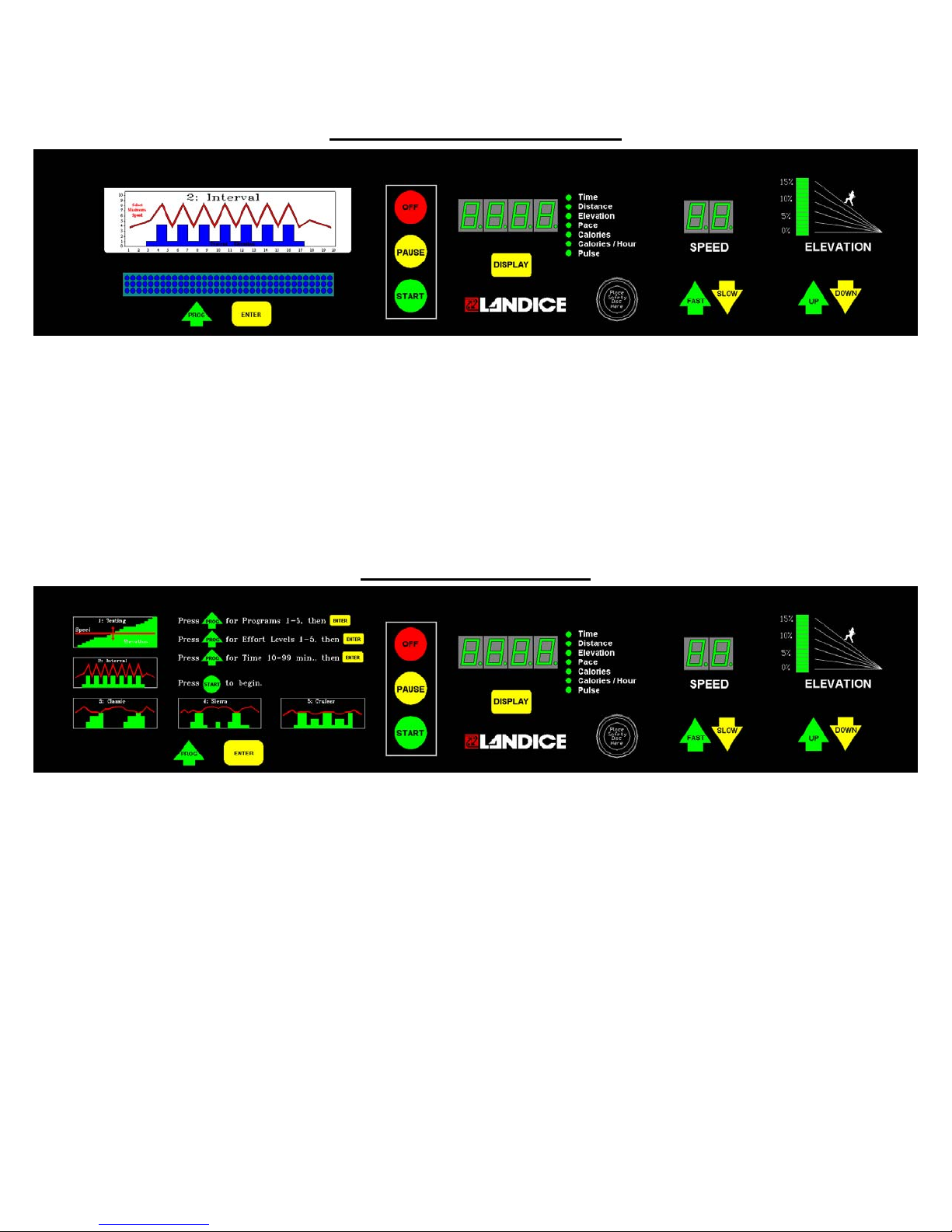

8700 EP/PT Membrane
Models That Used This Membrane: 8700EP, 8700-PT
Production Time Frame: 1991-1993
Electronics: Standard 110V SCR (220V SCR for CLUB units), commercial motor pan.
See Wiring Diagram.
Settings Used In: Home and Commercial
Key Features: Closed Loop Treadmill (w/ Speed sensor) Safety Lanyard, 0.5-11.0MPH Push Button
Speed and Elevation Control, 10 Built In Programs, 4 User Programs, Wireless Heart Rate Control
(Optional), LED Graphic Display.
8700 P Membrane
Models That Used This Membrane: 8700-P, 8700-LTD-P, 8700-CLUB-P
Production Time Frame: 1991-1999
Electronics: Standard 110V SCR (220V SCR for CLUB units), commercial motor pan.
See Wiring Diagram.
Settings Used In: Home and Commercial (LTD’s and CLUB’s)
Key Features: Closed Loop Treadmill (w/ speed sensor), Safety Lanyard, 0.5-11MPH Push Button
Speed and Elevation Control, 5 Built In Programs.

12

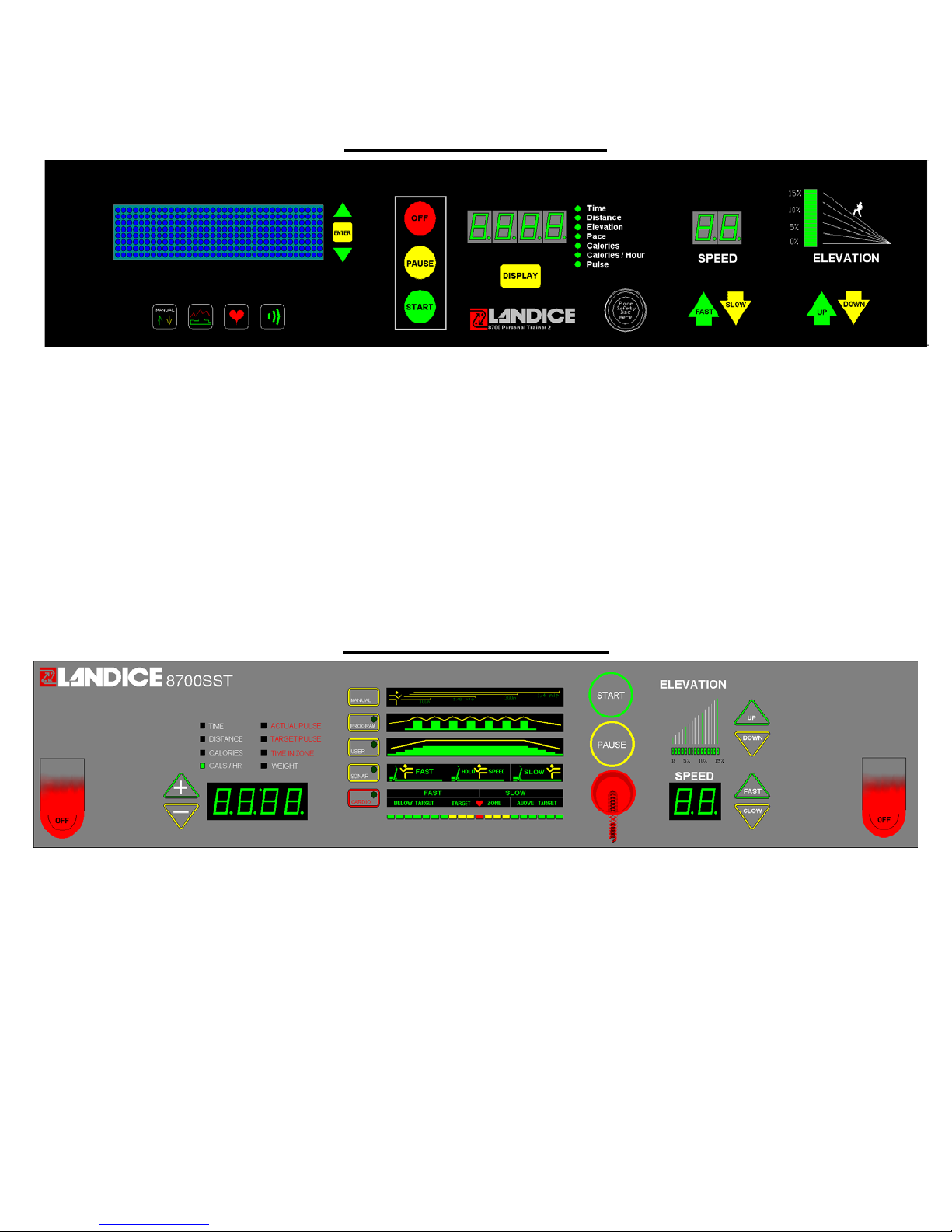

8700 PT2 Membrane
Models That Used This Membrane: 8700-PT2, 8700-CLUB-PT2
Production Time Frame: 1994-1998
Electronics: Standard 110V SCR (220V SCR for CLUB units), commercial motor pan.
See Wiring Diagram.
Settings Used In: Home and Commercial
Key Features: Closed Loop Treadmill (w/ Speed sensor) Safety Lanyard, 0.5-11.0MPH Push Button
Speed and Elevation Control, 9 Built In Programs, 4 User Programs, Wireless Heart Rate Control,
SONAR ranging capability (Optional), LED Graphic Display.
8700 SST Membrane
Models That Used This Membrane: 8700-SST, 8700-SST-VFX
Production Time Frame: 1995-1999
Electronics: 8700-SST used Sprint-3 electronics, 8700-SST-VFX used Sprint-4 electronics,
See Wiring Diagrams.
Settings Used In: Home
Key Features: 8700-SST Open Loop Treadmill (w/o speed sensor), 8700-SST-VFX Closed Loop
Treadmill (w/ Speed sensor) Safety Lanyard, 0.5-12.0MPH Push Button Speed and Elevation Control.
5 Built In Programs, 5 User Programs, Wireless Heart Rate Control, SONAR ranging capability.

13
8700 Programmable Membrane
Models That Used This Membrane: 8700-PRG, 8700-PRG-VFX, 8700-CLUB-PRG
Production Time Frame: 1996-1999
Electronics: 8700-PRG used Sprint-3 electronics, 8700-PRG-VFX used Sprint-4 electronics,
8700-CLUB-PRG used 220V PWM commercial motor pan. See Wiring Diagrams.
Settings Used In: Home and Commercial (LTD’s and CLUB’s)
Key Features: Closed Loop Treadmill (w/ speed sensor), Safety Lanyard, 0.5-12MPH Push Button
Speed and Elevation Control, 4 Built In Programs, 2 User Programs.
8700 Sprint Faceplate
Models That Used This Faceplate: 8700 Sprint-3, 8700 Sprint-4, 8700-Sprint-4-VFX
Production Time Frame: Sprint-3 1997-1998, Sprint-4 1998-1999
Electronics: 110V Unit, See Wiring Diagrams for 8700 Sprint-3 and Sprint-4
Settings Used In: Home
Key Features: Sprint-3 Open Loop Treadmill (w/o speed sensor), Sprint-4 Closed Loop Treadmill (w/
Speed sensor) Safety Lanyard, 0.5-12.0MPH Push Button Speed and Elevation Control.

14
Section 3 – Parts Identification
Item Part#MSRP Note
Treadbelt 70046 $326.00
Treadbelt-XL 70157 $381.00
SliderDeck(Non-VFX) 70033 $208.75
SliderDeck- XL (Non-VFX) 70156 $258.35
VFX Deck 70218 $200.00
VFX DeckS pacer 70219 $9.00 2 pertrea d
VFX D eck Slat 70215 $25.05 3 pertrea d
VFX D eck Post 70216 $5.00 6 pertrea d
VFX D eck Load W asher 70217 $3.40 6 pertre a d
VFX Deck,FletW asher 70220 $2.50 6 pertre a d
VFX Deck,Im pactAdjuster 70221 $0.20 6 pertrea d
Drive Motor, 3 HP,110V 70014 $584.50 m ustorderw/70010
Flyw heel 70010 $75.15
MotorBracket 70043 $59.70
Tension Screw 70071 $2.50
MetalS pacer 70089 $1.89 3 pertrea d
RubberS pacer 70090 $1.65 2 pertrea d
Hitch Pin233$0.42 2 pertrea d
Drive Belt220J10$25.05
MotorBrush, 110V 70222 $15.53 2 pertrea d
Motor Brush Holder m isc $58.16
MotorBrush Cap m isc $7.11
Foam Block 70103 $8.35
Elevation Assem bly 70027 $181.02
Elevation Motor,110V 70088 $275.00
Elevation Potentiom eter 71013 $32.72
Elevation Pins 70032 $2.83 2 pertrea d
Elevation Nut MISC $25.05
Elevation Clevis 70049 $17.28
Bearing Block 70034 $14.00
Pan 70048 $150.00
PW M 110V KBW T-110 $280.50
RELAY Board,PW M 70213 $100.50
Nylon Spacer,# 8 Screw 71035 $0.25
Reading RackClear 71018 $35.00
Display Board -8700PR G (Closed Loop) 70196-CL $518.00
DisplayBoard -8700SST (Closed Loop) 70173-CL $541.08
Display B oard -SPRINT4(Closed Loop) 70191-CL $275.00
DisplayBoard - SPRINT-Metric 70191-M etric$285.00
DisplayBoard - SPRINT-7 M ph 70191-RTM $285.00
SO NAR TransducerW/cable 70179 $60.15
SONAR Ranging Board 70178 $100.20
SONAR H ard w are 7 017 7 $8 .75
Model8700 Treadm illParts

15
M em brane Panel-SPRINT3/4 70190 $167.00
Membrane Panel-8700PR G 70195 $225.45
MembranePanel- SST 70171 $225.45
Membrane Panel- NM A (C R T ,PRT) 70191-NM A $210.42
Velcro Circle 70096 $0.85
Velcro Strip 70095 $5.00
Drive RollerAssem bly 70036 $215.75 m ustorderw/CV-18-2
Sheave,FrtRoller CV-18-2 $20.04
Take UpRollerA ssem bly 70039 $200.40
DC Transformer,9V 110V 5302 $24.63
ControlPanelFram e 70018 $114.90
ControlPanelW/SonarHole 70018-S$116.90
BracketSonar 70172 $5.00
Upright,Left 70020 $116.57
Upright,Right 70019 $116.57
StablizerPlate 70210 $25.00
ControlPanelEndCap,Right 70061 $8.52
ControlPanelEnd Cap ,Left 70062 $8.52
Fram e Rail,Left 70016 $215.17
Fram e Rail,Right 70015 $215.17
Decal,Fram e,Right 70055 $22.45
Decale,Fram e,Left 70056 $22.45
Side Fram eTop C over 70017 $51.35
H arness,SPRINT4Upper 70211 $30.00
H arness,SPRINT4Lower 70212 $15.05
Isolation Transform er 70202 $429.50
Supression kitMISC $17.00
AxiShockSupension FOO T 71029 $60.00 RightorLeft
FootClam p (Solid foot) 70008 $15.00
MotorCoverG rey 70044 $158.65 m ustorderw/70209 (no charge)
8700 Landice nam e plate 70209 $8.25
MotorCover,Fire RetardantBlack 70044-FR $242.15
MotorC over,Clear 70044-CLEAR $317.30
8-32 x 3/4 PPHTT BLOX 8-32_3/4_TTB $0.75 screw formotorcover
SpeedS ensor 71007 $58.50
SpeedSensorBracket 70067 $3.76
Line Cord,with 5-15P Plug 5211 $48.26
Plug, 5-15P,H ospitalGrade (110V) 5-15PH G P $33.00
Strain Relief 1250 $0.58
Fuse, 110V M D A-20 $2.51
Fuse Holder M D A-HO LD ER $3.25

16
Wireless Pulse Option "Pulse Kit" 71017 $167.00
ExtenderKitMISC $25.05
R eceiverKit 70074/MISC $125.25
Pulse Belt/Transm itter 70072/70073 $108.55
Pulse Receiver 70074 $100.20
ExtenderCable 71009 $16.70
RightAngle Adapter 71010 $8.35
Isolation Leakage Option M ISC $167.00
Isolation Leakage Option D ealerInstalled M ISC $20.00
Traction Strip 70005 $11.41
Cover,Side Fram e 70017 $51.35
SIDE FR AM E XL $190.00
Side Rail 70052 $53.44
RailClam p 70021 $33.57
Cross Bar 70051 $25.05 m ustorderw/1858
Cross Bar Foam 1858 $7.55
HardwareKit 71020 $25.05
MedicalRail 70135 $104.38 m ustorderw/70185
Foam M edical& R unners Rail 70185 $8.35
Installation Charge,OptionalRailsMISC $108.55
Spacer,RailSupport 70006 $5.01
EndCap 70045 $12.53
W heel 4851 $6.68 2 pertre a d
NMASticker 70188 $1.67
Safety Lanyard 71011 $15.50
8700SPRINTUser's M anual 72008 $8.35
8700PRG User's M anual 72012 $8.35
8700SST User's M anual 72011 $8.35
Institutional Brochures 70199
HomeBrochures 70200
Quality Construction M anual 72017
Touch UpPaint 70224 $25.05
Slipcote Lubricant1oz Packet 71037 $1.50
Slipcote LubricantQ UART 71030 $35.00 4 cans/save$4.00
Slipcote Lubricant GALLON 71031 $96.00 16cans/save$39.00
Applicator 71016 $4.00

17
8700 COMERCIAL MOTOR PAN COMPONENTS

18
8700 COMMERCIAL LOWER WIRING SCHEMATIC

19
LED (light emitting diode) configurations: SCR lower board
The SCR lower board is designed with diagnostic LED lights. The LED’s are color coded according to
their specific function. Green indicates a properly operating treadmill; the green lights should always
be ON when power is supplied to the treadmill. Yellow indicates a treadmill function. Red indicates a
treadmill malfunction. Here is a list of each LED and what it signifies:
MOTOR (yellow) – The MOTOR LED illuminates when dc (direct current) voltage is sent to the drive
motor. The LED gets brighter when the dc output is increased.
RLC (yellow) – The RLC (R = Reactance / L = Inductance / C = Capacitance) LED illuminates when
the filtering system is properly working. The filtering system includes the capacitor and filter choke. If
there is a short in either component then the RLC light will not come on.
DN & UP (yellow) – The DN and UP LED lights tell us if the elevation DN and UP relays are
functioning properly. When the LED lights, it tells us that the relay has energized and is sending high
voltage (110vac or 220vac) to the elevation motor.
AC PWR (green) – The AC PWR (Alternating Current Power) illuminates when AC line voltage is
delivered to the treadmill. It then passes through the in-line fuse (110)/s(220) and lights the AC PWR
LED.
+12V (green) – When the proper AC voltage is delivered to the treadmill, passes through the in-line
fuse/s, through the full wave bridge rectifier (changes AC to DC), through the transformer (steps down
DC to +12vdc) then the +12V LED lights.

20
C. LIM (red) – The C.LIM or Current Limit LED should NEVER come on. This diagnostic light is used
to determine the condition of the treadbelt and deck. The SCR board has a built-in amp meter. When
the treadbelt belt and deck system wears, the amperage will increase. When this amperage reaches
its max limit, the lower board will shut down its power (treadbelt will slow down / low torque) to the
drive motor and the C.LIM LED will illuminate.
SPD (yellow) – The SPD LED flashes on and off (relative to speed) when the speed sensor is
operating properly.
GRD (red) – The GRD LED should NEVER come on. It illuminates only when the elevation
potentiometer becomes out of calibration.
SERIAL (red) – The SERIAL LED should NEVER come on. It illuminates only when there is a serial
error. This could be a loose or pushed pin on the main wire harness.
+5V (green) – The +5V light comes on when there is power going to the Upper Display. If the light is
not on check wire harness for connections. If it ‘s not the wire harness then the MCB is defective.
