Lanner LVC-5000-B0 User manual

In-Vehicle Computing
Hardware Platforms for mobile applications
LVC-5000-B Series
V1.0
User's Manual
Release date: 2014/12/30

Overview
Icon Descriptions
The icons are used in the manual to serve as an
indication of interest topics or important messages.
Below is a description of these icons:
NOTE: This check mark indicates
that there is a note of interest and is
something that you should pay special
attention to while using the product.
WARNING: This exclamation point
indicates that there is a caution or
warning and it is something that could
damage your property or product.
Online Resources
The listed websites are links to the on-line product
information and technical support.
Resource Website
Lanner http://www.lannerinc.com
Product Resources http://assist.lannerinc.com
RMA http://eRMA.lannerinc.com
Copyright and Trademarks
This document is copyrighted, © 2014. All rights are
reserved. The original manufacturer reserves the right to
make improvements to the products described in this
manual at any time without notice.
No part of this manual may be reproduced, copied,
translated or transmitted in any form or by any means
without the prior written permission of the original
manufacturer. Information provided in this manual
is intended to be accurate and reliable. However, the
original manufacturer assumes no responsibility for its
use, nor for any infringements upon the rights of third
parties that may result from such use.
Acknowledgement
Intel, Pentium and Celeron are registered trademarks of
Intel Corp.
Microsoft Windows and MS-DOS are registered
trademarks of Microsoft Corp.
All other product names or trademarks are properties of
their respective owners.
Compliances and Certification
CE Certication
This product has passed the CE test for environmental
specifications. Test conditions for passing included
the equipment being operated within an industrial
enclosure. In order to protect the product from being
damaged by ESD (Electrostatic Discharge) and EMI
leakage, we strongly recommend the use of CE-
compliant industrial enclosure products.
FCC Class A Certication
This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference when the equipment is operated in a
commercial environment. This equipment generates,
uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction
manual, may cause harmful interference to radio
communications. Operation of this equipment in a
residential area is likely to cause harmful interference
in which case the user will be required to correct the
interference at his own expense.
e Mark Certication
E13 - Luxembourg

Mechanical compliance
Vibration:
General Vibration (operating): Refer to MIL-STD-810G,•
Method 514.6, Procedure I (Transportation), Category
4 – Common carrier (US highway truck vibration
exposure)
General Vibration (non-operating): Refer to MIL-STD-•
810G, Method 514.6, Procedure I (Transportation),
Category 24 – General minimal integrity
Shock:
Operating (Functional Test for Ground Equipment):•
Refer to MIL-STD-810G, Method 516.6, Procedure I,
40g, 11ms
Non-Operating (Crash Hazard Shock Test for Ground•
Equipment): Refer to MIL-STD-810G, Method 516.6,
Procedure V, 75g, 11ms
Electrical transient conduction along supply lines only
(12V/24V)
Revision History
Version Date Description
1.0 2014/12/30 Ofcial release

Chapter 1: Introduction 5
Model Summaries 5
System Specifications 6
Package Contents 6
Chapter 2: System Components 7
System Drawing 7
Block Diagram: The MainBoard 9
Front Components 12
Rear Components 13
Chapter 3: Motherboard Information 15
Inside LVC-5000-B Series 15
Jumpers & Connectors on the Motherboard 18
Jumpers & Connectors on the Motherboard 20
Jumpers & Connectors on the PoE Power Board 21
Jumpers & Connectors on the Add-on Card LVK-CBPE1 22
Jumpers & Connectors on the Add-on Card LVK-CBSA1 23
Connectors and Jumpers List 24
Jumper Settings & Connector Pinouts 25
Chapter 4: Hardware Setup 36
Preparing the Hardware Installation 36
Installing a CompactFlash Card 36
SIM Card Installation 36
Installing a HDD/SSD Disk Drive 36
Mini-PCIe Wireless Network Module Installation 37
Connecting Power 38
Chapter 5: The Flow Chart 39
Appendix A: Using the Ignition System Manager (ISM) 40
Appendix B: Digital Input/Output 41
Appendix C: Accessing the Digital Accelerometer Data 47
Appendix D: Accessing the GPS Data 48
Appendix E: Programming System Watchdog Timer 50
Appendix F: Terms and Conditions 54
Table of Contents

Chapter 1:
Introduction
Thank you for choosing Lanner LVC-5000-B series. The
LVC-5000-B series is a rugged vehicle PC designed
to be integrated on-board for eet management
applications and vehicle monitoring.
The system encompasses a wide variety of
communication ports to facilitate every possible in-
vehicle applications including surveillance, event data
recorder and the GPS receiver. It also features an
external HDD/SSD drive bay for easy storage device access
and replacement.
Intel® Celeron® 847E 1.1GHz / Core™ i7-3517UE•
1.7GHz
Supports DDR3 SO-DIMM memory, pre-installed•
with 4GB SO-DIMM module by default
Support DVI-D+VGA, DVI-D+HDMI, HDMI+VGA•
independent display interface.
2x mini-PCIe sockets to support WiFi and 3G wireless•
connection
Externally accessible 2.5” SATA HDD/SSD drive bay,•
CompactFlash and SIM card installation.
Support 12V DC output @Max 1A•
Onboard Ublox NEO-6Q GPS receiver module•
Supports 4 Ports PoE•
Suspension kit for anti-vibration•
1x RS232 & 1x RS232/422/485, support RI/5V/12V•
selection with relay output @Max 2A
Model Summaries
LVC-5000-B0 (4 POEs):
1.7 GHz Intel® Core™ i7-3517UE In-Vehicle Mobile
NVR, DDR3 4GB SO-DIMM x1, 2.5” external Drive
Bay x1(support to TB grade HDD), Mini-PCIe x2 with
2 external accessible SIM card reader, Intel GbE x4
support PoE, USB x4, RS232/422/485 x1, RS232
x1, CF x1, Multi-I/O, Audio, HDMI, VGA, DVI, DC
Power input +9~36Vdc with Ignition, Suspending Kit
included.
LVC-5000-B1/B2 (LVK-CBPE1 add-on card + 4 POEs):
1.1 GHz Intel® Celeron® 847E/ 1.7 GHz Intel®
Core™ i7-3517UE In-Vehicle Mobile NVR, DDR3
4GB SO-DIMM x1, 2.5” external Drive Bay x1, Mini-
PCIe x2 with 2 external accessible SIM card reader,
Intel GbE x4 support PoE, USB x4, RS232/422/485
x1, RS232 x1, CF x1, Multi-I/O, Audio, HDMI, VGA,
DVI, Support CAN Bus Module MT3647 & MT1200,
extra Mini-PCIe x1 with SIM card reader, DC Power
input +9~36Vdc with Ignition, Suspending Kit
included.
LVC-5000-B3 (LVK-CBSA1 + 4 POEs):
1.7 GHz Intel® Core™ i7-3517UE In-Vehicle Mobile
NVR, DDR3 4GB SO-DIMM x1, 2.5” external Drive
Bay x1, Mini-PCIe x2 with 2 external accessible
SIM card reader, Intel GbE x4 support PoE, USB
x4, RS232/422/485 x1, RS232 x1, CF x1, Multi-
I/O, Audio, HDMI, VGA, DVI, Support CAN Bus
Module MT3647 & MT1200, extra Mini-PCIe x1 with
SATA interface supports mSATA (major InnoDisk_
mSATA_3ME series), DC Power input +9~36Vdc
with Ignition, Suspending Kit included.

System Specifications
Dimensions (unit: mm) 273.8x188.0x72.0
308.0x188.0x100.6 (w/ suspension kit)
Processor Intel 847E/i7-3517UE
Chipset Intel HM65
System
Memory
Technology DDR3 SO-DIMM x1
(default 4GB)
Max. Capacity Up to 8GB (user option)
Storage SATA & CF
1x 2.5” HDD/SSD drive bay
(up to TB
grade)
1 x CF socket
1 x mSATA storage module socket (B3
model ONLY)
Ethernet Controller Intel 82583V x4
Graphic Controller Intel Integrated HD graphic engine
Audio Controller Realtek ALC886 GR
I/O
LAN
4 x GbE RJ45 w/PoE, IEEE 802.3af
compliant
Display
DVI-D x 1
VGA x 1
HDMI x 1
Audio Mic-in and Line-out/HD Audio output by
MIO terminal block
Serial COM 1x RS-232 and 1x RS-232/422/485 both
with RI/5V/12V
GPS Ublox NEO-6Q GPS receiver module
G-sensor ADXL 345
MIO
26-pin terminal block for GPIO:
4x DI ( 5V or 12V TTL selectable)
4x DO (12V TTL , Max. 100mA)
2x DO control Relay support 9~36V@
max 2A each
2x DI to Ignition MCU as remote control
( 5V TTL)
Audio MIC input and HD Audio output
(w/2Watt)
COM TX RX, for Ignition Microcontroller
program/service purpose.
USB USB 2.0 Type A x4
Power Input 3-pin terminal block (DC 9~36V, GND
and Ignition)
Power Output 12VDC/1A
Expansion
2 x mini-PCIe sockets USB+SIM (Both
with SIM card readers)
1x full-size mini-PCIexpress socket
(USB+PCIe) with SIM-card reader (except
B0 and B3)
Antenna 7 x SMA-type antenna holes
CAN bus Available in B1/B2/B3 models
SIM
3 x SIM card readers (2 on mother-
board, 1 on LVK-CBPE1 card for B1 & B2
models)
PoE Power Module
Internally integrated: DC 9~36V Input,
48V Output with PoE Power
Management
OS Support
Windows7 / WES2009 / 7 embedded/
Windows 8
Linux kernel 2.6.X or above
Certications CE, FCC Class A, E13, RoHS
Watchdog 1~255 level
Shock & Vibration
Vibration: MIL-STD-810G, Method 514.6
Shock:MIL-STD-810G, Method 516.6
(with SSD/CF only)
Operating Temperature -25~55°C (with industrial memory
components)
Package Contents
Your package contains the following items:
LVC-5000-B series Fanless Embedded System with
vibration kit
Terminal Block Connectors:•
-Power connector 3 pin x1 (P/N: 04AW20031E001)
-12V DC output 2 pin x1 (P/N: 04AW20021E101)
-MIO Connector 26 pin x1 (P/N: 04AW20263Z101)
-Remote Power on/off SW 2 pin x 1(P/N:
04AW20023Z101)
HDD Screws x 4 (P/N: 070W103000601)•
Mini-PCIe Screws x 4 (P/N: 070W101000401)•
Suspension kit•

Chapter 2:
System Components
System Drawing
Mechanical dimensions of the LVC-5000-B series
Unit: mm

Notes: This mechanical drawing set is for reference only. Dimensions for all models B0, B1, B2 and B3 are the same
but I/O connectors may vary due to planning purposes.

Block Diagram: The MainBoard
LVC-5000-B series comes with various CPU and I/O
options. Thus, there are more than one block diagrams to
be presented in the following.
LVC-5000-B0 block diagram:

LVC-5000-B1/B2 block diagram:

LVC-5000-B3 block diagram:

Front Components
F1
F5
F2 F3
F4
Component Description
F1 LED Indicators x 6 for
component status
HDD status 3G status PoE stats
Power WiFi status Ignition status
F2 Remote Power Switch 1x2-pin terminal block for distant power-on/off control
F3 Four 10/100/1000Mbps LAN
ports Four RJ-45 (provided by Intel 82583V) jacks with LED indicators
They are provided by Intel 82583V GbE chips with Power over Ethernet
power source capability (48V, 15.4W).
F4 Four USB 2.0 Ports USB type A connectors
F5 2.5” Storage Drive Bay with
Lock (†) Removable 2.5”storage drive for easy replacement of the storage
F6 CF/SIM card Slot (Sealed by
nails) Externally accessible CF/SIM card slot sealed by nails
F6
All LVC-5000-B series models share common I/O components at the front panel.

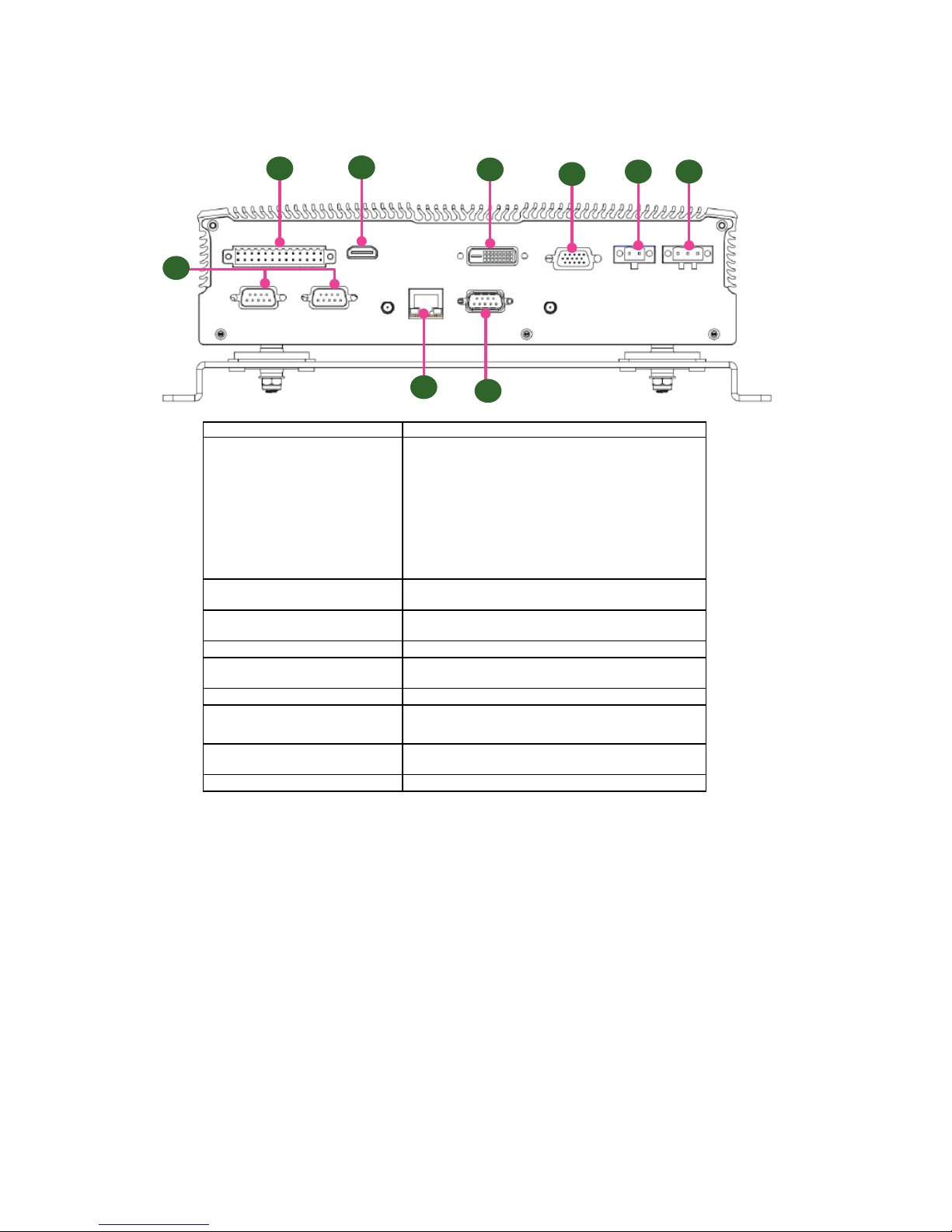

Rear Components
Component Description
R1 Multiple-I/O Connector A 26-pin male connector configured as followed:
4x DI ( 5V or 12V TTL selectable)•
4x DO (12V TTL , Max. 100mA)•
2x DO control Relay support 9~36V@max 2A each•
2x DI to Ignition MCU as remote control ( 5V TTL)•
Audio MIC input and HD Audio output (w/2Watt)•
COM TX RX, for Ignition Microcontroller program/•
service purpose.
R2 HDMI HDMI video/audio output port enabled by Intel
HD graphics
R3 DVI-D DVI-D port (single link) enabled by Intel HD
Graphic Engine.
R4 VGA VGA display port
R5 DC Output 12V 1x 2-pin terminal block for DC 12V (1A)Output
R6 DC Input 9-36V 3-pin power input range +9~+36V, GND, ignition
R7 Serial Ports (from left to
right: COM3/COM4)
COM3 - RS232
COM4 - RS232/422/485
R1 R2 R3 R4 R5 R6
R7
All LVC-5000-B series models show variations in terms of rear panel I/O components.
LVC-5000-B0

Component Description
R1 Multiple-I/O Connector A 26-pin male connector configured as followed:
4x DI ( 5V or 12V TTL selectable)•
4x DO (12V TTL , Max. 100mA)•
2x DO control Relay support 9~36V@max 2A each•
2x DI to Ignition MCU as remote control ( 5V TTL)•
Audio MIC input and HD Audio output (w/2Watt)•
COM TX RX, for Ignition Microcontroller program/•
service purpose.
R2 HDMI HDMI video/audio output port enabled by Intel
HD graphics
R3 DVI-D DVI-D port (single link) enabled by Intel HD
Graphic Engine.
R4 VGA VGA display port
R5 DC Output 12V 1x 2-pin terminal block for DC 12V (1A)Output
R6 DC Input 9-36V 3-pin power input range +9~+36V, GND, ignition
R7 Serial Ports (from left to
right: COM3/COM4)
COM3 - RS232
COM4 - RS232/422/485
R8 LAN One additional RJ-45 LAN port for B1, B2 and B3
models
R9 CAN CAN bus port for B1, B2 and B3 models
R1 R2 R3 R4 R5 R6
R7
LVC-5000-B1/B2/B3
R8 R9

Chapter 3:
Motherboard Information
Inside LVC-5000-B Series
Though all models of LVC-5000-B series share the
same main motherboard, they come in card/board
combinations due to slight differences in specifications.
Please see the following for references.
PoE Power Board:
LVK-POE60W01
The main motherboard
LVC-5000-B0 At A Glance

LVC-5000-B1/B2 At A Glance
PoE Power Board:
LVK-POE60W01
The main motherboard
Add-on card:
LVK-CBPE1

LVC-5000-B3 At A Glance
PoE Power Board:
LVK-POE60W01
The main motherboard
Add-on card:
LVK-CBSA1

Jumpers & Connectors on the Motherboard
LAN1/LAN2/LAN3/LAN4 USBB1
USBB2
CN3
CN5
PRJK1
DVID1
VGAA1 MIO2
HDMI1
CF1
POEIO1

MPCIE1
MPCIE2
AUDIOIN1
COMSLT1
LPC1
CMOS1
PKMB1
SPI1
PS4M1
PCOM2
COMB2
COMB1
PCOM1
MIO3
SCT1
SCT2
PS4S1
SATAB1

SIM2 SIM1
Jumpers & Connectors on the Motherboard
(Bottom side)
DIMM
