LWR-X8460
User Manual
Version: 1.2
Date of Release: 2022-03-16
Network Appliance Platforms

LWR-X8460 User Manual
2
This manual describes the overview of the various functionalities of this product, and the information you
need to get it ready for operation. It is intended for those who are:
-responsible for installing, administering and troubleshooting this system or Information Technology
professionals.
-assumed to be qualified in the servicing of computer equipment, such as professional system integrators,
or service personnel and technicians.
The latest version of this document can be found on Lanner’s official website, available either through the
product page or through the Lanner Download Center page with a login account and password.
This document utilizes different icons in order to make selected text more transparent and explicable to
users.
Icon
Usage
This mark indicates that there is something you should pay special
attention to while using the product.
This mark indicates that there is a caution or warning and it is
something that could damage your property or product.
All product names or trademarks are properties of their respective owners.
This document is copyrighted © 2022 by Lanner Electronics Inc. All rights are reserved. The original
manufacturer reserves the right to make improvements to the products described in this manual at any time
without notice.
No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means
without the prior written permission of the original manufacturer.
Information provided in this manual is intended to be accurate and reliable. However, the original
manufacturer assumes no responsibility for its use, nor for any infringements upon the rights of third parties
that may result from such use.
Note or Information
Warning or Important

LWR-X8460 User Manual
3
To obtain additional documentation resources and software updates for your system, please visit the Lanner
Download Center. As certain categories of documents are only available to users who are logged in, please
be registered for a Lanner Account at http://www.lannerinc.com/ to access published documents and
downloadable resources.
For troubleshooting the issues with your system, please check the Lanner Q&A page for a diagnostic
procedure and troubleshooting steps.
In addition to contacting your distributor or sales representative, you could use other available methods to
get support from Lanner:
Visit the Lanner Technical Support page to fill in a support ticket to our technical support department.
Phone support is offered to our customers in the United States and Canada.
Toll-free customer service number: [phone]
Your feedback is valuable to us, as it will help us continue to provide you with more accurate and relevant
documentation. To provide any feedback, comments or to report an error, please email to
[email protected]m, Thank you for your time.

LWR-X8460 User Manual
4
Taiwan Corporate Headquarters
Lanner Electronics Inc.
7F, No.173, Sec.2, Datong Rd.
Xizhi District, New Taipei City 22184,
Taiwan
立端科技股份有限公司
221 新北市汐止區
大同路二段 173 號7樓
T: [phone]
F: [phone]
E: [email protected]m
China
Beijing L&S Lancom Platform Tech. Co., Ltd.
Guodong LOFT 9 Layer No. 9 Huinan Road,
Huilongguan Town, Changping District, Beijing
102208 China
T: [phone]
F: [phone]
E: [e-mail]
USA
Lanner Electronics Inc.
47790 Westinghouse Drive
Fremont, CA 94539
T: [phone]
F: [phone]
E: [e-mail]
Canada
Lanner Electronics Canada Ltd
3160A Orlando Drive
Mississauga, ON
L4V 1R5 Canada
T: [phone]
F: [phone]
E: [e-mail]
Europe
Lanner Europe B.V.
Wilhelmina van Pruisenweg 104
2595 AN The Hague
The Netherlands
T: [phone]
E: [e-mail]

LWR-X8460 User Manual
5
Electrical equipment generates heat. Ambient air temperature may not be adequate to cool equipment to acceptable
operating temperatures without adequate circulation. Be sure that the room in which you choose to operate your
system has adequate air circulation.
Ensure that the chassis cover is secure. The chassis design allows cooling air to circulate effectively. An open chassis
permits air leaks, which may interrupt and redirect the flow of cooling air from internal components.
Electrostatic discharge (ESD) can damage equipment and impair electrical circuitry. ESD damage occurs when
electronic components are improperly handled and can result in complete or intermittent failures. Be sure to follow
ESD-prevention procedures when removing and replacing components to avoid these problems.
Wear an ESD-preventive wrist strap, ensuring that it makes good skin contact. If no wrist strap is available, ground
yourself by touching the metal part of the chassis.
Periodically check the resistance value of the antistatic strap, which should be between 1 and 10 megohms (Mohms).
L’équipement électrique génère de la chaleur. La température ambiante peut ne pas être adéquate pour refroidir
l’équipement à une température de fonctionnement acceptable sans circulation adaptée. Vérifiez que votre site
propose une circulation d’air adéquate.
Vérifiez que le couvercle du châssis est bien fixé. La conception du châssis permet à l’air de refroidissement de bien
circuler. Un châssis ouvert laisse l’air s’échapper, ce qui peut interrompre et rediriger le flux d’air frais destiné aux
composants internes.
Les décharges électrostatiques (ESD) peuvent endommager l’équipement et gêner les circuits électriques. Des dégâts
d’ESD surviennent lorsque des composants électroniques sont mal manipulés et peuvent causer des pannes totales
ou intermittentes. Suivez les procédures de prévention d’ESD lors du retrait et du remplacement de composants.
Portez un bracelet anti-ESD et veillez à ce qu’il soit bien au contact de la peau. Si aucun bracelet n’est disponible,
reliez votre corps à la terre en touchant la partie métallique du châssis.
Vérifiez régulièrement la valeur de résistance du bracelet antistatique, qui doit être comprise entre 1 et 10 mégohms
(Mohms).

LWR-X8460 User Manual
6

LWR-X8460 User Manual
7
LWR-X8460, a 12-stream Wi-Fi 6E (802.11ax) access point network solution, designed for the growing demands
of increasingly crowded and dense Wi-Fi environments. With 4x4 MU-MIMO in 2.4 GHz, 5 GHz, and 6 GHz Tri-
Band, and comply with IEEE 802.11a/b/g/n/ac/ax standards, the LWR-X8460 offer fast and secure Wi-Fi
connectivity.
Your package contains the following items:
1x LWR-X8460 Wi-Fi 6E Access Point
1x LAN Cable Cat6A
1x AC Power Adapter / Power Cord
SKU No.
Main Features
LWR-X8460B
High-Capacity Wi-Fi 6E Tri-Band Access Point with Qualcomm Hawkeye2, 2x 10GbE
(PoE++ PD), 4x 1GbE RJ45 ports, supports wall mount.
Model
Description
Wall Mount Kit
Wall Mount Kit

LWR-X8460 User Manual
8
Form Factor
Fanless Desktop
Platform
Processor
Qualcomm® IPQ8076A Hawkeye2 @2.2 GHz
CPU Cores
4
Security Acceleration
Hardware-based acceleration for IPsec VPN
System Memory
Flash NOR
8MB
Flash NAND
256MB
DDR4
1GB
Wi-Fi
Standard
IEEE 802.11 a/b/g/n/ac/ax
Peak PHY Rates
2.4 GHz: 1147 Mbps
5 GHz: 2401 Mbps
6 GHz: 4803 Mbps
Antenna
2.4 GHz: Peak gain 4.25dBi, Internal 4x4, Omnidirectional
5 GHz: Peak gain 5.4dBi, Internal 4x4, Omnidirectional
6 GHz: Peak gain 4.8dBi, Internal 4x4, Omnidirectional
Frequency Bands
2.400 to 2.4835 GHz (ISM)
5.150 to 5.250 GHz (U-NII-1)
5.250 to 5.350 GHz (U-NII-2A)
5.470 to 5.725 GHz (U-NII-2C)
5.725 to 5.850 GHz (U-NII-3)
5.925 to 7.125 GHz (U-NII-5/6/7/8)
Client Capacity
Up to 512 clients per band
SSID
Multiple SSID: Up to 8 BSSID per band
Hidden SSID
Security (Personal)
Enhance Open
WPA2-PSK
WPA3-SAE
WPA/WPA2-PSK mixed mode
WPA2/WPA3-PSK/SAE mixed mode
Security (Enterprise)
802.1X Authenticator & Supplicant
- WPA2-PSK
- WPA/WPA2-PSK mixed mode
Advanced
IEEE802.11 k/v/r
WMM
Bluetooth
Standards
BLE 5.1
Tx Power
4dBm (class 2)
Rx Sensitivity
-89dBm
Antenna
2.4 GHz: Peak gain 3.24dBi, Internal, Omnidirectional

LWR-X8460 User Manual
9
I/O
Power Input
DC Jack w/ lock
WAN
1x 10GbE + IEEE802.3bt (PoE++)
LAN
1x 10GbE (1/2.5/5/10GbE)
LAN
4x 1GbE
Console
1x RJ45 management port
USB
1x USB2.0, Type A
WPS
1x Button
Reset
1x Button
LED Indicators
Power, Status, 10G, 1G, WLAN, WPS
Networking Protocol
IP
IPv4, IPv6
Mesh
EasyMesh Wireless Technology
Self-Healing
AP Steering
VLAN
802.1Q
Port-Based
Firewall
SYN-Flood Protection
Invalid Packet Filter
Port Forwarding
Traffic Rules
Custom Rules
System Management
Time
NTP client, Timezone, Local time
Log
System / Kernel Log, Log Levels
Diagnostics
Ping, Traceroute, Nslookup
Device Management
Backup / Restore Device Configuration
Firmware Update
Reset to Default
Remote Management
HTTP(S)
SSH
Environmental
Parameters
Temperature
Operating: 0°C ~ 40°C
Humidity (RH)
5% ~ 90% non-condensing
Mechanical
Specifications
(WxDxH)
220 x 220 x 60 mm (without rubber feet)
Weight
2.1 kg
Power
Consumption
50W (max)
Input
48Vdc / 1.25A
IEEE 802.3bt (PoE++)

LWR-X8460 User Manual
10
LED
COLOR
ACTION
DESCRIPTION
POWER
Green
Steady
System On
OFF
N/A
System Off
STATUS
Green
Steady
System Ready
Green
Flash
Firmware update, restart, initialized
Red
Steady
System Error
Note: Status bi-color LED controlled by GPIO
WLAN
Green
Steady
Wi-Fi Ready
OFF
N/A
No Wi-Fi
10G
Green
Steady
Link Successfully
OFF
N/A
No Connection
1G
Green
Steady
Link Successfully
OFF
N/A
No Connection
WPS
Green
Steady
5 sec, WPS Linked Successfully
Green
Flash
WPS Session Negotiation
OFF
N/A
No Connection

LWR-X8460 User Manual
11
NO.
DESCRIPTION
R1
WPS
1x WPS Button
R2
Reset
1x Reset Button
R3
USB
1x USB 2.0 port
R4
Console port
1x RJ45 Console port
R5
LAN Ports
4x RJ45 1GbE
R6
LAN Port
1x 10GbE (1/2.5/5/10GbE)
R7
WAN Port
1x 10GbE (PoE++ PD)
R8
Power
1x DC Power Jack
PoE PD Port
The R7 WAN port supports PoE-in (PoE-PD) functionality, allowing LWR-X8460 access point to be powered
from an 802.3bt compliant PoE power supply.
R3
R6
R2
R1
R4
R5
R7
R8

LWR-X8460 User Manual
12
The access point can be mounted on a flat surfaced wall. Please take the following into considerations when
mounting the system onto the wall.
1. Fix the wall mount brackets onto the bottom of the access point by securing them with the four (4)
provided screws.
2. Position the access point’s mounting bracket at
the desired location on the wall and use a
pencil/pen to mark the four mounting holes.
3. Drill four (4) holes, insert wall anchors, then insert
screws into the wall anchors, leaving 3/16 inch (0.5
cm) of each screw exposed
4. Align the access point’s wall-mounting holes with
the screws and mount your access point to the wall.

LWR-X8460 User Manual
13
Before deploying and configuring the LWR-X8460, the device needs to be properly powered up and connected
to the network.
Step 1: Power on the LWR-X8460 Access Point. Connect the power adapter (included) to LWR-X8460’s 48VDC
port and plug the power adapter into a power supply. If powering by PoE, connect the 802.3bt compliant PoE
power adapter (sold separately) to LWR-X8460’s WAN port and plug the power adapter into a power supply.
Step 2: Connect the LWR-X8460 LAN Port (10GbE) to a computer/laptop via Ethernet cable.
Step 3: Please wait a moment for LWR-X8460 to start up. The wireless access point is ready when the Power
LED turns Green.
Power by DC Power Adapter
Power by PoE-PD
PoE Adapter
Power Adapter

LWR-X8460 User Manual
14

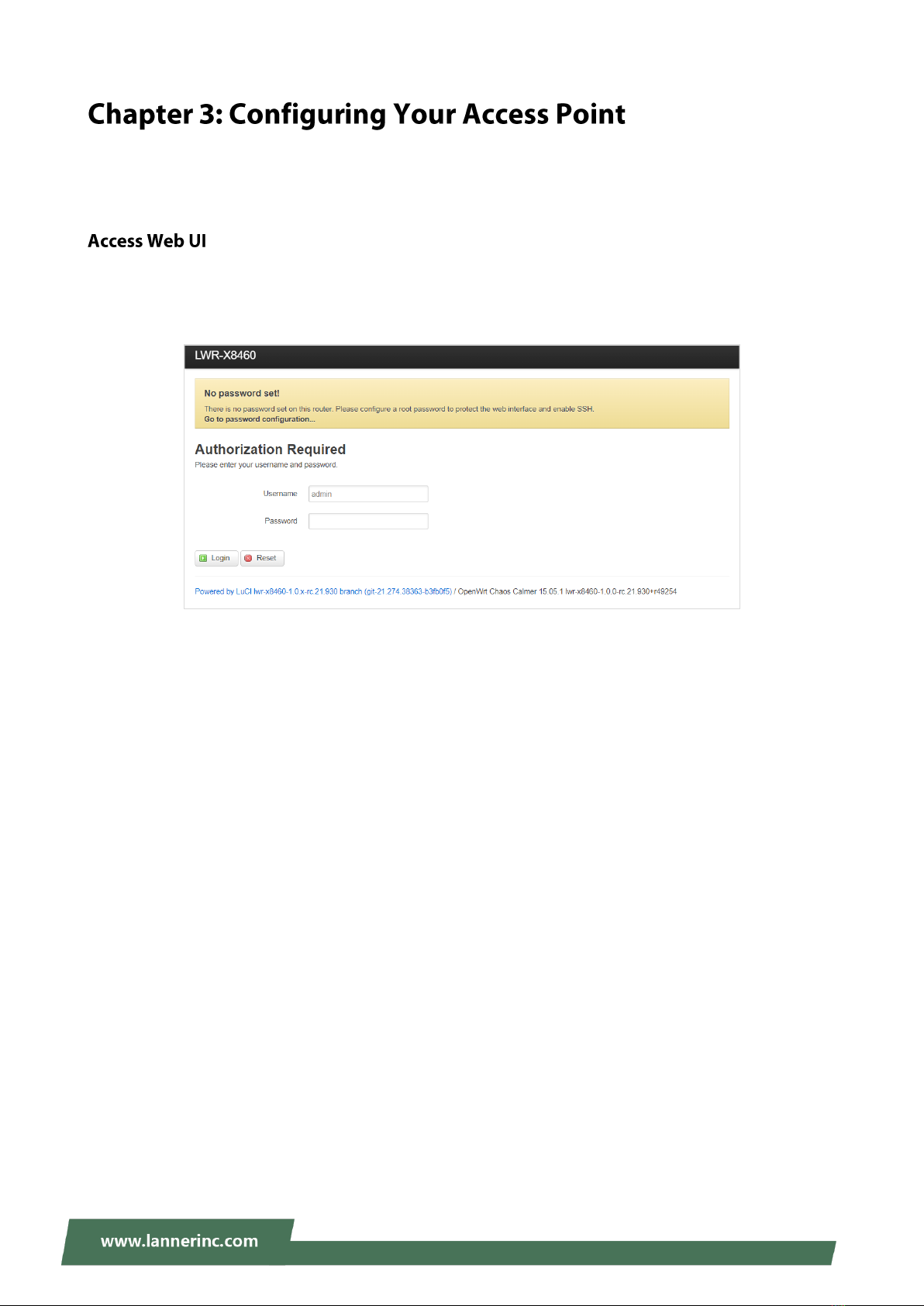

LWR-X8460 Wireless Access Point provides an intuitive Web GUI for easy management. This section provides
step-by-step instructions on how to discover the LWR-X8460 and access its Web GUI.
The LWR-X8460 embedded Web server responds to HTTPS GET/POST requests. Embedded HTML pages allow
users to configure the device through a Web browser such as Microsoft IE, Mozilla Firefox, Google Chrome,
and etc.
LWR-X8460 Web GUI Login Page
To access the Web GUI:
1. Make sure to device is properly powered up and a laptop/computer is directly connected to the device
LAN port via an Ethernet cable.
2. Launch the Web browser on the computer and enter the default IP address of the LWR-X8460
(192.168.0.100) in the address field.
3. Enter the Username and password to access the Web Configuration Menu. The default username is “admin,”
and the password is “admin.”

LWR-X8460 User Manual
15

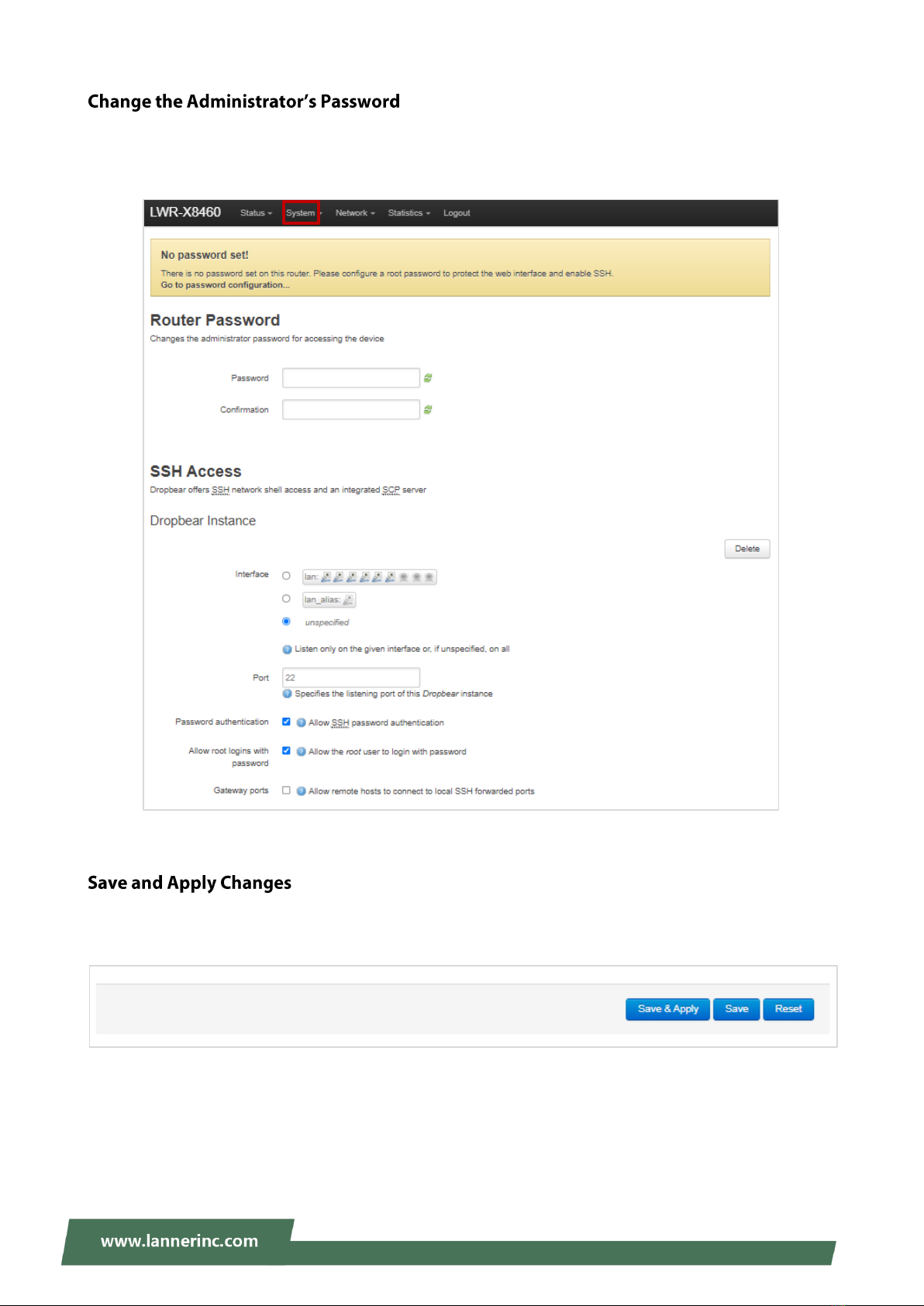

Change the administrator’s password for security reasons
1. Click on the System icon on the top menu, and select Administration from the pull-down menu.
2. Enter the New Password and retype it in the Confirmation field
After configuring or changing any options on the Web GUI pages, click “Save & Apply” on the bottom of the
page to apply changes.

LWR-X8460 User Manual
16
LWR-X8460 Wireless Access Point has a Web GUI for configuration and management. This section will guide
users through Web GUI’s detailed settings. The following table shows all the pull-down function tabs of the
Web GUI.
Status
System
Network
Statistics
Overview
System
Interfaces
Graphs
Firewall
Administration
Wireless
Setup
Routes
Backup / Flash Firmware
DHCP and DNS
System Log
Reboot
Hostnames
Kernel Log
Static Routes
Processes
Diagnostics
Realtime Graphs
Firewall
Status Overview provides an overview of the LWR-W8460, with system information, firmware version, memory
status, network status, and wireless status.

LWR-X8460 User Manual
17
Displays current firewall status, with actions to reset Counters and restart Firewall.
Routes sections displays the rules that are currently active on the LWR-X8460.

LWR-X8460 User Manual
18
Allows users to retrieve logs generated for troubleshoot purposes.
Allows users to retrieve logs generated for troubleshoot purposes.

LWR-X8460 User Manual
19

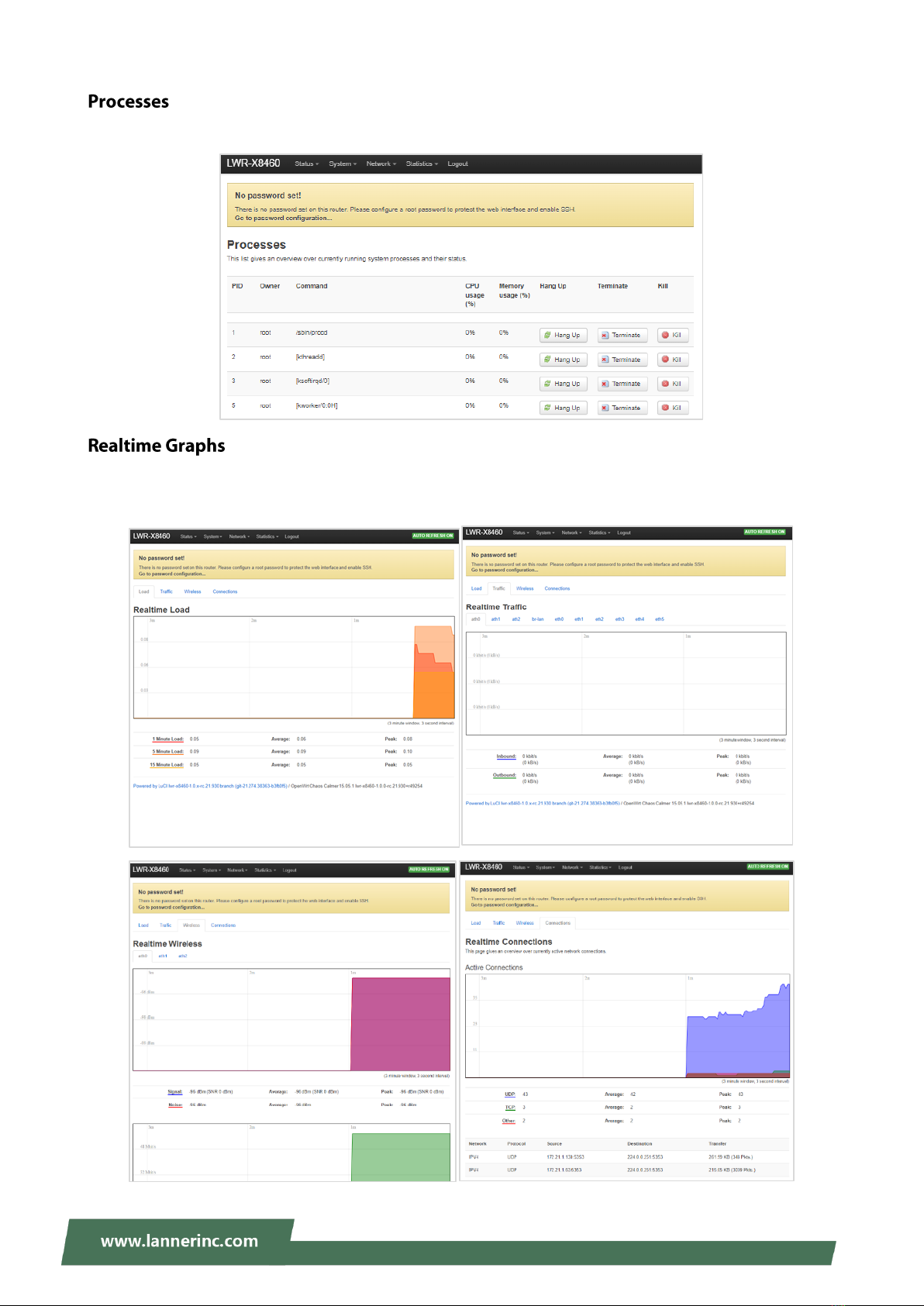

Processes section provides an overview on current running system processes and their status.
Displays real-time graphs including real-time load, real-time traffic, real-time wireless, real-time active network
connections.

LWR-X8460 User Manual
20
System allows users to configure the basic aspects of the device, like its hostname or the time zone.
Features
Description
General Settings
Local time, Hostname, Timezone
Logging
System Log Buffer size, External system log server, External system log server port,
External system log server protocol, Write system log to file, Log output level, Cron log
level
Language and Style
Language, Design
Time Synchronization
Enable/Disable NTP client, Provide NTP server, NTP server candidates
