Lanner NCA-1040SE User manual

1
NCA-1040SE
User Manual
Version: 1.1
Date of Release: 2023-06-21
Network Appliance Platforms

NCA-1040SE User Manual
2
This manual describes the overview of the various functionalities of this product, and the information you
need to get it ready for operation. It is intended for those who are:
-responsible for installing, administering and troubleshooting this system or Information Technology
professionals.
-assumed to be qualified in the servicing of computer equipment, such as professional system integrators,
or service personnel and technicians.
The latest version of this document can be found on Lanner’s official website, available either through the
product page or through the Lanner Download Center page with a login account and password.
The icons are used in the manual to serve as an indication of interest topics or important messages.
Icon
Usage
This mark indicates that there is something you should pay special
attention to while using the product.
This mark indicates that there is a caution or warning and it is
something that could damage your property or product.
To obtain additional documentation resources and software updates for your system, please visit the Lanner
Download Center. As certain categories of documents are only available to users who are logged in, please
be registered for a Lanner Account at http://www.lannerinc.com/ to access published documents and
downloadable resources.
In addition to contacting your distributor or sales representative, you could submit a request at our Lanner
Technical Support and fill in a support ticket to our technical support department.
Your feedback is valuable to us, as it will help us continue to provide you with more accurate and relevant
documentation. To provide any feedback, comments or to report an error, please email
[email protected]m. Thank you for your time.
This document is copyrighted © 2023 by Lanner Electronics Inc. All rights are reserved. The original
manufacturer reserves the right to make improvements to the products described in this manual at any time
without notice. No part of this manual may be reproduced, copied, translated or transmitted in any form or
by any means without the prior written permission of the original manufacturer. Information provided in this
manual is intended to be accurate and reliable. However, the original manufacturer assumes no responsibility
for its use, nor for any infringements upon the rights of third parties that may result from such use.
Note or Information
Warning or Important

NCA-1040SE User Manual
3
Taiwan Corporate Headquarters
Lanner Electronics Inc.
7F, No.173, Sec.2, Datong Rd.
Xizhi District, New Taipei City 22184,
Taiwan
立端科技股份有限公司
221 新北市汐止區
大同路二段 173 號7樓
T: [phone]
F: [phone]
E: [email protected]m
China
Beijing L&S Lancom Platform Tech. Co., Ltd.
Guodong LOFT 9 Layer No. 9 Huinan Road,
Huilongguan Town, Changping District, Beijing
102208 China
T: [phone]
F: [phone]
E: [e-mail]
USA
Lanner Electronics Inc.
47790 Westinghouse Drive
Fremont, CA 94539
T: [phone]
F: [phone]
E: [e-mail]
Canada
Lanner Electronics Canada Ltd
3160A Orlando Drive
Mississauga, ON
L4V 1R5 Canada
T: [phone]
F: [phone]
E: [e-mail]
Europe
Lanner Europe B.V.
Wilhelmina van Pruisenweg 104
2595 AN The Hague
The Netherlands
T: [phone]
E: [e-mail]

NCA-1040SE User Manual
4
Intel® and Intel® Celeron® are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries.
Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp.
All other product names or trademarks are properties of their respective owners.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate this equipment.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
Follow these guidelines to ensure general safety:
Keep the chassis area clear and dust-free during and after installation.
Do not wear loose clothing or jewelry that could get caught in the chassis. Fasten your tie or scarf and roll up your
sleeves.
Wear safety glasses if you are working under any conditions that might be hazardous to your eyes.
Do not perform any action that creates a potential hazard to people or makes the equipment unsafe.
Disconnect all power by turning off the power and unplugging the power cord before installing or removing a chassis
or working near power supplies
Do not work alone if potentially hazardous conditions exist.
Never assume that power is disconnected from a circuit; always check the circuit.
Suivez ces consignes pour assurer la sécuritégénérale :
Laissez la zone du châssis propre et sans poussière pendant et après l’installation.
1. An unshielded-type power cord is required in order to meet FCC emission limits and also to prevent interference
to the nearby radio and television reception. It is essential that only the supplied power cord be used.
2. Use only shielded cables to connect I/O devices to this equipment.
3. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
1. Operations in the 5.15-5.25GHz band are restricted to indoor usage only.
2. This device meets all the other requirements specified in Part 15E, Section 15.407 of the FCC Rules.

NCA-1040SE User Manual
5
Ne portez pas de vêtements amples ou de bijoux qui pourraient être pris dans le châssis. Attachez votre cravate ou
écharpe et remontez vos manches.
Portez des lunettes de sécurité pour protéger vos yeux.
N’effectuez aucune action qui pourrait créer un danger pour d’autres ou rendre l’équipement dangereux.
Coupez complètement l’alimentation en éteignant l’alimentation et en débranchant le cordon d’alimentation avant
d’installer ou de retirer un châssis ou de travailler à proximité de sources d’alimentation.
Ne travaillez pas seul si des conditions dangereuses sont présentes.
Ne considérez jamais que l’alimentation est coupée d’un circuit, vérifiez toujours le circuit. Cet appareil génère, utilise
et émet une énergie radiofréquence et, s’il n’est pas installé et utilisé conformément aux instructions des fournisseurs
de composants sans fil, il risque de provoquer des interférences dans les communications radio.
There is risk of explosion if the battery is replaced by an incorrect type.
Dispose of used batteries according to the instructions.
Installation should be conducted only by a trained electrician or only by an electrically trained person who knows all
installation procedures and device specifications which are to be applied.
Do not carry the handle of power supplies when moving to another place.
Please conform to your local laws and regulations regarding safe disposal of lithium battery.
Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery can result in an
explosion.
Leaving a battery in an extremely high temperature environment can result in an explosion or the leakage of
flammable liquid or gas.
A battery subjected to extremely low air pressure may result in an explosion or the leakage of flammable liquid or gas.
Risque d’explosion si la pile est remplacée par une autre d’un mauvais type.
Jetez les piles usagées conformément aux instructions.
L’installation doit être effectuée par un électricien formé ou une personne formée à l’électricité connaissant toutes les
spécifications d’installation et d’appareil du produit.
Ne transportez pas l’unité en la tenant par le câble d’alimentation lorsque vous déplacez l’appareil.
Electrical equipment generates heat. Ambient air temperature may not be adequate to cool equipment to acceptable
operating temperatures without adequate circulation. Be sure that the room in which you choose to operate your
system has adequate air circulation.
Ensure that the chassis cover is secure. The chassis design allows cooling air to circulate effectively. An open chassis
permits air leaks, which may interrupt and redirect the flow of cooling air from internal components.
Electrostatic discharge (ESD) can damage equipment and impair electrical circuitry. ESD damage occurs when
electronic components are improperly handled and can result in complete or intermittent failures. Be sure to follow
ESD-prevention procedures when removing and replacing components to avoid these problems.
Wear an ESD-preventive wrist strap, ensuring that it makes good skin contact. If no wrist strap is available, ground
yourself by touching the metal part of the chassis.
Periodically check the resistance value of the antistatic strap, which should be between 1 and 10 megohms (Mohms).
L’équipement électrique génère de la chaleur. La température ambiante peut ne pas être adéquate pour refroidir
l’équipement à une température de fonctionnement acceptable sans circulation adaptée. Vérifiez que votre site
propose une circulation d’air adéquate.
Vérifiez que le couvercle du châssis est bien fixé. La conception du châssis permet à l’air de refroidissement de bien
circuler. Un châssis ouvert laisse l’air s’échapper, ce qui peut interrompre et rediriger le flux d’air frais destiné aux
composants internes.
Les décharges électrostatiques (ESD) peuvent endommager l’équipement et gêner les circuits électriques. Des dégâts
d’ESD surviennent lorsque des composants électroniques sont mal manipulés et peuvent causer des pannes totales
ou intermittentes. Suivez les procédures de prévention d’ESD lors du retrait et du remplacement de composants.

NCA-1040SE User Manual
6
Portez un bracelet anti-ESD et veillez à ce qu’il soit bien au contact de la peau. Si aucun bracelet n’est disponible,
reliez votre corps àla terre en touchant la partie métallique du châssis.
Vérifiez régulièrement la valeur de résistance du bracelet antistatique, qui doit être comprise entre 1 et 10 mégohms
(Mohms).
Mounting Installation Precautions
The following should be put into consideration for rack-mount or similar mounting installations:
Do not install and/or operate this unit in any place that flammable objects are stored or used in.
The installation of this product must be performed by trained specialists; otherwise, a non-specialist might create the
risk of the system’s falling to the ground or other damages.
Lanner Electronics Inc. shall not be held liable for any losses resulting from insufficient strength for supporting the
system or use of inappropriate installation components.
Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating ambient temperature
of the rack environment may be greater than room ambient. Therefore, consideration should be given to installing
the equipment in an environment compatible with the maximum ambient temperature (Tma) specified by the
manufacturer.
Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of airflow required for safe
operation of the equipment is not compromised.
Mechanical Loading - Mounting of the equipment in the rack should be such that a hazardous condition is not
achieved due to uneven mechanical loading.
Circuit Overloading - Consideration should be given to the connection of the equipment to the supply circuit and the
effect that overloading of the circuits might have on overcurrent protection and supply wiring. Appropriate
consideration of equipment nameplate ratings should be used when addressing this concern.
Reliable Grounding - Reliable grounding of rack mounted equipment should be maintained. Particular attention
should be given to supply connections other than direct connections to the branch circuit (e.g. use of power strips).
Installation & Operation
This equipment must be grounded. The power cord for product should be connected to a socket-outlet with earthing
connection.
Cet équipement doit être mis à la terre. La fiche d'alimentation doit être connectée à une prise de terre correctement
câblée
Suitable for installation in Information Technology Rooms in accordance with Article 645 of the National Electrical Code
and NFPA 75.
Peut être installé dans des salles de matériel de traitement de l'information conformément à l'article 645 du National
Electrical Code et àla NFPA 75.
The machine can only be used in a restricted access location and must be installed by a skilled person.
Les matériels sont destinés àêtre installés dans des EMPLACEMENTS À ACCÈS RESTREINT.
Some USB devices may not be compatible with the system. If you encounter an error, please remove the USB device
and restart the system.
Warning
Class I Equipment. This equipment must be earthed. The power plug must be connected to a properly wired earth
ground socket outlet. An improperly wired socket outlet could place hazardous voltages on accessible metal parts.
Product shall be used with Class 1 laser device modules.
Avertissement
Équipement de classe I. Ce matériel doit être relié à la terre. La fiche d’alimentation doit être raccordée à une prise de
terre correctement câblée. Une prise de courant mal câblée pourrait induire des tensions dangereuses sur des parties
métalliques accessibles.
Le produit doit être utiliséavec des modules de dispositifs laser de classe 1.

NCA-1040SE User Manual
7
Before turning on the device, ground the grounding cable of the equipment. Proper grounding (grounding) is very
important to protect the equipment against the harmful effects of external noise and to reduce the risk of electrocution
in the event of a lightning strike. To uninstall the equipment, disconnect the ground wire after turning off the power. A
ground wire (green-and-yellow) is required and the part connecting the conductor must be greater than 4 mm2 or 10
AWG.
Avant d’allumer l’appareil, reliez le câble de mise à la terre de l’équipement à la terre.
Une bonne mise à la terre (connexion à la terre) est très importante pour protéger l’équipement contre les effets
néfastes du bruit externe et réduire les risques d’électrocution en cas de foudre.
Pour désinstaller l’équipement, débranchez le câble de mise à la terre après avoir éteint l’appareil.
Un câble de mise àla terre est requis et la zone reliant les sections du conducteur doit faire plus de 4 mm2 ou 10 AWG.
Connect the grounding cable to the ground.
The protection device for the DC power source must provide 30 A current.
This protection device must be connected to the power source before DC power.
Branchez le câble de mise àla terre àla terre.
L’appareil de protection pour la source d’alimentation CC doit fournir 30 A de courant.
Cet appareil de protection doit être branché à la source d’alimentation avant l’alimentation CC.

NCA-1040SE User Manual
8
Package Content.............................................................................................................................10
Ordering Information .....................................................................................................................10
Optional Accessories ......................................................................................................................10
System Specifications.....................................................................................................................11
Front Panel .....................................................................................................................................12
Rear Panel.......................................................................................................................................13
Jumpers and Connectors................................................................................................................14
Opening the Chassis .......................................................................................................................22
Installing the System Memory .......................................................................................................23
Installing M.2 Storage Card (Optional)...........................................................................................24
Installing LTE/5G Module Card (Optional, SKU A Only) .................................................................25
Installing Wi-Fi Module Card (Optional, SKU A Only).....................................................................28
Installing SIM card (Optional, SKU A Only).....................................................................................30
Main Page.......................................................................................................................................32
Advanced........................................................................................................................................33
Chipset............................................................................................................................................47
Security...........................................................................................................................................50
Boot Menu......................................................................................................................................53
Save and Exit Menu........................................................................................................................54

NCA-1040SE User Manual
9
Warranty Policy ..............................................................................................................................57

NCA-1040SE User Manual
10
NCA-1040SE is a compact desktop appliance empowered by Intel® Atom® x6413E / Intel® Celeron® N6210
(codenamed Elkhart lake). The NCA-1040SE’s form factor, relatively low power consumption, robust
processing capability, up to 32GB DDR4 3200MHz SODIMM and its various I/O ports together make it ideal for
edge deployments, branch offices and retail settings.
Your package contains the following items:
1x NCA-1040SE Network Security Platform
1x Power Adaptor
1x Power Cable
1x Console Cable
4x Rubber Foot
SKU No.
Main Features
NCA-1040SEA
4-core 1.5GHz, Intel® Atom® X6413E (Elkhart Lake), 4x 2.5GbE RJ45, 1x DDR4
SO-DIMM, 40W Adapter
NCA-1040SEC
2-core 1.2GHz, Intel® Celeron® N6210 (Elkhart Lake), 4x 2.5GbE RJ45, 1x DDR4
SO-DIMM, 40W Adapter
Model
Description
5G Kit
Telit FN980 (sub 6), and Antenna Kit
LTE Kit
Sierra EM 7565, and Antenna Kit
Wi-Fi Kit
Compexenl Q9882C, and Antenna Kit
PoE Kit
PoE+ Power Adapter Kit
Rackmount Kit
1U Rackmount kit (long ear bracket with adapter holder, 2-sided design)
Wall Mount Kit
Wall Mount Kit for NCA-1040

NCA-1040SE User Manual
11
Form Factor
Fanless Desktop
Platform
Processor Options
SKU A: Intel® Atom® X6413E (Elkhart Lake)
SKU C: Intel® Celeron® N6210 (Elkhart Lake)
Frequency
1.5GHz/1.2GHz
CPU Cores
4 / 2
Chipset
SoC
BIOS
AMI SPI Flash BIOS
System Memory
Technology
DDR4 3200MT/s SO-DIMM
Max. Capacity
Up to 32 GB
Socket
1x 260pin SO-DIMM
Networking
Controller
Intel® i226V
Interface
4x 2.5GbE RJ45 Ports;
Bypass
N/A
PoE+ Support
# of PoE+ (PSE) Ports
SKU A: 1x PoE+ Port
SKU C: N/A
Standard
IEEE 802.3at
PoE+ Power Input
4-pin power connector with 65W PoE+ adapter
I/O Interface
Reset Button
1x Reset Button
LED Indicators
Power/Status/Storage/M.2/Mini PCIe, refer to Appendix A
Power Button
1x Power Button with LED
Console Port
1x RJ45 (Default Bard rate : 115200) Console Port
USB Port
1x USB 3.0 Port
Display Port
1x Display Port (without Audio Function)
Power Input
1x DC Jack with Lock
Antenna Hole
SKU A: 4x Antenna holes for Wi-Fi/LTE/5G
SKU C: N/A
Storage
Onboard Slots
1x M.2 (SATA) 2280 B-Key
Expansion
Mini-PCIe
SKU A : 1x Mini-PCIe (PCIe/USB2.0) for Wi-Fi ;
1x M.2 3042/3052 B-Key for 5G/LTE
SKU C : N/A
SIM Card Slot
SKU A : 2x Nano SIM Card Slots
SKU C : N/A
Miscellaneous
Watchdog
YES
Internal RTC with Li Battery
YES
TPM
SKU A: YES
SKU C: N/A
Cooling
Processor
Passive CPU Heatsink
System
Fanless (Default), 1x 5-pin Fan Connector (By Project)
Environmental
Temperature
0~40ºC Operating, -20~70ºC Non-Operating
Humidity (RH)
5~90% Operating, 5~ 95% Non-Operating
Mechanical
(WxDxH)
183 x 32 x 168mm
Weight
0.9 kg
Mounting
Rackmount; Wall Mount (Optional Kit)
Power
Type/Watts
1x 40W Power Adapter
Input
AC 100~240V @50~60 Hz
OS Support
Linux, Yocto
Approvals and Compliance
RoHS, CE/FCC Class B (Class A with PoE), UL, VCCI, UKCA

NCA-1040SE User Manual
12
No.
Description
F1
Antennas
2x SMA Antenna Holes (SKU A Only)
F2
Reset Button
1x Reset Button
F3
LED Indicators
Power/Status/Storage/M.2/Mini-PCIe, refer to Appendix A
F4
Console Port
1x RJ45 Console Port
F5
USB Port
1x USB 3.0 Port
F1
F1
F2
F4
F3
F5
SKU A Only: 4x Antenna holes for Wi-Fi/LTE/5G

NCA-1040SE User Manual
13
No.
Description
R1
Antennas
2x SMA Antenna Holes (SKU A Only)
R2
Power Button
1x Power Button with LED
R3
Power Inlet
1x DC Jack with Lock
R4
PoE+ (PSE) Port
1x 4-pin 54V Input Port with Lock (ATX4P) for PoE+ (Optional, SKU A Only)
R5
LAN Ports
4x 2.5GbE RJ45 Ethernet Ports with LED
R6
Display Port
1x Display Port (without Audio Function)
R1
R1
R3
R4
R5
R6
R2
SKU A Only: 2x Antenna holes for Wi-Fi/LTE/5G

NCA-1040SE User Manual
14
The following displays the connectors and jumpers on the motherboard layout.

NCA-1040SE User Manual
15

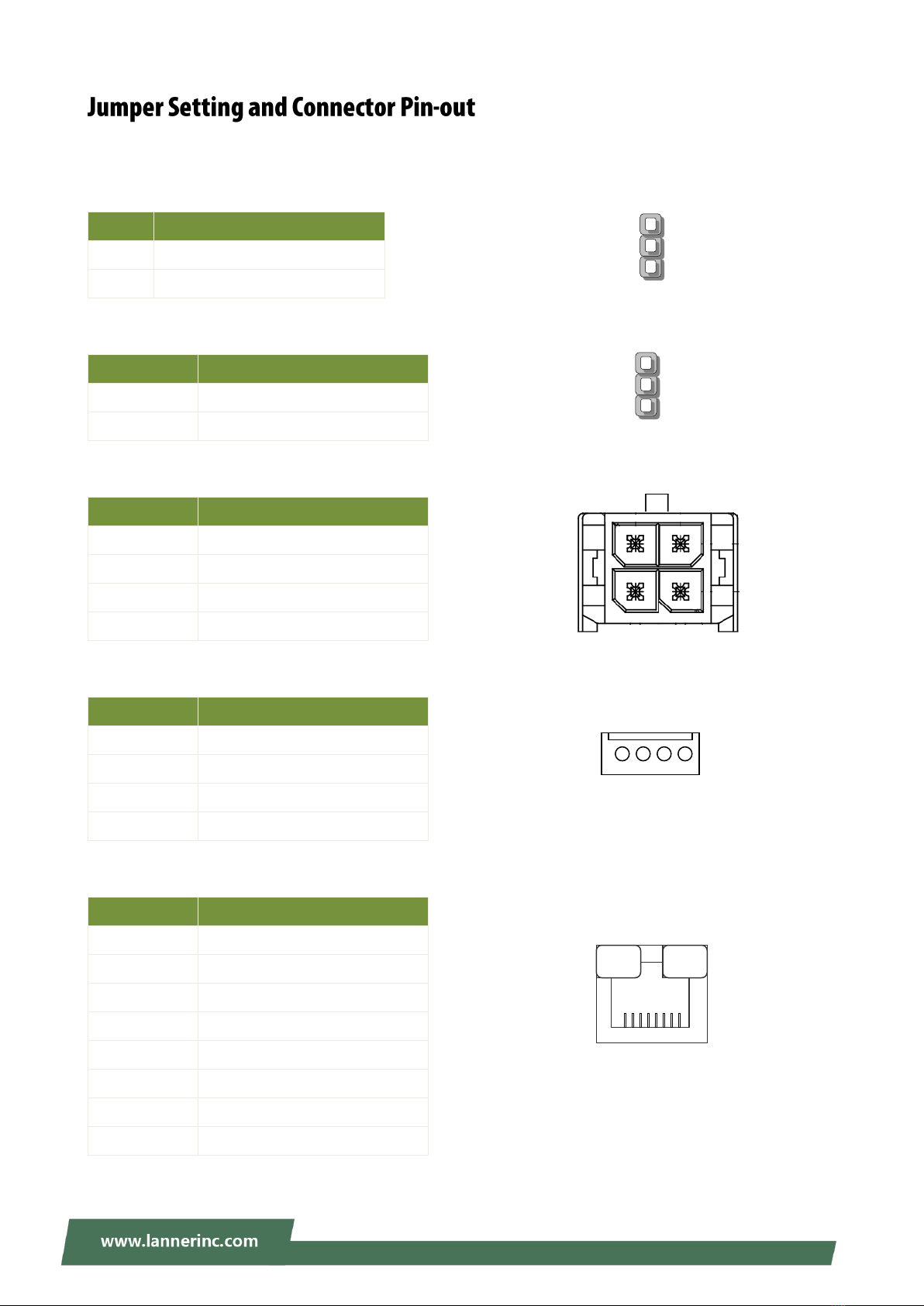

The following references the pin assignments and internal connectors of NCA-1040SE.
JCOMS1: RTC Reset
Pin
Description
1-2
Clear RTC_TEST
2-3
Clear RTC_RST
J8: Reset Option
Pin
Description
1-2
Hardware Reset
2-3 (Default)
Software Reset
PW2: Power Supply Connector of PSE
Pin
Description
1
GND
2
GND
3
+P54V
4
+P54V
JPW1: SATA Power Connector 1x4 Pins 2.54mm
Pin
Description
1
+P12V_S
2
GND
3
GND
4
+P5V_S
LAN1: 1x4 RJ45 w/o transformer
Pin
Description
1
MD0+
2
MD0-
3
MD1+
4
MD2+
5
MD2-
6
MD1-
7
MD3+
8
MD3-
1
2
3
1
2
3
1
4
4 3 2 1
1
8

NCA-1040SE User Manual
16

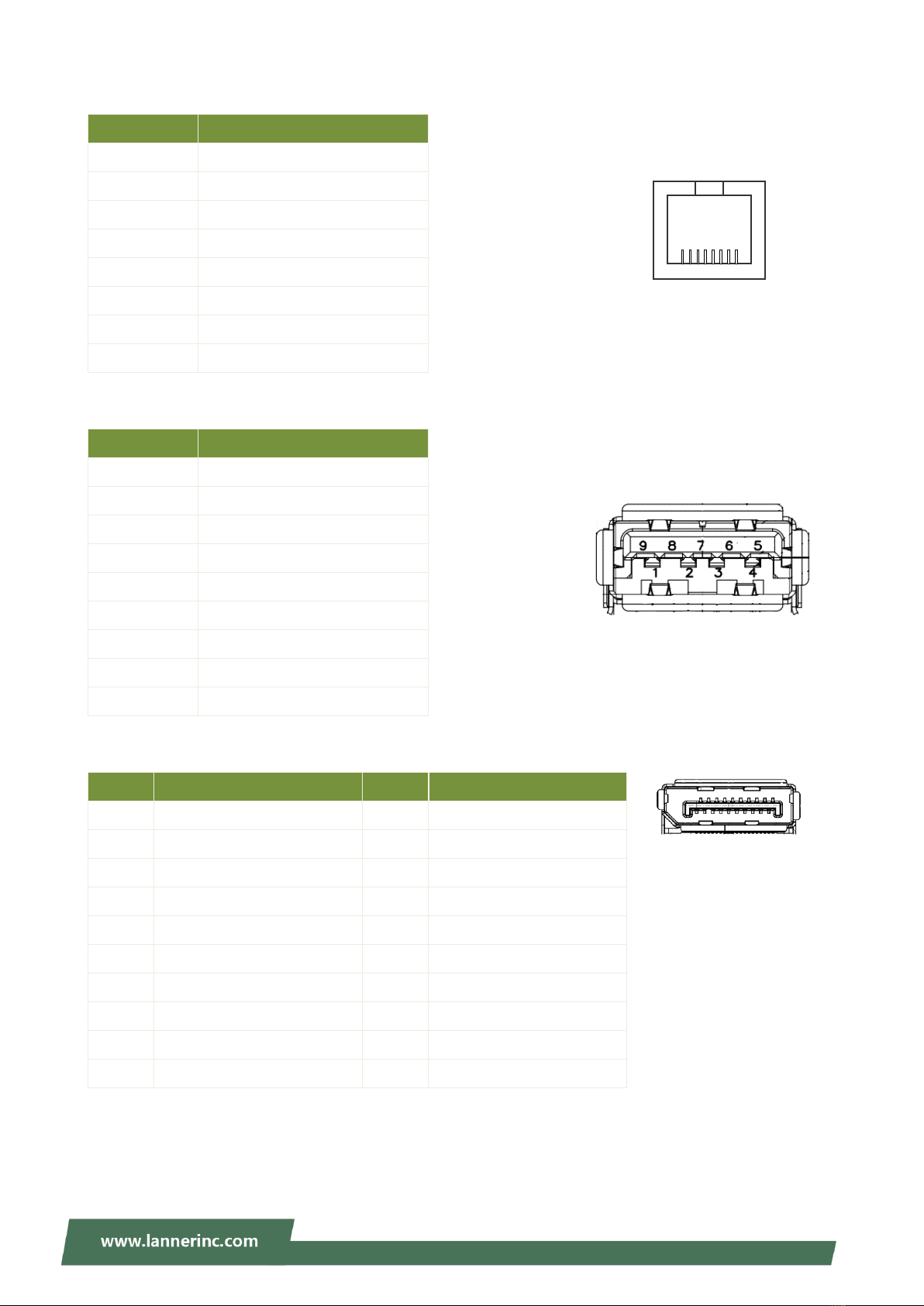

COM1: RJ45 Console
Pin
Description
1
Request to Send (RTS)
2
NC
3
Transmitted Data (TxD)
4
Signal Ground
5
Signal Ground
6
Received Data (RxD)
7
NC
8
Clear to Send (CTS)
USB1: USB 3.0 single CONN
Pin
Description
1
+P5V_USB1
2
USB20_N1
3
USB20_P1
4
GND
5
USB30_RXN0
6
USB30_RXP0
7
GND
8
USB30_TXN0
9
USB30_TXP0
DP1: Display Port 20P 0.6mm
Pin
Description
Pin
Description
1
DP1_C_DATAP0
11
GND
2
GND
12
DP1_C_DATAN3
3
DP1_C_DATAN0
13
DDI1_AUX_EN_P13
4
DP1_C_DATAP1
14
CONFIG2
5
GND
15
DDI1_DDC_CLK_AUX_DP
6
DP1_C_DATAN1
16
GND
7
DP1_C_DATAP2
17
DDI1_DDC_DAT_AUX_DN
8
GND
18
DP1_HPD
9
DP1_C_DATAN2
19
GND
10
DP1_C_DATAP3
20
+P3V3_DP
1
8

NCA-1040SE User Manual
17

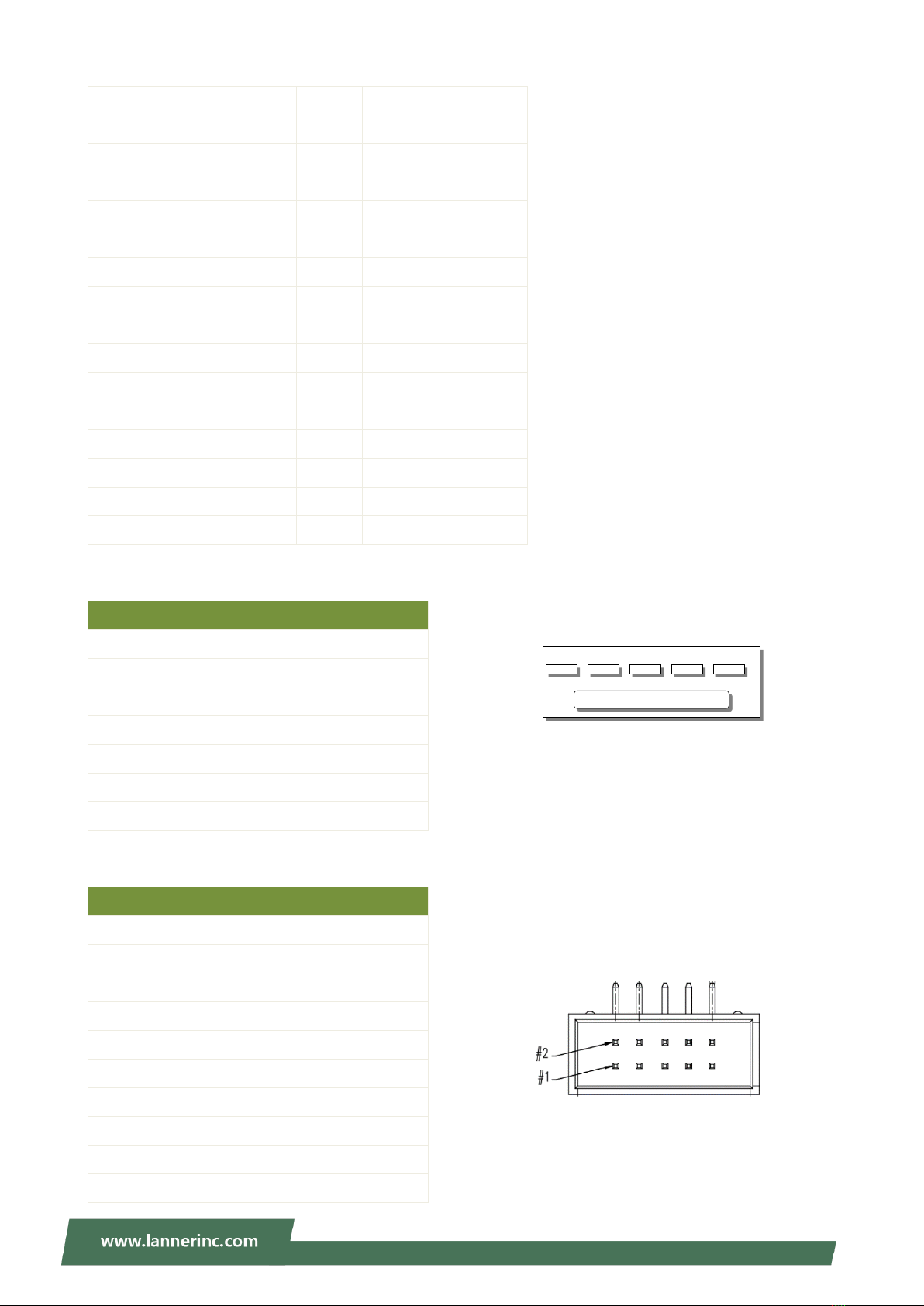

SIM1/2: Nano SIM push-push
Pin
Description
1
UIMx_PWR
2
UIMx_RST#
3
UIMx_CLK
4
UIMx_DETECT
5
GND
6
NC
7
UIMx_DAT
SATA1:180°SATA Connector
Pin
Description
1
GND
2
TX+
3
TX-
4
GND
5
RX-
6
RX+
7
GND
PCIE1: MiniPCIe Socket
Pin
Description
Pin
Description
1
NC, PMC_WAKE#
27
GND
2
+P3V3_S
28
+P1V5_S
3
NC
29
GND
4
GND
30
NC, SMB_CLK
5
NC
31
PCIE_TXN
6
+P1V5_S
32
NC, SMB_DATA
7
PCIE_CLKREQ5#
33
PCIE_TXP
8
NC
34
GND
9
GND
35
GND
10
NC
36
USB20_N0
11
REFCLK-
37
GND
12
NC
38
USB20_P0
13
REFCLK+
39
+P3V3_S
14
NC
40
GND
15
GND
41
+P3V3_S
16
NC
42
NC
17
NC
43
GND

NCA-1040SE User Manual
18
18
GND
44
LED_WLAN_N
19
NC
45
NC
20
PH, +P3V3_S
46
NC
21
GND
47
NC
22
MPCIE_RST#
48
+P1V5_S
23
PCIE_RXN
49
NC
24
+P3V3_S
50
GND
25
PCIE_RXP
51
NC
26
GND
52
+P3V3_S

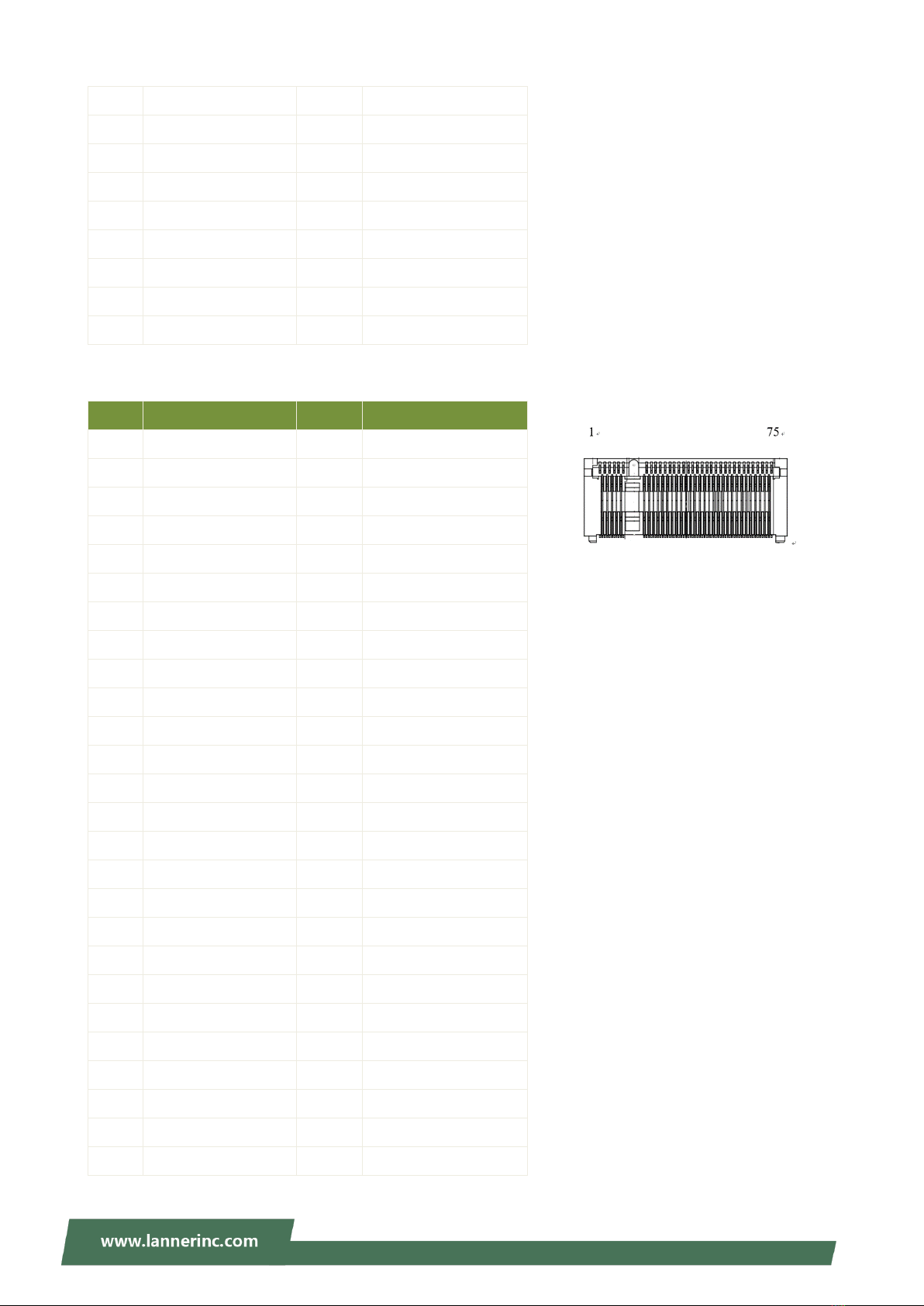

M2_1: M.2 B-Key for Storage
Pin
Description
Pin
Description
1
NC
2
+P3V3_S
3
GND
4
+P3V3_S
5
GND
6
NC
7
NC
8
NC
9
NC
10
NC
11
GND
12
B-KEY
13
B-KEY
14
B-KEY
15
B-KEY
16
B-KEY
17
B-KEY
18
B-KEY
19
B-KEY
20
NC
21
NC
22
NC
23
NC
24
NC
25
NC
26
NC
27
GND
28
NC
29
NC
30
NC
31
NC
32
NC
33
GND
34
NC
35
NC
36
NC
37
NC
38
NC
39
GND
40
NC
41
SATA_C_RXP0
42
NC
43
SATA_C_RXN0
44
NC
45
GND
46
NC
47
SATA_C_TXN0
48
NC
49
SATA_C_TXP0
50
NC
51
GND
52
NC

NCA-1040SE User Manual
19
53
NC
54
NC
55
NC
56
NC
57
GND
58
NC
59
NC
60
NC
61
NC
62
NC
63
NC
64
NC
65
NC
66
NC
67
NC
68
NC
69
GND
70
+P3V3_S
71
GND
72
+P3V3_S
73
GND
74
+P3V3_S
75
NC
M2_B_KEY1: M.2 B-Key for 4G/5G
Pin
Description
Pin
Description
1
NC
2
+P3V3_A
3
GND
4
+P3V3_A
5
GND
6
PH ,+P1V8_A
7
USB2_DP0
8
PH, +P3V3_A
9
USB2_DN0
10
LED_M2_WWAN_N
11
GND
12
B-KEY
13
B-KEY
14
B-KEY
15
B-KEY
16
B-KEY
17
B-KEY
18
B-KEY
19
B-KEY
20
PH ,+P1V8_A
21
GND
22
PH, +P3V3_A
23
NC, WAKE_UP#
24
NC
25
DPR
26
PH, +P3V3_A
27
GND
28
NC
29
M2_USB30_TXN2
30
UIM1_RST#
31
M2_USB30_TXP2
32
UIM1_CLK
33
GND
34
UIM1_DAT
35
M2_USB30_RXN2
36
UIM1_PWR
37
M2_USB30_RXP2
38
NC
39
GND
40
UIM2_DETECT
41
M2_PCIE_RXN1
42
UIM2_DAT
43
M2_PCIE_RXP1
44
UIM2_CLK
45
GND
46
UIM2_RST#

NCA-1040SE User Manual
20
47
M2_PCIE_TXN1
48
UIM2_PWR
49
M2_PCIE_TXP1
50
NC, PCIE_B_RST#
51
GND
52
NC,
M2_PCIE_CLKREQ1#
53
M2_PCIE_CLKN
54
NC, B_WAKE#
55
M2_PCIE_CLKP
56
NC
57
GND
58
NC
59
NC
60
NC
61
NC
62
NC
63
NC
64
NC
65
NC
66
UIM1_DETECT
67
NC, M2_RESET#
68
NC
69
GND
70
+P3V3_A
71
GND
72
+P3V3_A
73
GND
74
+P3V3_A
75
NC
JFAN1: DIP 2.54mm 5-Pin Fan Connector
Pin
Description
1
GND
2
TX+
3
TX-
4
GND
5
RX-
6
RX+
7
GND
JUSBDOM1: DIP 2.54mm 2x5 Box Header R/A Type
Pin
Description
1
+P5V_USB2
2
NC
3
USB20_L_N
4
NC
5
USB20_L_P
6
NC
7
GND
8
NC
9
NC,USB_R_WP
10
NC
1
5
