GL32 LED Marine Light（3-5nm）
1 / 2
Dimension(mm)
Description:
GL32 has become the most classical LED Light in the field of marine aid to navigation
around the world. Because of its reliability and durability, it has also become a perfect model
for all kinds of warning applications. It installs in minutes and requires no maintenance. The
optical part is based on polycarbonate lens for better led transformation which can
concentrate light to a small specific angel to meet 5nm visibility requirements. It complies
with IALA-AISM's requirements. The service life can be guaranteed with more than 10 years
by using high quality LED.
Features& Benefits:
• Based on LED technology, and its color complies to IALA Recommendations E-200-1
• Integrated design, enabling a rugged and completely waterproof seal capable of
prolonged and deep immersion (IP67).
•Low power consumption, which leads to huge savings on electricity bills.
•LED light source ensures long lifetime, maintenance free
•Corrosion resistant lamp & housing-suitable for off-shore use
•Bottom cable entry-ease of mount, mount accessories available
•Self-contained compartment-eliminates additional box
•Built in surge protection, can withstand an over-voltage of 2kV/2kA.
• With bird spike
• With photocell,which can switch ON/OFF the light at dawn and dusk.
• With dip switch for flashing and steady burning adjustable
• No RF-radiations, EMC Compliant.
•Reversed Polarity Protected(DC Type)
• Extremely Reliable and cost saving.
• With GPS synchronization function(optional)
Applications:
• High rise building marking
• Telecom tower marking
• Road obstruction marking
• Navigation aid
• Port, dock entrance walkway
• Buoy marking
• Offshore gas& oil platform

Shanghai Lansing Electronics Co., Ltd Tel：[phone] Fax：[phone] Web：www.lansinglight.com E-mail：[e-mail]
Add: No.609,Tahui Rd, Shihudang Town, Songjiang district, Shanghai ,China ,201612
All rights reserved by Lansing,without the written authorization of the Lansing, any part thereof shall not be reproduced or transmitted in any form.
GL32 LED Marine Light（3-5nm）
2 / 2

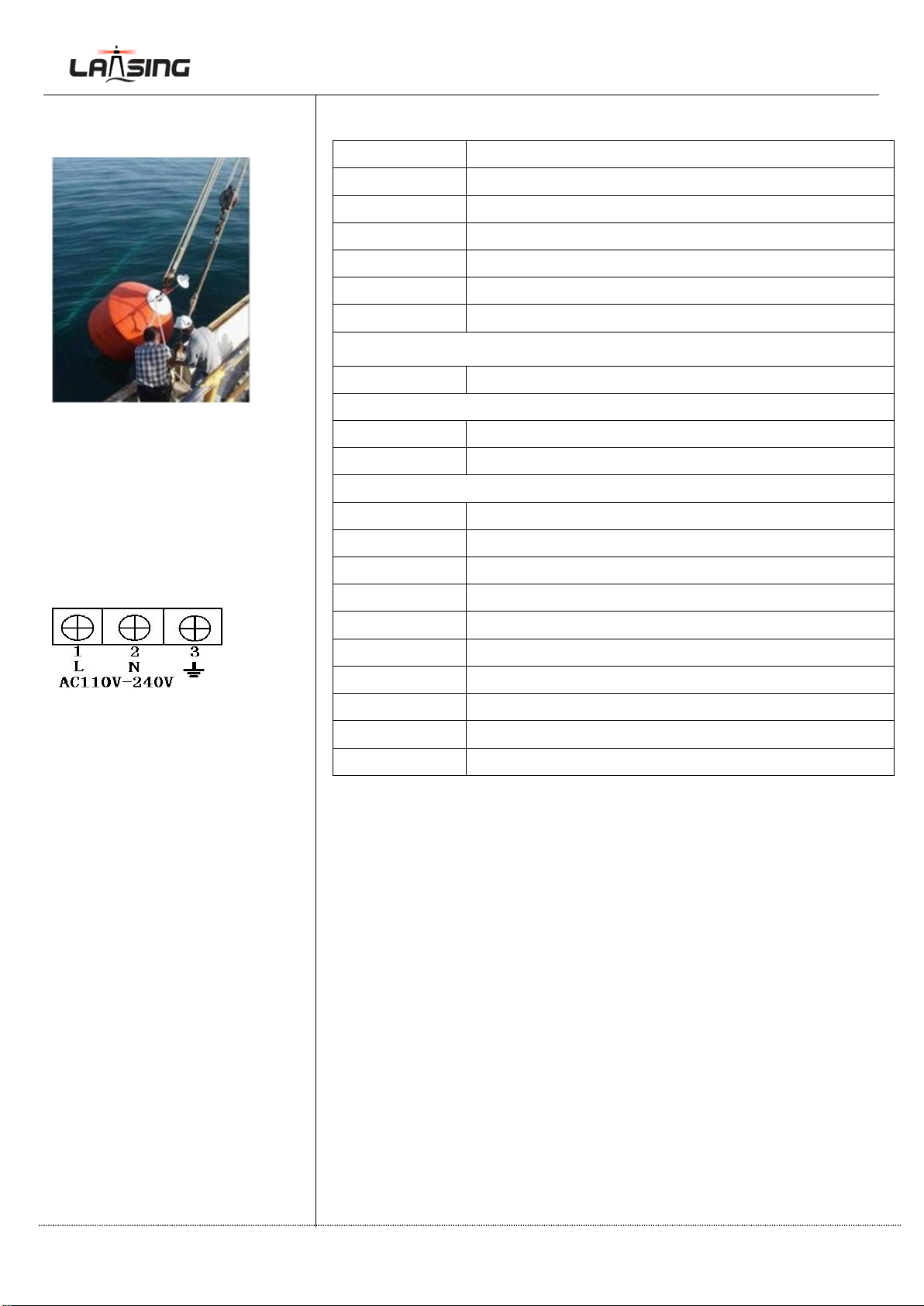

Wiring diagram
Specifications:
Light Model GL32
Effective Intensity >32.5 Candela
Vertical Divergence 10 Degree
Horizontal out-put 360 Degree
LED Color Red,yellow, green, blue or white(optional)
LED Lifespan 100,000 Hours
Visible range(nm) 3-5nm
OPERATION
Flash Pattern Steady burning or flashing type(20-60times/min available)
POWER SUPPLY
Input voltage 110-220VAC, 50/60 Hz;12VDC;24VDC;30-60VDC
Power consumption 5W
MECHANICAL STRUCTURE
Lens Polycarbonate, UV Stabilize
Body Die-casting Aluminum
Water-proof IP67
Weight 0.9KG
Dimensions 159mmx245mm
Mounting Size Threaded 3/4'' bottom hub
Temperature Range -40℃ ~ +55℃
Relative humidity 100% with condensation
Wind speed Up to 150mph(240kph)
Warranty 5 years
Installation and operation
①Secure the light on a smooth surface which has enough strength.
②When installation, please stay away the nearby light source, at the same time, ensure the
photocell do not cover by the near object.
③Make sure the power supply can match the rated power of light before connecting.
④Unfasten three buckles on the base and overturn the lamp body, the n the terminals appear.
⑤Insert the power cable from the cable gland and then connect them to the corresponding
terminals inside the lamp body.
⑥After finishing the connection, fasten the buckles.
⑦Check whether the power cables are connected correctly before power on.
Notice
• Ensure that the power connection part is correct before using.
• Temperature rise when light working is normal phenomenon.
• Please do not open any components inside by yourself.
• This product is a sealed structure; Please do not be tampered with by anyone other than
registered installer. Once found, we are not warranty.
