LANSING LIGHTING JCL50 User manual

Shanghai Lansing Electronics Co., Ltd Tel : [phone] Fax：[phone] Web：www.lansinglight.com E-mail：[e-mail]
Add: No 609, Tahui Rd, Shihudang Town, Songjiang Dist Shanghai, China, 201612
All rights reserved by Lansing,without the written authorization of the Lansing, any part thereof shall not be reproduced or transmitted in any form.
JCL50 LED Portable Solar Helipad and Taxiway Light
1/6

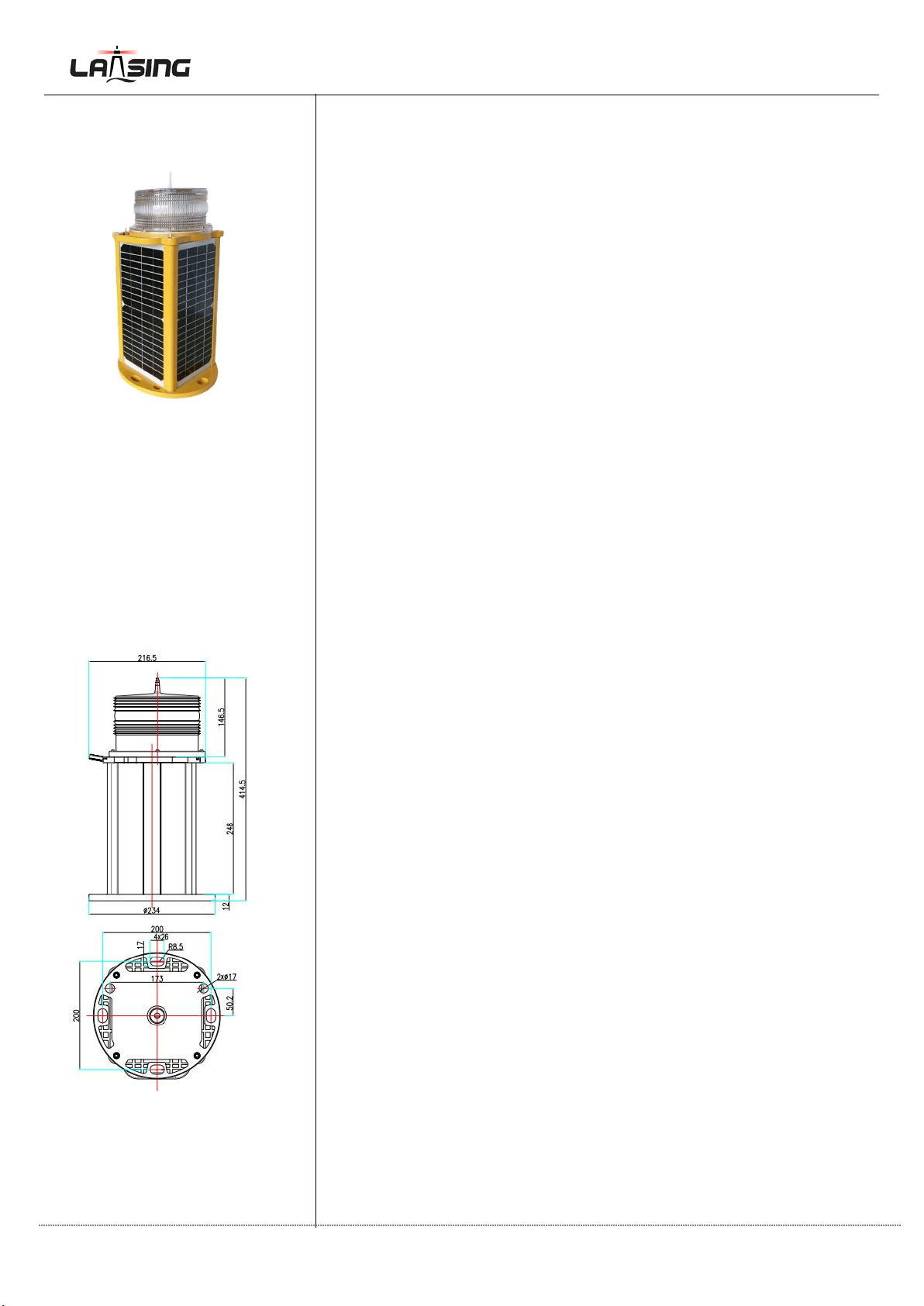

Mounting Dimension(mm)
Description:
The JCL50 model has four 5 watt (20 watt total) premium-grade solar modules
integrated into the solar chassis, and mounted to collect sunlight at all angles， which makes
JCL50 a self-contained and care-free light unit and with MPPT (Maximized Power Point
Tracking) microcontroller enables this model to maximize solar power output.
The solar array charges an internal battery during daylight hours, and at dusk the light
will automatically begin operation,and also it has an external ON/OFF switch; this means,
when in position, the light can be turned on with the flick of a switch.
The rugged design of this self-contained light ensures up to 5-8 years of reliable service
with minimal ongoing maintenance. Specifically designed for the harshest of environments,
this light features a 7-stage, powder-coated aluminium top, base and Internal chassis in high
visibility colors for daytime recognition.The rubber, extruded corners provide additional
impact resistance.
The advanced light optic uses a high power LED. The tough polycarbonate light lens is
specifically designed for use with LEDs to maximize light intensity and uniformity. The light
optic is interchangeable between units, and can be replaced onsite in the unlikely event of
damage.
The light can also be fitted with an optional external charging port for charging the
battery while it is stored for extended periods.
The unit can be supplied in varying color outputs to suit aviation applications including
permanent approach, runway edge, threshold, helipad aviation lighting.
In addition to regular visible red color, FS810 NVG compatible version with IR LEDs or
Red/IR dual LEDs is a night vision solution for pilots being able to view lights using Night
Vision Goggles.
JCL50 is equipped with a high-efficiency rechargeable battery is also easy to find almost
anywhere.
JCL50 is working under flashing mod or steady mode. But, anyway, JCL50 could be an
alternative option for some special needs.
Features:
• Integrated solar/battery system
• Four Internal high-performance solar modules angled to maximize solar collection
• Optional External charger( charging case or add outside solar panel)
• ICAO and FAA compliance
• Improved optical efficiency with latest LEDs
• Once fully charged, it can work for up to 200 hours
• With external ON/OFF switch
• Flash rate adjustable, steady/20-60FPM
• NVG compatible with IR LEDs or Red/IR dual LEDs
• GPS available for synchronizing flash
• Fast & easy to deploy-no programming
• IP68 waterproof rating

Shanghai Lansing Electronics Co., Ltd Tel : [phone] Fax：[phone] Web：www.lansinglight.com E-mail：[e-mail]
Add: No 609, Tahui Rd, Shihudang Town, Songjiang Dist Shanghai, China, 201612
All rights reserved by Lansing,without the written authorization of the Lansing, any part thereof shall not be reproduced or transmitted in any form.
JCL50 LED Portable Solar Helipad and Taxiway Light
2/6
Compliance:
• Complies to ICAO Annex 14 Volume 1,
‘ Aerodrome Design and Operations ’ ,
Fourth edition July 2018. Runway Edge –
paragraph 5.3.9. (photometrics)
• Complies to FAA AC/150-5345-46E-L861,
L861E (High Intensity Mode photometrics)
• Appropriate for ICAO Annex 14 Volume 1,
‘Aerodrome Design and Operations’,
Fourth edition July 2018 – Threshold –
paragraph 5.3.10, 5.3.11 Threshold Light or
End Light Approach – paragraph 5.3.4.1A &
B, 5.3.4.8 Simple Approach Lighting System.
Specifications:
LIGHT OUT-PUT
Intensity
>50cd
LED Color Available
Red,Yellow,Green,white,blue (optional)
Vertical Divergence
10 Degree
Horizontal Out-put
360 Degree
Illumination
Ultra-bright LEDs or NVG-compatible infrared (IR) LEDs
LED Lifespan
100,000 Hours
OPERATION
Autonomy
25 days (flashing)
8 days(steady burning)
Flash Pattern
Steady and Flashing can adjusted(20-60times/min)
POWER SUPPLY
Power Source
Solar module, mono-crystalline silicon
Solar Efficiency
14%
Max. Power Out-put
18V/4*5W
Battery Type
High-efficiency Lithium rechargeable battery
Battery Capacity
12V / 12AH
Battery Replacement
Yes, replaceable
MECHANICAL STRUCTURE
Lens
Polycarbonate, UV Stabilize
Body
Die-casting Aluminum
Construction
IP67(Corrosion-resistant, powder-coated aluminum chassis
with integrated handle)
Waterproof, vented battery compartment
Net Weight:
6.8kg
Gross Weight
7.6kg
Temperature Range
-40C˚ ~ +55C˚
Dimensions
414.5mm H, 234mm Diameter
Wind load
400 mph (644 kph)
Ice Loading
0.03 psi (22 kg/m²)
Warranty
5 years for light
2 years for lithium battery

Shanghai Lansing Electronics Co., Ltd Tel : [phone] Fax：[phone] Web：www.lansinglight.com E-mail：[e-mail]
Add: No 609, Tahui Rd, Shihudang Town, Songjiang Dist Shanghai, China, 201612
All rights reserved by Lansing,without the written authorization of the Lansing, any part thereof shall not be reproduced or transmitted in any form.
JCL50 LED Portable Solar Helipad and Taxiway Light
3/6
Easy Installation:
Limited crew. No trenching. No airfield interruptions. Just place the JCL50 and it emits
light dusk-to-dawn while maintaining its battery.
Low Maintenance:
The JCL50 integrates solar panels, battery, electronics and LED light source into a compact,
stand-alone unit requiring minimal maintenance for 5 years.
Reliable:
The Energy Management System (EMS) monitors all operations to provide consistent output
in the harshest environments. Testing to ICAO, FAA and MIL specifications ensures high
performance for many years.
Application:
--Touchdowns and lift-off area (TLOF)
--Final approach and take-off area (FATO)
--Taxiway lighting
--Helipad
--Emergency or temporary lighting
--Reil
--Threshold

Shanghai Lansing Electronics Co., Ltd Tel : [phone] Fax：[phone] Web：www.lansinglight.com E-mail：[e-mail]
Add: No 609, Tahui Rd, Shihudang Town, Songjiang Dist Shanghai, China, 201612
All rights reserved by Lansing,without the written authorization of the Lansing, any part thereof shall not be reproduced or transmitted in any form.
JCL50 LED Portable Solar Runway(Taxiway) Light
4/6
Operation and set up:
Designed to be almost maintenance-free, the JCL50 requires minimal attention, though the following maintenance and
servicing information is provided to help ensure the life of your Lansing product.
1.Cleaning Solar Panels - occasional cleaning of the solar panels may be required. Using a cloth and warm soapy water,
wipe off any foreign matter before rinsing the panels with fresh water.
2.Battery Check - inspection of batteries should be performed every three years (minimum) to ensure that the charger,
battery and ancillary electronics are functioning correctly. Using a voltage meter, check that the battery voltage is at least
12 volts under 100mA load, and ensure all terminals are clear of foreign matter.
3.O-Ring Check - inspect the condition of the O-ring for damage, wear or if it is brittle, and replace if necessary. The O-ring
should be a rubber texture to ensure a complete and even seal.
JCL50 Long Term Battery Storage & Maintenance
If the JCL50 is to be placed in storage for an extended period please follow the below information. The batteries inside the
lights must always be stored in a fully charged state.
Always make sure the ON/OFF switch is in the OFF position.
All batteries will discharge over time and the rate of discharge is dependent on temperature. If the light is being stored in
temperatures greater than 40°C the battery will discharge faster.
The JCL50 is fitted with a charge port that can be used to charge the battery and test the battery voltage. Please check the
battery regularly and recharge if necessary. Charge the battery via the external charging port on the base of the unit. Only
attach the plug with your hand, do not use multi- grips to attach the plug.
Turn the ON/OFF switch to the ON position and place unit in the sun for 2-4 days.
NOTICE:
Care must be taken to observe the polarity of each wire before they are connected. To ensure waterproofing of the unit,
make sure that there is a satisfactory seal.
Installing the Light Head Assembly on the Solar Unit
After servicing, it will be necessary to reinstall the light head on the solar unit.
1.Connect the 4 bullet connectors
2.Ensure the O-ring seal on the top of the solar chassis is in place, clean and lightly greased
3. Feed the wires into the corner of the solar unit

Shanghai Lansing Electronics Co., Ltd Tel : [phone] Fax：[phone] Web：www.lansinglight.com E-mail：[e-mail]
Add: No 609, Tahui Rd, Shihudang Town, Songjiang Dist Shanghai, China, 201612
All rights reserved by Lansing,without the written authorization of the Lansing, any part thereof shall not be reproduced or transmitted in any form.
JCL50 LED Portable Solar Runway(Taxiway) Light
5/6
4.Locate the light head onto the solar unit in the correct orientation to the runway. The light head is fitted with reflective
tape indicators to show light output. This colour indication should be aligned with the colour indication on the solar unit
to ensure correct alignment.
5.Fit the 4 x M6 x 20 SHCS
6.Tighten the SHCS evenly and firmly.
• It is recommended that the bolts for holding the light heads to the Solar Base units have a torque setting applied of 3Nm
for a satisfactory seal. Applying a higher Torque setting is not recommended and may void warranty. If in doubt, please
contact LANSING.
7. Remove all tools, nuts and bolts from the runway.
Replacing the Battery
The JCL 50 has an internal battery compartment, which provides the user with the ability to change the battery after years
of operation.
1. Turn the unit on its side
2. Remove the four M6 x 25mm screws from the body/base section.
3. Place the unit back upright while still holding onto the base
4.Slide the chassis upwards just enough to expose the battery wiring loom terminals
5. Disconnect the battery wiring loom terminals
6. Slide the chassis further upwards until it has been removed completely
7. Remove the old battery and discard in a safe manner.
8. Place new battery onto base
9. Slide the chassis back over the new battery just enough so that the wiring loom terminals can be reached.
10. Connect the battery wiring loom terminals, ensuring that the polarity of each wire is correct beforehand.
11. Slide the chassis completely onto the base, ensuring that the chassis sits on the rubber gasket of the base properly and
that it is not contaminated.
12. Hold the chassis and base together and place the unit onto its side.
13. Replace and fasten the four M6x25mm screws to a torque setting of 1.8 - 2 Nm. Applying a higher torque setting is not
recommended and may void warranty. If in doubt, please contact LANSING.
14. Place the unit back upright.
15. To test place dark cover (towel or jacket) on top of light to activate sensor, light will come on.

Shanghai Lansing Electronics Co., Ltd Tel : [phone] Fax：[phone] Web：www.lansinglight.com E-mail：[e-mail]
Add: No 609, Tahui Rd, Shihudang Town, Songjiang Dist Shanghai, China, 201612
All rights reserved by Lansing,without the written authorization of the Lansing, any part thereof shall not be reproduced or transmitted in any form.
JCL50 LED Portable Solar Runway(Taxiway) Light
6/6
Safe Battery Handling
Charging and Discharging
•Always ensure batteries are fully charged when installing new lights. The light will be dispatched from the LANSING factory
30--40% charged. However if time has elapsed between dispatch and installation, battery voltage must be checked.
•Never short-circuit or reverse polarity of a battery, damage to the battery and device may occur, and there is a risk of fire.
•Do not use different types of batteries in the same battery assembly. Sealed lithium battery and NiMH do not mix.
•If the battery has been deep-discharged, a prolonged charging time is required to bring the battery back to full capacity.
Handling
•Do not incinerate or dismantle batteries. Cell components are corrosive and may be harmful to skin and eyes.
•Do not pull on battery lead wires or connector. Excessive force on the leads or connectors can damage the welding joints or
other connections.
•Batteries are recyclable. Please dispose of properly.
Storage
•Always store batteries in a cool, dry place.
•After long storage, it is desirable to cycle (charge/discharge) the battery
3 times to restore full capacity.
•Do not mix batteries with metal objects during storage or transportation to avoid accidental short-circuit.
•Do not store large quantities of batteries in a densely packed condition when they are in a charged or partially charged state.
