Laon People LPMVC-CL025M User manual

2016-03-04
LPMVC-CL025M User
Manual
Version 1.0

More than Imaging –Laon People 2 2016-03-04
Table of Contents
1. Introduction..................................................................... 9
1.1. Acknowledgements................................................................................. 9
1.2. Warranty ................................................................................................ 9
1.3. Disclaimer............................................................................................... 9
2. Precaution...................................................................... 10
2.1. General Caution .................................................................................... 10
2.2. Installation Caution .............................................................................. 11
2.3. Power Supply Caution........................................................................... 11
3. Camera Specification ..................................................... 12
3.1. Overview .............................................................................................. 12
3.2. Key Features......................................................................................... 13
3.3. Technical Specifications........................................................................ 14
3.4. Sensor Information .............................................................................. 15
3.4.1. Sensor Optical Chart ..........................................................................15
3.5. Mechanical Specifications ..................................................................... 15
3.5.1. Outline.............................................................................................15
3.5.2. FBL (Flange Back Length) F-Mount ......................................................16
4. Camera Interface ........................................................... 17
4.1. General Description .............................................................................. 17
4.2. Camera Link Connector......................................................................... 18
4.3. Camera Link Assignment (ex. 8/10Tap 8bit Case)................................ 20
4.4. Power Input Connector......................................................................... 24
4.5. I/O Connector ...................................................................................... 25

More than Imaging –Laon People 3 2016-03-04
4.6. JTAG Connector .................................................................................... 26
4.7. Trigger Input Circuit ............................................................................. 27
4.8. Strobe Output Circuit ............................................................................ 28
5. Camera Functions .......................................................... 29
5.1. Region Of Interest (ROI) ...................................................................... 29
5.2. Test Pattern.......................................................................................... 29
5.3. Analog/Digital Gain .............................................................................. 29
5.4. Exposure............................................................................................... 30
5.5. Frame Rate ........................................................................................... 30
5.6. PRNU .................................................................................................... 30
5.7. FFC(Flat-Field Correction) .................................................................... 31
5.8. Black Level Compensation .................................................................... 31
5.9. Camera Output Timing Chart ................................................................ 32
5.9.1. Horizontal Timing Chart......................................................................32
5.9.2. Vertical Timing Chart .........................................................................35
5.10. Trigger Mode ...................................................................................... 37
5.10.1. Free-Run Mode................................................................................38
5.10.2. External Sync Mode (Pulse Width Trigger)...........................................38
5.10.3. Edge Preset Trigger Mode (Programmable exposure control) .................39
5.10.4. Overlap Trigger Mode .......................................................................40
5.11. Strobe................................................................................................. 41
5.12. Look-Up Table (LUT)........................................................................... 42
5.13. UserSet ............................................................................................... 42
6. Camera Control Program ............................................... 43
6.1. CULaTor ................................................................................................ 43
6.2. Menu..................................................................................................... 45
6.2.1. Camera ............................................................................................45

More than Imaging –Laon People 4 2016-03-04
6.2.2. Tool .................................................................................................47
6.2.3. About...............................................................................................48
6.3. Main Tab ............................................................................................... 49
6.3.1. Data Bit ...........................................................................................49
6.3.2. View Mode........................................................................................49
6.3.3. Test Pattern ......................................................................................50
6.3.4. Image Taps.......................................................................................50
6.3.5. ROI .................................................................................................50
6.4. Control Tab ........................................................................................... 51
6.4.1. Analog Gain ......................................................................................51
6.4.2. Digital Gain ......................................................................................51
6.4.3. Exposure Time ..................................................................................52
6.4.4. Frame Rate.......................................................................................52
6.4.5. PRNU ...............................................................................................52
6.4.6. FFC..................................................................................................52
6.4.7. Black Level .......................................................................................53
6.4.8. FILTER .............................................................................................53
6.5. Trigger/Strobe Tab............................................................................... 54
6.5.1. Trigger .............................................................................................54
6.5.2. Trigger Polarity..................................................................................54
6.5.3. Sensor Exposure Time .......................................................................55
6.5.4. Trigger Delay ....................................................................................55
6.5.5. Strobe .............................................................................................55
6.5.6. Strobe Polarity ..................................................................................55
6.5.7. Strobe Delay.....................................................................................56
6.5.8. Strobe Duration ................................................................................56
6.6. LUT ....................................................................................................... 57
6.6.1. LUT On ............................................................................................57
6.6.2. LUT 1 ~ LUT 4 ..................................................................................57
6.6.3. Apply ...............................................................................................58
6.6.4. Save to File ......................................................................................58
6.6.5. Write to Device .................................................................................58
6.6.6. Point 1 ~ Point 6 ...............................................................................58
6.6.7. Set to Linear.....................................................................................59

More than Imaging –Laon People 5 2016-03-04
List Of Figures
Figure 1. LPMVC-CL025M Sensor Optical Chart..............................................15
Figure 2. LPMVC-CL025M Outline.................................................................15

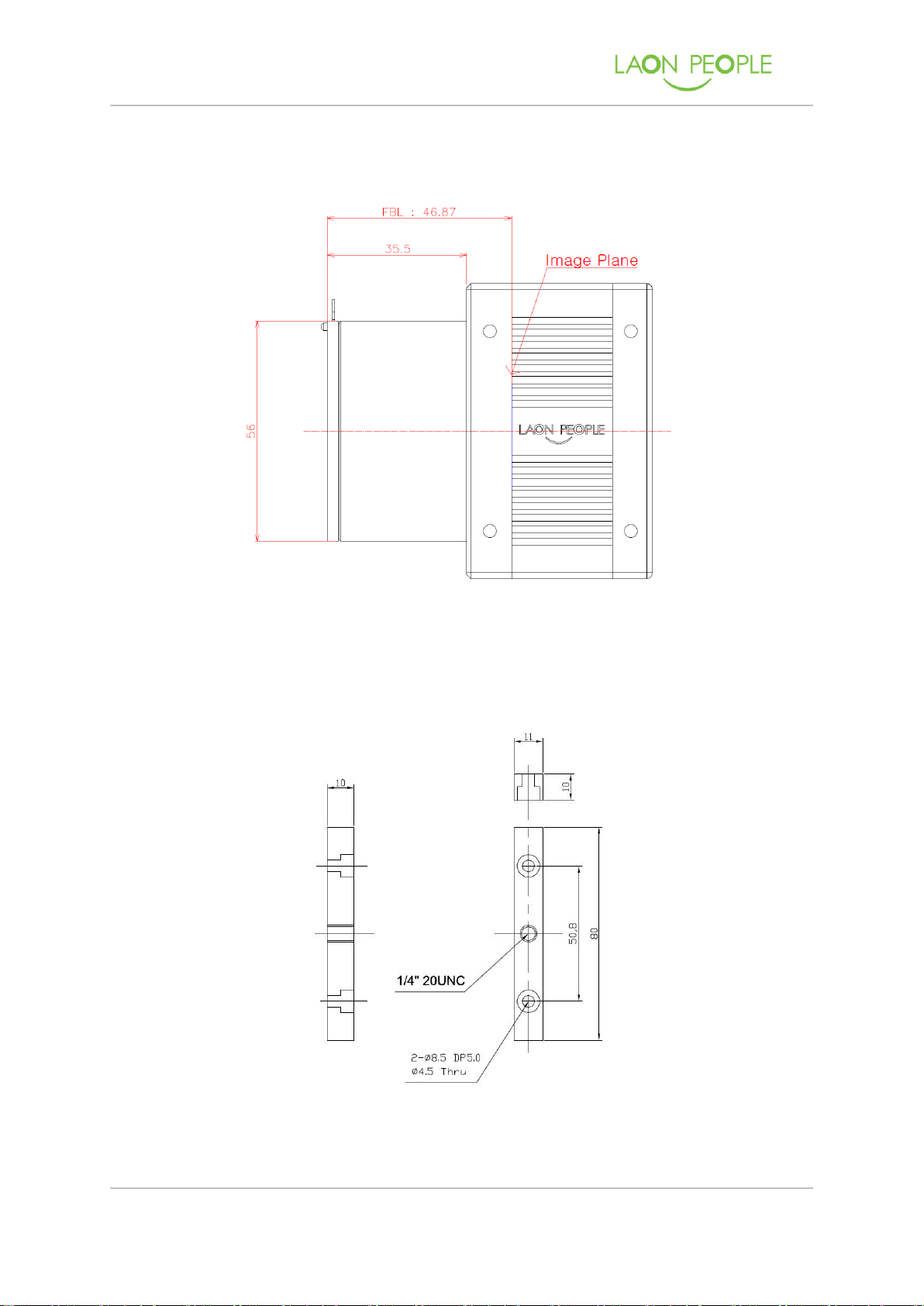

Figure 3. LPMVC-CL025M Flange Back Length F-Mount ...................................16
Figure 4. LPMVC-CL025M Tripod Mount Plate.................................................16

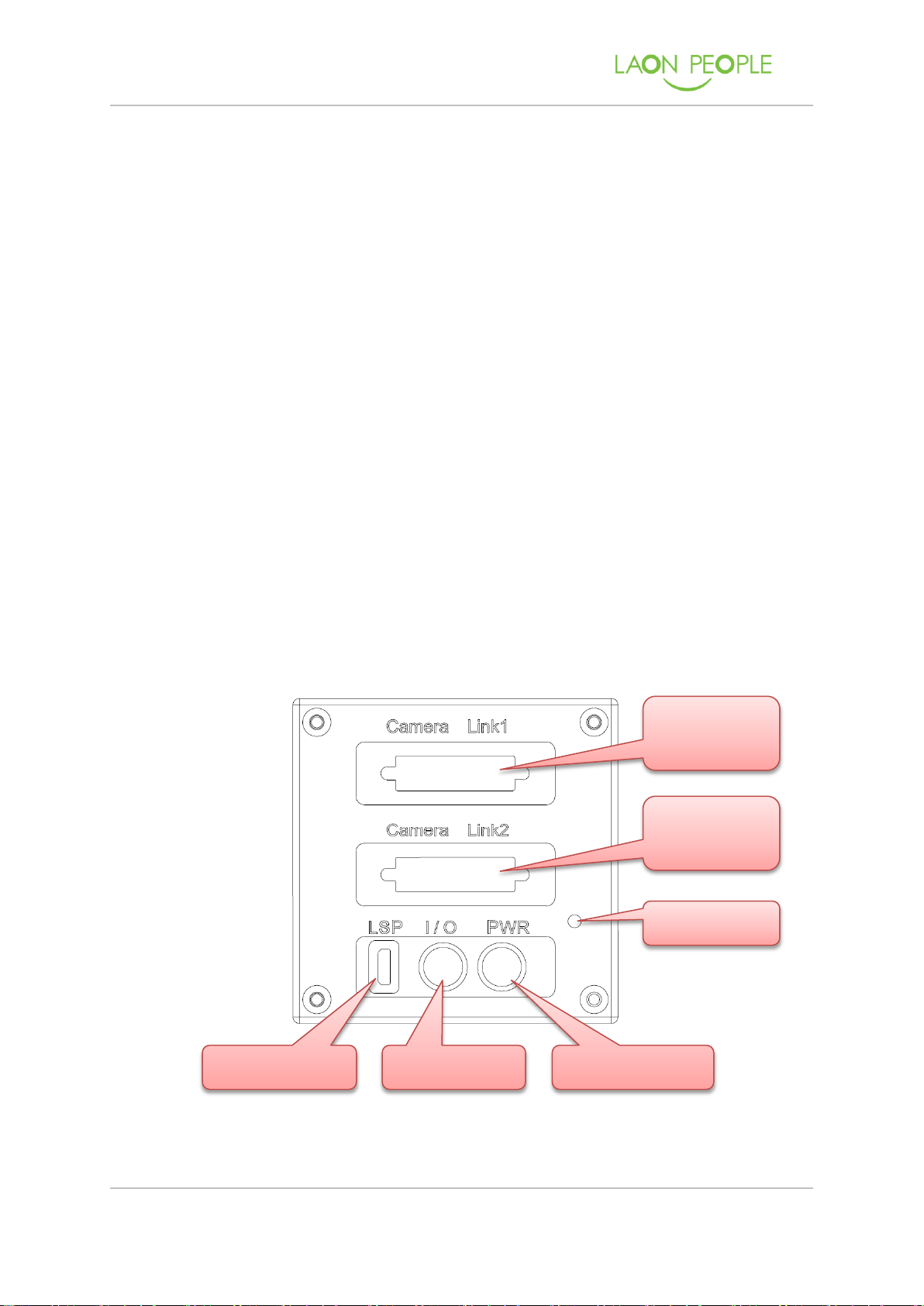

Figure 5. Back Panel of LPMVC-CL025M ........................................................17
Figure 6. LPMVC-CL025M Camera Link Connector ..........................................18
Figure 7. Description of each Data bits for 8Tap/8bit ......................................20
Figure 8. Bit Assignments for LPMVC-CL025M (10Tap/8bit) .............................21
Figure 9. Parallel Data Mapped to LVDS outs .................................................22
Figure 10. LPMVC-CL025M Power Connector .................................................24
Figure 11. LPMVC-CL025M I/O Connector .....................................................25
Figure 12. LPMVC-CL025M JTAG Connector...................................................26
Figure 13. LPMVC-CL025M Trigger Input circuit .............................................27
Figure 14. LPMVC-CL025M Strobe Output circuit............................................28
Figure 15. LPMVC-CL025M Test Patterns.......................................................29
Figure 16. LPMVC-CL025M PRNU correction On/Off compared image................30
Figure 17. LPMVC-CL025M Flat-Field correction On/Off compared image...........31
Figure 18. Horizontal Timing Chart of 2Tap ...................................................32
Figure 19. Horizontal Timing Chart of 4Tap ...................................................32
Figure 20. Horizontal Timing Chart of 8Tap ...................................................33
Figure 21. Horizontal Timing Chart of 10Tap .................................................34
Figure 22. Vertical Timing Chart of 2Tap .......................................................35
Figure 23. Vertical Timing Chart of 4Tap .......................................................35
Figure 24. Vertical Timing Chart of 8Tap .......................................................36
Figure 25. Vertical Timing Chart of 10Tap .....................................................36
Figure 26. Timing Chart of Free-Run Mode....................................................38
Figure 27. Timing Chart of Pulse Width Trigger Mode .....................................38
Figure 28. LPMVC-CL025M Trigger Delay Timing ............................................39
Figure 29. Timing Chart of Edge Preset Trigger Mode .....................................39
Figure 30. LPMVC-CL025M Overlap Trigger Mode Timing.................................40
Figure 31. LPMVC-CL025M LUT....................................................................42
Figure 32. CULaTor UART Select Dialog ........................................................43
Figure 33. CULaTor Camera Connect Error Message .......................................43
Figure 34. CULaTor Main.............................................................................44

More than Imaging –Laon People 6 2016-03-04
Figure 35. CULaTor Camera Menu ................................................................45
Figure 36. CULaTor Camera Menu ................................................................46
Figure 37. CULaTor Tool Menu .....................................................................47
Figure 38. CULaTor StartUp Success Message ...............................................47
Figure 39. CULaTor About Menu ..................................................................48
Figure 40. CULaTor About Dialog .................................................................48
Figure 41. CULaTor Main Tab .......................................................................49
Figure 42. CULaTor Control Tab ...................................................................51
Figure 43. CULaTor Trigger/Strobe Tab .........................................................54
Figure 44. CULaTor Trigger Delay Timing ......................................................55
Figure 45. CULaTor Strobe Delay Timing.......................................................56
Figure 46. CULaTor LUT Tab ........................................................................57
Figure 47. CULaTor LUT Save Device............................................................58

More than Imaging –Laon People 7 2016-03-04
List Of Table
Table 1. LPMVC-CL025M Technical Specifications ...........................................14
Table 2. Pin Assignments for LPMVC-CL025M Camera Link Connector 1 ............18
Table 3. Pin Assignments for LPMVC-CL025M Camera Link Connector 2 ............19
Table 4. Description of each Data bits for 8Tap/8bit .......................................20
Table 5. Description of each Data bits for 10Tap/8bit......................................21
Table 6. Camera Link TAP Port Assignments ..................................................23
Table 7. Pin Assignments for LPMVC-CL025M Power Connector ........................24
Table 8. Pin Assignments for LPMVC-CL025M I/O Connector............................25
Table 9. Pin Assignments for LPMVC-CL025M JTAG Connector .........................26
Table 10. LPMVC-CL025M Frame Rate ..........................................................30

More than Imaging –Laon People 8 2016-03-04
Revision History
Revision
Date
Comments
1.0
2016.02.22
Initial release.

LPMVC-CL025M Manual
More than Imaging –Laon People 9 2016-03-04
1. Introduction
This User Manual is written for all users who want to install LPMVC-CL025M.
Please read carefully and follow the instructions described below.
1.1.Acknowledgements
‘Laon People’is a registered brand by Laon People Inc.
1.2.Warranty
The warranty period is 1 year from the date of purchase.
We can provide free repairs for faults occurred in the normal usage.
If the faults are occurred in the following reasons, users must pay for the
repairs.
-In case of a fault, due to the carelessness of the customer
-In case of a fault, due to a natural disaster (fire, earthquake, flood, lightning etc.)
-In case of a fault, due to over use of the power
-In case of a fault, due to the failures of the connected devices
-In case of a fault, due to the customer's own product repair and alteration
The retention period for the repair parts are 2 years.
1.3.Disclaimer
All the product descriptions and information provided in this user manual is subject to
change without notice.
Copyright © 2010 ~ 2016 Laon People, Co., LTD ® Incorporation. All rights reserved.

LPMVC-CL025M Manual
More than Imaging –Laon People 10 2016-03-04
2. Precaution
2.1.General Caution
Please read this User Manual very carefully before using the Camera.
Our warranty does not include the damages or defects caused by irregular
or abnormal use of the camera.
Do not remove the serial number label.
Do not damage, disassemble, repair or alter the device.
Do not place the device next to heating equipment.
Do not use the device for any other purpose then specified.
Do not install the device in a place subject to direct sun light, humidity,
dust.
Do not place the product near magnets.
Be careful not to let liquid like water, drinks or chemicals leak inside the
device.
Keep the device cover the lens cap when not in use.
Inquire to the dealer when problems or symptoms arise.

LPMVC-CL025M Manual
More than Imaging –Laon People 11 2016-03-04
2.2.Installation Caution
Do not install the camera in a place subject to sun light, humidity, and dust.
Do not place the camera nearby strong electromagnetic fields.
Do not use the camera in a place subject to unstable lighting condition, strong vibration.
Switch off all power before camera movement or installation.
2.3.Power Supply Caution
It is recommended to use 12V DC ±10%, over 1A of output current.
If the input power is higher than the 16V DC, it may cause damage to the camera.
Do not reverse the polarity of the input power to the camera.
The camera and the capture device must share the same electrical ground.

LPMVC-CL025M Manual
More than Imaging –Laon People 12 2016-03-04
3. Camera Specification
3.1.Overview
The LPMVC-CL025M is an industrial Area Scan Camera that offers high-performance in a
compact design.
The LPMVC-CL025M is a high-resolution camera that can transfer 25M Pixel high-
resolution at a rate of 30fps(10Tap) / 25fps(8tap) / 12fps(4tap) / 6fps(2tap) speed by
applying Camera Link Interface and 10-Tap/8-Tap/4-Tap/2-Tap Full Configuration Mode.
The camera is suitable for a variety of applications, such as factory automation and
High-end surveillance, medical.
LPMVC-CL025M is consists of Main body and F-Mount.
User can purchase the Power Adaptor and Tripod Mount Plate additionally.

LPMVC-CL025M Manual
More than Imaging –Laon People 13 2016-03-04
3.2.Key Features
High speed 25 mega-pixel CMOS image sensor
Frame rate :
30FPS(10Tap) / 25FPS(8Tap) / 12FPS(4Tap) / 6FPS(2Tap) [ Mono ]
Output pixel format : 8Bit/10Bit
Defective pixel correction (DPC)
Flat Field Correction (FFC)
Adaptive PRNU
Global shutter
Analog/Digital gain control
Black-Level compensation
UART serial communication by Camera Link interface
Output channel : 2/4/8/10Tap
Pulse width trigger / Edge preset trigger, Trigger delay
Strobe out, Strobe delay, Strobe duration
4-LUT
8-UserSet

LPMVC-CL025M Manual
More than Imaging –Laon People 14 2016-03-04
3.3.Technical Specifications
Specification
Model
LPMVC-CL025M
Sensor
25M Pixel Mono/Color CMOS Sensor
Sensor Size
35mm
Pixel Size
4.5㎛x 4.5㎛
Resolution
5120 (H) x 5120 (V)
Frame Rate
30FPS(10Tap) / 25FPS(8Tap) / 12FPS(4Tap) / 6FPS(2Tap) [ Mono ]
ADC Resolution
8-bit, 10-bit
Image Data Output
8-bit, 10-bit
Interface
Camera Link (2/4/8/10-Tap Configuration)
Cable
< 7 meter
Shutter Type
Global Shutter
Dynamic Range
53dB (VITA25K)
Trigger Mode
Free-Run,
External Trigger –Pulse Width Trigger,
External Trigger –Edge Preset Trigger
Software Trigger –Pulse Width Trigger,
Software Trigger –Edge Preset Trigger
External Trigger
3.3V ~ 5.0V Logical level input, Optically isolated
Software Trigger
Camera Link CC1 port
Strobe Out
Exposure Sync, Strobe Bypass (CC3)
Binning
2 x 2 of the full resolution and ROI
FPN
0.5% of RMS of Maximum Swing (VITA25K)
Full Well Charge
15,500 e- (VITA25K)
S/N Ratio
41dB
Lens Mount
F-Mount
FPGA F/W Update
Support USB Miro-B Type JTAG Connector
Power
DC +12V ~ 24V ± 10% (Max. 12W)
Dimension (㎜)
75 x 75 x 47.19mm
Operating Temperature
0℃~40℃
Table 1. LPMVC-CL025M Technical Specifications

LPMVC-CL025M Manual
More than Imaging –Laon People 15 2016-03-04
3.4.Sensor Information
3.4.1. Sensor Optical Chart
Figure 1. LPMVC-CL025M Sensor Optical Chart
3.5.Mechanical Specifications
3.5.1. Outline
Figure 2. LPMVC-CL025M Outline

LPMVC-CL025M Manual
More than Imaging –Laon People 16 2016-03-04
3.5.2. FBL (Flange Back Length) F-Mount
Figure 3. LPMVC-CL025M Flange Back Length F-Mount
Tripod Mount Plate
Figure 4. LPMVC-CL025M Tripod Mount Plate

LPMVC-CL025M Manual
More than Imaging –Laon People 17 2016-03-04
4. Camera Interface
4.1.General Description
LPMVC-CL025M camera connects and communicates with external equipment through
the following 4 connectors, and LPMVC-CL025M indicates the status of the camera by
the camera’s rear LED.
①Camera Link Connector 1 : 26-Pin Mini D Ribbon (MDR) female connector used to
transmit image data, control data, and configuration data.
②Camera Link Connector 2 : 26-Pin Mini D Ribbon (MDR) female connector used to
transmit image data.
③Status LED : Dual-Color LED used to display power, camera operation status.
④JTAG Connector : USB Micro-B Type connector, But pins of connector are connected
to JTAG of FPGA
⑤I/O Connector : 4-Pin Push-Pull female connector used to external trigger input and
strobe output
⑥Power Connector : 6-Pin Push-Pull male connector used to provide power to the
camera.
Figure 5. Back Panel of LPMVC-CL025M
1. Camera Link
Connector 1
2. Camera Link
Connector 2
3. Status LED
6. Power Connector
5. I/O Connector
4. JTAG Connector

LPMVC-CL025M Manual
More than Imaging –Laon People 18 2016-03-04
4.2.Camera Link Connector
LPMVC-CL025M applied 3M’s 26-pin, female, 1.27㎜MDR Camera Link Connector.
Applied Camera Link Connector observes the Camera Link Standard.
Figure 6 & Table 2, 3 shows the number of each pin and specific descriptions of the
Camera Link Connector.
Figure 6. LPMVC-CL025M Camera Link Connector
Table 2. Pin Assignments for LPMVC-CL025M Camera Link Connector 1

LPMVC-CL025M Manual
More than Imaging –Laon People 19 2016-03-04
Table 3. Pin Assignments for LPMVC-CL025M Camera Link Connector 2

LPMVC-CL025M Manual
More than Imaging –Laon People 20 2016-03-04
4.3.Camera Link Assignment (ex. 8/10Tap 8bit Case)
Figure 7, 8 and Table 4, 5 show the Camera Link bit assignment of LPMVC-CL025M.
Figure 7. Description of each Data bits for 8Tap/8bit
Data bit
Description
DA0 ~ DA7
8bit data for Tap1
DB0 ~ DB7
8bit data for Tap2
DC0 ~ DC7
8bit data for Tap3
DD0 ~ DD7
8bit data for Tap4
DE0 ~ DE7
8bit data for Tap5
DF0 ~ DF7
8bit data for Tap6
DG0 ~ DG7
8bit data for Tap7
DH0 ~ DH7
8bit data for Tap8
Table 4. Description of each Data bits for 8Tap/8bit
