Larius 6099 Operating instructions

www.larius.com
REV. 01 - 12/2021
Manuale Cod. 150197
OPERATING AND MAINTENANCE MANUAL
EN
PREHEATER
Cod. 6099 - Version 220 V
Cod. 6990 - Version 400 V

Due to a constant product improvement program, the factory reserves the right to modify
technical details mentioned in this manual without prior notice.
This manual is to be considered as an English language translation of the original manual in Italian.
The manufacturer shall bear no responsibility for any damages or inconveniences that may arise due to
the incorrect translation of the instructions contained within the original manual in Italian.

www.larius.com
3
PREHETAER
REV. 01 - 12/2021 - Cod. 150196
PREHEATER
A
C
D
B
E
H
G
F
I
J
WE ADVISE THE USE OF THIS EQUIPMENT ONLY BY PROFESSIONAL OPERATORS.
ONLY USE THIS MACHINE FOR USAGE SPECIFICALLY MENTIONED IN THIS MANUAL.
Thank you for choosing a LARIUS S.R.L. product.
As well as the product purchased, you will receive a range of support services
enabling you to achieve the results desired, quickly and professionally.
INDEX
WARNINGS ..................................................................................................................................................................4
TRANSPORT AND UNPACKING ..................................................................................................................................5
CONDITIONS OF GUARANTEE ...................................................................................................................................5
SAFETY RULES............................................................................................................................................................5
TECHNICAL DATA ........................................................................................................................................................6
WORKING PRINCIPLE .................................................................................................................................................7
ROUTINE MAINTENAINCE ..........................................................................................................................................8
ELECTRICAL CONNECTIONS .....................................................................................................................................8
EXPLODED VIEW OF THE PREHEATER ....................................................................................................................10
ATEX CERTIFICATE ....................................................................................................................................................12

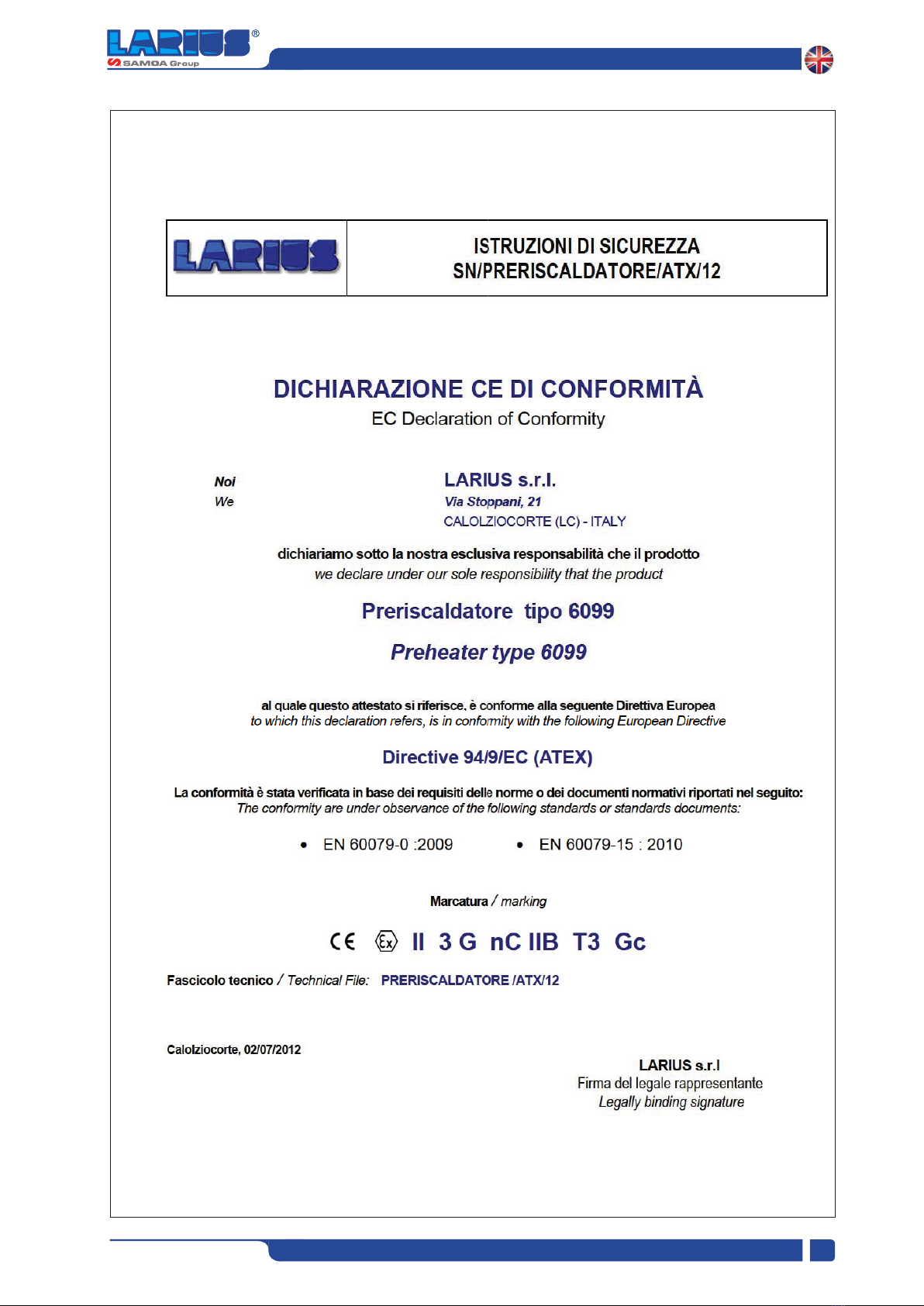

DECLARATION OF CONFORMITY.............................................................................................................................13

www.larius.com
4
PREHETAER
REV. 01 - 12/2021 - Cod. 150196
A
The table below provides the meaning of the symbols used in this manual in relation to using, earthing, operating, maintaining, and
repairing of this equipment.
WARNINGS
A
• Read this operator’s manual carefully before using the equipment.
• An improper use of this machine can cause injuries to people or things.
• Do not use this machine when under the inuence of drugs or alcohol.
• Do not modify the equipment under any circumstances.
• Use products and solvents that are compatible with the various parts of the equipment, and read the manufacturer’s warnings carefully.
• See the Technical Details for the equipment given in the Manual.
• Check the equipment for worn parts once a day. If any worn parts are found, replace them using ONLY original spare parts.
• Keep children and animals away from work area.
• Comply with all safety standards.
• It indicates an accident risk or serious damage to equipment if this warning is not followed.
FIRE AND EXPLOSION HAZARD
• Solvent and paint fumes in work area can ignite or explode.
• To help prevent fire and explosion:
- Use equipment ONLY in well ventilated area.
- Eliminate all ignition sources, such as pilot lights, cigarettes and plastic drop cloths (potential static arc).
- Ground equipment and conductive objects.
- Use only grounded hoses.
- Do not use trichloroethane, methylene chloride, other halogenated hydrocarbon solvents or uids containing such solvents in
pressurized aluminium equipment. Such use can cause serious chemical reaction and equipment rupture, and result in death,
serious injury, and property damage.
- Do not form connections or switch light switches on or off if the air contains inammable fumes.
• If electrical shocks or discharges are encountered the operation being carried out using the equipment must be stopped immediately.
• Keep a re extinguisher at hand in the immediate vicinity of the work area.
• It indicates wound and nger squashing risk due to movable parts in the equipment.
• Keep away from moving parts.
• Do not use the equipment without the proper protection.
• Before any inspection or maintenance of the equipment, carry out the decompression procedure explained in this manual, and prevent
any risk of the equipment starting unexpectedly.
• Report any risk of chemical reaction or explosion if this warning has not been given.
• (IF PROVIDED) There is a risk of injury or serious lesion related to contact with the jet from the spray gun. If this should occur, IMME-
DIATELY contact a doctor, indicating the type of product injected.
• (IF PROVIDED) Do not spray before the guard has been placed over the nozzle and the trigger on the spray gun.
• (IF PROVIDED) Do not put your ngers in the spray gun nozzle.
• Once work has been completed, before carrying out any maintenance, complete the decompression procedure.
• It indicates important recommendations about disposal and recycling process of products in accordance with the environmental
regulations.
• Mark any clamps attached to earth cables.
• Use ONLY 3-wire extension cords and grounded electrical outlets.
• Before starting work make sure that the electrical system is grounded and that it complies with safety standards.
• High-pressure uid from gun, hose leaks, or ruptured components will pierce skin.
• To help prevent injection, always:
- (IF PROVIDED) Engage trigger lock when not spraying.
- (IF PROVIDED) Do not put your hand over the spray tip. Do not stop or deect leaks with your hand, body or other.
- (IF PROVIDED) Do not point gun at anyone or at any part of the body.
- (IF PROVIDED) Never spray without tip guard.
- Do pressure relief if you stop spraying or being servicing sprayer and before any maintenance operations.
- Do not use components rated less than sprayer Maximum Working Pressure.
- Never allow children to use this unit
- (IF PROVIDED) Brace yourself; gun may recoil when triggered.
If high pressure fluid pierces your skin, the injury might look like “just a cut”, but it is a serious wound!
Get immediate medical attention.
• It is obligatory to wear suitable clothing as gloves, goggles and face shield.
• Wear clothing that complies with the safety standards in force in the country in which the equipment is used.
• Do not wear bracelets, earrings, rings, chains, or anything else that may hinder the operator’s work.
• Do not wear clothing with wide sleeves, scarves, ties, or any other piece of clothing that could get tangled up in moving parts of the
equipment during the work, inspection, or maintenance cycles.

www.larius.com
5
PREHETAER
REV. 01 - 12/2021 - Cod. 150196
• The packed parts should be handled as indicated in the symbols
and markings on the outside of the packing.
• Before installing the equipment, ensure that the area to be
used is large enough for such purposes, is properly lit and has
a clean, smooth oor surface.
• The user is responsible for the operations of unloading and
handling and should use the maximum care so as not to damage
the individual parts or injure anyone.
To perform the unloading operation, use only qualied and
trained personnel (truck and crane operators, etc.) and also
suitable hoisting equipment for the weight of the installation
or its parts.
Follow carefully all the safety rules.
The personnel must be equipped with the necessary safety
clothing.
• The manufacturer will not be responsible for the unloading
operations and transport to the workplace of the machine.
• Check the packing is undamaged on receipt of the equipment.
Unpack the machine and verify if there has been any damage
due to transportation.
In case of damage, call immediately LARIUS and the Shipping
Agent. All the notices about possible damage or anomalies must
arrive timely within 8 days at least from the date of receipt of
the plant through Registered Letter to the Shipping Agent and
to LARIUS.
The conditions of guarantee do not apply in the
following situations:
- improper washing and cleaning of components
causing malfunction, wear or damage to the
equipment or any of its parts;
- improper use of the equipment;
- use that does not conform with applicable
national legislation;
- incorrect or faulty installation;
-modifications,interventionsandmaintenancethat
have not been authorised by the manufacturer;
- use of non-original spare parts or parts that do
not correspond to the specific model;
- total or partial non-compliance with the
instructions provided.
CONDITIONS OF GUARANTEE
• THE EMPLOYER SHALL TRAIN ITS EMPLOYEES ABOUT ALL
THOSE RISKS STEMMING FROM ACCIDENTS, ABOUT THE
USE OF SAFETY DEVICES FOR THEIR OWN SAFETY AND
ABOUT THE GENERAL RULES FOR ACCIDENT PREVENTION
IN COMPLIANCE WITH INTERNATIONAL REGULATIONS AND
WITH THE LAWS OF THE COUNTRY WHERE THE PLANT IS
USED.
• THE BEHAVIOUR OF THE EMPLOYEES SHALL STRICTLY
COMPLY WITH THE ACCIDENT PREVENTION AND ALSO
ENVIRONMENTAL REGULATIONS IN FORCE IN THE COUNTRY
WHERE THE PLANT IS INSTALLED AND USED.
• KEEP YOUR WORK PLACE CLEAN AND TIDY. DISORDER
WHERE YOU ARE WORKING CREATES A POTENTIAL RISK
OF ACCIDENTS.
• ALWAYS KEEP PROPER BALANCE AVOIDING UNUSUAL
STANCE.
• BEFORE USING THE TOOL, ENSURE THERE ARE NOT DA-
MAGED PARTS AND THE MACHINE CAN WORK PROPERLY.
• ALWAYS FOLLOW THE INSTRUCTIONS ABOUT SAFETY AND
THE REGULATIONS IN FORCE.
• KEEP THOSE WHO ARE NOT RESPONSIBLE FOR THE
EQUIPMENT OUT OF THE WORK AREA.
• NEVER EXCEED THE MAXIMUM WORKING PRESSURE
INDICATED.
• (IF PROVIDED) NEVER POINT THE SPRAY GUN AT YOURSEL-
VES OR AT OTHER PEOPLE. THE CONTACT WITH THE CA-
STING CAN CAUSE SERIOUS INJURIES.
• IN CASE OF INJURIES CAUSED BY THE GUN CASTING, SEEK
IMMEDIATE MEDICAL ADVICE SPECIFYING THE TYPE OF
THE PRODUCT INJECTED. NEVER UNDERVALUE A WOUND
CAUSED BY THE INJECTION OF A FLUID.
• ALWAYS DISCONNECT THE SUPPLY AND RELEASE THE
PRESSURE IN THE CIRCUIT BEFORE PERFORMING ANY
CHECK OR PART REPLACEMENT OF THE EQUIPMENT.
• NEVER MODIFY ANY PART IN THE EQUIPMENT. CHECK
REGULARLY THE COMPONENTS OF THE SYSTEM.
REPLACE THE PARTS DAMAGED OR WORN.
• (IF PROVIDED) TIGHTEN AND CHECK ALL THE FITTINGS
TRANSPORT AND
UNPACKING
SAFETY RULES
The disposal of packaging materials is a customer’s
competence and must be performed in accordance
with the regulations in force in the country where
the plant is installed and used.It is nevertheless
sound practice to recycle packaging materials in an
environment-friendly manner as much as possible.
Readcarefullyandentirelythefollowinginstructions
before using the product. Please save these
instructions in a safe place.
The unauthorised tampering/replacement of one
or more parts composing the machine, the use of
accessories, tools,expendablematerialsother than
those recommended by the manufacturer can be a
danger of accident.
The manufacturer will be relieved from tort and
criminal liability.
E
F
G

www.larius.com
6
PREHETAER
REV. 01 - 12/2021 - Cod. 150196
E
160 mm
500 mm
A
B
FOR CONNECTION BETWEEN PUMP, FLEXIBLE HOSE AND
SPRAY GUN BEFORE USING THE EQUIPMENT.
• ALWAYS USE THE FLEXIBLE HOSE SUPPLIED WITH STAN-
DARD KIT.
• THE USE OF ANY ACCESSORIES OR TOOLING OTHER THAN
THOSE RECOMMENDED IN THIS MANUAL, MAY CAUSE
DAMAGE OR INJURE THE OPERATOR.
• THE FLUID CONTAINED IN THE FLEXIBLE HOSE CAN BE VERY
DANGEROUS. HANDLE THE FLEXIBLE HOSE CAREFULLY. DO
NOT PULL THE FLEXIBLE HOSE TO MOVE THE EQUIPMENT.
NEVER USE A DAMAGED OR A REPAIRED FLEXIBLE HOSE.
The high speed of travel of the product in the hose
can create static electricity through discharges
and sparks. It is suggested to earth the equipment.
The pump is earthed through the earth cable of
the supply.
The gun is earthed through the high pressure
flexible hose.
All the conductors near the work area must be
earthed.
Avoid approaching too much to the pump piston
rod when the pump is working or under pressure.
A sudden movement of the piston rod can cause
wounds or finger squashing.
Never spray over flammable products or solvents
in closed places.
Never use the tooling in presence of potentially
explosive gas.
Always check that the product is compatible with
the materials composing the equipment (pump,
spray gun, flexible hose and accessories) with
which it can come into contact. Never use paints
or solvents containing Halogen Hydrocarbons
(as the Methylene Chloride). If these products
come into contact with aluminium parts can
provoke dangerous chemical reactions with risk
of corrosion and explosion.
If the product to be used is toxic, avoid inhalation
and contact by using protection gloves, goggles
and proper face shields.
Take proper safety measures for the protection
of hearing in case of work near the plant.
TECHNICAL DATA
PREHEATER
Supply voltage 220V
400V
Current 10A
Power of the heating element 2200W
Max working pressure 300 bar
Weight 18Kg
Max working temperature 90°C
Temperature pressure range T. amb-90°C
Delivery 60l/h at 60°C
Height (A) 500 mm
Width (B) 160 mm

www.larius.com
7
PREHETAER
REV. 01 - 12/2021 - Cod. 150196
BF
WORKING PRINCIPLE
Pos. Description
1 Green indicatore light (entered temperature)
2 Thermometer
3 Temperature adjustment knob
Pos. Description
4 Red indicator light (temperature reached)
5 Electrical connection
3
1
4
2
Cod. 6099 - 220V
Cod. 6990 - 400V Hot
product
OUT
Cold
product
IN
Temperature
+-
5
The preheater is an electrically-operated explosion-proof equipment and can be combined with airless and air spray systems.
A green indicator light (1) indicates that the connection to the power line has been made. The uid is heated through an electrical
resistor that sends the heat generated to the spiral stainless-steel tube that ows inside the preheater body.
The temperature of the uid detected by the thermometer (2) can be adjusted by acting on the appropriate adjustment knob (3). The
switching on of the red temperature indicator light (4) indicates that the chosen temperature has been reached, while a thermostat
ensures that its value remains constant. If the thermostat does not act due to a fault in itself or in the probe connected to it, when
the temperature inside the preheater reaches 130°, the safety thermostat triggers and opens the electrical circuit, thus interrupting
the supply of current.

www.larius.com
8
PREHETAER
REV. 01 - 12/2021 - Cod. 150196
G
H
Fig. 1H
Fig. 3H
Fig. 2H
ELECTRICAL CONNECTION
ROUTINE MAINTENAINCE • Always remember to clean the preheater after use to prevent
the fluid from solidifying inside it when it cools down.
• Disconnect the electrical connection and let the fluid circulate for
a few minutes until the preheater has cooled down before using
the solvent for washing, thus avoiding the sudden expansion of
the solvent inside the preheater due to the heat with consequent
increase of pressure.
Always disconnect the power supply before
carrying out any type of check or replacement
of the electrical components of the preheater.
CE
C
AB
2
1P 1
D
F
Always disconnect the power supply before carrying out any type of check or replacement of the electrical
components of the preheater.
ELECTRICAL CONNECTIONS
• To access the inside of the preheater, remove the front cover
(H1).
• First of all, check the continuity of the electric cables and the
fuses.
• To replace the indicator light bulb, if necessary, do not try to
remove the front ring nut (H2), but unscrew the glass locking ring
(H3).
Push here
H4
H5
• To reset the safety thermostat (H4), press the special button
(H5). Check the cause of the trigger: check that the thermostat
probe has not come out of its seat and that the connection
cable to the thermostat is not damaged. If necessary, replace
the entire thermostat.
H1
H3
H2
Pos. Description
A Green indicatore light (entered temperature)
B Red indicator light (temperature reached)
C Fuse
D Thermostat
E Manual reset safety thermostat
F Heating element

www.larius.com
9
PREHETAER
REV. 01 - 12/2021 - Cod. 150196
NOTE
After replacing each electrical component, check the correct connection of the cables.
Fig. 5H
Fig. 4H
Red light
Green light
2
1
P1
• To replace the heating element (H6), remove the case (H7).
H7
H6

www.larius.com
10
PREHETAER
REV. 01 - 12/2021 - Cod. 150196
I
1
2
3
4
3
512
11
13
7
8
9
10 14
15
16
18
19
20
21
22
23
24
25
22
26
27
22
28
24
29
31
32
33
22
22
26
34
27
35
28
36
37
39
40
41
42
38
43
48
44
33
32
46
47
45
6
17
30
49
COMPONENTI PRESENTI NELLE DUE DISTINTE LARIUS E
SAMOA MA NON INDIVIDUATI NELL'ESPLOSO SAMOA
EXPLODED VIEW OF THE PREHEATER

www.larius.com
11
PREHETAER
REV. 01 - 12/2021 - Cod. 150196
Pos. Code Description Q.ty
1 54004 Screw 4
2 6121 Glass locking ring 2
3 6118 Glass PTFE gasket 4
4 6120 Protection glass 2
5 6119 Bulb housing 2
6
6115 Bulb 220V green - Vers. 220V 1
6115/2 Bulb 400V green - Vers. 400V 1
6116 Bulb 220V red - Vers. 220V 1
6116/2 Bulb 400V red - Vers. 400V 1
7 6129 Handwheel 1
8 6125 Temperature regulator bush 1
9 6124 Seal ring 1
10 6131 Adhesive label thermostat temperature 1
11 6133 Operation indication label 1
12 6104 Cover 1
13 6132 Temperature indication label 1
14 6105 Light bulb holder bushing 2
15 6127 Stud bolt 1
16 6126 Thermostat control rod 1
17 6128 O-Ring 1
18 9220 Screw 2
19 6123 Thermostat plate 1
20 6122 Thermostat 1
21 5339 Screw 2
22 5737 Washer 6
23 6108 Fuse holder vers. 220V 2
6108/1 Fuse holder vers. 400V 2
24 9308 Screw 4
Pos. Code Description Q.ty
25 6109 Fuse vers. 220V 2
6109/1 Fuse vers. 400V 2
26 6112 Grounding 2
27 6113 Grounding plate 2
28 6111 Screw 2
29 6138 Safety thermostat only vers. 220V 1
30 32024 Washer 4
31 6151 Screw 4
32 107 Plastic plug 2
33 8137-1 Nipple 2
34 96210 Grounding plate 1
35 5339 Washer 1
36 6140 Cable glands 1
37 6130 Screw 4
38 6137 Wall support 1
39 6103 Casing 1
40 6114 Gasket 1
41 6107 Resistor vers. 220V 1
6107/2 Resistor vers. 400V 1
42 6100 Preheater body 1
43 8137-2 Nipple 1
44 6146 Fitting for thermometer 1
45 6139 Thermometer 1
46 6134 Technical data label vers. 220 V 1
6134/2 Technical data label vers. 400 V 1
47 95216 Plug 1
48 6102 Fitting 2
49 6144 Red silicone rubber cable 3x1,5
1,5 mt

www.larius.com
12
PREHETAER
REV. 01 - 12/2021 - Cod. 150196
ATEX CERTIFICATE
MARKINGS
• Temperatura amb.: ÷ +90°C
3
X
II 3 G nC IIB T3 Gc Tech file: PREHEATER/ATX/12
Correspondence between dangerous areas, substances and grade
Beforeinstallation, carefully readthe informationin
the use and maintenance manual. All maintenance
operations must be carried out according to the
instructions in the manual.
Do not open the preheater when powered. To
open the lid, disconnect the power and wait at
least 30 minutes.
•
The preheater must be installed and maintained in accordance
with the installation and maintenance standards for
environments classified against the risk of explosion due to
the presence of gases and vapors (example: EN60079-14,
EN 60079-17 or other national regulations/standards).
SAFETY INSTRUCTIONS FOR THE INSTALLATION IN DANGEROUS AREAS
II = Group II ( surface)
3 = Grade 3 (zone 2)
G = Explosive environment with gas, vapour or mist
Ex nC = Mode of protection (sparkling protect nC)
IIB Gas group (IIB)
T3 Class of temperature (T4)
Gc EPL (gas)
Tech file Techical file
DANGEROUS AREA GRADE ACCORDING TO
DIRECTIVE 94/9/CE EPL
Gas, vapour or mist Zone 0 1G Ga
Gas, vapour or mist Zone 1 2G or 1G Gb or Ga
Gas, vapour or mist Zone 2 3G, 2G or 1G Gc, Gb or Ga
J
Check that the polyurethane foam inserted in the
lid is not damaged.
The preheater must be properly earthed by means
of the anti-loosening and anti-rotating device.
Make sure that the earthing of the preheater is
always guaranteed and ensured.
The user must periodically check, depending on the type of use and the substances used:
• the state of wear and correct operation of the preheater;
• the presence of abnormal vibrations and/or noises. In this case, stop the preheater, identify the causes and contact the manufacturer.
Nonetheless, residual risks may be present during normal preheater operation if:
• is not subject to the normal maintenance plans provided for in the use and maintenance manual;
• is not used as required by the project specifications.

www.larius.com
13
PREHETAER
REV. 01 - 12/2021 - Cod. 150196

LARIUS srl
Via Antonio Stoppani 21 - 23801 Calolziocorte (LC) ITALY
www.larius.com
This manual suits for next models
1
Table of contents
Other Larius Industrial Equipment manuals
Popular Industrial Equipment manuals by other brands

BEGA
BEGA BETEX Cone Heater CHu user manual

Sungrow
Sungrow MVS6250 Transportation and Installation Guide

Climax
Climax FF6300 operating manual

KIESELMANN
KIESELMANN DN 25 operating instructions

PCB Piezotronics
PCB Piezotronics 1631-06C Installation and operating manual

ZIEHL-ABEGG
ZIEHL-ABEGG ZAtop SM180.24/B Assembly instructions

Chicago Valves & Controls
Chicago Valves & Controls CGO Series Installation, operation and maintenance manual

Promac
Promac PBM-1839BDV operating instructions

IPC
IPC 2000 installation instructions

Kongsberg
Kongsberg K-Safe USER, OPERATOR COURSE

Amatrol
Amatrol 990-SM10 installation guide

Taylor
Taylor INCRA Pro II quick start guide
