Laser DVD-HD008 User manual

USER MANUAL DVD-HD008

USER MANUAL DVD-HD008
Composite

USER MANUAL DVD-HD008
REMOTE CONTROL
1. OPEN/CLOSE Open and close disc tray
2. AUDIO Select a different language
3. MUTE Turn sound ON/OFF
4.
[NUMBER
KEYS] Select files and chapters of videos
5. SETUP Enter menu settings
6. ENTER Use to select on option or feature
7. VOLUME Increase or decrease volume
8. SLOW Reduce the speed of video playback
9. PLAY/PAUSE Press to pause and again to play
10.
STOP Stop playback of files
11.
MARK Create playback point
12.
REWIND Rewind video or music
13.
FAST
FORWARD Fast-forward video or music
14.
REPEAT Repeat the current track
15.
PBC (not available on this model)
16.
VIDEO Select video output mode
17.
USB Switch between USB and disc playback
18.
STANDBY Turn ON/OFF from power saving mode
19.
MENU Enter MENU settings screen
20.
SUBTITLE
Turn ON/OFF subtitles as supported by your file
or disc
21.
DISPLAY
Turn ON/OFF time, title and chapter
information
22.
COPY/DELETE Use to manage USB files
23.
RETURN Go to the DISC menu screen
24.
DIRECTION KEY
Used to move cursor around screen
25.
VOLUME Turn UP/DOWN volume
26.
SEARCH
Search by video chapter and time (Some options
different for USB/DVD)
27.
A-B Select segment of video or music for reply
28.
CLEAR
Clear previously selected data and search
information
29.
ZOOM Zoom IN/OUT from an image
30.
Q-PLAY
Quick play/Direct Play (Go direct to movie and
bypass previews)
31.
SKIP Skip forwards/backwards
32.
ANGLE (not available on this model)
33.
CHANNEL Switch between 2.1 and 5.1 sound output
34.
TITLE Return to title screen
35.
PROG Program the Title and Chapter order of playback

USER MANUAL DVD-HD008

USER MANUAL DVD-HD008
NOTE: If you have connected the DVD-HD008 to a Home Theatre System
using the Coaxial Digital Audio cable you may need to also connect the RCA
Stereo Connection to your TV To allow Audio to be heard through the TV
when it is not convenient to have the Home Theatre System turned on.
•Combinations of Audio and Video Connections are possible depending on the
equipment the player is to be connected to. Please refer to the equipment user
manual to determine the method or combination that best suits your needs.

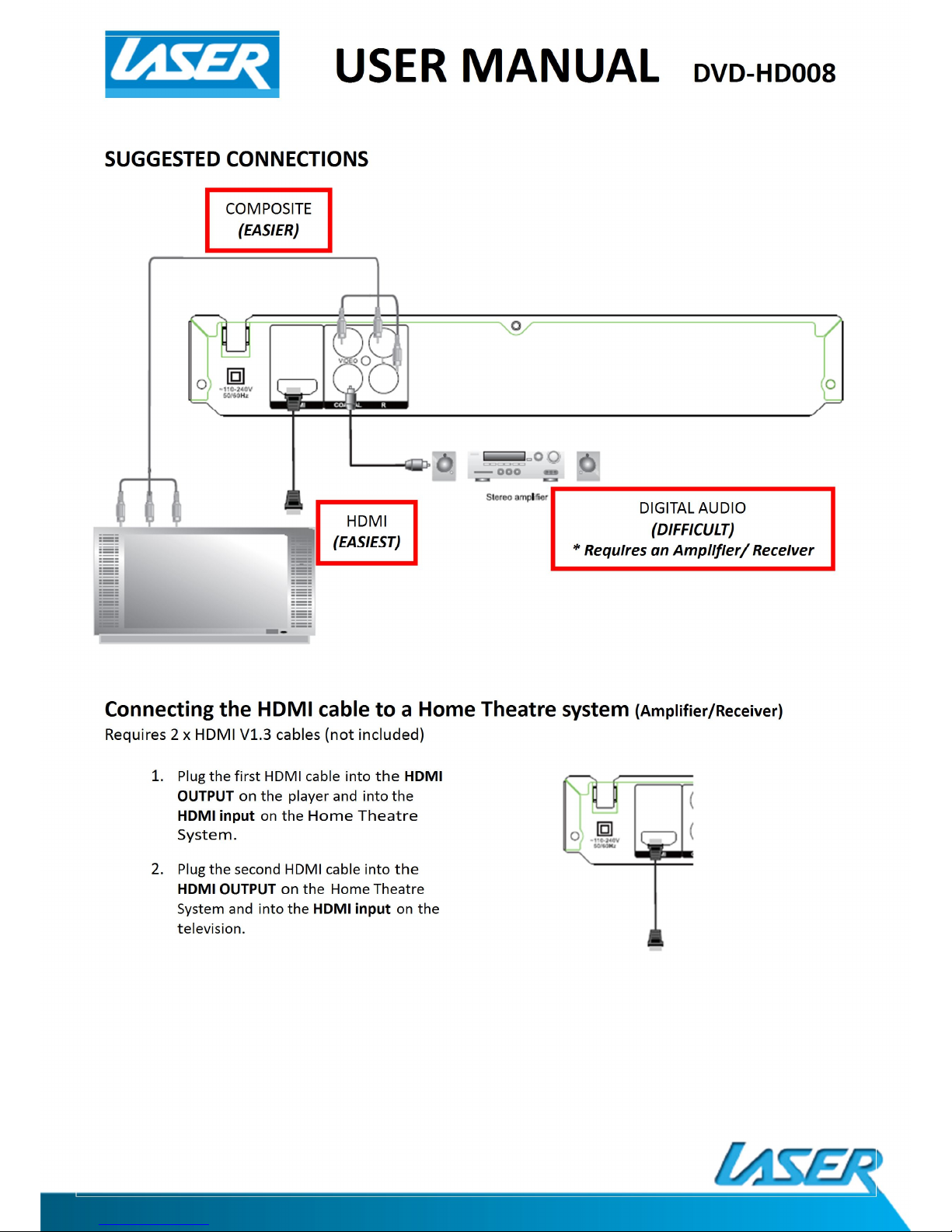

CONNECTING THE PLAYER
•HDMI can transmit both audio and video signals over a single cable. If you have an
HDMI capable receiver that can support HDMI audio, you can simply run an HDMI
cable from the player to your receiver and enable HDMI audio on the receiver (see
your receiver’s owners’ manual for more information). The receiver usually has an
HDMI output that you can connect to your TV to pass the video signal.
•HDMI is a wonderful thing. A single cable can transport both audio AND video from
your player to your display. Be aware, however, that HDMI is an evolving standard,
and there could be compatibility issues. A receiver that supports audio input over
HDMI is required.
•Some receivers offer HDMI ports solely for video switching. If your receiver does not
have audio input capability, please read the following sections regarding other
connection methods.
•In order to play multi-channel audio for all formats, the receiver must support HDMI
v1.1 or later. A receiver that supports HDMI v1.3 with decoding capability for Dolby
TrueHD and DTS-HD Master Audio is preferred. Please check the specifications of
your receiver to ensure that it meets the requirements.
•Due to bandwidth limitations, high resolution audio formats such as Dolby Digital
Plus, Dolby TrueHD, DTS-HD High Resolution and DTS-HD Master Audio cannot be
sent through the coaxial digital audio output. A reduced resolution version of the
same audio track will be output instead. To listen to high resolution audio formats in
their best quality, please use the HDMI connection if you have a receiver that
handles HDMI audio.
Due to copyright restrictions and bandwidth limitations, full resolution audio from DVD Audio discs
cannot be sent through the coaxial or optical digital audio output. To listen to DVD-Audio in full
resolution, please use the HDMI or analogue audio connections.
