LaserLiner LaserRange-Master Gi7 Pro User manual

LaserRange-Master Gi7 Pro
Laser
515 nm
360°
ANGLE
FUNCTION
04
14
24
34
44
DE
EN
NL
DA
FR
ES
IT
PL
FI
PT
SV
NO
TR
RU
UK
CS
ET
RO
BG
EL

02
Laser

LaserRange-Master Gi7 Pro
03

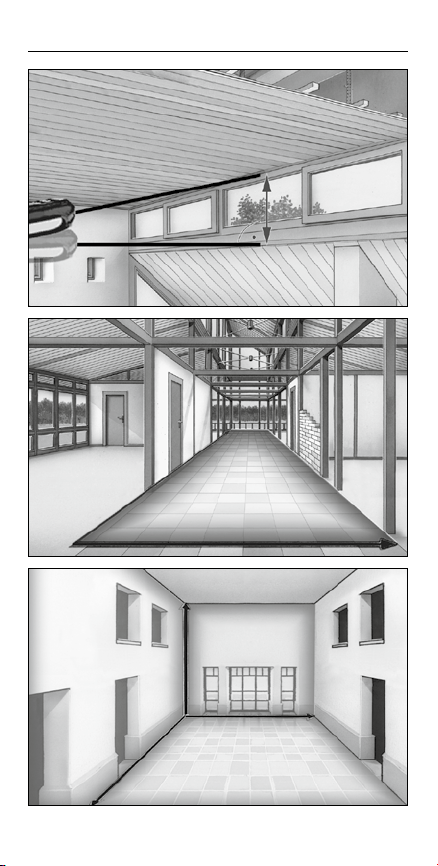

x· y =m2
x
y
xy
z
x· y· z= m3

14
Laser radiation!
Do not stare into the beam!
Class 2 laser
< 1 mW · 515 nm
EN 60825-1:2014
Safety instructions
Using class 2 lasers
– The device must only be used in accordance with its intended
purpose and within the scope of the specications.
– The following persons may use the device only when they are either
supervised by a person who is responsible for their safety or have
received instruction from this person on how to use the device:
– Persons with restricted physical, sensory or mental abilities
– Persons with no knowledge and/or experience in the use of the device
– Children (under the age of 14)
– The device and its accessories are not toys.
– Modications or changes to the device are not permitted,
this will otherwise invalidate the approval and safety specications.
–
Do not expose the device to mechanical stress, extreme temperatures,
moisture or signicant vibration.
– The device must no longer be used if one or more of its functions fail
or the battery charge is weak.
– Please ensure compliance with the safety regulations set out by local
and national authorities with regard to the correct and proper use of
the device.
General safety instructions
Laser distance meter – with green DLD laser technology
– Functions: distances, area, volume, continuous measurement,
angle function 1 + 2 + 3, digital bubble level and tilt sensor calibration,
addition / subtraction of lengths, areas, volumes
– 360° inclination sensor for determining the horizontal and
vertical distance
– Bluetooth®* interface to transfer the measured data
Function / Application
Completely read through the operating instructions, the
„Warranty and Additional Information“ booklet as well
as the latest information under the internet link at the end
of these instructions. Follow the instructions they contain.
This document must be kept in a safe place and if the laser
device is passed on, this document must be passed on with it.
!
EN
– Attention: Do not look into the direct or reected beam.
– Do not point the laser beam towards persons.
– If a person‘s eyes are exposed to class 2 laser radiation, they should shut
their eyes and immediately move away from the beam.

LaserRange-Master Gi7 Pro
15
Safety instructions
Dealing with RF radiation
– The measuring device is equipped with a wireless interface.
– The measuring device complies with electromagnetic compatibility
and wireless radiation regulations and limits in accordance with the
RED 2014/53/EU.
– Umarex GmbH & Co. KG hereby declares that the LaserRange-Master
Gi7 Pro radio equipment complies with the essential requirements and
other provisions of the European Radio Equipment Directive 2014/53/EU
(RED). The EU Declaration of Conformity can be found in its entirety at
the following address: http://laserliner.com/info?an=AHE
– The measuring device complies with electromagnetic compatibility
regulations and limits in accordance with the EMC Directive 2014/30/EU
which is covered by the Radio Equipment Directive 2014/53/EU.
– Local operating restrictions – for example, in hospitals, aircraft, petrol
stations or in the vicinity of people with pacemakers – may apply.
Electronic devices can potentially cause hazards or interference or be
subject to hazards or interference.
– The measuring accuracy may be affected when working close
to high voltages or high electromagnetic alternating elds.
Safety instructions
Dealing with electromagnetic radiation
– Tampering with (making changes to) the laser device is not permitted.
– Under no circumstances should optical instruments
(magnifying glass, microscope, binoculars)
EN
Approx. 6 times brighter than a typical red laser with
630 - 660 nm
Laser modules in DLD design stand for high line quality
as well as a clean and clear and therefore
easily visible
line image. Unlike previous generations they are more
temperature-stable and energy efcient.
Furthermore, the human eye has a higher sensitivity to
the wave range of the green laser than the red laser,
for example. This makes the green laser diode appear
much brighter than the red one.
Green lasers, especially in the DLD design, thus offer
advantages with regards to how visible the laser line
is under unfavourable conditions.
Green laser technology

16
g
b
f
a
k
j
e
di
h
c
l
o
r
m
p
s
n
q
t
u v
1.
2.
3.
4.
5.
6.
* The Bluetooth®word mark and the logo are registered trademarks of Bluetooth SIG Inc.
KEYPAD:
1. ON / measure
2. Delete last measurement
values / OFF
3. Addition of lengths, areas,
volumes / view saved
measurements
4. Measurement point (reference)
rear / front; unit m / inch / ft
5. Length / min/max continuous
measurement / area / volume /
angle function 1 + 2 + 3 /
digital bubble level / tilt sensor
calibration / memory /
Bluetooth®* function
6. Subtraction of lengths,
areas, volumes / view saved
measurements
DISPLAY:
aFunction display
bMeasurement point (reference)
rear / front
cDisplay min./max. continuous
measurement / area / volume /
angle function 1 + 2 + 3
d
Min/max continuous measurement
eMeasurement values /
measurement results /
malfunction / service required
fSlope angle device
gBattery symbol
hBluetooth®* function activated
iIntermediate values /
min/max values
jAddition / subtraction of lengths,
areas, volumes
kUnit m / inch / ft
lLength measurement
mMin/max continuous
measurement
nArea measurement
oVolume measurement
pAngle function 1
qAngle function 2
rAngle function 3
sDigital bubble level
tTilt sensor calibration
uMemory
vBluetooth®* function
EN

LaserRange-Master Gi7 Pro
17
3 sec
1x
1x
1 sec
2x 3x
3 sec
1x
1x 1 sec
1x
1x 1 sec
1x
1 sec
2x 3x
Length measurement:
Device on Laser on Measure
Length
(device on)
To select functions:
Length / min/max continuous measurement / area / volume / angle
function 1 + 2 + 3 / digital bubble level / tilt sensor calibration /
memory / Bluetooth®* function
Change measurement point (reference):
Rear (device on) Front
Delete the last
measured value:
Change unit
of measure:
m / inch / ft
Switch on, measure and switch off:
Device on Laser on Measure Device off
EN
Inserting batteries
Open the battery compart-
ment and insert batteries
(2 x typ AA) according to
the symbols. Be sure to
pay attention to polarity.
–
+
–
+

18
1x
2x1x
2x1x
1x 1x
+ –
or
Addition and subtraction of lengths:
Length Laser on +/- Laser on Result
(Device on) etc.
1x 1x
+ –
or
Area calculation:
Area Laser 1. measure- Laser 2. measure- +/-
on ment on ment
1x 2x 4x3x
Area measurement:
Area Laser on 1. measure- Laser on 2. measure-
ment ment
Result
etc.
1x 2x 4x3x
1x 2x 4x3x
Laser on Laser onetc.
The LC display shows the max value, the min value and the current value.
Stop
Measurement starts
automatically
Min/max continuous measurement:
Min/max
EN

LaserRange-Master Gi7 Pro
19
1x 2x 6x4x3x 5x
1x 2x 6x4x3x 5x
1x 2x 6x4x3x 5x
1x 1x
+ –
or
etc.
Result
etc.
Results
The measurement results are determined automatically by the 360°
inclination sensor.
The back of the device can be used as a reference surface
for measuring angles.
!

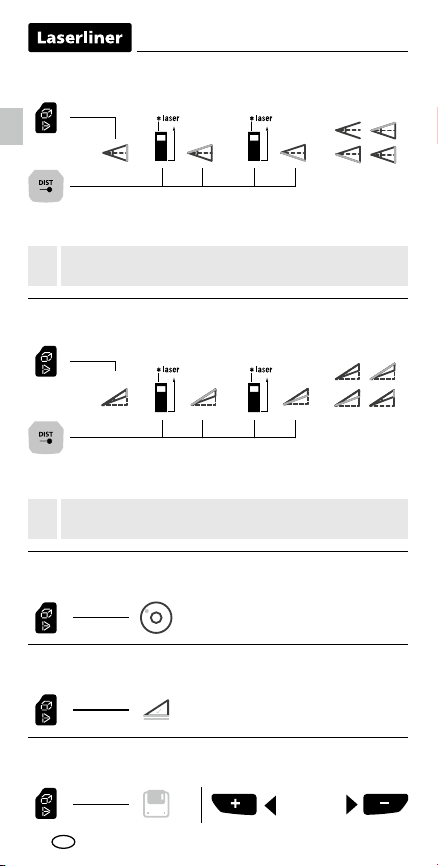

Angle function 1:
Angle function 1 Measurement
Volume calculation:
Volume 1. volume +/-
Volume measurement:
Volume 1. measurement 2. measurement 3. measurement
EN

20
1x 2x 3x 4x
1x 2x 3x 4x
01 … 50
The device has 50 storage locations.
Memory function:
To calibrate the tilt sensor follow the instructions on the display.
Tilt sensor calibration:
The digital bubble level is used to horizontally align the measuring device.
Digital bubble level:
Angle function 3:
Angle 1. measurement 2. measurement
function 3
The back of the device can be used as a reference surface
for measuring angles.
!
The back of the device can be used as a reference surface
for measuring angles.
!
Results
The measurement results are determined automatically by the 360°
inclination sensor.
The measurement results are determined automatically by the 360°
inclination sensor.
Results
Angle function 2:
Angle 1. measurement 2. measurement
function 2
EN

LaserRange-Master Gi7 Pro
21
1x
1x
1x 1 sec
Make sure that the Bluetooth®* interface of the mobile device
is activated.
!
Application (app)
An app is required to use the Bluetooth®* function. You can download
the app from the corresponding stores for the specific type of terminal
device:
Length
(device on) enable /
disable
When enabled the Bluetooth®* symbol appears on the display (h).
When the function is active, a mobile device can connect by means
of an app to the measuring device.
Enable / disable Bluetooth®*:
* The Bluetooth®word mark and the logo are registered trademarks of Bluetooth SIG Inc.
Data transfer
The laser distance meter features a Bluetooth®* function that enables
wireless data transfer to mobile devices with a Bluetooth®* interface
(e.g. smartphone, tablet).
The system prerequisites for a Bluetooth®* connection are specified
at http://laserliner.com/info?an=ble
The device can set up a Bluetooth®* connection with Bluetooth 4.0
compatible devices.
The range is set to a maximum distance of 10 m from the terminal
device and greatly depends on the ambient conditions such as the
thickness and composition of walls, sources of interference as well
as the transmit / receive properties of the terminal device.
* The Bluetooth®word mark and the logo are registered trademarks of Bluetooth SIG Inc.
EN

22
After starting the app and activating the Bluetooth®* function,
a connection can be set up between a mobile device and the laser
distance meter. If the app detects several active measuring devices,
select the matching device.
This measuring device can be connected automatically the next time
it is switched on.
* The Bluetooth®word mark and the logo are registered trademarks of Bluetooth SIG Inc.
Error codes:
Important notices
– The laser points to the location that will be measured.
No objects may get into the laser‘s line of measurement.
– The device compensates the measurement for different room
temperatures. Therefore allow the device a brief adaptation period
when changing locations with large temperature differences.
– The device is only conditionally useable in outdoor areas and cannot
be used in strong sunlight.
– The measurement results of outdoor measurements may be influenced
or falsified by rain, fog and snow.
– In unfavourable conditions, e.g. with poorly reflecting surfaces,
the maximum deviation may be greater than 3mm.
– Carpeting, upholstery or curtains will not reflect the laser optimally.
Measure to flat surfaces.
– Measurements made through glass (window panes) can falsify
measurement results.
– An energy-saving function switches the device off automatically.
– Clean with a soft cloth. Water may not be allowed to penetrate
the housing.
EN
Er101:
Er108:
Er118:
Er155:
Er181:
Er194:
Replace the battery
Pythagorean measurement error
Tilt sensor calibration error
Received signal too weak or
outside the measuring range
Data transfer error
Value outside display range
Information on maintenance and care
Clean all components with a damp cloth and do not use cleaning agents,
scouring agents and solvents. Remove the battery(ies) before storing for
longer periods. Store the device in a clean and dry place.
Calibration
The meter needs to be calibrated and tested on a regular basis to ensure
it produces accurate measurement results. We recommend carrying out
calibration once a year.

LaserRange-Master Gi7 Pro
23
** at max. 5000 lux
EU directives and disposal
This device complies with all necessary standards
for the free movement of goods within the EU.
This product is an electric device and must be
collected separately for disposal according to
the European Directive on waste electrical and
electronic equipment.
Further safety and supplementary notices at:
http://laserliner.com/info?an=AHE
* measuring distance up to 10 m with strongly reflective target surface
and at room temperature. The measurement deviation may increase by
± 0.2 mm/m for greater distances and under unfavourable measuring
conditions such as strong sunlight or weakly reflective target surfaces.
Technical Data (Subject to technical changes without notice. 19W07)
Distance measurement
Precision (typical)* ± 2 mm
Measurement range (inside)** 0,05 m - 70 m
Angle measurement
Measuring range ± 90°
Resolution 0,1°
Precision 0,1°
Laser class 2 < 1 mW
Laser wavelength 515 nm
Operating conditions
-10°C … 40°C, max. humidity
20 … 85% rH, no condensation,
max. working altitude 2000 m
above sea level
Storage conditions -20°C … 70°C,
max. humidity 80% rH
Radio module
operating data
Bluetooth LE 4.x interface; Frequency
band: ISM band 2400–2483.5 MHz,
40 channels; Transmission power:
max. 10mW; Bandwidth: 2 MHz;
Bit rate: 1 Mbit/s;
Modulation: GFSK/FHSS
Automatic switch-off 30 sec laser / 3 min device
Power supply 2 x 1,5V LR6 (AA)
Dimensions (W x H x D) 50 x 122 x 27 mm
Weight 140 g (incl. batteries)
EN

54

LaserRange-Master Gi7 Pro
55

Rev19W07
Umarex GmbH & Co. KG
Donnerfeld 2
59757 Arnsberg, Germany
Tel.: [phone], Fax: -333
www.laserliner.com
SERVICE
Umarex GmbH & Co. KG
– Laserliner –
Möhnestraße 149, 59755 Arnsberg, Germany
Tel.: [phone], Fax: [phone]
[e-mail]
LaserRange-Master Gi7 Pro
