LD LD ROADBOY 6.5 User manual

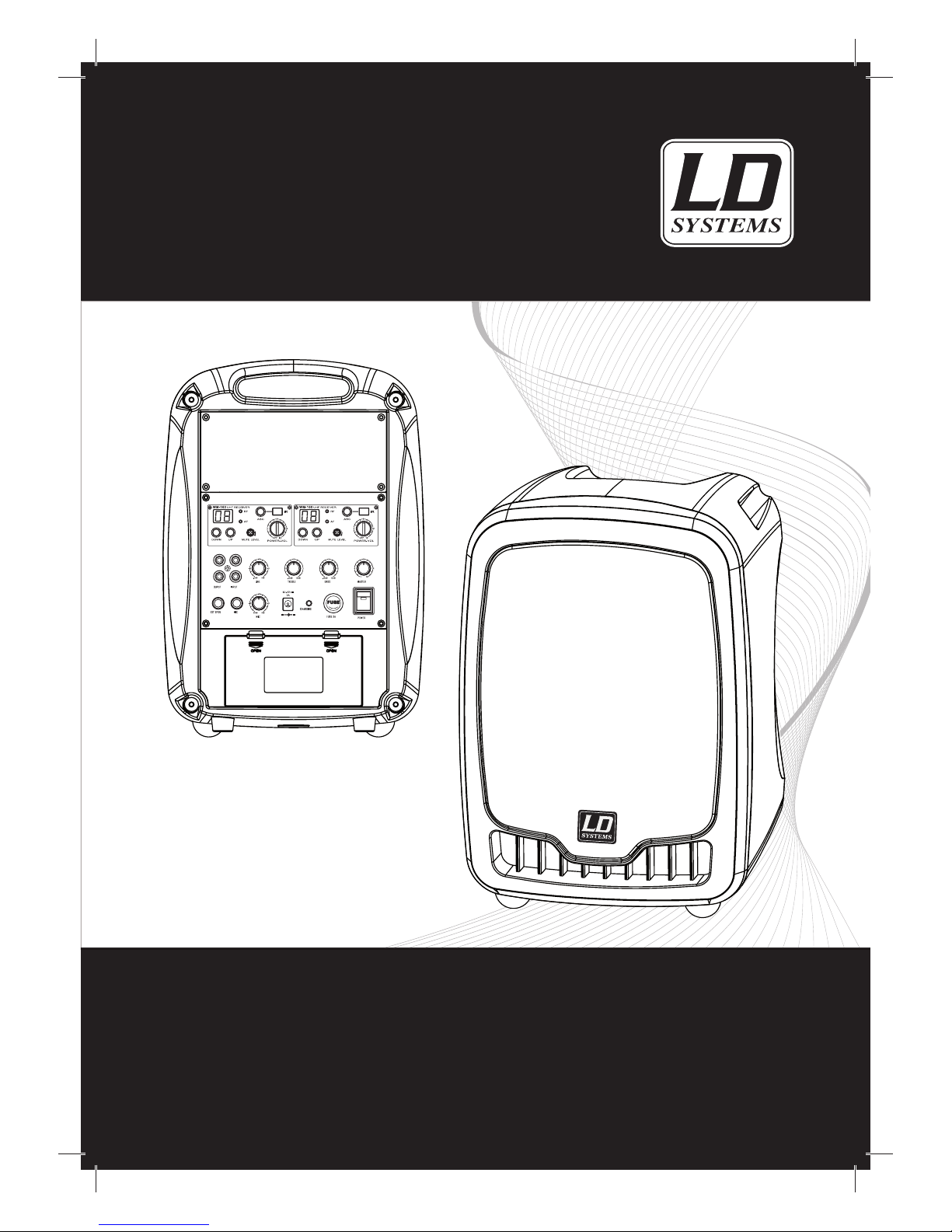

LD ROADBOY 6.5
PORTABLE SOUND SYSTEM 25 W
USER´S MANUAL
BEDIENUNGSANLEITUNG
MANUEL D´UTILISATION

Thank you for choosing LD-Systems!
We have designed this product to operate reliably over many years. Therefore LD-Systems guarantees for high
quality products with its name and many years of experience as a producer.
Please, take a few moments to read these instructions carefully, as we want you to enjoy your new LD-Systems
products quickly and to the fullest.
For information about LD-Systems check out our website WWW.LD-SYSTEMS.COM
02
ENGLISHDEUTSCHFRANCAIS

03
ENGLISHDEUTSCHFRANCAIS
LD ROADBOY 6.5
PORTABLE SOUND SYSTEM 25 W

04
ENGLISHDEUTSCHFRANCAIS
PREVENTIVE MEASURES:
1. Please read the attached safety instructions as well as the following instructions carefully.
2. Please keep all the instructions.
3. Please use the device only as intended.
4. Please respect the valid waste management rules. Please deliver the packaging divided into plastic and
paper/ cardboard to the recycling management.
5. Please refer all servicing to qualified personel only if the device is damaged, exposed to liquid/rain or if it does
not operate normally.
6. Please, do not expose to any kind of heat such as ovens, radiators, or any other devices (incl. amplifiers).
Please check for enough distance between amplifiers and walls, racks, etc. to prevent overheating.
7. After connection please check the wiring to prevent any kind of accident or damage.
Please never use any kind of damaged cable and wiring.
8. Only use authorized and stable stands, brackets, shelfs, tables etc.. for installations. Please check for
adequate stability against collapse.
CAUTION:
To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer
servicing to qualified personnel.
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the
user to the presence of uninsulated “dangerous voltage” within the product´s enclosure that may be
of sufficient magnitude to constitute a risk to persons.
The exclamation mark within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the
appliance.
CAUTION! HIGH VOLUME!
You will operate this system for professional use. Therefore the commercial use of this equipment is liable to the
rules and regulations of the Accident Prevention & Insurance Association of your industry sector. Adam Hall as a
manufacturer is bound to inform you formally about the existence of eventual sanitary risks.
These speakers are able to induce high acoustic sound pressure levels. 85 db is by law the maximum audio
pressure level which your ear can be exposed to during a work day. It was set according to the technical exper-
tise of the occupational medicine as a basis for the noise rating level. Higher sound levels or longer exposition
times could damage your ear. The time of exposition by higher sound pressure levels should be shortened in
order to prevent from ear damages. Here are a few reliable warning signals which show that you have exposed
yourself for a too long period to excessive sound pressure levels:
- You hear bell- or whistling sounds!
- You have the impression that you can’t hear high tones anymore!
CAUTION
RISK OF EL E C T R IC S H OC K
DO NO T O P E N

05
ENGLISHDEUTSCHFRANCAIS
BACK PANEL:
1
2
3
1CD PLAYER
Digital Slot-In CD Player with USB Input interface. CD
Player with anti-shock function.
Supported files (CD Player and USB Player):
Audio CD, MP3, WMA
2WIRELESS RECEIVER MODULE
The Roadboy 6.5 disposes of one wireless receiver
module. You can install a second receiver module if you
wish to use a second microphone simultaneously.
3CONTROL PANEL
Volume Control: Master, Wired Mic 1 & 2, Line-In
EQ: Bass, Treble
RCA Phono In & Out
Powered output for external speaker
LED Indicator: Low Battery power (red), battery
charging (green blinking), battery fully charged (green).

06
ENGLISHDEUTSCHFRANCAIS

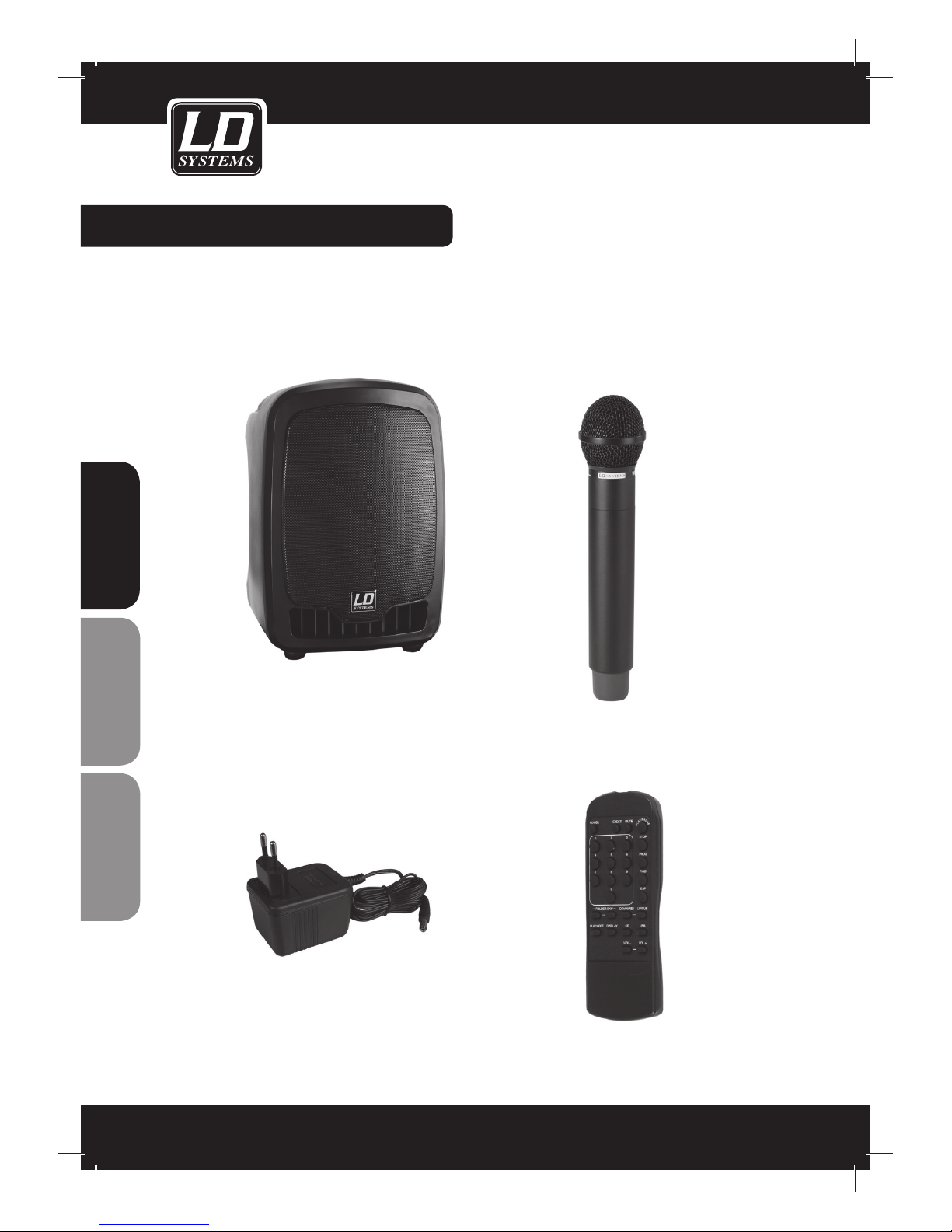

SYSTEM COMPONENTS:
Roadboy
Handheld Microphone
Remote Control
Power Supply Unit

07
ENGLISHDEUTSCHFRANCAIS
OPTIONAL ACCESSORIES:
Transport Bag (LDSB21)
Beltpack Transmitter (LDWS1616BP)
Headset / Micro (LDWS100MH3)
Stand (SPS56B)
Headset / Micro (LDWS100MH1)
Separate Receiver TD (LDRM102R)

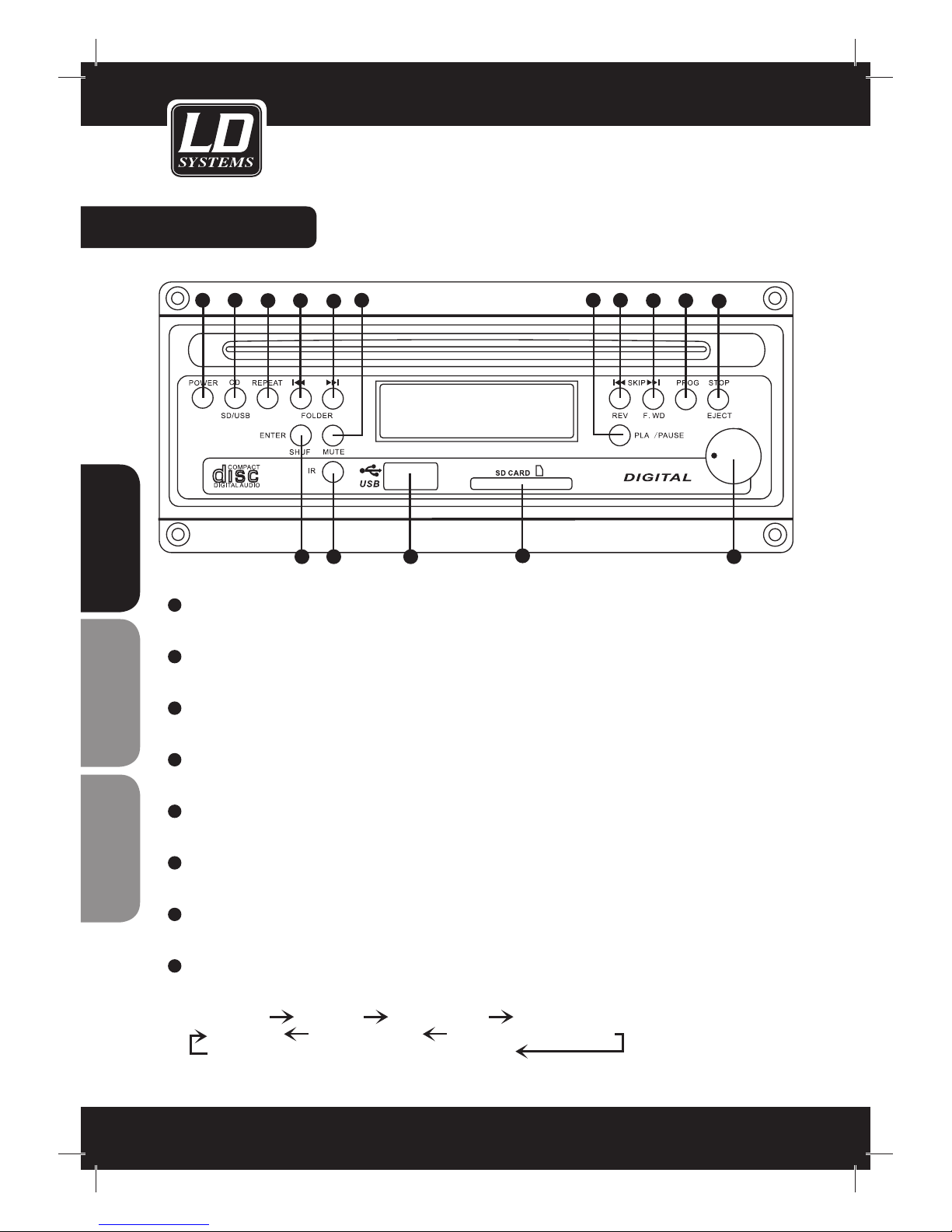

CD PLAYER:
08
ENGLISHDEUTSCHFRANCAIS
1
VOLUME BUTTON
Volume button is to control outgoing volume from CD Player to amplifier.
2
SD CARD READER
SD Card Input. Supports MP3 and WMA files. Only for SD Cards.
3
USB SOCKET
USB 1.1 Input. Supports MP3 and WMA files. Only for USB Memory Sticks.
4
IR
Infrared receiver for the remote control.
5
ENTER SHUF
Program and Shuffle mode.
6
POWER BUTTON
Press this button to turn the device on. press the button again to turn it off.
7
CD / SD / USB SWITCH BUTTON
Press this button to switch between CD Player, USB Stick and SD Card mode.
8
REPEAT
IN USB, SD, CD Mode the repeat modes are shown in this order.
PLAY ALL
RANDOM REPEAT TRACK REPEAT FOLDER
REPEAT ALL RANDOM REPEAT PLAY ALL
127 128 139 14 11106
135 4 2
1
Y
9

09
ENGLISHDEUTSCHFRANCAIS
CD PLAYER:
In Audio CD Mode the repeat modes are shown in this order
PLAY ALL RANDOM
REPEAT TRACK
REPEAT ALL
RANDOM REPEAT
PLAY ALL
9FOLDER (LEFT/RIGHT) BUTTONS
Available in USB, MP3 CD and SD Card Mode
In Stop Mode: Use the FOLDER (LEFT/RIGHT) Buttons to go to the previous/next folder.
In Play Mode: Use the FOLDER (LEFT/RIGHT) Buttons to go to the first file of the previous/next folder.
10 MUTE
Press this button to mute the sound. Press the button again to unmute.
11 PLAY / PAUSE
Available in SD, CD and USB Mode.
In stop mode: Press Play/Pause to start playing.
In play mode: Press Play/Pause to pause playing. Press once again to resume play mode.
12 SKIP (LEFT/RIGHT) BUTTONS
In Play and Stop Mode, press SKIP (LEFT/RIGHT) to go to the previous /next track.
In Play Mode keep the SKIP button pressed to fast forward (SKIP RIGHT) or fast reverse (SKIP LEFT) a track.
13 PROG
The PROG Button allows you to program a playlist.
In Audio CD Mode: Press PROG to enter the Program Mode, use “SKIP” (Left or right) to run over the
different available files. When the desired file is shown on the LCD screen press PROG again to add this file to
the playlist. Once you added the files you wanted to the playlist press the “PLAY/PAUSE” button to play the
playlist.
In MP3 CD Mode: Press PROG to enter the Program Mode, use “SKIP” (Left or right) to run over the
different folders available on the MP3 CD. Press PROG to enter the folder, use “SKIP” (Left or right) to
run over the different MP3/WMA files available in the folder. When the desired file is shown on the LCD screen
press PROG again to add this file to the playlist. Once you added the files you wanted to the playlist press the
“PLAY/PAUSE” button to play the playlist.
IN USB / SD Mode: Press PROG to enter the Program Mode, use “SKIP” (Left or right) to run over the different
folders available on the USB Stick. Press PROG to enter the folder, use “SKIP” (Left or right) to run over
the different MP3/WMA files available in the folder. When the desired file is shown on the LCD screen press
PROG again to add this file to the playlist. Once you added the files you wanted to the playlist press the “PLAY/
PAUSE” button to play the playlist.
14 STOP/EJECT
When a CD is playing, press “STOP/EJECT” to stop the playing. By pressing a second time you will eject the CD.
When USB is playing, press “STOP/EJECT” to stop the playing.

10
ENGLISHDEUTSCHFRANCAIS
CD REMOTE CONTROL:
1
57
8
9
1014
18
20
13 4 1719
2
36
11
12
15
16
1INFRARED TRANSMITTER
2POWER ON /OFF
3
CD EJECT
4
MUTE
The Mute button allows you to completely switch
off the sound of the CD / USB Player. Press once to
turn the Mute function ON, press again to turn it OFF.
Please Note: The Mute button doesn’t stop the
playing of a song or a file. It only turns the sound off.
5
PLAY / PAUSE
61-9 BUTTONS
7STOP
8
PROG
9
FIND
10
ESP
11 FOLDER SKIP LEFT
12
FOLDER SKIP RIGHT
13 SKIP LEFT
14
SKIP RIGHT
15 REPEAT PLAYBACK MODES
16 SHOW SONG INFORMATION
17 SWITCH TO CD MODE
08 SWITCH TO USB MODE
19
VOLUME –
20 VOLUME +

11
ENGLISHDEUTSCHFRANCAIS
BELTPACK TRANSMITTER:
1ANTENNA
2ON/MUTE/OFF SWITCH
The middle position is the mute position
3GAIN
Mic: Microphone Use
0: Guitar with passive pickup
-10 dB: Guitar with active pickups
4MINI XLR INPUT
5POWER INDICATOR
Battery status indicator
WEARING THE BELTPACK TRANSMITTER
Clip the receiver to a belt. For ultimate results, clip the
receiver onto a belt by pushing the receiver down onto
the belt as far as it goes.
For guitarists, attach the guitar strap ”through” the
receiver clip.
CHANGING THE BATTERIES
Expected life for two alkaline batteries is approxima-
tively 8 hours.
When the battery status indicator flashes red the
batteries should be changed immediately as show on
the left side. Please Insert 2 AA Alkaline batteries (LR6
1,5 V)
52 3 4
1

12
ENGLISHDEUTSCHFRANCAIS
WIRELESS RECEIVER MODULE:
8769 5 4 321
1IR WINDOW
Sends Infra Red signals to the transmitter (hand-
held Mic) in order to synchronize the frequencies
2POWER
Power switch and Volume controller
3ASC (SYNCHRONISATION)
To connect Receiver with Transmitter.
4MUTE LEVEL
Noise Mute adjust. Set on Factory setting. Do not
change this setting.
5AF
Shows if the module receives an audio signal
6RF
Shows if the module receives a radio signal
7UP
Channel Up
8DIGITAL DISPLAY
Digital channel display
9DOWN
Channel Down

13
ENGLISHDEUTSCHFRANCAIS

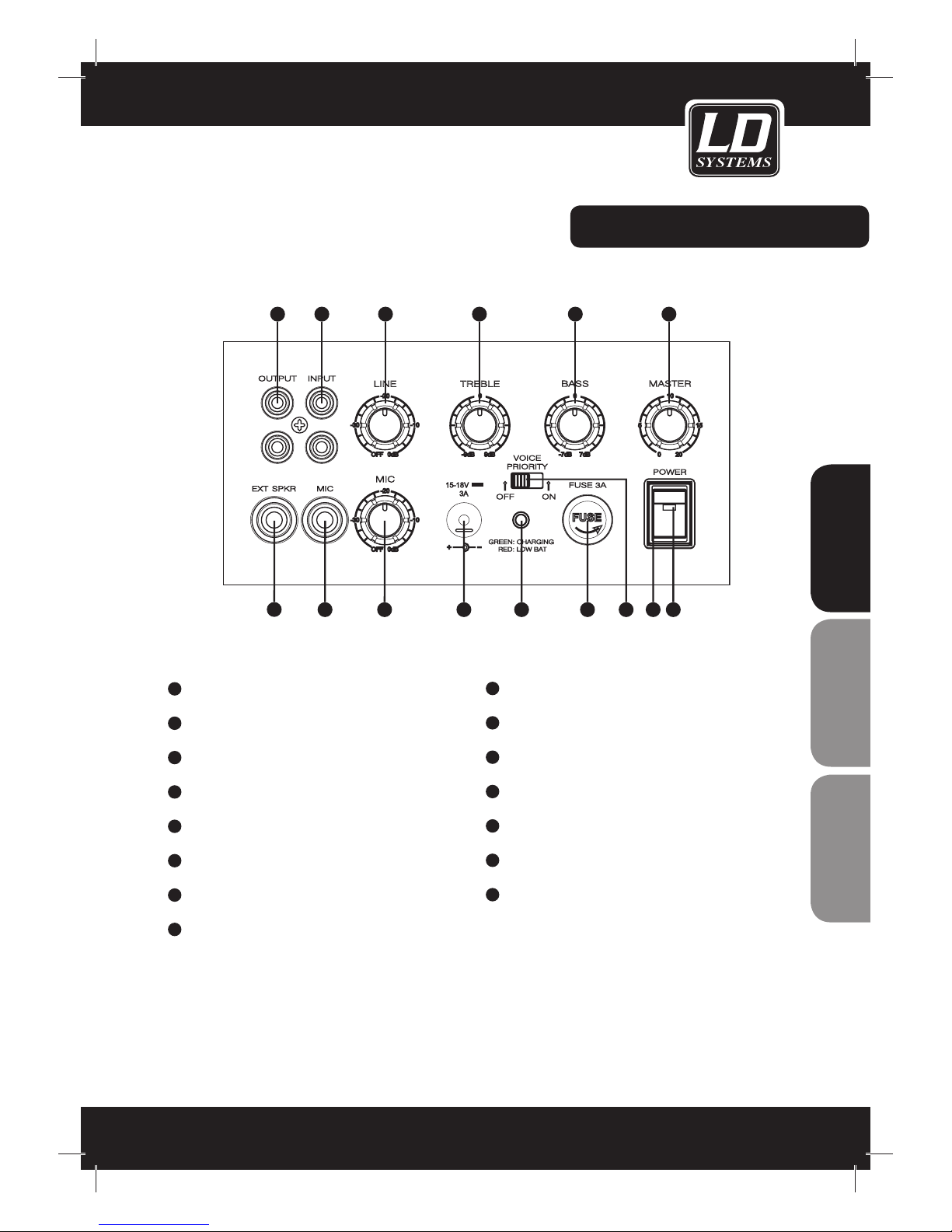

CONTROL PANEL:
9
1POWER SWITCH
2POWER INDICATOR LIGHT
3MASTER VOLUME
4BASS
5TREBLE
6LINE VOLUME
7RCA LINE IN
8RCA LINE OUT
9EXTERNAL SPEAKER OUTPUT
10 MICROPHONE INPUT
11 MICROPHONE ADJUST
12
DC INPUT INTERFACE
13
CHARGING / LOW BAT INDICATOR
14
FUSE
15
VOICE PRIORITY FUNCTION SWITCH
10 11 12 13 14 15 1 2
8 7 6 5 4 3

14
ENGLISHDEUTSCHFRANCAIS

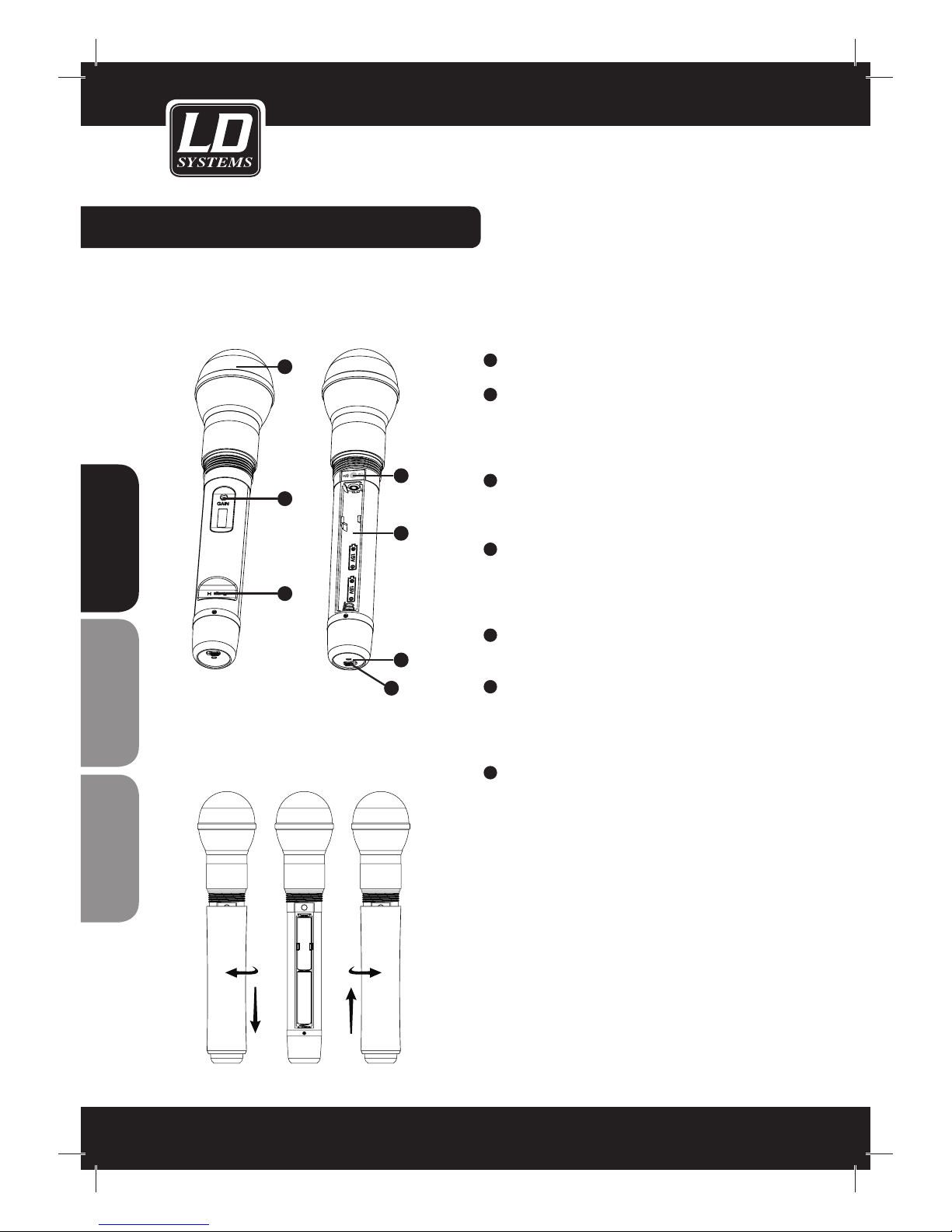

HANDHELD TRANSMITTER:
1MICROPHONE HEAD
2GAIN
Use this controller to adjust the microphone sensitivity.
Left decrease, right increase.
Factory settings should give you complete satisfaction.
3RF POWER SWITCH
H stands for High power signal, L for Low power
signal.
4IR PORT
Receives the Infra Red frequencies sent by the
receiver in order to synchronize and find the best
transmitting frequency.
5BATTERIES RACK
Please Insert 2 AA Alkaline batteries (LR6 1,5 V)
6POWER/ASC
Green light: Power On
Green flash: IR transmission in progress
Red flash: battery low
7ON/OFF SWITCH
CHANGING BATTERIES
Battery life is about 8 hours. If the Low Battery
indicator glows then change the batteries imme-
diately.
1
4
5
6
7
2
3

15
ENGLISHDEUTSCHFRANCAIS
TECHNICAL SPECIFICATIONS:
BASIC SPECIFICATIONS
Output power: MAX 25 W RMS / 4 Ω
Frequency response: 50Hz - 20KHz
Maximum sound pressure: 118dB
Speaker: 6.5-inch full range
Power: 200V-250V Switching power supply DC 16v/2A
Batteries: 12V / 2.9AH
THD: <0,5%
Size (W x H x D): 600 x 350 x 300
Weight: 5 kg
Receiver module: Freq: 863 MHz - 865 MHz
Operating time: 5 hours
CD PLAYER
Product type:
Compact disc digital audio system with mechanic &
electronic anti-shock CD, CD-R, CD-R/W, MP3, WMA,
USB, SD, MP3, WMA available.
Disc loading: Slot-in Type
Supply voltage: DC 12V (10~14V)
Power consumption: Within 5W
Dimensions (W x H x D): 160mm x 147,4mm x 68,5mm
Weight:1,2 kg
RECEIVER
Channels: 16
Carrier frequency range: 863MHz - 865MHz
Audio bandwidth: 60Hz - 16kHz
THD: <1%
Signal/noise ratio: >100dB
Modulation: FM
Dimensions: 212mm x 160mm x 44mm
Net weight: 860 g
Power requirements: 12-18volt DC / 300mA,
ext. power supply
WIRELESS MICROPHONE
Channels: 16
Carrier frequency range: 863MHz - 865MHz
Capsule type: Dynamic
Polar pattern: Cardioid
RF Output power: 10mW
Audio bandwidth: 60Hz - 16kHz
Signal/noise ratio: >102dB
Modulation: FM
Dimensions: 235mm x 54mm
Net weight: 280gr
Power requirements: 2x „AA“ -batteries
Battery Life: >10 hours
BELTPACK TRANSMITTER
Channels: 16
Carrier frequency range: 863MHz - 865MHz
RF Output power: 6mW
Max. input level: 6mV
Audio bandwidth: 60Hz - 16kHz
Signal/noise ratio: >102dB
Modulation: FM
Dimensions: 85mm x 65mm x 24mm
Net weight: 80gr
Power requirements: 2x „AA“ -batteries
Battery Life: >10 hours, depending on batteries

16
ENGLISHDEUTSCHFRANCAIS
SYSTEM SETTINGS AND OPERATIONS:
USING MICROPHONE
Insert the 6.3 mm Phone plug to „MIC“ -input jack on back panel and be sure that the microphone is connected
and the microphone is on. Use „MIC“ -level button to reach wanted balance between „MIC“ and „LINE“. Too much
„MIC“ -level can cause distortion (Overdrive).
USING WIRELESS MODULE
Turn the „POWER-VOL“ -button to half way. Keep „MASTER“ -level down on zero. Set up Frequency using „ASC“
-function. Press „ASC“ -button on back panel and hold microphone or belt pack transmitter close to back panel
and be sure that there is visible connection to „IR“ -infrared sensors. This takes a few seconds. Be sure that you
have other module on different frequency to avoid overtalking between modules. When you have „RF“ -light visible
on back panel, wireless microphone or transmitter is ready to use. When you use wireless microphone or transmit-
ter, then „AF“ -light is flashing. Open „MASTER“ -level button to get wanted volume level.
Maximum distance between the wireless microphone or transmitter and the receiver module is around 100m.
USING „EXT. SPEAKER“
Use 6,3mm phono jack speaker cable to connect external loudspeaker. Use 4 - 8 ohm / 25 watt type. Output of
amplifier is not protected for short circuit, so always keep phone jack connected to speaker to avoid short circuit.
Internal loudspeaker is not active when external loudspeaker is connected.
CHARGING ROADBOY
Use 16volt/12A power supply which is included with Roadboy to use it without batteries or to charge the batteries.
Charging time is 8 hours and charging procedure will be stopped automatically when battery is full.
IMPORTANT! When Roadboy is charged for first time, charging time should be 15 hours to guarantee
long battery life. This procedure should be repeated every 2-3 months. Before this charging procedure
battery should be empty. Batteries can be replaced only by qualified person.
If Roadboy should be permanent operated, then simply keep the Charger power supply connected to the Roadboy.

17
ENGLISHDEUTSCHFRANCAIS

"""""  #""""! """! "



=
(=0=(=0======"#==%"='"=#=== ";==#""=$#!?=#=#= =."#==="=#'".=="==="=====""=====&+"=======0='=0====%%%%==!=="##="#===&=!==""!=##/=#=#=== ";='?=&=="=&=:'&&/=#"==.+==."##==&=#%=&/==%#!&%%$$#%  %%!" %%!"  %%!"%%!"%%""!=====&;5==&&=="=&.&=#%=====),=0=66<=0==7"&#=&#'"8=7" &#=$;" 8==>6=0=46=0===7!=$"#=&8=7#"8==2,,,090=#=3==2,,,090==,

=#?=2,,,-=
========
==
*#?=12-1,-411,===*#?=12-1)-411,=
%%%%%%%%
$'"=0=#"=##=0=====#";=:=0=#"=##=0=#"#= 

LIMITED WARRANTY
This Limited Warranty applies to the Adam Hall, LD Systems, Defender, Palmer and Eminence branded products.
The statutory warranty rights towards the seller are not affected by this guarantee. In fact, it justifies, additional
independent warranty claims towards Adam Hall.
Adam Hall warrants that the Adam Hall product you have purchased from Adam Hall or from an Adam Hall autho-
rized reseller is free from defects in materials or workmanship under normal use for a period of 2 or 5 years from
the date of purchase.
The Limited Warranty Period starts on the date of purchase. In order to receive warranty services you are required
to provide proof of the purchase date. Your dated sales or delivery receipt, showing the date of purchase, is your
proof of the purchase date. Should products of the brands named above be in need of repair within the limited war-
ranty period, you are entitled to warranty services according to the terms and conditions stated in this document.
This Limited Warranty extends only to the original purchaser of this Adam Hall branded product and is not transfe-
rable to anyone who obtains ownership of the Adam Hall branded product from the original purchaser. During the
Limited Warranty Period, Adam Hall will repair or replace the defective component parts or the product. All compo-
nent parts or hardware products removed under this Limited Warranty become the property of Adam Hall.
In the unlikely event that your Adam Hall product has a recurring failure, Adam Hall, at its discretion, may elect to
provide you with a replacement unit of Adam Hall´s choice that is at least equivalent to your Adam Hall branded
product in hardware performance.
Adam Hall does not warrant that the operation of this product will be uninterrupted or error-free. Adam Hall is not
responsible for damage that occurs as a result of your failure to follow the instructions included with the Adam
Hall branded product.
This Limited Warranty does not apply,
- to wear parts (e.g. accumulator)
- to any product from which the serial number has been removed or that has been damaged or rendered defec
tive as the result of an accident
- in case of, misuse, abuse, or other external causes
- by operation outside the usage parameters stated in the user´s documentation shipped with the
product
- by use of spare parts not manufactured or sold by Adam Hall
- by modification or service by anyone other than Adam Hall
These terms and conditions constitute the complete and exclusive warranty agreement between you and Adam
Hall regarding the Adam Hall branded product you have purchased.
18
ENGLISHDEUTSCHFRANCAIS
MANUFACTURER´S DECLARATIONS:

MANUFACTURER´S DECLARATIONS:
19
ENGLISHDEUTSCHFRANCAIS
LIMITATION OF LIABILITY
If your Adam Hall branded hardware product fails to work as warranted above, your sole and exclusive remedy
shall be repair or replacement. Adam Halls’ maximum liability under this limited warranty is expressly limited
to the lesser of the price you have paid for the product or the cost of repair or replacement of any hardware
components that malfunction in conditions of normal use.
Adam Hall is not liable for any damages caused by the product or the failure of the product, including any lost
profits or savings or special, incidental, or consequential damages. Adam Hall is not liable for any claim made by
a third party or made by you for a third party.
This limitation of liability applies whether damages are sought, or claims are made, under this Limited Warranty
or as a tort claim (including negligence and strict product liability), a contract claim, or any other claim. This limi-
tation of liability cannot be waived or amended by any person. This limitation of liability will be effective even if
you have advised Adam Hall of an authorized representative of Adam Hall of the possibility of any such damages.
This limitation of liability however, will not apply to claims for personal injury.
This Limited Warranty gives you specific legal rights. You may also have other rights that may vary from state to
state or from country to country. You are advised to consult applicable state or country laws for a full determina-
tion of your rights.
REQUESTING WARRANTY-SERVICE
To request warranty service for the product, contact Adam Hall or the Adam Hall authorized reseller from which
you purchased the product.
EG-DECLARATION OF CONFIRMITY
These products meet the essential requirements as well as the further standards of the EU Directives 199/5/EU,
89/336/EU.
CORRECT DISPOSAL OF THIS PRODUCT (ELECTRICAL WASTE)
(Applicable in the European Union and other European countries with separate collection systems)
This marking shown on the product or its literature, indicates that it should not be disposed with other household
wastes at the end of its working life. To prevent possible harm to the environment or human health from uncon-
trolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the
sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local government
office, for details on where and how they can recycle this item in an enviromentally friendly manner.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This
product should not be mixed with other commercial wastes for disposal

20
ENGLISHDEUTSCHFRANCAIS
WEEE-DECLARATION
Your LD-Systems product was developed and manufactured with high quality materials and components wich
can be recycled and/or reused. This symbol indicates that electrical and electronic equipment must be disposed
of separately from normal waste at the end of its operational lifetime.
Please dispose of this product by bringing it to your local collection point or recycling centre for such equipment.
This will help to protect the environment in which we all live.
BATTERIES AND ACCUMULATORS
The supplied batteries or rechargeable batteries can be recycled. Please dispose of them as special waste or return
them to your specialist dealer. In order to protect the environment, only dispose exhausted batteries.
Adam Hall GmbH, all rights reserved. The technical data and the functional product characteristics can be subject
to modifications. The photocopying, the translation, and all other forms of copying of fragments or of the integral-
ity of this user’s manual is prohibited.
